Peugeot 308 2016 Repair Manual

59
308_en_Chap02_ouvertures_ed02-2015

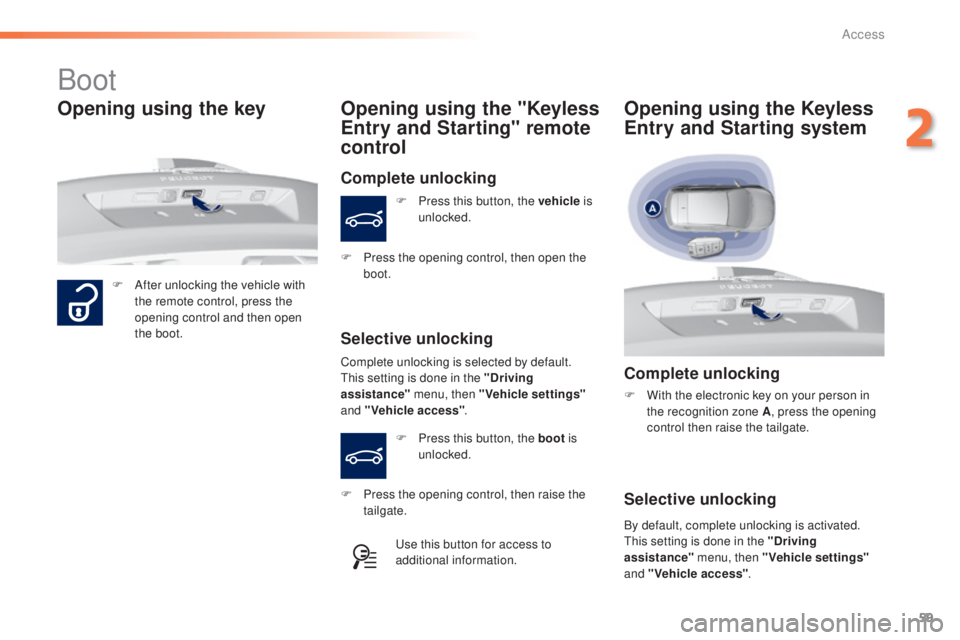

Boot
F After unlocking the vehicle with
the remote control, press the
opening control and then open
the boot.
Opening using the "Keyless
Entry and Starting" remote
control
F Press this button, the vehicle i s
unlocked.
Opening using the key
Complete unlocking is selected by default.thi s setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
Complete unlocking
Selective unlocking
F Press this button, the boot i s
unlocked.
use t

his button for access to
additional information.
F
Pr

ess the opening control, then open the
boot.
F
Pr

ess the opening control, then raise the
tailgate.
Complete unlocking
F With the electronic key on your person in
t he recognition zone A , press the opening
control then raise the tailgate.
Opening using the Keyless
Entry and Starting system
By default, complete unlocking is activated.thi s setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
Selective unlocking

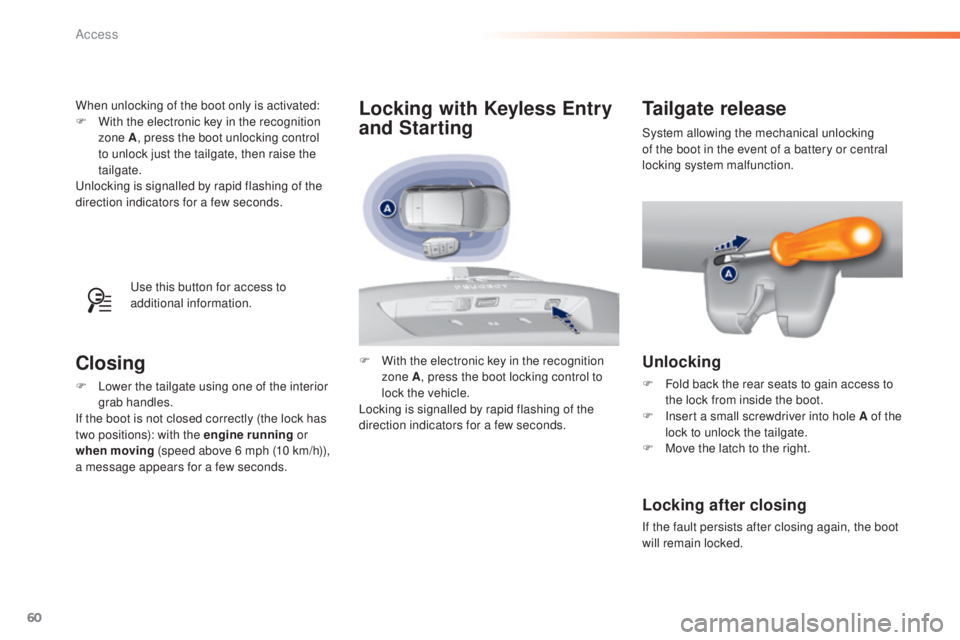

2
Access

60
308_en_Chap02_ouvertures_ed02-2015
When unlocking of the boot only is activated:
F With the electronic key in the recognition
zone A , press the boot unlocking control
to unlock just the tailgate, then raise the
tailgate.
unl

ocking is signalled by rapid flashing of the
direction indicators for a few seconds.
use t

his button for access to
additional information.
Closing
F Lower the tailgate using one of the interior
g rab handles.
If the boot is not closed correctly (the lock has
two positions): with the engine running or
when moving (speed above 6 mph (10 km/h)),
a message appears for a few seconds.
Tailgate release
Unlocking
F Fold back the rear seats to gain access to
t he lock from inside the boot.
F
In

sert a small screwdriver into hole A of the
lock to unlock the tailgate.
F
Mov

e the latch to the right.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
F
Wi

th the electronic key in the recognition
zone A , press the boot locking control to
lock the vehicle.
Locking is signalled by rapid flashing of the
direction indicators for a few seconds.
Locking with Keyless Entry
and Starting
Access

61
308_en_Chap02_ouvertures_ed02-2015
Back-up key
Unlocking/locking using the
integral key with Keyless
Entry and Starting
the integral key is used to lock and unlock the
v ehicle when the electronic key cannot operate:
-
ce

ll battery flat, vehicle battery discharged
or disconnected, ...
-
ve

hicle located in an area with strong
electromagnetic signals.
F
Ma

intain a pull on button 1 , to extract the
integral key 2 .
Locking the driver's door
F Insert the integral key in the door lock, then
t
urn it to the rear.
Unlocking the driver's door
F Insert the integral key in the door lock, then
turn it to the front.
Locking the passenger doors
F Open the doors.
F Fo r the rear doors, check that the child lock
is not on.
F
In

sert the integral key in the latch located
on the edge of the door and turn it an
eighth of a turn to the right for the right
hand door, and to the the left for the left
hand door.
F
Cl

ose the doors and check that the vehicle
has locked correctly from the outside.
If the alarm is activated, the audible
signal on opening a door with the key
(integral with the remote control) will
stop when the ignition is switched on.
Unlocking the passenger doors
F Pull the interior door opening control.
F
or more information on the child lock,
refer to the corresponding section.
2
Access

62
308_en_Chap02_ouvertures_ed02-2015

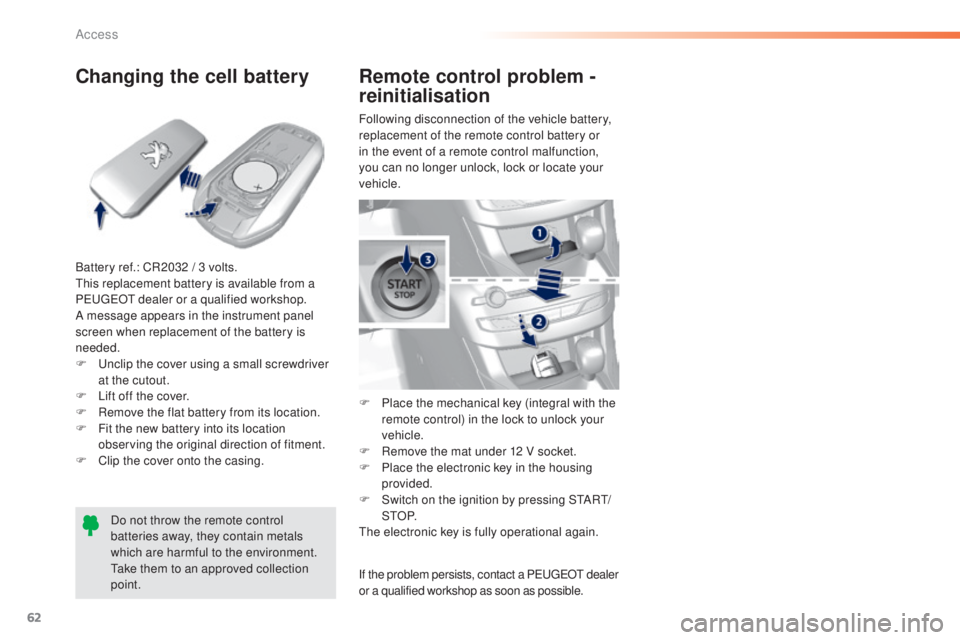

Changing the cell battery
Battery ref.: CR2032 / 3 volts.this replacement battery is available from a
P
eu

ge
Ot d
ealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
F


u
nc
lip the cover using a small screwdriver
at the cutout.
F
Li

ft off the cover.
F
Re

move the flat battery from its location.
F
Fi

t the new battery into its location
observing the original direction of fitment.
F
Cl

ip the cover onto the casing.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
tak

e them to an approved collection
point. Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F
Pl

ace the mechanical key (integral with the
remote control) in the lock to unlock your
vehicle.
F
Re

move the mat under 12 V socket.
F
Pl

ace the electronic key in the housing
provided.
F
Sw

itch on the ignition by pressing S
tARt/
StO P.the

electronic key is fully operational again.
Remote control problem -
reinitialisation
If the problem persists, contact a PeugeOt d ealer
or a qualified workshop as soon as possible.
Access

63
308_en_Chap02_ouvertures_ed02-2015

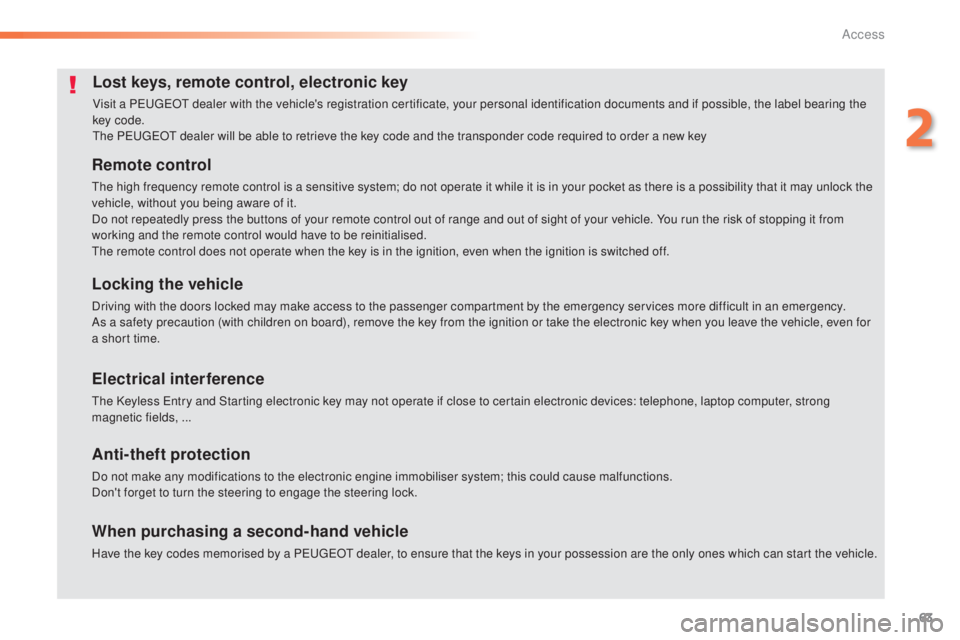

Lost keys, remote control, electronic key
Visit a PeugeOt dealer with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the
key code.
the Peu

ge
Ot d
ealer will be able to retrieve the key code and the transponder code required to order a new key
Remote control
the high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
v ehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
the r

emote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.
Electrical interference
the Keyless ent ry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a Peu geOt d ealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
2
Access

64
308_en_Chap02_ouvertures_ed02-2015

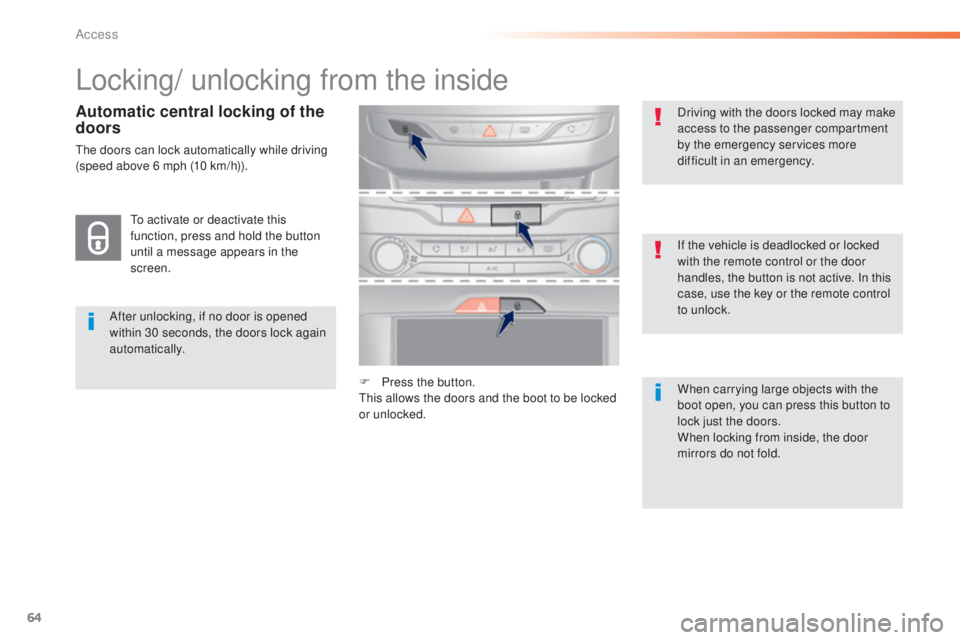

Locking/ unlocking from the inside
After unlocking, if no door is opened
within 30 seconds, the doors lock again
automatically.If the vehicle is deadlocked or locked
with the remote control or the door
handles, the button is not active. In this
case, use the key or the remote control
to unlock. Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.
F
Pr
ess the button.
thi

s allows the doors and the boot to be locked
or unlocked. When carrying large objects with the
boot open, you can press this button to
lock just the doors.
When locking from inside, the door
mirrors do not fold.
to ac
tivate or deactivate this
function, press and hold the button
until a message appears in the
screen.
Automatic central locking of the
doors
the doors can lock automatically while driving
( speed above 6 mph (10 km/h)).
Access

65
308_en_Chap02_ouvertures_ed02-2015

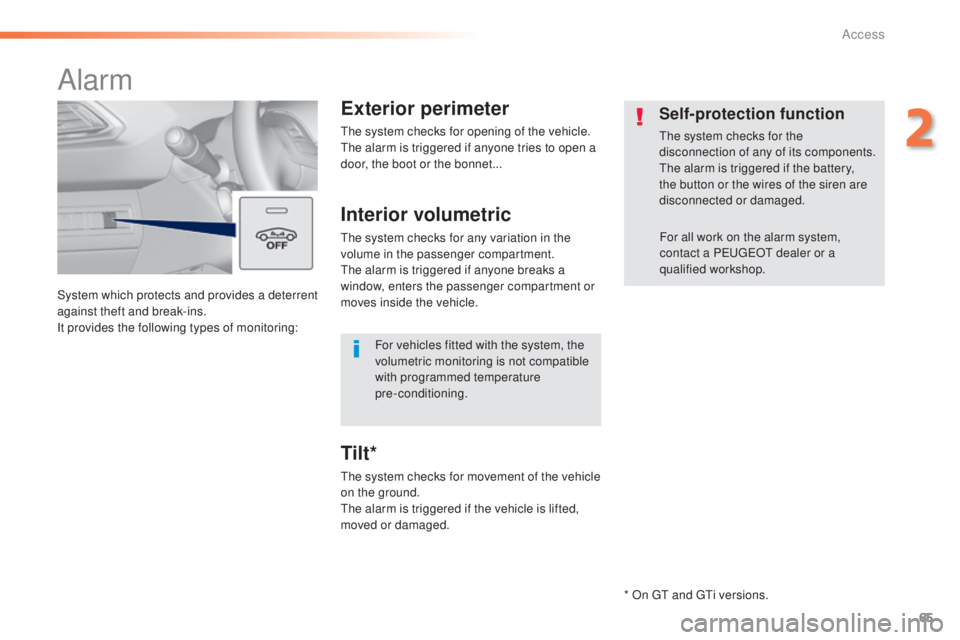

System which protects and provides a deterrent
against theft and break-ins.
It provides the following types of monitoring:
Alarm
Exterior perimeter
the system checks for opening of the vehicle.the alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
Self-protection function
the system checks for the
d isconnection of any of its components.
the a

larm is triggered if the battery,
the button or the wires of the siren are
disconnected or damaged.
For all work on the alarm system,
contact a P
eu

ge
Ot d
ealer or a
qualified workshop.
Interior volumetric
the system checks for any variation in the
v olume in the passenger compartment.
the a

larm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
the s

ystem checks for movement of the vehicle
on the ground.
the a

larm is triggered if the vehicle is lifted,
moved or damaged.
Tilt*
For vehicles fitted with the system, the
volumetric monitoring is not compatible
with programmed temperature
pre-conditioning.
* On
g

t
a
nd
g
t
i ve
rsions.
2
Access

66
308_en_Chap02_ouvertures_ed02-2015

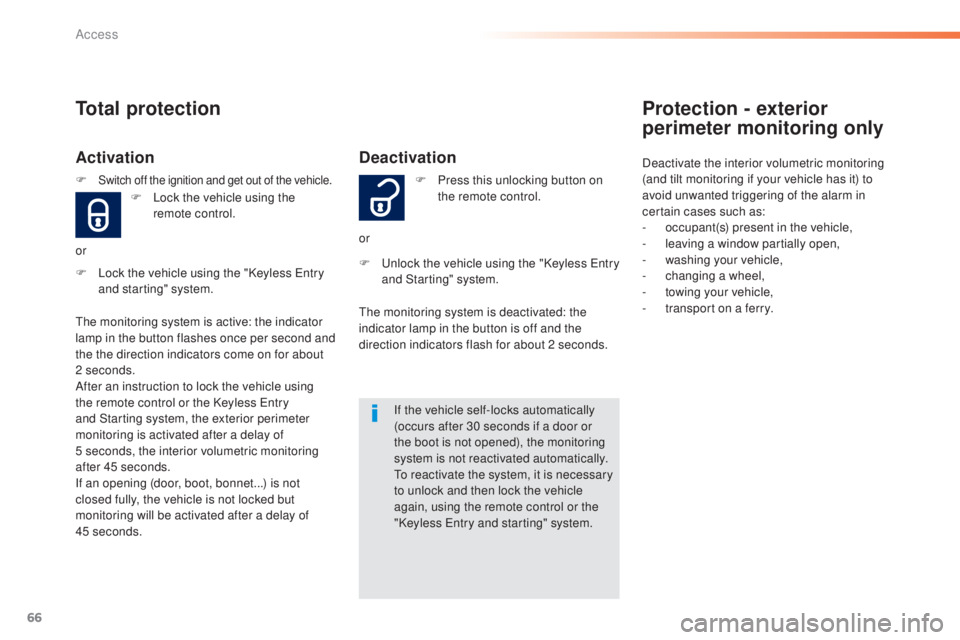

Deactivation
F Lock the vehicle using the "Keyless entry
and starting" system. F
Pr

ess this unlocking button on
the remote control.
or
F unl ock the vehicle using the "Keyless ent ry
and Starting" system.
If the vehicle self-locks automatically
(occurs after 30 seconds if a door or
the boot is not opened), the monitoring
system is not reactivated automatically.
to re

activate the system, it is necessary
to unlock and then lock the vehicle
again, using the remote control or the
"Keyless
ent

ry and starting" system.
the m
onitoring system is deactivated: the
indicator lamp in the button is off and the
direction indicators flash for about 2 seconds.
Total protection
Activation
F Lock the vehicle using the
r emote control.
or
the m

onitoring system is active: the indicator
lamp in the button flashes once per second and
the the direction indicators come on for about
2 seconds.
After an instruction to lock the vehicle using
the remote control or the Keyless
ent

ry
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5
s

econds, the interior volumetric monitoring
after 45 seconds.
If an opening (door, boot, bonnet...) is not
closed fully, the vehicle is not locked but
monitoring will be activated after a delay of
45
se

conds.
F
Switch off the ignition and get out of the vehicle.
Protection - exterior
perimeter monitoring only
Deactivate the interior volumetric monitoring
(and tilt monitoring if your vehicle has it) to
avoid unwanted triggering of the alarm in
certain cases such as:
-
oc

cupant(s) present in the vehicle,
-
le

aving a window partially open,
-
was

hing your vehicle,
-
chan

ging a wheel,
-
to

wing your vehicle,
-
tr

ansport on a ferry.
Access

67
308_en_Chap02_ouvertures_ed02-2015

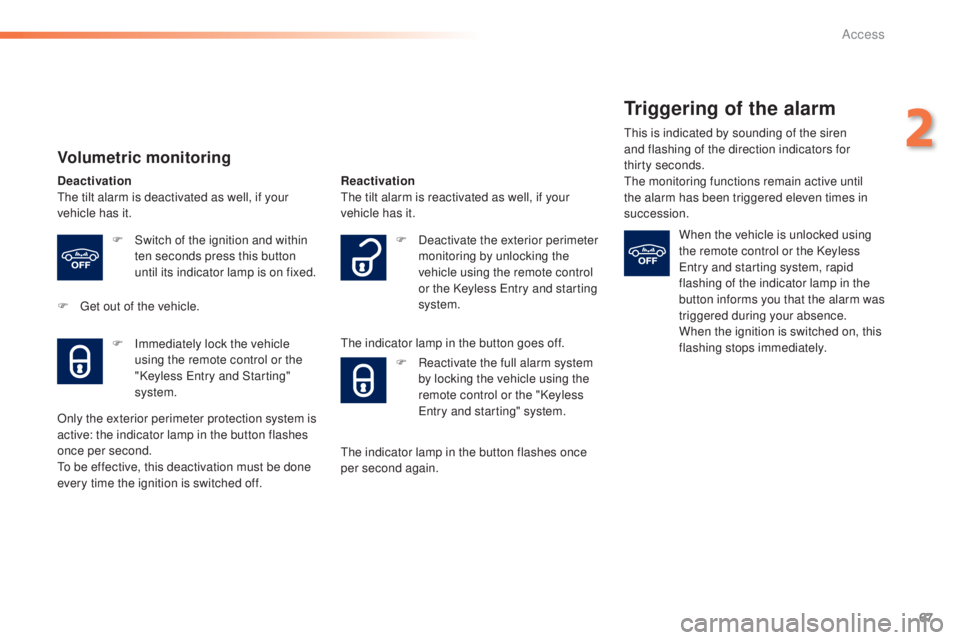

Volumetric monitoring
Deactivationthe tilt alarm is deactivated as well, if your
vehicle has it.
F
Sw

itch of the ignition and within
ten seconds press this button
until its indicator lamp is on fixed.
F


g
et o
ut of the vehicle. Reactivationthe t
ilt alarm is reactivated as well, if your
vehicle has it.
the i

ndicator lamp in the button goes off.
F
Im

mediately lock the vehicle
using the remote control or the
"Keyless
ent

ry and Starting"
system.
Only the exterior perimeter protection system is
active: the indicator lamp in the button flashes
once per second.
to be e

ffective, this deactivation must be done
every time the ignition is switched off. F
Dea

ctivate the exterior perimeter
monitoring by unlocking the
vehicle using the remote control
or the Keyless
ent

ry and starting
system.
F
Re

activate the full alarm system
by locking the vehicle using the
remote control or the "Keyless
ent

ry and starting" system.
the i

ndicator lamp in the button flashes once
per second again.
Triggering of the alarm
this is indicated by sounding of the siren
a nd flashing of the direction indicators for
thirty
s

econds.
the m

onitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using
the remote control or the Keyless
ent

ry and starting system, rapid
flashing of the indicator lamp in the
button informs you that the alarm was
triggered during your absence.
When the ignition is switched on, this
flashing stops immediately.
2
Access

68
308_en_Chap02_ouvertures_ed02-2015

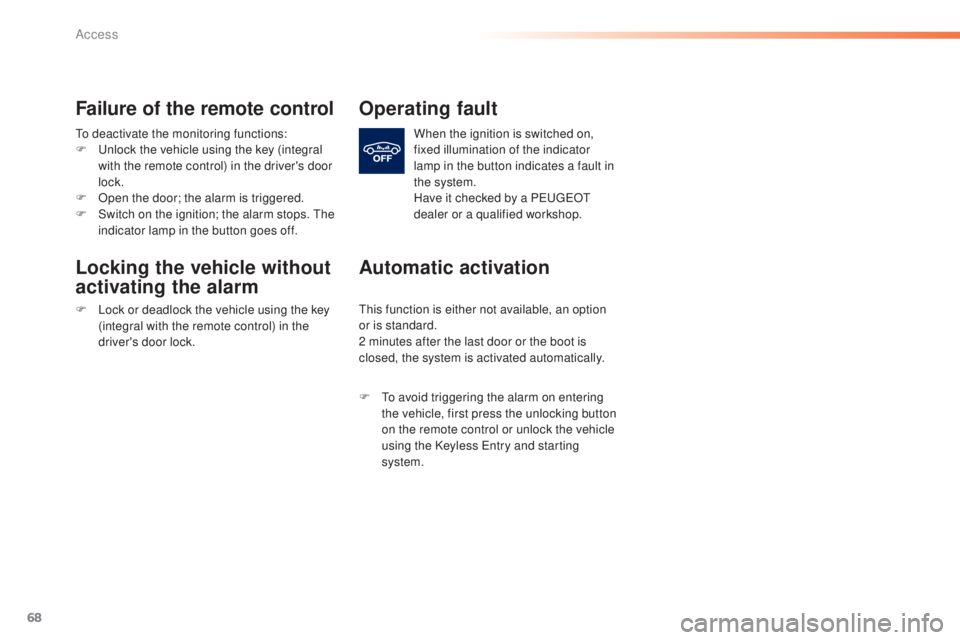

Failure of the remote control
to deactivate the monitoring functions:
F unl ock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F
Op

en the door; the alarm is triggered.
F
Sw

itch on the ignition; the alarm stops.
the
i

ndicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key
( integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on,
fixed illumination of the indicator
lamp in the button indicates a fault in
the system.
Have it checked by a P
eu

ge
Ot
d

ealer or a qualified workshop.
Automatic activation
this function is either not available, an option
o r is standard.
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F


t
o av
oid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless
ent

ry and starting
system.
Access
