Peugeot 308 2017 Owner's Manual - RHD (UK, Australia)

139

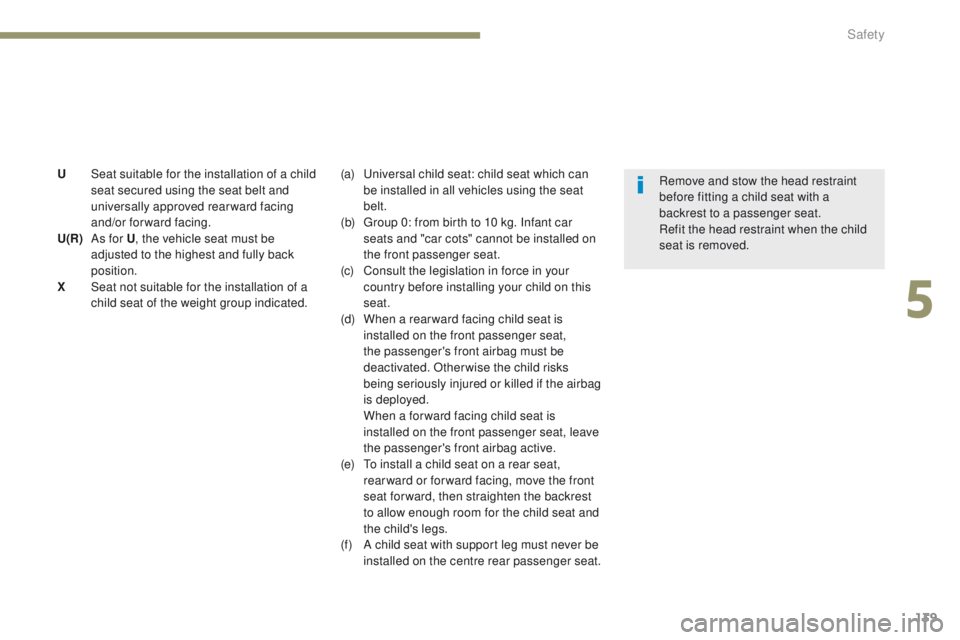

U Seat suitable for the installation of a child seat secured using the seat belt and
universally approved rear ward facing
and/or forward facing.
U(R)
A

s for U, the vehicle seat must be
adjusted to the highest and fully back
position.
X

S
eat not suitable for the installation of a
child seat of the weight group indicated. Remove and stow the head restraint
before fitting a child seat with a
backrest to a passenger seat.
Refit the head restraint when the child
seat is removed.
(a)
un iversal child seat: child seat which can
be installed in all vehicles using the seat
belt.
(b)
g
r
oup 0: from birth to 10 kg. Infant car
seats and "car cots" cannot be installed on
the front passenger seat.
(c)

C
onsult the legislation in force in your
country before installing your child on this
seat.
(d)

W
hen a rear ward facing child seat is
installed on the front passenger seat,
the passenger's front airbag must be
deactivated. Otherwise the child risks
being seriously injured or killed if the airbag
is deployed.
W

hen a for ward facing child seat is
installed on the front passenger seat, leave
the passenger's front airbag active.
(e)
t
o i
nstall a child seat on a rear seat,
rear ward or for ward facing, move the front
seat for ward, then straighten the backrest
to allow enough room for the child seat and
the child's legs.
(f)

A c
hild seat with support leg must never be
installed on the centre rear passenger seat.
5
Safety

140

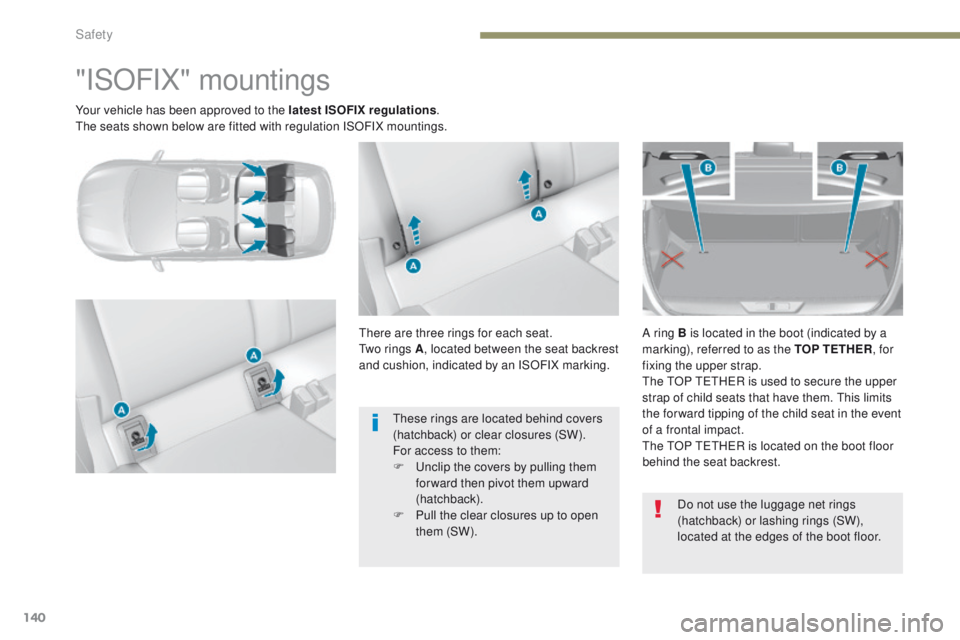

Your vehicle has been approved to the latest ISOFIX regulation s.th
e seats shown below are fitted with regulation ISOFIX mountings.
"ISOFIX" mountings
there are three rings for each seat.tw o rings A , located between the seat backrest
and cushion, indicated by an ISOFIX marking. A ring B is located in the boot (indicated by a
marking), referred to as the TOP TETHER
, for
fixing the upper strap.
th

e t
O
P tet
HeR i
s used to secure the upper
strap of child seats that have them.
t
h
is limits
the for ward tipping of the child seat in the event
of a frontal impact.
th

e t
O
P tet
HeR i
s located on the boot floor
behind the seat backrest.
Do not use the luggage net rings
(hatchback) or lashing rings (SW),
located at the edges of the boot floor.
th

ese rings are located behind covers
(hatchback) or clear closures (SW).
For access to them:
F
u
n
clip the covers by pulling them
forward then pivot them upward
(hatchback).
F

P
ull the clear closures up to open
them (SW).
Safety

141
the incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Observe strictly the fitting instructions
provided with the child seat.
to s

ecure the child seat to the TOP TETHER
:
-

r

emove and stow the head restraint before
installing the child seat on the vehicle seat
(refit it when the child seat is removed),
-

p

ass the child seat upper strap over the top
of the seat backrest, centring it between
the apertures for the head restraint rods,
-

a

ttach the upper strap to the ring B,
-

t

ighten the upper strap.
If your vehicle has a spare wheel of the same
size as the four wheels, follow the procedure
below:
F p ass the strap and buckle over the boot
floor (in the slot),
F

r
aise the boot floor,
F

l
ift out the upper storage box, located
alongside the wheel,
F

a
ttach the spring hook to the TOP TETHER
ring,
F

r
efit the storage box and boot floor.
th

is ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
th

e ISOFIX child seats are fitted with two
latches which are easily secured on the two
rings A .
Some also have an upper strap which is
attached to ring B . For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table showing
the locations for installing ISOFIX child
seats.
5
Safety

142
ISOFIX child seats recommended by PeugeOt
PeugeOt offers a range of ISOFIX child seats listed and type approved for your vehicle.
Refer also to the child seat manufacturer's fitting instructions for information on installing and removing the seat.
"RÖMER Baby- Safe Plus" and its ISOFIX base (size category: E)
Group 0+: from bir th to 13 kg
Installed rearward facing using an ISOFIX
base which is attached to the rings A .
th

e base has a support leg, adjustable for
height, which sits on the vehicle's floor.
th

is child seat can also be secured with a
seat belt. In this case, only the shell is used
and attached to the vehicle's seat by the
three-point seat belt. "
Baby P2C Midi" and its ISOFIX base
(size categories: D, C, A, B, B1
)
Group 1: from 9 to 18 kg
Installed rearward facing using an ISOFIX
base which is attached to the rings A .
th

e base has a support leg, adjustable for
height, which sits on the vehicle's floor.
th

is child seat can also be used for ward
facing.
th

is seat can not be secured with a seat
belt.
We recommend that you use the seat in the
rear ward facing position up to the age of 3 years.
"RÖMER Duo Plus ISOFIX" (size category: B1 )
Group 1: from 9 to 18 kg
Is installed only in the for ward facing
position.
Is attached to the rings A and the upper
ring

B , referred to as the
t
O
P tet
HeR
,
using an upper strap.
th

ree seat body angles: sitting, reclining,
lying down.
th

is child seat can also be used on seats
not equipped with ISOFIX mountings. In
this case, it must be secured to the vehicle's
seat by the three-point seat belt. Adjust the
position of the vehicle's front seat so that the
child's feet are not touching the backrest.
Safety

143

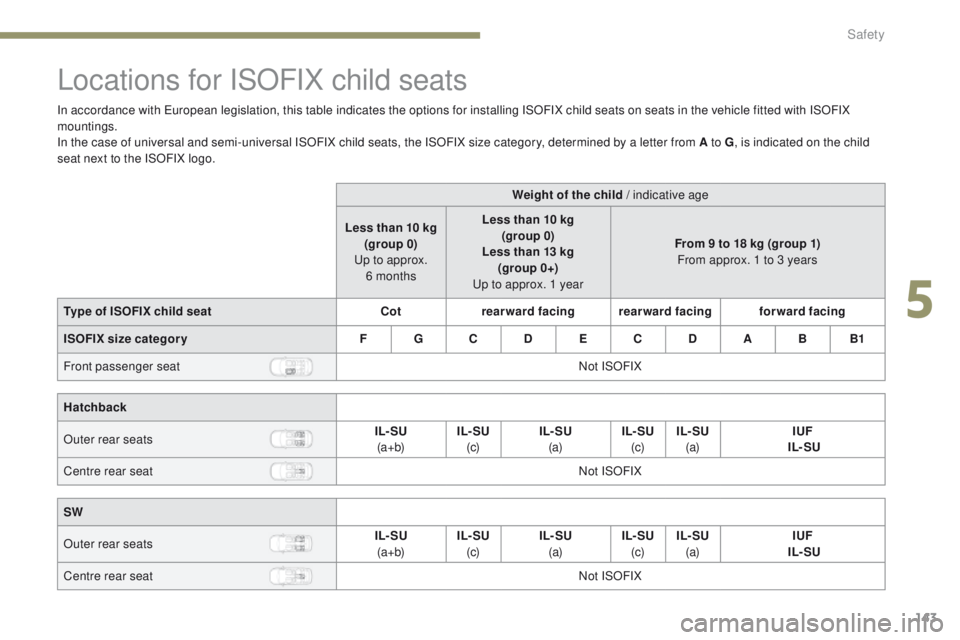

Locations for ISOFIX child seats
In accordance with european legislation, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is indicated on the child
seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0)
u

p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Front passenger seat Not ISOFIX
Hatchback
Outer rear seats IL- SU

(a+b) IL- SU

(c) IL- SU

(a) IL- SU

(c) IL- SU

(a) IUF

IL- SU
Centre rear seat Not ISOFIX
SW
Outer rear seats IL- SU

(a+b) IL- SU

(c) IL- SU

(a) IL- SU

(c) IL- SU

(a) IUF

IL- SU
Centre rear seat Not ISOFIX
5
Safety

144
IUF Seat suitable for the installation of an Isofix U niversal seat, F or ward facing
secured using the upper strap.
IL- SU
S

eat suitable for the installation of an
I sofix S emi-Universal seat either:
-

r
ear ward facing fitted with an upper strap
or a support leg,
-

f
or ward facing fitted with a support leg,
-

a
n infant car seat fitted with an upper strap
or a support leg. For more information on ISOFIX
mountings and child seats
and in
particular the upper strap, refer to the
corresponding section.
X

S
eat not suitable for the installation of a
child seat of the weight group indicated.
(a)

M
ove a seat without height adjustment
for wards by 1 notch from the mid position
for wards and backwards. A seat with
height adjustment must be in the highest
position.
(b)
t
h
e installation of an infant carrier on one
of the outer seats makes use of the other
two seats impossible.
(c)

A s
eat with height adjustment must be
placed in the highest position. Move the
seat without height adjustment for ward by
5 notches from the mid-position for wards
and backwards. Remove and stow the head restraint
before fitting a child seat with a
backrest to a passenger seat.
Refit the head restraint when the child
seat is removed.
Child lock
this mechanical system prevents opening of a
rear door using its interior control.
th

e control is located on the edge of each rear
door and locking is independent for each door.
Locking
F using the integral ignition key, turn the control as far as it will go:
-

t
o the left on the left-hand rear door,
-

t
o the right on the right-hand rear door.
Unlocking
F using the integral ignition key, turn the control as far as it will go:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
Safety

145
Child seatsInstalling a booster
cushion
Recommendations
the legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
the country in which you are driving.
Deactivate the passenger front airbag when
a rear ward facing child seat is installed on
the front passenger seat. Otherwise, the
child would risk being seriously injured or
killed if the airbag were deployed. For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, or in contact if possible.
th
e head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
en
sure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed.
th

e incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it forward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Children at the front
the chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
en

sure that the lap part of the seat belt
passes correctly over the child's thighs.
P
e

uge
Ot
recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
to p

revent accidental opening of the doors,
use the child lock.
ta

ke care not to open the rear windows by
more than one third.
to p

rotect young children from the rays of
the sun, fit side blinds on the rear windows.
5
Safety

146

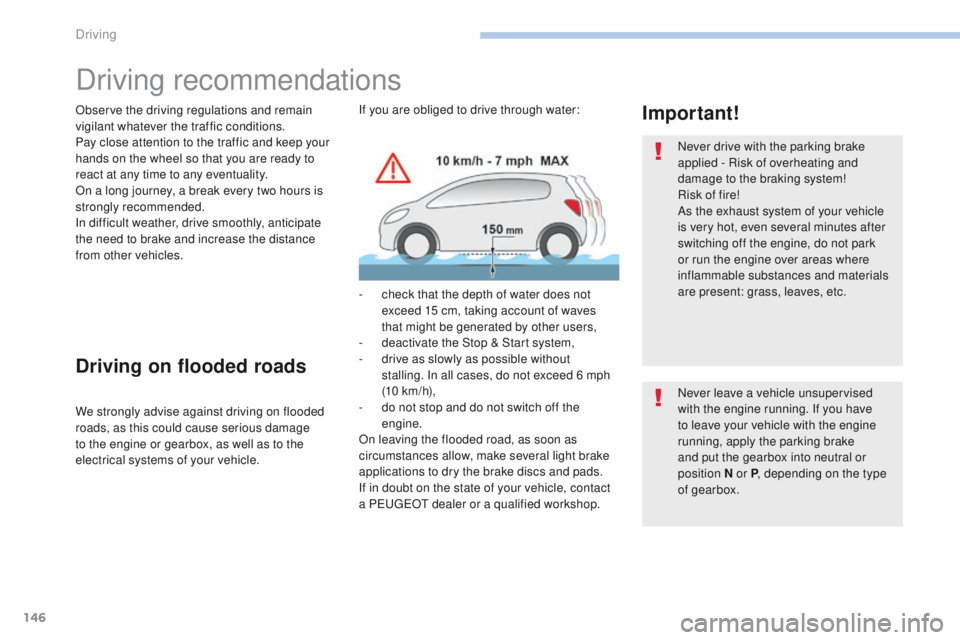

Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park
or run the engine over areas where
inflammable substances and materials
are present: grass, leaves, etc.
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N or P, depending on the type
of gearbox.
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Important!If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10


km/h),
-

d
o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a P
e

uge
Ot
dealer or a qualified workshop.
Driving

147
When towing
Distribution of loads
F Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F take into account the increased sensitivity to side wind.
Cooling
towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F
t
o l
ower the engine speed, reduce your
speed.
th

e maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
towing a trailer increases the braking distance.to a void overheating of the brakes, the use of
engine braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the headlamp beam
height of your vehicle.
For more information on Weights
, refer
to the corresponding section.
th

e rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine P
e

uge
Ot

towbar is used. For more information on Adjusting the
headlamp beam height
, refer to the
corresponding section.
6
Driving

148

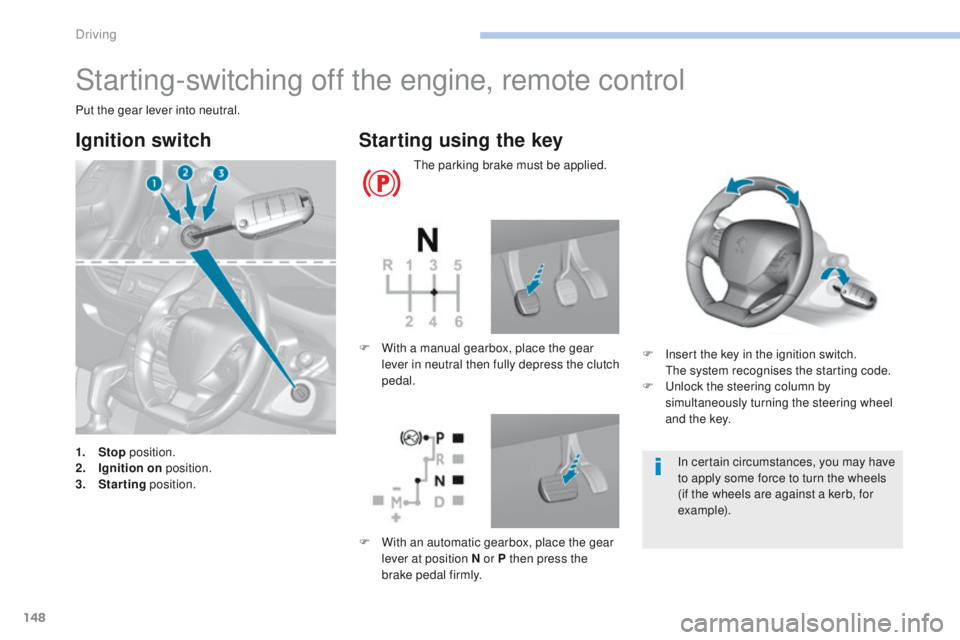

Starting-switching off the engine, remote control
Put the gear lever into neutral.
Ignition switch
1. Stop position.
2. I gnition on position.
3.
S

tarting position.
Starting using the key
the parking brake must be applied.
F
I
nsert the key in the ignition switch.


t
h
e system recognises the starting code.
F
u
n
lock the steering column by
simultaneously turning the steering wheel
and the key.
F

W

ith a manual gearbox, place the gear
lever in neutral then fully depress the clutch
pedal.
In certain circumstances, you may have
to apply some force to turn the wheels
(if the wheels are against a kerb, for
example).
F

W

ith an automatic gearbox, place the gear
lever at position N or P then press the
brake pedal firmly.
Driving
