219
System which manages the duration of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum
combined duration of about forty minutes.
energy economy mode
Switching to economy
mode
A message appears in the instrument panel
screen indicating that the vehicle has switched
to economy mode and the active functions are
put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.
Exiting economy mode
these functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
-

f
or less than ten minutes, to use the
equipment for approximately five minutes,
-

f
or more than ten minutes, to use the
equipment for up to approximately
thirty


minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from starting.
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
th

e deactivated functions are reactivated
automatically as soon as conditions permit.
For more information on the 12 V
battery , refer to the corresponding
section.
7
Practical information

220
"Multimedia"
Multimedia support, hands-free kit, DVD player,
driving aids, vehicle tracking system, ...
Accessories
A wide range of accessories and genuine parts is available from the PeugeOt dealer network.th
ese accessories and parts are all suitable for your vehicle and benefit from Pe ugeOt' s recommendation and warranty.
"Transport solutions"
Boot liners, roof bars, bicycle carrier on roof
bars, ski carrier, roof box, towbar harness, ...
to

w bar, which mst be fitted by P
e
uge
Ot

dealer or a qualified workshop.
Conversion kits
You can obtain an "en terprise" kit to convert a
trade vehicle to a private car and vice-versa.
"Styling"
alloy wheels from 15 inch to 18 inch, finishers
for wheels, door sills, gear lever knobs, ...
"Ligne S": 16 and 17 inch alloy wheels, body
kit, stickers, interior and exterior mirror shells,
gear lever knob, door sills, mats*, …
"Comfort"
Door deflectors, side blinds and rear blind,
cigarette lighter, boot dividers, coat hanger
fixed to head restraint, front centre armrest,
under shelf storage, front and rear parking
sensors, styling mudflaps, window film, boot
management system, ...
*
t
o a
void any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
"Security and safety"
Anti-theft alarm, window engraving, wheel
security bolts, child seats and booster
cushions, breathalyzer, first aid kit, warning
triangle, high visibility jacket, stolen vehicle
tracking system, temporary puncture repair kit,
snow chains, non-slip covers, front foglamps
kit, dog guard, ...
"Protection"
Mats*, seat covers compatible with lateral
airbags, mud flaps, side protection rubbing
strips, bumper protection rubbing strips,
bumper protectors, boot sill finishers, boot
mat,

...
Practical information

221
the fitting of electrical equipment
or accessories which are not
recommended by P
e
uge
Ot
may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Contact a P
e

uge
Ot
dealer
for information on the range of
recommended equipment and
accessories.

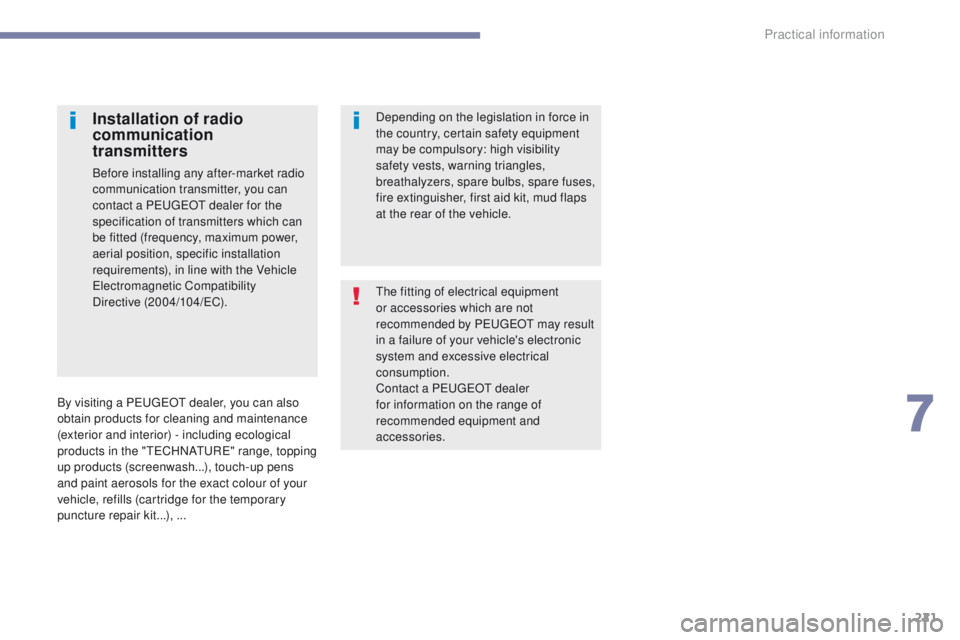

Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a P
e

uge
Ot
dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
el

ectromagnetic Compatibility
Directive


(2004/104/
eC
). Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
By visiting a P
e

uge
Ot
dealer, you can also
obtain products for cleaning and maintenance
(exterior and interior) - including ecological
products in the "
t

e
C
HNA
t
u
Re" r
ange, topping
up products (screenwash...), touch-up pens
and paint aerosols for the exact colour of your
vehicle, refills (cartridge for the temporary
puncture repair kit...), ...
7
Practical information

222
Changing a wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on
the


windscreen.
Removing
F Raise the corresponding wiper arm.
F un clip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F

F
old down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.
Before removing a front
wiper blade
Do not fit an accessory carrier to the
tailgate.
Bicycle / accessory
carrier
Practical information

223

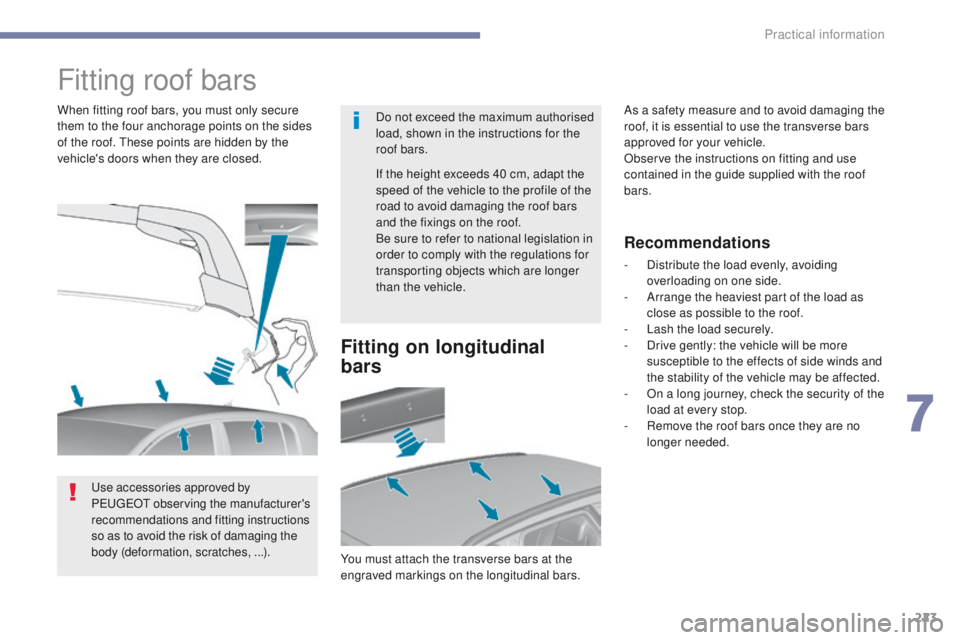

Fitting roof bars
Do not exceed the maximum authorised
load, shown in the instructions for the
roof bars.
When fitting roof bars, you must only secure
them to the four anchorage points on the sides
of the roof.
t
h

ese points are hidden by the
vehicle's doors when they are closed.
us

e accessories approved by
P
e

uge
Ot o

bserving the manufacturer's
recommendations and fitting instructions
so as to avoid the risk of damaging the
body (deformation, scratches, ...). If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.
Fitting on longitudinal
bars
You must attach the transverse bars at the
engraved markings on the longitudinal bars.As a safety measure and to avoid damaging the
roof, it is essential to use the transverse bars
approved for your vehicle.
Observe the instructions on fitting and use
contained in the guide supplied with the roof
bars.
Recommendations
- Distribute the load evenly, avoiding
overloading on one side.
-

A
rrange the heaviest part of the load as
close as possible to the roof.
-

L
ash the load securely.
-

D
rive gently: the vehicle will be more
susceptible to the effects of side winds and
the stability of the vehicle may be affected.
-

O
n a long journey, check the security of the
load at every stop.
-

R
emove the roof bars once they are no
longer needed.
7
Practical information

RECOMMENDS
PEUGEOT & TOTAL,
A PARTNERSHIP TO DELIVER BETTER
PERFORMANCE!
2015 was marked by PEUGEOT's return to Rally-Raid,
one of the most difficult motorsport disciplines in the
world. To obtain the best performance in these trials,
PEUGEOT Sport chose TOTAL QUARTZ for the
PEUGEOT 2008 DKR, a lubricant of high technology
which protects the engine in the most severe
conditions.
TOTAL QUARTZ protects your engine against the effects
of time.
TOTAL QUARTZ Ineo First is a high performance lubricant,
the result of work done together by PEUGEOT and TOTAL
R&D. Specially formulated for the engines in PEUGEOT
vehicles, its innovative technology significantly
reduces CO
2 emissions and keeps your engine clean.

225

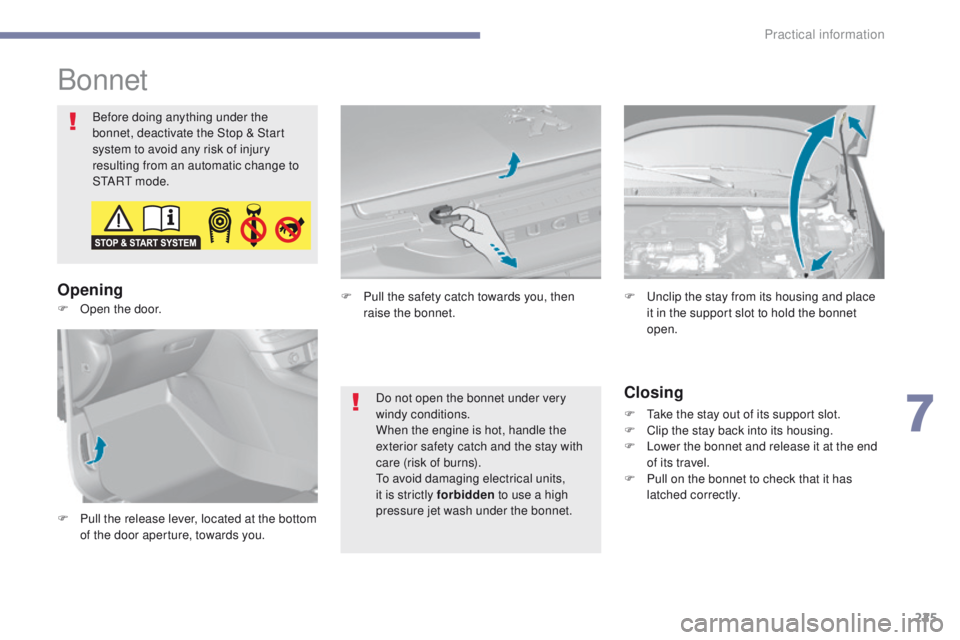

Bonnet
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
S
t
A R
t m
o d e .
Opening
Closing
F take the stay out of its support slot.
F C lip the stay back into its housing.
F

L
ower the bonnet and release it at the end
of its travel.
F

P
ull on the bonnet to check that it has
latched correctly.
F
u
n
clip the stay from its housing and place
it in the support slot to hold the bonnet
open.
Do not open the bonnet under very
windy conditions.
When the engine is hot, handle the
exterior safety catch and the stay with
care (risk of burns).
to

avoid damaging electrical units,
it is strictly forbidden to use a high
pressure jet wash under the bonnet.
F

P

ull the safety catch towards you, then
raise the bonnet.
F

O

pen the door.
F

P

ull the release lever, located at the bottom
of the door aperture, towards you.
7
Practical information

226

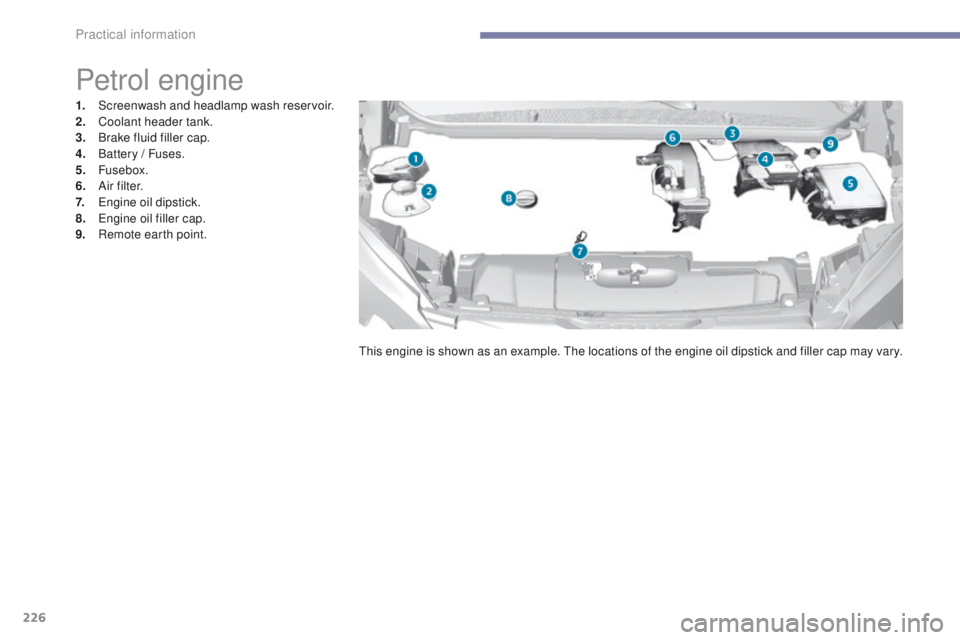

Petrol engine
1. Screenwash and headlamp wash reservoir.
2. Coolant header tank.
3.
B

rake fluid filler cap.
4.
B

attery / Fuses.
5.


Fusebox.
6.
A

i r f i l t e r.
7.


e
n
gine oil dipstick.
8.


e
n
gine oil filler cap.
9.
R

emote earth point.
th

is engine is shown as an example. t
h
e locations of the engine oil dipstick and filler cap may vary.
Practical information

227
* According to engine.

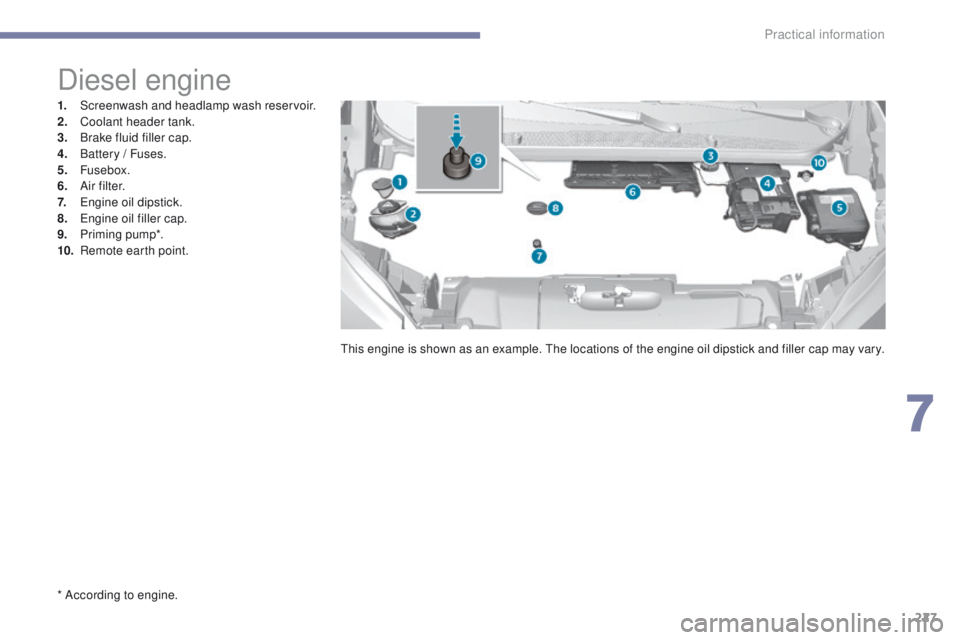

Diesel engine
1. Screenwash and headlamp wash reservoir.
2. Coolant header tank.
3.
B

rake fluid filler cap.
4.
B

attery / Fuses.
5.


Fusebox.
6.
A

i r f i l t e r.
7.


e
n
gine oil dipstick.
8.


e
n
gine oil filler cap.
9.
P

riming pump*.
10.
R

emote earth point.
th

is engine is shown as an example. t
h
e locations of the engine oil dipstick and filler cap may vary.
7
Practical information

228

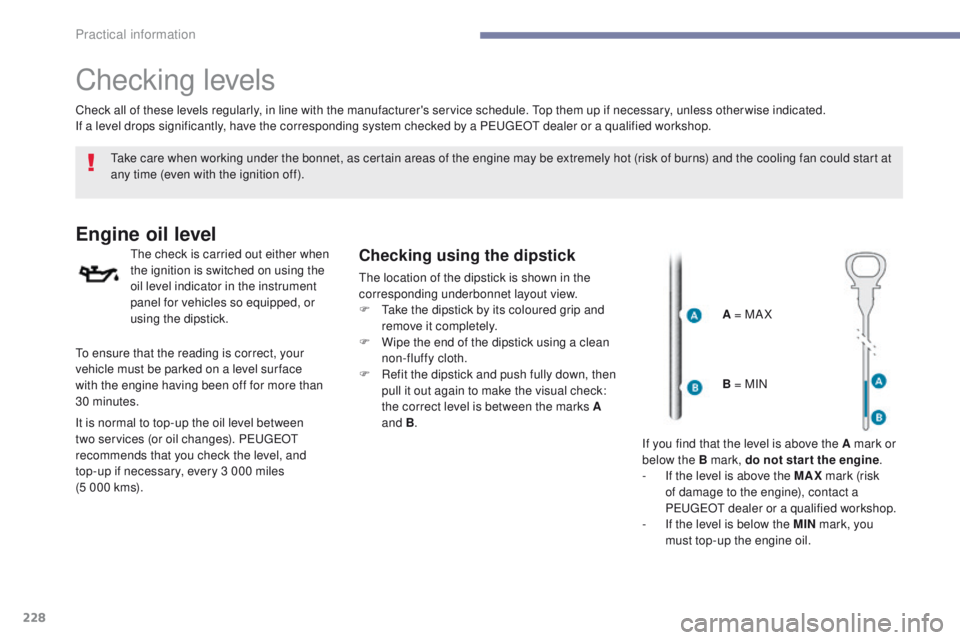

Checking levels
take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
Engine oil level
the check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.Checking using the dipstick
the location of the dipstick is shown in the
corresponding underbonnet layout view.
F t
a
ke the dipstick by its coloured grip and
remove it completely.
F

W
ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R
efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B .
Check all of these levels regularly, in line with the manufacturer's service schedule.
t
o
p them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a P
e
uge
Ot
dealer or a qualified workshop.
A = MA X
to e

nsure that the reading is correct, your
vehicle must be parked on a level sur face
with

the engine having been off for more than
30 minutes.
It is normal to top-up the oil level between
two services (or oil changes). P
e

uge
Ot


recommends that you check the level, and
top-up if necessary, every 3 000 miles
(5 000 kms). B = MIN
If you find that the level is above the A mark or
below the B mark, do not star t the engine .
-

I
f the level is above the MAX mark (risk
of damage to the engine), contact a
P
e

uge
Ot
dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you
must top-up the engine oil.
Practical information
