Peugeot 308 2017 Owner's Manual - RHD (UK, Australia)

289
Dimensions (in mm)these dimensions have been measured on an unladen vehicle.
HatchbackSW
9
technical data

290
GT / GTi hatchback*SW GT
Technical data

291
Affaire version
Number of seats: 2 persons.useable boot volume: 1.31 m3
In metres ( m)
Load floor length 1.4 5 8
Load width at the wheel arches 1.03 6
Load width at the centre 1.07 7
Load height
-

a

t the centre 0.916
-

a

t the load aperture 0.831
-

b

elow the luggage cover 0.5
9
Technical data

292

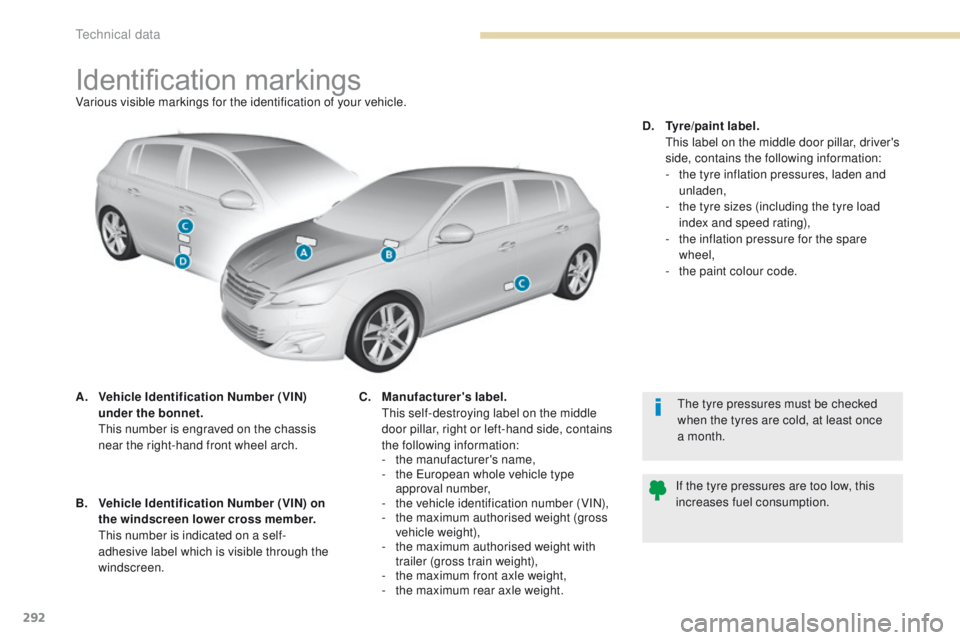

Identification markingsVarious visible markings for the identification of your vehicle.
A.
V
ehicle Identification Number (VIN)
under the bonnet.


t
h
is number is engraved on the chassis
near the right-hand front wheel arch.
th

e tyre pressures must be checked
when the tyres are cold, at least once
a month.
If the tyre pressures are too low, this
increases fuel consumption.
B.
V

ehicle Identification Number (VIN) on
the windscreen lower cross member.


t
h
is number is indicated on a self-
adhesive label which is visible through the
windscreen. C.
M

anufacturer's label.


t
h
is self-destroying label on the middle
door pillar, right or left-hand side, contains
the following information:
-
t

he manufacturer's name,
-

t
he e
u
ropean whole vehicle type
approval number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised weight (gross
vehicle weight),
-

t
he maximum authorised weight with
trailer (gross train weight),
-

t
he maximum front axle weight,
-

t
he maximum rear axle weight.D.
T

yre/paint label.


t
h
is label on the middle door pillar, driver's
side, contains the following information:
-

t
he tyre inflation pressures, laden and
unladen,
-

t
he tyre sizes (including the tyre load
index and speed rating),
-

t
he inflation pressure for the spare
wheel,
-

t
he paint colour code.
technical data

293
DeNON equipment
the new DeNON Hi-Fi system in the
Pe ugeOt 308 is a tailored technological
solution comprising 9 speakers and a digital
amplifier.
th

e D
eN
ON technology offers efficient
components providing high per formance:
-

4 f
lexible membrane tweeters with
resonance chamber to minimise audio
distortion. 100% active at the front of the
vehicle.
-

4 C
osCone
tM woofers: a technology
allowing a high level of sensitivity and
speaker cone travel, generating high bass
performance despite a very flat form.
-

1 s

ub-woofer with a 100W speaker
installed under the boot floor, without
affecting the load volume of the boot.
-

1 C

lass-D 8 -way digital amplifier. Improved
control of running noises.
2 a

udio distribution settings available to
suit the number of occupants in the vehicle
(driver or passengers).
-

"

Digital Coloration" technology giving the
engine a more sporty and refined sound.
.
Audio and telematics

295
7-inch touch screen
GPS satellite navigation - Multimedia audio - Bluetooth® telephone
Contents
First steps
2 96
Steering mounted controls

2
99
Menus
300
Media
302
Radio
3

08
DAB (Digital Audio Broadcasting) radio

3
10
M usic
3

12
Navigation


316
Navigation -
g
u

idance
3
24
Traffic
32

8
Configuration
3

30
Connected services
3

40
P
e

uge
Ot

Connect Apps

3
41
te

lephone

342
Frequently asked questions

3
50
th

e system is protected in such a way that it will only operate in
your vehicle. As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
th

e display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.
.
Audio and telematics

296
First steps
use the buttons on either side of the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.
ea
ch menu is displayed in one or two pages
(primary page and secondary page).
Secondary page
Primary page In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period
of


5 minutes.
Audio and telematics

297
With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.
Volume adjustment (each source
is independent, including t
r
affic
announcements (
tA

) and navigation
instructions).
Selecting the audio source (depending on
version):
-

"

FM" / "AM" / "DAB"* radio wavebands.
-

"uS

B" memory stick.
-

C

D player (located in the glove box)*.
-
t
e

lephone connected by Bluetooth* and by
Bluetooth* audio streaming.
-

M

edia player connected to the auxiliary
socket (jack, cable not supplied).
* Depending on equipment. Shortcuts: using virtual buttons in the top band
of the touch screen, it is possible to go directly
to the choice of audio source, the list of stations
(or titles depending on the source) or to the
temperature adjustment.
th
e screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple swipe
will not be enough. Pressing with more
than one finger is not recognised.
th
e screen can be used when wearing
gloves. t
h
is technology allows use at
all temperatures.
In very hot conditions, the volume may
be limited to protect the system. t
h
e
return to normal takes place when
the temperature in the passenger
compartment drops.
to c

lean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.
.
