fuel pump Peugeot 308 2017 Owner's Manual - RHD (UK, Australia)

9
Maintenance - technical data
Dimensions 289-291
Identification markings 2 92
Running out of fuel, Diesel
(priming pump)
2

74
Checking levels
2

28-230
-

oil
-

b

rake fluid
-


coolant
-
s

creenwash, headlamp wash fluid
-

a

dditive (Diesel with particle filter)
Checking components
23

1-232
-


battery
-

a

ir filter / passenger
compartment filter
-

o

il filter
-

p

article filter (Diesel)
-

b

rake pads / discs
Changing bulbs
2

52-261
-

front
-

rear 12 V battery
2
68 -271
Load reduction, economy mode
2
19
en

gine compartment
fuses
26
2, 266-267
Opening the bonnet

2

25
un

der the bonnet, petrol

2

26
un

der the bonnet, Diesel

2

27
Petrol engines

2

75 -277
Diesel engines
2

81-284
AdBlue


233-237 Petrol weights

2
78 -280
Diesel weights
2
85 -288
.
Over view

213

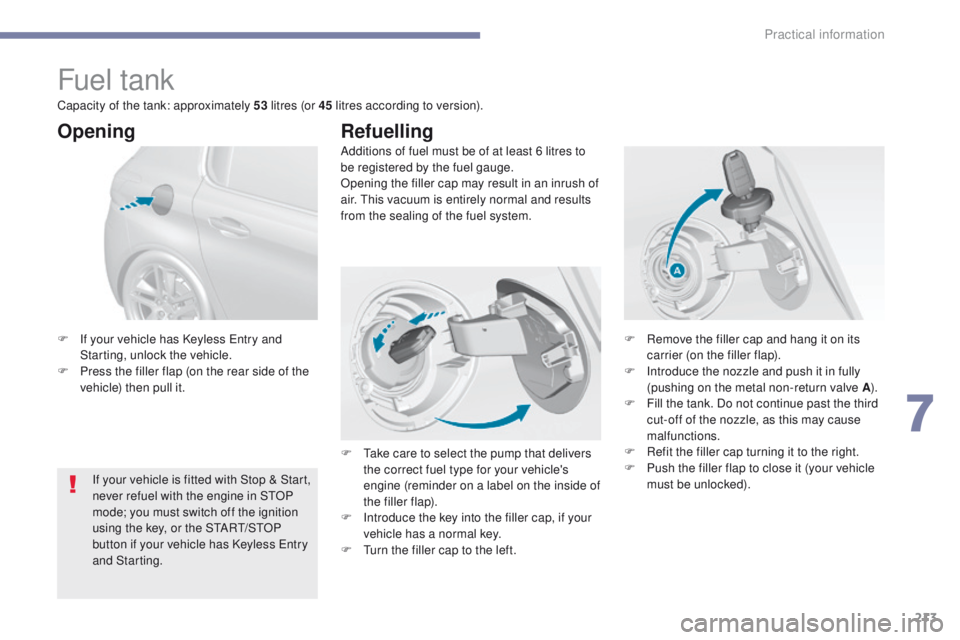

Fuel tank
Additions of fuel must be of at least 6 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. t
h
is vacuum is entirely normal and results
from the sealing of the fuel system.
Opening
If your vehicle is fitted with Stop & Start,
never refuel with the engine in StO P
mode; you must switch off the ignition
using the key, or the S
tA

R
t/
S
tO
P
button if your vehicle has Keyless
e
n
try
and Starting.
F

I

f your vehicle has Keyless e
n
try and
Starting, unlock the vehicle.
F

P

ress the filler flap (on the rear side of the
vehicle) then pull it.
Refuelling
F Remove the filler cap and hang it on its carrier (on the filler flap).
F

I
ntroduce the nozzle and push it in fully
(pushing on the metal non-return valve A ).
F

F
ill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.
F

R
efit the filler cap turning it to the right.
F

P
ush the filler flap to close it (your vehicle
must be unlocked).
F
t
a

ke care to select the pump that delivers
the correct fuel type for your vehicle's
engine (reminder on a label on the inside of
the filler flap).
Capacity of the tank: approximately 53
litres (or 45 litres according to version).
F

I

ntroduce the key into the filler cap, if your
vehicle has a normal key.
F
t
u

rn the filler cap to the left.
7
Practical information

214

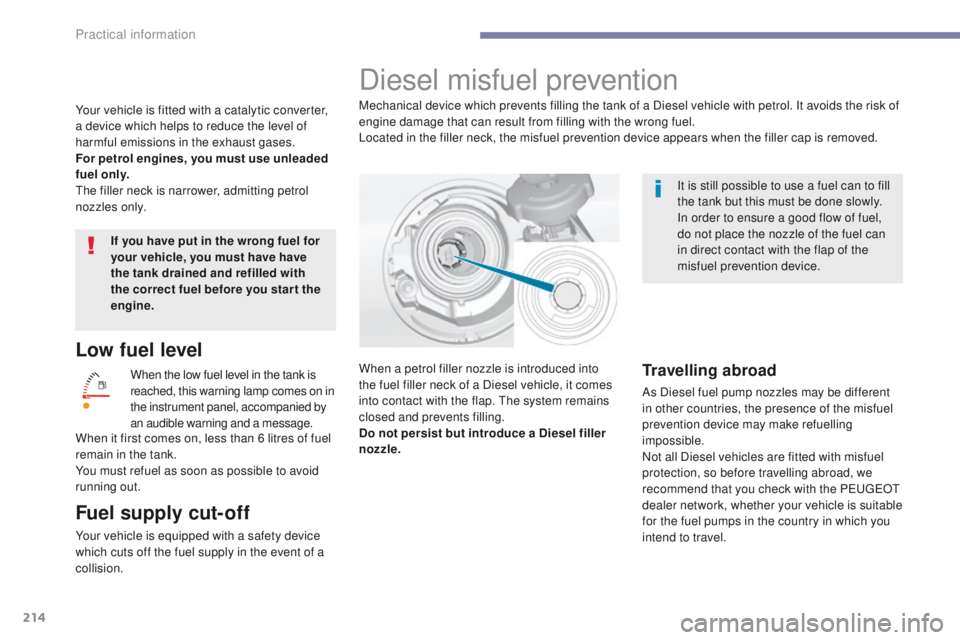

Low fuel level
When the low fuel level in the tank is
reached, this warning lamp comes on in
the instrument panel, accompanied by
an audible warning and a message.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a
collision. When it first comes on, less than 6 litres of fuel
remain in the tank.
You must refuel as soon as possible to avoid
running out.If you have put in the wrong fuel for
your vehicle, you must have have
the tank drained and refilled with
the correct fuel before you star t the
engine.
Your vehicle is fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
For petrol engines, you must use unleaded
fuel only.
th
e filler neck is narrower, admitting petrol
nozzles only. It is still possible to use a fuel can to fill
the tank but this must be done slowly.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device.
Diesel misfuel prevention
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol filler nozzle is introduced into
the fuel filler neck of a Diesel vehicle, it comes
into contact with the flap.
t
h
e system remains
closed and prevents filling.
Do not persist but introduce a Diesel filler
nozzle.
Travelling abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuelling
impossible.
Not all Diesel vehicles are fitted with misfuel
protection, so before travelling abroad, we
recommend that you check with the P
e

uge
Ot

dealer network, whether your vehicle is suitable
for the fuel pumps in the country in which you
intend to travel.
Practical information

274
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.
Running out of fuel (Diesel)
For more information on Diesel misfuel
prevention, refer to the corresponding
section. (except BlueHDi)
F
A dd at least 5 litres of Diesel to the fuel
tank.
F

O
pen the bonnet.
F

I
f necessary, unclip the styling cover for
access to the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter to start the engine
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

R
efit the styling cover and clip it in place.
F

C
lose the bonnet.
1.6 HDi engine
If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.
BlueHDi engine
F Add at least 5 litres of Diesel to the fuel tank.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 6 seconds and switch off the
ignition.
F

R
epeat the operation 10 times.
F

O
perate the starter to run the engine.
In the event of a breakdown
