29

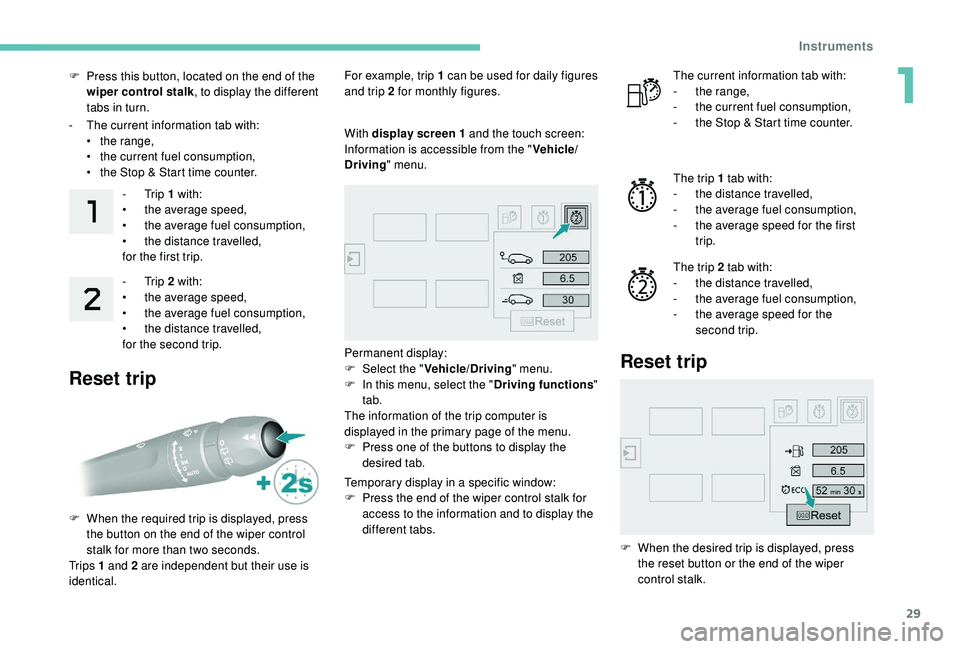

F Press this button, located on the end of the wiper control stalk , to display the different
tabs in turn.
-

T
he current information tab with:
•

t
he range,
•

t
he current fuel consumption,
•

t
he Stop & Start time counter.-
Trip 1 with:
•
t

he average speed,
•
t

he average fuel consumption,
•

t
he distance travelled,
for the first trip.
-
Trip 2 with:
•
t

he average speed,
•
t

he average fuel consumption,
•

t
he distance travelled,
for the second trip.
Reset trip
For example, trip 1 can be used for daily figures
and trip 2 for monthly figures.
F

W

hen the required trip is displayed, press
the button on the end of the wiper control
stalk for more than two seconds.
Tr i p s 1 and 2 are independent but their use is
identical. With display screen
1 and the touch screen:
Information is accessible from the " Vehicle/
Driving " menu.
Permanent display:
F

Sel
ect the " Vehicle/Driving " menu.
F

I
n this menu, select the " Driving functions"
tab.
The information of the trip computer is
displayed in the primary page of the menu.
F

P
ress one of the buttons to display the
desired tab.
Temporary display in a specific window:
F

P
ress the end of the wiper control stalk for
access to the information and to display the
different tabs. The current information tab with:
-
t he range,
-

t
he current fuel consumption,
-

t
he Stop & Start time counter.
The trip 1 tab with:
-

t
he distance travelled,
-
t

he average fuel consumption,
-

t
he average speed for the first
trip.
The trip 2 tab with:
-

t
he distance travelled,
-
t

he average fuel consumption,
-

t
he average speed for the
second trip.
Reset trip
F When the desired trip is displayed, press the reset button or the end of the wiper
control stalk.
1
Instruments

30

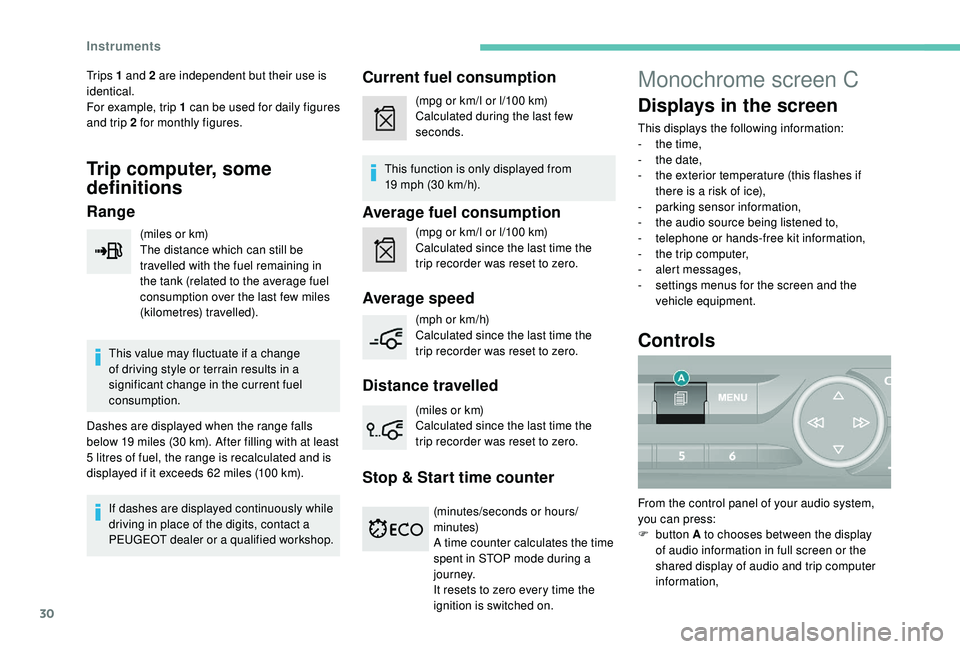

Tr i p s 1 and 2 are independent but their use is
identical.
For example, trip 1 can be used for daily figures
and trip 2 for monthly figures.
Trip computer, some
definitions
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining in
the tank (related to the average fuel
consumption over the last few miles
(kilometres) travelled).
This value may fluctuate if a change
of driving style or terrain results in a
significant change in the current fuel
consumption.
Dashes are displayed when the range falls
below 19

miles (30 km). After filling with at least
5

litres of fuel, the range is recalculated and is
displayed if it exceeds 62
miles (100 km).
If dashes are displayed continuously while
driving in place of the digits, contact a
PEUGEOT dealer or a qualified workshop.
Current fuel consumption
(mpg or km/l or l/100 km)
C alculated during the last few
seconds.
This function is only displayed from
19

mph (30 km/h).
Average fuel consumption
(mpg or km/l or l/100 km)
C alculated since the last time the
trip recorder was reset to zero.
Average speed
(mph or km/h)
Calculated since the last time the
trip recorder was reset to zero.
Distance travelled
(miles or km)
Calculated since the last time the
trip recorder was reset to zero.
Stop & Start time counter
(minutes/seconds or hours/
minutes)
A time counter calculates the time
spent in STOP mode during a
j o u r n ey.
It resets to zero every time the
ignition is switched on.
Monochrome screen C
Displays in the screen
This displays the following information:
- t he time,
-

t
he date,
-

t
he exterior temperature (this flashes if
there is a risk of ice),
-
par

king sensor information,
-

t
he audio source being listened to,
-

t
elephone or hands-free kit information,
-

t
he trip computer,
-
a

lert messages,
-

s
ettings menus for the screen and the
vehicle equipment.
Controls
From the control panel of your audio system,
you can press:
F
button A to chooses between the display
of audio information in full screen or the
shared display of audio and trip computer
information,
Instruments

31

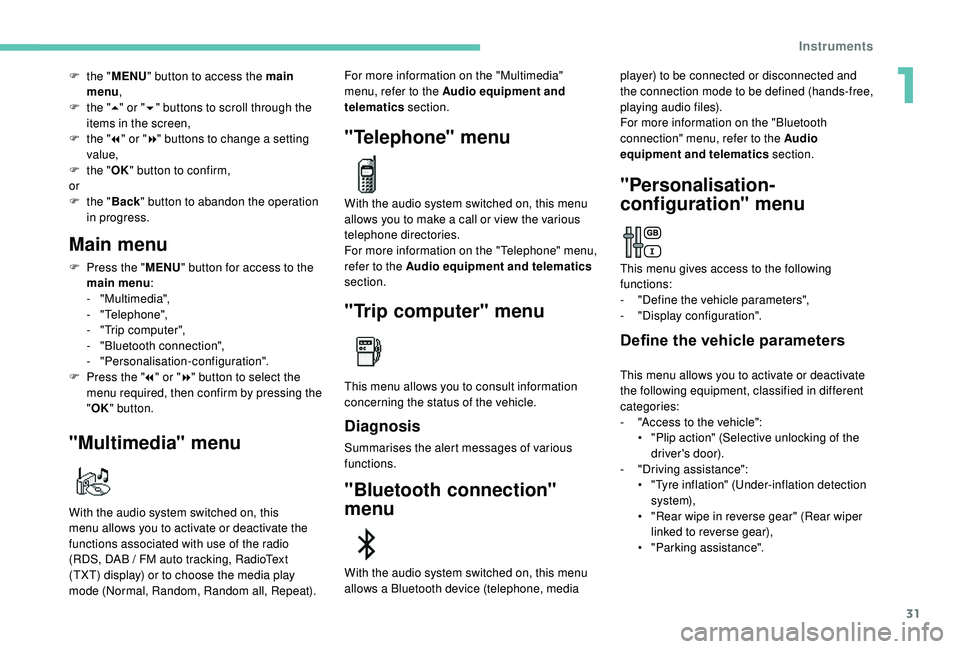

F the "MENU" button to access the main
menu ,
F

t
he "5" or " 6" buttons to scroll through the
items in the screen,
F

t
he "7" or " 8" buttons to change a setting
value,
F

t
he "OK" button to confirm,
or
F

t
he "Back " button to abandon the operation
in progress.
Main menu
F Press the " MENU" button for access to the
main menu :
-
"Multimedia",
-


"Telephone",
-

"
Trip computer",
-
"

Bluetooth connection",
-


"Personalisation-configuration".
F

P
ress the " 7" or " 8" button to select the
menu required, then confirm by pressing the
" OK " button.
"Multimedia" menu
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB
/ FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat). For more information on the "Multimedia"
menu, refer to the Audio equipment and
telematics
section.
"Telephone" menu
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone" menu,
refer to the Audio equipment and telematics
section.
"Trip computer" menu
This menu allows you to consult information
concerning the status of the vehicle.
Diagnosis
Summarises the alert messages of various
functions.
"Bluetooth connection"
menu
player) to be connected or disconnected and
the connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" menu, refer to the Audio
equipment and telematics section.
With the audio system switched on, this menu
allows a Bluetooth device (telephone, media
"Personalisation-
configuration" menu
This menu gives access to the following
functions:
-
"
Define the vehicle parameters",
-
"

Display configuration".
Define the vehicle parameters
This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
-
"
Access to the vehicle":
•

"
Plip action" (Selective unlocking of the
driver's door).
-
"

Driving assistance":
•
"

Tyre inflation" (Under-inflation detection
syste m),
•

"
Rear wipe in reverse gear" (Rear wiper
linked to reverse gear),
•
"

Parking assistance".
1
Instruments

32
Display configuration
This menu gives access to the following
settings:
-
"
Choice of units",
-

"
Date and time adjustment",
-
"

Personalise display",
-


"Language".For safety reasons, configuration of
the multifunction screen by the driver
must only be done when the vehicle is
stationary.
Touch screen
This system gives access to:
- t he permanent display of the time and
the exterior temperature (a blue symbol
appears when there is a risk of ice),
-
t

he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
-
t

he display of visual parking aids (visual
parking sensor information, Park Assist,
e t c .),
-

I
nternet ser vices and the display of
associated information. For safety reasons, the vehicle must
always be stationar y for the driver to
perform operations that require close
attention.
Some functions are not accessible when
driving.
General operation
RecommendationsThis screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Use a soft clean cloth to clean the touch
screen.
Design
Use the buttons below the touch screen to
access the menus, then press the virtual
buttons in the touch screen.
Some menus may display across two pages:
press the "
OPTIONS" button to access the
second page. After a few moments with no action on the
second page, the first page is displayed
automatically.
To deactivate or activate a function, select
" OFF " or " ON".
Use this button to adjust the settings
for a function.
Use this button for access to
additional information on the
function.
Use this button to confirm.
Use this button to return to the
previous page.
Menus
and, depending on equipment, allows:
- a ccess to the navigation system controls
and the display of associated information.
Instruments

33
Radio Media.
See the "Audio equipment and telematics" section.
Air conditioning.
Allows control of the settings for
temperature, air flow, etc.
Vehicle or Driving*.
Allows the activation, deactivation and
adjustment of settings for certain functions.
The functions accessible from this menu are
arranged under two tabs: "Vehicle settings"
and " Driving functions ".
Telephone.
See the "Audio equipment and telematics" section.
Applications.
Allows the display of available
connected ser vices and access to
the Eco-coaching function.
You can also press with three fingers on
the touch screen to show all of the menu
buttons. Volume adjustment/mute.
See the "Audio equipment and
telematics" section.
Upper bar
Certain information is always displayed in the
upper bar of the touch screen:
-

T
ime and exterior temperature (a blue
warning lamp appears when there is a risk
of i c e).
-

S
ummary of the air conditioning information,
and direct access to the corresponding
menu.
-

S
ummary of information from the Radio
Media , Telephone menus and navigation
instructions*.
-


Notifications.
-

A
ccess to the Settings for the touch screen
and the digital instrument panel (date/time,
languages, units, etc.).
*
D

epending on equipmentConnected Navigation or Mirror Screen *.
See the "Audio equipment and telematics"
section.
* Depending on equipment
1
Instruments

34

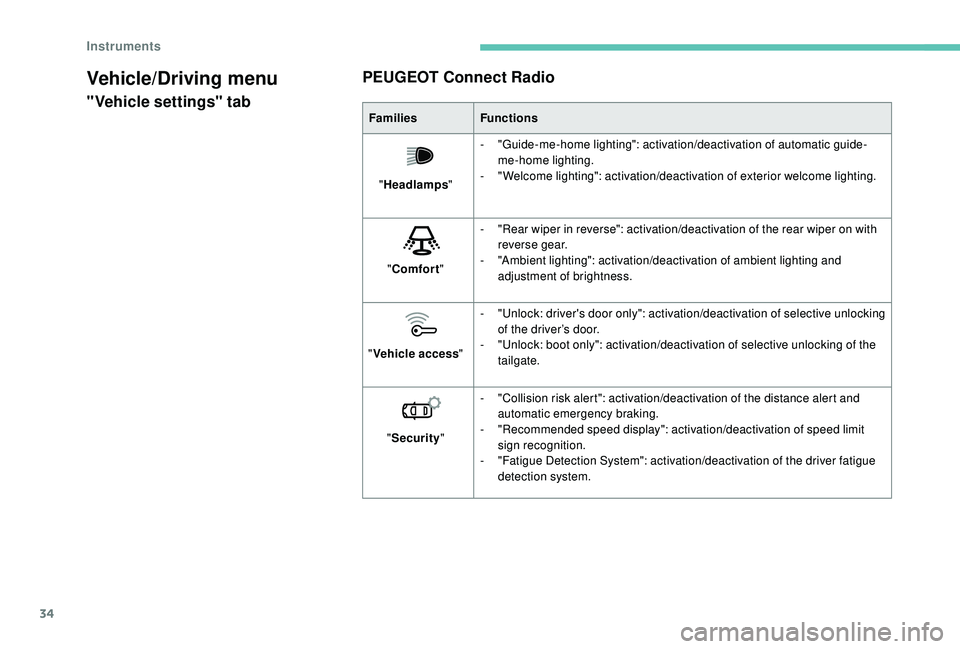

Vehicle/Driving menu
"Vehicle settings" tabPEUGEOT Connect RadioFamilies
Functions
" Headlamps "-
"

Guide-me-home lighting": activation/deactivation of automatic guide-
me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior welcome lighting.
" Comfort "-

"
Rear wiper in reverse": activation/deactivation of the rear wiper on with
reverse gear.
-
"

Ambient lighting": activation/deactivation of ambient lighting and
adjustment of brightness.
" Vehicle access "-
"

Unlock: driver's door only": activation/deactivation of selective unlocking
of the driver’s door.
-

"
Unlock: boot only": activation/deactivation of selective unlocking of the
tailgate.
" Security "-

"
Collision risk alert": activation/deactivation of the distance alert and
automatic emergency braking.
-
"

Recommended speed display": activation/deactivation of speed limit
sign recognition.
-
"

Fatigue Detection System": activation/deactivation of the driver fatigue
detection system.
Instruments

35
PEUGEOT Connect Nav
FamiliesFunctions
" Comfort lighting "-

"
Rear wiper in reverse": activation/deactivation of the rear wiper on with
reverse gear.
-
"

Guide-me-home lighting": activation/deactivation of automatic guide-
me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior welcome lighting.
-
"

Ambient lighting": activation/deactivation of ambient lighting and
adjustment of brightness.
" Vehicle access "-
"

Unlock: driver's door only": activation/deactivation of selective unlocking
of the driver’s door.
-

"
Unlock: boot only": activation/deactivation of selective unlocking of the
tailgate.
" Security "-

"
Collision risk alert": activation/deactivation of the distance alert and
automatic emergency braking.
-
"

Recommended speed display": activation/deactivation of speed limit
sign recognition.
-
"

Fatigue Detection System": activation/deactivation of the driver fatigue
detection system. For more information on one of these
functions, refer to the corresponding
section.
1
Instruments

36

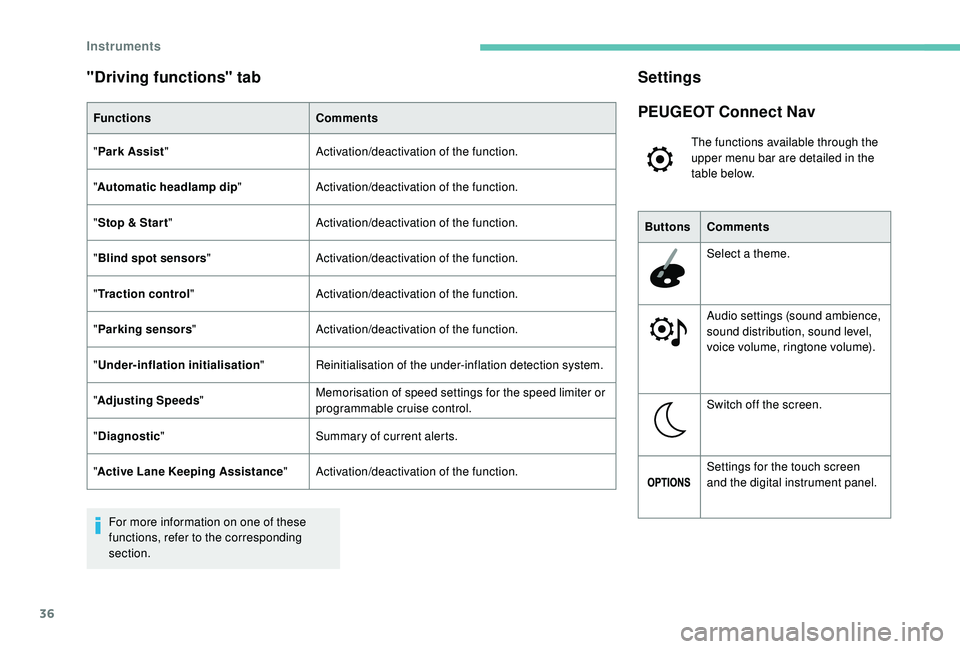

"Driving functions" tab
FunctionsComments
" Park Assist " Activation/deactivation of the function.
" Automatic headlamp dip "Activation/deactivation of the function.
" Stop & Star t " Activation/deactivation of the function.
" Blind spot sensors " Activation/deactivation of the function.
" Traction control" Activation/deactivation of the function.
" Parking sensors " Activation/deactivation of the function.
"


Under-inflation initialisation "Reinitialisation of the under-inflation detection system.
" Adjusting Speeds " Memorisation of speed settings for the speed limiter or
programmable cruise control.
" Diagnostic " Summary of current alerts.
" Active Lane Keeping Assistance "Activation/deactivation of the function.
For more information on one of these
functions, refer to the corresponding
section.
Settings
PEUGEOT Connect Nav
The functions available through the
upper menu bar are detailed in the
table below.
Buttons Comments
Select a theme.
Audio settings (sound ambience,
sound distribution, sound level,
voice volume, ringtone volume).
Switch off the screen.
Settings for the touch screen
and the digital instrument panel.
Instruments

37
ButtonsComments
Choice of units:
-
t

emperature (°Celsius or
°Fahrenheit),
-

d
istances and fuel
consumption (l/100
km, mpg
or km/l).
Choice of display language used
for the touch screen and the
digital instrument panel.
Setting the date and time.
Option of synchronisation with
GPS.
Adjustment of the display
parameters (text scrolling,
animations, etc.) and brightness.
Choice and settings for three
user profiles.PEUGEOT Connect Radio
The functions available through the
upper menu bar are detailed in the
table below.
Buttons Comments
Turn off the screen (black
screen).
To return to the current screen,
press the black screen or one of
the menu buttons.
Adjustment of the brightness of
the instrument panel ambient
lighting.
Choice and settings for three
user profiles.
Settings for the touch screen
and the digital instrument panel.
Activation and configuration of
the settings for the Wi-Fi. Buttons
Comments
Adjustment of the display
parameters (text scrolling,
animations, etc.) and brightness.
Choice of units:
-
t

emperature (°Celsius or
°Fahrenheit),
-

d
istances and fuel
consumption (l/100
km, mpg
or km/l).
Choice of display language used
for the touch screen and the
digital instrument panel.
Setting the date and time.
1
Instruments

38
With PEUGEOT Connect
Radio
F Select the "Settings" menu.
F
Sel
ect "Date and time ".
F

Sel
ect the " Date" or "Time " tab.
F

C
hoose the display formats.
F

C
hange the date and/or time using the
numeric keypad.
F

C
onfirm with " OK".
The system does not automatically
manage the change between winter and
summer time (depending on country).
With PEUGEOT Connect
Nav
Setting of the time and date is only available if
synchronisation with the GPS is deactivated.
F

P
ress the " OPTIONS " button to go to the
secondary page.
F

Sel
ect "Setting the time- date". F

Sel
ect the "
Date" or "Time " tab.
F
S
et the date and/or time using the numeric
keypad.
Additional settings
You can choose:
- T o change the display format of the date
and time (12h/24h).
-

T
o change the time zone.
-

T
o activate or deactivate synchronisation
with the GPS (UTC).
The system does not automatically
manage the change between winter and
summer time (depending on country).
The change between winter and summer
time is done by changing the time zone.

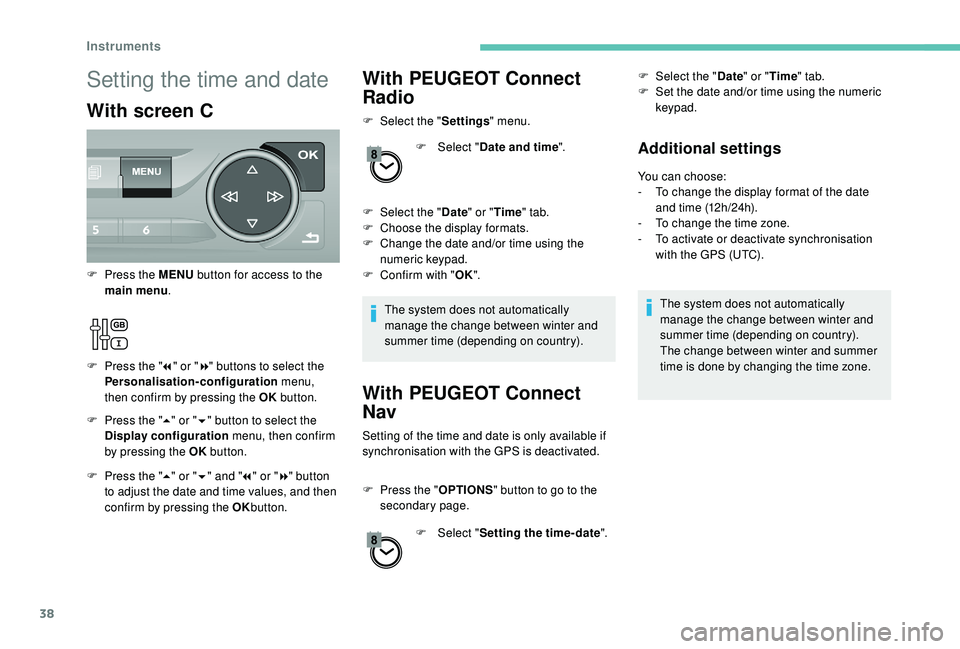

Setting the time and date
With screen C
F Press the " 5" or " 6" button to select the
Display configuration menu, then confirm
by pressing the OK button.
F

P
ress the MENU
button for access to the
main menu .
F
P
ress the "
7" or " 8" buttons to select the
Personalisation-configuration menu,
then confirm by pressing the OK button.
F
P
ress the " 5" or " 6" and " 7" or " 8" button
to adjust the date and time values, and then
confirm by pressing the OK button.
Instruments
