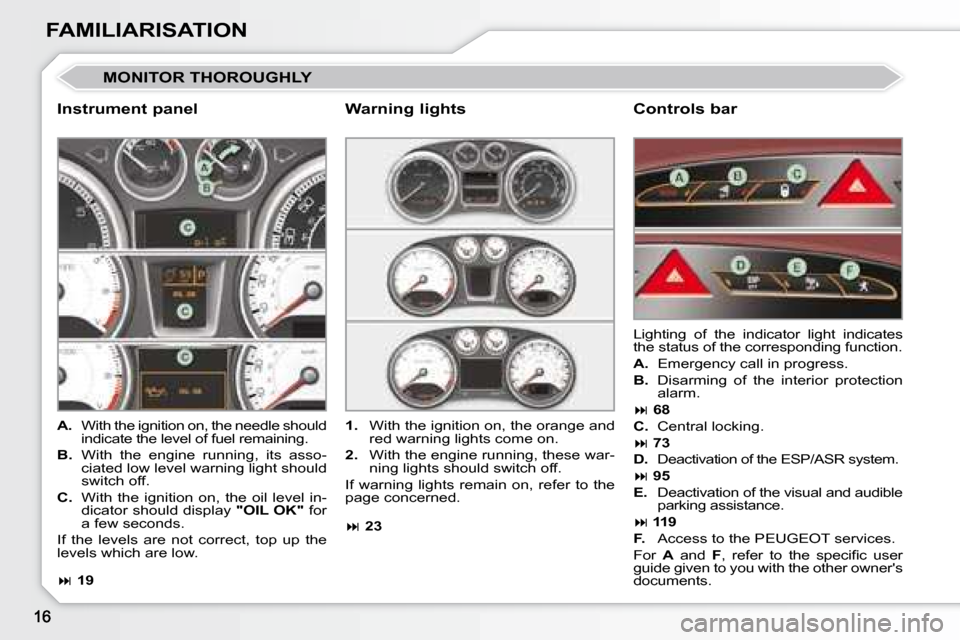

FAMILIARISATION
MONITOR THOROUGHLY
Instrument panel Controls bar

A. With the ignition on, the needle should
indicate the level of fuel remaining.

B. With the engine running, its asso-
ciated low level warning light should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator light indicates
the status of the corresponding function.

A. Emergency call in progress.

B. Disarming of the interior protection
alarm.


 68

C. Central locking.


 73

D. Deactivation of the ESP/ASR system.


 95

E. Deactivation of the visual and audible
parking assistance.


 119

F. Access to the PEUGEOT services.
For A and F , refer to the specifi c user
guide given to you with the other owner's
documents.

1. With the ignition on, the orange and
red warning lights come on.

2. With the engine running, these war-
ning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights


 19

 23

1
i
19
INSTRUMENTS and CONTROLS

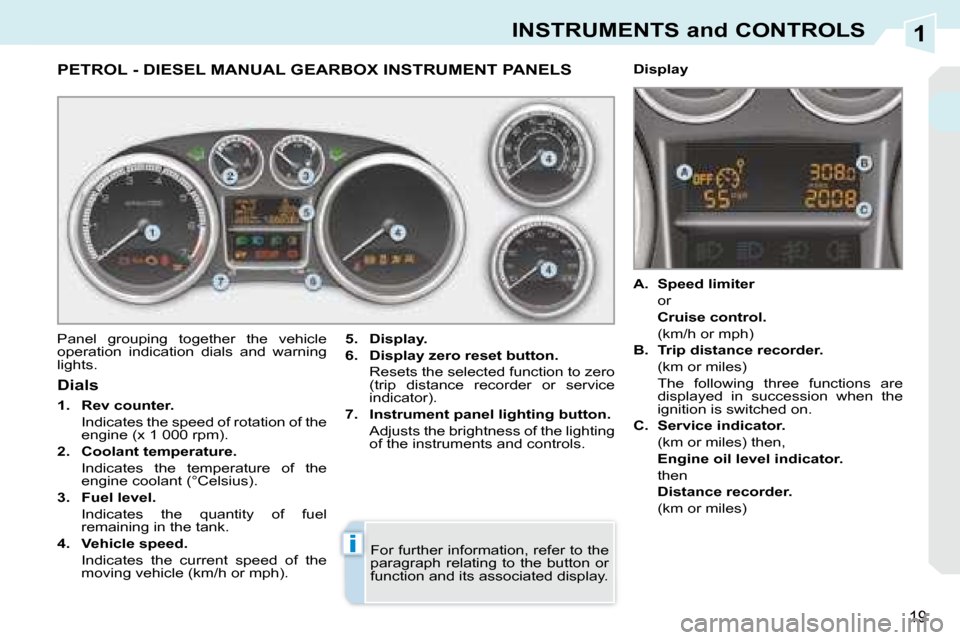

PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Display.

6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service
indicator).

7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)

B. Trip distance recorder.
(km or miles)
The following three functions are displayed in succession when the
ignition is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display.

1
i
20

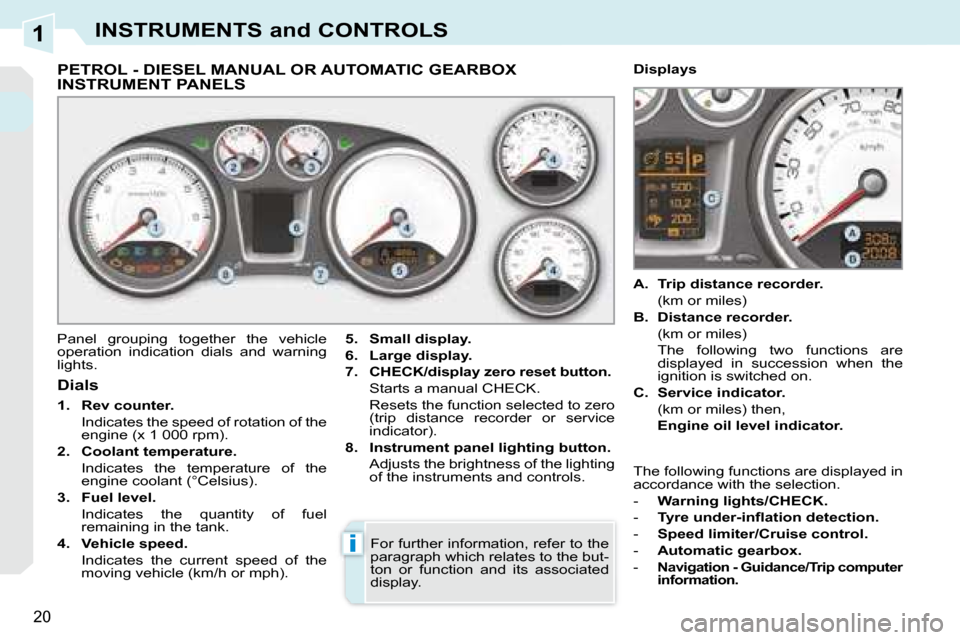

INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.

6. Large display.

7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)

B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- Automatic gearbox.
- Navigation - Guidance/Trip computer
information.

1
i
21

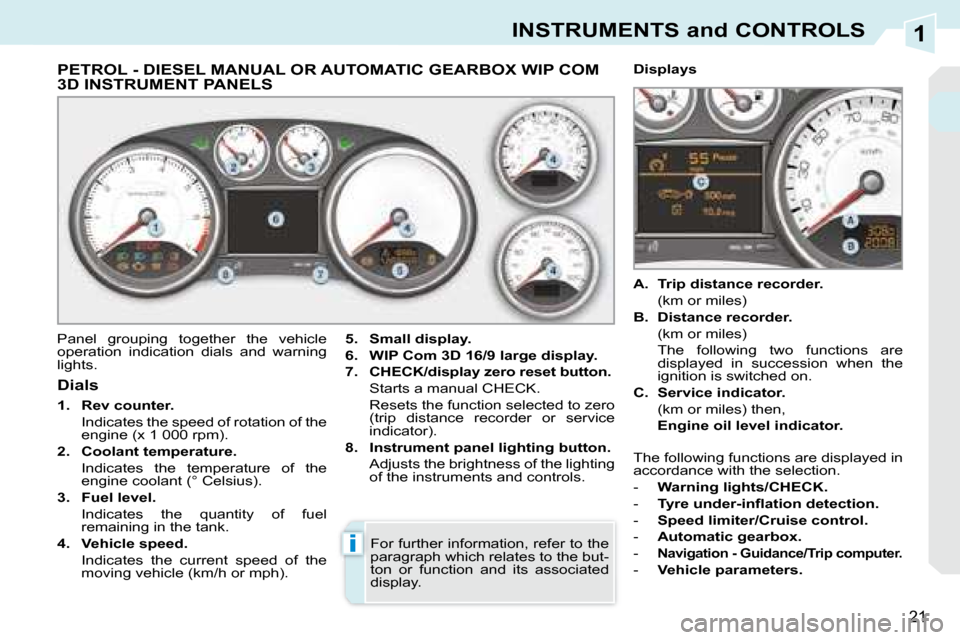

INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX WIP COM 3D INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.

6. WIP Com 3D 16/9 large display.

7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)

B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- Automatic gearbox.
-

Navigation - Guidance/Trip computer.
- Vehicle parameters.

1
!
26

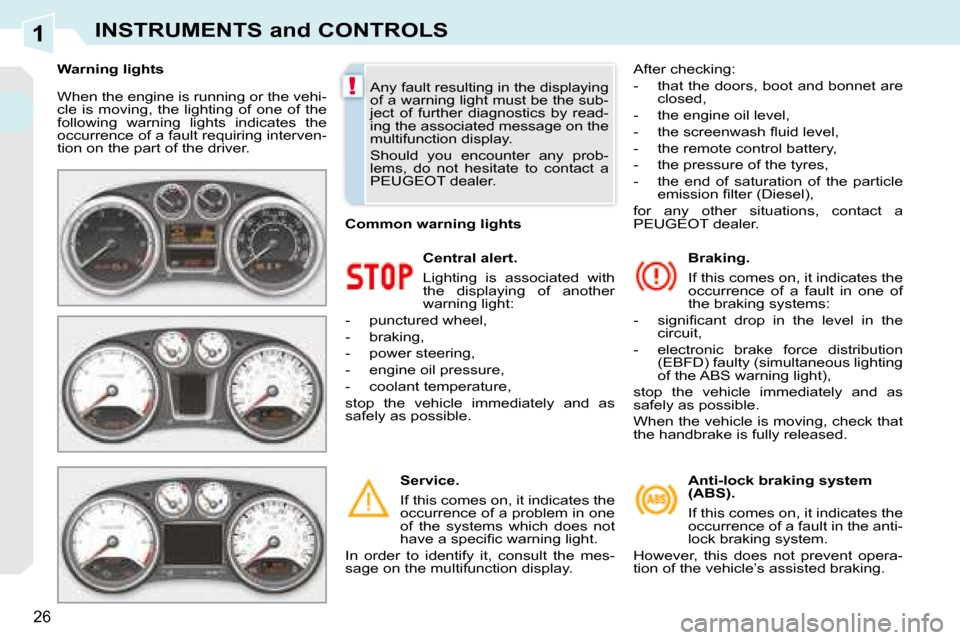

INSTRUMENTS and CONTROLS
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver. Central alert.
Lighting is associated with
the displaying of another
warning light:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
have a specifi c warning light.
In order to identify it, consult the mes-
sage on the multifunction display. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the sub-
ject of further diagnostics by read-
ing the associated message on the
multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
PEUGEOT dealer.
Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle’s assisted braking.
Common warning lights
After checking:
- that the doors, boot and bonnet are
closed,
- the engine oil level,
- the screenwash fl uid level,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle emission fi lter (Diesel),
for any other situations, contact a
PEUGEOT dealer.

1
27
INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
If it fl ashes, it indicates the occurrence of
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
60 litres.
Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle im-

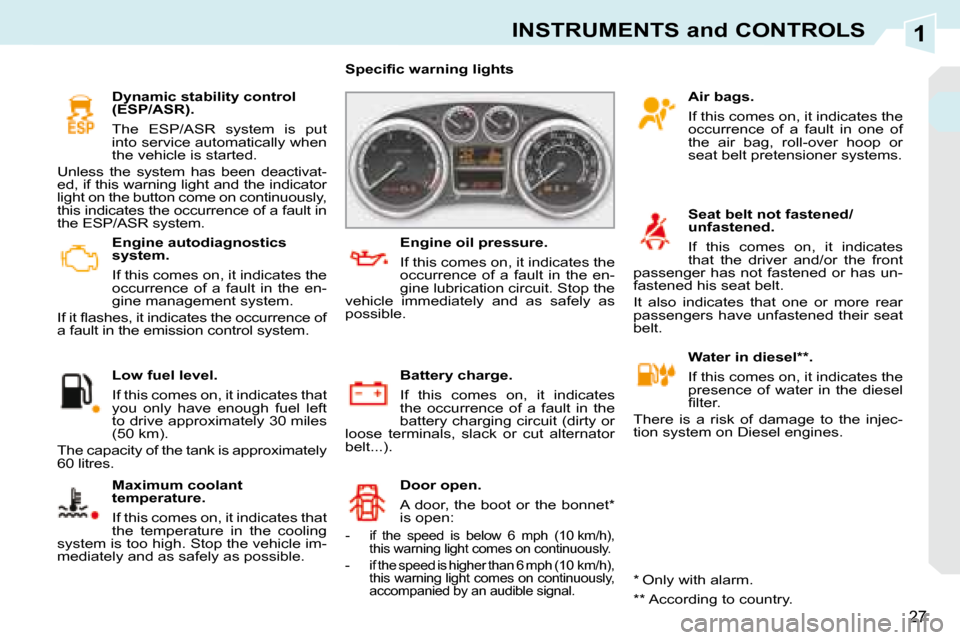

mediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag, roll-over hoop or
seat belt pretensioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel ** .
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the injec-
tion system on Diesel engines.
Door open.
A door, the boot or the bonnet *
is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle immediately and as safely as
possible.
Specifi c warning lights
* Only with alarm.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivat-
ed, if this warning light and the indicator
light on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system.
** According to country.
- if the speed is below 6 mph (10 km/h), this warning light comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes on continuously,
accompanied by an audible signal.

1
i
!
28
INSTRUMENTS and CONTROLS
The displaying of certain warning
lights may be accompanied by an
audible signal and a message on
the multifunction display.
Specifi c warning lights
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lights may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning light, stop the vehicle imme-
diately and as safely as possible.
Directional headlamps.
If this fl ashes, it indicates the
occurrence of a fault in the di-
rectional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as safely
as possible.
Service.
If this is displayed, it indicates the occur-
rence of a fault in one of the following:
Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates
an insuffi cient level of oil in the
engine. Stop the vehicle immedi-
ately and as safely as possible.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the
cooling system is too high. Stop
the vehicle immediately and as safely
as possible. Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).
- the engine management system,
- the emission control system.

1
i

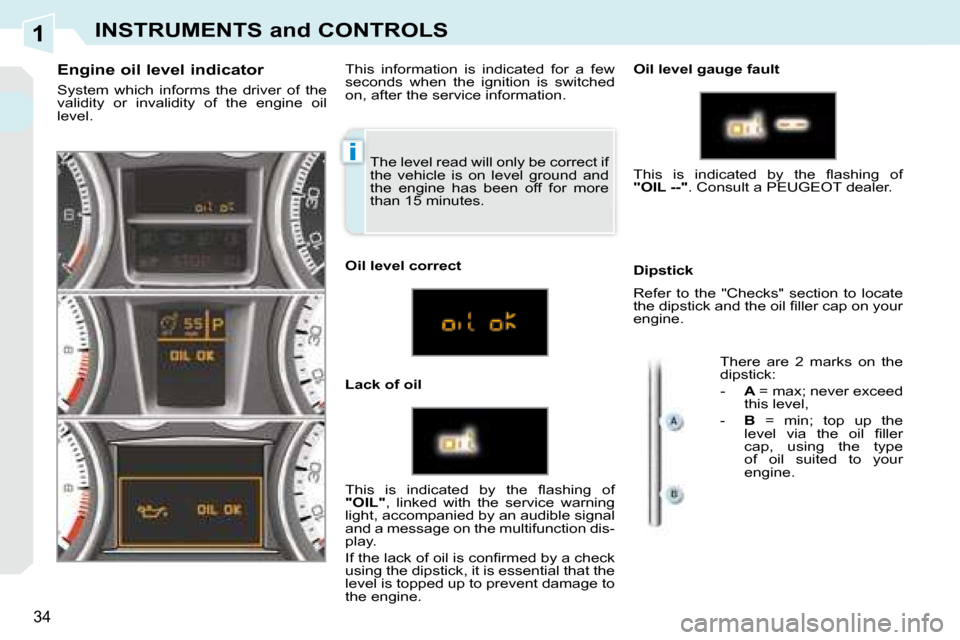

34
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level gauge fault
Dipstick
This is indicated by the fl ashing of

"OIL" , linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction dis-
play.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of

"OIL --" . Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the
level via the oil fi ller
cap, using the type
of oil suited to your
engine.

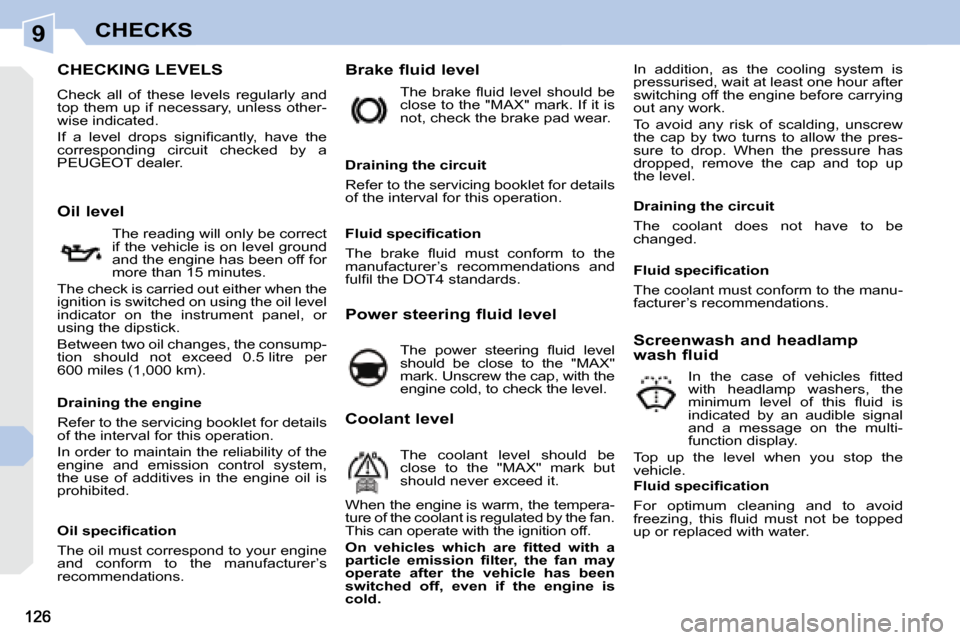

9CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding circuit checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or
using the dipstick.
Between two oil changes, the consump-
tion should not exceed 0.5 litre per
600 miles (1,000 km). The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Power steering fluid level The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
In the case of vehicles fi tted
with headlamp washers, the
minimum level of this fl uid is
indicated by an audible signal
and a message on the multi-
function display.
Top up the level when you stop the
vehicle.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer’s
recommendations. Fluid specifi cation
The brake fl uid must conform to the
manufacturer’s recommendations and
fulfi l the DOT4 standards.
Draining the circuit
The coolant does not have to be
changed.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold. Fluid specifi cation
The coolant must conform to the manu-
facturer’s recommendations.

9
!
i
127
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in the
PEUGEOT network.
Diesel additive level (Diesel with
particle emission filter)
A low additive level is indicated by light-
ing of the service warning light, accom-
panied by an audible warning and a
message on the multifunction display.
Used products
Unless otherwise indicated, check these
components in accordance with the
servicing booklet and in relation to your
engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these components.
Depending on the environ-
ment (dusty atmosphere...)
and the use of the vehicle (city driv-
ing...), replace them twice as often if
necessary (refer to the "Engines" para-
graph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
