FAMILIARISATION Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
80, 85
Directional lighting
This lighting automatically provides ad-
ditional visibility when cornering.
81 Retractable roof
This equipment changes from the "coupé"
c o n fi g u r a t i o n t o t h e " c a b r i o l e t " c o n fi g u r a -
tion and vice versa with a single action.
6
Windstop
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h i s
comfort equipment reduces air swirl at
the front seats.
52
Page 3 of 221
!
!
i
FAMILIARISATION
OPEN
Retractable roof The operation of the roof is the ex-
clusive responsibility of the driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to op-
erate the roof in strong winds. When washing your vehicle:
- lock the vehicle using the remote
control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pres- sure nozzle at least 1 metre from
the windows and door seals.
When the vehicle has been washed
or after rain, wait until the roof has
dried before opening it. It is preferable to operate the roof
with the engine running and the
vehicle stationary.
The roof can be operated at a
speed below 6 mph (10 km/h).
After the roof has been operated
fully four times in succession, the
system switches to protection
mode temporarily to avoid dam-
age to the roof motors. Let the
system rest for approximately ten
minutes; if you are unable to oper-
ate the roof after this time, contact
a PEUGEOT dealer.
Preliminary conditions
Switch on the ignition.
Make absolutely sure that:
- the vehicle is not in energy economy mode (refer to the corresponding
section),
- t h e b a t t e r y v o l t a g e i s s u f fi c i e n t (switching on of the roof control
indicator light),
- the roof fuse is in good condition (refer to the corresponding sec-
tion),
- the electric windows are initialised (see corresponding section),
- the exterior temperature is higher than -15 °C.
Precautions to be taken before
operating the roof
Park the vehicle on level ground.
Check that no objects could hinder
the operation of the roof:
- nothing should be placed on the moving rear shelf 1 , on the boot
screen 2 or on the side trims 3 ,
- if luggage is transported in the boot, it must not lift the boot
screen,
- any objects, such as a jacket or umbrella, placed in the boot, must
be secured using the luggage re-
taining net 4 .
Check that the boot screen 2 is se-
c u r e d fi r m l y .
Close the boot correctly.
Page 4 of 221
!
!i
i
FAMILIARISATION
OPEN
Retractable roof operations
Opening the roof
Pull this control until the roof
opening operation is com-
plete.
Closing the roof
Press this control until the roof
closing operation is complete.
C h a n g e t o " c a b r i o l e t " c o n fi g u r a t i o n :
- the four windows lower partially,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
C h a n g e t o " c o u p é " c o n fi g u r a t i o n :
- the four windows lower partially,
- the boot opens,
- the roof unfolds and locks automati- cally,
- the boot closes.
To ensure that the roof operates
correctly, do not release the control
while the roof is moving.
However, in the event of any danger,
release the control, the roof stops;
then, once the danger had been
eliminated, complete the movement
required. Operating fault
If a malfunction of the roof occurs,
apply the handbrake, switch off
the ignition, start the engine again,
then start the operation required
again.
If the problem persists, contact a
PEUGEOT dealer.
The electric window controls and
the control for all four windows are
deactivated while the roof is in op-
eration.
T h e e n d o f t h e m a n o e u v r e i s c o n fi r m e d
by an audible signal and a message on
the multifunction display.
T h e e n d o f t h e m a n o e u v r e i s c o n fi r m e d
by an audible signal and a message on
the multifunction display.
If you continue to pull or press this
control after the end of the ma-
noeuvre, the four windows rise.
Page 7 of 221
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lights and direction indicators
controls.
4. Central adjustable and closing
vents.
5. Multifunction display.
6. Sunshine sensor.
7. Passenger air bag.
8. Glove box/Audio/video sockets/
Fuse box.
9. Bonnet release.
10. Retractable roof control.
Control for all four windows.
11. Storage compartment or instrument
panel navigator associated with the
WIP Com 3D.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating/air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lights button.
Dynamic stability control (ESP/ASR) button.
Parking assistance button.
PEUGEOT services button.
Page 46 of 221
3
i
49
COMFORT
De-icing - Demisting
To quickly de-ice or demist the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
place the temperature 1 a n d a i r fl o w
2 dials at maximum,
close the central vents, The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING
Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
S w i t c h i n g o n
The rear screen de-icing can only oper-
ate when the engine is running.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p -
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control 2 is in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the as-
sociated indicator light switches off.
above 0 °C, switch on the air condi-
tioning by pressing the "A/C" button.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
It is possible to stop the de-icing op-
eration before it is switched off au-
tomatically by pressing the button
again. The indicator light associated
with the button switches off.
Page 47 of 221
3
i
49
COMFORT
De-icing - Demisting
To quickly de-ice or demist the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
place the temperature 1 a n d a i r fl o w
2 dials at maximum,
close the central vents, The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING
Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
S w i t c h i n g o n
The rear screen de-icing can only oper-
ate when the engine is running.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p -
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control 2 is in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the as-
sociated indicator light switches off.
above 0 °C, switch on the air condi-
tioning by pressing the "A/C" button.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
It is possible to stop the de-icing op-
eration before it is switched off au-
tomatically by pressing the button
again. The indicator light associated
with the button switches off.
Page 51 of 221
3
i
53
COMFORT
Engage the shafts of the windstop
frame in the openings in the rear
side trim so that the red indicators
are concealed.
W h e n i n s t a l l i n g t h e w i n d s t o p f o r t h e fi r s t
time:
position a size 10 open-ended spanner
on the hexagonal part of the shaft,
tighten or slacken without forcing on
each side to adjust the depth setting.
Lastly, always check that the wind-
stop is retained securely before use
i n t h e " c a b r i o l e t " c o n fi g u r a t i o n .
Removal
Press and pull on the shaft supports
to release the shafts from the open-
ings in the rear side trim; the red in-
dicators then become visible. It is not necessary to remove the
windstop when operating the roof.
Page 78 of 221
4
ii
75
ACCESS
Unlocking and partially opening
the boot
BOOT Boot anti-theft protection
The boot is designed to remain impreg-
n a b l e , e v e n i n t h e " c a b r i o l e t " c o n fi g u r a -
tion, if the vehicle is locked.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door open-ing control,
- by pressing the manual centralised control A , when the key is not in the
ignition switch.
Opening
After unlocking the boot or the vehi-
cle using the remote control or the
key, pull the handle and raise the
tailgate
When the selective unlocking is ac-
tivated, the boot can be opened at
the second press of the unlocking
button on the remote control.
Press this button for more
than two seconds to unlock
the boot. The boot opens
slightly.
This action also unlocks the doors.
If a battery failure occurs, the boot
is locked. Consult a PEUGEOT
dealer. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly: -
when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an au-
dible signal and a message on the mul-
tifunction display for a few seconds.
Page 103 of 221
6
i
91
LAYOUT
Hooked onto the stowing rings, this en-
ables you to secure your luggage.
Luggage retaining net
Raise the boot carpet to gain access
to the storage box.
Hook the boot carpet on the boot
seal using its handle.
This has areas for storing the windstop
and two warning triangles.
By removing this box you gain access
to the puncture repair kit and the tools.
Storage box Boot screen
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h i s d e -
fi n e s t h e l u g g a g e s p a c e i n t h e b o o t .
When the boot screen is unfolded,
check that the luggage:
- never raises it,
- is never placed on top of it.
The load space cover must always
be unfolded before a roof opening
manoeuvre is triggered (refer to the
"Familiarisation - § Opening" section).
Page 161 of 221
10
!
!
i

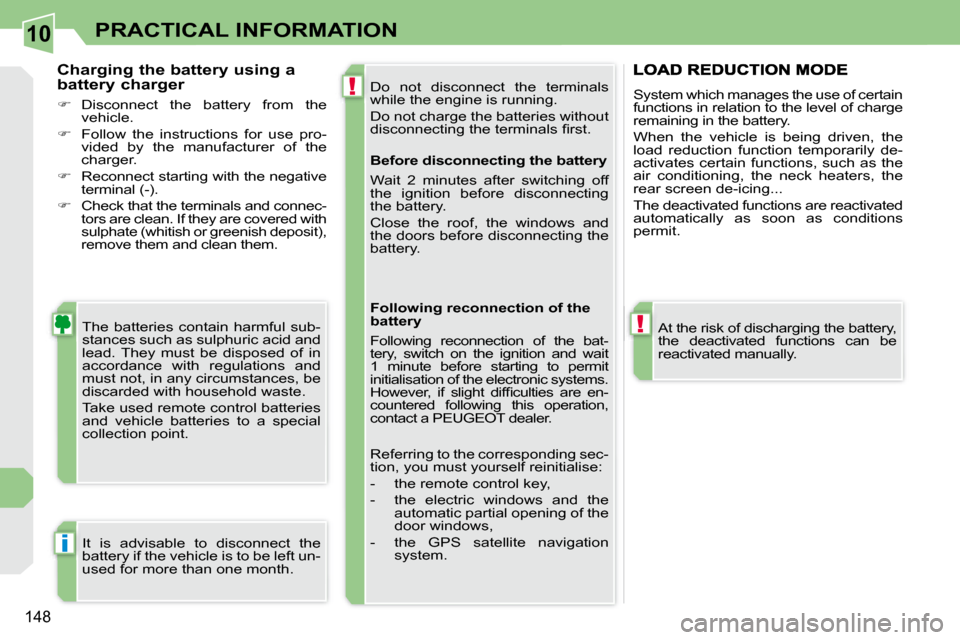

148
PRACTICAL INFORMATION
Do not disconnect the terminals
w h i l e t h e e n g i n e i s r u n n i n g .
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
The batteries contain harmful sub-
stances such as sulphuric acid and
l e a d . T h e y m u s t b e d i s p o s e d o f i n
accordance with regulations and
must not, in any circumstances, be
d i s c a r d e d w i t h h o u s e h o l d w a s t e .
Take used remote control batteries
a n d v e h i c l e b a t t e r i e s t o a s p e c i a l
c o l l e c t i o n p o i n t .
Charging the battery using a
battery charger
Disconnect the battery from the
v e h i c l e .
Follow the instructions for use pro-
v i d e d b y t h e m a n u f a c t u r e r o f t h e
c h a r g e r .
R e c o n n e c t s t a r t i n g w i t h t h e n e g a t i v e
t e r m i n a l ( - ) .
Check that the terminals and connec-
t o r s a r e c l e a n . I f t h e y a r e c o v e r e d w i t h
sulphate (whitish or greenish deposit),
r e m o v e t h e m a n d c l e a n t h e m .
A t t h e r i s k o f d i s c h a r g i n g t h e b a t t e r y ,
t h e d e a c t i v a t e d f u n c t i o n s c a n b e
r e a c t i v a t e d m a n u a l l y . System which manages the use of certain
f u n c t i o n s i n r e l a t i o n t o t h e l e v e l o f c h a r g e
r e m a i n i n g i n t h e b a t t e r y .
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily de-
a c t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e
air conditioning, the neck heaters, the
r e a r s c r e e n d e - i c i n g . . .
T h e d e a c t i v a t e d f u n c t i o n s a r e r e a c t i v a t e d
automatically as soon as conditions
p e r m i t .
I t i s a d v i s a b l e t o d i s c o n n e c t t h e
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t u n -
u s e d f o r m o r e t h a n o n e m o n t h . Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
t h e b a t t e r y .
Close the roof, the windows and
the doors before disconnecting the
b a t t e r y .
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
i n i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s t e m s .
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
c o n t a c t a P E U G E O T d e a l e r .
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the electric windows and the
automatic partial opening of the
door windows,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
