FAMILIARISATION
Remote control key
A. Unfolding/Folding of the key.
Normal locking
( p r e s s o n c e ; fi x e d l i g h t i n g o f
the direction indicators). Fuel tank
1. O p e n i n g o f t h e f u e l fi l l e r fl a p .
2. Opening and hooking of the fuel
tank cap.
Capacity of the tank: approximately 60 litres.
Unlocking and partial opening
of the boot
(press for more than two sec-
onds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped headlamps, side lights and lat-
eral lights makes your approach to the
vehicle easier.
80
In the same way, the passenger com-
partment lighting, such as the courtesy
lights, the door sill lights and the foot-
well lights, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi x e d l i g h t i n g o f t h e d i r e c t i o n
indicators).
63
85
76
OPEN
Complete or selective unlock-
ing of the vehicle
( r a p i d fl a s h i n g o f t h e d i r e c t i o n
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.
Page 7 of 221
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lights and direction indicators
controls.
4. Central adjustable and closing
vents.
5. Multifunction display.
6. Sunshine sensor.
7. Passenger air bag.
8. Glove box/Audio/video sockets/
Fuse box.
9. Bonnet release.
10. Retractable roof control.
Control for all four windows.
11. Storage compartment or instrument
panel navigator associated with the
WIP Com 3D.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating/air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lights button.
Dynamic stability control (ESP/ASR) button.
Parking assistance button.
PEUGEOT services button.
Page 27 of 221
1
30
INSTRUMENTS and CONTROLS
Water in diesel ** .
If this is displayed, it indicates
the presence of water in the
d i e s e l fi l t e r .
There is a risk of damage to the injec-
tion system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates
the occurrence of a fault in the
automatic headlamp adjustment. P a r t i c l e e m i s s i o n fi l t e r
(Diesel).
If this is displayed, linked with the
service warning light, it indicates
the start of saturation of the particle emis-
s i o n fi l t e r o r a l o w d i e s e l a d d i t i v e r e s e r v o i r
level.
A s s o o n a s t r a f fi c c o n d i t i o n s p e r m i t , r e -
g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
of at least 40 mph (60 km/h) until the
service warning light is switched off.
If the service warning light is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer with-
out delay.
D e fl a t e d w h e e l .
If this is displayed, it indicates
a n i n s u f fi c i e n t p r e s s u r e i n o n e
or more wheels.
Check the pressure of the tyres as soon
as possible. Punctured wheel.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle im-
mediately and as safely as possible.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
detection.
If this is displayed, it indicates
the occurrence of a fault on one
o f t h e s e n s o r s o r i n t h e t y r e u n d e r - i n fl a -
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
d o e s n o t h a v e a s e n s o r , i s fi t t e d i n p l a c e
of a punctured wheel.
Automatic switching on of
the lights.
If this comes on, it indicates
the occurrence of a fault in the
automatic switching on of the
lights.
Use the other positions of the lights
stalk.
Visual and/or audible
parking assistance.
If this comes on, in forward and/
or reverse gear, it indicates a
fault in the parking assistance
system.
Automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
automatic gearbox. The gear-
box will then operate in down-grade
mode, locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the automatic
gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in or-
der to start the engine.
** According to country.
Page 44 of 221
3
i
47
COMFORT
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer. RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e -
newal of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i n s t a l l i n g t h e w i n d s t o p a n d u s i n g t h e n e c k
heaters improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 82 of 221
5
!
79
VISIBILITY

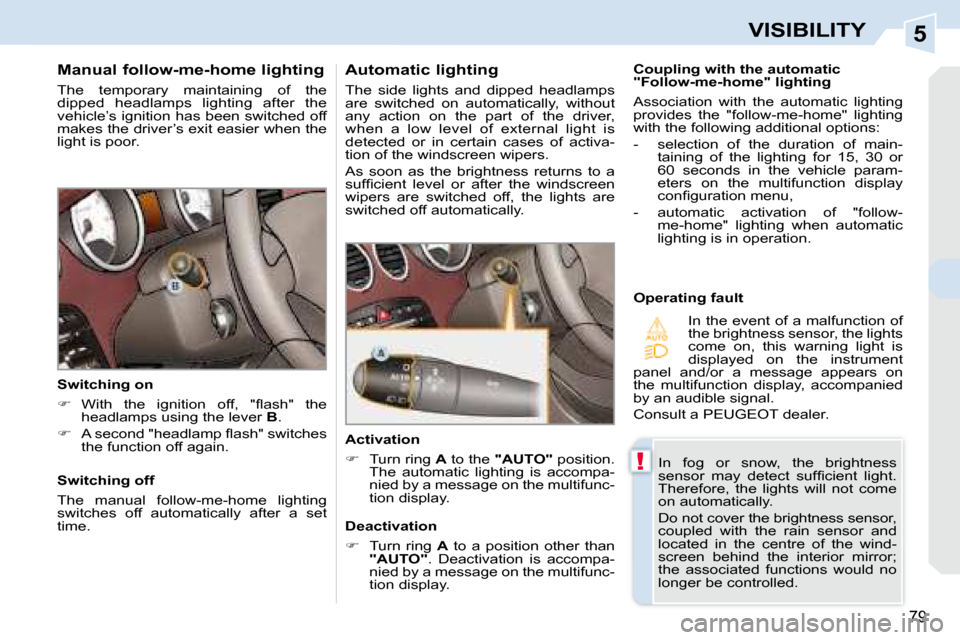

Manual follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting after the
vehicle’s ignition has been switched off
makes the driver’s exit easier when the
light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lever B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual follow-me-home lighting
switches off automatically after a set
time.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is
detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow- me-home" lighting when automatic
lighting is in operation.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on, this warning light is
displayed on the instrument
panel and/or a message appears on
the multifunction display, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
Page 84 of 221
5
!
79
VISIBILITY
Manual follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting after the
vehicle’s ignition has been switched off
makes the driver’s exit easier when the
light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lever B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual follow-me-home lighting
switches off automatically after a set
time.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is
detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow- me-home" lighting when automatic
lighting is in operation.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on, this warning light is
displayed on the instrument
panel and/or a message appears on
the multifunction display, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
Page 90 of 221
5
!
i
83
VISIBILITY
Windscreen and headlamp
wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
If the dipped headlamps are on , the
headlamp washers operate at the same
time.
Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
light and/or the service warning light is
displayed on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning light is displayed when the ig-
nition is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d . Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by
pushing lever
A to the "AUTO" position.
It is accompanied by a message on the
multifunction display.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing lever
A downwards.
Switching off
This is controlled manually by the driver
by moving lever A upwards and return-
ing it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
Page 92 of 221
5
!
i
83
VISIBILITY
Windscreen and headlamp
wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
If the dipped headlamps are on , the
headlamp washers operate at the same
time.
Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
light and/or the service warning light is
displayed on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning light is displayed when the ig-
nition is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d . Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by
pushing lever
A to the "AUTO" position.
It is accompanied by a message on the
multifunction display.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing lever
A downwards.
Switching off
This is controlled manually by the driver
by moving lever A upwards and return-
ing it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
Page 105 of 221
7
!
i
i
i
93
SAFETY
TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of tyres on
a w h e e l fi t t e d w i t h t h i s s y s t e m m u s t
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" I d e n t i fi c a t i o n f e a t u r e s " p a r a g r a p h )
to ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).
This warning light is displayed on the
instrument panel and/or a message
appears on the multifunction display,
accompanied by an audible signal,
to locate the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre The
STOP warning light comes
on and/or this warning light is
displayed on the instrument
panel, accompanied by an au-
dible signal and a message on
the multifunction display locat-
ing the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning light is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction display, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor.
Page 133 of 221
8
i
i
120
DRIVING
Deactivation Operating fault The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
PEUGEOT).
Reactivation
Press button A again, the warning
light switches off, the system is re-
activated.
Press button A , the warning light
comes on, the system is fully deacti-
vated. In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty. If an operating fault occurs, this
warning light is displayed on the
instrument panel and/or a mes-
sage appears on the multifunc-
tion display, accompanied by an audible
signal (short beep), when reverse gear
is engaged.
Consult a PEUGEOT dealer.
