Page 3 of 221
!
!
i

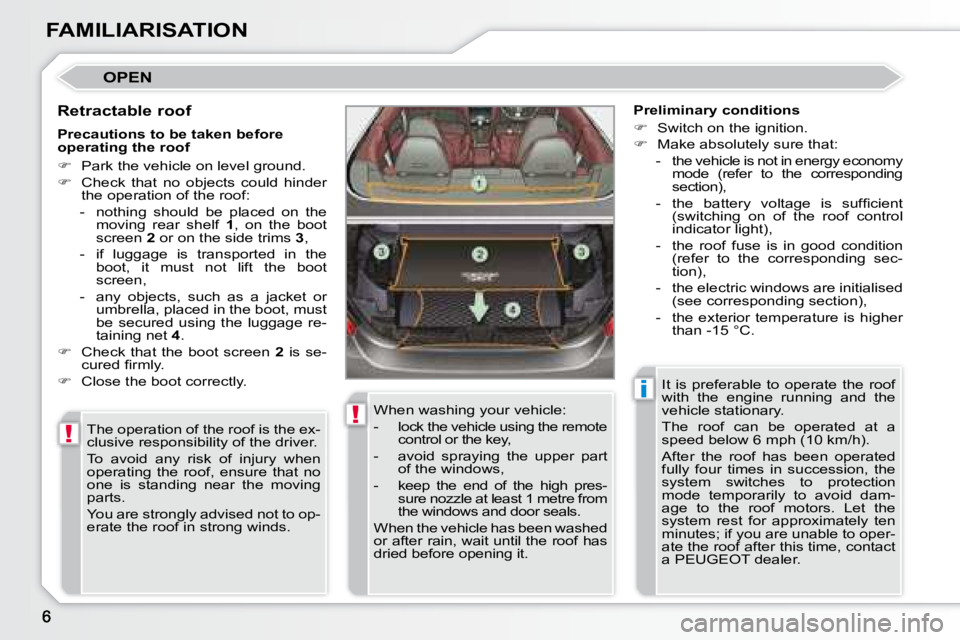

FAMILIARISATION
OPEN
Retractable roof The operation of the roof is the ex-
clusive responsibility of the driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to op-
erate the roof in strong winds. When washing your vehicle:
- lock the vehicle using the remote
control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pres- sure nozzle at least 1 metre from
the windows and door seals.
When the vehicle has been washed
or after rain, wait until the roof has
dried before opening it. It is preferable to operate the roof
with the engine running and the
vehicle stationary.
The roof can be operated at a
speed below 6 mph (10 km/h).
After the roof has been operated
fully four times in succession, the
system switches to protection
mode temporarily to avoid dam-
age to the roof motors. Let the
system rest for approximately ten
minutes; if you are unable to oper-
ate the roof after this time, contact
a PEUGEOT dealer.
Preliminary conditions
Switch on the ignition.
Make absolutely sure that:
- the vehicle is not in energy economy mode (refer to the corresponding
section),
- t h e b a t t e r y v o l t a g e i s s u f fi c i e n t (switching on of the roof control
indicator light),
- the roof fuse is in good condition (refer to the corresponding sec-
tion),
- the electric windows are initialised (see corresponding section),
- the exterior temperature is higher than -15 °C.
Precautions to be taken before
operating the roof
Park the vehicle on level ground.
Check that no objects could hinder
the operation of the roof:
- nothing should be placed on the moving rear shelf 1 , on the boot
screen 2 or on the side trims 3 ,
- if luggage is transported in the boot, it must not lift the boot
screen,
- any objects, such as a jacket or umbrella, placed in the boot, must
be secured using the luggage re-
taining net 4 .
Check that the boot screen 2 is se-
c u r e d fi r m l y .
Close the boot correctly.
Page 17 of 221
1
i
20

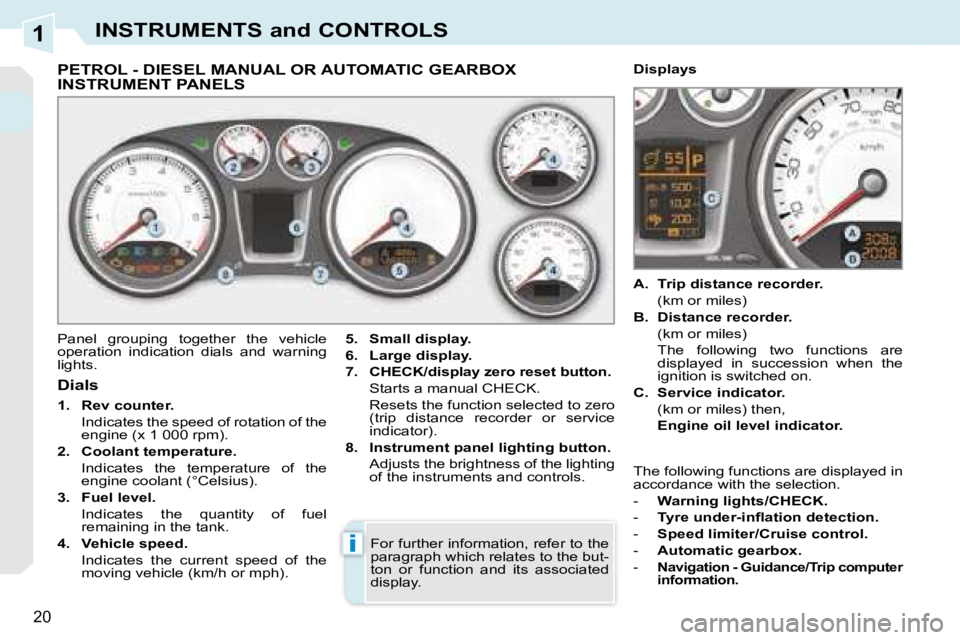

INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.
6. Large display.
7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)
B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Automatic gearbox.
- Navigation - Guidance/Trip computer
information.
Page 18 of 221
1
i

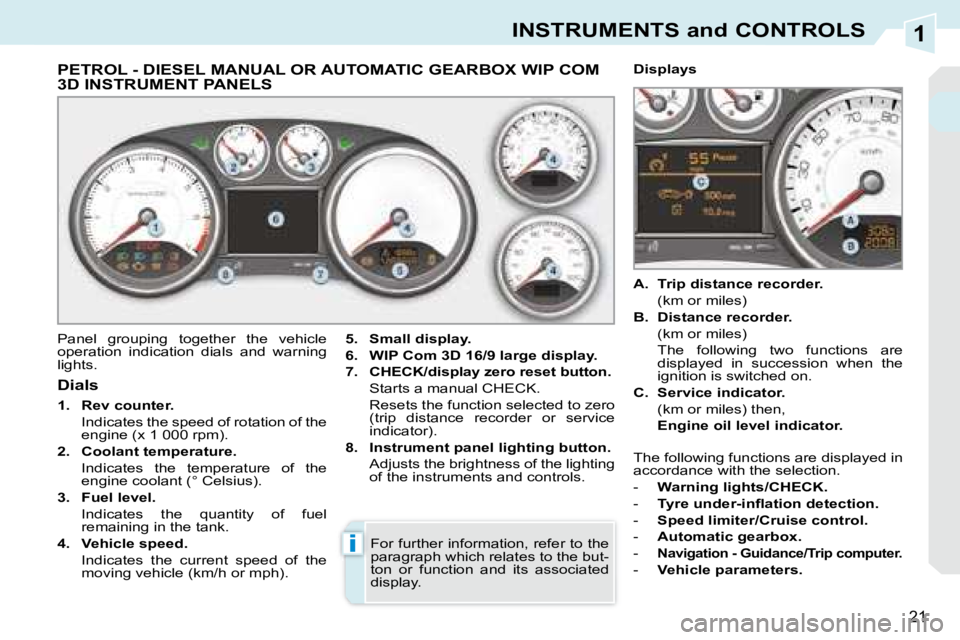

21
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX WIP COM 3D INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.
6. WIP Com 3D 16/9 large display.
7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)
B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Automatic gearbox.
-
Navigation - Guidance/Trip computer.
- Vehicle parameters.
Page 23 of 221
1
!

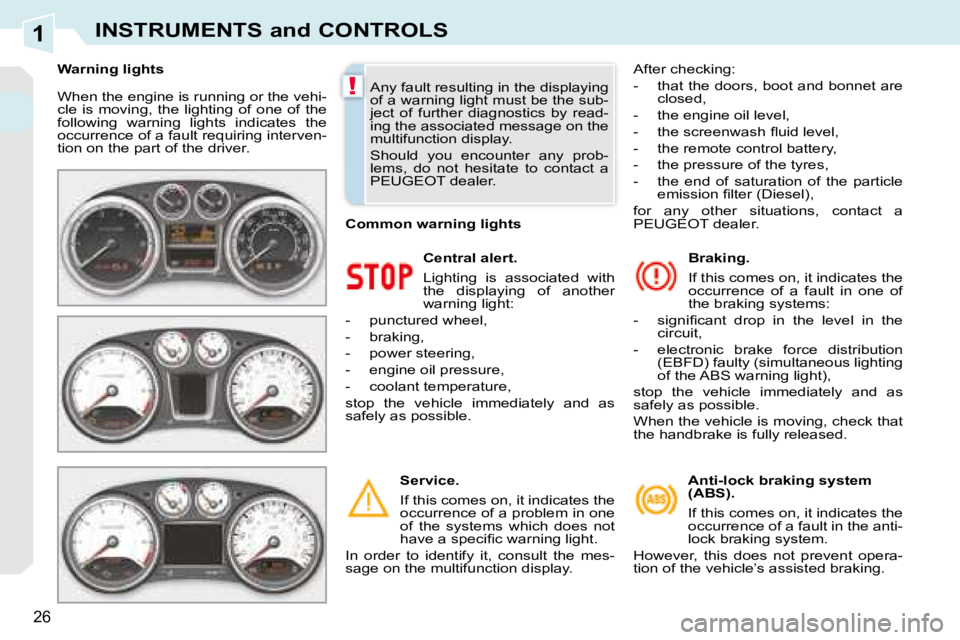

26
INSTRUMENTS and CONTROLS
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver. Central alert.
Lighting is associated with
the displaying of another
warning light:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
h a v e a s p e c i fi c w a r n i n g l i g h t .
In order to identify it, consult the mes-
sage on the multifunction display. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the sub-
ject of further diagnostics by read-
ing the associated message on the
multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
PEUGEOT dealer.
Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle’s assisted braking.
Common warning lights
After checking:
- that the doors, boot and bonnet are
closed,
- the engine oil level,
- t h e s c r e e n w a s h fl u i d l e v e l ,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) ,
for any other situations, contact a
PEUGEOT dealer.
Page 26 of 221

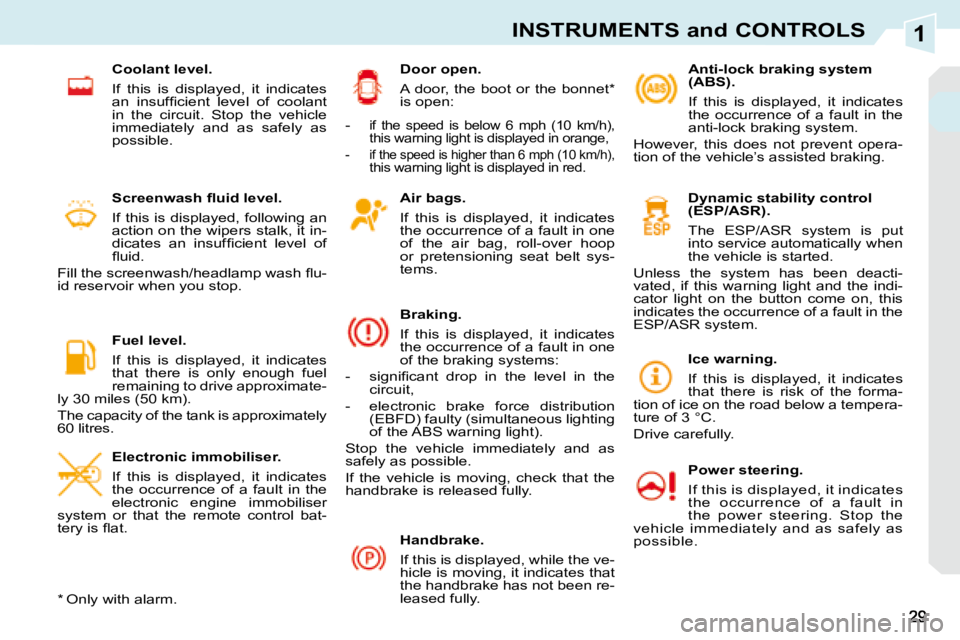

1INSTRUMENTS and CONTROLS
Air bags.
If this is displayed, it indicates
the occurrence of a fault in one
of the air bag, roll-over hoop
or pretensioning seat belt sys-
tems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle’s assisted braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deacti-
vated, if this warning light and the indi-
cator light on the button come on, this
indicates the occurrence of a fault in the
ESP/ASR system.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in
the power steering. Stop the
vehicle immediately and as safely as
possible.
Door open.
A door, the boot or the bonnet *
is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a tempera-
ture of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the handbrake has not been re-
leased fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
t e r y i s fl a t .
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel
remaining to drive approximate-
ly 30 miles (50 km).
The capacity of the tank is approximately
60 litres. S c r e e n w a s h fl u i d l e v e l .
If this is displayed, following an
action on the wipers stalk, it in-
d i c a t e s a n i n s u f fi c i e n t l e v e l o f
fl u i d .
F i l l t h e s c r e e n w a s h / h e a d l a m p w a s h fl u -
id reservoir when you stop. -
if the speed is below 6 mph (10 km/h),
this warning light is displayed in orange,
- if the speed is higher than 6 mph (10 km/h), this warning light is displayed in red.
Coolant level.
If this is displayed, it indicates
a n i n s u f fi c i e n t l e v e l o f c o o l a n t
in the circuit. Stop the vehicle
immediately and as safely as
possible.
Page 27 of 221
1

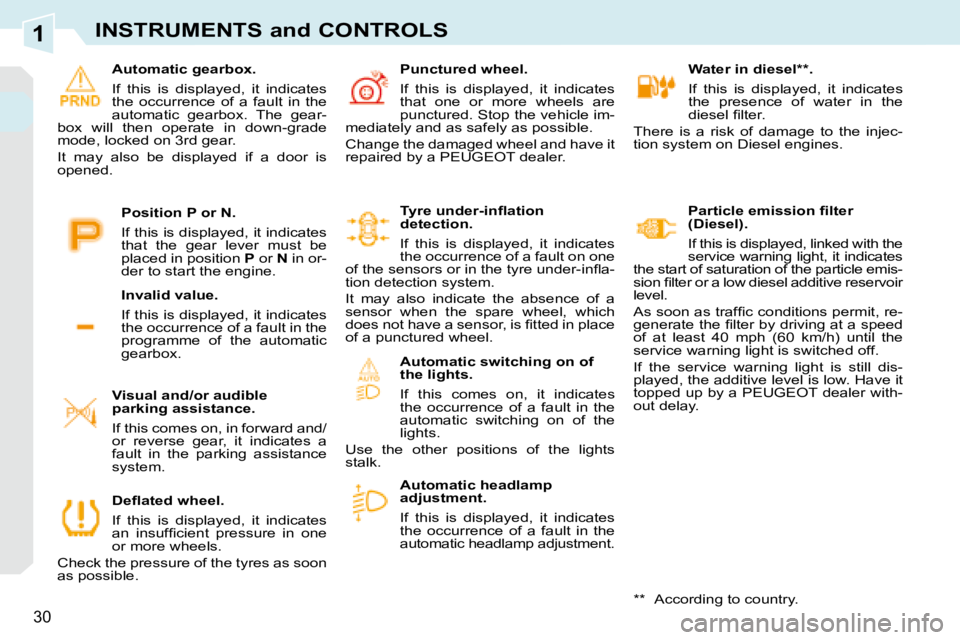

30
INSTRUMENTS and CONTROLS
Water in diesel ** .
If this is displayed, it indicates
the presence of water in the
d i e s e l fi l t e r .
There is a risk of damage to the injec-
tion system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates
the occurrence of a fault in the
automatic headlamp adjustment. P a r t i c l e e m i s s i o n fi l t e r
(Diesel).
If this is displayed, linked with the
service warning light, it indicates
the start of saturation of the particle emis-
s i o n fi l t e r o r a l o w d i e s e l a d d i t i v e r e s e r v o i r
level.
A s s o o n a s t r a f fi c c o n d i t i o n s p e r m i t , r e -
g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
of at least 40 mph (60 km/h) until the
service warning light is switched off.
If the service warning light is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer with-
out delay.
D e fl a t e d w h e e l .
If this is displayed, it indicates
a n i n s u f fi c i e n t p r e s s u r e i n o n e
or more wheels.
Check the pressure of the tyres as soon
as possible. Punctured wheel.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle im-
mediately and as safely as possible.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
detection.
If this is displayed, it indicates
the occurrence of a fault on one
o f t h e s e n s o r s o r i n t h e t y r e u n d e r - i n fl a -
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
d o e s n o t h a v e a s e n s o r , i s fi t t e d i n p l a c e
of a punctured wheel.
Automatic switching on of
the lights.
If this comes on, it indicates
the occurrence of a fault in the
automatic switching on of the
lights.
Use the other positions of the lights
stalk.
Visual and/or audible
parking assistance.
If this comes on, in forward and/
or reverse gear, it indicates a
fault in the parking assistance
system.
Automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
automatic gearbox. The gear-
box will then operate in down-grade
mode, locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the automatic
gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in or-
der to start the engine.
** According to country.
Page 28 of 221
1
31
INSTRUMENTS and CONTROLS
Coolant temperature indicator
System which informs the driver of the
changes in the temperature of the en-
gine coolant while driving. With the engine running, when the nee-
dle is:
- in zone
A , the temperature is
correct,
- in zone B , the temperature is too
high; the max temperature warning
light 1 and the central STOP warning
light come on, accompanied by an
audible signal and a message on
the multifunction display.
You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.
After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
wait for the engine to cool,
unscrew the cap by two turns to
allow the pressure to drop,
when the pressure has dropped,
remove the cap,
top up the level to the "MAX" mark.

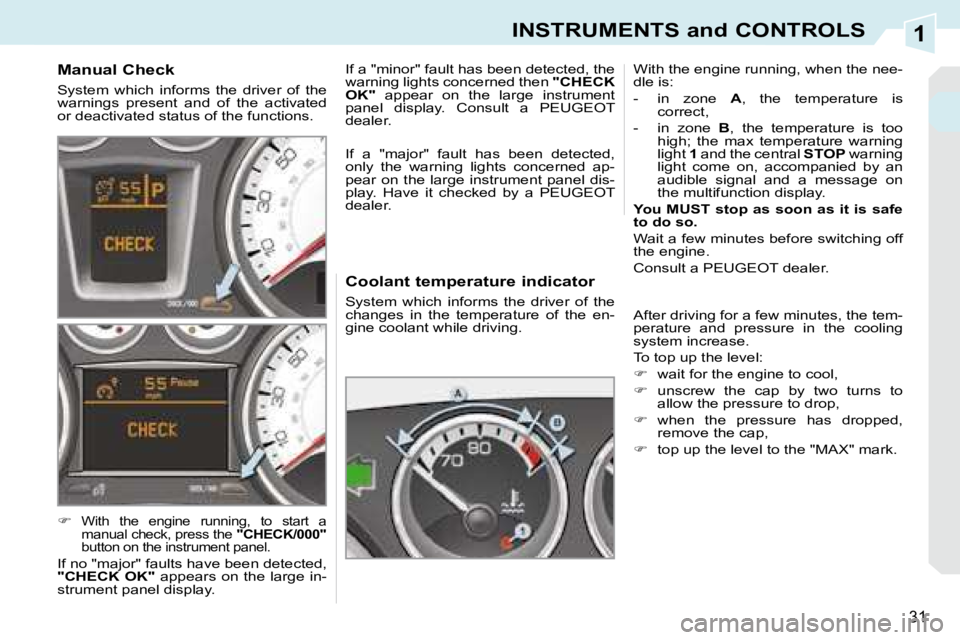

Manual Check
System which informs the driver of the
warnings present and of the activated
or deactivated status of the functions.
With the engine running, to start a
manual check, press the "CHECK/000"
button on the instrument panel.
If no "major" faults have been detected,
"CHECK OK" appears on the large in-
strument panel display. If a "minor" fault has been detected, the
warning lights concerned then
"CHECK
OK" appear on the large instrument
panel display. Consult a PEUGEOT
dealer.
If a "major" fault has been detected,
only the warning lights concerned ap-
pear on the large instrument panel dis-
play. Have it checked by a PEUGEOT
dealer.
Page 31 of 221
1
i
34
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level gauge fault
Dipstick
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction dis-
play.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL --" . Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Page 79 of 221
4
i
76
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.

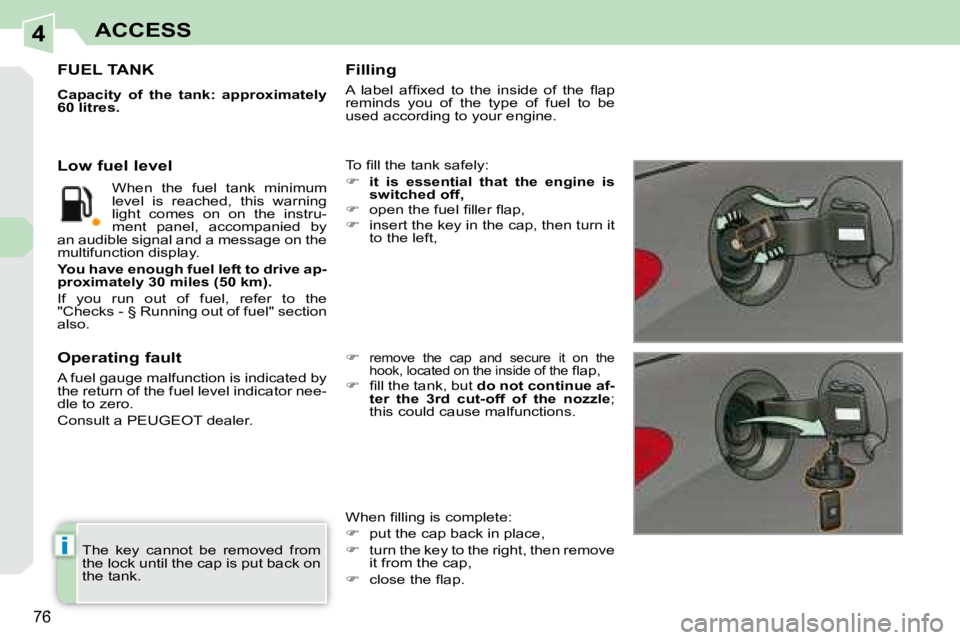

FUEL TANK
Capacity of the tank: approximately
60 litres.
T o fi l l t h e t a n k s a f e l y :
it is essential that the engine is
switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
W h e n fi l l i n g i s c o m p l e t e :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
remove the cap and secure it on the
hook, located on the inside of the fl a p ,
fi l l t h e t a n k , b u t do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used according to your engine.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel level indicator nee-
dle to zero.
Consult a PEUGEOT dealer. When the fuel tank minimum
level is reached, this warning
light comes on on the instru-
ment panel, accompanied by
an audible signal and a message on the
multifunction display.
You have enough fuel left to drive ap-
proximately 30 miles (50 km).
If you run out of fuel, refer to the
"Checks - § Running out of fuel" section
also.
Page 107 of 221
7
!
SAFETY
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, locat-
ed in the centre of the fascia.
If this warning light comes on on
the instrument panel and the in-
dicator light on the button comes
on, this indicates that the ASR
and ESP systems are disarmed.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the multi-
function display, this indicates a
malfunction of these systems.
Have the systems checked by a
PEUGEOT dealer.

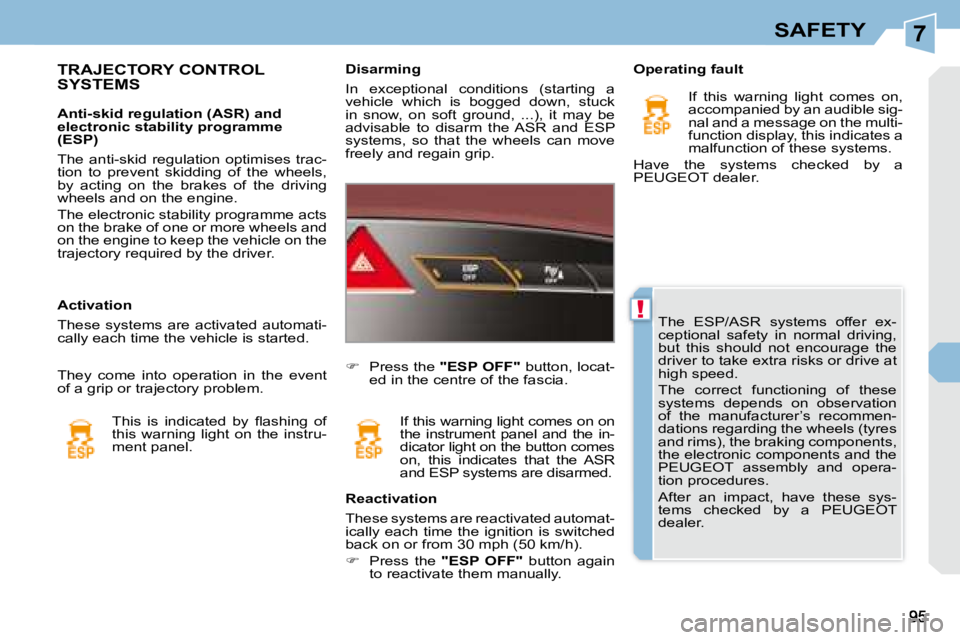

TRAJECTORY CONTROL SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
They come into operation in the event
of a grip or trajectory problem.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning light on the instru-
ment panel.
