PEUGEOT 308 CC 2013 User Guide

9

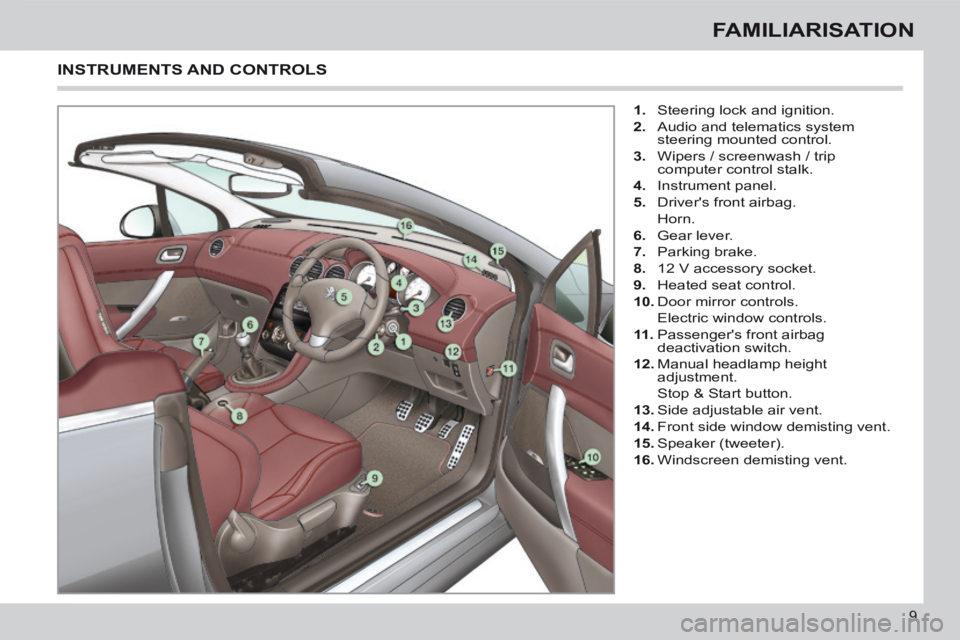

FAMILIARISATION
1. Steering lock and ignition.
2. Audio and telematics system steering mounted control.
3. Wipers / screenwash / trip computer control stalk.
4. Instrument panel.
5. Driver's front airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. 12 V accessory socket.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11 . Passenger's front airbag
deactivation switch.
12. Manual headlamp height adjustment.
Stop & Start button.
13. Side adjustable air vent.
14. Front side window demisting vent.
15. Speaker (tweeter).
16. Windscreen demisting vent.
INSTRUMENTS AND CONTROLS

10
FAMILIARISATION

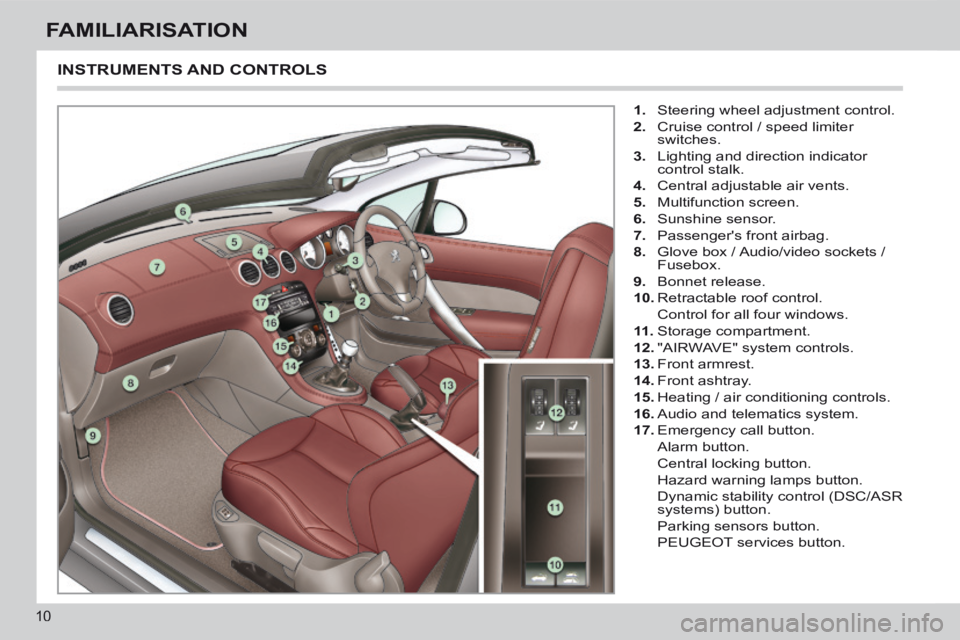

INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Cruise control / speed limiter switches.
3. Lighting and direction indicator control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's front airbag.
8. Glove box / Audio/video sockets / Fusebox.
9. Bonnet release.
10. Retractable roof control.
Control for all four windows.
11 . Storage compartment.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating / air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (DSC/ASR systems) button.
Parking sensors button.
PEUGEOT services button.

 53
 54
11
FAMILIARISATION

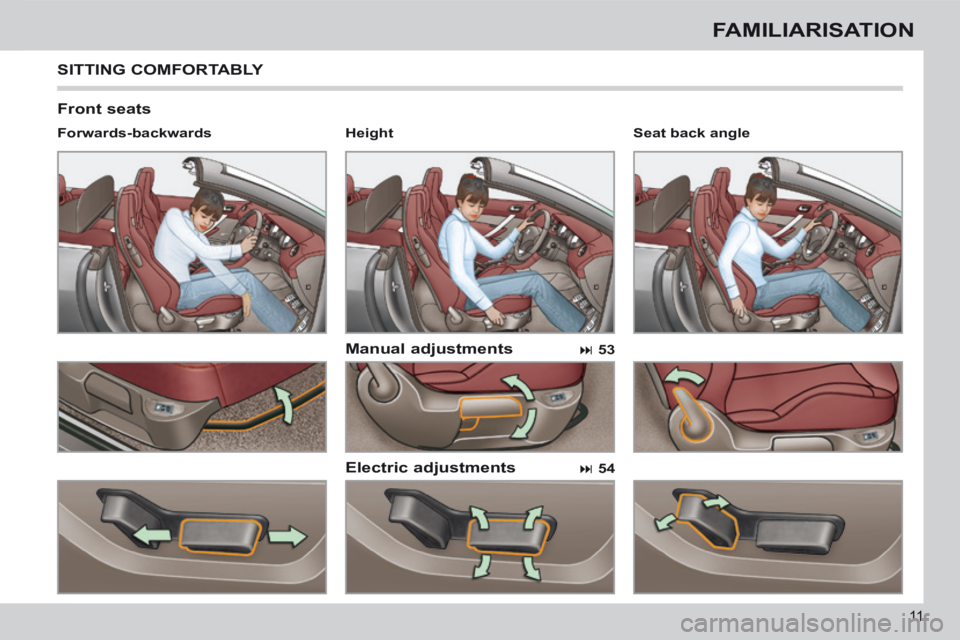

Front seats Manual adjustments
Forwards-backwards Seat back angle
Height
SITTING COMFORTABLY
Electric adjustments

!i
 88
 60
 55
 57
 56
12
FAMILIARISATION
SITTING COMFORTABLY

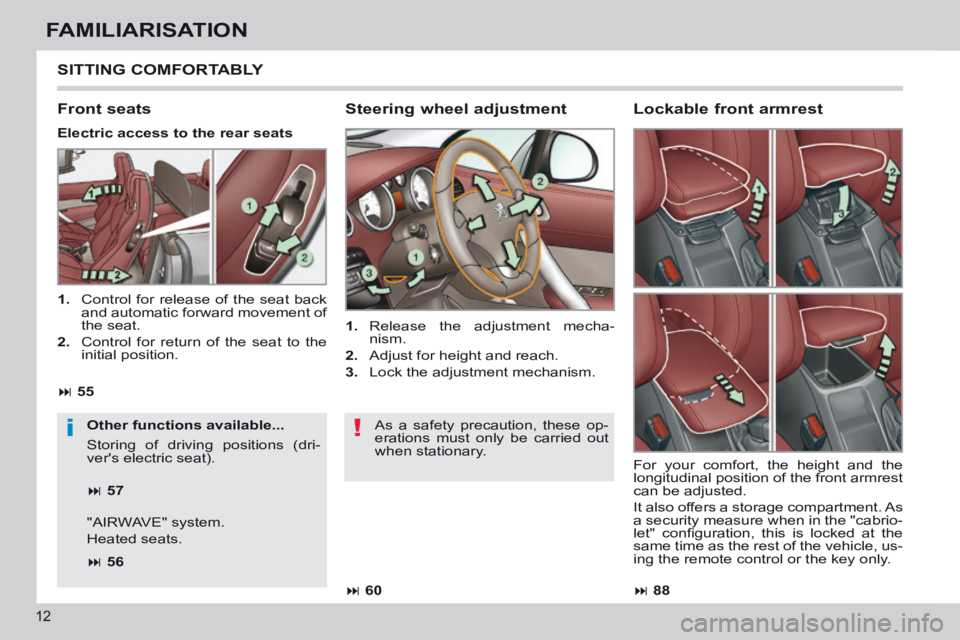

Steering wheel adjustment
1. Release the adjustment mecha-nism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.
Front seats
Other functions available...
Storing of driving positions (dri-
ver's electric seat).
Electric access to the rear seats
Lockable front armrest
For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle, us-
ing the remote control or the key only.
As a safety precaution, these op-
erations must only be carried out
when stationary.
1. Control for release of the seat back
and automatic forward movement of
the seat.
2. Control for return of the seat to the initial position.
"AIRWAVE" system.
Heated seats.

i
 97
 58  60
 59
13
FAMILIARISATION
SITTING COMFORTABLY

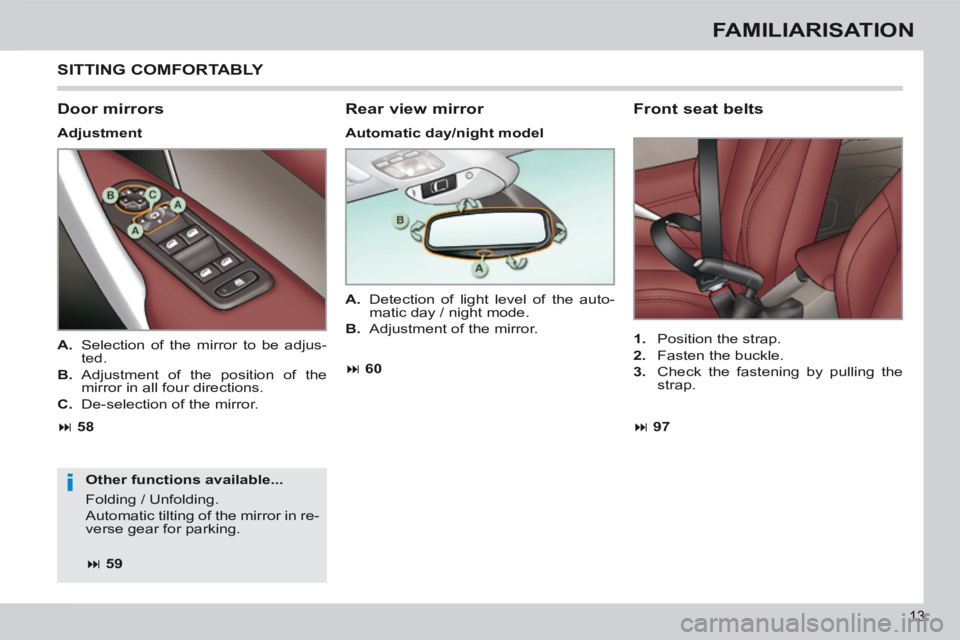

Door mirrors
Adjustment
Other functions available...
Folding / Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.
Rear view mirror Front seat belts
1. Position the strap.
2. Fasten the buckle.
3. Check the fastening by pulling the
strap.
A. Selection of the mirror to be adjus-
ted.
B. Adjustment of the position of the mirror in all four directions.
C. De-selection of the mirror. Automatic day/night model
A. Detection of light level of the auto-
matic day / night mode.
B. Adjustment of the mirror.

 76 93 83  82
14
FAMILIARISATION
SEEING CLEARLY

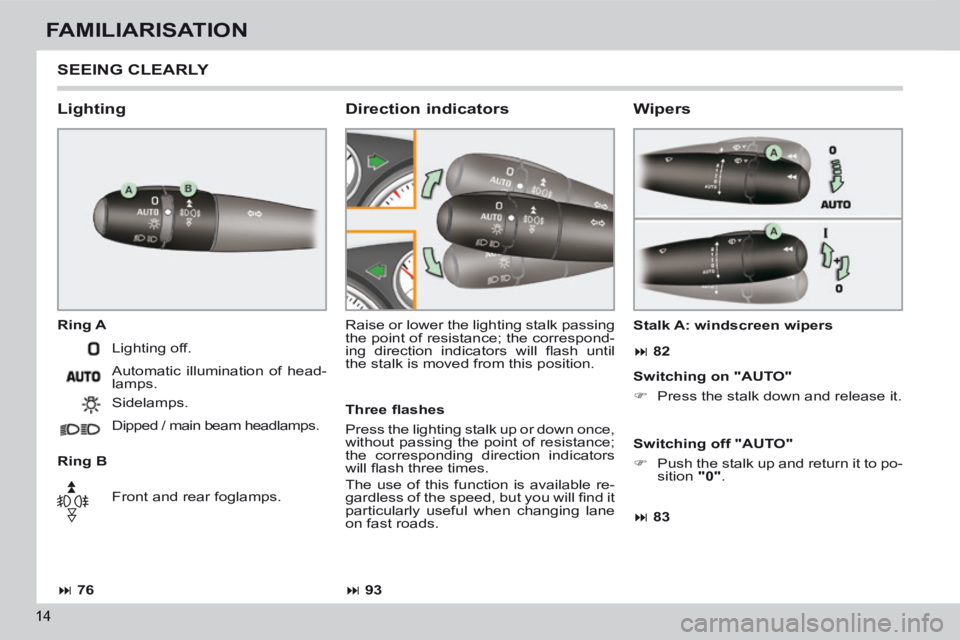

Lighting
Ring A
Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash until
the stalk is moved from this position.
Direction indicators
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps. Stalk A: windscreen wipers
Wipers
Three fl ashes
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.
Switching on "AUTO"
 Press the stalk down and release it.
Switching off "AUTO"
 Push the stalk up and return it to po-
sition "0" .

 21 23
 177  177
 67
 71
 95
 129
15
FAMILIARISATION
MONITORING

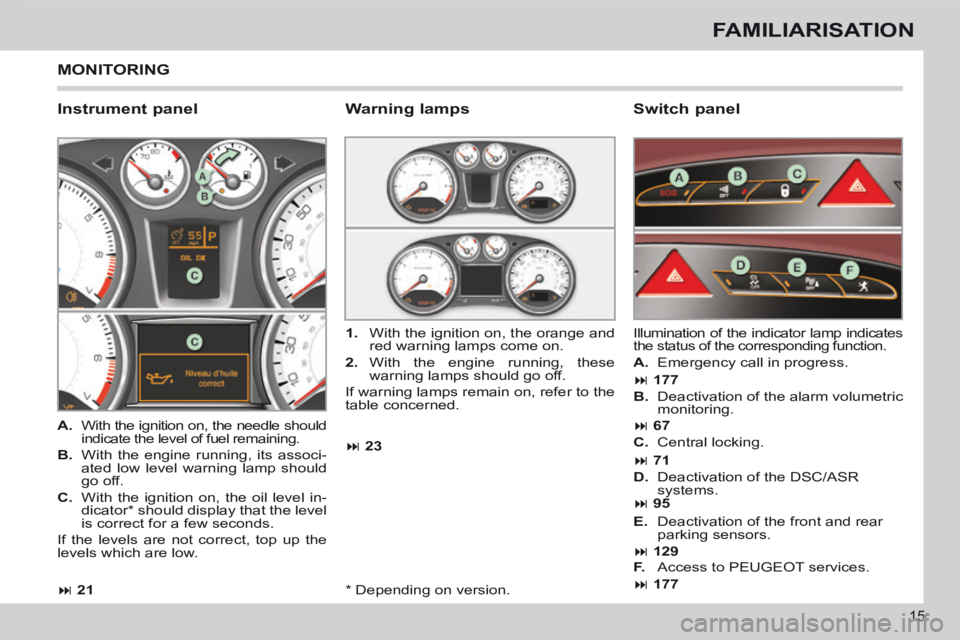

Instrument panel Switch panel
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ- ated low level warning lamp should
go off.
C. With the ignition on, the oil level in- dicator * should display that the level
is correct for a few seconds.
If the levels are not correct, top up the
levels which are low. Illumination of the indicator lamp indicates
the status of the corresponding function.
A. Emergency call in progress.
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these warning lamps should go off.
If warning lamps remain on, refer to the
table concerned.
Warning lamps
B. Deactivation of the alarm volumetric monitoring.
C. Central locking.
D. Deactivation of the DSC/ASR systems.
E. Deactivation of the front and rear parking sensors.
F. Access to PEUGEOT services.
* Depending on version.

i
 101 97, 101 63
16
FAMILIARISATION

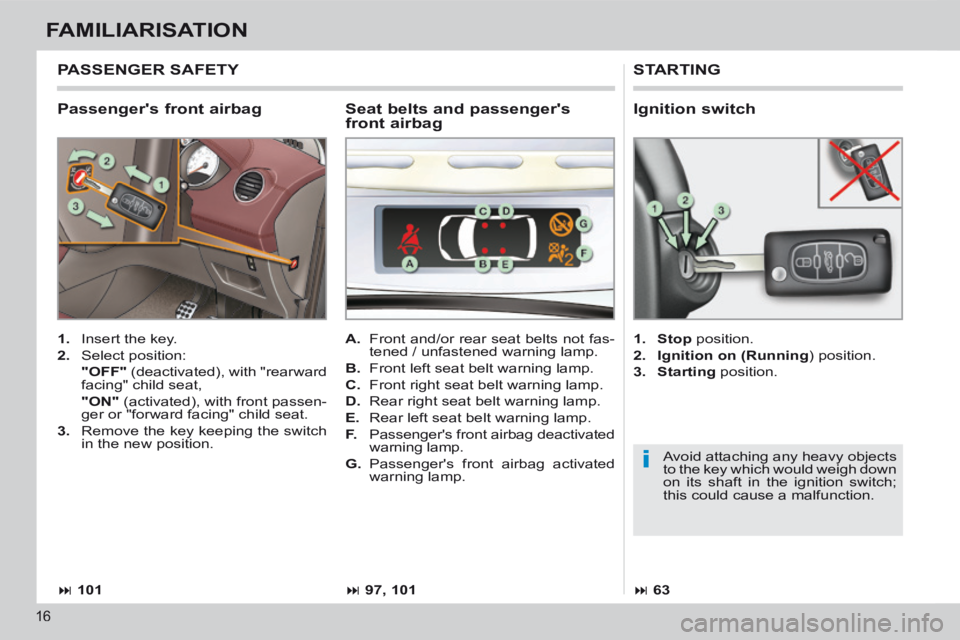

Passenger's front airbag
STARTING
1. Insert the key.
2. Select position:
"OFF" (deactivated), with "rearward
facing" child seat,
"ON" (activated), with front passen-
ger or "forward facing" child seat.
3. Remove the key keeping the switch in the new position. 1. Stop position.
2. Ignition on (Running ) position.
3. Starting position.
A. Front and/or rear seat belts not fas-
tened / unfastened warning lamp.
B. Front left seat belt warning lamp.
C. Front right seat belt warning lamp.
D. Rear right seat belt warning lamp.
E. Rear left seat belt warning lamp.
F. Passenger's front airbag deactivated
warning lamp.
G. Passenger's front airbag activated warning lamp.
Seat belts and passenger's
front airbag
PASSENGER SAFETY
Ignition switch
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

!
i
i
 11 9 120
17
FAMILIARISATION
DRIVING SAFELY

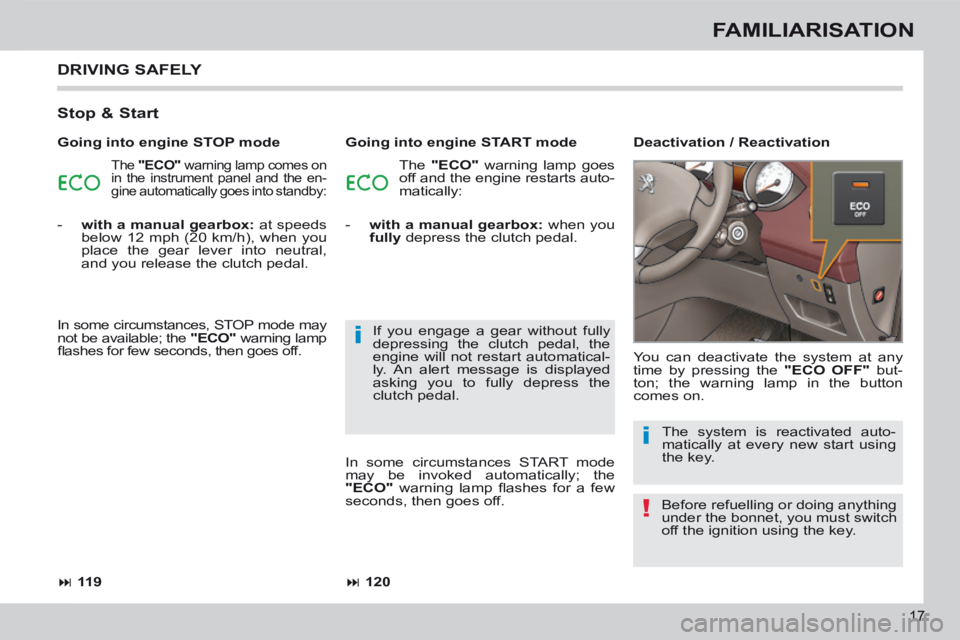

Stop & Start
The "ECO" warning lamp comes on
in the instrument panel and the en-
gine automatically goes into standby: The "ECO" warning lamp goes
off and the engine restarts auto-
matically:
You can deactivate the system at any
time by pressing the "ECO OFF" but-
ton; the warning lamp in the button
comes on. Deactivation / Reactivation
Going into engine STOP mode Going into engine START mode
- with a manual gearbox: at speeds below 12 mph (20 km/h), when you
place the gear lever into neutral,
and you release the clutch pedal.
In some circumstances, STOP mode may
not be available; the "ECO" warning lamp
fl ashes for few seconds, then goes off.
- with a manual gearbox: when you fully depress the clutch pedal.
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatical-
ly. An alert message is displayed
asking you to fully depress the
clutch pedal. The system is reactivated auto-
matically at every new start using
the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition using the key.
In some circumstances START mode
may be invoked automatically; the
"ECO" warning lamp fl ashes for a few
seconds, then goes off.

 126
 124
18
FAMILIARISATION
DRIVING SAFELY

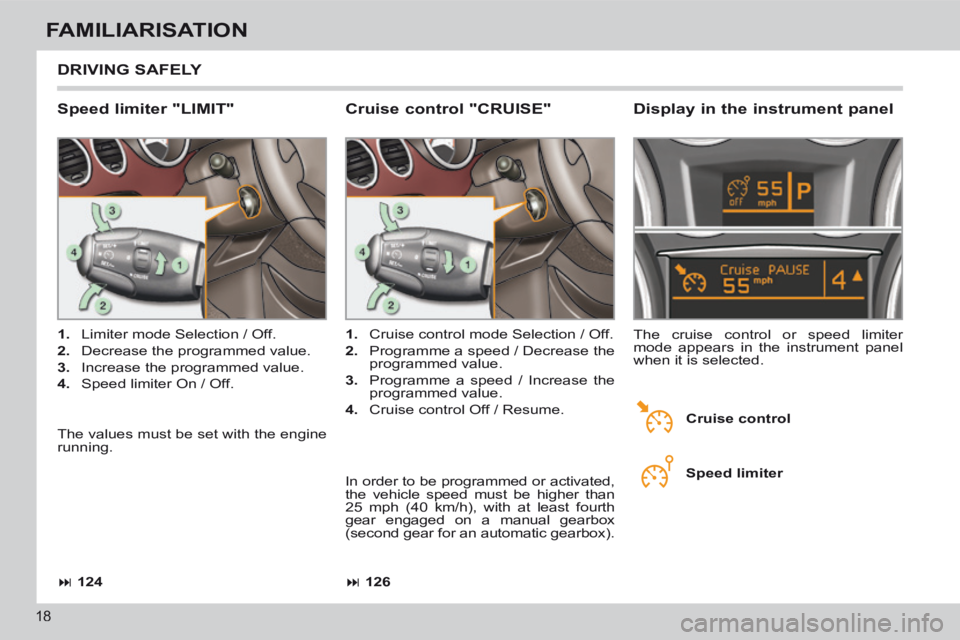

Speed limiter "LIMIT"
1. Limiter mode Selection / Off.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter On / Off. 1. Cruise control mode Selection / Off.
2. Programme a speed / Decrease the
programmed value.
3. Programme a speed / Increase the programmed value.
4. Cruise control Off / Resume.
Cruise control "CRUISE"
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear for an automatic gearbox).
The values must be set with the engine
running.
Display in the instrument panel
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
Cruise control
Speed limiter
