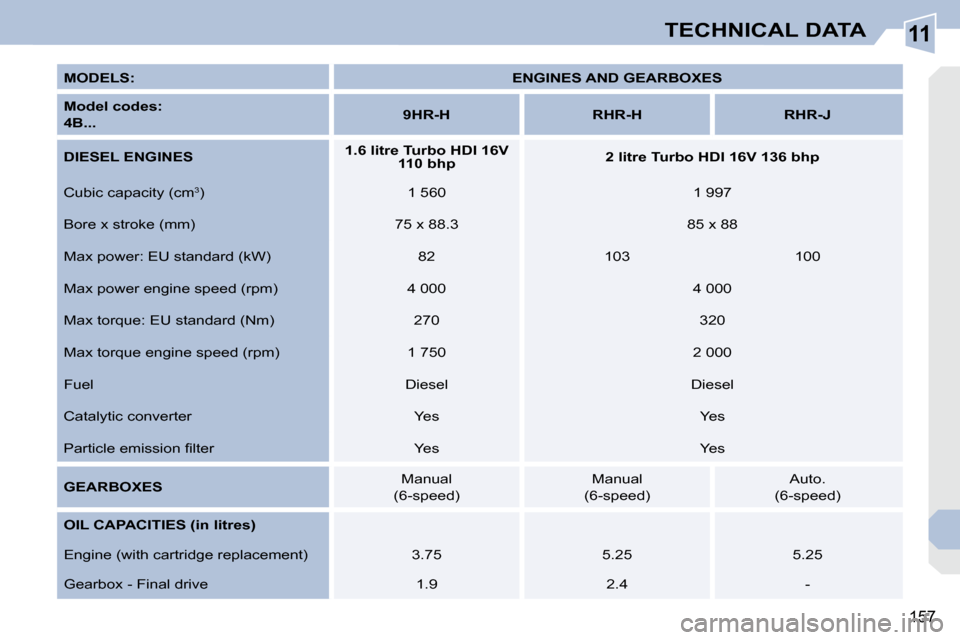

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4B...
9HR-H RHR-H RHR-J
DIESEL ENGINES
1.6 litre Turbo HDI 16V
110 bhp
2 litre Turbo HDI 16V 136 bhp
Cubic capacity (cm 3
) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) 82 103 100
Max power engine speed (rpm) 4 000 4 000
Max torque: EU standard (Nm) 270 320
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
P a r t i c l e e m i s s i o n fi l t e r Yes Yes
GEARBOXES Manual
(6-speed) Manual
(6-speed) Auto.
(6-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.75 5.25 5.25
Gearbox - Final drive 1.9 2.4 -
Page 172 of 294
11
155
TECHNICAL DATA

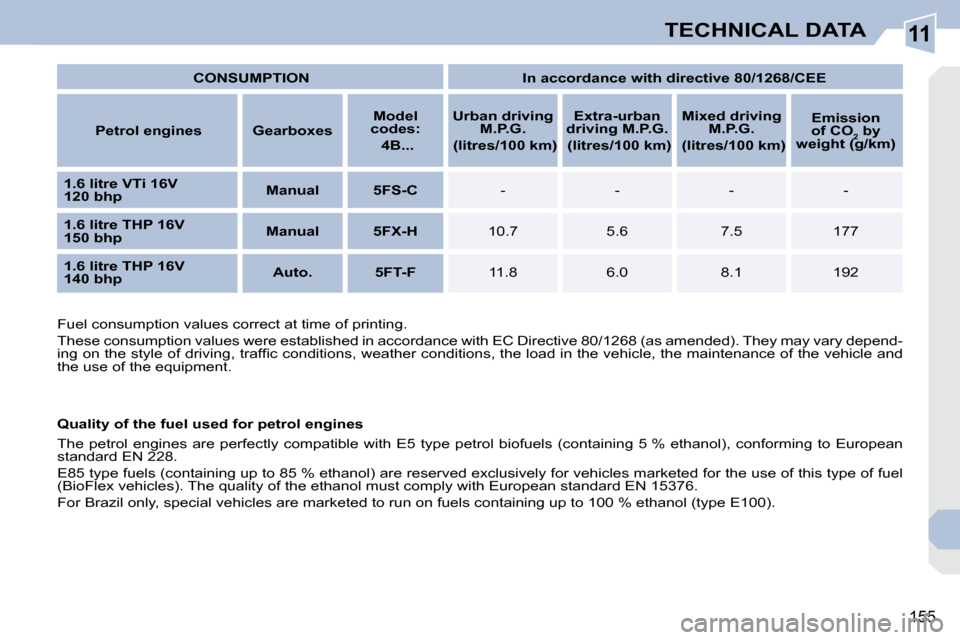

CONSUMPTION In accordance with directive 80/1268/CEE
Petrol engines Gearboxes
Model
codes:
4B...
Urban driving
M.P.G.
(litres/100 km)
Extra-urban
driving M.P.G.
(litres/100 km)
Mixed driving
M.P.G.
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.6 litre VTi 16V
120 bhp
Manual 5FS-C - - - -
1.6 litre THP 16V
150 bhp
Manual 5FX-H 10.7 5.6 7.5 177
1.6 litre THP 16V
140 bhp
Auto. 5FT-F 11.8 6.0 8.1 192
Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with E5 type pet rol biofuels (containing 5 % ethanol), conforming to European
standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Fuel consumption values correct at time of printing.
These consumption values were established in accordance with EC
Directive 80/1268 (as amended). They may vary depend-
i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d
the use of the equipment.
Page 173 of 294
11
158
TECHNICAL DATA

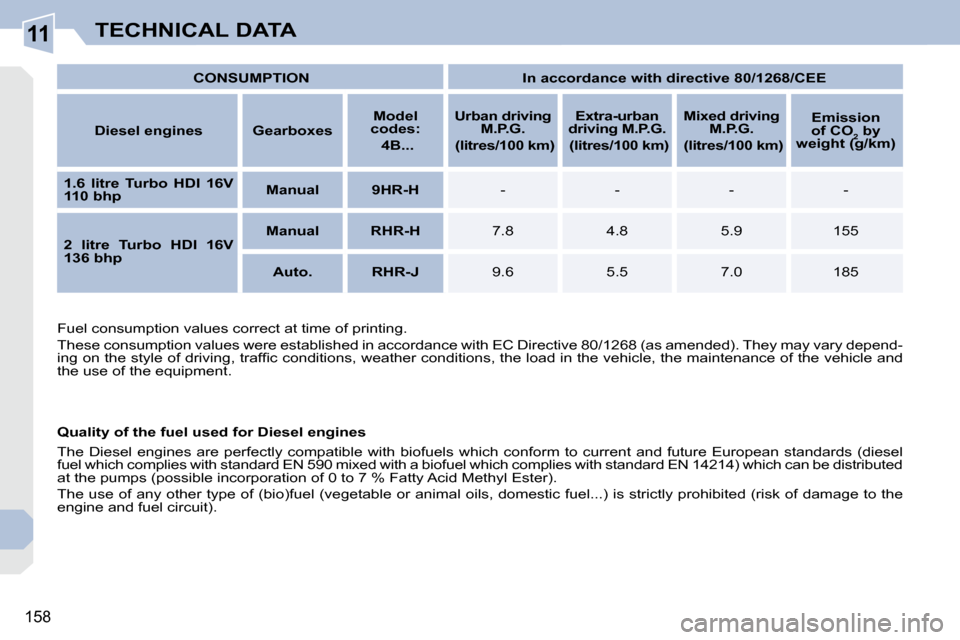

CONSUMPTION In accordance with directive 80/1268/CEE
Diesel engine
s Gearboxes
Model
codes:
4B...
Urban driving
M.P.G.
(litres/100 km)
Extra-urban
driving M.P.G.
(litres/100 km)
Mixed driving
M.P.G.
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.6 litre Turbo HDI 16V
110 bhp
Manual 9HR-H - - - -
2 litre Turbo HDI 16V
136 bhp
Manual RHR-H 7.8 4.8 5.9 155
Auto. RHR-J 9.6 5.5 7.0 185
Fuel consumption values correct at time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary depend-
i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d
the use of the equipment.
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels w hich conform to current and future European standards (diesel
fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) which can be distributed
at the pumps (possible incorporation of 0 to 7 % Fatty Acid Met hyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he
engine and fuel circuit).
Page 174 of 294
11
156
TECHNICAL DATA

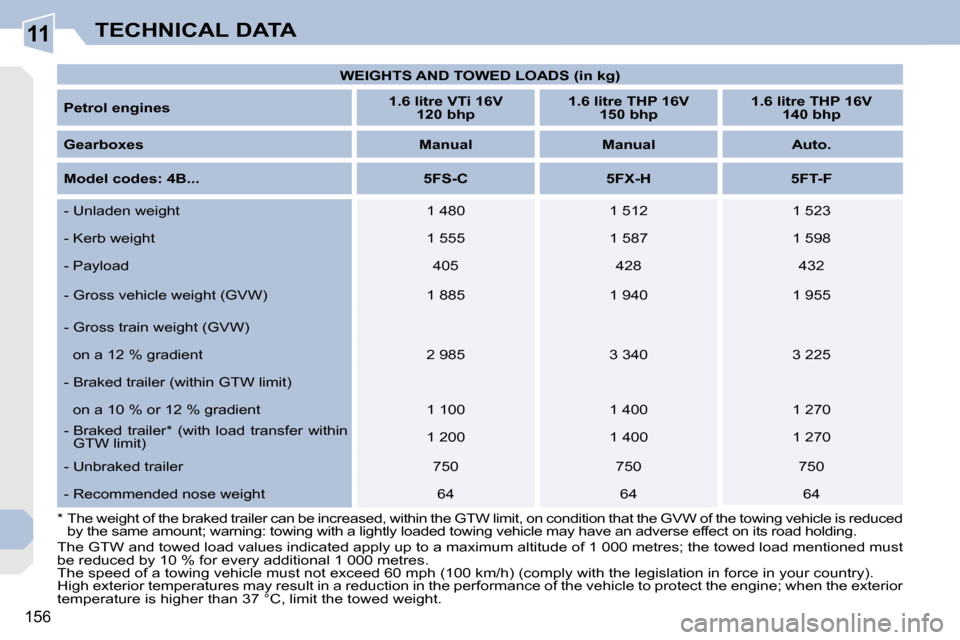

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V
120 bhp
1.6 litre THP 16V
150 bhp
1.6 litre THP 16V
140 bhp
Gearboxes
Manual Manual Auto.
Model codes: 4B... 5FS-C 5FX-H 5FT-F
- Unladen weight 1 480 1 512 1 523
- Kerb weight 1 555 1 587 1 598
- Payload 405 428 432
- Gross vehicle weight (GVW) 1 885 1 940 1 955
- Gross train weight (GVW)
on a 12 % gradient 2 985 3 340 3 225
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 400 1 270
- Braked trailer * (with load transfer within GTW limit) 1 200 1 400 1 270
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle to protect the engine; when the exterior
temperature is higher than 37 °C, limit the towed weight.
* The weight of the braked trailer can be incr
eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 175 of 294
11
159
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by
the same amount; warning: towing with a lightly loa ded towing vehicle may have an adverse effect on it s road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle to protect the engine; when the exterior
temperature is higher than 37 °C, limit the towed weight.

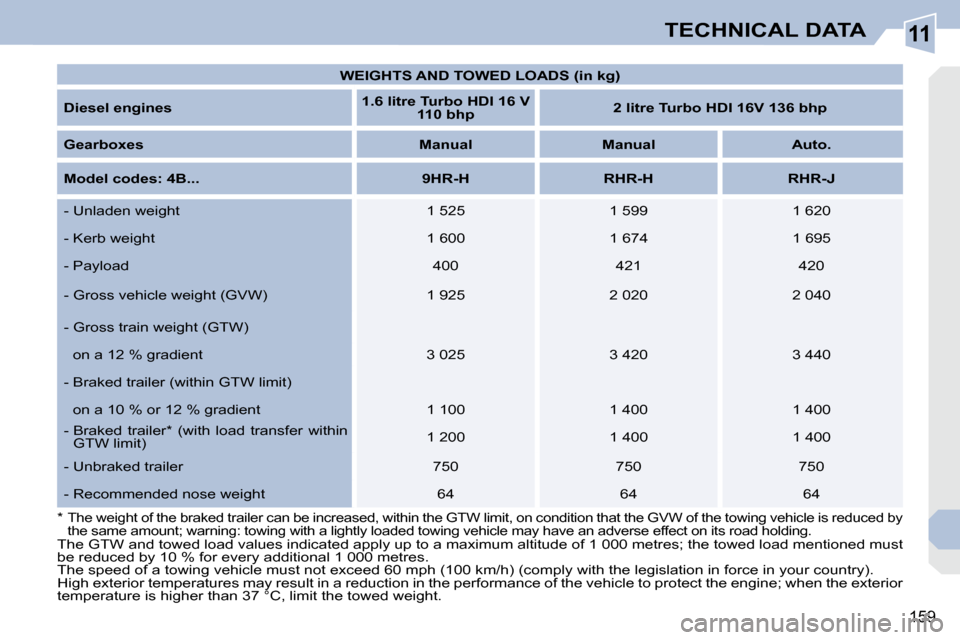

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 16 V
110 bhp
2 litre Turbo HDI 16V 136 bhp
Gearboxes
Manual Manual Auto.
Model codes: 4B... 9HR-H RHR-H RHR-J
- Unladen weight 1 525 1 599 1 620
- Kerb weight 1 600 1 674 1 695
- Payload 400 421 420
- Gross vehicle weight (GVW) 1 925 2 020 2 040
- Gross train weight (GTW)
on a 12 % gradient 3 025 3 420 3 440
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 400 1 400
- Braked trailer * (with load transfer within GTW limit) 1 200 1 400 1 400
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
Page 176 of 294
11
160
TECHNICAL DATA

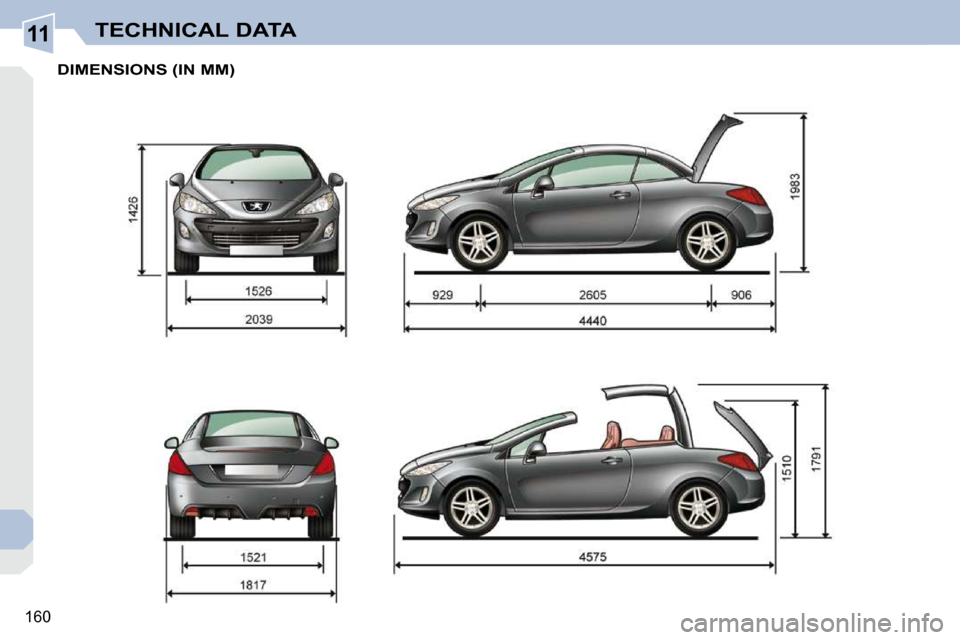

DIMENSIONS (IN MM)
Page 177 of 294
11
!
i
161
TECHNICAL DATA

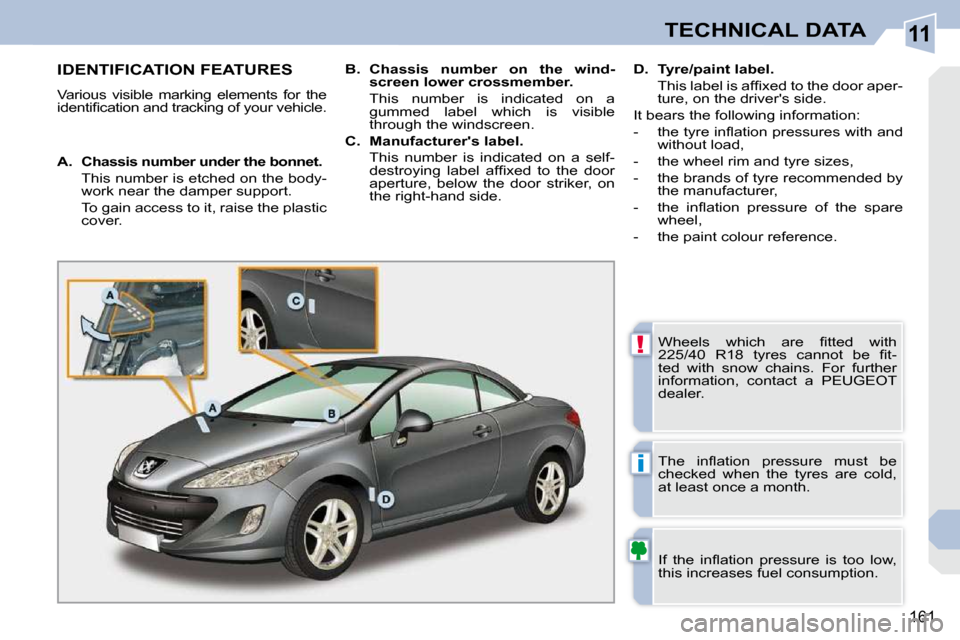

IDENTIFICATION FEATURES
Various visible marking elements for the
i d e n t i fi c a t i o n a n d t r a c k i n g o f y o u r v e h i c l e . W h e e l s w h i c h a r e fi t t e d w i t h
2 2 5 / 4 0 R 1 8 t y r e s c a n n o t b e fi t -
ted with snow chains. For further
information, contact a PEUGEOT
dealer.
I f t h e i n fl a t i o n p r e s s u r e i s t o o l o w ,
this increases fuel consumption.
T h e i n fl a t i o n p r e s s u r e m u s t b e
checked when the tyres are cold,
at least once a month.
A. Chassis number under the bonnet.
This number is etched on the body- work near the damper support.
To gain access to it, raise the plastic cover.
B. Chassis number on the wind-
screen lower crossmember.
This number is indicated on a gummed label which is visible
through the windscreen.
C. Manufacturer's label.
This number is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e d o o r
aperture, below the door striker, on
the right-hand side.
D. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e d o o r a p e r - ture, on the driver's side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour reference.
Page 178 of 294
163
The PC Com 3D is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for c o n fi g u r a t i o n o f t h e s y s t e m .
Certain functions described in this handbook will become a v a i l a b l e d u r i n g t h e c o u r s e o f t h e y e a r .
PC Com 3D

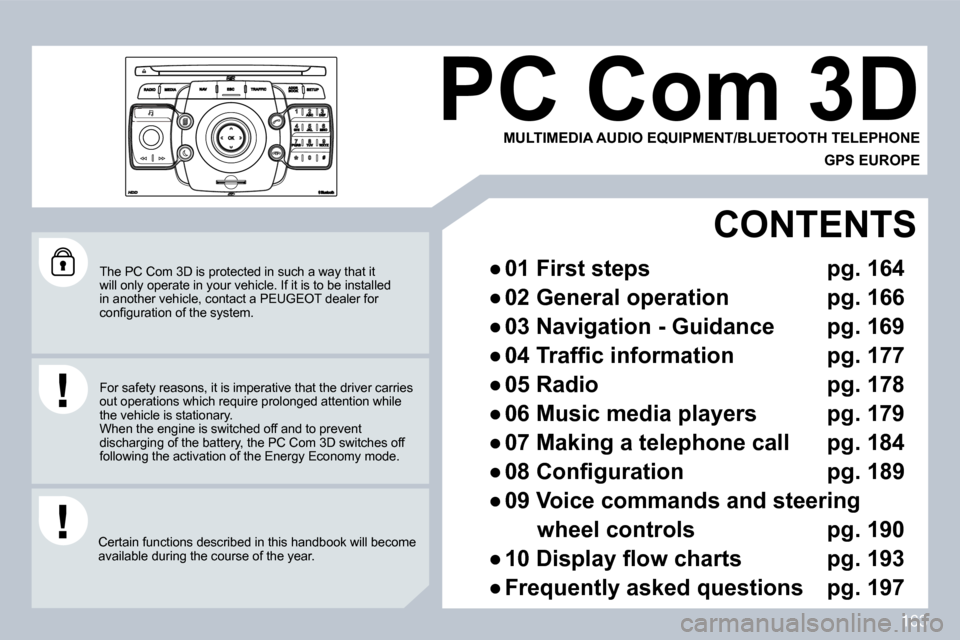

MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE
CONTENTS
Page 179 of 294
164
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
1 0
2
3
4
6 1 2
9
7
8
1 1 5
TU
PQRS
0
*

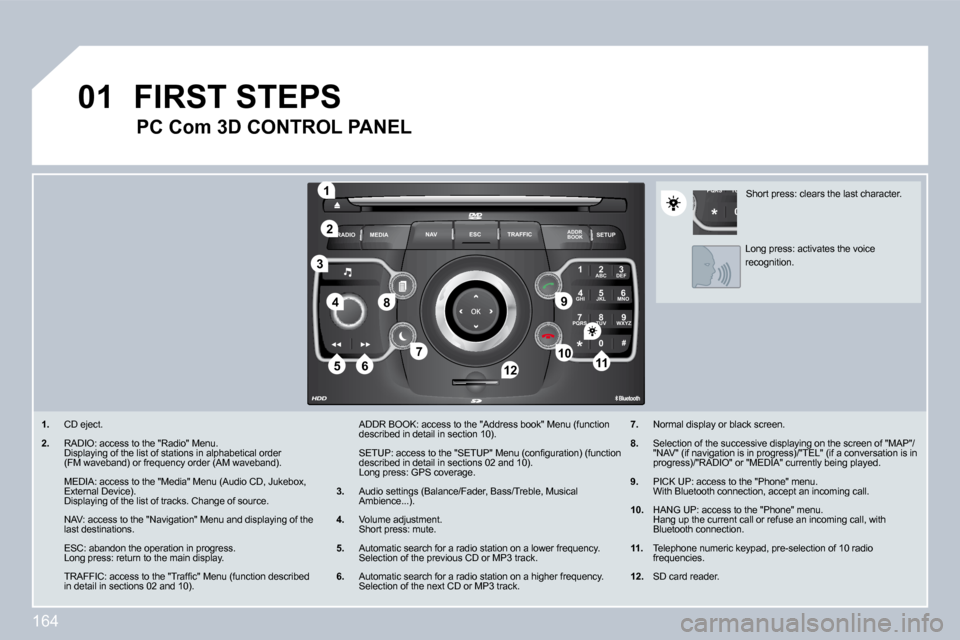

1 . CD eject.
2 . RADIO: access to the "Radio" Menu. D i s p l a y i n g o f t h e l i s t o f s t a t i o n s i n a l p h a b e t i c a l o r d e r(FM waveband) or frequency order (AM waveband).
MEDIA: access to the "Media" Menu (Audio CD, Jukeb ox, External Device). D i s p l a y i n g o f t h e l i s t o f t r a c k s . C h a n g e o f s o u r c e .
N A V : a c c e s s t o t h e " N a v i g a t i o n " M e n u a n d d i s p l a y i n g o f t h e last destinations.
E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y .
T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n d e s c r i b e d in detail in sections 02 and 10).
ADDR BOOK: access to the "Address book" Menu (func tion described in detail in section 10).
S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) ( f u n c t i o n described in detail in sections 02 and 10). L o n g p r e s s : G P S c o v e r a g e .
3 . A u d i o s e t t i n g s ( B a l a n c e / F a d e r , B a s s / T r e b l e , M u s i c a l Ambience...).
4 . Volume adjustment. Short press: mute.
5 . Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6 . A u t o m a t i c s e a r c h f o r a r a d i o s t a t i o n o n a h i g h e r f r e q u e n c y . Selection of the next CD or MP3 track.
F I R S T S T E P S
PC Com 3D CONTROL PANEL
7 . Normal display or black screen.
8 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y i n g o n t h e s c r e e n o f " M A P " / " N A V " ( i f n a v i g a t i o n i s i n p r o g r e s s ) / " T E L " ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) / " R A D I O " o r " M E D I A " c u r r e n t l y b e i n g p l a y e d .
9 . PICK UP: access to the "Phone" menu. W i t h B l u e t o o t h c o n n e c t i o n , a c c e p t a n i n c o m i n g c a l l .
1 0 . HANG UP: access to the "Phone" menu. H a n g u p t h e c u r r e n t c a l l o r r e f u s e a n i n c o m i n g c a l l , w i t h Bluetooth connection.
1 1 . Telephone numeric keypad, pre-selection of 10 radio frequencies.
1 2 . SD card reader.
Short press: clears the last character.
L o n g p r e s s : a c t i v a t e s t h e v o i c e r e c o g n i t i o n .
Page 180 of 294
165
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
1
3
1 4
1 3 . O K : c o n fi r m a t i o n o f t h e h i g h l i g h t e d i t e m o n t h e s c r e e n .
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s t o t h e l e f t / r i g h t .
When the "RADIO" screen is displayed: selection of the p r e v i o u s / n e x t f r e q u e n c y .
W h e n " M E D I A " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t track.
When "MAP" or "NAV" is displayed: horizontal movem ent of the map.
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s u p / d o w n .
W h e n " R A D I O " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t radio station on the list.
When the "MEDIA" screen is displayed: selection of the p r e v i o u s / n e x t M P 3 d i r e c t o r y o r C D .
When "MAP" or "NAV" is displayed: vertical movemen t of the map.
S w i t c h t o t h e n e x t o r p r e v i o u s p a g e o f a m e n u .
F I R S T S T E P S
P C C o m 3 D N A V I G A T O R
1 4 . R o t a t i o n o f t h e r i n g :
When the "RADIO" screen is displayed: selection of the p r e v i o u s / n e x t r a d i o s t a t i o n o n t h e l i s t .
When the "MEDIA" screen is displayed: selection of the p r e v i o u s / n e x t C D o r M P 3 t r a c k .
W h e n " M A P " o r " N A V " i s d i s p l a y e d : f r o n t / r e a r m a p z o o m .
