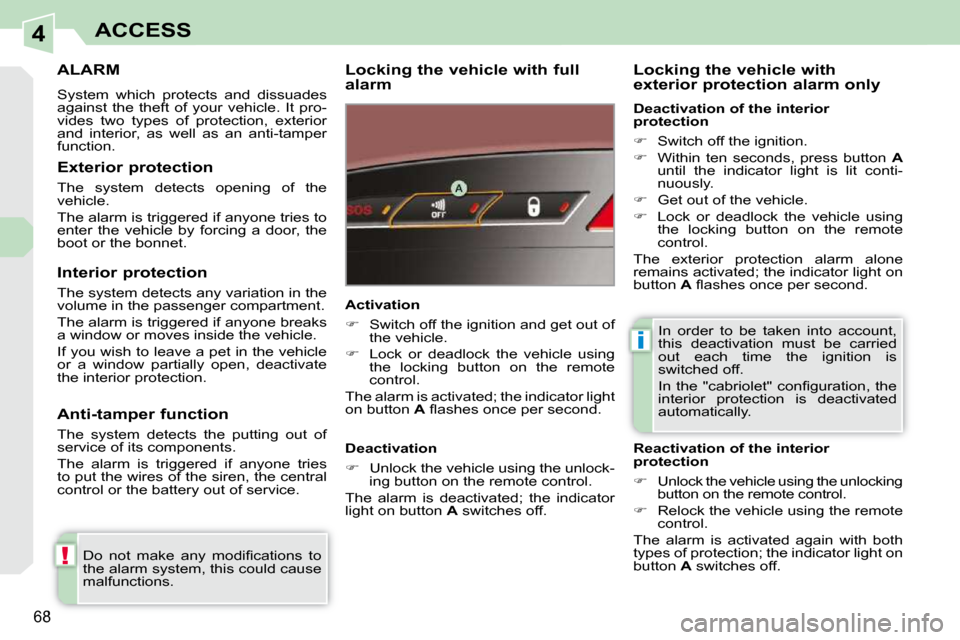

ACCESS
ALARM
System which protects and dissuades
against the theft of your vehicle. It pro-
vides two types of protection, exterior
and interior, as well as an anti-tamper
function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. In order to be taken into account,
this deactivation must be carried
out each time the ignition is
switched off.
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h e
interior protection is deactivated
automatically.
Reactivation of the interior
protection
Unlock the vehicle using the unlocking
button on the remote control.
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator light on
button A switches off.
Locking the vehicle with
exterior protection alarm only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl a s h e s o n c e p e r s e c o n d .
Exterior protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
protection
Switch off the ignition.
Within ten seconds, press button A
until the indicator light is lit conti-
nuously.
Get out of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone
remains activated; the indicator light on
button A fl a s h e s o n c e p e r s e c o n d .
Page 72 of 294
4
!
69
ACCESS

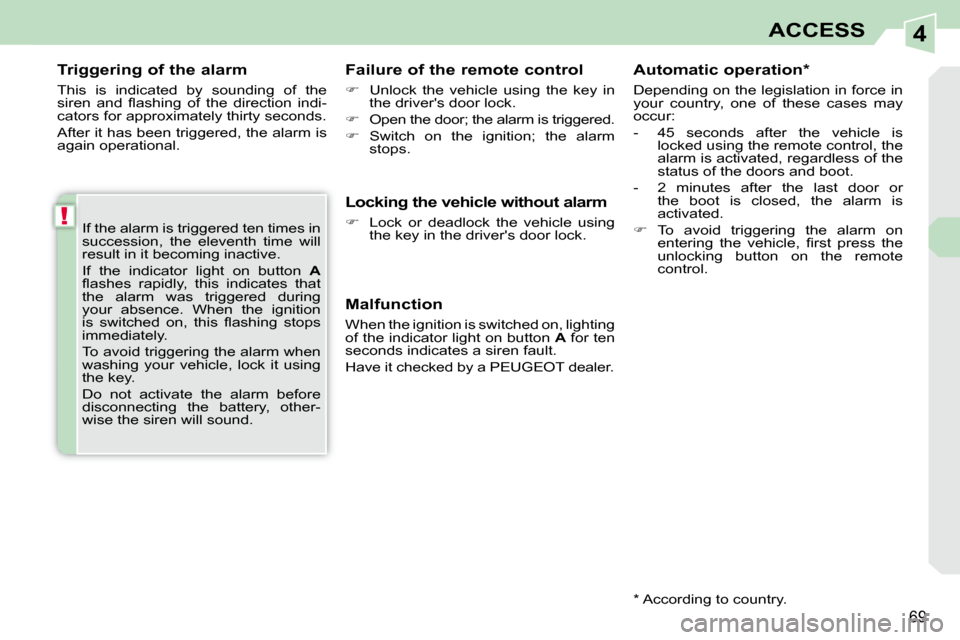

Triggering of the alarm
This is indicated by sounding of the
s i r e n a n d fl a s h i n g o f t h e d i r e c t i o n i n d i -
cators for approximately thirty seconds.
After it has been triggered, the alarm is
again operational. If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator light on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t
the alarm was triggered during
your absence. When the ignition
i s s w i t c h e d o n , t h i s fl a s h i n g s t o p s
immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control
Unlock the vehicle using the key in
the driver's door lock.
Open the door; the alarm is triggered.
Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, lighting
of the indicator light on button
A for ten
seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without alarm
Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is
activated.
To avoid triggering the alarm on
e n t e r i n g t h e v e h i c l e , fi r s t p r e s s t h e
unlocking button on the remote
control.
Page 73 of 294
4
i
i
70
ACCESS
The rear windows do not have an
automatic mode or safety auto-
reverse function for raising.
Approximately 45 seconds after
removing the ignition key or opening
a door none of the windows can
be opened or closed. The ignition
must be switched back on in order
to open or close the windows.

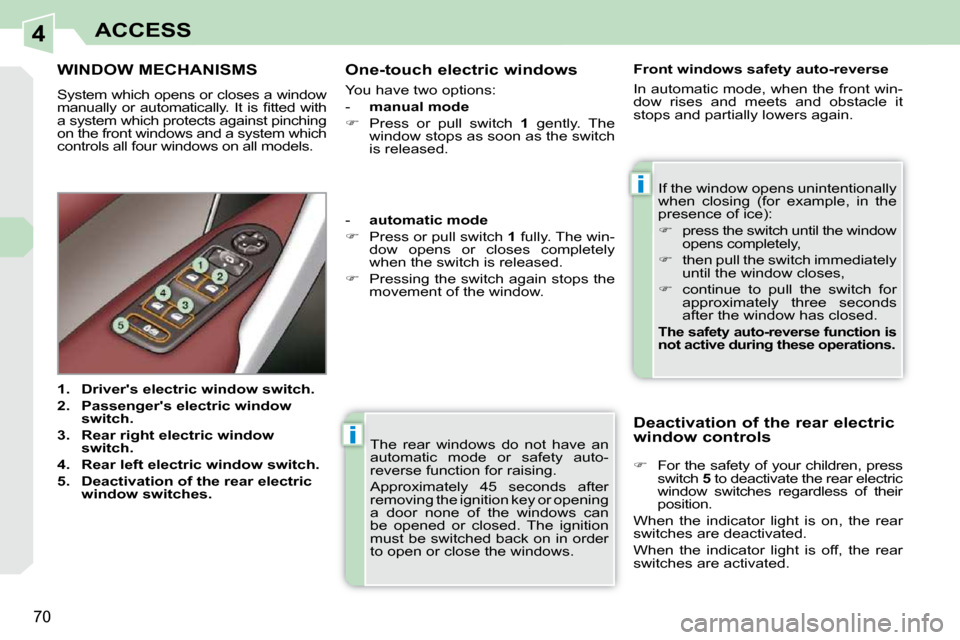

WINDOW MECHANISMS
System which opens or closes a window
m a n u a l l y o r a u t o m a t i c a l l y . I t i s fi t t e d w i t h
a system which protects against pinching
on the front windows and a system which
controls all four windows on all models.
1. Driver's electric window switch.
2. Passenger's electric window
switch.
3. Rear right electric window
switch.
4. Rear left electric window switch.
5. Deactivation of the rear electric
window switches. If the window opens unintentionally
when closing (for example, in the
presence of ice):
press the switch until the window
opens completely,
then pull the switch immediately
until the window closes,
continue to pull the switch for
approximately three seconds
after the window has closed.
The safety auto-reverse function is
not active during these operations.
Front windows safety auto-reverse
In automatic mode, when the front win-
dow rises and meets and obstacle it
stops and partially lowers again.
- automatic mode
Press or pull switch 1 fully. The win-
dow opens or closes completely
when the switch is released.
Pressing the switch again stops the
movement of the window.
One-touch electric windows
You have two options:
-
manual mode
Press or pull switch 1 gently. The
window stops as soon as the switch
is released.
Deactivation of the rear electric
window controls
For the safety of your children, press
switch 5 to deactivate the rear electric
window switches regardless of their
position.
When the indicator light is on, the rear
switches are deactivated.
When the indicator light is off, the rear
switches are activated.
Page 74 of 294
4
!
i
i
71
ACCESS
This procedure reinitialises the opera-
tion of the electric windows and the
automatic partial opening of the door
windows.

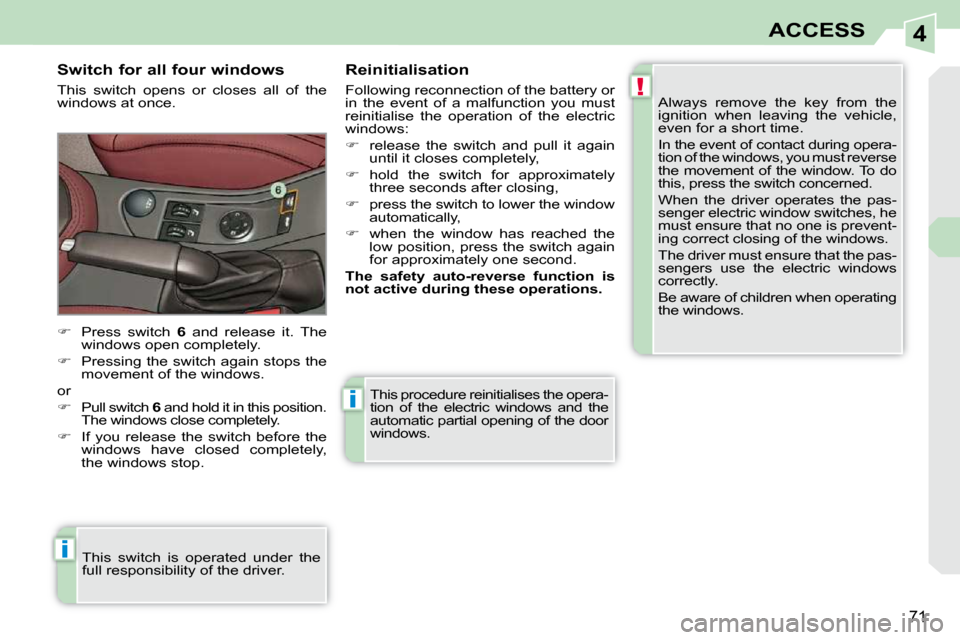

Switch for all four windows
This switch opens or closes all of the
windows at once.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during opera-
tion of the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until it closes completely,
hold the switch for approximately
three seconds after closing,
press the switch to lower the window
automatically,
when the window has reached the
low position, press the switch again
for approximately one second.
The safety auto-reverse function is
not active during these operations.
Press switch 6 and release it. The
windows open completely.
Pressing the switch again stops the
movement of the windows.
or
Pull switch 6 and hold it in this position.
The windows close completely.
If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver.
Page 75 of 294
4
!
i
i!
72
ACCESS

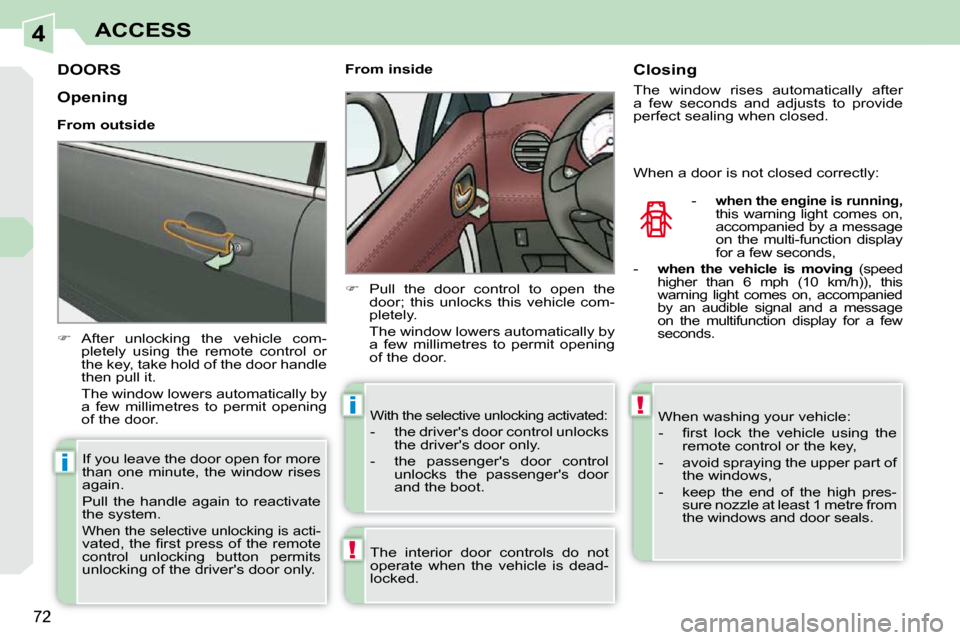

DOORS
After unlocking the vehicle com-
pletely using the remote control or
the key, take hold of the door handle
then pull it.
The window lowers automatically by a few millimetres to permit opening
of the door. From inside
Pull the door control to open the
door; this unlocks this vehicle com-
pletely.
The window lowers automatically by a few millimetres to permit opening
of the door.
The interior door controls do not
operate when the vehicle is dead-
locked. Closing
The window rises automatically after
a few seconds and adjusts to provide
perfect sealing when closed.
-
when the engine is running, this warning light comes on,
accompanied by a message
on the multi-function display
for a few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning light comes on, accompanied
by an audible signal and a message
on the multifunction display for a few
seconds.
If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.
Opening
From outside
When the selective unlocking is acti- v a t e d , t h e fi r s t p r e s s o f t h e r e m o t e
control unlocking button permits
unlocking of the driver's door only.
With the selective unlocking activated:
- the driver's door control unlocks
the driver's door only.
- the passenger's door control unlocks the passenger's door
and the boot. When washing your vehicle:
- fi r s t l o c k t h e v e h i c l e u s i n g t h e
remote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pres- sure nozzle at least 1 metre from
the windows and door seals.
When a door is not closed correctly:
Page 76 of 294
4
i
!
i
!
73
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red
i n d i c a t o r l i g h t fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the
automatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is active.

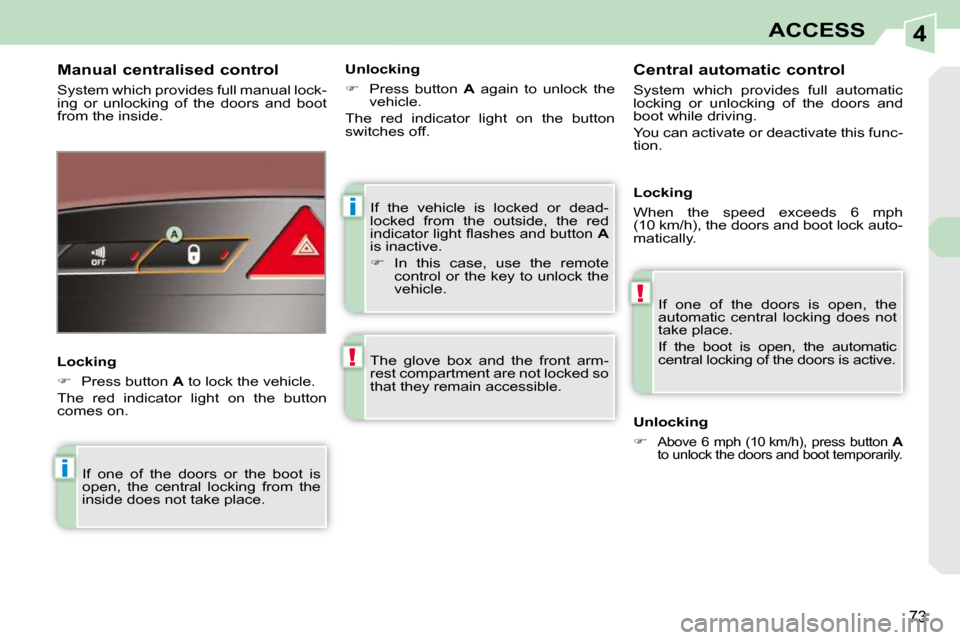

Manual centralised control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking
Press button A to lock the vehicle.
The red indicator light on the button
comes on. Central automatic control
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this func-
tion.
Unlocking
Above 6 mph (10 km/h), press button A
to unlock the doors and boot temporarily.
If one of the doors or the boot is
open, the central locking from the
inside does not take place. Unlocking
Press button A again to unlock the
vehicle.
The red indicator light on the button
switches off.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock auto-
matically.
The glove box and the front arm-
rest compartment are not locked so
that they remain accessible.
Page 77 of 294
4
74
ACCESS

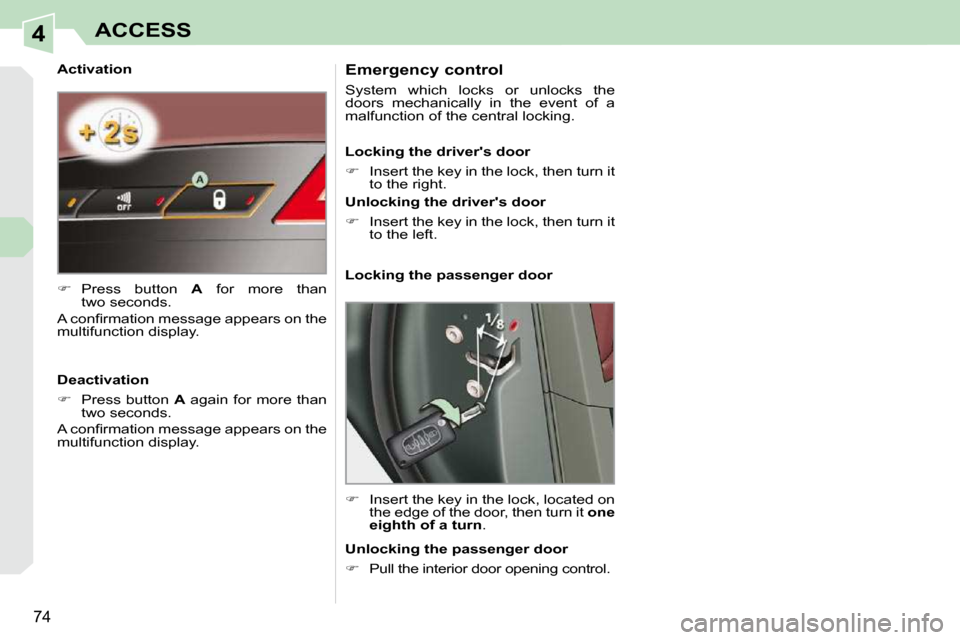

Activation
Press button A for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display.
Deactivation
Press button A again for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display. Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the passenger door
Unlocking the passenger door
Pull the interior door opening control.
Page 78 of 294
4
ii
75
ACCESS

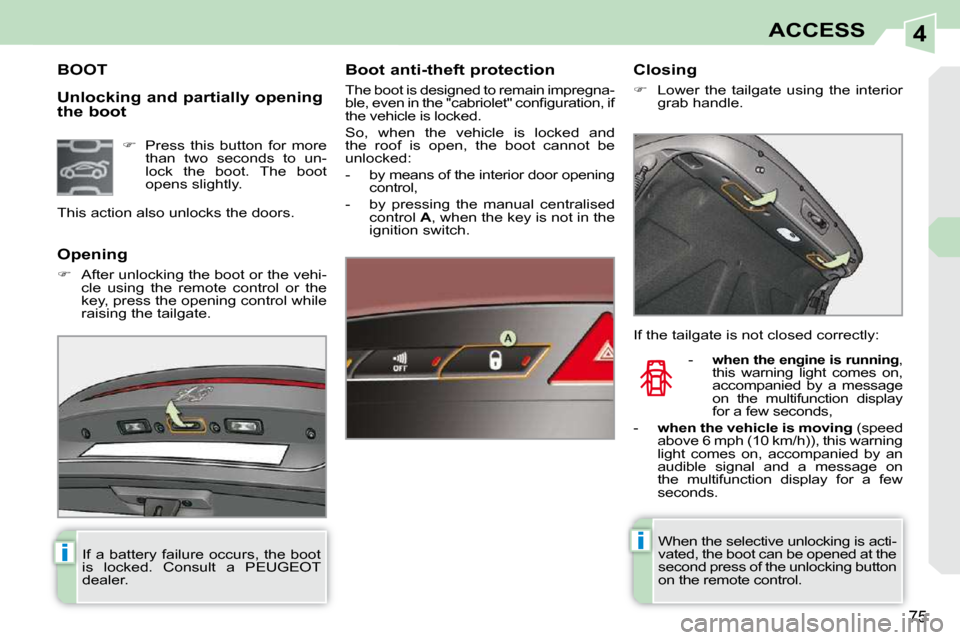

Unlocking and partially opening
the boot
BOOT Boot anti-theft protection
The boot is designed to remain impregna-
b l e , e v e n i n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i f
the vehicle is locked.
So, when the vehicle is locked and
the roof is open, the boot cannot be
unlocked:
- by means of the interior door opening control,
- by pressing the manual centralised control A , when the key is not in the
ignition switch.
Opening
After unlocking the boot or the vehi-
cle using the remote control or the
key, press the opening control while
raising the tailgate.
When the selective unlocking is acti-
vated, the boot can be opened at the
second press of the unlocking button
on the remote control.
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action also unlocks the doors.
If a battery failure occurs, the boot
is locked. Consult a PEUGEOT
dealer. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly: -
when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on
the multifunction display for a few
seconds.
Page 79 of 294
4
i
76
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.

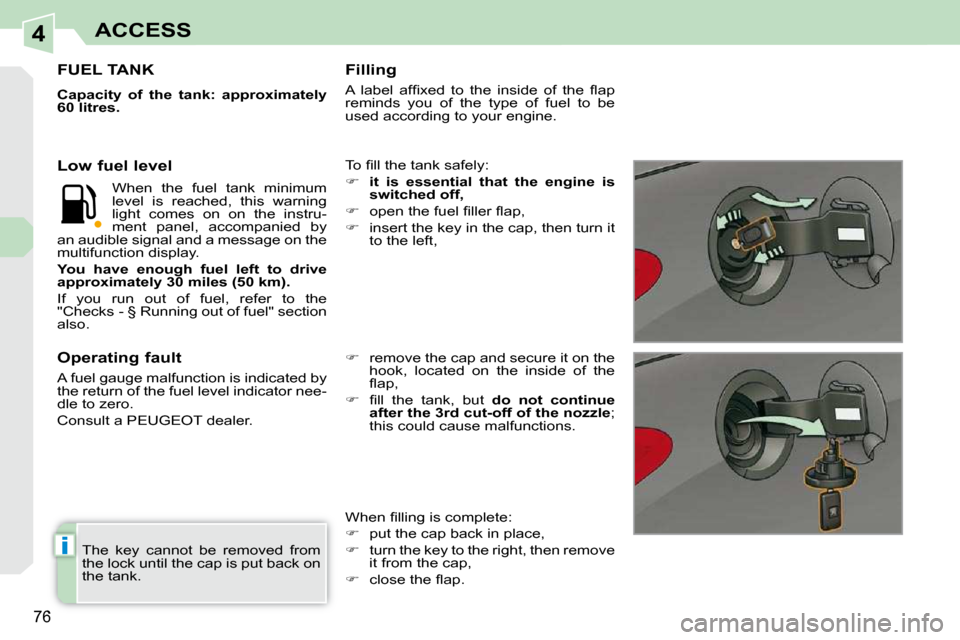

FUEL TANK
Capacity of the tank: approximately
60 litres.
T o fi l l t h e t a n k s a f e l y :
it is essential that the engine is
switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
W h e n fi l l i n g i s c o m p l e t e :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
remove the cap and secure it on the
hook, located on the inside of the
fl a p ,
fi l l t h e t a n k , b u t do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used according to your engine.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel level indicator nee-
dle to zero.
Consult a PEUGEOT dealer. When the fuel tank minimum
level is reached, this warning
light comes on on the instru-
ment panel, accompanied by
an audible signal and a message on the
multifunction display.
You have enough fuel left to drive
approximately 30 miles (50 km).
If you run out of fuel, refer to the
"Checks - § Running out of fuel" section
also.
Page 80 of 294
5
77

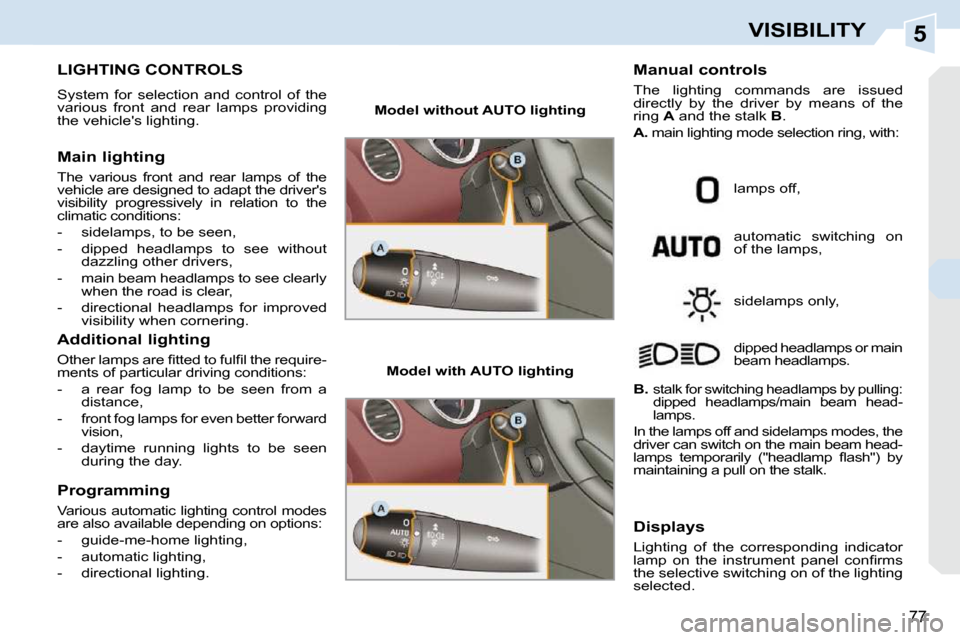

VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively in relation to the
climatic conditions:
- sidelamps, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear,
- directional headlamps for improved visibility when cornering.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e q u i r e -
ments of particular driving conditions:
- a rear fog lamp to be seen from a distance,
- front fog lamps for even better forward vision,
- daytime running lights to be seen during the day.
Programming
Various automatic lighting control modes
are also available depending on options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting. Model without AUTO lighting
Model with AUTO lighting automatic switching on
of the lamps,
Manual controls
The lighting commands are issued
directly by the driver by means of the
ring
A and the stalk B .
A. main lighting mode selection ring, with:
lamps off,
sidelamps only,
B.
stalk for switching headlamps by pulling:
dipped headlamps/main beam head-
lamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam head-
l a m p s t e m p o r a r i l y ( " h e a d l a m p fl a s h " ) b y
maintaining a pull on the stalk. dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
selected.
