LAYOUT
FRONT ARMREST WITH LOCK
Comfort and storage device for the driver
and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key.
Storage
It can hold up to 6 CDs.
Raise the lever 1 .
Raise the cover fully.
Longitudinal adjustment
Slide the cover fully forwards or
rearwards.
Height adjustment
Raise the cover to the required posi-
tion (low, intermediate or high).
If you raise the cover slightly beyond
the high position, guide it when lower-
ing it to the low position.

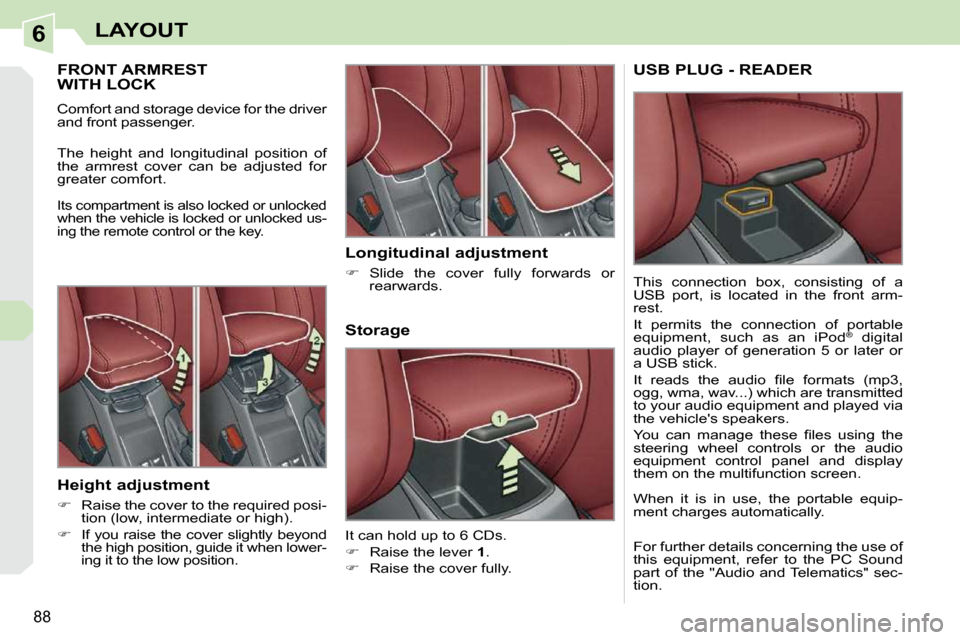

USB PLUG - READER
This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod ®
digital
audio player of generation 5 or later or
a USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For further details concerning the use of
this equipment, refer to the PC Sound
part of the "Audio and Telematics" sec-
tion.
Page 100 of 294
6
88
LAYOUT
FRONT ARMREST WITH LOCK
Comfort and storage device for the driver
and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key.
Storage
It can hold up to 6 CDs.
Raise the lever 1 .
Raise the cover fully.
Longitudinal adjustment
Slide the cover fully forwards or
rearwards.
Height adjustment
Raise the cover to the required posi-
tion (low, intermediate or high).
If you raise the cover slightly beyond
the high position, guide it when lower-
ing it to the low position.
USB PLUG - READER
This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod ®
digital
audio player of generation 5 or later or
a USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For further details concerning the use of
this equipment, refer to the PC Sound
part of the "Audio and Telematics" sec-
tion.
Page 190 of 294
175
0 3
5
3
4
2
NAV
1

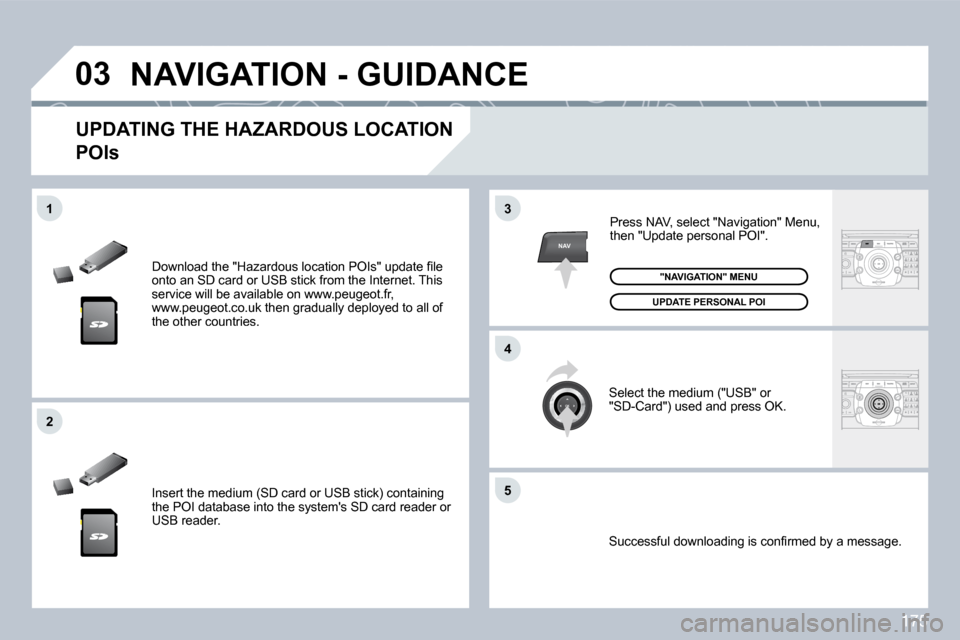

D o w n l o a d t h e " H a z a r d o u s l o c a t i o n P O I s " u p d a t e fi l e onto an SD card or USB stick from the Internet. This s e r v i c e w i l l b e a v a i l a b l e o n w w w . p e u g e o t . f r , w w w . p e u g e o t . c o . u k t h e n g r a d u a l l y d e p l o y e d t o a l l o f the other countries.
I n s e r t t h e m e d i u m ( S D c a r d o r U S B s t i c k ) c o n t a i n i n g the POI database into the system's SD card reader o r USB reader.
S u c c e s s f u l d o w n l o a d i n g i s c o n fi r m e d b y a m e s s a g e .
UPDATING THE HAZARDOUS LOCATION
P O I s
Select the medium ("USB" or"SD-Card") used and press OK.
P r e s s N A V , s e l e c t " N a v i g a t i o n " M e n u , then "Update personal POI".
UPDATE PERSONAL POI
" N A V I G A T I O N " M E N U
N A V I G A T I O N - G U I D A N C E
Page 194 of 294
179
0 6
CD, MP3/WMA CD, MP3/WMA SD CARD/
USB READER

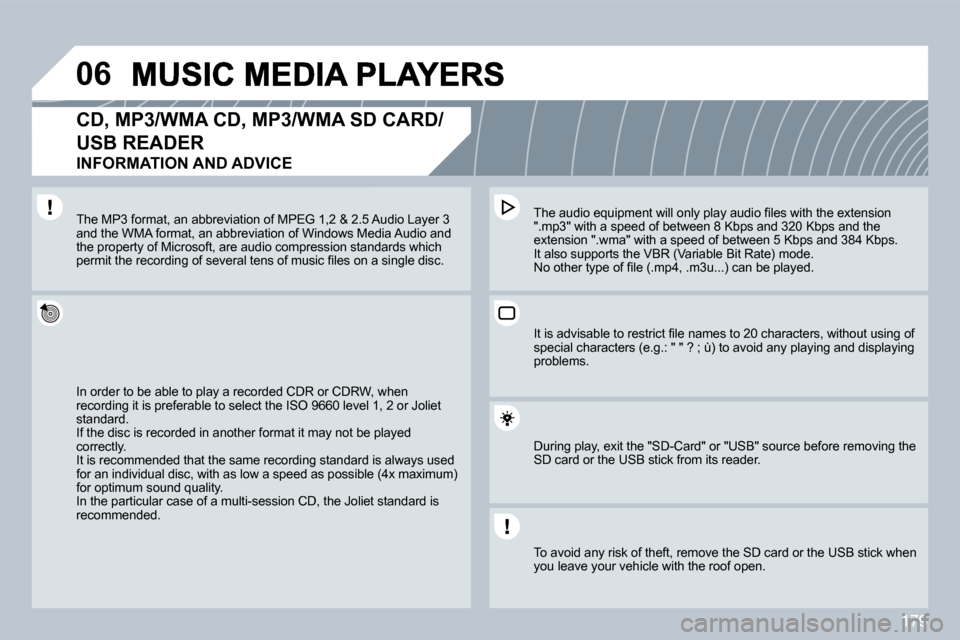

I N F O R M A T I O N A N D A D V I C E
In order to be able to play a recorded CDR or CDRW, wRW, when r e c o r d i n g i t i s p r e f e r a b l e t o s e l e c t t h e I S O 9 6 6 0 l e v e l 1 , 2 o r J o l i e t r e c o r d i n g i t i s p r e f e r a b l e t o s e l e c t t h e I S O 9 6 6 0 l e v e l 1 , 2 o r J o l i e t standard. If the disc is recorded in another format it may not be plat be played correctly. I t i s r e c o m m e n d e d t h a t t h e s a m e r e c o r d i n g s t a n d a r d i s a l w a y s u s e d I t i s r e c o m m e n d e d t h a t t h e s a m e r e c o r d i n g s t a n d a r d i s a l w a y s u s e d for an individual disc, with as low a speed as possible (4ible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet stoliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n T h e a u d i o e q u i p m e n t w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n ".mp3" with a speed of between 8 Kbps and 320 Kbps abps and the extension ".wma" with a speed of between 5 Kbps and 3s and 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. N o o t h e r t y p e o f fi l e ( . m p 4 , . m 3 u . . . ) c a n b e p l a y e d .
The MP3 format, an abbreviation of MPEG 1,2 & 2.5 Au2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g o f I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g o f s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y i n g a n d d i s p l a y i n g s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y i n g a n d d i s p l a y i n g problems.
D u r i n g p l a y , e x i t t h e " S D - C a r d " o r " U S B " s o u r c e b e f o r e r e m o v i n g t h e D u r i n g p l a y , e x i t t h e " S D - C a r d " o r " U S B " s o u r c e b e f o r e r e m o v i n g t h e SD card or the USB stick from its reader.
To avoid any risk of theft, remove the SD card or the USthe USB stick when you leave your vehicle with the roof open.
Page 195 of 294
180
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
4
5
6
2
7
3
1
MEDIA

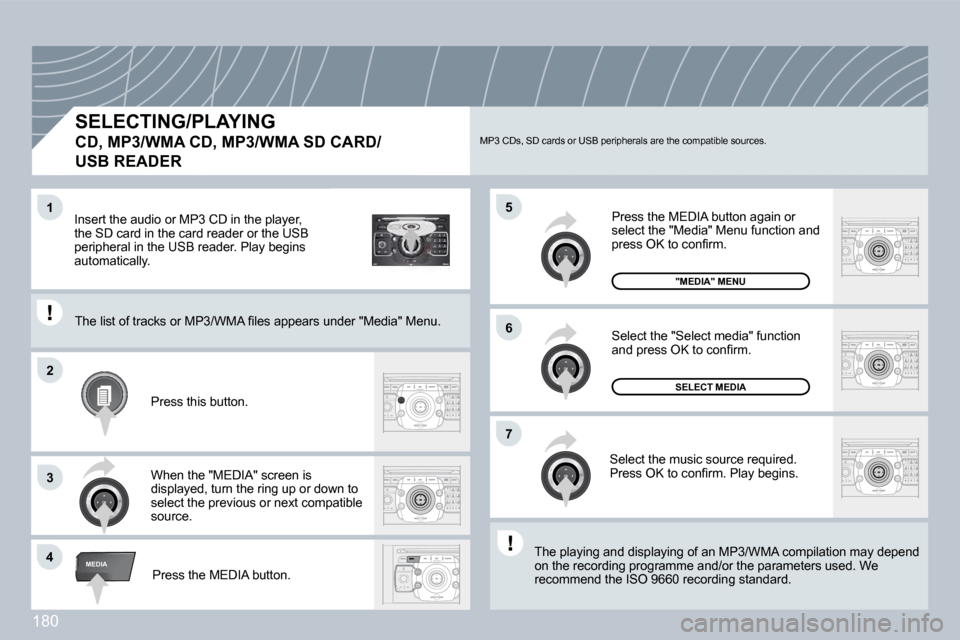

SELECTING/PLAYING
CD, MP3/WMA CD, MP3/WMA SD CARD/
USB READER
T h e p l a y i n g a n d d i s p l a y i n g o f a n M P 3 / W M A c o m p i l a t i
o n m a y d e p e n d T h e p l a y i n g a n d d i s p l a y i n g o f a n M P 3 / W M A c o m p i l a t i o n m a y d e p e n d o n t h e r e c o r d i n g p r o g r a m m e a n d / o r t h e p a r a m e t e r s u s e d . W e o n t h e r e c o r d i n g p r o g r a m m e a n d / o r t h e p a r a m e t e r s u s e d . W e r e c o m m e n d t h e I S O 9 6 6 0 r e c o r d i n g s t a n d a r d . Press the MEDIA button.
Select the "Select media" function a n d p r e s s O K t o c o n fi r m .
Press this button.
Select the music source required. P r e s s O K t o c o n fi r m . P l a y b e g i n s .
SELECT MEDIA
P r e s s t h e M E D I A b u t t o n a g a i n o r select the "Media" Menu function and p r e s s O K t o c o n fi r m .
When the "MEDIA" screen is d i s p l a y e d , t u r n t h e r i n g u p o r d o w n t o select the previous or next compatible source.
"MEDIA" MENU
T h e l i s t o f t r a c k s o r M P 3 / W M A fi l e s a p p e a r s u n d e r " M e d i a " M e n u . T h e l i s t o f t r a c k s o r M P 3 / W M A fi l e s a p p e a r s u n d e r " M e d i a " M e n u .
Insert the audio or MP3 CD in the player, the SD card in the card reader or the USB p e r i p h e r a l i n t h e U S B r e a d e r . P l a y b e g i n s automatically.
MP3 CDs, SD cards or USB peripherals are the compatible sources.
Page 197 of 294
182
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
2
3
4
5
6
7
8
9
MEDIA

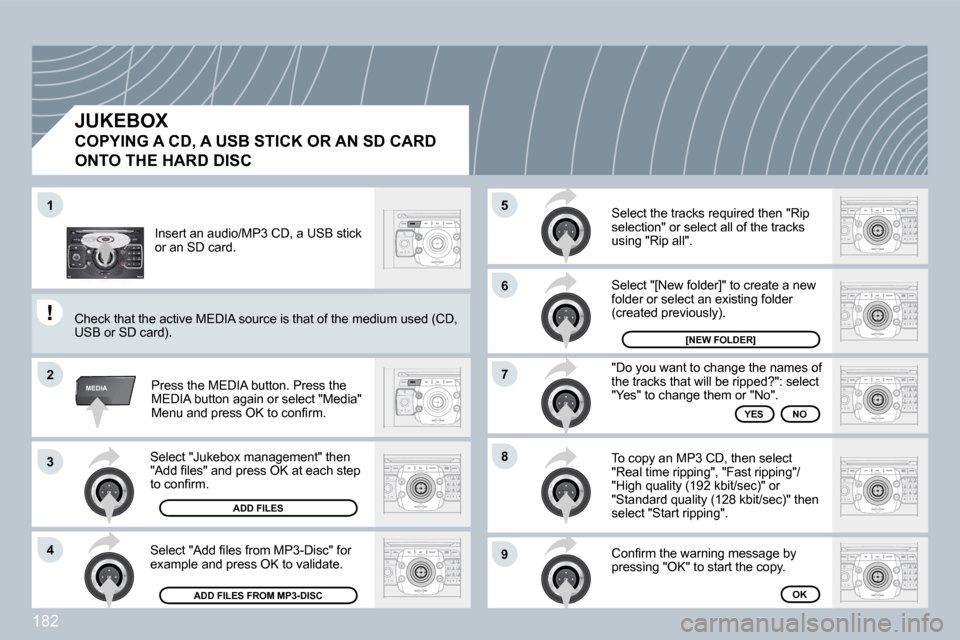

S e l e c t " J u k e b o x m a n a g e m e n t " t h e n " A d d fi l e s " a n d p r e s s O K a t e a c h s t e p t o c o n fi r m .
Press the MEDIA button. Press the M E D I A b u t t o n a g a i n o r s e l e c t " M e d i a " M e n u a n d p r e s s O K t o c o n fi r m .
I n s e r t a n a u d i o / M P 3 C D , a U S B s t i c k or an SD card.
JUKEBOX
COPYING A CD, A USB STICK OR AN SD CARD
ONTO THE HARD DISC
A D D F I L E S
Check that the active MEDIA source is that of the
mediu medium used (CD, USB or SD card).
S e l e c t " A d d fi l e s f r o m M P 3 - D i s c " f o r example and press OK to validate.
Select the tracks required then "Rip selection" or select all of the tracks u s i n g " R i p a l l " .
Select "[New folder]" to create a new f o l d e r o r s e l e c t a n e x i s t i n g f o l d e r (created previously).
A D D F I L E S F R O M M P 3 - D I S C
[ N E W F O L D E R ]
" D o y o u w a n t t o c h a n g e t h e n a m e s o f t h e t r a c k s t h a t w i l l b e r i p p e d ? " : s e l e c t " Y e s " t o c h a n g e t h e m o r " N o " .
NO YES
To copy an MP3 CD, then select " R e a l t i m e r i p p i n g " , " F a s t r i p p i n g " / " H i g h q u a l i t y ( 1 9 2 k b i t / s e c ) " o r " S t a n d a r d q u a l i t y ( 1 2 8 k b i t / s e c ) " t h e n s e l e c t " S t a r t r i p p i n g " .
C o n fi r m t h e w a r n i n g m e s s a g e b y p r e s s i n g " O K " t o s t a r t t h e c o p y .
OK
Page 207 of 294
192
V O I C E C O M M A N D S - V O I C E
R E C O . I N I T I A T I O N

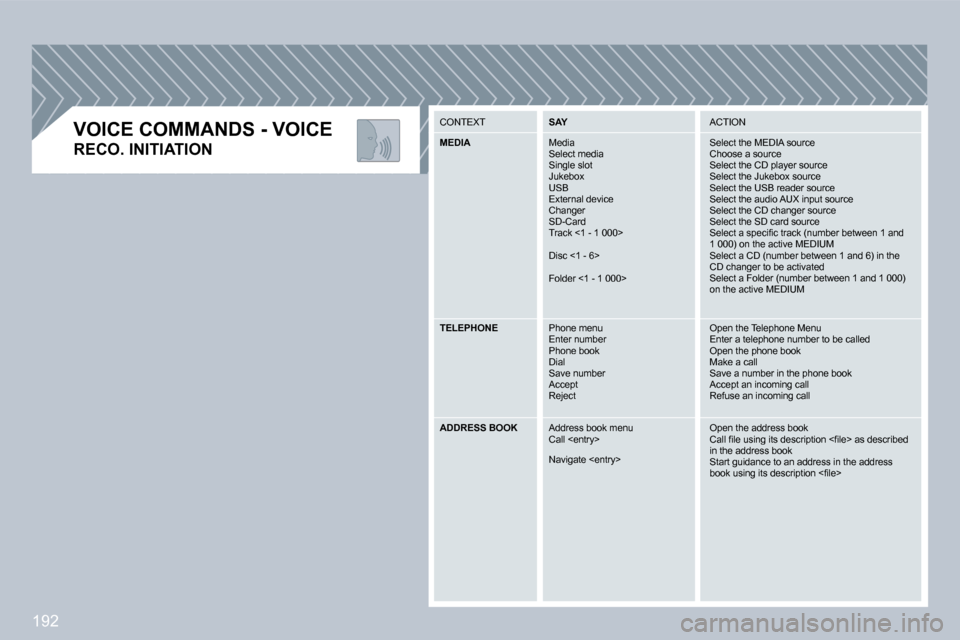

CONTEXT SAY ACTION
MEDIA Media Select media S i n g l e s l o t Jukebox USB External device C h a n g e r SD-Card Track <1 - 1 000>
Disc <1 - 6>
Folder <1 - 1 000>
Select the MEDIA source Choose a source Select the CD player source Select the Jukebox source Select the USB reader source Select the audio AUX input source S e l e c t t h e C D c h a n g e r s o u r c e Select the SD card source S e l e c t a s p e c i fi c t r a c k ( n u m b e r b e t w e e n 1 a n d 1 000) on the active MEDIUM Select a CD (number between 1 and 6) in the C D c h a n g e r t o b e a c t i v a t e d Select a Folder (number between 1 and 1 000) on the active MEDIUM
TELEPHONE Phone menu Enter number Phone book Dial Save number Accept Reject
Open the Telephone Menu Enter a telephone number to be called Open the phone book Make a call Save a number in the phone book A c c e p t a n i n c o m i n g c a l l R e f u s e a n i n c o m i n g c a l l
ADDRESS BOOK Address book menu Call
N a v i g a t e < e n t r y >
Open the address book C a l l fi l e u s i n g i t s d e s c r i p t i o n < fi l e > a s d e s c r i b e d in the address book S t a r t g u i d a n c e t o a n a d d r e s s i n t h e a d d r e s s b o o k u s i n g i t s d e s c r i p t i o n < fi l e >
Page 208 of 294
193
1 0
MEDIA
1
2
3
1
2
3
3
3
3
4
3
3
3
3
12332
4
4
4
4
4
2
3
3
2
2
4
3
3
3
3
3
2
2
3
3
3
4
4
4
3
3
2
3
3
3
3
TRAFFIC

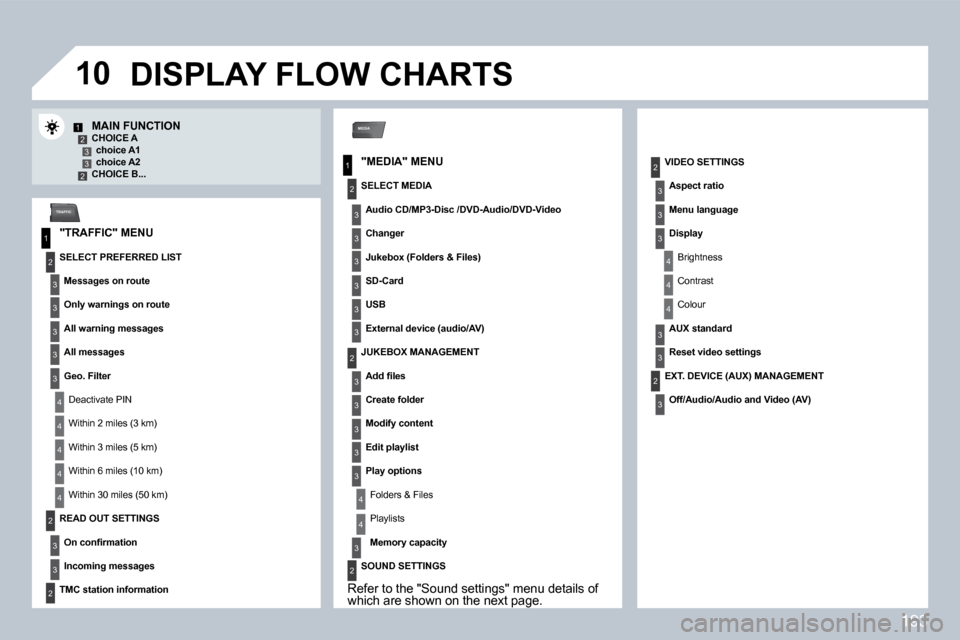

M A I N F U N C T I O N CHOICE A c h o i c e A 1 c h o i c e A 2 C H O I C E B . . .
D I S P L A Y F L O W C H A R T S
"MEDIA" MENU
" T R A F F I C " M E N U
S E L E C T P R E F E R R E D L I S T
M e s s a g e s o n r o u t e
O n l y w a r n i n g s o n r o u t e
A l l w a r n i n g m e s s a g e s
A l l m e s s a g e s
G e o . F i l t e r
Deactivate PIN
Within 2 miles (3 km)
Within 3 miles (5 km)
Within 6 miles (10 km)
Within 30 miles (50 km)
SELECT MEDIA
A u d i o C D / M P 3 - D i s c / D V D - A u d i o / D V D - V i d e o
C h a n g e r
J u k e b o x ( F o l d e r s & F i l e s )
S D - C a r d
USB
E x t e r n a l d e v i c e ( a u d i o / A V )
V I D E O S E T T I N G S
A s p e c t r a t i o
M e n u l a n g u a g e
D i s p l a y
B r i g h t n e s s
Contrast
Colour
A U X s t a n d a r d
R e s e t v i d e o s e t t i n g s
READ OUT SETTINGS
O n c o n fi r m a t i o n
I n c o m i n g m e s s a g e s
T M C s t a t i o n i n f o r m a t i o n
JUKEBOX MANAGEMENT
A d d fi l e s
C r e a t e f o l d e r
M o d i f y c o n t e n t
E d i t p l a y l i s t
P l a y o p t i o n s
Folders & Files
Playlists
M e m o r y c a p a c i t y
SOUND SETTINGS
R e f e r t o t h e " S o u n d s e t t i n g s " m e n u d e t a i l s o f w h i c h a r e s h o w n o n t h e n e x t p a g e . R e f e r t o t h e " S o u n d s e t t i n g s " m e n u d e t a i l s o f R e f e r t o t h e " S o u n d s e t t i n g s " m e n u d e t a i l s o f
E X T . D E V I C E ( A U X ) M A N A G E M E N T
O f f / A u d i o / A u d i o a n d V i d e o ( A V )
Page 216 of 294
201
I cannot update the hazardous location POIs.
T h e " N a v i g a t i o n " M e n u - " U p d a t e p e r s o n a l P O I " i s n o t d i s p l a y e d . Check that the medium used for the update (SD card or USB stick) is inserted correctly.
A n e r r o r m e s s a g e i s d i s p l a y e d a t t h e e n d o f t h e p r o c e d u r e . - S t a r t t h e p r o c e d u r e a g a i n i n f u l l . - Consult a PEUGEOT dealer if the problem persists. - Check that the data on the MEDIUM is s u p p l i e d b y a n o f fi c i a l p a r t n e r o f P E U G E O T .

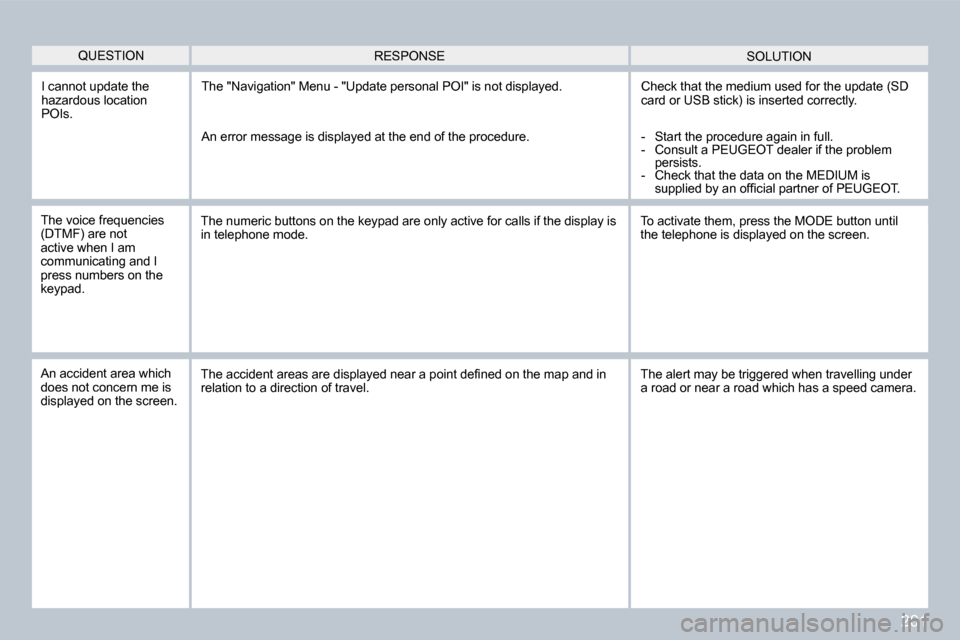

QUESTION SOLUTION RESPONSE
The voice frequencies (DTMF) are not active when I am c o m m u n i c a t i n g a n d I press numbers on the keypad.
The numeric buttons on the keypad are only active for calls if the display is in telephone mode. To activate them, press the MODE button until the telephone is displayed on the screen.
An accident area which does not concern me is displayed on the screen.
T h e a c c i d e n t a r e a s a r e d i s p l a y e d n e a r a p o i n t d e fi n e d o n t h e m a p a n d i n relation to a direction of travel. T h e a l e r t m a y b e t r i g g e r e d w h e n t r a v e l l i n g u n d e r a road or near a road which has a speed camera.
Page 246 of 294
231
11
22
10101111
131314141515
33445566778899
1212
01 FIRST STEPS

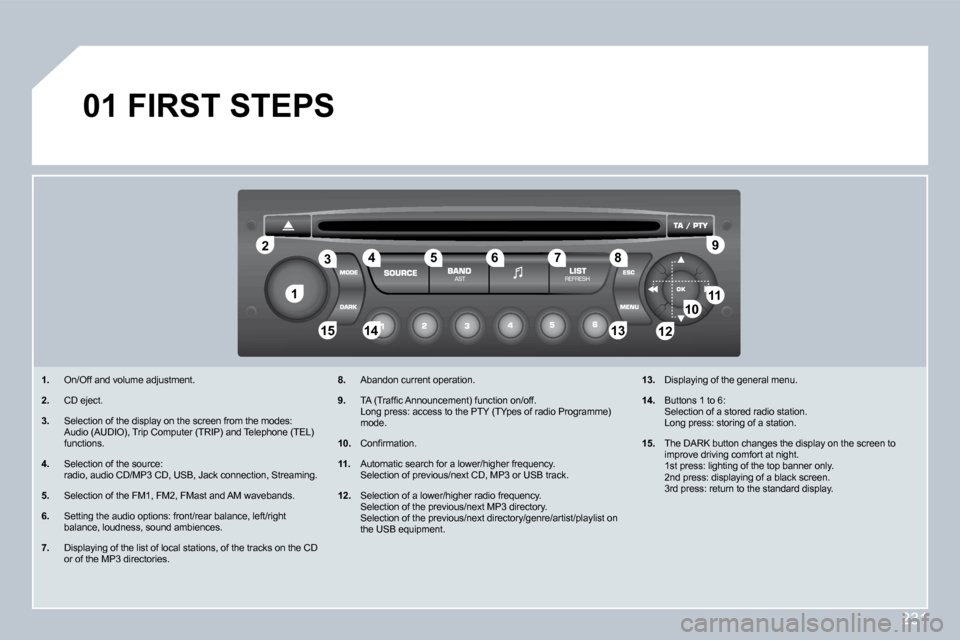

1. On/Off and volume adjustment.
