Page 2 of 280
FAMILIARISATION
Remote control key
A. Unfolding/Folding the key
( fi r s t p r e s s t h i s b u t t o n ) .
Normal locking
( p r e s s o n c e ; fi x e d l i g h t i n g o f
t h e d i r e c t i o n i n d i c a t o r s ) . Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
Capacity of the tank: approximately
60 litres.
Unlocking and partial opening
of the boot
( p r e s s f o r m o r e t h a n t w o s e c o n d s ) .
When the light is poor, detected by a
sensor, the remote switching on of the
dipped beam headlamps, sidelamps
and side spotlamps makes your ap-
proach to the vehicle easier.
83
In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the door sill lamps and the foot-
well lamps, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi x e d l i g h t i n g o f t h e d i r e c t i o n
i n d i c a t o r s ) .
65
88
78
OPENING
Complete or selective unlock-
ing of the vehicle
( r a p i d fl a s h i n g o f t h e d i r e c t i o n
i n d i c a t o r s ) .
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.
Page 7 of 280
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio and telematics system
steering mounted control stalk.
3. Wipers/screenwash/trip computer
control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's airbag.
8. Passenger's airbag deactivation
switch.
9. Glove box/Audio/video sockets.
10. Retractable roof control.
Control for all four windows.
11. Storage compartment or instrument
panel navigator associated with the
Peugeot Connect Media.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating/air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
D y n a m i c s t a b i l i t y c o n t r o l ( E S P / A S R ) button.
Parking sensors button.
PEUGEOT services button.
Page 13 of 280
FAMILIARISATION
MONITORING
Instrument panel Switch panel
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ-
ated low level warning lamp should
switch off.
C.
With the ignition on, the oil level indicator
should display that the level is OK or correct,
according to version, for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding function.
A. Emergency call in progress.
169
B. Deactivation of the alarm interior
volumetric monitoring.
70
C. Central locking.
75
D. Deactivation of the ESP/ASR system.
99
E. Deactivation of the front and rear
parking sensors.
124
F. Access to PEUGEOT services.
169
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps
19
23
Page 19 of 280
1
i
22
INSTRUMENTS and CONTROLS
* According to country.
Instrument panel navigator associated
with the Peugeot Connect Media
Main menu
Press button 1 to open the main
menu and select one of the following
functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection. Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Choice of language
This menu allows you to select the lan-
guage used by the screen: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (mpg, km/l or
l/100 km).
This group of buttons permits:
-
when stationary , c o n fi g u r a t i o n o f
the vehicle's equipment and the
central screen settings (language,
units...),
- while driving , scrolling through the
active functions (trip computer, navi-
gation...).
Controls
There are four buttons to control the in-
strument panel large screen:
1. a c c e s s t h e m a i n m e n u , c o n fi r m t h e
selection,
2. move up through the menu,
3. move down through the menu,
4. return to the previous screen, exit
from the menu. The main menu and its associated
functions can only be accessed
when stationary, via buttons
1 to 4 .
A message appears in the cen-
tral screen, above a certain speed
threshold, indicating that the main
menu cannot be displayed.
Trip computer information can only
be displayed while driving, using
buttons 2 and 3 (refer to the "Trip
computer" section).
Page 27 of 280
1
AUTO
PRND
30
INSTRUMENTS and CONTROLS
Water in Diesel * .
If this is displayed, it indicates
the presence of water in the
D i e s e l fi l t e r .
There is a risk of damage to the injection
system on Diesel engines. Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
P a r t i c l e e m i s s i o n fi l t e r ( D i e s e l ) .
If this is displayed, linked with
the service warning lamp, it in-
dicates the start of saturation
o f t h e p a r t i c l e e m i s s i o n fi l t e r o r a l o w
Diesel additive reservoir level.
A s s o o n a s t r a f fi c c o n d i t i o n s p e r m i t , r e -
g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
of at least 40 mph (60 km/h) until the
service warning lamp is switched off.
If the service warning lamp is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer with-
out delay.
U n d e r - i n fl a t e d t y r e .
If this is displayed, it indicates
low pressure in one or more
wheels.
Check the tyre pressures as soon as
possible.
Punctured tyre.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
detection.
If this is displayed, it indicates
the occurrence of a fault on one
o f t h e s e n s o r s o r i n t h e t y r e u n d e r - i n fl a -
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
d o e s n o t h a v e a s e n s o r , i s fi t t e d i n p l a c e
of a punctured wheel.
Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the au-
tomatic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.
Visual and/or audible
parking sensors.
If this comes on, in forward and/
or reverse gear, it indicates a fault
in the parking sensor system.
Automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
automatic gearbox. The gear-
box will then operate in down-grade
mode, locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the automatic
gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in or-
der to start the engine.
* According to country.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.
Page 34 of 280
2
37
MULTIFUNCTION SCREENS
Main menu "Audio functions" menu
Press the "MENU" button for access
to the main menu :
- audio functions,
- diagnosis vehicle,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText) or the CD
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For more information on the "Audio func-
tions" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
MONOCHROME SCREEN C (WITH PEUGEOT CONNECT SOUND)
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- status of the openings (doors, boot...),
- visual parking sensor information,
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "ESC" button. Controls
From the control panel of your Peugeot
Connect Sound, you can:
press the "MENU" button to gain
access to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.

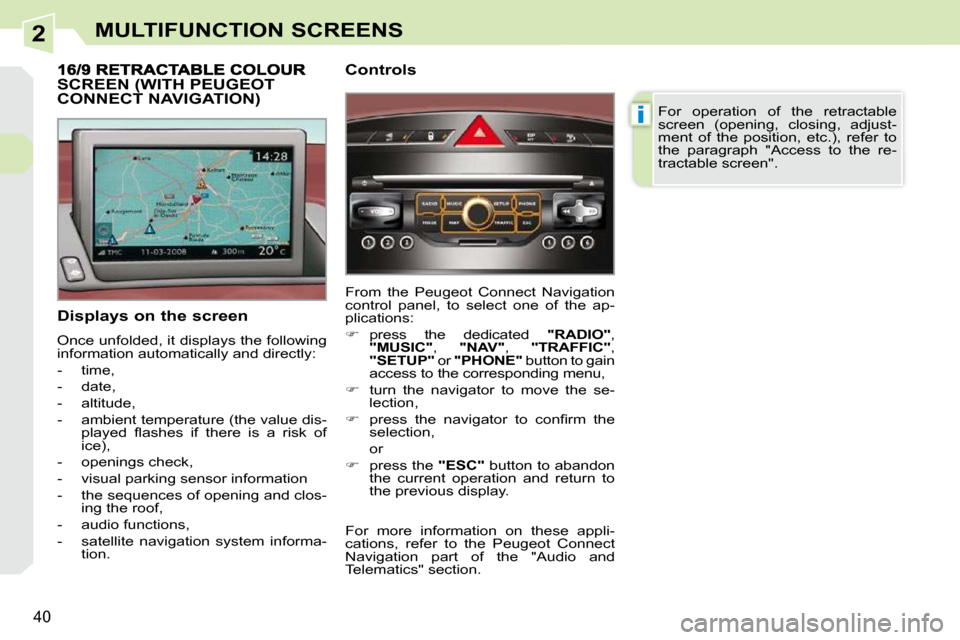

Page 37 of 280
2
i
40
MULTIFUNCTION SCREENS
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- openings check,
- visual parking sensor information
- the sequences of opening and clos- ing the roof,
- audio functions,
- satellite navigation system informa- tion.
SCREEN (WITH PEUGEOT CONNECT NAVIGATION)
Controls
From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button to gain
access to the corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".
For more information on these appli-
cations, refer to the Peugeot Connect
Navigation part of the "Audio and
Telematics" section.
Page 38 of 280
2
!
41
MULTIFUNCTION SCREENS
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the follow-
ing functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
Language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the Peugeot
Connect Navigation part of the "Audio
and Telematics" section). Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (mpg, km/l or l/100).
System
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text. F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must be done only when sta-
tionary.
* According to country.
Page 39 of 280
2
i
42
MULTIFUNCTION SCREENS
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT MEDIA)
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- audio functions,
- visual parking sensor information,
- the sequences of opening and clos- ing the roof,
- telephone and address book infor- mation,
- satellite navigation system informa- tion. Controls
From the Peugeot Connect Media control
panel, to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP" button
for access to the corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".
For more information on these appli-
cations, refer to the Peugeot Connect
Media part of the "Audio and Telematics"
section.
Page 46 of 280
3
i
i
49
COMFORT
The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.
RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the guidelines on operation
and maintenance below:
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the dashboard ; this is used
for regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i n s t a l l i n g t h e w i n d s t o p a n d u s i n g t h e " A I R W A V E "
systems improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity. If the interior temperature remains
very high after the vehicle has been
parked in the sun for a considerable
t i m e , fi r s t v e n t i l a t e t h e p a s s e n g e r
compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f -
fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e
renewal of air in the passenger
compartment.
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
