Page 191 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�7�8
�6�6
�8�8
�1�1
�2�2
�3�3
�4�4
�7�7
�0�3
�P�r�e�s�s� �t�h�e� �M�E�N�U� �b�u�t�t�o�n�.
�T�u�r�n� �t�h�e� �d�i�a�l� �a�n�d� �s�e�l�e�c�t� �t�h�e� �M�A�P� �f�u�n�c�t�i�o�n�.
�P�r�e�s�s� �t�h�e� �d�

178
66
88
11
22
33
44
77
03
Press the MENU button.
Turn the dial and select the MAP function.
Press the dial to conﬁrm the selection.
Turn the dial and select the MAP DETAILS function.Permits selection of the services which can be seen on the map (hotels, restaurants...).

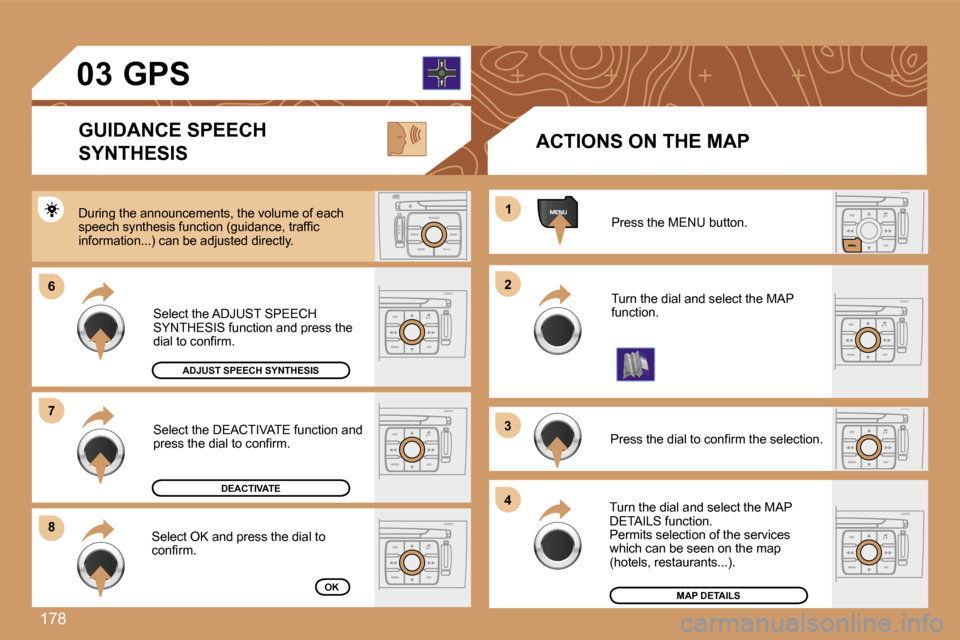

ACTIONS ON THE MAP
MAP DETAILS
During the announcements, the volume of each speech synthesis function (guidance, trafﬁc information...) can be adjusted directly.
GUIDANCE SPEECH
SYNTHESIS
Select the ADJUST SPEECH SYNTHESIS function and press the dial to conﬁrm.
GPS
DEACTIVATE
OK
ADJUST SPEECH SYNTHESIS
Select the DEACTIVATE function and press the dial to conﬁrm.
Select OK and press the dial to conﬁrm.

Page 192 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�7�9
�1�1
�2�2
�3�3
�4�4
�5�5
�6�6
�7�7
�0�3
�F�o�r� �i�m�p�r�o�v�e�d� �v�i�s�i�b�i�l�i�t�y�,� �b�e�y�o�n�d� �t�h�e� �s�c�a�l�e� �o�f� �1�0�k�m�,� �t�h�e� �m�a�p� �a�u�t�o�m�a�t�i�c�a�l�l�y� �s�w�i�

179
11
22
33
44
55
66
77
03

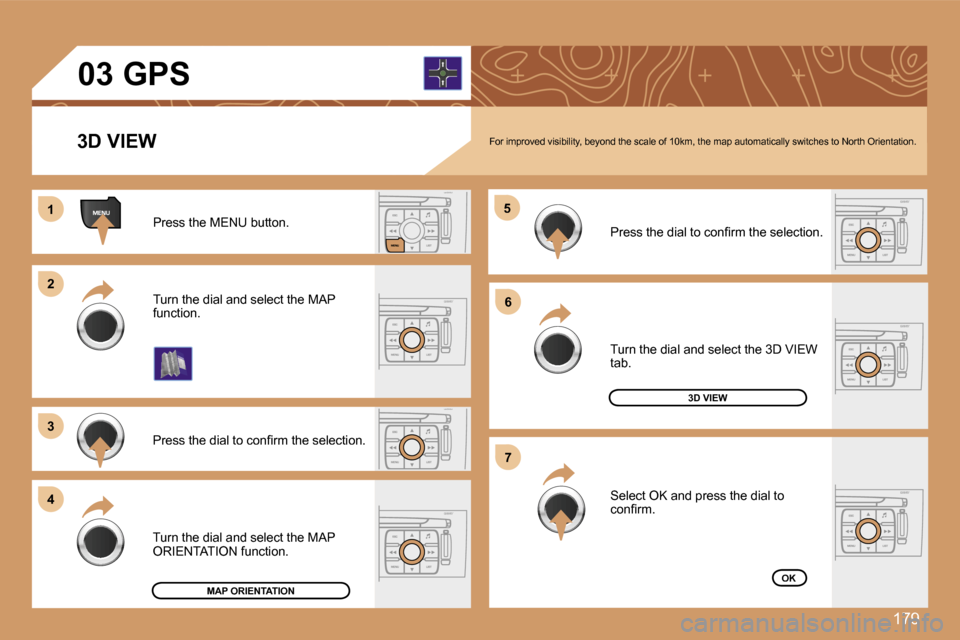

For improved visibility, beyond the scale of 10km, the map automatically switches to North Orientation .
Turn the dial and select the MAP function.
Press the MENU button.Press the dial to conﬁrm the selection.
Turn the dial and select the 3D VIEW tab.
Turn the dial and select the MAP ORIENTATION function.
Press the dial to conﬁrm the selection.
3D VIEW
GPS
OK
3D VIEW
MAP ORIENTATION
Select OK and press the dial to conﬁrm.

Page 193 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�0
�1�1
�2�2
�3�3
�4�4
�5�5
�6�6
�7�7
�0�3
�P�r�e�s�s� �t�h�e� �M�E�N�U� �b�u�t�t�o�n�.
�P�r�e�s�s� �t�h�e� �d�i�a�l� �t�o� �c�o�n�ﬁ�r�m� �t�h�e� �s�e�l�e�c�t�i�o�n�.
�T�u�r�n� �t�h�e� �d�i�a�l�

180
11
22
33
44
55
66
77
03
Press the MENU button.
Press the dial to conﬁrm the selection.
Turn the dial and select the MAP function.
Turn the dial and select the MAP IN WINDOW or FULL SCREEN MAP tab.
Select OK and press the dial to Select OKSelect OKconﬁrm.
Press the dial to conﬁrm the selection.
Turn the dial and select the DISPLAY MAP function.

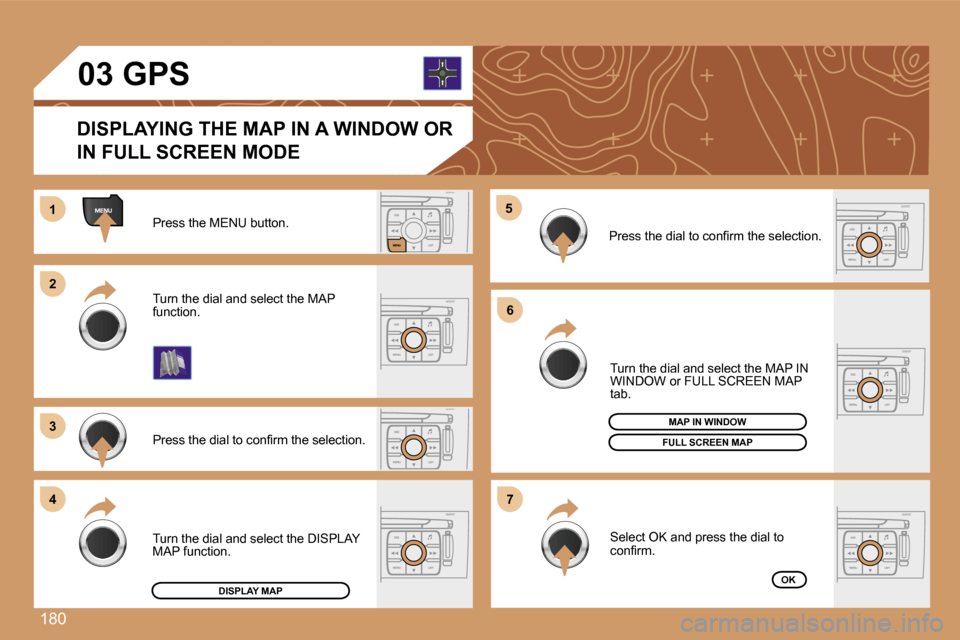

DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE
GPS
OK
FULL SCREEN MAP
DISPLAY MAP
MAP IN WINDOW

Page 194 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�1
�1�1
�2�2
�3�3
�4�4
�5�5
�9�9
�8�8
�7�7
�6�6
�0�3
�A�D�D�I�N�G� �A� �S�T�A�G�E
�D�u�r�i�n�g� �g�u�i�d�a�n�c�e�,� �p�r�e�s�s� �t�h�e� �M�E�N�U� �b�u�t�t�o�n�.
�T�u�r�n� �t�h�e� �d�i�a�l� �a�n�d�

181
11
22
33
44
55
99
88
77
66
03

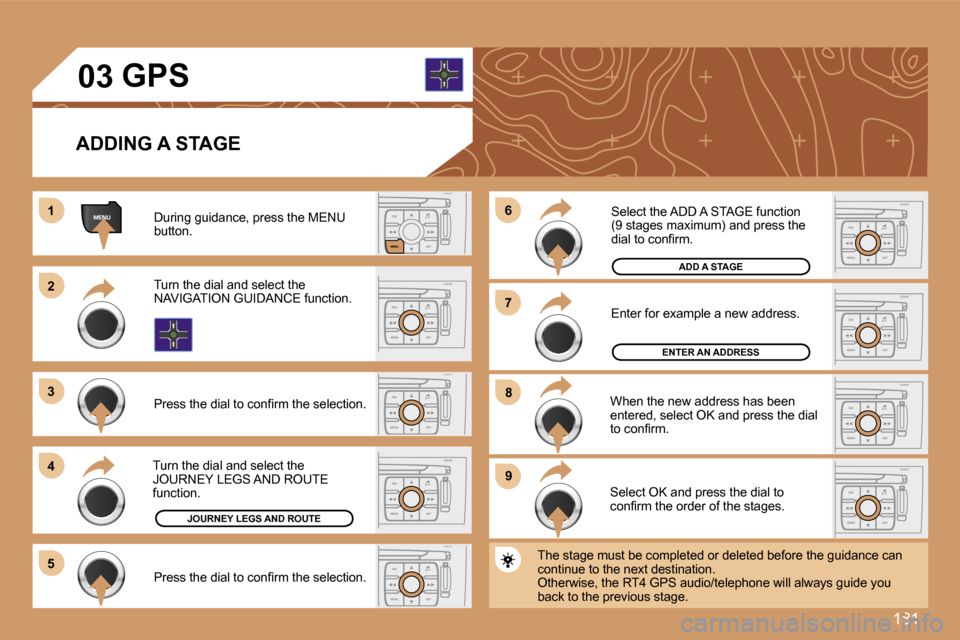

ADDING A STAGE
During guidance, press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to conﬁrm the selection.
Turn the dial and select the JOURNEY LEGS AND ROUTE function.
JOURNEY LEGS AND ROUTE
Select OK and press the dial to conﬁrm the order of the stages.
When the new address has been entered, select OK and press the dial to conﬁrm.
Enter for example a new address.
Select the ADD A STAGE function (9 stages maximum) and press the dial to conﬁrm.
ENTER AN ADDRESS
Press the dial to conﬁrm the selection.
ADD A STAGE
The stage must be completed or deleted before the guidance can continue to the next destination.Otherwise, the RT4 GPS audio/telephone will always guide you back to the previous stage.
GPS

Page 195 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�2
�1�1
�2�2
�3�3
�4�4
�5�5
�6
�7�7
�8
�0�4
�A�C�T�I�V�A�T�I�N�G� �T�H�E� �F�I�L�T�E�R� �O�N� �T�H�E� �R�O�U�T�E
�W�e� �r�e�c�o�m�m�e�n�d� �a� �ﬁ�l�t�e�r� �o�n� �t�h�e� �r�o�u�t�e� �a�n�d� �a� �

182
11
22
33
44
55
6
77
8
04

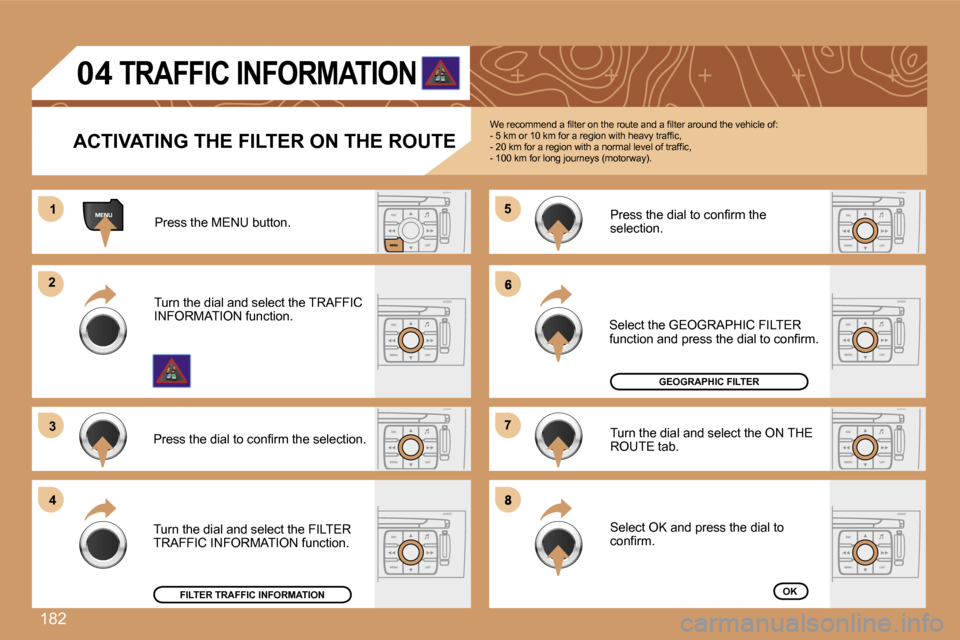

ACTIVATING THE FILTER ON THE ROUTE
We recommend a ﬁlter on the route and a ﬁlter around the vehicle of:- 5 km or 10 km for a region with heavy trafﬁc,- 20 km for a region with a normal level of trafﬁc,- 100 km for long journeys (motorway).
Press the MENU button.
Turn the dial and select the TRAFFIC INFORMATION function.
Press the dial to conﬁrm the selection.
FILTER TRAFFIC INFORMATION
GEOGRAPHIC FILTER
Turn the dial and select the FILTER TRAFFIC INFORMATION function.
OK
Press the dial to conﬁrm the selection.
Select the GEOGRAPHIC FILTER function and press the dial to conﬁrm.
Turn the dial and select the ON THE ROUTE tab.
TRAFFIC INFORMATION
Select OK and press the dial to conﬁrm.

Page 196 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�3
�1�1
�2�2
�3�3
�4�4
�6�6
�5�5
�7�7
�0�4
�P�r�e�s�s� �t�h�e� �M�E�N�U� �b�u�t�t�o�n�.
�R�E�A�D� �M�E�S�S�A�G�E�S
�N�E�W� �M�E�S�S�A�G�E� �D�I�S�P�L�A�Y
�O�K
�C�O�N�F�I�G�U�R�I�N�G� �T�H�E� �T�M�

183
11
22
33
44
66
55
77
04
Press the MENU button.
READ MESSAGES
NEW MESSAGE DISPLAY
OK

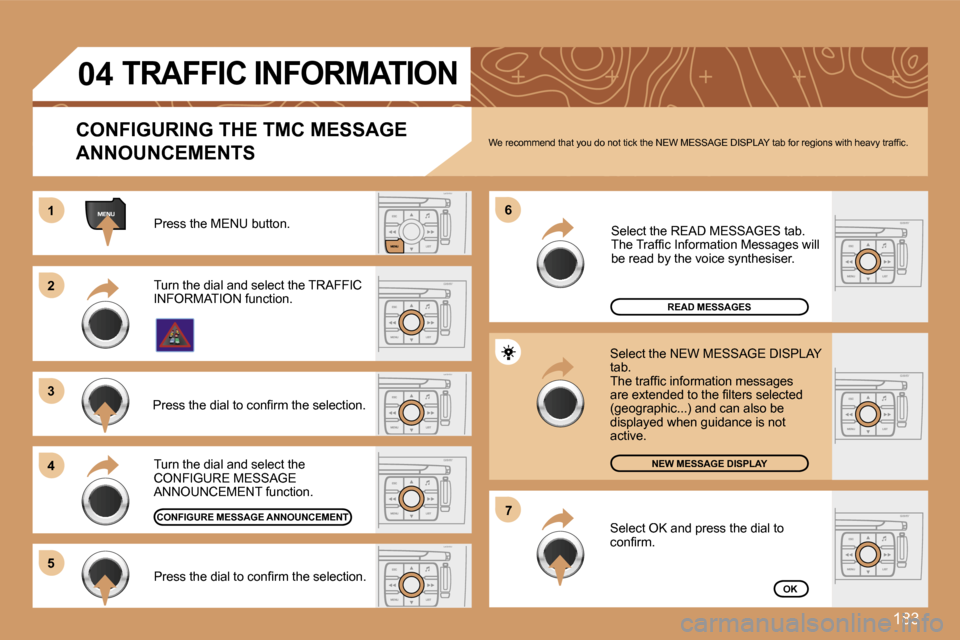

CONFIGURING THE TMC MESSAGE
ANNOUNCEMENTSWe recommend that you do not tick the NEW MESSAGE DISPLAY tab for regions with heavy trafﬁc.
Turn the dial and select the TRAFFIC INFORMATION function.
Press the dial to conﬁrm the selection.
Press the dial to conﬁrm the selection.
Turn the dial and select the CONFIGURE MESSAGE ANNOUNCEMENT function.
Select the READ MESSAGES tab.The Trafﬁc Information Messages will be read by the voice synthesiser.
Select the NEW MESSAGE DISPLAY tab.The trafﬁc information messages are extended to the ﬁlters selected (geographic...) and can also be displayed when guidance is not active.
TRAFFIC INFORMATION
Select OK and press the dial to conﬁrm.
CONFIGURE MESSAGE ANNOUNCEMENT

Page 197 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�4
�1�1
�2�2
�3�3
�4�4
�1�1
�2�2
�3�3
�4�4
�0�5�A�U�D�I�O�/�V�I�D�E�O
�R�A�D�I�O
�S�E�L�E�C�T�I�N�G� �A� �S�T�A�T�I�O�N
�P�r�e�s�s� �t�h�e� �S�O�U�R�C�E� �b�u�t�t�o�n� �s�e�v�e�r�a�l� �t�i�m�e�s�

184
11
22
33
44
11
22
33
44

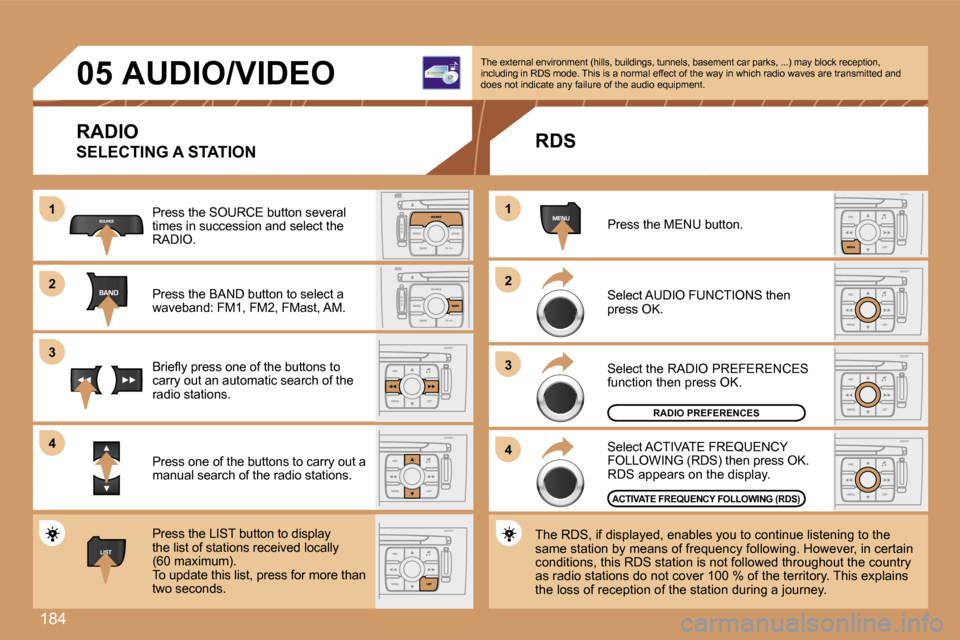

05AUDIO/VIDEO
RADIO
SELECTING A STATION
Press the SOURCE button several times in succession and select the RADIO.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
Brieﬂy press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to display the list of stations received locally (60 maximum).To update this list, press for more than two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of the wa y in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the RADIO PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue listening t o the same station by means of frequency following. However, in certa in conditions, this RDS station is not followed throughout the country as radio stations do not cover 100 % of the territory. This exp lains the loss of reception of the station during a journey.
ACTIVATE FREQUENCY FOLLOWING (RDS)
RADIO PREFERENCES

Page 198 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�5
�1�1
�2�2
�0�5�A�U�D�I�O�/�V�I�D�E�O
�M�P�3� �C�D
�I�N�F�O�R�M�A�T�I�O�N� �A�N�D� �A�D�V�I�C�E
�T�h�e� �M�P�3� �f�o�r�m�a�t�,� �a�n� �a�b�b�r�e�v�i�a�t�i�o�n� �o�f� �M�P�E�G� �1�.�2� �&� �2�.�5

185
11
22
05AUDIO/VIDEO
MP3 CD
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of several tens of music ﬁles on a single disc.
In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select standards ISO 9660 level 1. 2 or Joliet.If the disc is recorded in another format, it may not be played correctly.It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.In the particular case of a multi-session CD, the Joliet standa rd is recommended.
The audio equipment will only play audio ﬁles with the extension ".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of ﬁle (.wma, .mp4, m3u...) can be played.
It is advisable to restrict ﬁle names to 20 characters without usin g special characters (e.g.: " " ? ; ù) to avoid any playing or displaying problems.
CD
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may generate malfunctions regardless of the quality of the original player.
Insert an audio CD or an MP3 compilation in the pla yer, play begins automatically.
If the player already contains a disc, press the SOURCE button several times in succession and select CD to listen to it.
Press one of the buttons to select a track on the CD.Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation ma y depend on the recording programme and/or the parameter settings used. We recommend use of the ISO 9660 recording standard.

Page 199 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�6
�2�2
�3�3
�6�6
�4�4
�5�5
�1�1
�O�K
�C�R�E�A�T�E� �A�L�B�U�M
�C�O�M�P�L�E�T�E� �C�D
�C�O�P�Y� �C�D� �T�O� �J�U�K�E�B�O�X
�S�e�l�e�c�t� �C�O�P�Y� �C�D� �T�O� �J�U�K�E�B�O�X� �a�n�d� �p�r�e�s�s� �

186
22
33
66
44
55
11
OK
CREATE ALBUM
COMPLETE CD
COPY CD TO JUKEBOX
Select COPY CD TO JUKEBOX and press the dial to conﬁrm.
Select COMPLETE CD to copy the entire CD and press the dial to conﬁrm.
Select CREATE ALBUM and press the dial to conﬁrm.
The AUTO CREATION tab automatically copies the CD by default into an album of the type "album n°...".
The audio or MP3 CD is copied onto the hard disc. Copying may take approximately 20 minutes depending on the dura tion of the CD. During this copying phase, it is not possible to listen to the albums previously recorded on the hard disc or the CDs.
Select the letters one by one and select OK to conﬁrm.
If it is not an MP3 CD, the Jukebox automatically c ompresses the CD in MP3 format. The compression may take appr oximately 20 minutes depending on the duration of the CD. During this compression phase, it is possible to listen to the CD or to albums previously recorded on the hard disc.
A long press on the SOURCE button starts the copyin g of the CD.
When copying an MP3 CD, the Jukebox only retains th e last album level. It is not possible to copy ﬁles from the Jukebox to a CD. The STOP THE CD COPY action does not delete the ﬁle s which have already been transferred onto the jukebox hard disc.
Select AUDIO FUNCTIONS and press the dial to conﬁrm.
Insert a CD or an MP3 compilation and press the MENU button.

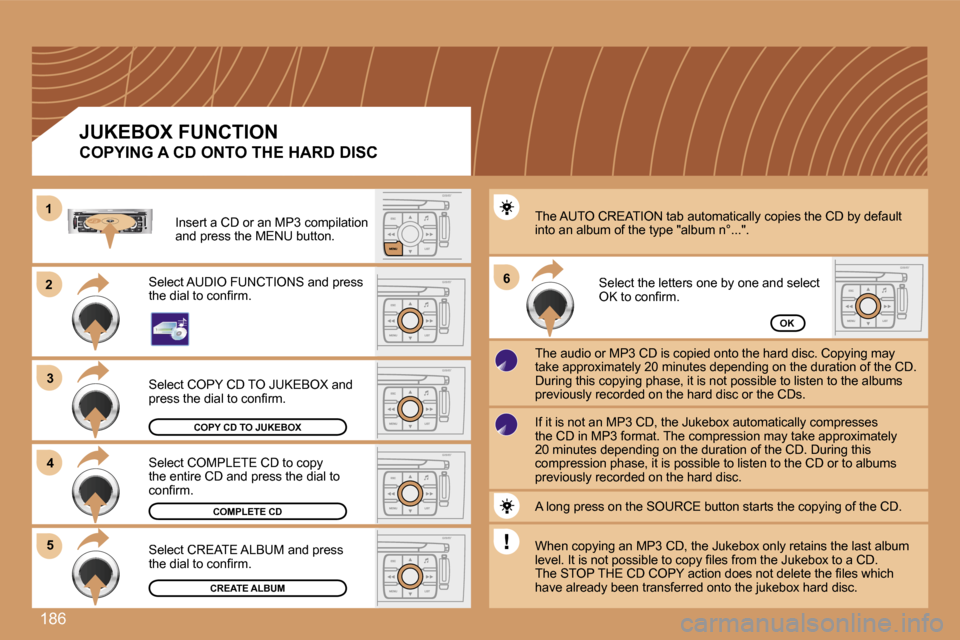

JUKEBOX FUNCTION
COPYING A CD ONTO THE HARD DISC

Page 200 of 228

Peugeot 308 Dag 2007.5 Owners Manual �1�8�7
�6�6
�7�7
�5�5
�2�2
�3�3
�4�4
�1�1
�R�E�N�A�M�E
�J�U�K�E�B�O�X
�J�U�K�E�B�O�X� �M�A�N�A�G�E�M�E�N�T
�J�U�K�E�B�O�X� �F�U�N�C�T�I�O�N
�R�E�N�A�M�I�N�G� �A�N� �A�L�B�U�M�
�P�r�e�s�s� �t�h�e� �M�

187
66
77
55
22
33
44
11
RENAME
JUKEBOX
JUKEBOX MANAGEMENT
JUKEBOX FUNCTION

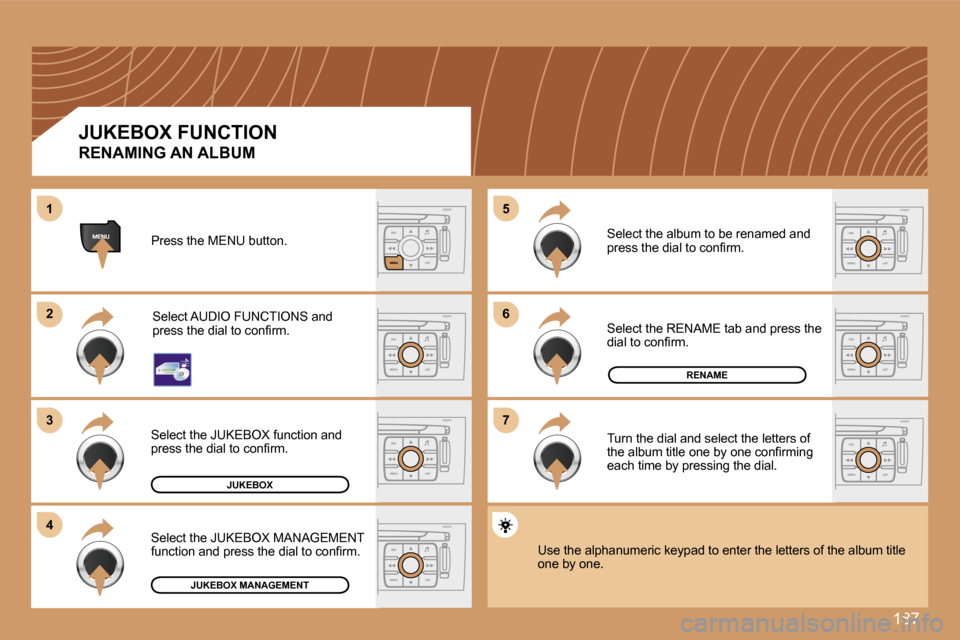

RENAMING AN ALBUM
Press the MENU button.
Select AUDIO FUNCTIONS and press the dial to conﬁrm.
Select the JUKEBOX function and press the dial to conﬁrm.
Select the JUKEBOX MANAGEMENT function and press the dial to conﬁrm.
Select the album to be renamed and press the dial to conﬁrm.
Select the RENAME tab and press the dial to conﬁrm.
Turn the dial and select the letters of the album title one by one conﬁrming each time by pressing the dial.
Use the alphanumeric keypad to enter the letters of the album title one by one.
