Peugeot 308 Dag 2007.5 Owner's Guide

!

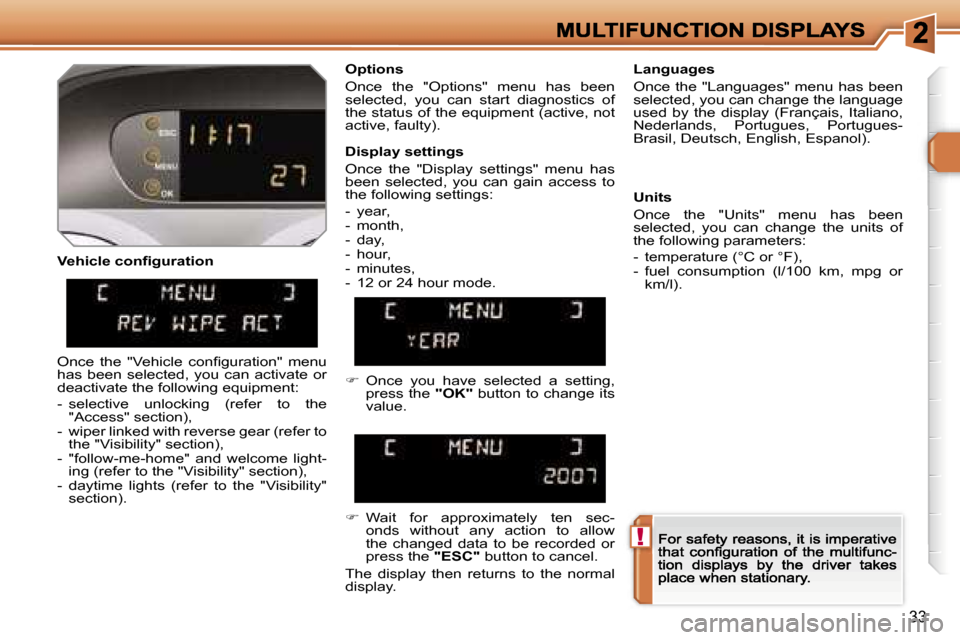

33
Vehicle configuration
Options
Once the "Options" menu has been selected, you can start diagnostics of the status of the equipment (active, not active, faulty).
Languages
Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Deutsch, English, Espanol).Display settings
Once the "Display settings" menu has been selected, you can gain access to the following settings:
- year,- month,- day,- hour,- minutes,- 12 or 24 hour mode.
Units
Once the "Units" menu has been selected, you can change the units of the following parameters:
- temperature (°C or °F),- fuel consumption (l/100 km, mpg or km/l).
 Once you have selected a setting, press the "OK" button to change its value.
 Wait for approximately ten sec-onds without any action to allow the changed data to be recorded or press the "ESC" button to cancel.
The display then returns to the normal display.
Once the "Vehicle configuration" menu has been selected, you can activate or deactivate the following equipment:
- selective unlocking (refer to the "Access" section),- wiper linked with reverse gear (refer to the "Visibility" section),- "follow-me-home" and welcome light-ing (refer to the "Visibility" section),- daytime lights (refer to the "Visibility" section).

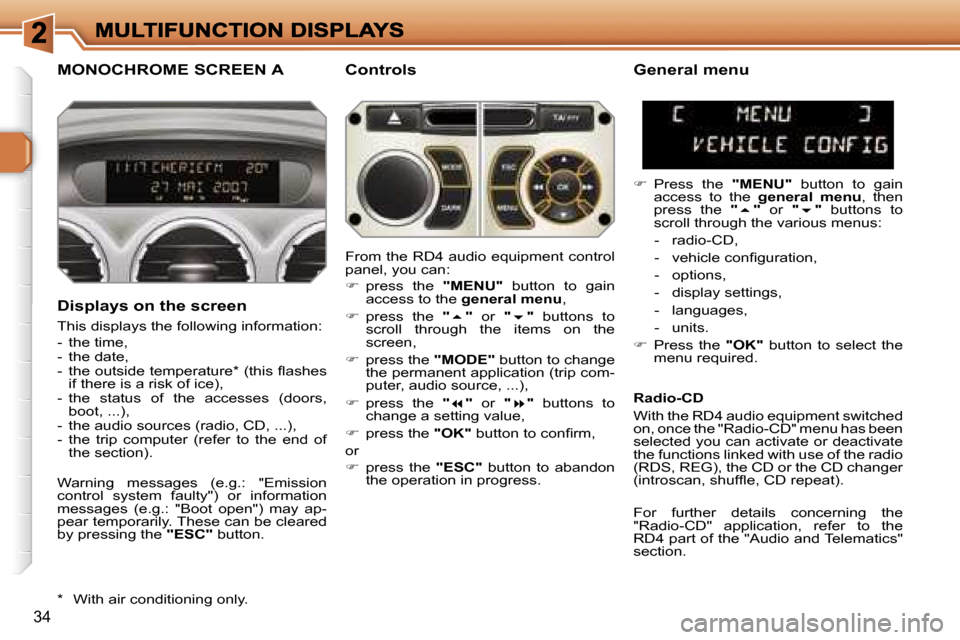

34
MONOCHROME SCREEN AControls
Displays on the screen
This displays the following information:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the audio sources (radio, CD, ...),- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Boot open") may ap-pear temporarily. These can be cleared by pressing the "ESC" button.
General menu
 Press the "MENU" button to gain access to the general menu, then press the "" or "" buttons to scroll through the various menus:
- radio-CD,
- vehicle configuration,
- options,
- display settings,
- languages,
- units.
 Press the "OK" button to select the menu required.
From the RD4 audio equipment control panel, you can:
 press the press the "MENU" button to gain access to the general menu,
 press the "" or "" buttons to scroll through the items on the screen,
 press the "MODE" button to change the permanent application (trip com-puter, audio source, ...),
 press the "" or "" buttons to change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to abandon the operation in progress.
Radio-CD
With the RD4 audio equipment switched on, once the "Radio-CD" menu has been selected you can activate or deactivate the functions linked with use of the radio (RDS, REG), the CD or the CD changer (introscan, shuffle, CD repeat).
For further details concerning the "Radio-CD" application, refer to the RD4 part of the "Audio and Telematics" section.
* With air conditioning only.

!

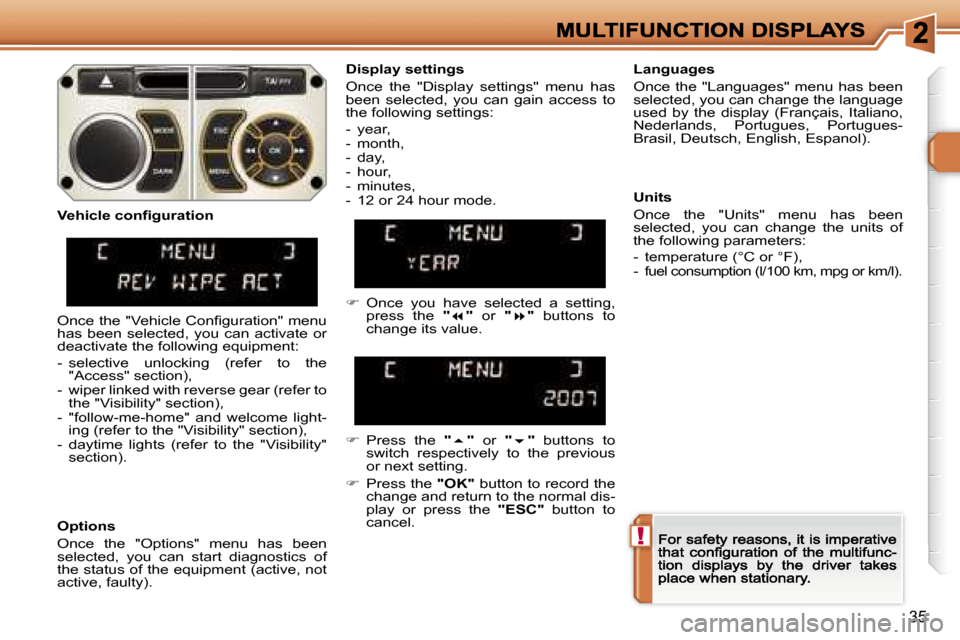

35
Display settings
Once the "Display settings" menu has been selected, you can gain access to the following settings:
- year,- month,- day,- hour,- minutes,- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been selected, you can change the units of the following parameters:
- temperature (°C or °F),- fuel consumption (l/100 km, mpg or km/l).
 Once you have selected a setting, press the "" or "" buttons to change its value.
 Press the "" or "" buttons to switch respectively to the previous or next setting.
 Press the "OK" button to record the change and return to the normal dis-play or press the "ESC" button to cancel.
Vehicle configuration
Options
Once the "Options" menu has been selected, you can start diagnostics of the status of the equipment (active, not active, faulty).
Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate the following equipment:
- selective unlocking (refer to the "Access" section),- wiper linked with reverse gear (refer to the "Visibility" section),- "follow-me-home" and welcome light-ing (refer to the "Visibility" section),- daytime lights (refer to the "Visibility" section).

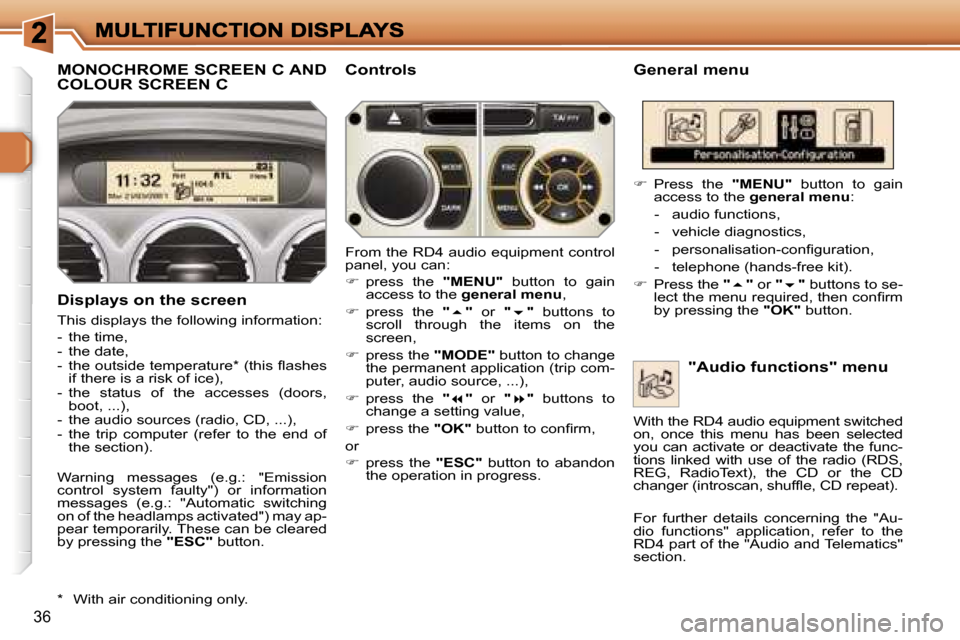

36
MONOCHROME SCREEN C AND
COLOUR SCREEN CGeneral menu
Displays on the screen
This displays the following information:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the audio sources (radio, CD, ...),- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Automatic switching on of the headlamps activated") may ap-pear temporarily. These can be cleared by pressing the "ESC" button.
"Audio functions" menu
Controls
From the RD4 audio equipment control panel, you can:
 press the "MENU" button to gain access to the access to the general menu,
 press the "" or "" buttons to scroll through the items on the screen,
 press the "MODE" button to change the permanent application (trip com-puter, audio source, ...),
 press the "" or "" buttons to change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to abandon the operation in progress.
 Press the "MENU" button to gain access to the general menu:
- audio functions,
- vehicle diagnostics,
- personalisation-configuration,
- telephone (hands-free kit).
 Press the "" or "" buttons to se-lect the menu required, then confirm by pressing the "OK" button.
* With air conditioning only.
With the RD4 audio equipment switched on, once this menu has been selected you can activate or deactivate the func-tions linked with use of the radio (RDS, REG, RadioText), the CD or the CD changer (introscan, shuffle, CD repeat).
For further details concerning the "Au-dio functions" application, refer to the RD4 part of the "Audio and Telematics" section.

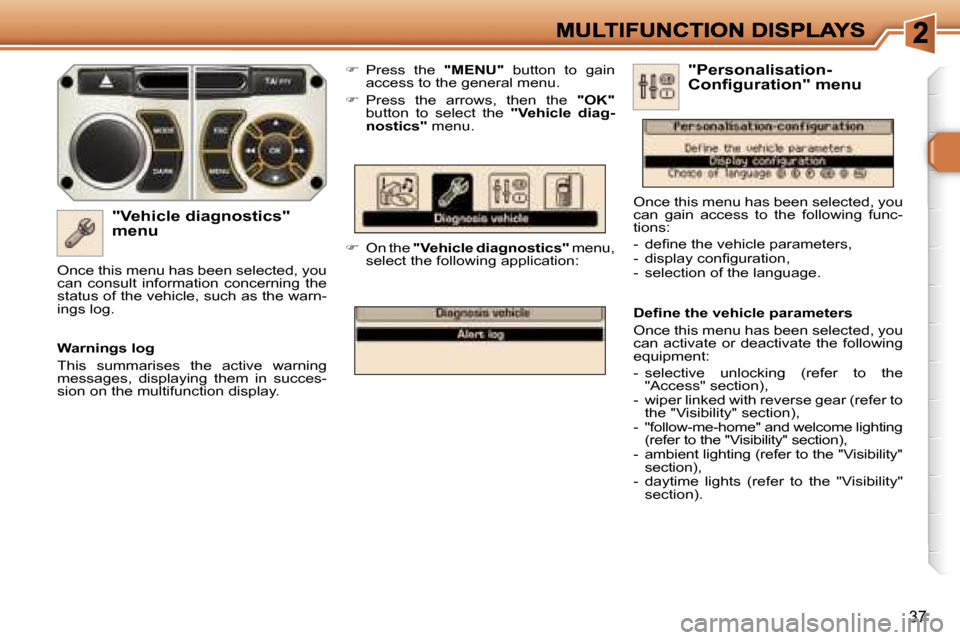

37
"Vehicle diagnostics" menu
 Press the "MENU" button to gain access to the general menu.
 Press the arrows, then the "OK"button to select the "Vehicle diag-nostics" menu.
 On the "Vehicle diagnostics" menu, select the following application:
Warnings log
This summarises the active warning messages, displaying them in succes-sion on the multifunction display.
Once this menu has been selected, you can consult information concerning the status of the vehicle, such as the warn-ings log.Define the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment:
- selective unlocking (refer to the "Access" section),- wiper linked with reverse gear (refer to the "Visibility" section),- "follow-me-home" and welcome lighting (refer to the "Visibility" section),- ambient lighting (refer to the "Visibility" section),- daytime lights (refer to the "Visibility" section).
"Personalisation-Configuration" menu
Once this menu has been selected, you can gain access to the following func-tions:
- define the vehicle parameters,- display configuration,- selection of the language.

!

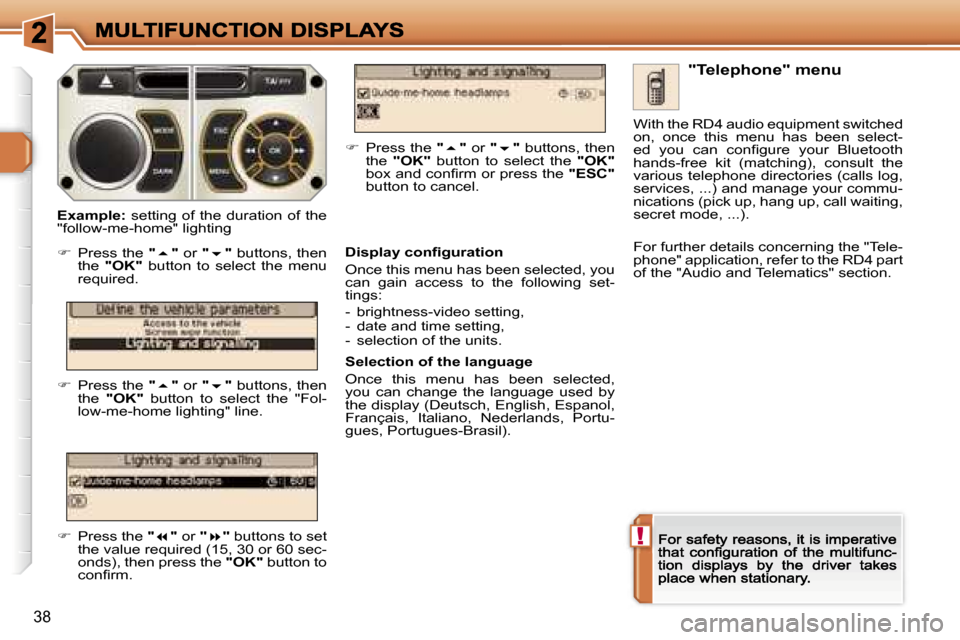

38
"Telephone" menu
Display configuration
Once this menu has been selected, you can gain access to the following set-tings:tings:
- brightness-video setting,- date and time setting,- selection of the units.
Selection of the language
Once this menu has been selected, you can change the language used by the display (Deutsch, English, Espanol, Français, Italiano, Nederlands, Portu-gues, Portugues-Brasil).
Example: setting of the duration of the "follow-me-home" lighting
 Press the "" or "" buttons, then the "OK" button to select the menu required.
 Press the "" or "" buttons, then the "OK" button to select the "Fol-low-me-home lighting" line.
 Press the "" or "" buttons to set the value required (15, 30 or 60 sec-onds), then press the "OK" button to confirm.
 Press the "" or "" buttons, then the "OK" button to select the "OK" box and confirm or press the "ESC" button to cancel.
With the RD4 audio equipment switched on, once this menu has been select-ed you can configure your Bluetooth hands-free kit (matching), consult the various telephone directories (calls log, services, ...) and manage your commu-nications (pick up, hang up, call waiting, secret mode, ...).
For further details concerning the "Tele-phone" application, refer to the RD4 part of the "Audio and Telematics" section.

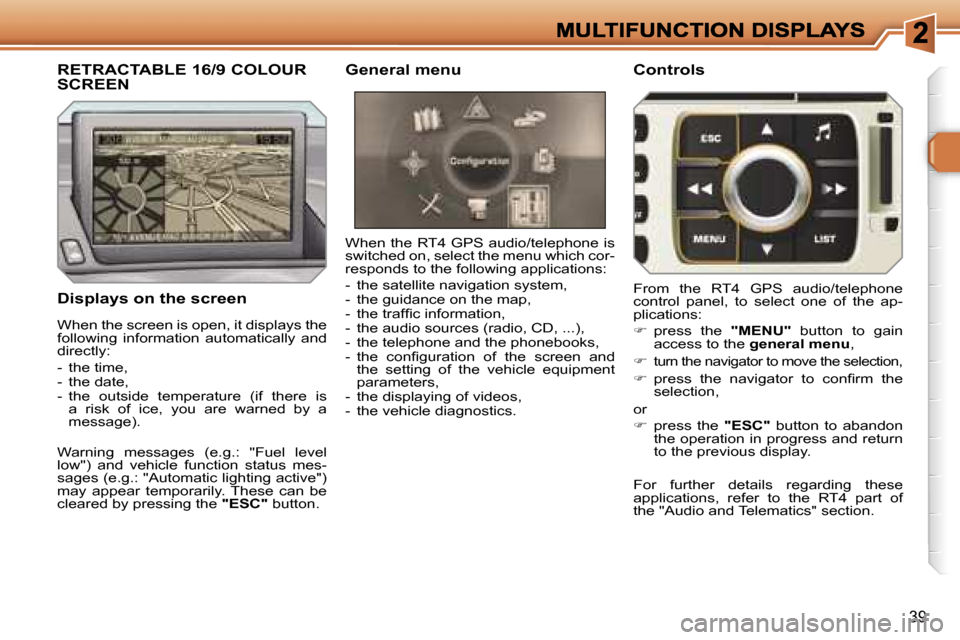

39
Displays on the screen
When the RT4 GPS audio/telephone is switched on, select the menu which cor-responds to the following applications:
- the satellite navigation system,- the guidance on the map,- the traffic information,- the audio sources (radio, CD, ...),- the telephone and the phonebooks,- the configuration of the screen and the setting of the vehicle equipment parameters,- the displaying of videos,- the vehicle diagnostics.
Controls
When the screen is open, it displays the following information automatically and directly:
- the time,- the date,- the outside temperature (if there is a risk of ice, you are warned by a message).
Warning messages (e.g.: "Fuel level low") and vehicle function status mes-sages (e.g.: "Automatic lighting active") may appear temporarily. These can be cleared by pressing the "ESC" button.
From the RT4 GPS audio/telephone control panel, to select one of the ap-plications:
 press the "MENU" button to gain access to the general menu,
turn the navigator to move the selection,
 press the navigator to confirm the selection,
or
 press the "ESC" button to abandon the operation in progress and return to the previous display.
For further details regarding these applications, refer to the RT4 part of the "Audio and Telematics" section.
RETRACTABLE 16/9 COLOUR
SCREENGeneral menu

i
i

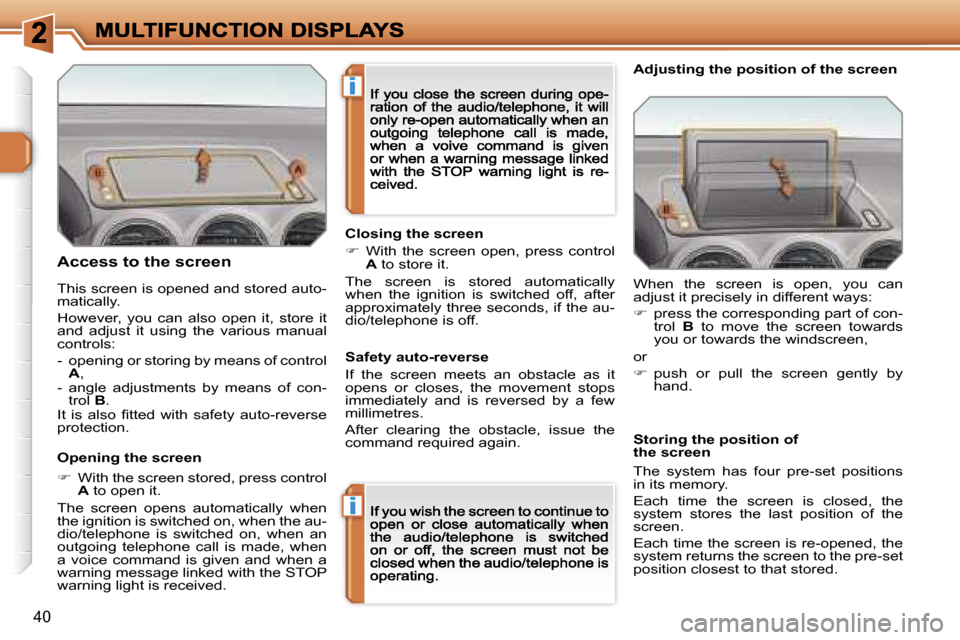

40
Access to the screen
Opening the screen
 With the screen stored, press control A to open it.
The screen opens automatically when the ignition is switched on, when the au-dio/telephone is switched on, when an outgoing telephone call is made, when a voice command is given and when a warning message linked with the STOP warning light is received.
This screen is opened and stored auto-This screen is opened and stored auto-matically.
However, you can also open it, store it and adjust it using the various manual controls:
- opening or storing by means of control A,- angle adjustments by means of con-trol B.It is also fitted with safety auto-reverse protection.
Closing the screen
 With the screen open, press control A to store it.
The screen is stored automatically when the ignition is switched off, after when the ignition is switched off, after approximately three seconds, if the au-dio/telephone is off.
When the screen is open, you can adjust it precisely in different ways:
 press the corresponding part of con-trol B to move the screen towards you or towards the windscreen,
or
 push or pull the screen gently by hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it opens or closes, the movement stops immediately and is reversed by a few millimetres.
After clearing the obstacle, issue the command required again.Storing the position of the screen
The system has four pre-set positions in its memory.
Each time the screen is closed, the system stores the last position of the screen.
Each time the screen is re-opened, the system returns the screen to the pre-set position closest to that stored.

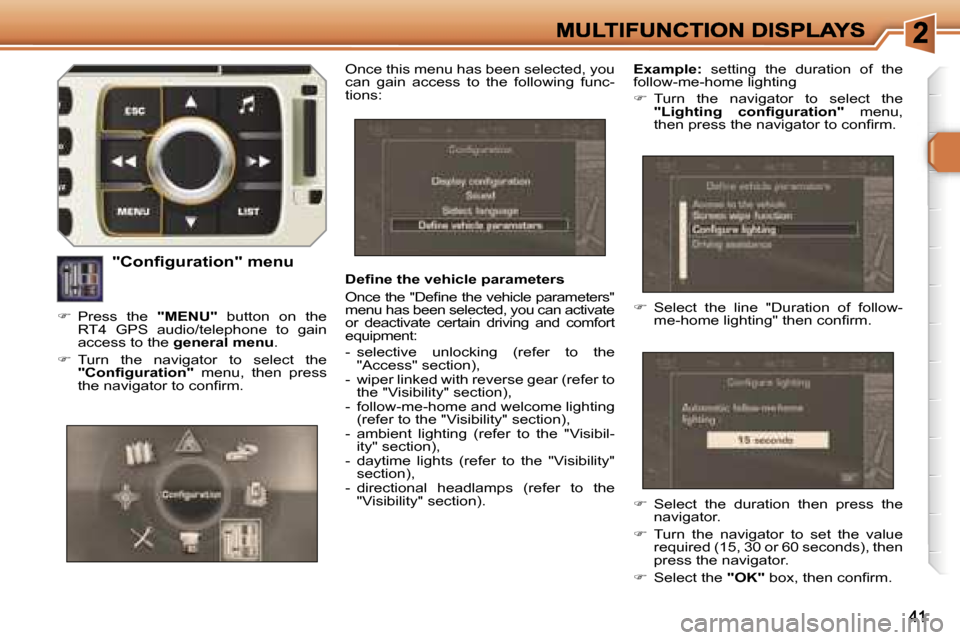

Define the vehicle parameters
Once the "Define the vehicle parameters" menu has been selected, you can activate or deactivate certain driving and comfort equipment:
- selective unlocking (refer to the "Access" section),- wiper linked with reverse gear (refer to the "Visibility" section),- follow-me-home and welcome lighting (refer to the "Visibility" section),- ambient lighting (refer to the "Visibil-ity" section),- daytime lights (refer to the "Visibility" section),- directional headlamps (refer to the "Visibility" section).
Example: setting the duration of the follow-me-home lighting
 Turn the navigator to select the"Lighting configuration" menu, then press the navigator to confirm.
 Select the line "Duration of follow-me-home lighting" then confirm.
"Configuration" menu
Once this menu has been selected, you can gain access to the following func-tions:
 Select the duration then press the navigator.
 Turn the navigator to set the value required (15, 30 or 60 seconds), then press the navigator.
 Select the "OK" box, then confirm.
 Press the "MENU" button on the RT4 GPS audio/telephone to gain access to the general menu.
 Turn the navigator to select the"Configuration" menu, then press the navigator to confirm.

!

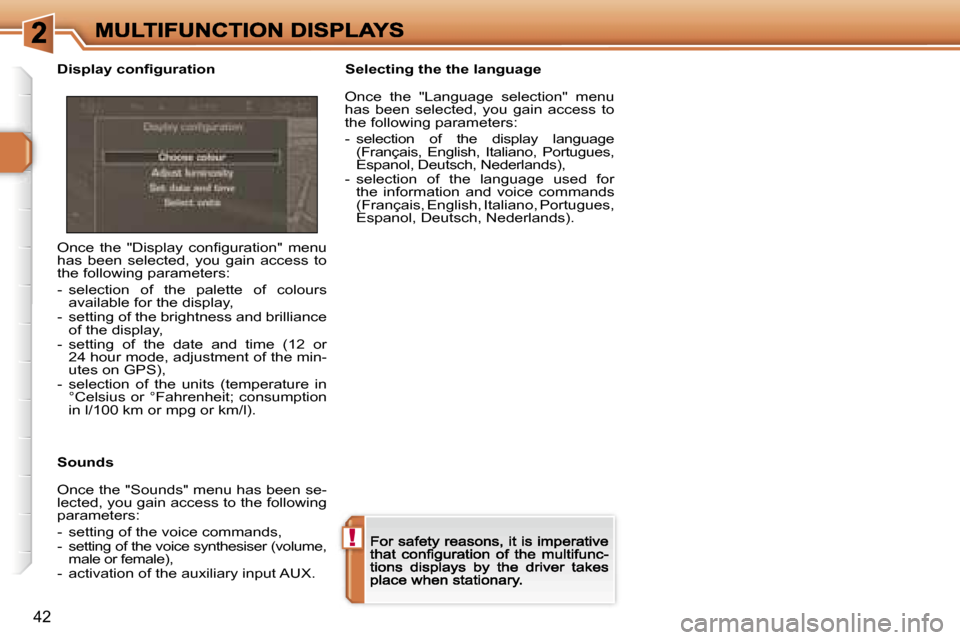

42
Once the "Display configuration" menu has been selected, you gain access to the following parameters:
- selection of the palette of colours - selection of the palette of colours available for the display,- setting of the brightness and brilliance of the display,- setting of the date and time (12 or 24 hour mode, adjustment of the min-utes on GPS),- selection of the units (temperature in °Celsius or °Fahrenheit; consumption in l/100 km or mpg or km/l).
Display configuration
Once the "Sounds" menu has been se-lected, you gain access to the following parameters:
- setting of the voice commands,- setting of the voice synthesiser (volume, male or female),- activation of the auxiliary input AUX.
Selecting the the language
Sounds
Once the "Language selection" menu has been selected, you gain access to the following parameters:
- selection of the display language (Français, English, Italiano, Portugues, Espanol, Deutsch, Nederlands),- selection of the language used for the information and voice commands (Français, English, Italiano, Portugues, Espanol, Deutsch, Nederlands).
