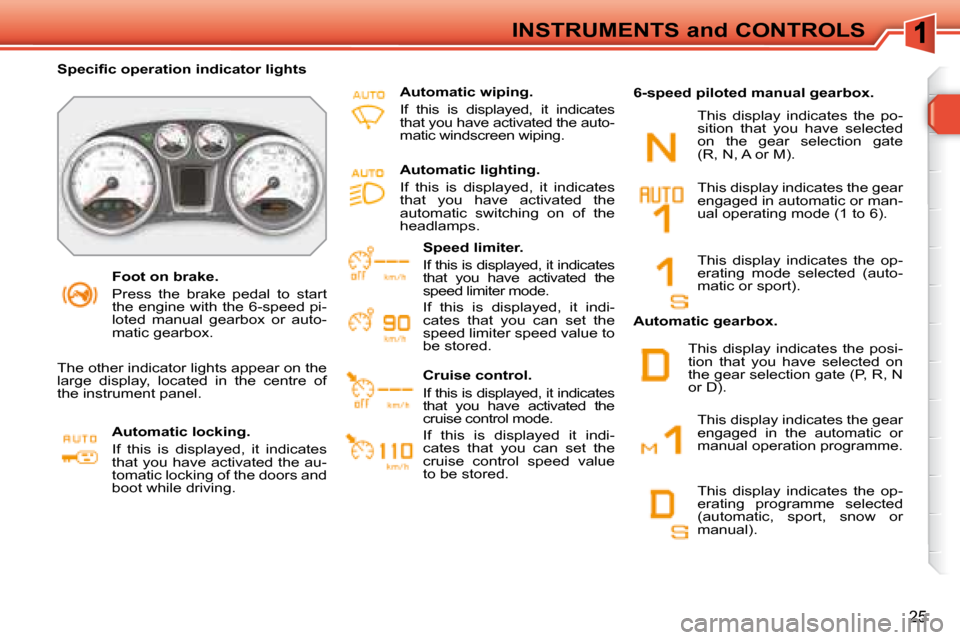

INSTRUMENTS and CONTROLS
Foot on brake.
Press the brake pedal to start
the engine with the 6-speed pi-
loted manual gearbox or auto-
matic gearbox.
Specifi c operation indicator lights
The other indicator lights appear on the
large display, located in the centre of
the instrument panel.
Automatic locking.
If this is displayed, it indicates
that you have activated the au-
tomatic locking of the doors and
boot while driving. Speed limiter.
If this is displayed, it indicates
that you have activated the
speed limiter mode.
If this is displayed, it indi-
cates that you can set the
speed limiter speed value to
be stored.
Cruise control.
If this is displayed, it indicates
that you have activated the
cruise control mode.
If this is displayed it indi-
cates that you can set the
cruise control speed value
to be stored.
Automatic gearbox. This display indicates the po-
sition that you have selected
on the gear selection gate
(R, N, A or M).
Automatic wiping.
If this is displayed, it indicates
that you have activated the auto-
matic windscreen wiping.
Automatic lighting.
If this is displayed, it indicates
that you have activated the
automatic switching on of the
headlamps.
This display indicates the gear
engaged in automatic or man-
ual operating mode (1 to 6).
This display indicates the op-
erating mode selected (auto-
matic or sport).
This display indicates the gear
engaged in the automatic or
manual operation programme.
This display indicates the op-
erating programme selected
(automatic, sport, snow or
manual).
6-speed piloted manual gearbox.
This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).

26
INSTRUMENTS and CONTROLS

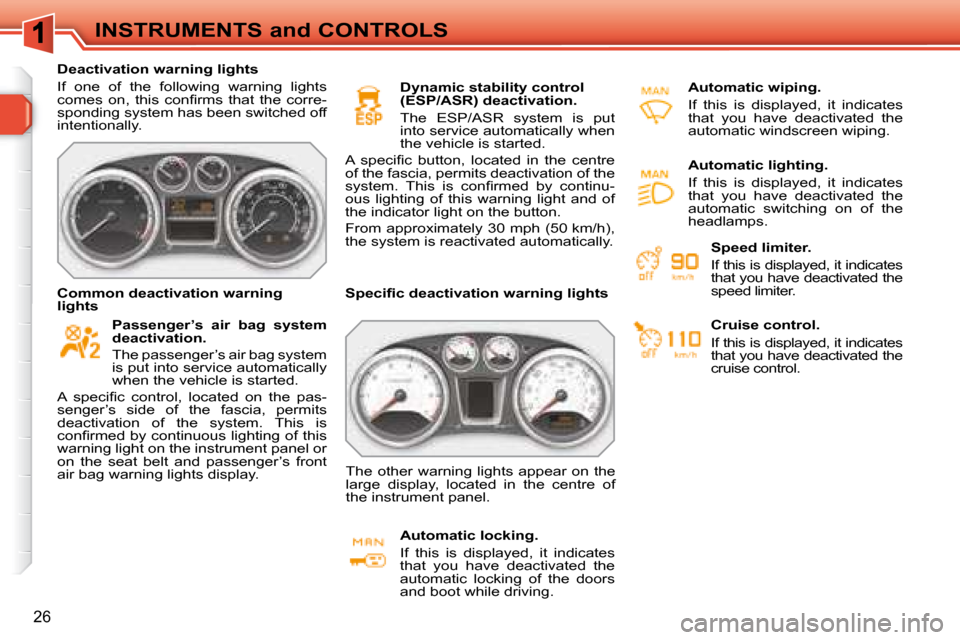

Deactivation warning lights
If one of the following warning lights
comes on, this confi rms that the corre-
sponding system has been switched off
intentionally.

Passenger’s air bag system
deactivation.
The passenger’s air bag system
is put into service automatically
when the vehicle is started.
A specifi c control, located on the pas-
senger’s side of the fascia, permits
deactivation of the system. This is
confi rmed by continuous lighting of this
warning light on the instrument panel or
on the seat belt and passenger’s front
air bag warning lights display. Dynamic stability control
(ESP/ASR) deactivation.
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A specifi c button, located in the centre
of the fascia, permits deactivation of the
system. This is confi rmed by continu-
ous lighting of this warning light and of
the indicator light on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation warning
lights Specifi c deactivation warning lights
Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving. Automatic wiping.
If this is displayed, it indicates
that you have deactivated the
automatic windscreen wiping.
The other warning lights appear on the
large display, located in the centre of
the instrument panel. Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic lighting.
If this is displayed, it indicates
that you have deactivated the
automatic switching on of the
headlamps.

!
27
INSTRUMENTS and CONTROLS
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver. Central alert.
Lighting is associated with
the displaying of another
warning light:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
have a specifi c warning light.
In order to identify it, consult the mes-
sage on the multifunction display.
After checking:
- that the doors, boot, the rear screen and bonnet are closed,
- the engine oil level,
- the screenwash fl uid level,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle emission fi lter (Diesel),
for any other situations, contact a
PEUGEOT dealer. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the subject
of further diagnostics by reading the
associated message on the multi-
function display.
Should you encounter any prob-
lems, do not hesitate to contact a
PEUGEOT dealer.

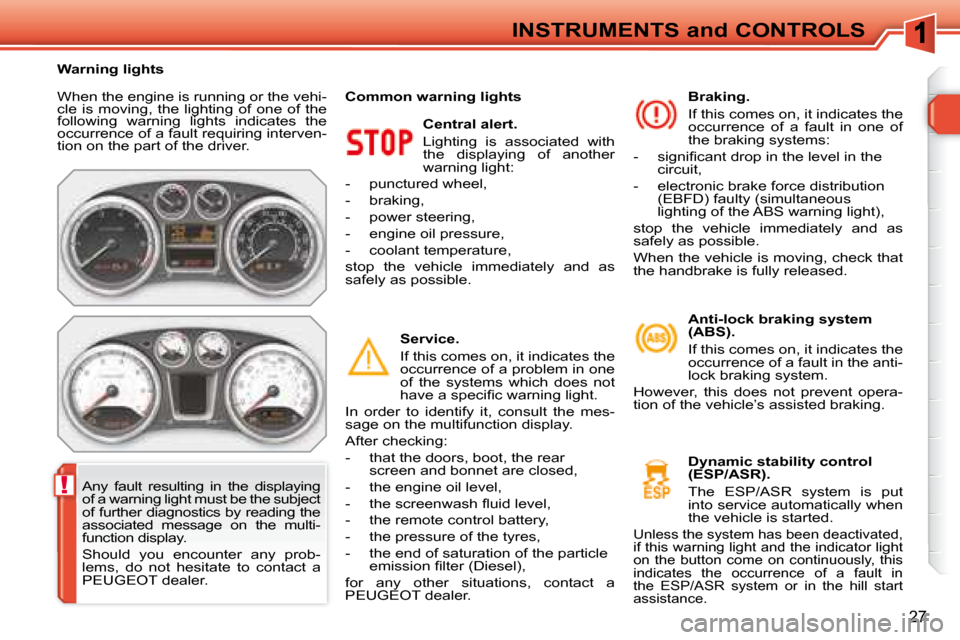

Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle’s assisted braking.
Common warning lights
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning light and the indicator light
on the button come on continuously, this
indicates the occurrence of a fault in
the ESP/ASR system or in the hill start
assistance.

28

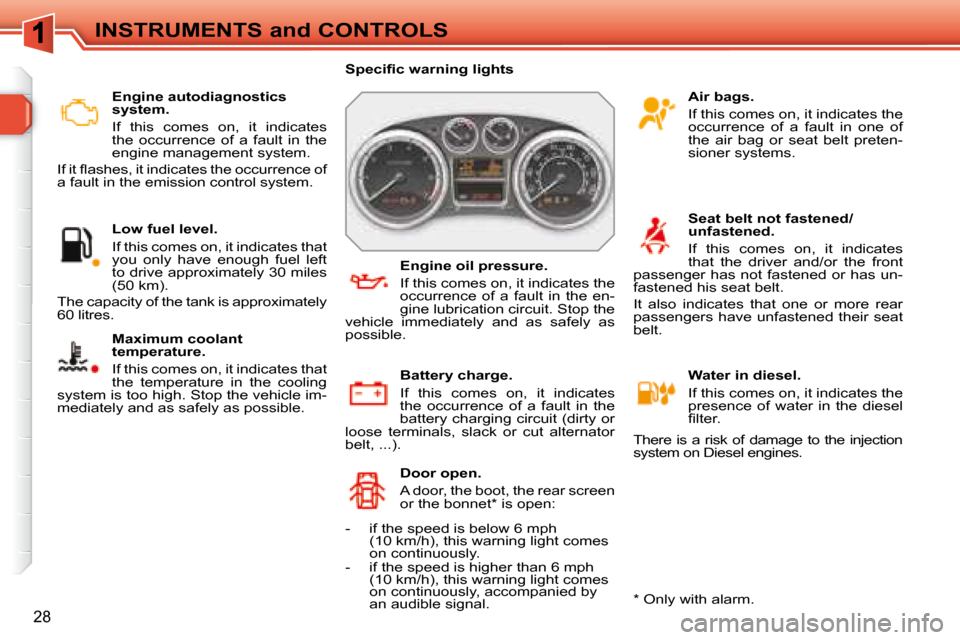

INSTRUMENTS and CONTROLS Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
If it fl ashes, it indicates the occurrence of
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
60 litres.
Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle im-
mediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag or seat belt preten-
sioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel.
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the injection
system on Diesel engines.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
- if the speed is below 6 mph (10 km/h), this warning light comes
on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes
on continuously, accompanied by
an audible signal. Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt, ...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle immediately and as safely as
possible.
Specifi c warning lights
* Only with alarm.

30

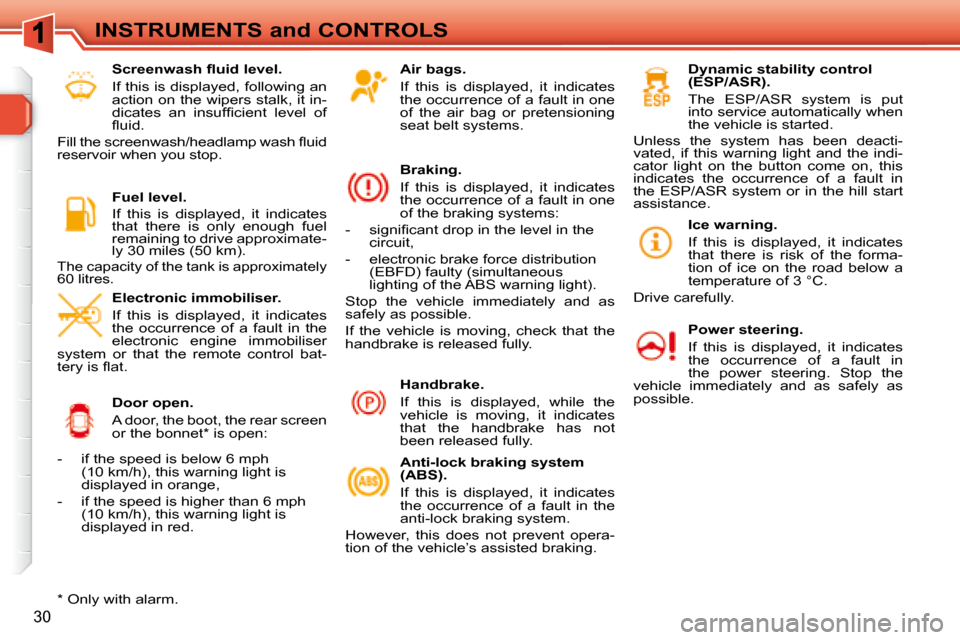

INSTRUMENTS and CONTROLS Air bags.
If this is displayed, it indicates
the occurrence of a fault in one
of the air bag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully.
Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle’s assisted braking. Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deacti-
vated, if this warning light and the indi-
cator light on the button come on, this
indicates the occurrence of a fault in
the ESP/ASR system or in the hill start
assistance.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in
the power steering. Stop the
vehicle immediately and as safely as
possible.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
- if the speed is below 6 mph (10 km/h), this warning light is
displayed in orange,
- if the speed is higher than 6 mph (10 km/h), this warning light is
displayed in red. Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the
vehicle is moving, it indicates
that the handbrake has not
been released fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel
remaining to drive approximate-
ly 30 miles (50 km).
The capacity of the tank is approximately
60 litres.
Screenwash fl uid level.
If this is displayed, following an
action on the wipers stalk, it in-
dicates an insuffi cient level of
fl uid.
Fill the screenwash/headlamp wash fl uid
reservoir when you stop.

37

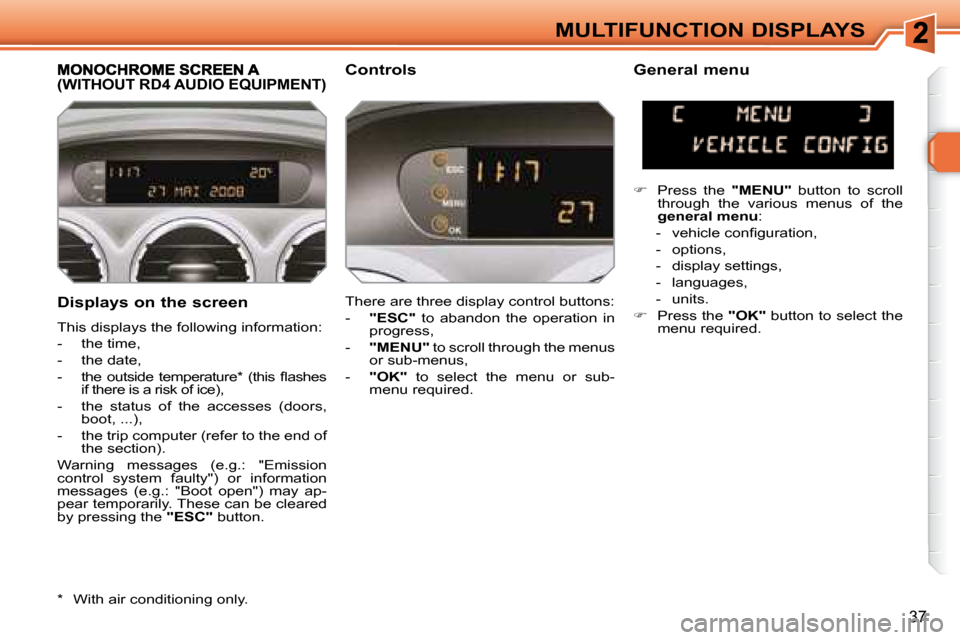

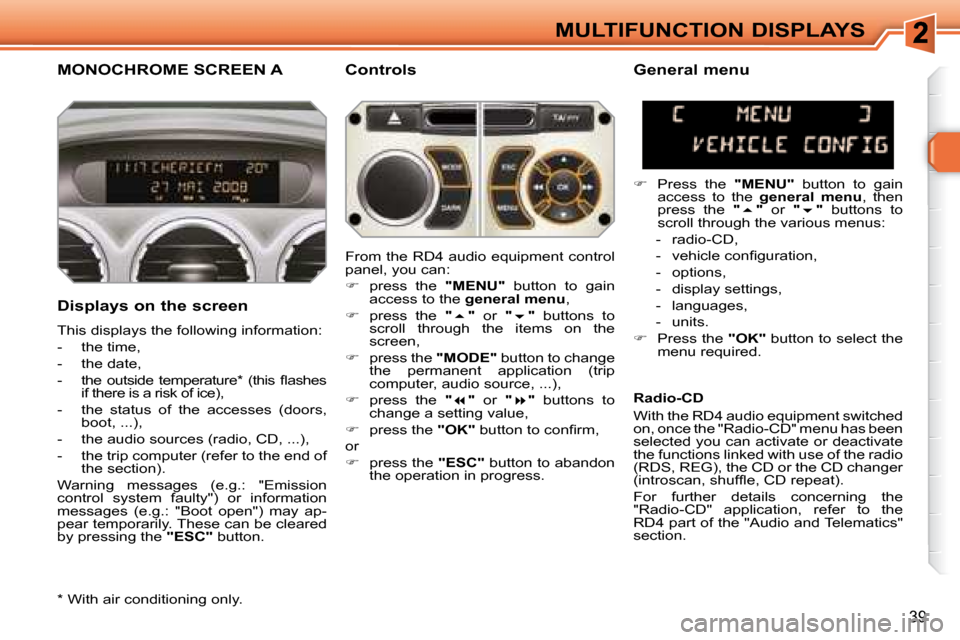

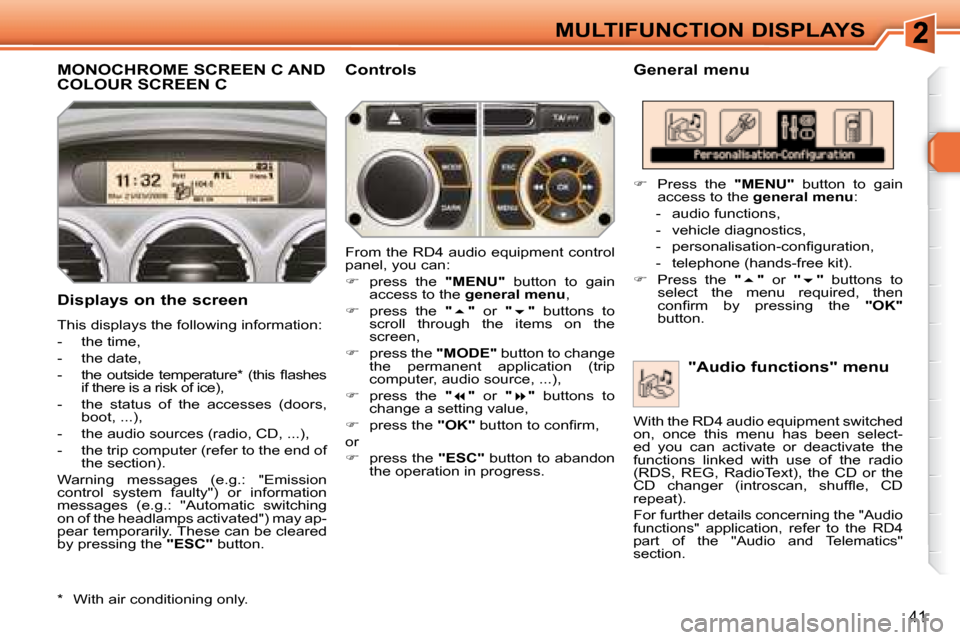

MULTIFUNCTION DISPLAYS
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature * (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button.
(WITHOUT RD4 AUDIO EQUIPMENT) Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
 Press the "MENU" button to scroll
through the various menus of the

general menu :
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.

 Press the "OK" button to select the
menu required.
* With air conditioning only.

39
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature * (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. General menu

 Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.

 Press the "OK" button to select the
menu required.
From the RD4 audio equipment control
panel, you can:

 press the "MENU" button to gain
access to the general menu ,

 press the " " or " " buttons to
scroll through the items on the
screen,

 press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),

 press the " " or " " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress. Radio-CD
With the RD4 audio equipment switched
on, once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
(introscan, shuffl e, CD repeat).
For further details concerning the
"Radio-CD" application, refer to the
RD4 part of the "Audio and Telematics"
section.
* With air conditioning only.

41
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN C AND COLOUR SCREEN C General menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature * (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. "Audio functions" menu Controls
From the RD4 audio equipment control
panel, you can:

 press the "MENU" button to gain
access to the general menu ,

 press the " " or " " buttons to
scroll through the items on the
screen,

 press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),

 press the " " or " " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress.
 Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- personalisation-confi guration,
- telephone (hands-free kit).

 Press the " " or " " buttons to
select the menu required, then
confi rm by pressing the "OK"
button.
* With air conditioning only.
With the RD4 audio equipment switched
on, once this menu has been select-
ed you can activate or deactivate the
functions linked with use of the radio
(RDS, REG, RadioText), the CD or the
CD changer (introscan, shuffl e, CD
repeat).
For further details concerning the "Audio
functions" application, refer to the RD4
part of the "Audio and Telematics"
section.

!
64

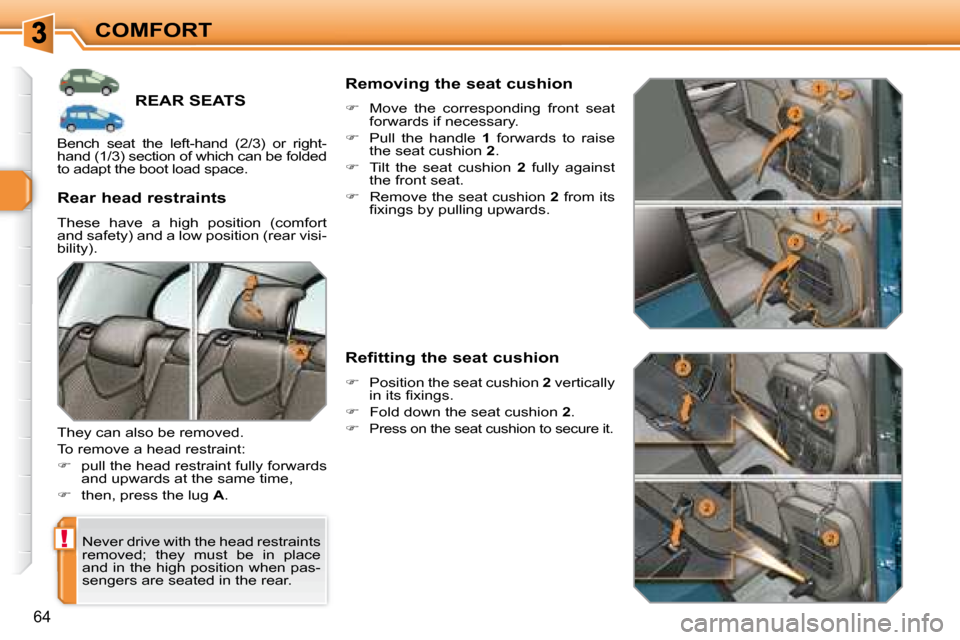

COMFORT
REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
Rear head restraints
These have a high position (comfort
and safety) and a low position (rear visi-
bility).
They can also be removed.
To remove a head restraint:

 pull the head restraint fully forwards
and upwards at the same time,

 then, press the lug A . Removing the seat cushion

 Move the corresponding front seat
forwards if necessary.

 Pull the handle 1 forwards to raise
the seat cushion 2 .

 Tilt the seat cushion 2 fully against
the front seat.

 Remove the seat cushion 2 from its
fi xings by pulling upwards.
Refitting the seat cushion

 Position the seat cushion 2 vertically
in its fi xings.

 Fold down the seat cushion 2 .


Press on the seat cushion to secure it.
Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be folded
to adapt the boot load space.

ii
i
66

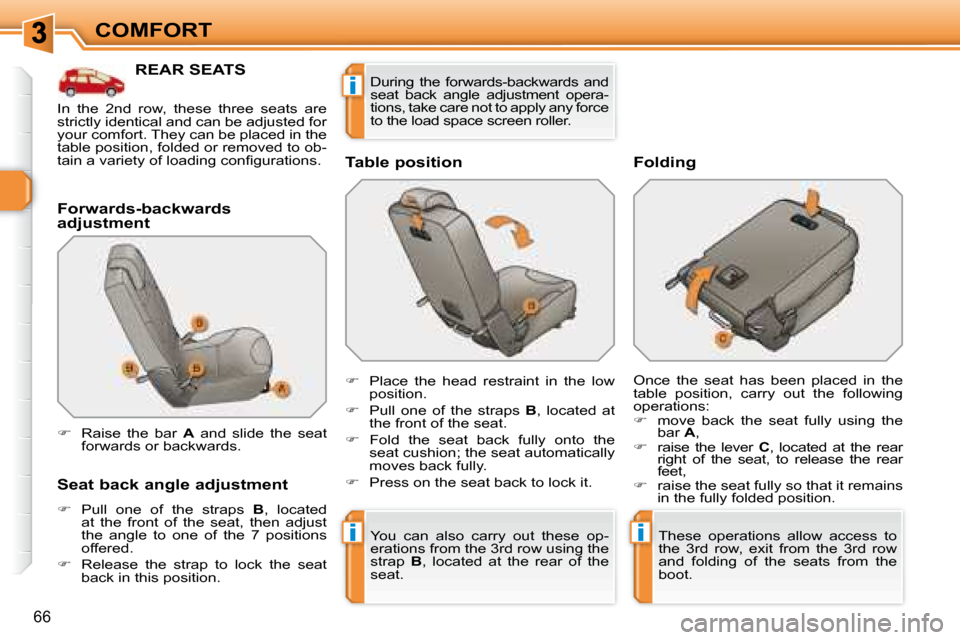

COMFORT
REAR SEATS
Forwards-backwards
adjustment
Seat back angle adjustment

 Pull one of the straps B , located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.

 Release the strap to lock the seat
back in this position. Table position

 Raise the bar A and slide the seat
forwards or backwards.
 Place the head restraint in the low
position.

 Pull one of the straps B , located at
the front of the seat.

 Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.

 Press on the seat back to lock it. Folding
Once the seat has been placed in the
table position, carry out the following
operations:

 move back the seat fully using the
bar A ,

 raise the lever C , located at the rear
right of the seat, to release the rear
feet,

 raise the seat fully so that it remains
in the fully folded position.
You can also carry out these op-
erations from the 3rd row using the
strap B , located at the rear of the
seat. These operations allow access to
the 3rd
row, exit from the 3rd row
and folding of the seats from the
boot.
In the 2nd row, these three seats are
strictly identical and can be adjusted for
your comfort. They can be placed in the
table position, folded or removed to ob-
tain a variety of loading confi gurations.
During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space screen roller.
