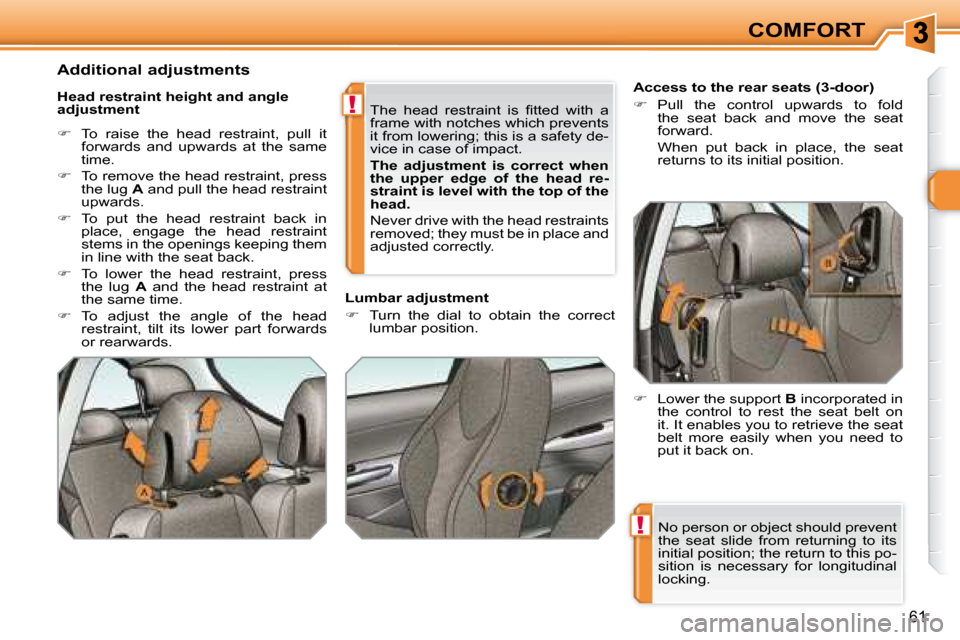

61
COMFORT
No person or object should prevent
the seat slide from returning to its
initial position; the return to this po-
sition is necessary for longitudinal
locking.

Access to the rear seats (3-door)

 Pull the control upwards to fold
the seat back and move the seat
forward.
When put back in place, the seat returns to its initial position.
Head restraint height and angle
adjustment

 To raise the head restraint, pull it
forwards and upwards at the same
time.

 To remove the head restraint, press
the lug A and pull the head restraint
upwards.

 To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

 To lower the head restraint, press
the lug A and the head restraint at
the same time.

 To adjust the angle of the head
restraint, tilt its lower part forwards
or rearwards. The head restraint is fi tted with a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.

The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Lumbar adjustment

 Turn the dial to obtain the correct
lumbar position.
Additional adjustments

 Lower the support B incorporated in
the control to rest the seat belt on
it. It enables you to retrieve the seat
belt more easily when you need to
put it back on.

!
64
COMFORT
REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
Rear head restraints
These have a high position (comfort
and safety) and a low position (rear visi-
bility).
They can also be removed.
To remove a head restraint:

 pull the head restraint fully forwards
and upwards at the same time,

 then, press the lug A . Removing the seat cushion

 Move the corresponding front seat
forwards if necessary.

 Pull the handle 1 forwards to raise
the seat cushion 2 .

 Tilt the seat cushion 2 fully against
the front seat.

 Remove the seat cushion 2 from its
fi xings by pulling upwards.
Refitting the seat cushion

 Position the seat cushion 2 vertically
in its fi xings.

 Fold down the seat cushion 2 .


Press on the seat cushion to secure it.
Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be folded
to adapt the boot load space.

ii
i
66
COMFORT
REAR SEATS
Forwards-backwards
adjustment
Seat back angle adjustment

 Pull one of the straps B , located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.

 Release the strap to lock the seat
back in this position. Table position

 Raise the bar A and slide the seat
forwards or backwards.
 Place the head restraint in the low
position.

 Pull one of the straps B , located at
the front of the seat.

 Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.

 Press on the seat back to lock it. Folding
Once the seat has been placed in the
table position, carry out the following
operations:

 move back the seat fully using the
bar A ,

 raise the lever C , located at the rear
right of the seat, to release the rear
feet,

 raise the seat fully so that it remains
in the fully folded position.
You can also carry out these op-
erations from the 3rd row using the
strap B , located at the rear of the
seat. These operations allow access to
the 3rd
row, exit from the 3rd row
and folding of the seats from the
boot.
In the 2nd row, these three seats are
strictly identical and can be adjusted for
your comfort. They can be placed in the
table position, folded or removed to ob-
tain a variety of loading confi gurations.
During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space screen roller.

!

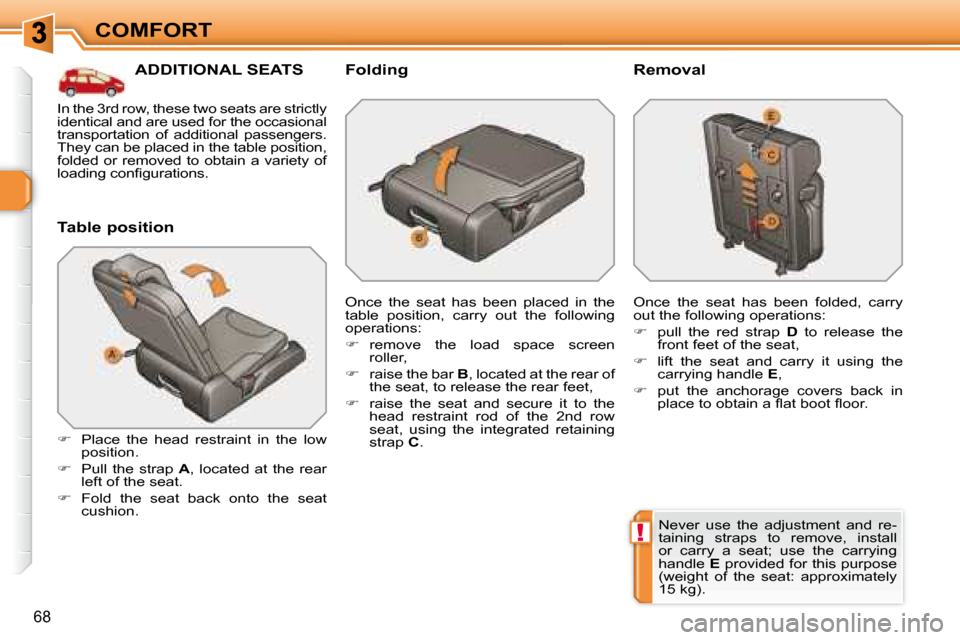

68
COMFORT
ADDITIONAL SEATS
Table position

 Place the head restraint in the low
position.

 Pull the strap A , located at the rear
left of the seat.

 Fold the seat back onto the seat
cushion. Folding
Once the seat has been placed in the
table position, carry out the following
operations:

 remove the load space screen
roller,

 raise the bar B , located at the rear of
the seat, to release the rear feet,

 raise the seat and secure it to the
head restraint rod of the 2nd row
seat, using the integrated retaining
strap C . Removal
Once the seat has been folded, carry
out the following operations:

 pull the red strap D to release the
front feet of the seat,

 lift the seat and carry it using the
carrying handle E ,

 put the anchorage covers back in
place to obtain a fl at boot fl oor.
Never use the adjustment and re-
taining straps to remove, install
or carry a seat; use the carrying
handle E provided for this purpose
(weight of the seat: approximately
15 kg).
In the 3rd row, these two seats are strictly
identical and are used for the occasional
transportation of additional passengers.
They can be placed in the table position,
folded or removed to obtain a variety of
loading confi gurations.

i
!

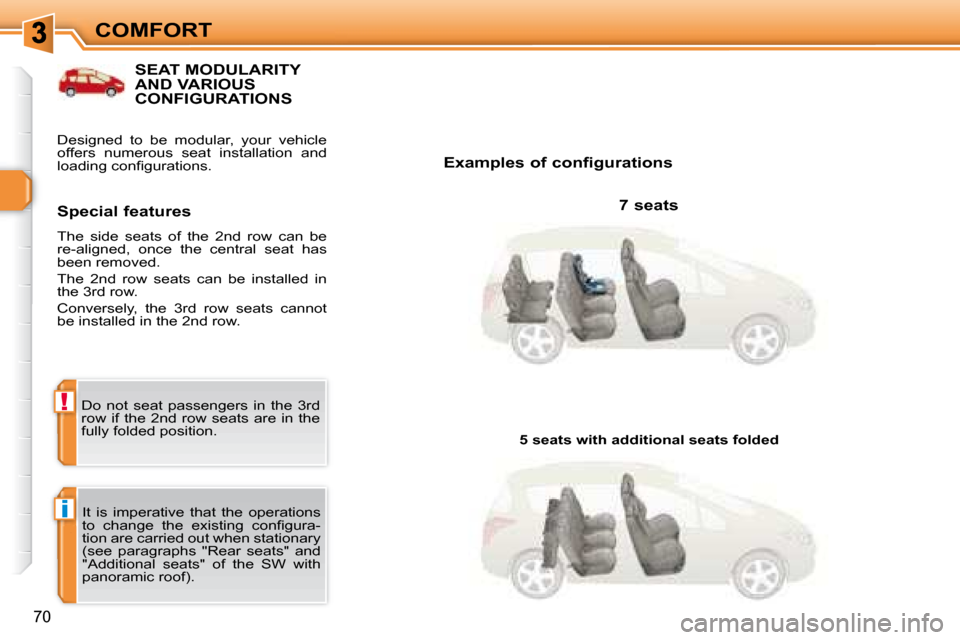

70
COMFORT
SEAT MODULARITY AND VARIOUS CONFIGURATIONS
Examples of configurations 7 seats
It is imperative that the operations
to change the existing confi gura-
tion are carried out when stationary
(see paragraphs "Rear seats" and
"Additional seats" of the SW with
panoramic roof).
Special features
The side seats of the 2nd row can be
re-aligned, once the central seat has
been removed.
The 2nd row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 seats with additional seats folded
Do not seat passengers in the 3rd
row if the 2nd row seats are in the
fully folded position.
Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.

i

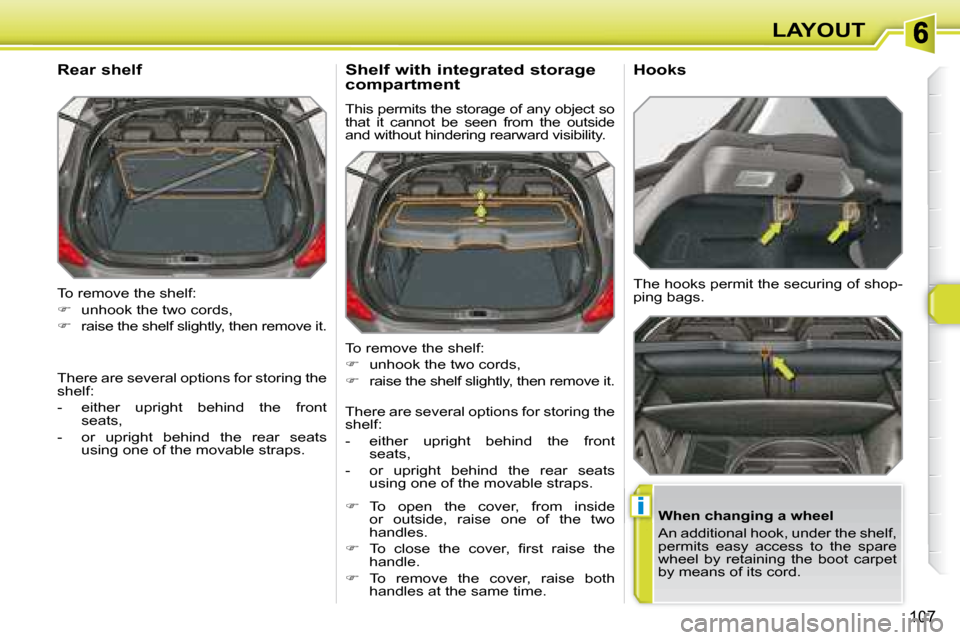

107
LAYOUT
To remove the shelf:

 unhook the two cords,

 raise the shelf slightly, then remove it.
Rear shelf
When changing a wheel
An additional hook, under the shelf,
permits easy access to the spare
wheel by retaining the boot carpet
by means of its cord.
To remove the shelf:

 unhook the two cords,

 raise the shelf slightly, then remove it.
Shelf with integrated storage
compartment
This permits the storage of any object so
that it cannot be seen from the outside
and without hindering rearward visibility.
The hooks permit the securing of shop-
ping bags.
Hooks
There are several options for storing the
shelf:
- either upright behind the front seats,
- or upright behind the rear seats using one of the movable straps. There are several options for storing the
shelf:
- either upright behind the front
seats,
- or upright behind the rear seats using one of the movable straps.

 To open the cover, from inside
or outside, raise one of the two
handles.

 To close the cover, fi rst raise the
handle.

 To remove the cover, raise both
handles at the same time.

i
i

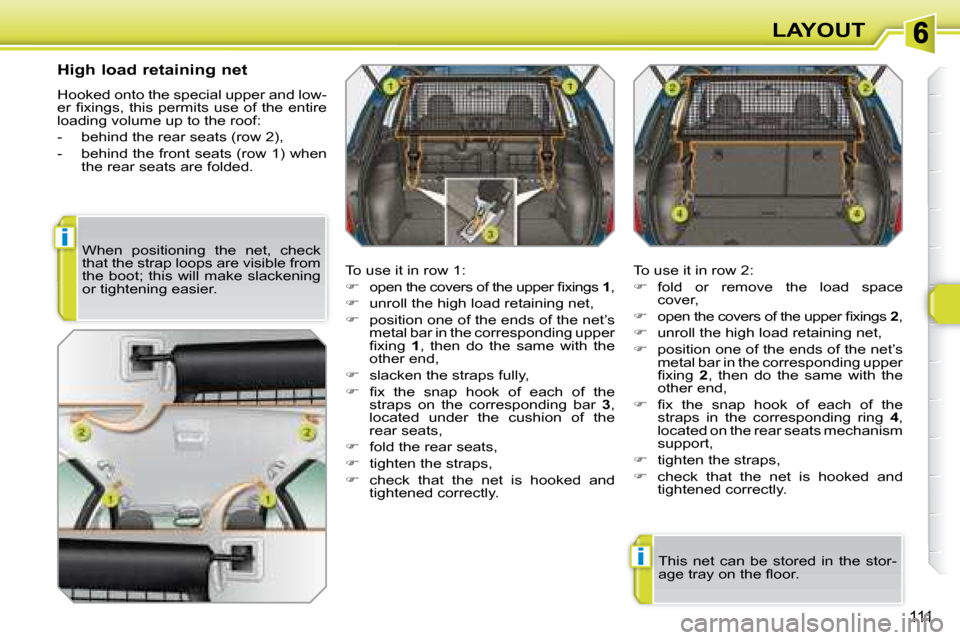

111
LAYOUT
High load retaining net
Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when the rear seats are folded.
To use it in row 1:

 open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net’s
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 slacken the straps fully,

 fi x the snap hook of each of the
straps on the corresponding bar 3 ,
located under the cushion of the
rear seats,

 fold the rear seats,

 tighten the straps,

 check that the net is hooked and
tightened correctly. To use it in row 2:

 fold or remove the load space
cover,

 open the covers of the upper fi xings 2 ,

 unroll the high load retaining net,

 position one of the ends of the net’s
metal bar in the corresponding upper
fi xing 2 , then do the same with the
other end,

 fi x the snap hook of each of the
straps in the corresponding ring 4 ,
located on the rear seats mechanism
support,

 tighten the straps,

 check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
This net can be stored in the stor-
age tray on the fl oor.

i

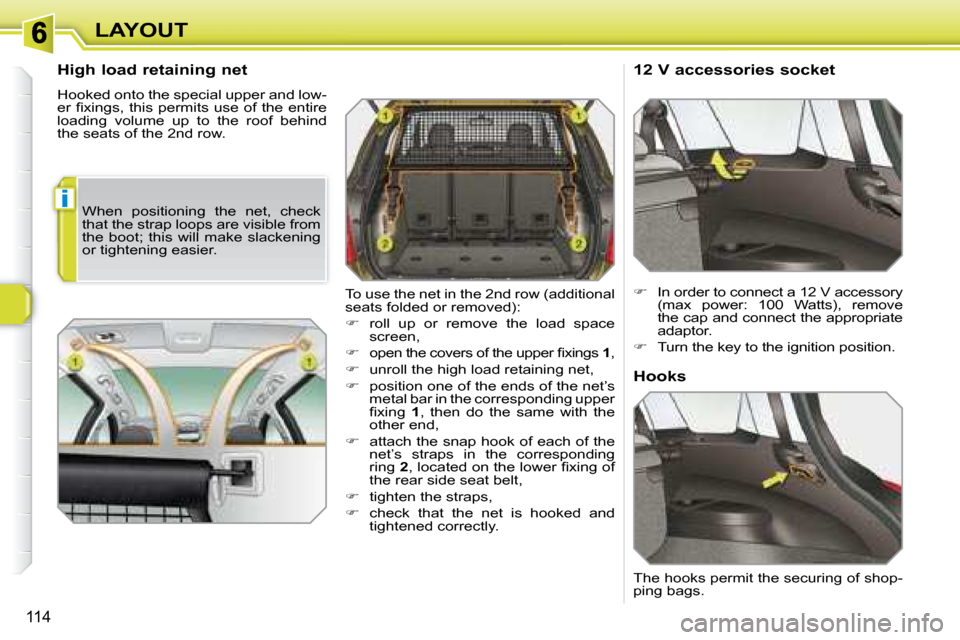

114
LAYOUT
High load retaining net
Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof behind
the seats of the 2nd row. 12 V accessories socket

 In order to connect a 12 V accessory
(max power: 100 Watts), remove
the cap and connect the appropriate
adaptor.

 Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):

 roll up or remove the load space
screen,

 open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net’s
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 attach the snap hook of each of the
net’s straps in the corresponding
ring 2 , located on the lower fi xing of
the rear side seat belt,

 tighten the straps,

 check that the net is hooked and
tightened correctly. Hooks
The hooks permit the securing of shop-
ping bags.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

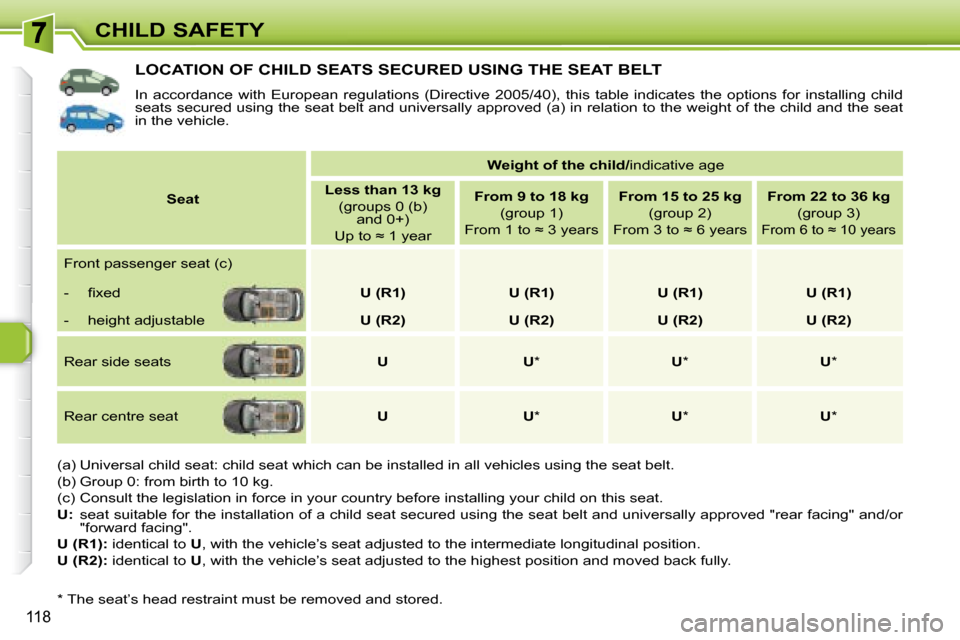

118
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child
seats secured using the seat belt and universally approved (a) in relation to the weight of the child and the seat
in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.

U: seat suitable for the installation of a child seat secure d using the seat belt and universally approved "rear facing" and /or
"forward facing".

U (R1)
: identical to U , with the vehicle’s seat adjusted to the intermediate lo ngitudinal position.

U (R2)
: identical to U , with the vehicle’s seat adjusted to the highest positio n and moved back fully.
* The seat’s head restraint must be removed and stored.
Seat
Weight of the child/ indicative age

Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat (c)
- fi xed
U (R1) U (R1) U (R1) U (R1)
- height adjustable U (R2) U (R2) U (R2) U (R2)
Rear side seats U U * U * U *
Rear centre seat U U * U * U *

!

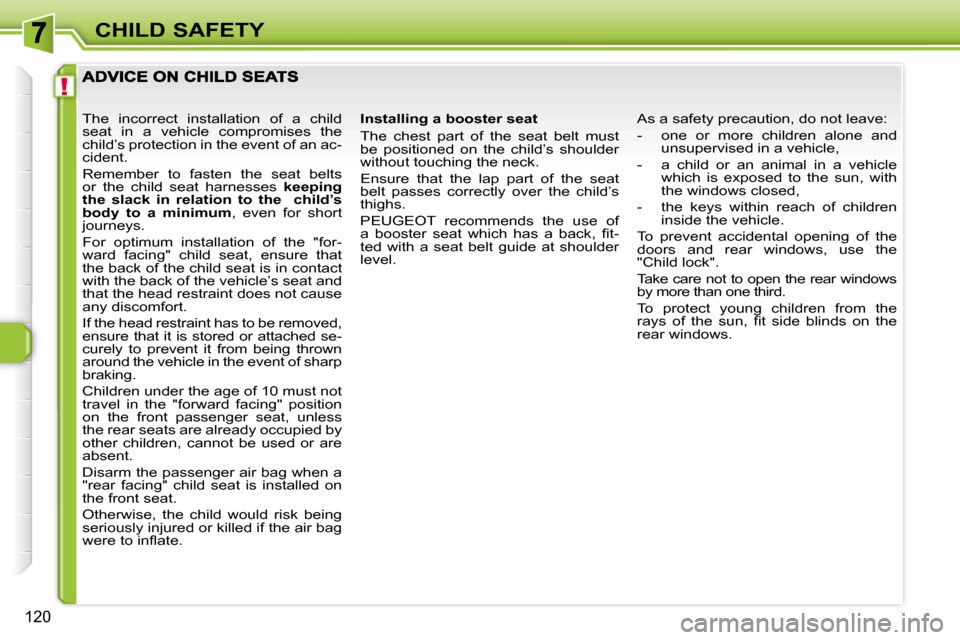

120
CHILD SAFETY
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child’s protection in the event of an ac-
cident.
Remember to fasten the seat belts
or the child seat harnesses
keeping
the slack in relation to the child’s
body to a minimum , even for short
journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle’s seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
