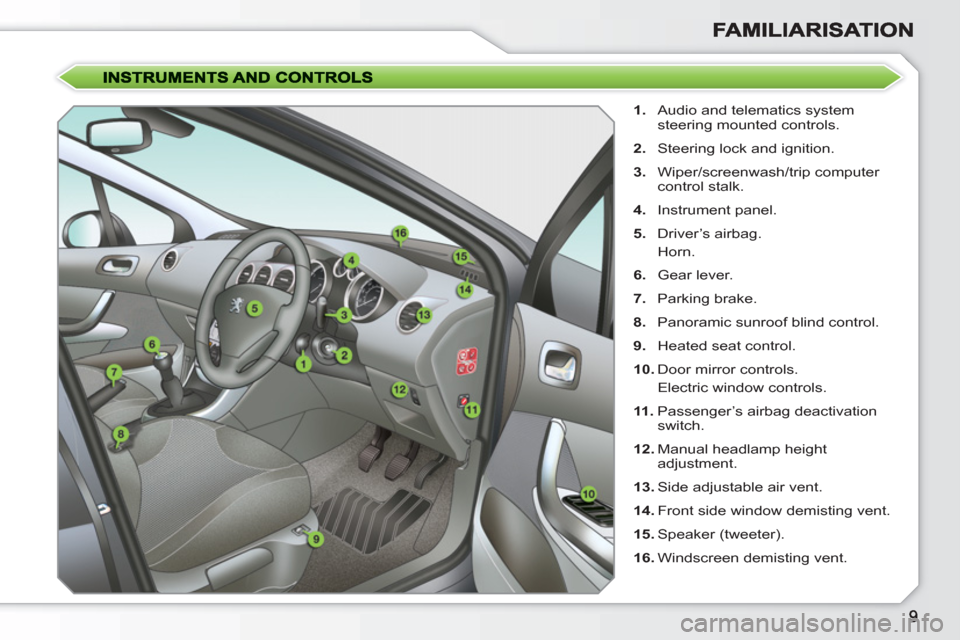

Page 11 of 336
1.
Audio and telematics system
steering mounted controls.
2.
Steering lock and ignition.
3.
Wiper/screenwash/trip computer
control stalk.
4.
Instrument panel.
5.
Driver’s airbag.
Horn.
6.
Gear lever.
7.
Parking brake.
8.
Panoramic sunroof blind control.
9.
Heated seat control.
10.
Door mirror controls.
Electric window controls.
11 .
Passenger’s airbag deactivation
switch.
12.
Manual headlamp height
adjustment.
13.
Side adjustable air vent.
14.
Front side window demisting vent.
15.
Speaker (tweeter).
16.
Windscreen demisting vent.
Page 18 of 336
Instrument panel
Switch panel
A.
With the ignition on, the fuel gauge
needle should indicate the level of
fuel remaining.
B.
With the engine running, its
associated low level warning lamp
should go off.
C.
With the ignition on, the oil level
indicator should display that the
level is OK or correct, depending
on version, for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding
function.
A.
Emergency call in progress.
229
B.
Deactivation of the alarm interior
protection.
83
C.
Central locking.
87
D.
Deactivation of the ESP/ASR
system.
131
E.
Deactivation of the front and rear
parking sensors.
155
F.
Access to PEUGEOT services.
229
1.
With the ignition on, the orange and
red warning lamps come on.
2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps
22
26
Page 24 of 336
i
22
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEARCONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Screen.
6.
Control button.
Recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).
7.
Instrument panel lighting button.
Adjusts the brightness of the
lighting of the instruments and
controls.
Dials
1.
Rev counter.
Indicates the speed of rotation of
the engine (x 1 000 rpm).
2.
Coolant temperature.
Indicates the temperature of
the engine coolant (° Celsius).
3.
Fuel level.
Indicates the quantity of fuel
remaining in the tank.
4.
Vehicle speed.
Indicates the current speed of the
moving vehicle (mph or km/h).
A.
Speed limiter
(mph or km/h) or
Cruise control.
B.
Gear change indicator.
C.
6-speed electronic gear control
or automatic gearbox.
D.
Trip distance recorder.
(miles or km)
E.
Service indicator
(miles or km) then,
engine oil level indicator
then
distance recorder.
(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.
Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.
Page 25 of 336
i
23
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEARCONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.
6.
Central screen.
7.
Control button.
Starts a manual CHECK and
recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).
8.
Instrument panel lighting button.
Adjusts the brightness of the
lighting of the instruments and
controls.
Dials
1.
Rev counter.
Indicates the speed of rotation of
the engine (x 1 000 rpm).
2.
Coolant temperature.
Indicates the temperature of
the engine coolant (° Celsius).
3.
Fuel level.
Indicates the quantity of fuel
remaining in the tank.
4.
Vehicle speed.
Indicates the current speed of the
moving vehicle (mph or km/h).
A.
Trip distance recorder.
(miles or km)
B.
Distance recorder.
(miles or km)
C.
Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed
depending on the selection.
- Warning lamps/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- Gear change indicator.
- 6-speed electronic gear control
or automatic gearbox.
- Navigation - Guidance/Trip
computer.
Page 26 of 336
i
24
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR CONTROL ORAUTOMATIC GEARBOX PEUGEOT CONNECT MEDIA INSTRUMENT PANELS
Dials
1.
Rev counter.
Indicates the speed of rotation of
the engine (x 1 000 rpm).
2.
Coolant temperature.
Indicates the temperature of
the engine coolant (° Celsius).
3.
Fuel level.
Indicates the quantity of fuel
remaining in the tank.
4.
Vehicle speed.
Indicates the current speed of
the moving vehicle (km/h or mph).
A.
Trip distance recorder.
(miles or km)
B.
Distance recorder.
(miles or km).
C.
Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed
depending on the selection.
- Warning lamps/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- Gear shift indicator.
- 6-speed electronic gear control
or automatic gearbox.
- Navigation - Guidance/Trip
computer.
- Vehicle parameters.
Panel grouping together the vehicle
operation indication dials and warning
lamps.
Displays
5.
Small screen.
6.
Central screen.
7.
Control button.
Starts a manual CHECK and
recalls the service information.
Resets the function to zero
(trip distance recorder or service
indicator).
8.
Instrument panel lighting button.
Adjusts the brightness of the
lighting of the instruments and
controls.
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display.
Page 28 of 336
!
26
INSTRUMENTS and CONTROLS
The warning lamps may come on
continuously or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Associated warnings
The switching on of certain warning
lamps may be accompanied by an au-
dible signal and a message on the mul-
tifunction screen.
Operation indicator lamps
If one of the following indicator lamps
comes on, this confi rms that the corre-
sponding system has come into operation.
Left-hand direction indicator.
Parking brake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.
Diesel engine pre-heating.
Wait until this has gone out be-
fore operating the starter.
Front foglamps.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps
Rear foglamp.
Page 32 of 336
!
30
INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
If it fl ashes, it indicates the occurrence
of a fault in the emission control system.
Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle as
soon as it is safe to do so.
Low fuel level.
When this fi rst comes on, you
have approximately 6 litres
of
fuel remaining in the tank.
Refuel as soon as possible to avoid run-
ning out of fuel.
Until suffi cient fuel has been added,
this warning lamp comes on again each
time the ignition is switched on, along
with an audible signal and a message.
According to version, this audible signal
and this message are repeated, at in-
creasingly shorter intervals as the level
decreases towards "0"
.
Capacity of the tank: approximately
60 litres
.
Door open.
A door, the boot or the rear
screen is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).
Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication system. Stop
the vehicle as soon as it is safe
to do so.
Specifi c warning lamps
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactiva-
ted, if this warning lamp and the indicator
lamp on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system or in the hill start
assist system.
- if the speed is below 6 mph
(10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph
(10 km/h), this warning lamp comes
on continuously, accompanied by
an audible signal.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.
Foot on brake.
On the 6-speed electronic gear
system gearbox, with the gear
lever in position N
, press the
brake pedal to start the engine.
On the automatic gearbox, with the en-
gine running, press the brake pedal to
release the gear lever and disengage
position P
.

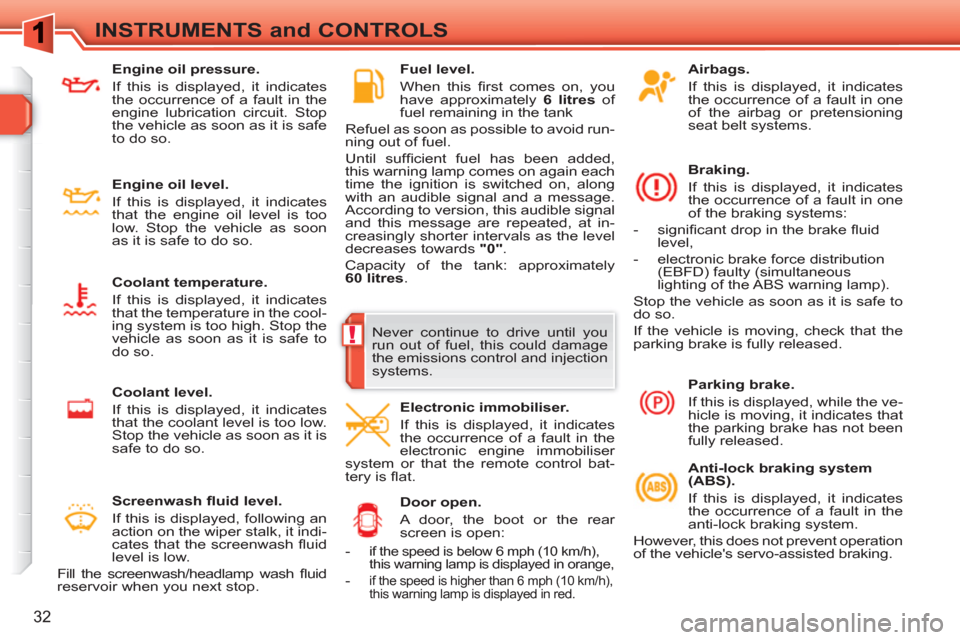

Page 34 of 336
!
32
INSTRUMENTS and CONTROLS
Airbags.
If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the brake fl uid
level,
- electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released.
Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent operation
of the vehicle's servo-assisted braking.
Door open.
A door, the boot or the rear
screen is open:
Parking brake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
Fuel level.
When this fi rst comes on, you
have approximately 6 litres
of
fuel remaining in the tank
Refuel as soon as possible to avoid run-
ning out of fuel.
Until suffi cient fuel has been added,
this warning lamp comes on again each
time the ignition is switched on, along
with an audible signal and a message.
According to version, this audible signal
and this message are repeated, at in-
creasingly shorter intervals as the level
decreases towards "0"
.
Capacity of the tank: approximately
60 litres
.
Screenwash fl uid level.
If this is displayed, following an
action on the wiper stalk, it indi-
cates that the screenwash fl uid
level is low.
Fill the screenwash/headlamp wash fl uid
reservoir when you next stop.
-
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,
- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.
Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.
Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle as soon as it is safe
to do so.
Engine oil level.
If this is displayed, it indicates
that the engine oil level is too
low. Stop the vehicle as soon
as it is safe to do so.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the
vehicle as soon as it is safe to
do so.
Coolant level.
If this is displayed, it indicates
that the coolant level is too low.
Stop the vehicle as soon as it is
safe to do so.
Page 37 of 336
i
35
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

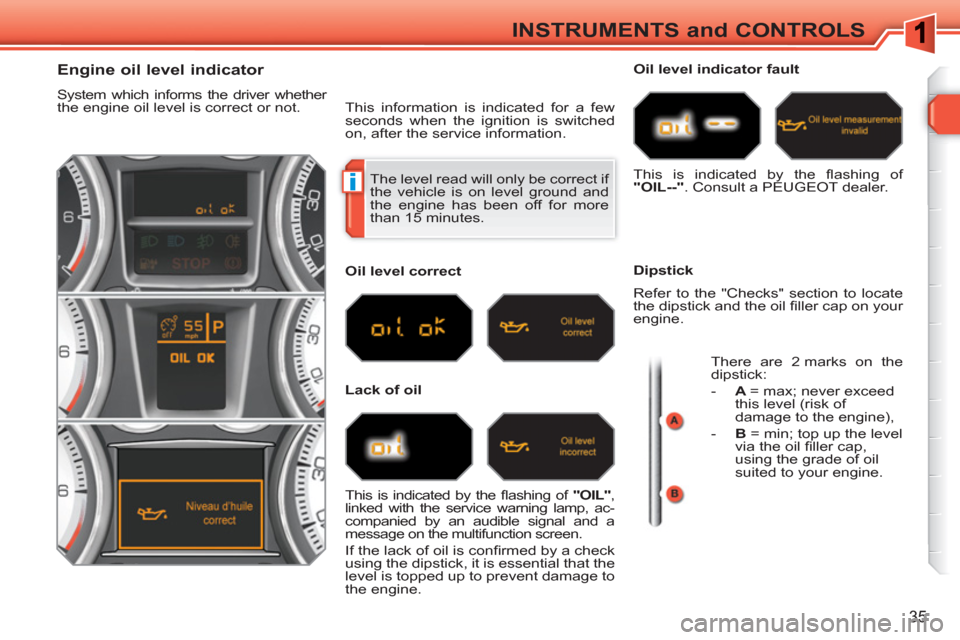

Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil
Oil level indicator fault
Dipstick
This is indicated by the fl ashing of "OIL"
,
linked with the service warning lamp, ac-
companied by an audible signal and a
message on the multifunction screen.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of
"OIL
--"
. Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:
- A
= max; never exceed
this level (risk of
damage to the engine),
- B
= min; top up the level
via the oil fi ller cap,
using the grade of oil
suited to your engine.
Page 38 of 336
36
INSTRUMENTS and CONTROLS

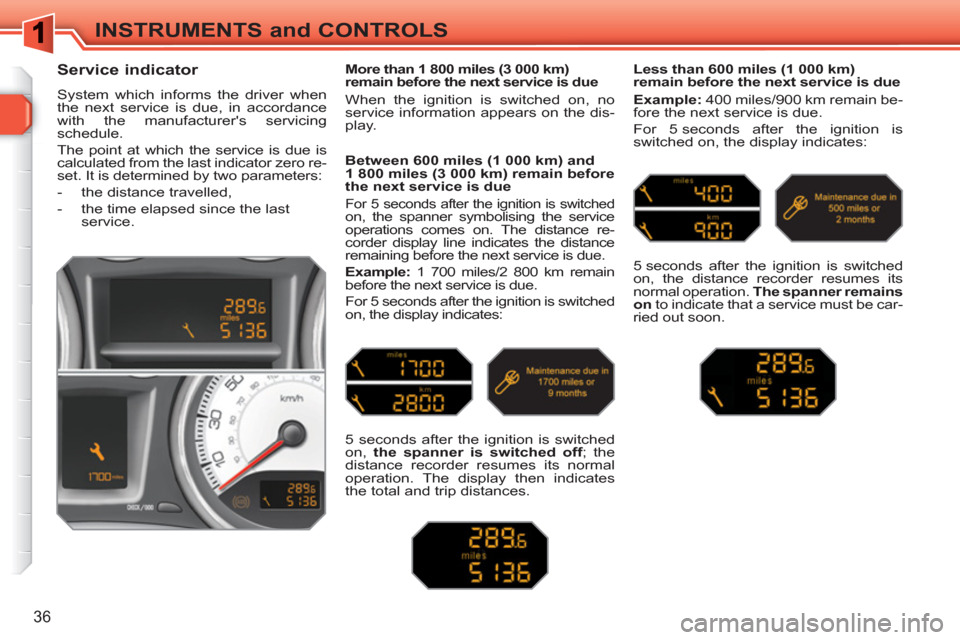

Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last
service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service
operations comes on. The distance re-
corder display line indicates the distance
remaining before the next service is due.
Example:
1 700 miles/2 800 km remain
before the next service is due.
For 5 seconds after the ignition is switched
on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off
; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example:
400 miles/900 km remain be-
fore the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner remains
on
to indicate that a service must be car-
ried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.
