PEUGEOT 308 SW BL 2010 Owners Manual

299

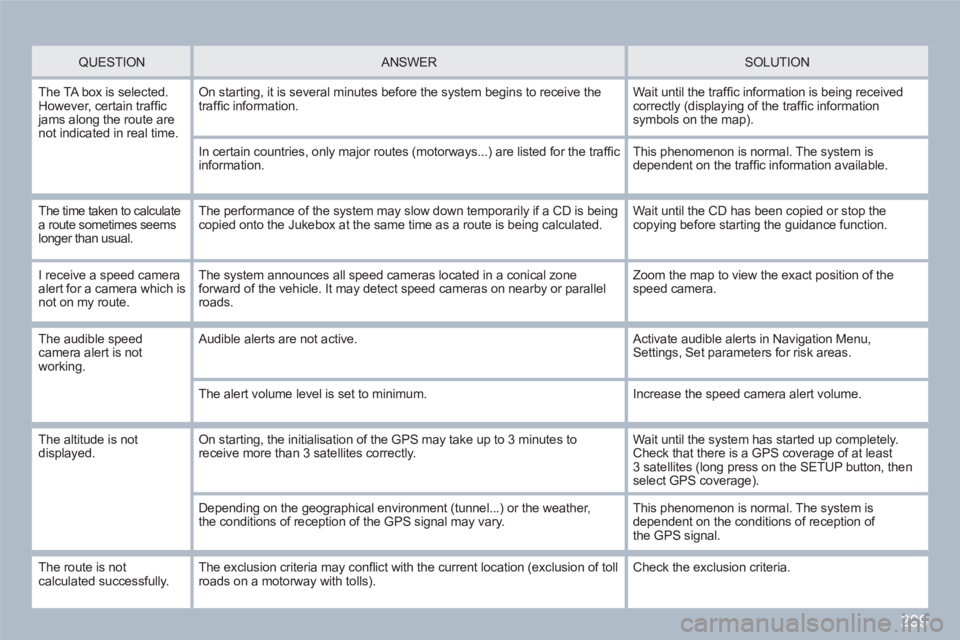

QUESTION



ANSWER SOLUTION

The TA box is selected. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive thetraffi c information.
Wait until the traffi c information is being receivedcorrectly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways...) are listed for the traffi cinformation.
This phenomenon is normal. The system is dependent on the traffi c information available.

The time taken to calculatea route sometimes seemslonger than usual.
The performance of the system may slow down temporarily if a CD is beingcopied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.

I receive a speed cameraalert for a camera which is not on my route.
The system announces all speed cameras located in a conical zoneforward of the vehicle. It may detect speed cameras on nearby or parallel roads.

Zoom the map to view the exact position of thespeed camera.

The audible speedcamera alert is not working.

Audible alerts are not active. Activate audible alerts in Navigation Menu,Settings, Set parameters for risk areas.
The alert volume level is set to minimum.
Increase the speed camera alert volume.

The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes toreceive more than 3 satellites correctly.
Wait until the system has started up completely.Check that there is a GPS coverage of at least3 satellites (long press on the SETUP button, thenselect GPS coverage).
Depending on the geographical environment (tunnel...) or the weather,the conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system is dependent on the conditions of reception ofthe GPS signal.

The route is notcalculated successfully. The exclusion criteria may confl ict with the current location (exclusion of tollroads on a motorway with tolls). Check the exclusion criteria.

300

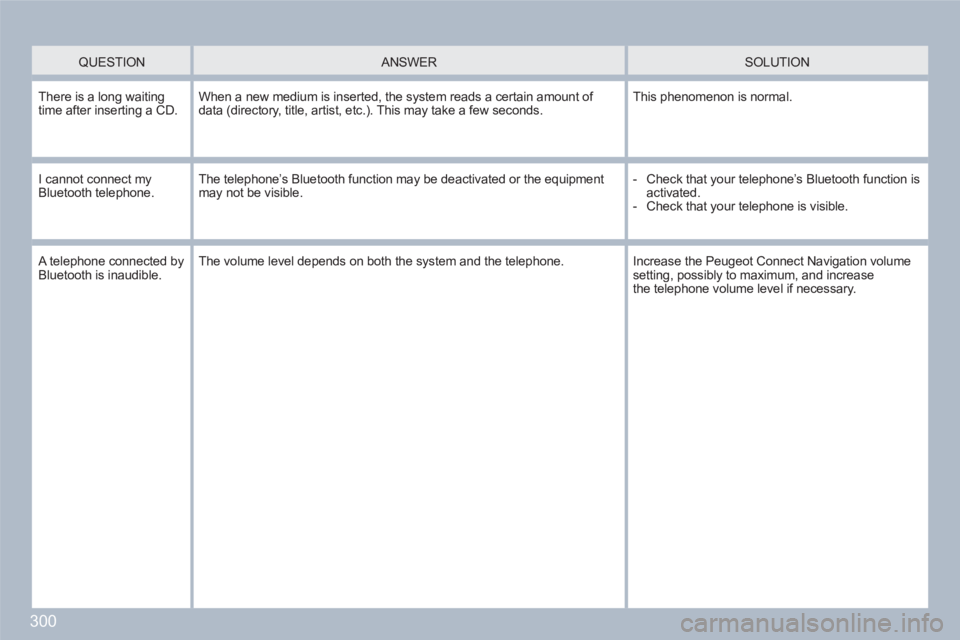

QUESTION

ANSWER
SOLUTION

There is a long waitingtime after inserting a CD. When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds.
This phenomenon is normal.

I cannot connect myBluetooth telephone.The telephone’s Bluetooth function may be deactivated or the equipmentmay not be visible.

- Check that your telephone’s Bluetooth function isactivated.

- Check that your telephone is visible.
A telephone connected byBluetooth is inaudible.The volume level depends on both the system and the telephone.
Increase the Peugeot Connect Navigation volume setting, possibly to maximum, and increasethe telephone volume level if necessary.

301

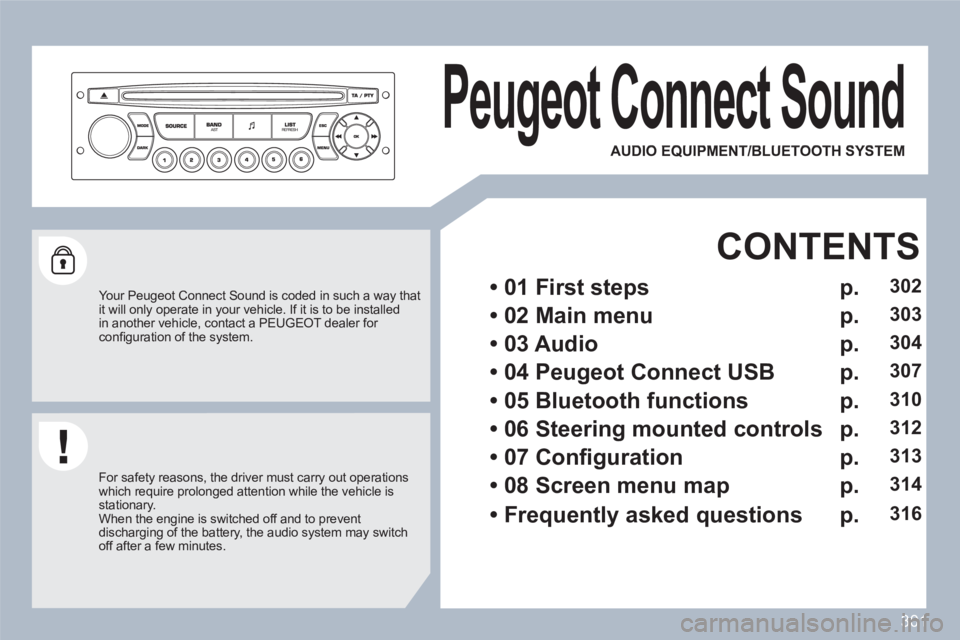

Peugeot Connect Sound

Your Peugeot Connect Sound is coded in such a way thatit will only operate in your vehicle. If it is to be installedin another vehicle, contact a PEUGEOT dealer for confi guration of the system.


For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the audio system may switch off after a few minutes.

AUDIO EQUIPMENT/BLUETOOTH SYSTEM


• 01 First steps
CONTENTS


• 02 Main menu



• 03 Audio


• 04
Peugeot Connect
USB



• 05 Bluetooth functions



• 06 Steering mounted controls


• 07 Confi guration


• 08 Screen menu map




• Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
302
303
304
307
310
312
313
314
316

302
11
22
10101111
133144155
33445566778899
122

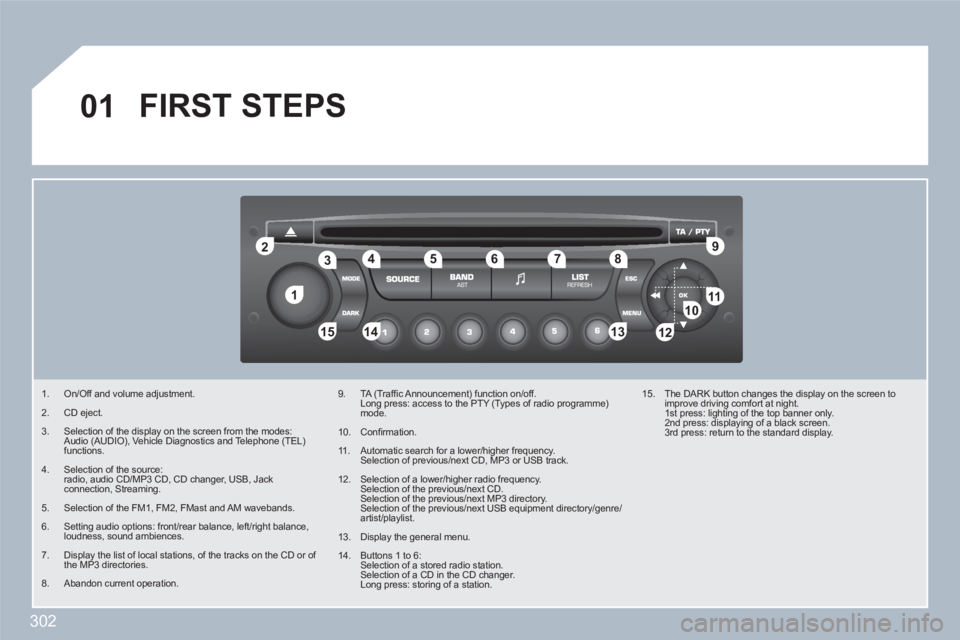

01 FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen from the modes: Audio (AUDIO), Vehicle Diagnostics and Telephone (TEL) functions.
4. Selection of the source: radio, audio CD/MP3 CD, CD changer, USB, Jack connection, Streaming.
5. Selection of the FM1, FM2, FMast and AM wavebands.
6. Setting audio options: front/rear balance, left/right balance, loudness, sound ambiences.
7. Display the list of local stations, of the tracks on the CD or of the MP3 directories.
8. Abandon current operation.


9. TA (Traffi c Announcement) function on/off. Long press: access to the PTY (Types of radio programme)mode.


10. Confi rmation.


11 . Automatic search for a lower/higher frequency. Selection of previous/next CD, MP3 or USB track.


12. Selection of a lower/higher radio frequency. Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next USB equipment directory/genre/artist/playlist.


13. Display the general menu.

14. Buttons 1 to 6: Selection of a stored radio station. Selection of a CD in the CD changer. Long press: storing of a station.
15. The DARK button changes the display on the screen toimprove driving comfort at night. 1st press: lighting of the top banner only. 2nd press: displaying of a black screen. 3rd press: return to the standard display.

303

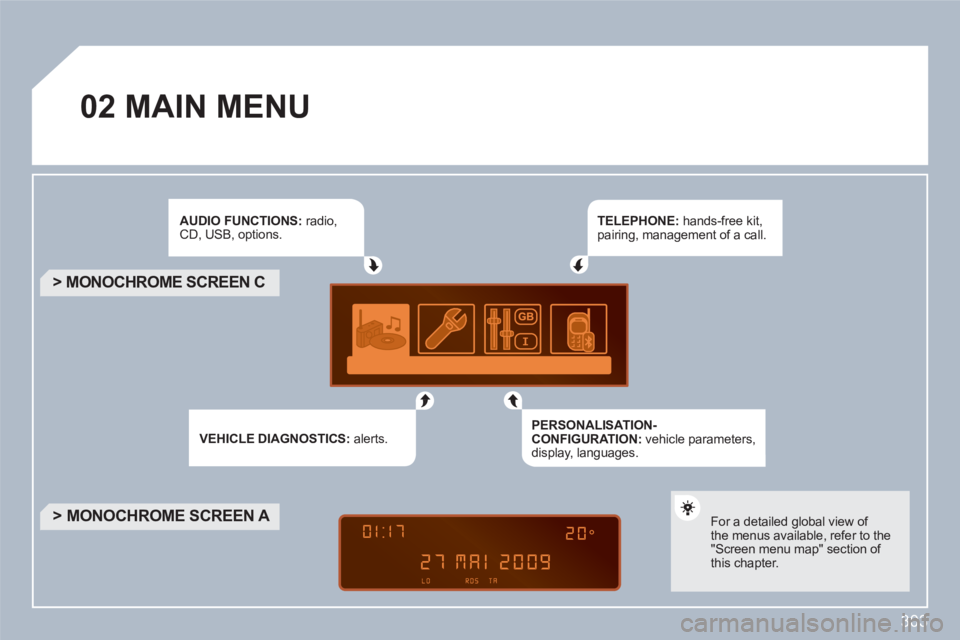

02MAIN MENU

AUDIO FUNCTIONS : radio,CD, USB, options.
VEHICLE DIAGNOSTICS :alerts.


TELEPHONE : hands-free kit, pairing, management of a call.


PERSONALISATION-CONFIGURATION : vehicle parameters, display, languages.
> MONOCHROME SCREEN C


> MONOCHROME SCREEN A
For a detailed global view ofthe menus available, refer to the"Screen menu map" section of this chapter.

304
2
33
44
1
22
44
33
11

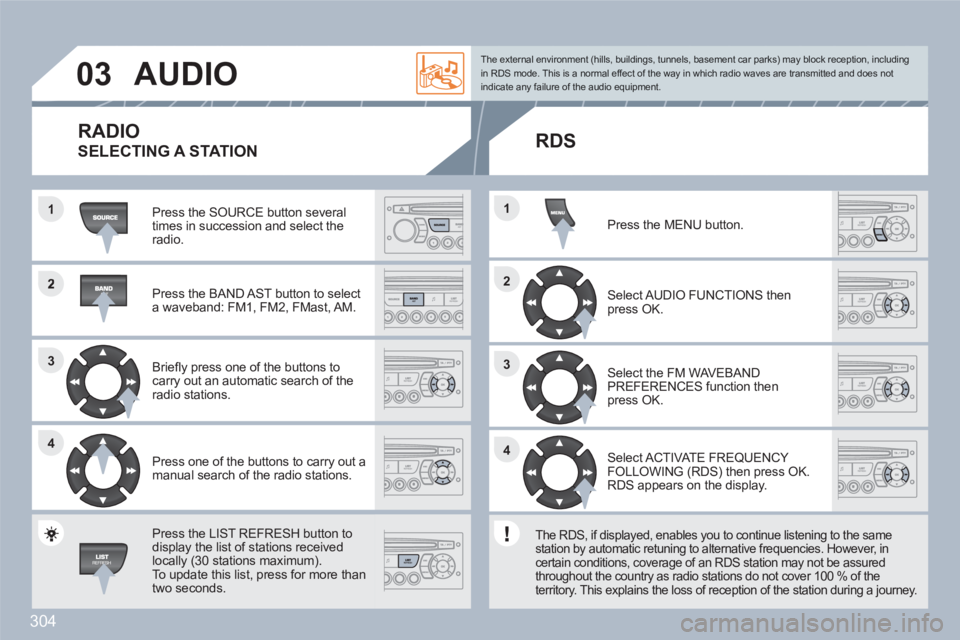

03AUDIO
Press the SOURCE button several times in succession and select theradio.


Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.


Briefl y press one of the buttons to carry out an automatic search of theradio stations.


Press one of the buttons to carry out a manual search of the radio stations.


Press the LIST REFRESH button todisplay the list of stations receivedlocally (30 stations maximum).
To update this list, press for more than two seconds.




Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.


Select the FM WAVEBANDPREFERENCES function thenpress OK.
Select AUDIO FUNCTIONS then press OK.

Press the MENU button.

The external environment (hills, buildings, tunnels, basement car parks) may block reception, including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does notindicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue listening to the samestation by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assuredthroughout the country as radio stations do not cover 100 % of theterritory. This explains the loss of reception of the station during a journey.
RADIO


SELECTING A STATION

305
03
11
11
22
3333
22
AUDIO

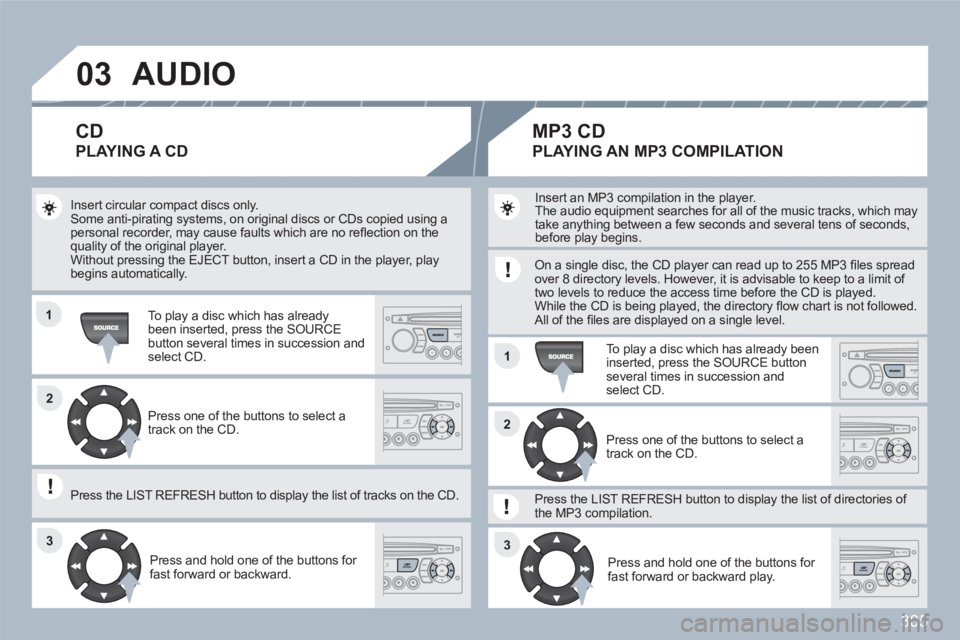

Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using apersonal recorder, may cause faults which are no refl ection on thequality of the original player. Without pressing the EJECT button, insert a CD in the player, playbegins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession andselect CD.
Press and hold one of the buttons for fast forward or backward.

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds,before play begins.
On a single disc, the CD player can read up to 255 MP3 fi les spreadover 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played. While the CD is being played, the directory fl ow chart is not followed.All of the fi les are displayed on a single level.

To play a disc which has already been inserted, press the SOURCE buttonseveral times in succession and select CD.

Press and hold one of the buttons for fast forward or backward play.
CD
PLAYING A CD
MP3 CD


PLAYING AN MP3 COMPILATION
Press one of the buttons to select atrack on the CD.

Press the LIST REFRESH button to display the list of tracks on the CD.

Press one of the buttons to select atrack on the CD.
Press the LIST REFRESH button to display the list of directories of the MP3 compilation.

306
03
11
22
33
system.


In order to be able to play a recorded CDR or CDRW, when recordingit is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be playedcorrectly.
It is recommended that the same recording standard is always usedfor an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is recommended.


The audio equipment will only play fi les with the extension ".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No othher type of fi le (.wma, .mp4, .m3u...) can be played.


It is advisable to restrict fi le names to 20 characters wwithout using special characters (e.g. " ? ; ˘) to avoid any playing orr displayingproblems.

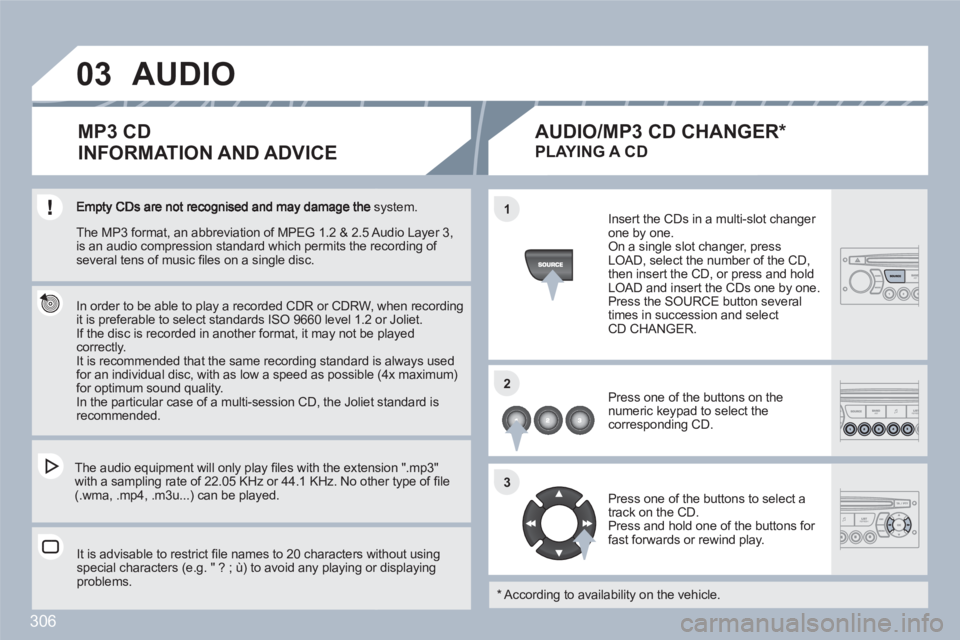

MP3 CD

INFORMATION AND ADVICE

AUDIO

Insert the CDs in a multi-slot changer one by one. On a single slot changer, press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button severaltimes in succession and selectCD CHANGER.

Press one of the buttons on the numeric keypad to select the corresponding CD.

Press one of the buttons to select a track on the CD.
Press and hold one of the buttons for fast forwards or rewind play.


PLAYING A CD
*
According to availability on the vehicle.
AUDIO/MP3 CD CHANGER *


The MP3 format, an abbreviation of MPEG 1.2 & 2.5 AAudio Layer 3,is an audio compression standard which permits the reecording of several tens of music fi les on a single disc.

307
1
11
22
33

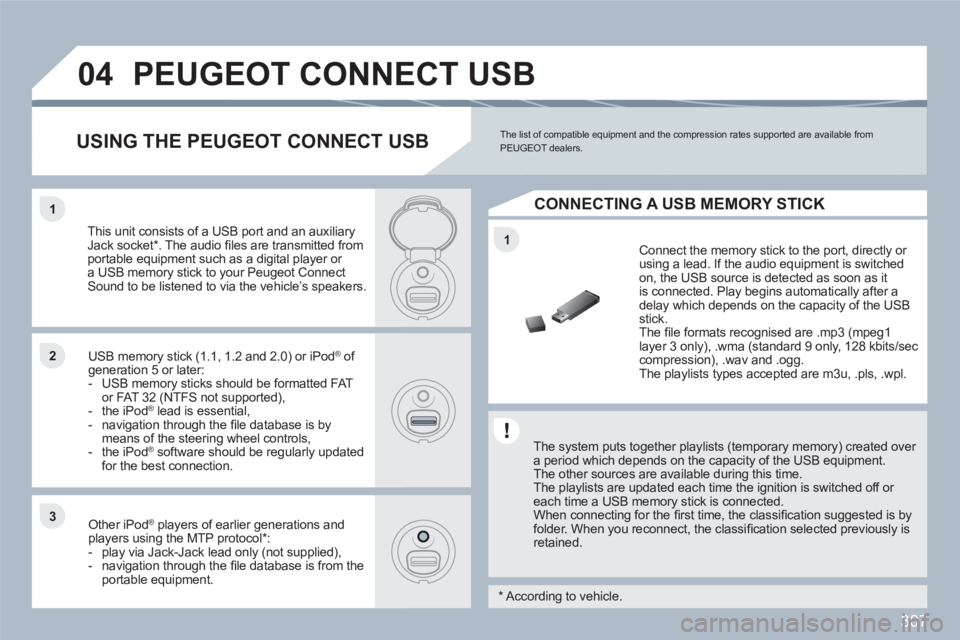

04PEUGEOT CONNECT USB

The system puts together playlists (temporary memory) created over a period which depends on the capacity of the USB equipment. The other sources are available during this time.
The playlists are updated each time the ignition is switched off or each time a USB memory stick is connected.
When connecting for the fi rst time, the classifi cation suggested is by folder. When you reconnect, the classifi cation selected previously is retained.

Connect the memory stick to the port, directly or using a lead. If the audio equipment is switched on, the USB source is detected as soon as itis connected. Play begins automatically after a delay which depends on the capacity of the USB stick.
The fi le formats recognised are .mp3 (mpeg1layer 3 only), .wma (standard 9 only, 128 kbits/seccompression), .wav and .ogg.
The playlists types accepted are m3u, .pls, .wpl.
This unit consists of a USB port and an auxiliaryJack socket * . The audio fi les are transmitted from portable equipment such as a digital player or a USB memory stick to your Peugeot Connect Sound to be listened to via the vehicle’s speakers.
USB memory stick (1.1, 1.2 and 2.0) or iPod®of ®
generation 5 or later: - USB memory sticks should be formatted FATor FAT 32 (NTFS not supported),- the iPod®lead is essential,®
- navigation through the fi le database is bymeans of the steering wheel controls,- the iPod®software should be regularly updated ®
for the best connection.
Other iPod ®players of earlier generations and®
players using the MTP protocol * :- play via Jack-Jack lead only (not supplied),- navigation through the fi le database is from theportable equipment.

The list of compatible equipment and the compression rates supported are available from PEUGEOT dealers. USING THE PEUGEOT CONNECT USB


CONNECTING A USB MEMORY STICK
*
According to vehicle.

308
33
44
11
55
22
PEUGEOT CONNECT USB

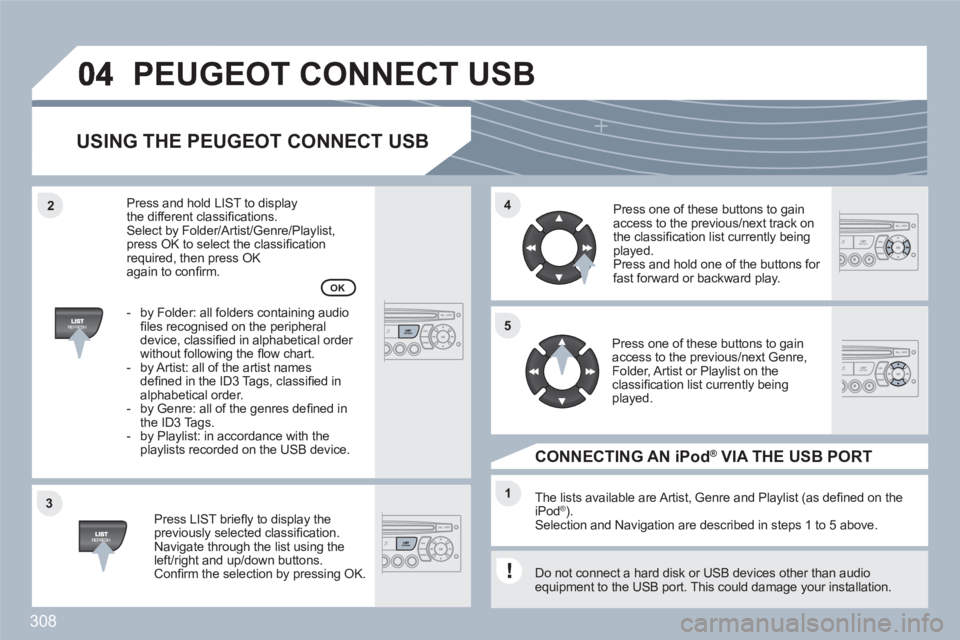

USING THE PEUGEOT CONNECT USB
Press LIST briefl y to display thepreviously selected classifi cation.Navigate through the list using theleft/right and up/down buttons. Confi rm the selection by pressing OK.

The lists available are Artist, Genre and Playlist (as defi ned on theiPod ®). ®
Selection and Navigation are described in steps 1 to 5 above.


Do not connect a hard disk or USB devices other than audio equipment to the USB port. This could damage your installation.


CONNECTING AN iPod ®VIA THE USB PORT ®


Press one of these buttons to gainaccess to the previous/next track on the classifi cation list currently beingplayed.
Press and hold one of the buttons for fast forward or backward play.


Press one of these buttons to gainaccess to the previous/next Genre,Folder, Artist or Playlist on the classifi cation list currently beingplayed.


Press and hold LIST to displaythe different classifi cations. Select by Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.



- by Folder: all folders containing audiofi les recognised on the peripheraldevice, classifi ed in alphabetical order without following the fl ow chart.

- by Artist: all of the artist namesdefi ned in the ID3 Tags, classifi ed in alphabetical order.

- by Genre: all of the genres defi ned inthe ID3 Tags.

- by Playlist: in accordance with the playlists recorded on the USB device.
OK
