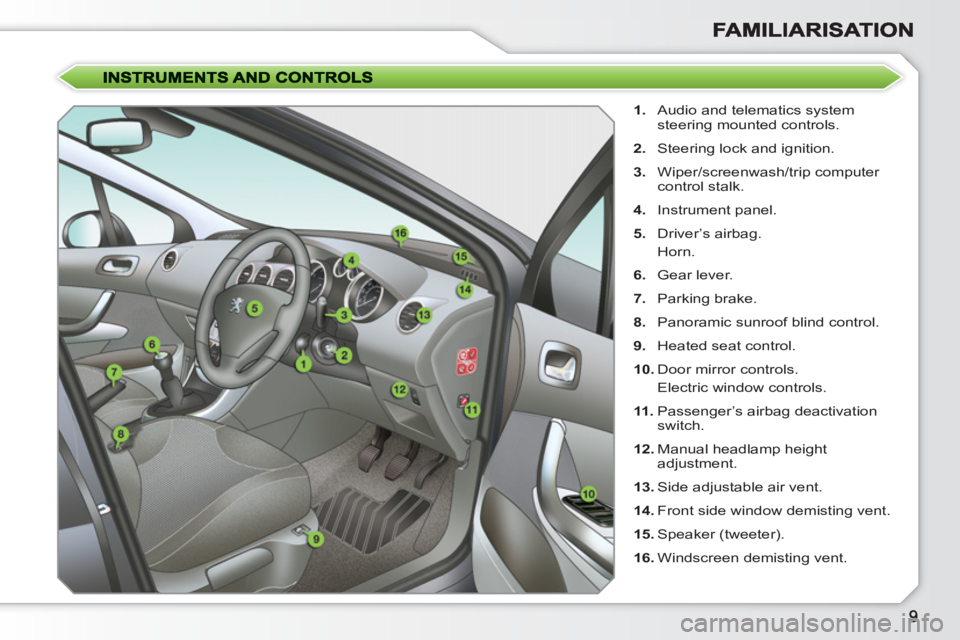

1.
Audio and telematics system
steering mounted controls.

2.
Steering lock and ignition.

3.
Wiper/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Passenger’s airbag deactivation
switch.

12.
Manual headlamp height
adjustment.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasur e of manual
gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.

3.
Steering wheel "-"
paddle.

4.
Steering wheel "+"
paddle.


The gear or the driving mode selected
appears on the instrument panel screen.

N:
neutral.

R:
reverse.

1 2 3 4 5 6:
gears engaged.

AUTO:
automatic mode.

S:
Sport programme.


Display on the instrument panel

6-speed electronic gear control
gearbox


)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear (position A
or M
)
or reverse (position R
) using the
gear lever 1
.

)
Release the parking brake.

)
Take your foot off the brake pedal,
then accelerate.


Moving off




143

!
26
INSTRUMENTS and CONTROLS
The warning lamps may come on
continuously or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.

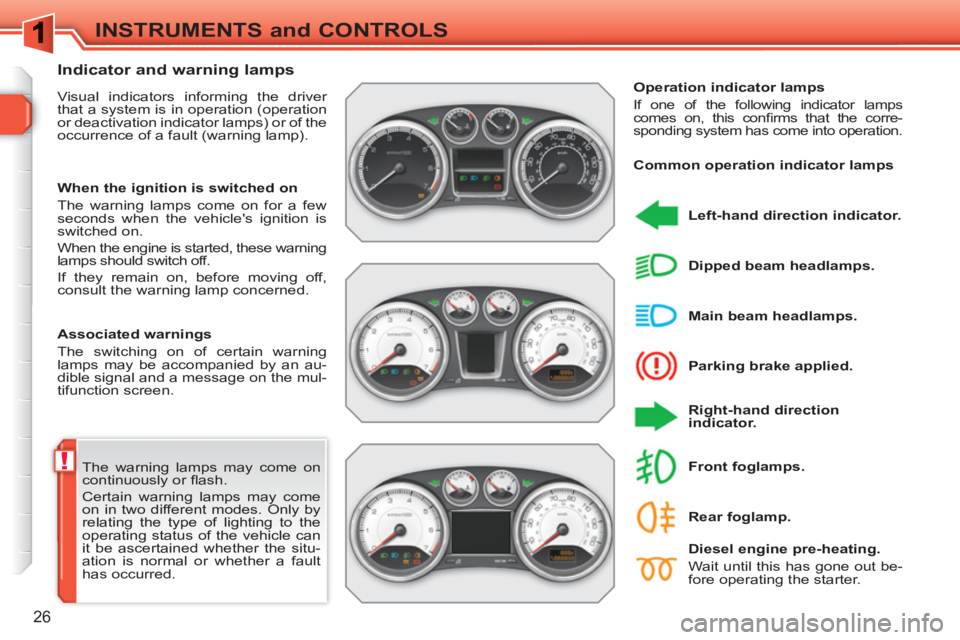

Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

Associated warnings
The switching on of certain warning
lamps may be accompanied by an au-
dible signal and a message on the mul-
tifunction screen.
Operation indicator lamps
If one of the following indicator lamps
comes on, this confi rms that the corre-
sponding system has come into operation.


Left-hand direction indicator.

Parking brake applied.

Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.


Diesel engine pre-heating.
Wait until this has gone out be-
fore operating the starter.

Front foglamps.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps

Rear foglamp.

!
29
INSTRUMENTS and CONTROLS
When the engine is running or the ve-
hicle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.

Central alert.
Lighting is associated with
the displaying of another
warning lamp:


- punctured wheel,

- braking,

- power steering,

- engine oil pressure,

- coolant temperature,
stop the vehicle as soon as it is safe to
do so.

Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
have a specifi c warning lamp.
To identify the problem, consult the
message on the multifunction screen.
Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:


- signifi cant drop in the brake fl uid
level,

- electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp),
stop the vehicle as soon as it is safe to
do so.
When the vehicle is moving, check that
the parking brake is fully released. Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
In the event of diffi culty, do not
hesitate to contact a PEUGEOT
dealer.









Warning lamps

Common warning lamps After checking:


- that the doors, boot, the rear
screen and bonnet are closed,

- the engine oil level,

- the screenwash fl uid level,

- the remote control battery,

- the pressure of the tyres,

- the end of saturation of the particle
emission
fi lter (Diesel),
for any other situations, contact a
PEUGEOT dealer.

Anti-lock braking system
(ABS).

If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent operation
of the vehicle's servo-assisted braking.

!
32
INSTRUMENTS and CONTROLS

Airbags.

If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.

Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:


- signifi cant drop in the brake fl uid
level,

- electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released.

Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent operation
of the vehicle's servo-assisted braking.

Door open.
A door, the boot or the rear
screen is open:
Parking brake.

If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
Fuel level.
When this fi rst comes on, you
have approximately 6 litres
of
fuel remaining in the tank
Refuel as soon as possible to avoid run-
ning out of fuel.
Until suffi cient fuel has been added,
this warning lamp comes on again each
time the ignition is switched on, along
with an audible signal and a message.
According to version, this audible signal
and this message are repeated, at in-
creasingly shorter intervals as the level
decreases towards "0"
.
Capacity of the tank: approximately
60 litres
.

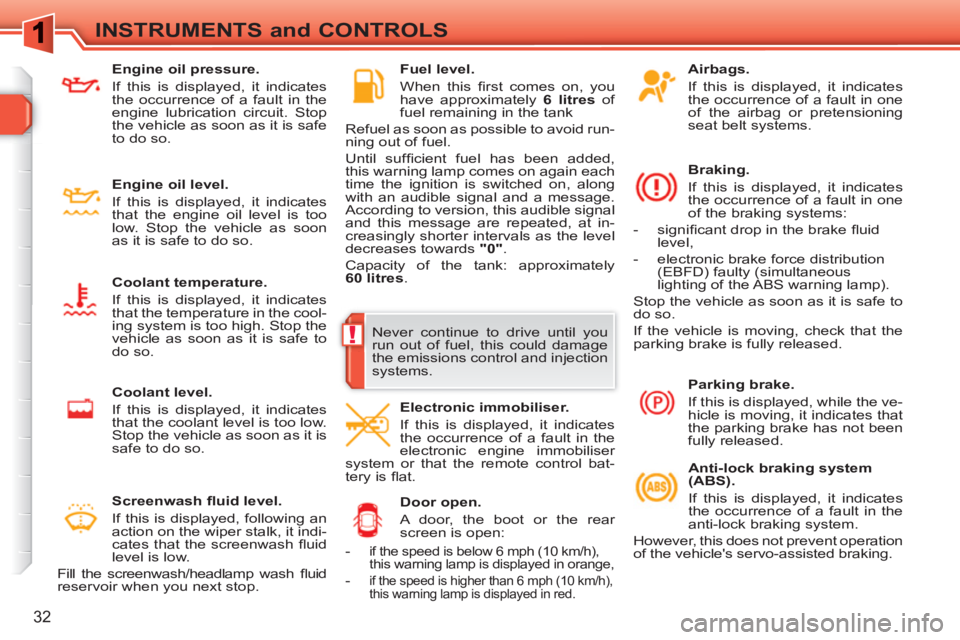

Screenwash fl uid level.

If this is displayed, following an
action on the wiper stalk, it indi-
cates that the screenwash fl uid
level is low.
Fill the screenwash/headlamp wash fl uid
reservoir when you next stop.


-
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,

- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.


Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.
Engine oil pressure.

If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle as soon as it is safe
to do so.

Engine oil level.

If this is displayed, it indicates
that the engine oil level is too
low. Stop the vehicle as soon
as it is safe to do so.

Coolant temperature.

If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the
vehicle as soon as it is safe to
do so.

Coolant level.

If this is displayed, it indicates
that the coolant level is too low.
Stop the vehicle as soon as it is
safe to do so.

!
i
!
141
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and engage
a gear.

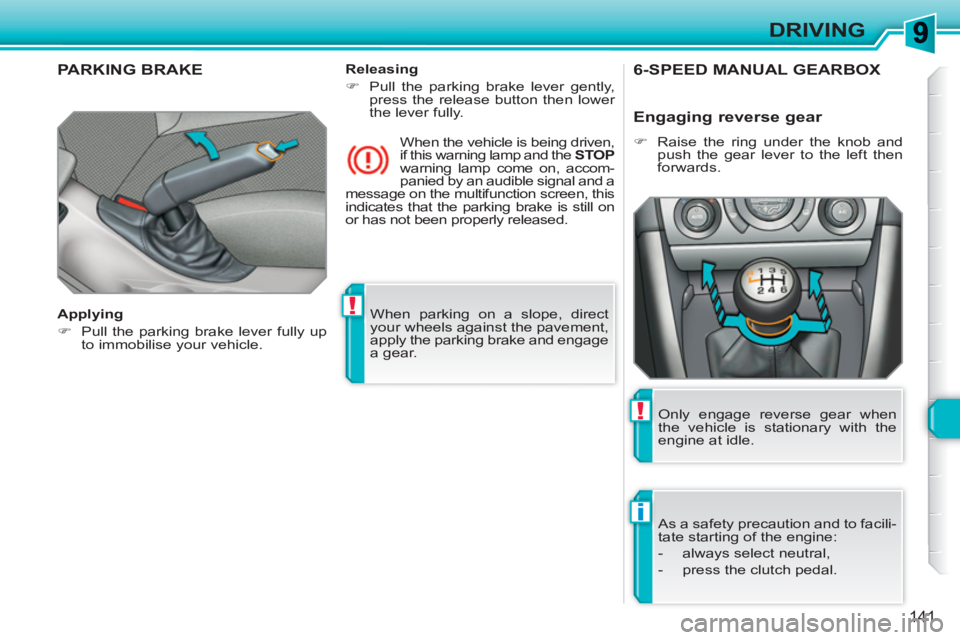

PARKING BRAKE


Applying


)
Pull the parking brake lever fully up
to immobilise your vehicle.
When the vehicle is being driven,
if this warning lamp and the STOP

warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on
or has not been properly released.
Releasing


)
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
6-SPEED MANUAL GEARBOX

As a safety precaution and to facili-
tate starting of the engine:


- always select neutral,

- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.

Engaging reverse gear



)
Raise the ring under the knob and
push the gear lever to the left then
forwards.

ii
!i
144
DRIVING

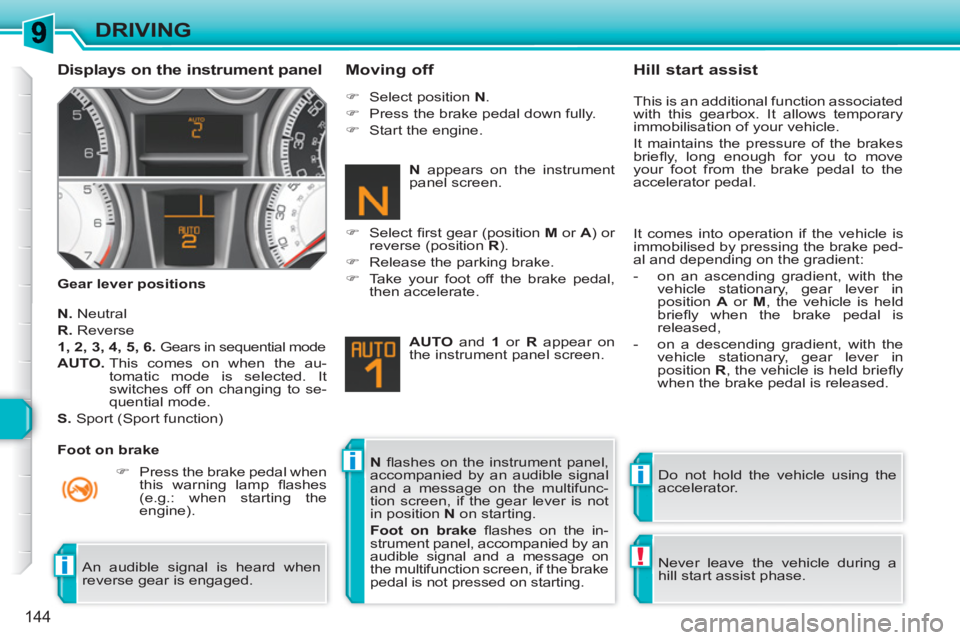

Displays on the instrument panel


Gear lever positions


Moving off


N.
Neutral

R.
Reverse

1, 2, 3, 4, 5, 6.
Gears in sequential mode

AUTO.
This comes on when the au-
tomatic mode is selected. It
switches off on changing to se-
quential mode.

S.
Sport (Sport function)


)
Press the brake pedal when
this warning lamp fl ashes
(e.g.: when starting the
engine).

)
Select position N
.

)
Press the brake pedal down fully.

)
Start the engine.


)
Select fi rst gear (position M
or A
) or
reverse (position R
).

)
Release the parking brake.

)
Take your foot off the brake pedal,
then accelerate.

AUTO
and 1
or R
appear on
the instrument panel screen.
Do not hold the vehicle using the
accelerator.

N
fl ashes on the instrument panel,
accompanied by an audible signal
and a message on the multifunc-
tion screen, if the gear lever is not
in position N
on starting.

Foot on brake
fl ashes on the in-
strument panel, accompanied by an
audible signal and a message on
the multifunction screen, if the brake
pedal is not pressed on starting.



Hill start assist

This is an additional function associated
with this gearbox. It allows temporary
immobilisation of your vehicle.
It maintains the pressure of the brakes
briefl y, long enough for you to move
your foot from the brake pedal to the
accelerator pedal.
Never leave the vehicle during a
hill start assist phase. It comes into operation if the vehicle is
immobilised by pressing the brake ped-
al and depending on the gradient:


- on an ascending gradient, with the
vehicle stationary, gear lever in
position A
or M
, the vehicle is held
briefl y when the brake pedal is
released,

- on a descending gradient, with the
vehicle stationary, gear lever in
position R
, the vehicle is held briefl y
when the brake pedal is released.
An audible signal is heard when
reverse gear is engaged.

N
appears on the instrument
panel screen.

Foot on brake

!!
i
146
DRIVING

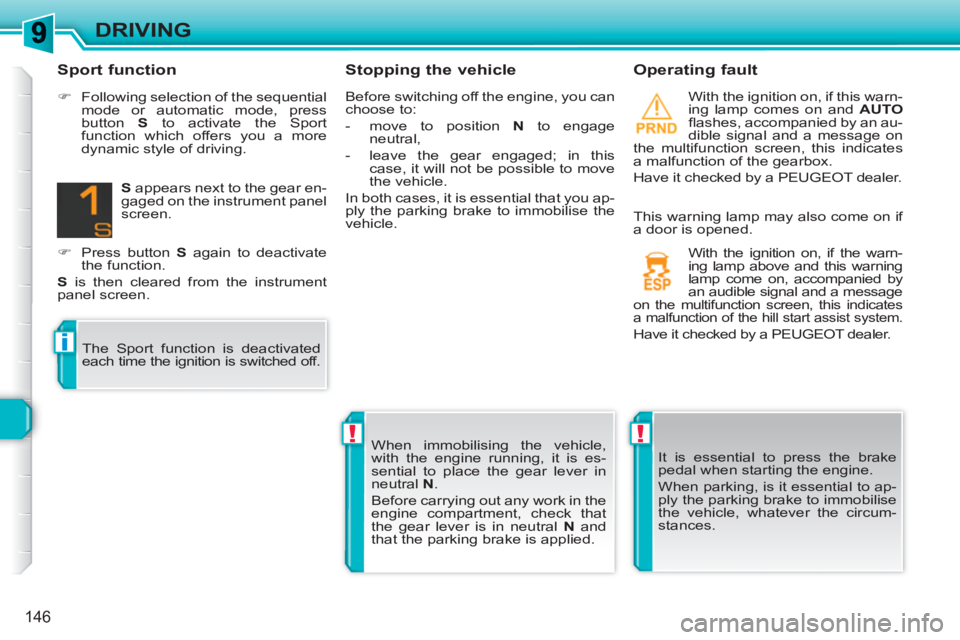

Stopping the vehicle
Operating fault

With the ignition on, if this warn-
ing lamp comes on and AUTO

fl ashes, accompanied by an au-
dible signal and a message on
the multifunction screen, this indicates
a malfunction of the gearbox.
Have it checked by a PEUGEOT dealer.
It is essential to press the brake
pedal when starting the engine.
When parking, is it essential to ap-
ply the parking brake to immobilise
the vehicle, whatever the circum-
stances. When immobilising the vehicle,
with the engine running, it is es-
sential to place the gear lever in
neutral N
.
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N
and
that the parking brake is applied. With the ignition on, if the warn-
ing lamp above and this warning
lamp come on, accompanied by
an audible signal and a message
on the multifunction screen, this indicates a malfunction of the hill start assist system.
Have it checked by a PEUGEOT dealer.


Sport function



)
Following selection of the sequential
mode or automatic mode, press
button S
to activate the Sport
function which offers you a more
dynamic style of driving.

S
appears next to the gear en-
gaged on the instrument panel
screen.


)
Press button S
again to deactivate
the function.

S
is then cleared from the instrument
panel screen.
The Sport function is deactivated
each time the ignition is switched off. Before switching off the engine, you can
choose to:


- move to position N
to engage
neutral,

- leave the gear engaged; in this
case, it will not be possible to move
the vehicle.
In both cases, it is essential that you ap-
ply the parking brake to immobilise the
vehicle. This warning lamp may also come on if
a door is opened.

147
DRIVING

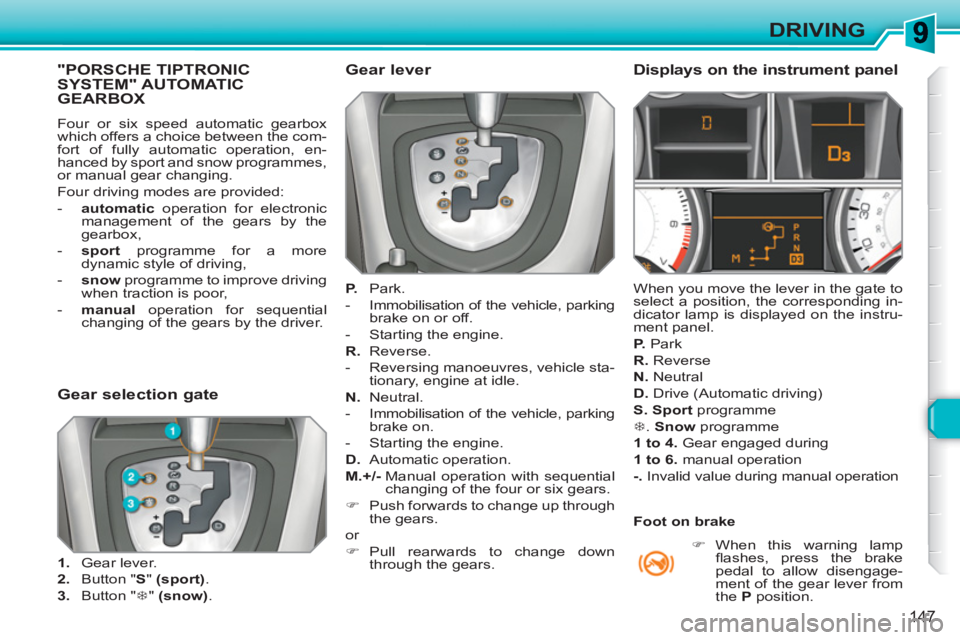

"PORSCHE TIPTRONICSYSTEM" AUTOMATICGEARBOX
Four or six speed automatic gearbox
which offers a choice between the com-
fort of fully automatic operation, en-
hanced by sport and snow programmes,
or manual gear changing.
Four driving modes are provided:


- automatic
operation for electronic
management of the gears by the
gearbox,

- sport
programme for a more
dynamic style of driving,

- snow
programme to improve driving
when traction is poor,

- manual
operation for sequential
changing of the gears by the driver.


Gear lever


P.
Park.


- Immobilisation of the vehicle, parking
brake on or off.

- Starting the engine.

R.
Reverse.


- Reversing manoeuvres, vehicle sta-
tionary, engine at idle.

N.
Neutral.


- Immobilisation of the vehicle, parking
brake on.

- Starting the engine.

D.
Automatic operation.

M.+/-
Manual operation with sequential
changing of the four or six gears.


)
Push forwards to change up through
the gears.
or


)
Pull rearwards to change down
through the gears.



Displays on the instrument panel

When you move the lever in the gate to
select a position, the corresponding in-
dicator lamp is displayed on the instru-
ment panel.

P.
Park

R.
Reverse

N.
Neutral

D.
Drive (Automatic driving)

S.

Sport
programme

7
. Snow
programme

1 to 4.
Gear engaged during

1 to 6.
manual operation

-.
Invalid value during manual operation


)
When this warning lamp
fl ashes, press the brake
pedal to allow disengage-
ment of the gear lever from
the P
position.




Gear selection gate



1.
Gear lever.

2.
Button " S
" (sport)
.

3.
Button " 7
" (snow)
.

Foot on brake
