Page 4 of 336
Instrument panels 22
Indicator and warning lamps 26
Indicators 34
Instrument panel buttons 38 „
„
„
„
Ventilation 56
Heating 58
Manual air conditioning 58
Rear screen demist - defrost 60
Dual-zone digital
air conditioning 61
Front seats 63
Rear seats 67
Seat modularity 73
Mirrors 75
Steering wheel adjustment 77 „
„
„
„
„
„
„
„
„
„
COMFORT 56 Î 77
Remote control key 78
Alarm 82
Electric windows 84
Doors 86
Boot 88
Opening rear screen 89
Panoramic sunroof 90
Fuel tank 91 „
„
„
„
„
„
„
„
ACCESS 78 Î 92
Lighting controls 93
Automatic illumination of
headlamps 95
Headlamp adjustment 96
Directional lighting 97
Wiper controls 98
Automatic rain sensitive wipers 100
Courtesy lamps 101
Interior mood lighting 102
Boot lamp 102 „
„
„
„
„
„
„
„
„
VISIBILITY 93 Î 102
Child seats 118
ISOFIX child seats 123
Child lock 127 „
„
„
CHILD
SAFETY 118 Î 127 FAMILIARISATION 4 Î 21
INSTRUMENTS and
CONTROLS 22 Î 39
Screens without
audio equipment 40
Screens with
audio equipment 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 47
16/9 high defi nition retractable
colour screen (Peugeot Connect
Media) 49
Trip computer 52 „
„
„
„
„
MULTIFUNCTION
SCREENS 40 Î 55
Interior fi ttings 103
Front armrest 106
Mats 107
Boot fi ttings 109 „
„
„
„
FITTINGS 103 Î 11 7
Page 5 of 336
11
Direction indicators 128
Hazard warning lamps 128
Horn 128
Tyre under-infl ation detection 129
Emergency or assistance call 130
Braking assistance systems 130
Trajectory control systems 131
Front seat belts 132
Airbags 137 „
„
„
„
„
„
„
„
„
SAFETY 128 Î 140
Parking brake 141
Manual gearbox 141
Gear shift indicator 142
6-speed electronic gear
control gearbox 143
Automatic gearbox 147
Speed limiter 150
Cruise control 152
Parking sensors 154 „
„
„
„
„
„
„
„
DRIVING 141 Î 155
Bonnet 157
Running out of fuel (Diesel) 158
Petrol engines 159
Diesel engines 160
Checking levels 161
Checks 162 „
„
„
„
„
„
CHECKS
156 Î 163
Temporary puncture
repair kit 164
Changing a wheel 172
Changing a bulb 179
Changing a fuse 186
Battery 192
Energy economy mode 194
Changing a wiper blade 194
Towing the vehicle 195
Towing a trailer 197
Fitting roof bars 198
Very cold climate screen 199
Accessories 199 „
„
„
„
„
„
„
„
„
„
„
„
PRACTICAL
INFORMATION 164 Î 200
Petrol and Biofl ex engines 201
Petrol and Biofl ex weights 205
Diesel engines 214
Diesel weights 217
Dimensions 226
Identifi cation markings 227 „
„
„
„
„
„
TECHNICAL
DATA 201 Î 228
AUDIO EQUIPMENT
and TELEMATICS 229 Î 317
VISUAL
SEARCH 318 Î 324
ALPHABETICAL
INDEX 325 Î 329
Emergency or assistance 229
Peugeot Connect Media 233
Peugeot Connect Navigation 273
Peugeot Connect Sound 301 „
„
„
„
Page 6 of 336
Welcome lighting
This additional exterior and interior
lighting, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
96, 102
Directional lighting
This lighting automatically provides
additional visibility when cornering.
97
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Temporary puncture repair kit
This kit is a complete system,
consisting of a compressor and a
sealant cartridge, for the temporary
repair of a tyre.
164
Page 7 of 336
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Opening rear screen
This allows easy access to the luggage
compartment without having to open
the tailgate.
89
Roof bars
Transverse bars fi tted on the longitudinal
bars, these permit the loading of long
and bulky objects on the roof.
198
Seat modularity
The 2nd and 3rd row individual rear
seats can be arranged in various ways
to provide different layout and loading
confi gurations.
73
Page 9 of 336
i
Panoramic sunroof
Boot
Rear screen
1.
Unlocking the vehicle.
2.
Partial opening of the rear screen.
3.
Opening the rear screen.
90
1.
Opening the blind.
2.
Closing the blind.
1.
Unlocking the vehicle.
2.
Opening the boot.
89
The tailgate and rear screen
cannot both be open at the same
time, to avoid the risk of damage
to the rear screen.
89
Page 11 of 336
1.
Audio and telematics system
steering mounted controls.
2.
Steering lock and ignition.
3.
Wiper/screenwash/trip computer
control stalk.
4.
Instrument panel.
5.
Driver’s airbag.
Horn.
6.
Gear lever.
7.
Parking brake.
8.
Panoramic sunroof blind control.
9.
Heated seat control.
10.
Door mirror controls.
Electric window controls.
11 .
Passenger’s airbag deactivation
switch.
12.
Manual headlamp height
adjustment.
13.
Side adjustable air vent.
14.
Front side window demisting vent.
15.
Speaker (tweeter).
16.
Windscreen demisting vent.
Page 92 of 336
!
i
90
ACCESS

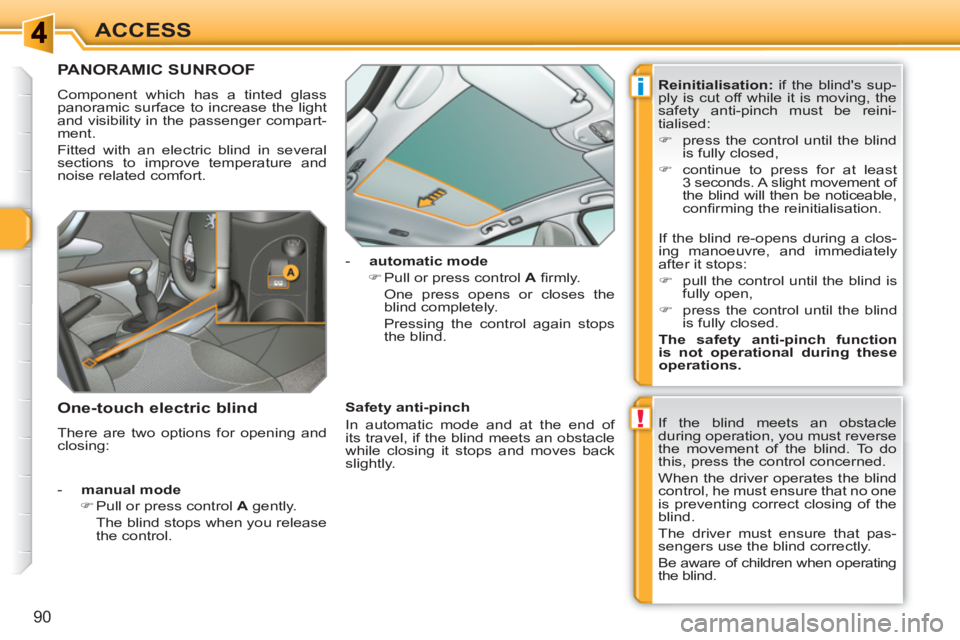

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must reverse
the movement of the blind. To do
this, press the control concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that pas-
sengers use the blind correctly.
Be aware of children when operating
the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
Reinitialisation:
if the blind's sup-
ply is cut off while it is moving, the
safety anti-pinch must be reini-
tialised:
)
press the control until the blind
is fully closed,
)
continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
confi rming the reinitialisation.
If the blind re-opens during a clos-
ing manoeuvre, and immediately
after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind
is fully closed.
The safety anti-pinch function
is not operational during these
operations.
Page 115 of 336
i
i
113
FITTINGS

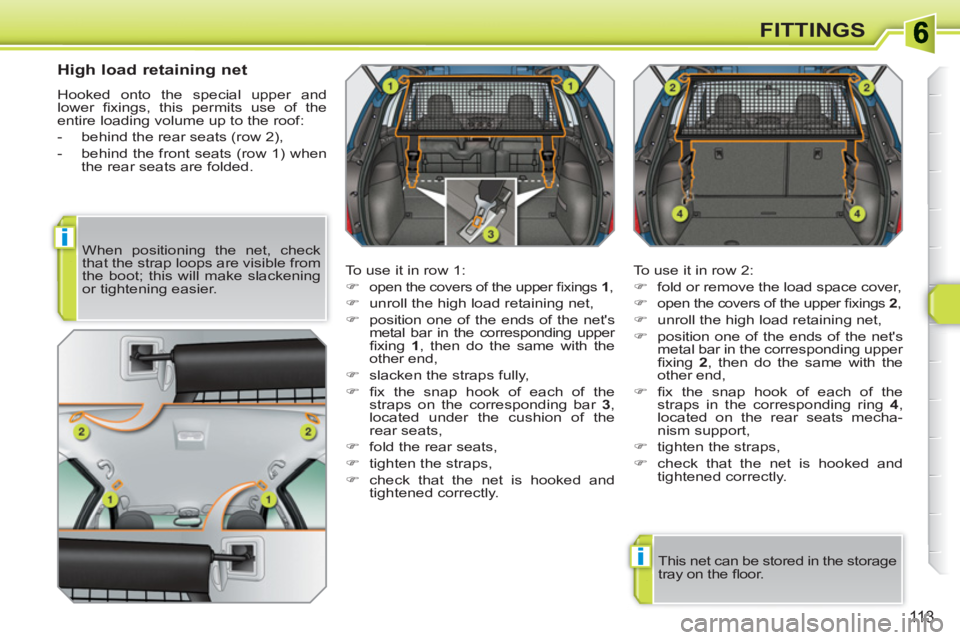

High load retaining net
Hooked onto the special upper and
lower fi xings, this permits use of the
entire loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when
the rear seats are folded.
To use it in row 1:
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,
)
slacken the straps fully,
)
fi x the snap hook of each of the
straps on the corresponding bar 3
,
located under the cushion of the
rear seats,
)
fold the rear seats,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly. To use it in row 2:
)
fold or remove the load space cover,
)
open the covers of the upper fi xings 2
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2
, then do the same with the
other end,
)
fi x the snap hook of each of the
straps in the corresponding ring 4
,
located on the rear seats mecha-
nism support,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly. When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
This net can be stored in the storage
tray on the fl oor.
Page 118 of 336
i
116
FITTINGS

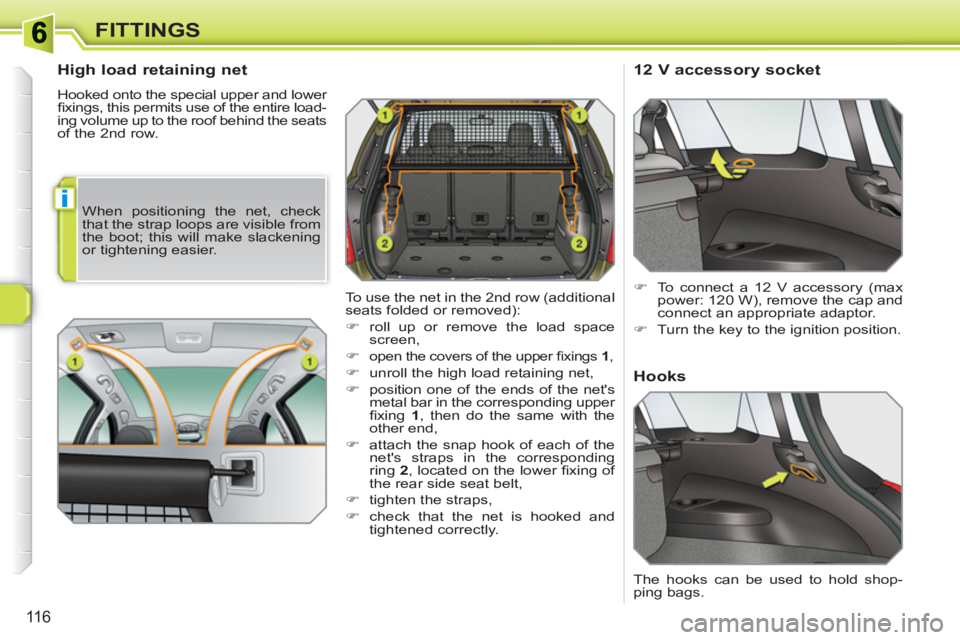

High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row.
12 V accessory socket
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):
)
roll up or remove the load space
screen,
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,
)
attach the snap hook of each of the
net's straps in the corresponding
ring 2
, located on the lower fi xing of
the rear side seat belt,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
Hooks
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
The hooks can be used to hold shop-
ping bags.
Page 137 of 336
i
i
135
SAFETY

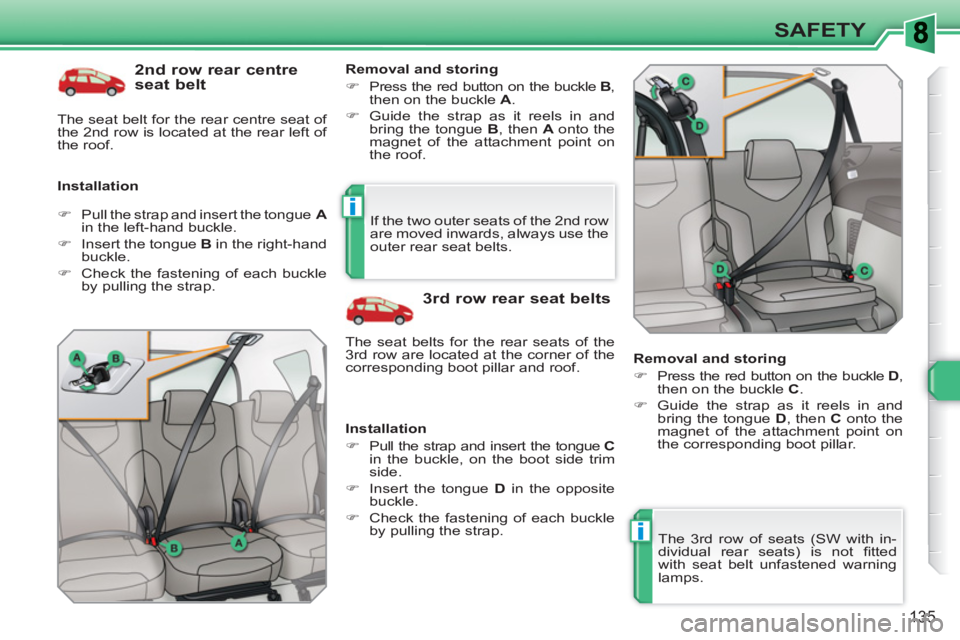

2nd row rear centre
seat belt
Installation
Removal and storing
)
Press the red button on the buckle B
,
then on the buckle A
.
)
Guide the strap as it reels in and
bring the tongue B
, then A
onto the
magnet of the attachment point on
the roof.
3rd row rear seat belts
Installation
)
Pull the strap and insert the tongue C
in the buckle, on the boot side trim
side.
)
Insert the tongue D
in the opposite
buckle.
)
Check the fastening of each buckle
by pulling the strap.
)
Pull the strap and insert the tongue A
in the left-hand buckle.
)
Insert the tongue B
in the right-hand
buckle.
)
Check the fastening of each buckle
by pulling the strap.
The seat belts for the rear seats of the
3rd row are located at the corner of the
corresponding boot pillar and roof. If the two outer seats of the 2nd row
are moved inwards, always use the
outer rear seat belts.
Removal and storing
)
Press the red button on the buckle D
,
then on the buckle C
.
)
Guide the strap as it reels in and
bring the tongue D
, then C
onto the
magnet of the attachment point on
the corresponding boot pillar.
The seat belt for the rear centre seat of
the 2nd row is located at the rear left of
the roof.
The 3rd row of seats (SW with in-
dividual rear seats) is not fi tted
with seat belt unfastened warning
lamps.
