wiper blades PEUGEOT 308 SW BL 2010 Owners Manual

!
i
i

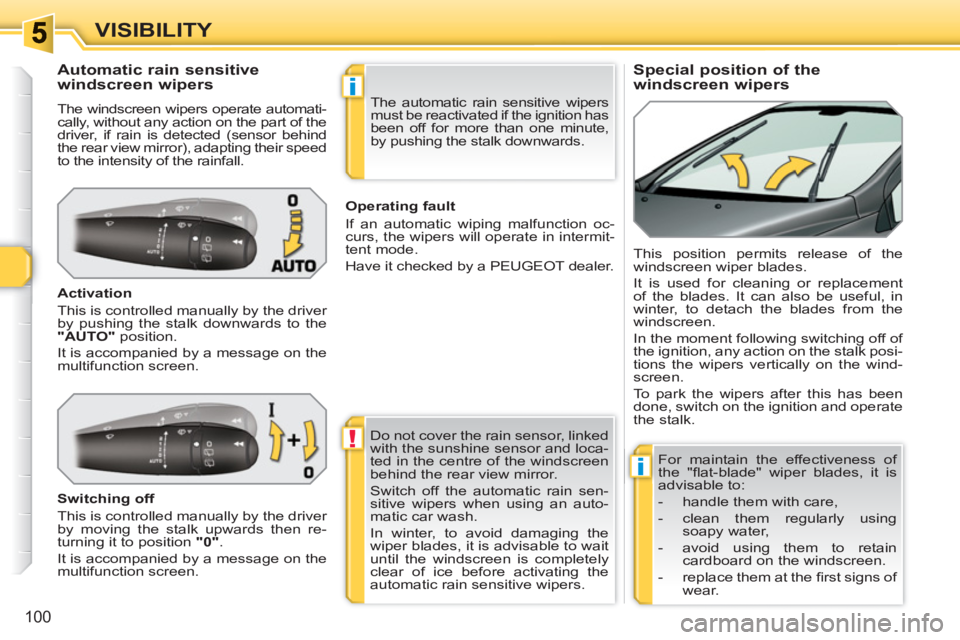

100
VISIBILITY









Special position of the
windscreen wipers










Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message on the
multifunction screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, linked
with the sunshine sensor and loca-
ted in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute,
by pushing the stalk downwards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message on the
multifunction screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
For maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain
cardboard on the windscreen.

- replace them at the fi rst signs of
wear.

1
!
i

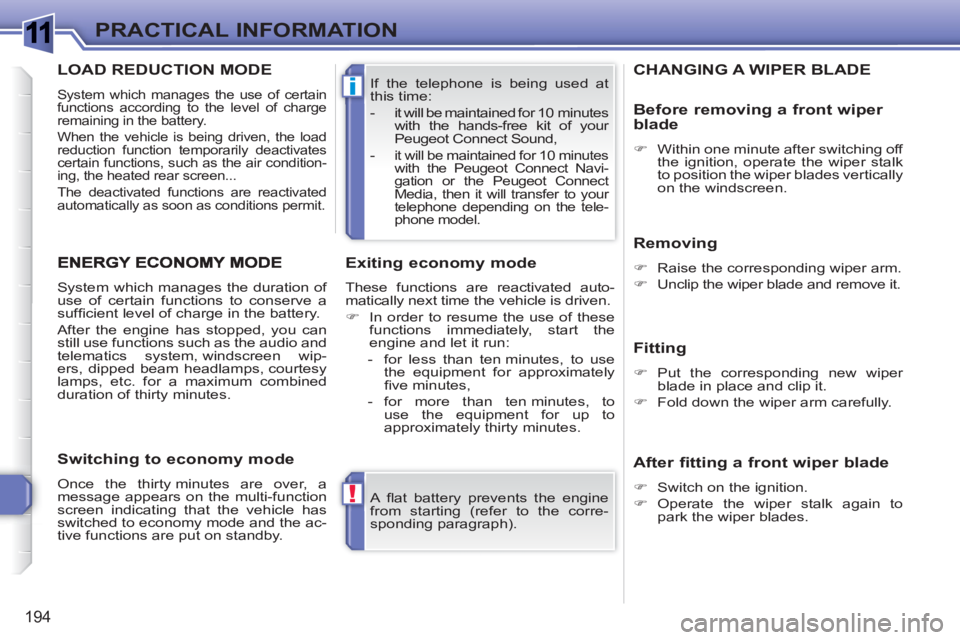

194
PRACTICAL INFORMATION
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph). If the telephone is being used at
this time:


- it will be maintained for 10 minutes
with the hands-free kit of your
Peugeot Connect Sound,

-
it will be maintained for 10 minutes
with the Peugeot Connect Navi-
gation or the Peugeot Connect
Media, then it will transfer to your
telephone depending on the tele-
phone model.


System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.

Exiting economy mode

These functions are reactivated auto-
matically next time the vehicle is driven.


)
In order to resume the use of these
functions immediately, start the
engine and let it run:


- for less than ten minutes, to use
the equipment for approximately
fi ve minutes,

- for more than ten minutes, to
use the equipment for up to
approximately thirty minutes.



Switching to economy mode

Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE

Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

LOAD REDUCTION MODE
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condition-
ing, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

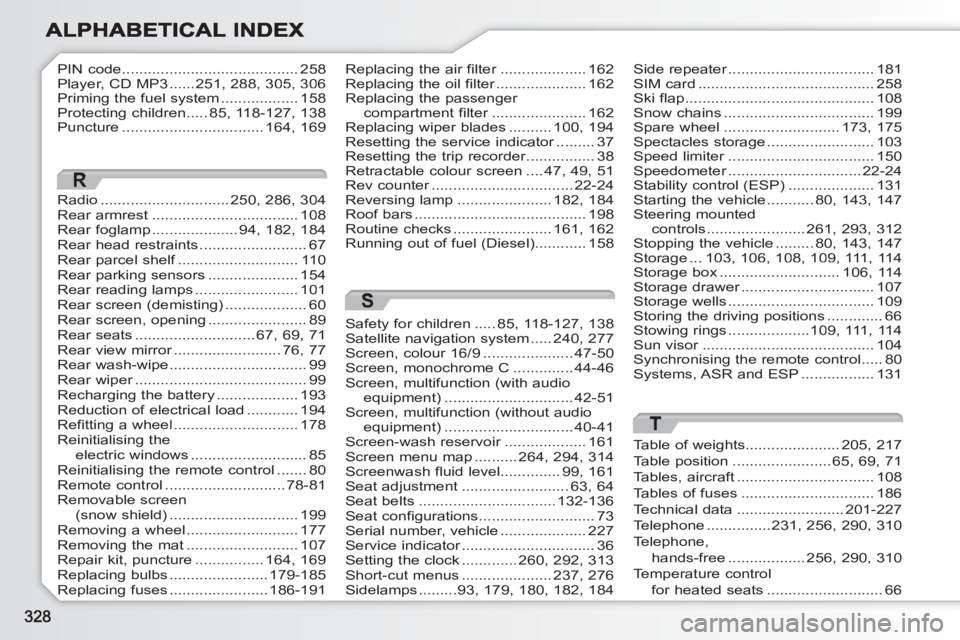

PIN code .........................................258Player, CD MP3......251, 288,305,306Priming the fuel system ..................158Protecting children .....85, 118-127, 138Puncture .................................164,169
Radio..............................250,286,304Rear armrest..................................108Rear foglamp....................94,182,184Rear head restraints .........................67Rear parcel shelf............................f110Rear parking sensors .....................154Rear reading lamps........................101Rear screen (demisting)...................60Rear screen, opening.......................89Rear seats............................67,69,71Rear view mirror.........................r76,77Rear wash-wipe ................................99Rear wiper........................................r99Recharging the battery...................193Reduction of electrical load ............194Refitting a wheel.............................178Reinitialising the electric windows...........................85Reinitialising the remote control .......80Remote control ............................78-81Removable screen (snow shield) ..............................199Removing a wheel..........................177Removing the mat..........................107Repair kit, puncture................164,169Replacing bulbs.......................179-185Replacing fuses .......................186-191
R
Replacing the air filter....................r162Replacing the oil filter.....................r162Replacing the passenger compartment filter......................r162Replacing wiper blades ..........100, 194Resetting the service indicator.........r37Resetting the trip recorder................r38Retractable colour screen ....47, 49, 51Rev counter.................................r22-24Reversing lamp......................182, 184Roof bars........................................198Routine checks.......................161, 162Running out of fuel (Diesel)............158
Side repeater..................................r181SIM card .........................................258Ski flap............................................108Snow chains...................................199Spare wheel ...........................173, 175Spectacles storage.........................103Speed limiter..................................r150Speedometer...............................r22-24Stability control (ESP) ....................131Starting the vehicle ...........80,143,147Steering mounted controls.......................261,293,312Stopping the vehicle .........80,143,147Storage ...103,106,108,109, 111,114Storage box............................106,114Storage drawer...............................r107Storage wells..................................109Storing the driving positions.............66Stowing rings...................109,111,114Sun visor........................................r104Synchronising the remote control .....80Systems, ASR and ESP .................131
S
Safety for children.....85, 118-127, 138Satellite navigation system.....240, 277Screen, colour 16/9.....................47-50Screen, monochrome C..............44-46Screen, multifunction (with audio equipment)..............................42-51Screen, multifunction (without audioequipment)..............................40-41Screen-wash reservoir...................r161Screen menu map..........264, 294, 314Screenwash fluid level..............99, 161Seat adjustment.........................63, 64Seat belts................................132-136Seat configurations...........................73Serial number, vehicle ....................227Service indicator...............................r36Setting the clock.............260, 292, 313Short-cut menus.....................237, 276Sidelamps.........93,179,180, 182, 184
T
Table of weights......................205, 217Table position.......................65,69,71Tables, aircraft................................108Tables of fuses...............................186Technical data.........................201-227Telephone...............231,256,290, 310Telephone,hands-free ..................256, 290, 310Temperature control for heated seats...........................66
