FITTINGS

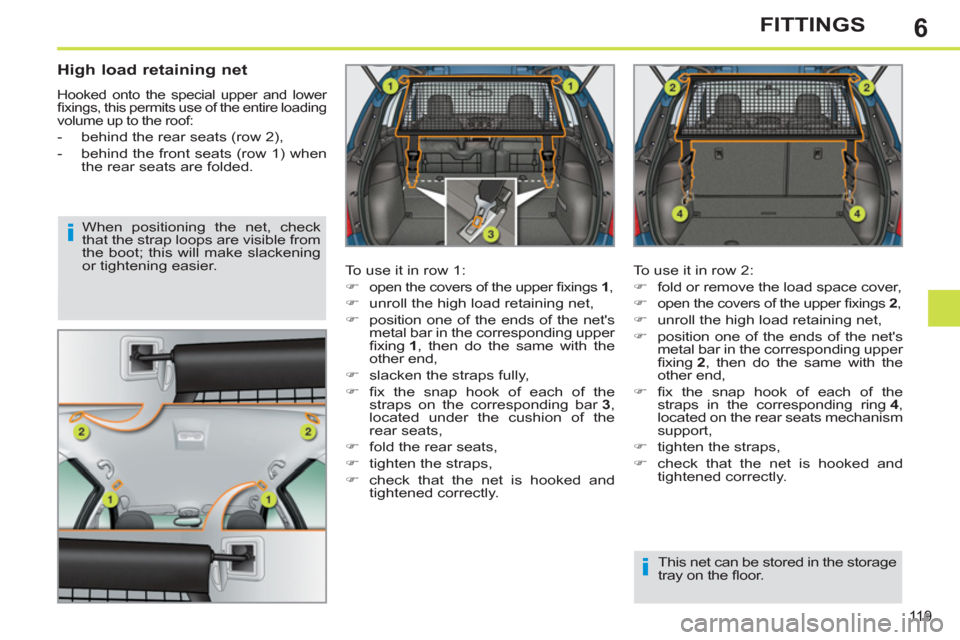

High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire loading
volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when
the rear seats are folded.
To use it in row 1:
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,
)
slacken the straps fully,
)
fi x the snap hook of each of the
straps on the corresponding bar 3
,
located under the cushion of the
rear seats,
)
fold the rear seats,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly. To use it in row 2:
)
fold or remove the load space cover,
)
open the covers of the upper fi xings 2
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2
, then do the same with the
other end,
)
fi x the snap hook of each of the
straps in the corresponding ring 4
,
located on the rear seats mechanism
support,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly. When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
This net can be stored in the storage
tray on the fl oor.
Page 122 of 356
6
120
FITTINGS

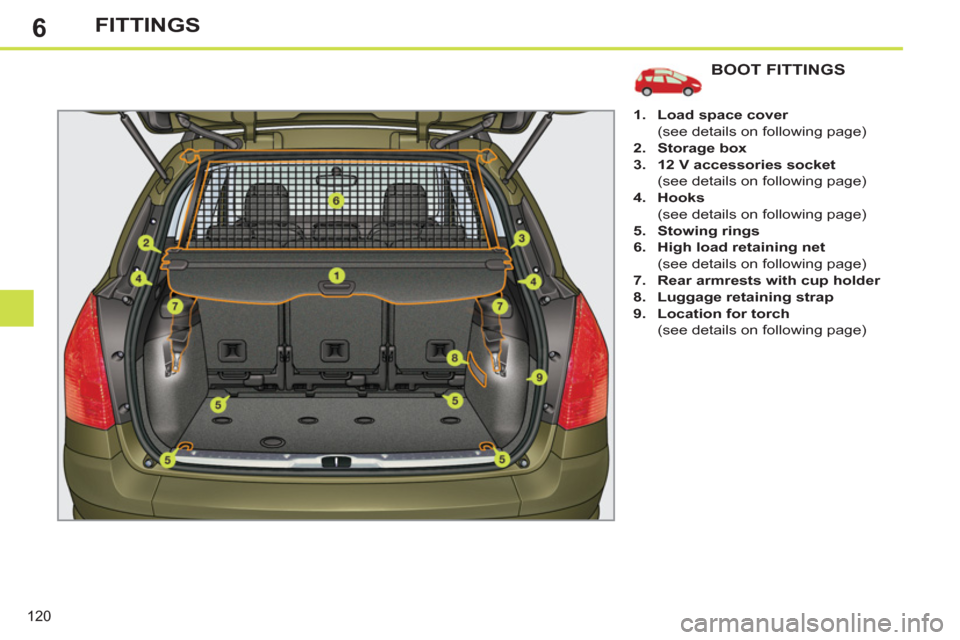

BOOT FITTINGS
1.
Load space cover
(see details on following page)
2.
Storage box
3.
12 V accessories socket
(see details on following page)
4.
Hooks
(see details on following page)
5.
Stowing rings
6.
High load retaining net
(see details on following page)
7.
Rear armrests with cup holder
8.
Luggage retaining strap
9.
Location for torch
(see details on following page)
Page 123 of 356
6
121
FITTINGS
Load space screen
To install the load space screen:
)
position one of the ends of the roller
in its support,
)
insert the second end in its support;
the catch locks automatically,
)
unroll the load space screen to the
boot pillars,
)
insert the load space screen guides
in the rails on the boot pillars. To remove the load space screen:
)
remove the load space screen
guides from the rails on the boot
pillars,
)
roll up the load space screen in its
roller,
)
pull and support the catch at one of
the ends of the roller to release it,
)
remove the roller from its support
from the released end, then from the
second.
To store the load space screen, place it
at the boot sill, roller uppermost and fl ap
facing inwards.
Page 124 of 356
6
i
122
FITTINGS
High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row.
12 V accessory socket
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on
position.
To use the net in the 2nd row (additional
seats folded or removed):
)
roll up or remove the load space
screen,
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,
)
attach the snap hook of each of the
net's straps in the corresponding
ring 2
, located on the lower fi xing of
the rear side seat belt,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
Hooks
The hooks can be used to hold shop-
ping bags.
Page 125 of 356
6
!i
123
FITTINGS

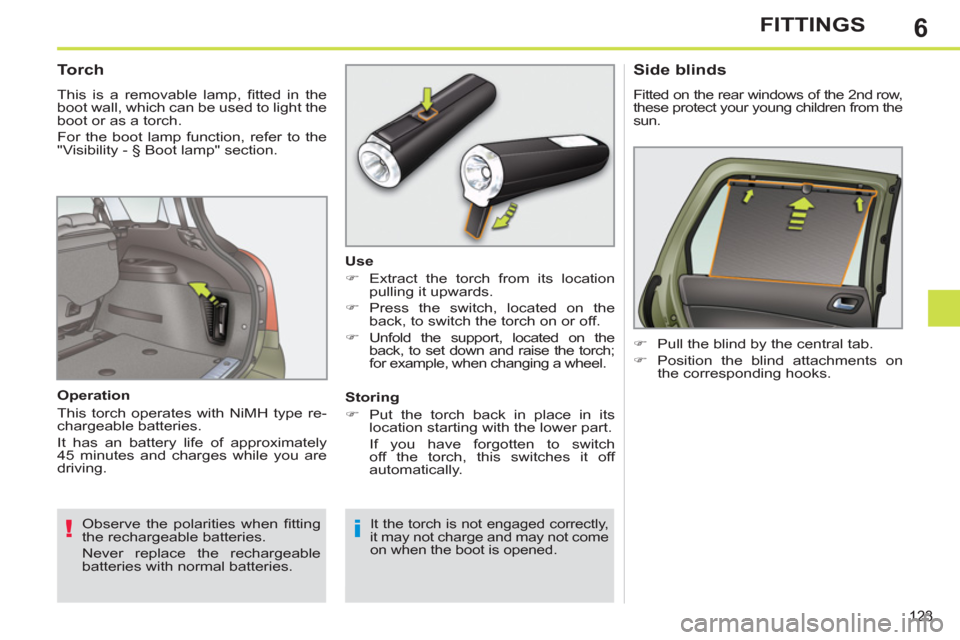

Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has an battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling it upwards.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the torch;
for example, when changing a wheel.
Storing
)
Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch
off the torch, this switches it off
automatically.
Side blinds
Fitted on the rear windows of the 2nd row,
these protect your young children from the
sun.
)
Pull the blind by the central tab.
)
Position the blind attachments on
the corresponding hooks.
Observe the polarities when fi tting
the rechargeable batteries.
Never replace the rechargeable
batteries with normal batteries.
It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.
Page 126 of 356
7
i
124
CHILD SAFETY
PEUGEOT recommends
that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing"
up to the
age of 2,
- "forwards-facing"
over the age
of 2.

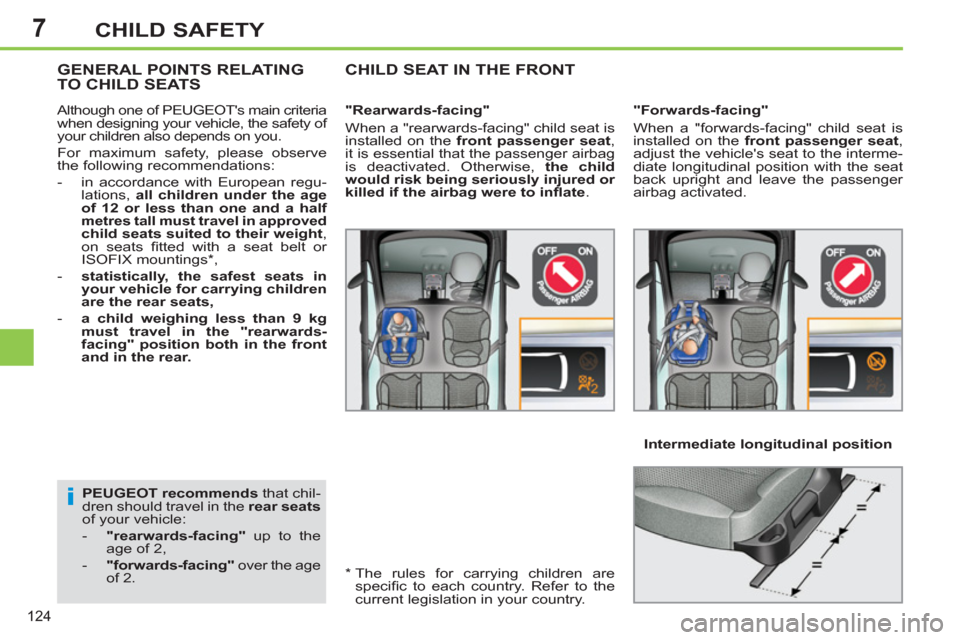

GENERAL POINTS RELATING
TO CHILD SEATS CHILD SEAT IN THE FRONT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please observe
the following recommendations:
- in accordance with European regu-
lations, all children under the age
of 12 or less than one and a half
metres tall must travel in approved child seats suited to their weight
,
on seats fi tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
Intermediate longitudinal position
Page 127 of 356
7
!
125
CHILD SAFETY

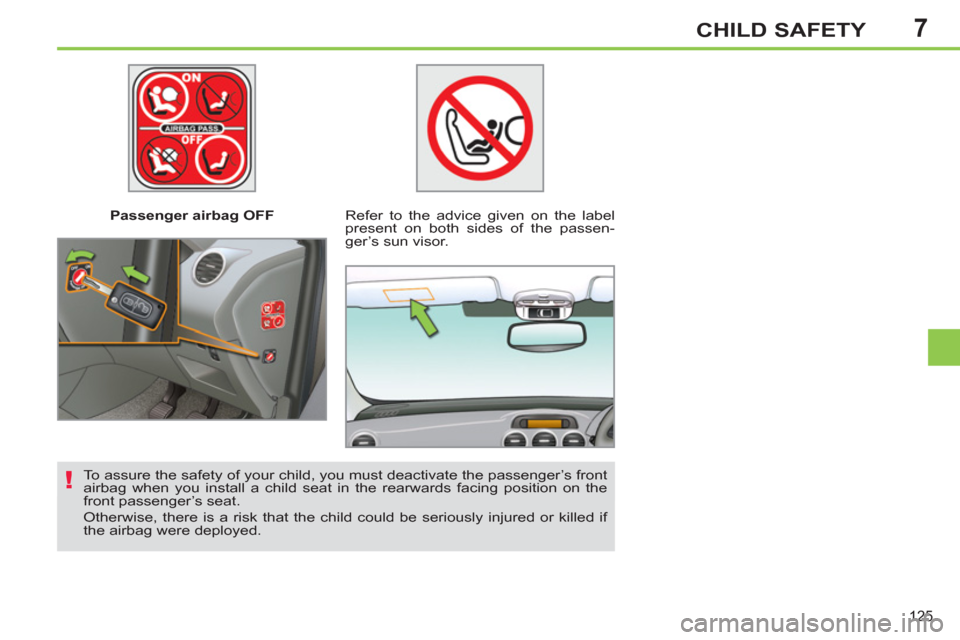

Passenger airbag OFF
Refer to the advice given on the label
present on both sides of the passen-
ger’s sun visor.
To assure the safety of your child, you must deactivate the passenger’s front
airbag when you install a child seat in the rearwards facing position on the
front passenger’s seat.
Otherwise, there is a risk that the child could be seriously injured or killed if
the airbag were deployed.
Page 128 of 356
7
126
CHILD SAFETY
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg),
the booster is used
on its own.
L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

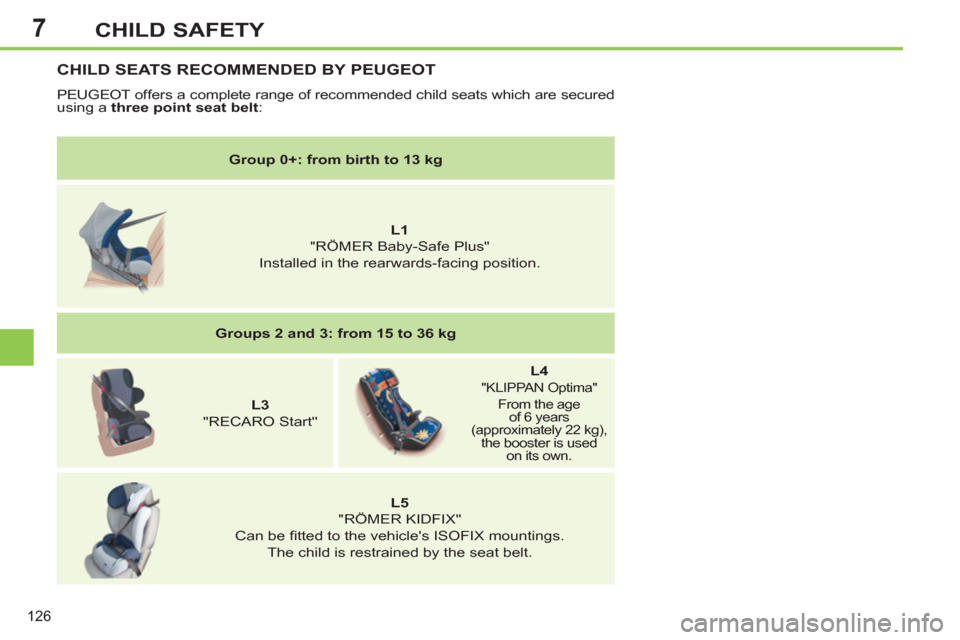

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt
:
Page 129 of 356
7
127
CHILD SAFETY

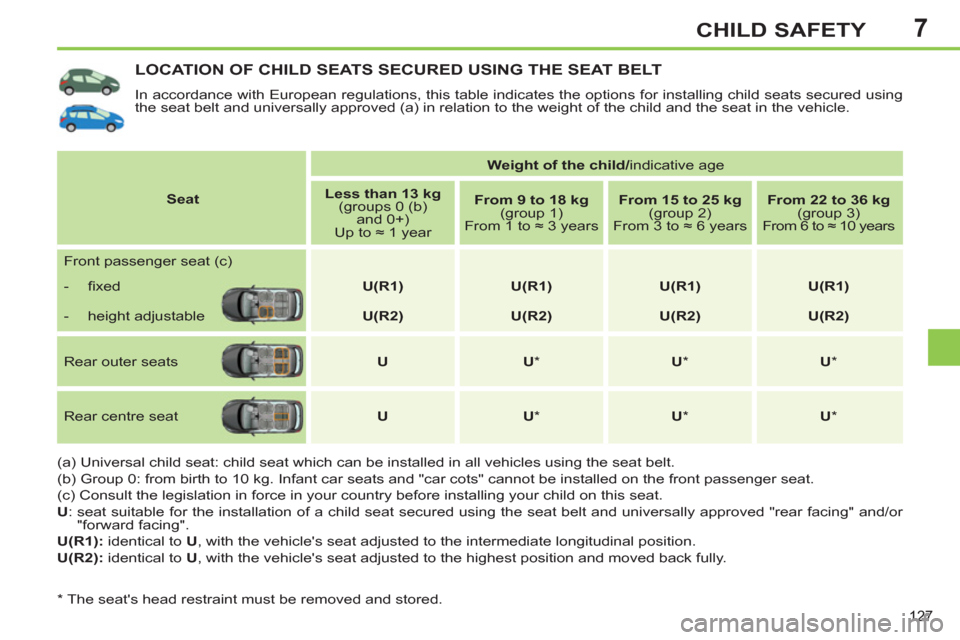

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".
U(R1)
: identical to U
, with the vehicle's seat adjusted to the intermediate longitudinal position.
U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position and moved back fully.
*
The seat's head restraint must be removed and stored.
Seat
Weight of the child/
indicative age
Less than 13 kg
(groups 0 (b)
and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat (c)
- fi xed
U(R1)
U(R1)
U(R1)
U(R1)
- height adjustable
U(R2)
U(R2)
U(R2)
U(R2)
Rear outer seats
U
U
*
U
*
U
*
Rear centre seat
U
U
*
U
*
U
*

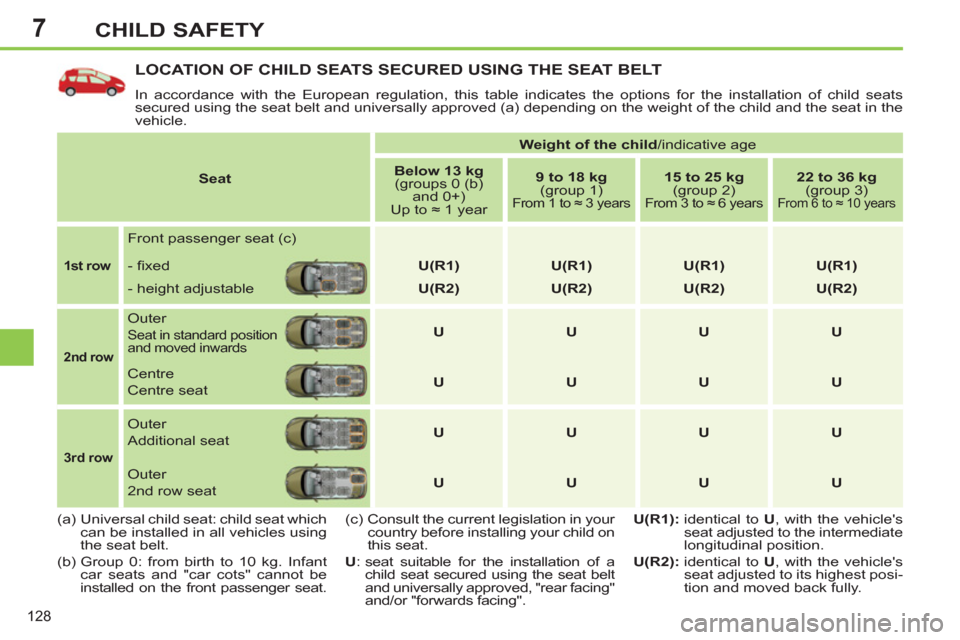

Page 130 of 356
7
128
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation, this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) depending on the weight of the child and the seat in the
vehicle.
(a) Universal child seat: child seat which
can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg. Infant
car seats and "car cots" cannot be
installed on the front passenger seat.
Seat
Weight of the child
/indicative age
Below 13 kg
(groups 0 (b)
and 0+)
Up to ≈ 1 year
9 to 18 kg
(group 1)
From 1 to ≈ 3 years
15 to 25 kg
(group 2) From 3 to ≈ 6 years
22 to 36 kg
(group 3)
From 6 to ≈ 10 years
1st row
Front passenger seat (c)
- fi xed
U(R1)
U(R1)
U(R1)
U(R1)
- height adjustable
U(R2)
U(R2)
U(R2)
U(R2)
2nd row
Outer
Seat in standard position
and moved inwards
U
U
U
U
Centre
Centre seat
U
U
U
U
3rd row
Outer
Additional seat
U
U
U
U
Outer
2nd row seat
U
U
U
U
(c) Consult the current legislation in your
country before installing your child on
this seat.
U
: seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear facing"
and/or "forwards facing".
U(R1) : identical to U
, with the vehicle's
seat adjusted to the intermediate
longitudinal position.
U(R2)
: identical to U
, with the vehicle's
seat adjusted to its highest posi-
tion and moved back fully.
