FAMILIARISATION

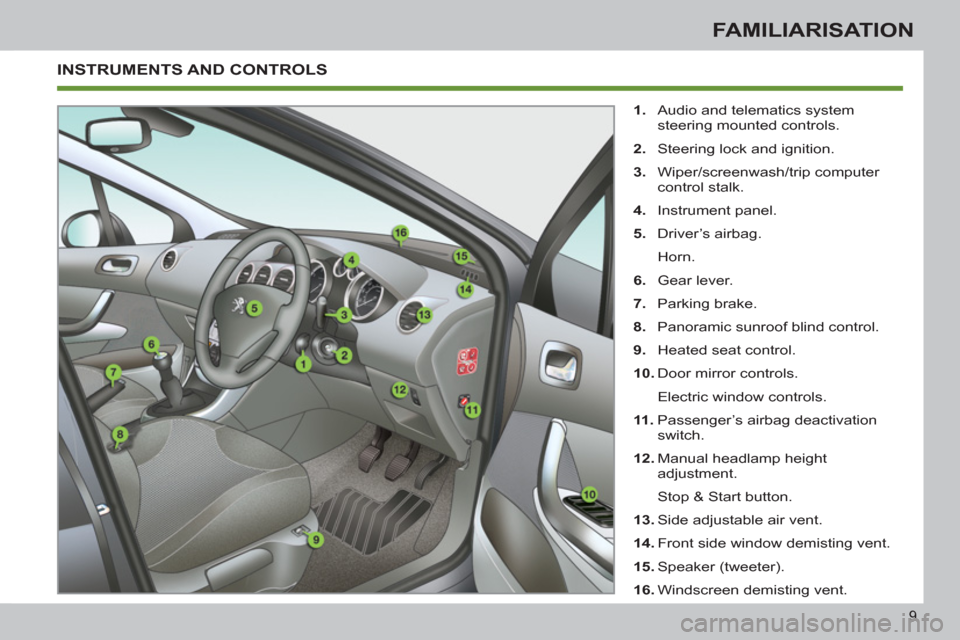

INSTRUMENTS AND CONTROLS



1.
Audio and telematics system
steering mounted controls.

2.
Steering lock and ignition.

3.
Wiper/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Passenger’s airbag deactivation
switch.

12.
Manual headlamp height
adjustment.
Stop & Start button.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

10
FAMILIARISATION

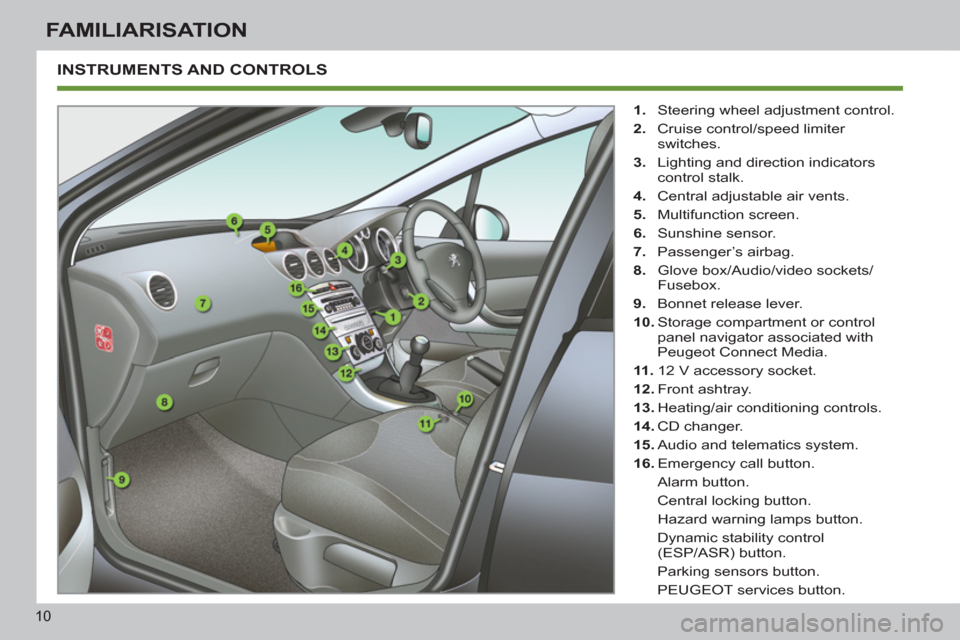

INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicators
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Glove box/Audio/video sockets/
Fusebox.

9.
Bonnet release lever.

10.
Storage compartment or control
panel navigator associated with
Peugeot Connect Media.

11 .
12 V accessory socket.

12.
Front ashtray.

13.
Heating/air conditioning controls.

14.
CD changer.

15.
Audio and telematics system.

16.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.

11
FAMILIARISATION

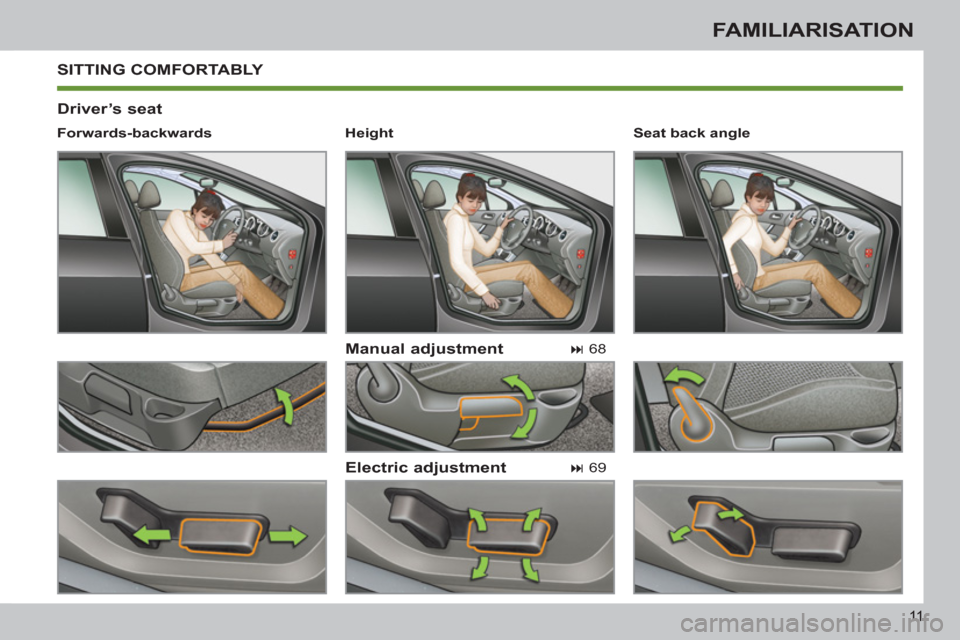

SITTING COMFORTABLY


Driver’s seat

Manual adjustment

Electric adjustment


Forwards-backwards



68




69

Seat back angle


Height

i
!
12
FAMILIARISATION

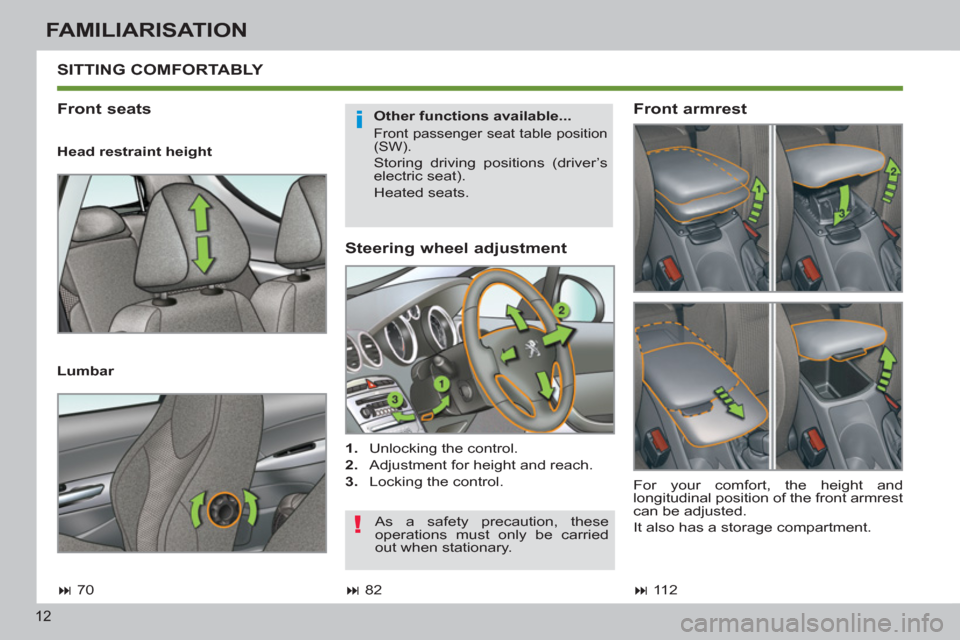

Steering wheel adjustment



1.
Unlocking the control.

2.
Adjustment for height and reach.

3.
Locking the control.

SITTING COMFORTABLY


Front seats

Other functions available...

Front passenger seat table position
(SW).
Storing driving positions (driver’s
electric seat).
Heated seats.

Head restraint height

Lumbar


Front armrest




70




11 2




82
For your comfort, the height and
longitudinal position of the front armrest
can be adjusted.
It also has a storage compartment. As a safety precaution, these
operations must only be carried
out when stationary.

i
13
FAMILIARISATION
SITTING COMFORTABLY


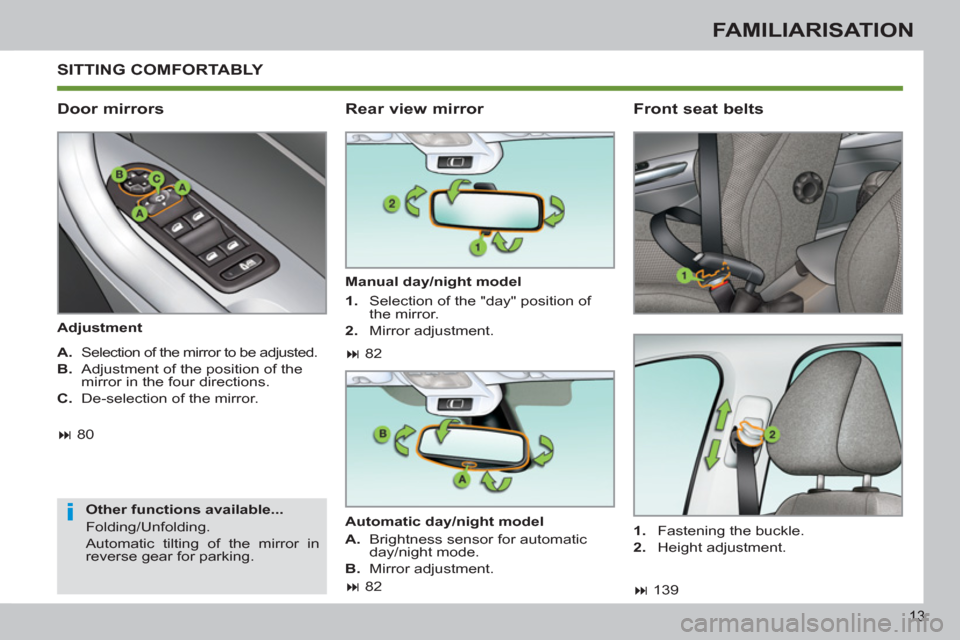

Door mirrors


Adjustment

Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.



Rear view mirror


Manual day/night model


Front seat belts



1.
Fastening the buckle.

2.
Height adjustment.

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.

C.
De-selection of the mirror.


82



139



80

1.
Selection of the "day" position of
the mirror.

2.
Mirror adjustment.

Automatic day/night model


A.
Brightness sensor for automatic
day/night mode.

B.
Mirror adjustment.



82

14
FAMILIARISATION

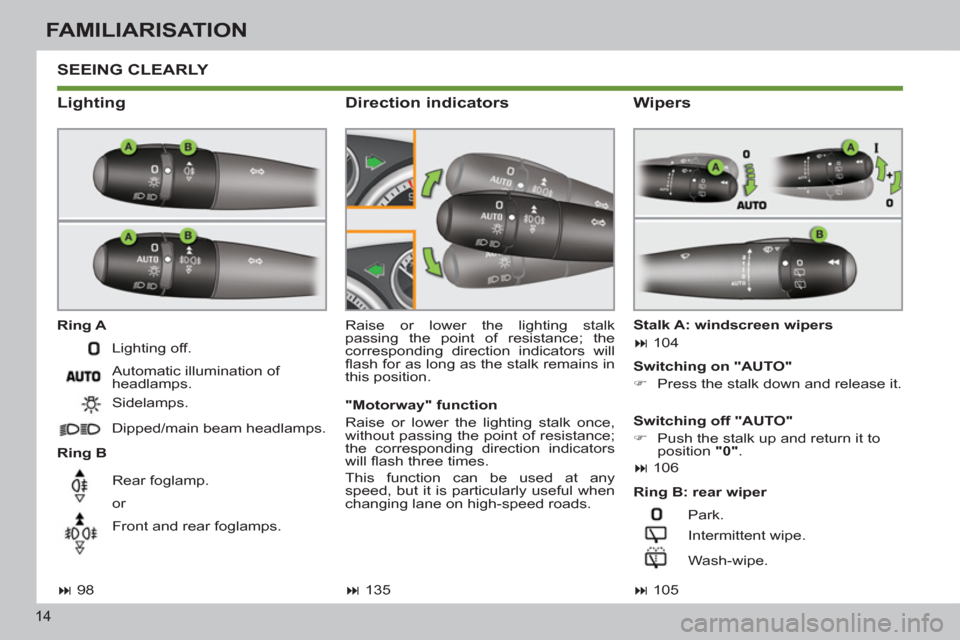

SEEING CLEARLY


Lighting


Ring A

Ring B Raise or lower the lighting stalk
passing the point of resistance; the
corresponding direction indicators will
fl ash for as long as the stalk remains in
this position.

Direction indicators


Switching on "AUTO"


)
Press the stalk down and release it.


Ring B: rear wiper



98





105

Lighting off.
Automatic illumination of
headlamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers



104



Wipers


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.



106




135


"Motorway" function
Raise or lower the lighting stalk once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any
speed, but it is particularly useful when
changing lane on high-speed roads.

–
15
FAMILIARISATION

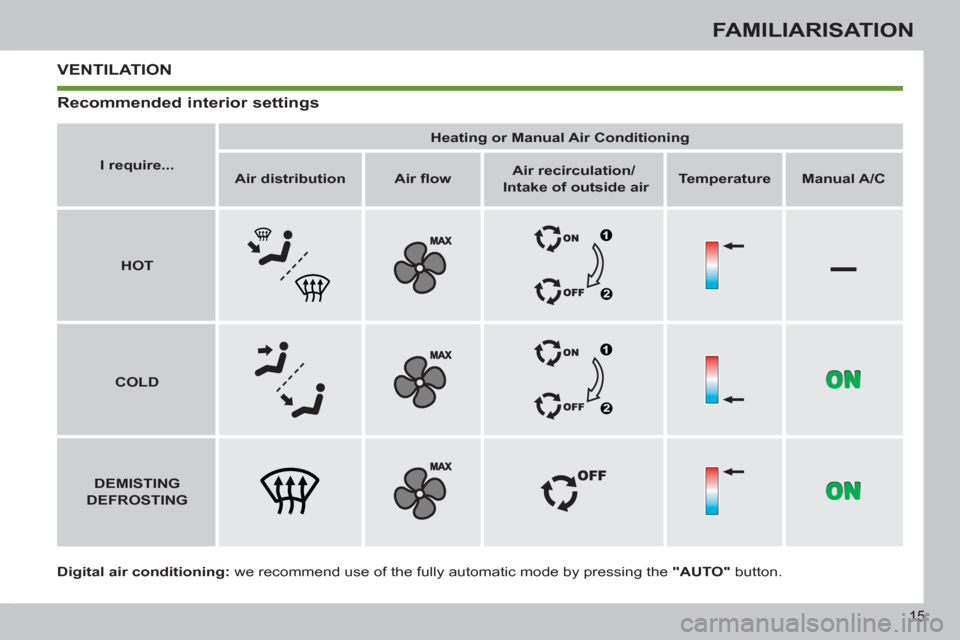

VENTILATION


Digital air conditioning:
we recommend use of the fully automatic mode by pressing the "AUTO"
button.

I require

...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING

DEFROSTING




Recommended interior settings

16
FAMILIARISATION

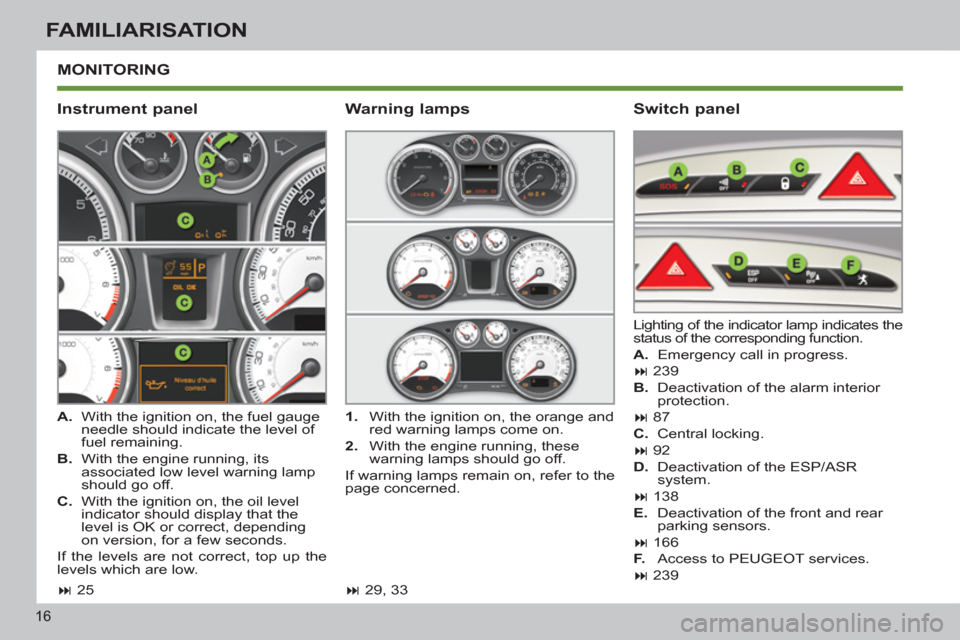

MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the fuel gauge
needle should indicate the level of
fuel remaining.

B.
With the engine running, its
associated low level warning lamp
should go off.

C.
With the ignition on, the oil level
indicator should display that the
level is OK or correct, depending
on version, for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Emergency call in progress.

239

B.
Deactivation of the alarm interior
protection.

87

C.
Central locking.


92

D.
Deactivation of the ESP/ASR
system.

138

E.
Deactivation of the front and rear
parking sensors.

166

F.
Access to PEUGEOT services.

239



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




25



29, 33

17
FAMILIARISATION

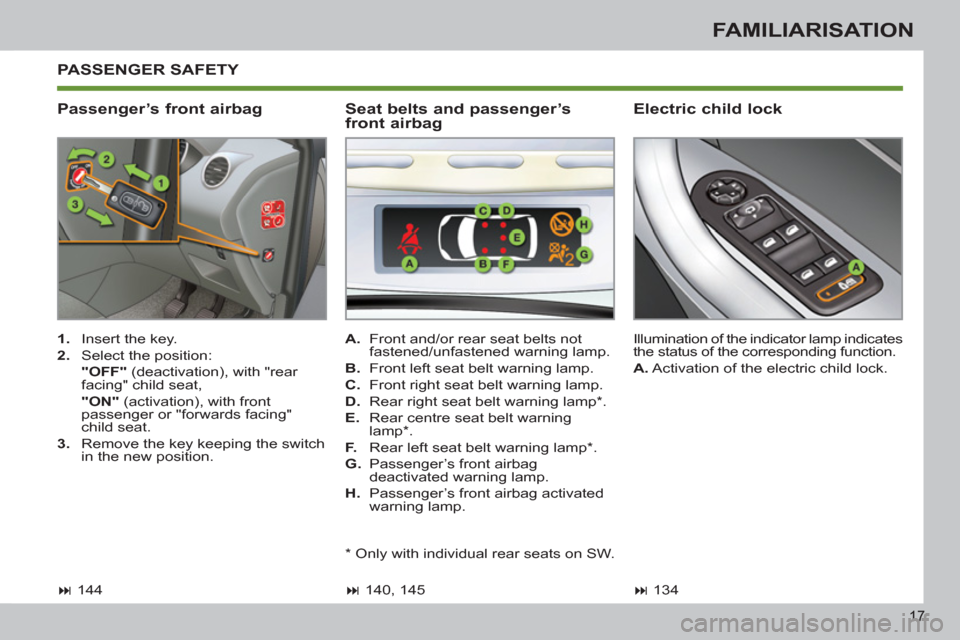

PASSENGER SAFETY


Electric child lock

Illumination of the indicator lamp indicates
the status of the corresponding function.

A.
Activation of the electric child lock.



134

* Only with individual rear seats on SW.


Passenger’s front airbag



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear
facing" child seat,
"ON"
(activation), with front
passenger or "forwards facing"
child seat.

3.
Remove the key keeping the switch
in the new position.

A.
Front and/or rear seat belts not
fastened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp * .

E.
Rear centre seat belt warning
lamp * .

F.
Rear left seat belt warning lamp * .

G.
Passenger’s front airbag
deactivated warning lamp.

H.
Passenger’s front airbag activated
warning lamp.


Seat belts and passenger’s
front airbag



140, 145




144

18
FAMILIARISATION
PASSENGER COMFORT


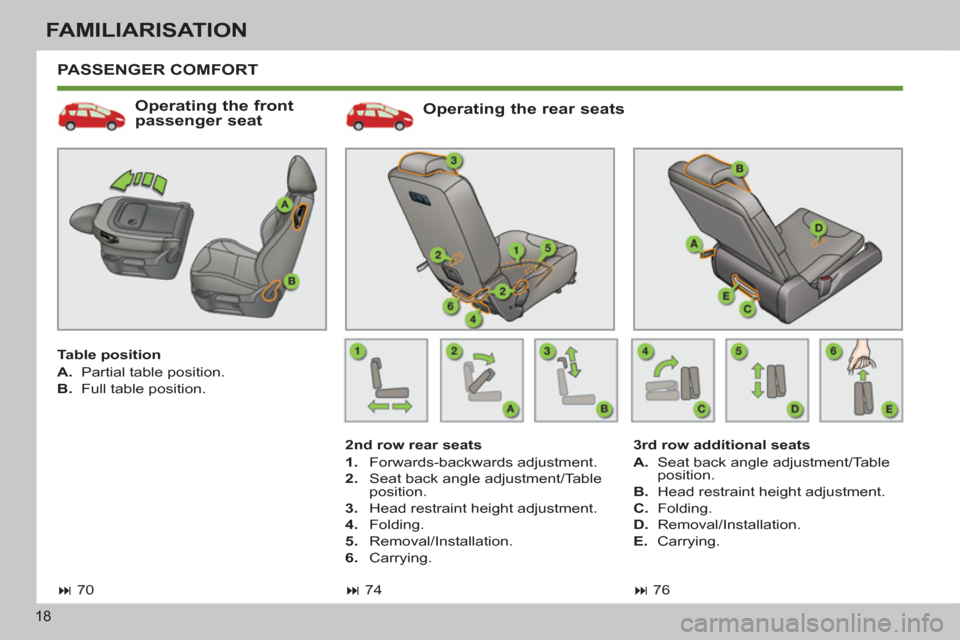

Operating the rear seats


2nd row rear seats


1.
Forwards-backwards adjustment.

2.
Seat back angle adjustment/Table
position.

3.
Head restraint height adjustment.

4.
Folding.

5.
Removal/Installation.

6.
Carrying.



74

3rd row additional seats


A.
Seat back angle adjustment/Table
position.

B.
Head restraint height adjustment.

C.
Folding.

D.
Removal/Installation.

E.
Carrying.



76




Operating the front
passenger seat

Table position


A.
Partial table position.

B.
Full table position.



70
