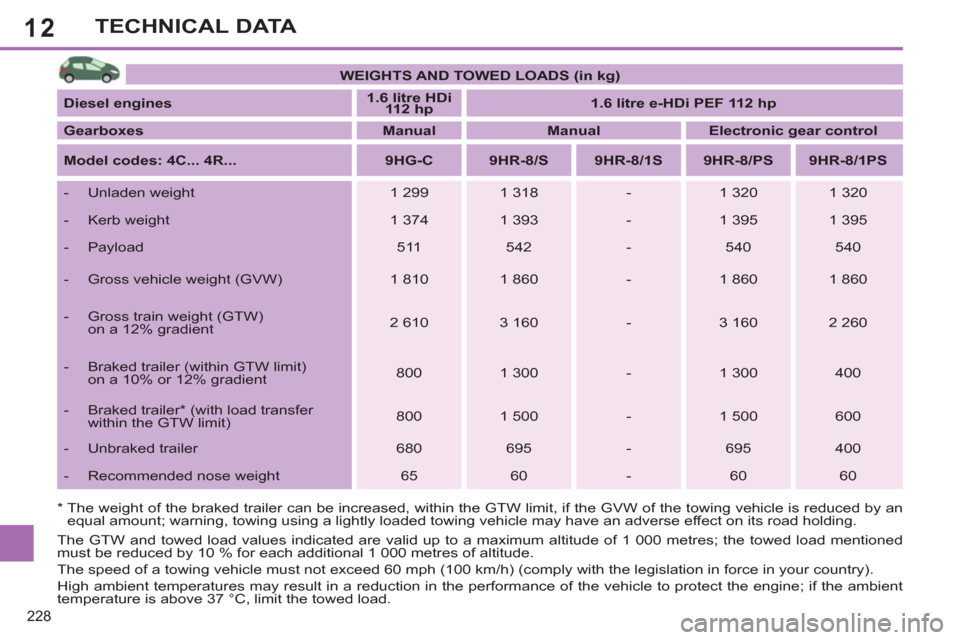

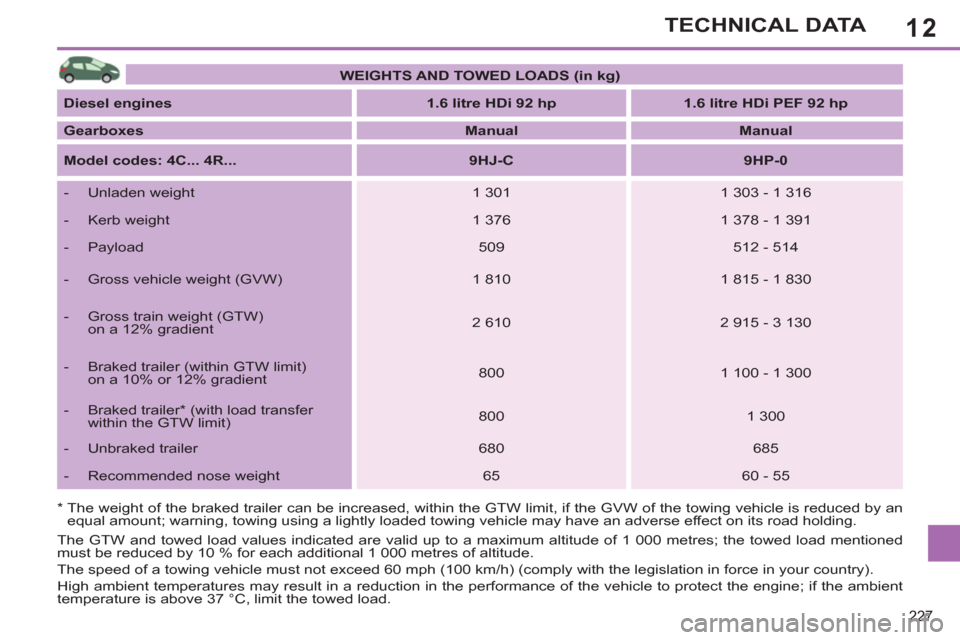

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP
150 hp
1.6 litre THP 156 hp
1.6 litre THP
163 hp
1.6 litre THP Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
219
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP
150 hp
1.6 litre THP 156 hp
1.6 litre THP
163 hp
1.6 litre THP](/img/29/12631/w960_12631-220.png)
12
219
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP
150 hp
1.6 litre THP 156 hp
1.6 litre THP
163 hp
1.6 litre THP
200 hp
Gearboxes
Automatic
Manual
Automatic
Automatic
Manual
Model codes:
4C...
5FE-J
5FV-8
5FV-A
5FM-J
5FU-8
- Unladen weight
1 358
1 315
1 368
1 358
1 399
- Kerb weight
1 433
1 390
1 443
1 433
1 474
- Payload
502
525
502
502
451
- Gross vehicle weight (GVW)
1 860
1 840
1 870
1 860
1 850
- Gross train weight (GTW)
on a 12% gradient
2 660
3 390
3 470
2 660
1 850
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 550
1 600
800
X
- Braked trailer * (with load transfer
within the GTW limit)
800
1 650
1 650
800
X
- Unbraked trailer
710
695
720
710
X
- Recommended nose weight
65
70
70
65
X
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 222 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
220
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres o Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
220
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres o](/img/29/12631/w960_12631-221.png)
12
220
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre VTi
98 hp
1.6 litre 16V
110 hp
1.6 litre VTi 120 hp
Gearboxes
Manual
Manual
Manual
Automatic
Model codes: 4E...
8FR-0
N6A-C
N6A-5
-
5FS-0
-
5FS-9
- Unladen weight
1 320
1 374
-
1 320
-
1 356
- Kerb weight
1 395
1 449
-
1 395
-
1 431
- Payload
600
576
-
602
-
592
- Gross vehicle weight (GVW)
1 920
1 950
-
1 922
-
1 948
- Gross train weight (GTW)
on a 12% gradient
3 020
3 150
-
3 272
-
3 298
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 100
1 200
-
1 350
-
1 350
- Braked trailer * (with load transfer
within the GTW limit)
1 100
1 400
-
1 500
-
1 500
- Unbraked trailer
695
720
-
695
-
715
- Recommended nose weight
60
75
-
65
-
60
Page 223 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
221
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres o Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
221
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres o](/img/29/12631/w960_12631-222.png)
12
221
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

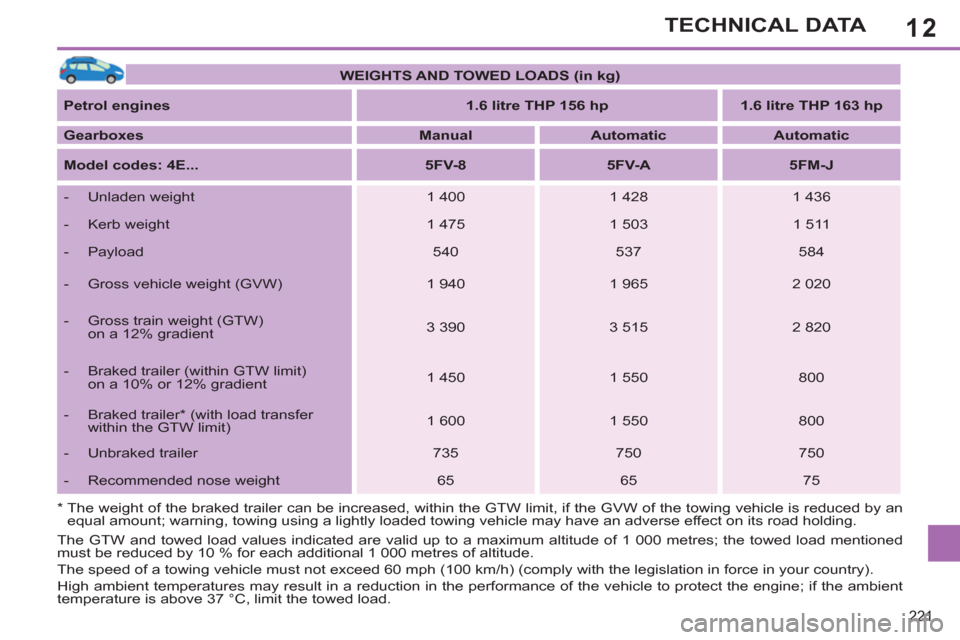

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 156 hp
1.6 litre THP 163 hp
Gearboxes
Manual
Automatic
Automatic
Model codes: 4E...
5FV-8
5FV-A
5FM-J
- Unladen weight
1 400
1 428
1 436
- Kerb weight
1 475
1 503
1 511
- Payload
540
537
584
- Gross vehicle weight (GVW)
1 940
1 965
2 020
- Gross train weight (GTW)
on a 12% gradient
3 390
3 515
2 820
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 450
1 550
800
- Braked trailer * (with load transfer
within the GTW limit)
1 600
1 550
800
- Unbraked trailer
735
750
750
- Recommended nose weight
65
65
75
Page 224 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
222
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres o Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
222
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres o](/img/29/12631/w960_12631-223.png)
12
222
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

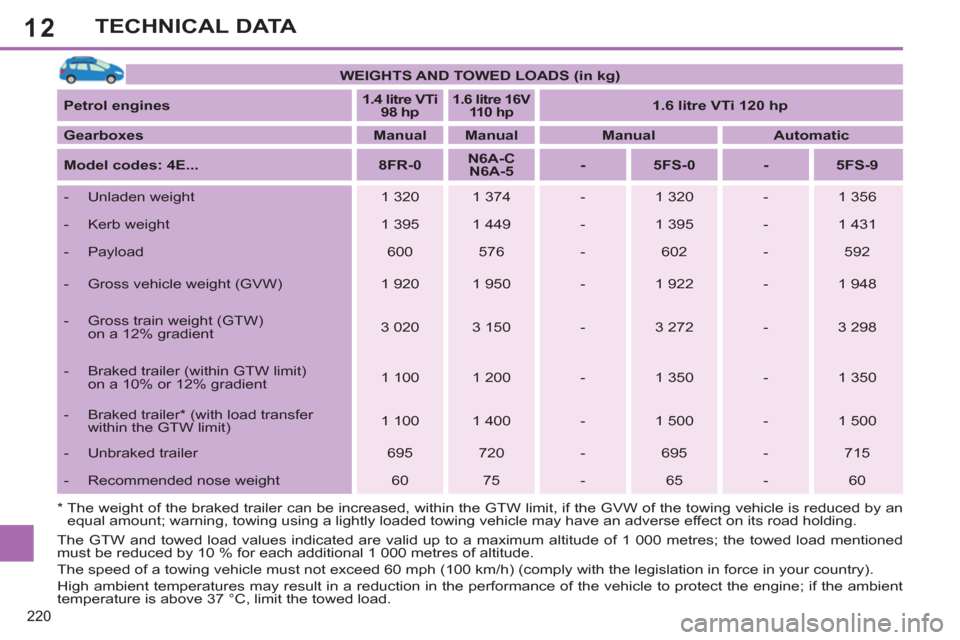

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre 16V
110 hp
1.6 litre VTi 120 hp
Gearboxes
Manual
Manual
Automatic
Model codes: 4H...
N6A-C
N6A-5
-
5FS-0
-
5FS-9
- Unladen weight
1 462
-
1 406
-
1 430
- Kerb weight
1 537
-
1 481
-
1 505
- Payload
648
-
694
-
700
- Gross vehicle weight (GVW)
2 110
-
2 100
-
2 130
- Gross train weight (GTW)
on a 12% gradient
3 110
-
3 300
-
3 080
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 000
-
1 200
-
950
- Braked trailer * (with load transfer
within the GTW limit)
1 350
-
1 400
-
1 100
- Unbraked trailer
750
-
740
-
750
- Recommended nose weight
75
-
60
-
55
Page 225 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
223
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly l Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
223
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly l](/img/29/12631/w960_12631-224.png)
12
223
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

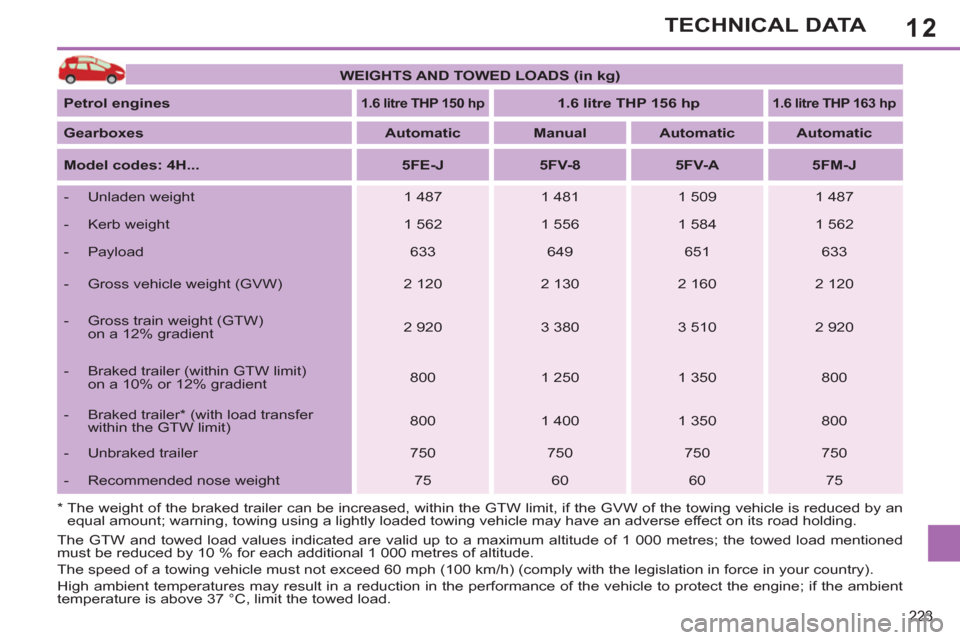

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 150 hp
1.6 litre THP 156 hp
1.6 litre THP 163 hp
Gearboxes
Automatic
Manual
Automatic
Automatic
Model codes: 4H...
5FE-J
5FV-8
5FV-A
5FM-J
- Unladen weight
1 487
1 481
1 509
1 487
- Kerb weight
1 562
1 556
1 584
1 562
- Payload
633
649
651
633
- Gross vehicle weight (GVW)
2 120
2 130
2 160
2 120
- Gross train weight (GTW)
on a 12% gradient
2 920
3 380
3 510
2 920
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 250
1 350
800
- Braked trailer * (with load transfer
within the GTW limit)
800
1 400
1 350
800
- Unbraked trailer
750
750
750
750
- Recommended nose weight
75
60
60
75
Page 226 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
224
TECHNICAL DATA
4C...:
5-door.
4R...:
5-door "Van".
4E...:
SW with bench rear seat.
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H... Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
224
TECHNICAL DATA
4C...:
5-door.
4R...:
5-door "Van".
4E...:
SW with bench rear seat.
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H...](/img/29/12631/w960_12631-225.png)
12
224
TECHNICAL DATA
4C...:
5-door.
4R...:
5-door "Van".
4E...:
SW with bench rear seat.
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H...

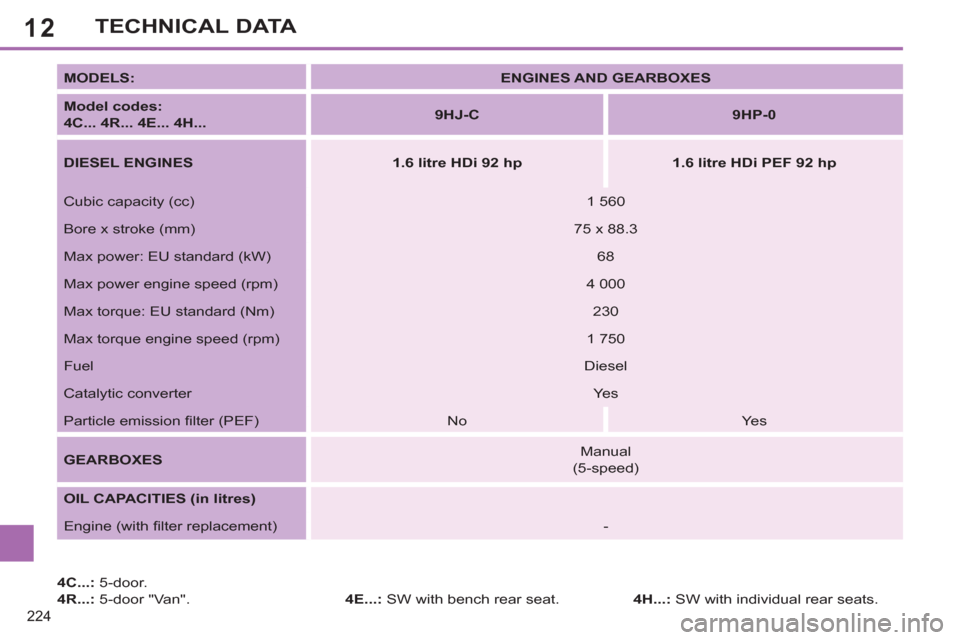

9HJ-C
9HP-0
DIESEL ENGINES
1.6 litre HDi 92 hp
1.6 litre HDi PEF 92 hp
Cubic capacity (cc)
1 560
Bore x stroke (mm)
75 x 88.3
Max power: EU standard (kW)
68
Max power engine speed (rpm)
4 000
Max torque: EU standard (Nm)
230
Max torque engine speed (rpm)
1 750
Fuel
Diesel
Catalytic converter
Yes
Particle emission fi lter (PEF)
No
Yes
GEARBOXES
Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
-
4H...:
SW with individual rear seats.
Page 227 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
225
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H...
9HG-C
9HR-8/S
9HR-8/1S
9HR-8/PS
9HR-8/1P
S Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
225
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H...
9HG-C
9HR-8/S
9HR-8/1S
9HR-8/PS
9HR-8/1P
S](/img/29/12631/w960_12631-226.png)
12
225
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H...
9HG-C
9HR-8/S
9HR-8/1S
9HR-8/PS
9HR-8/1P
S

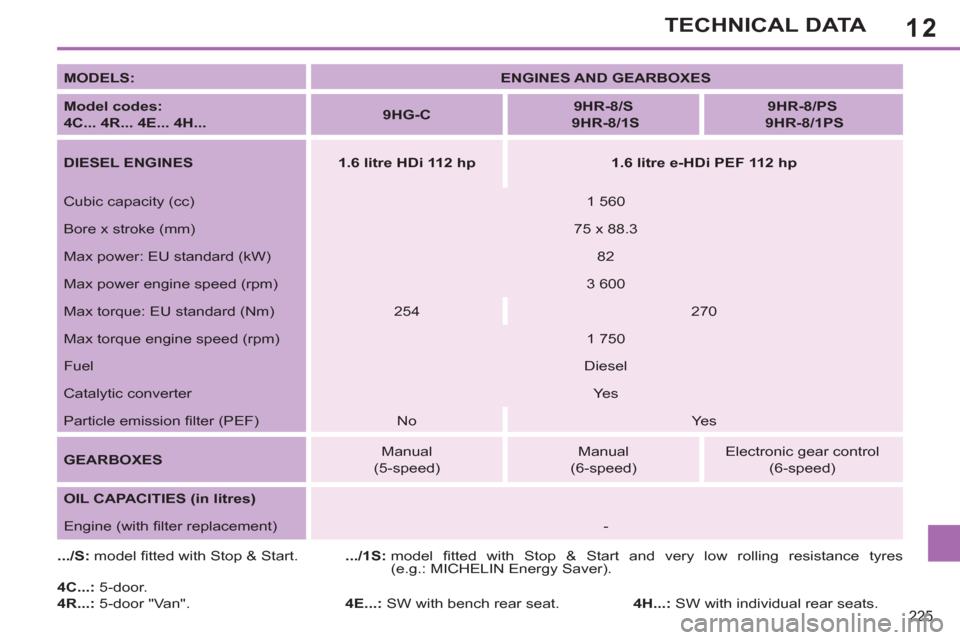

DIESEL ENGINES
1.6 litre HDi 112 hp
1.6 litre e-HDi PEF 112 hp
Cubic capacity (cc)
1 560
Bore x stroke (mm)
75 x 88.3
Max power: EU standard (kW)
82
Max power engine speed (rpm)
3 600
Max torque: EU standard (Nm)
254
270
Max torque engine speed (rpm)
1 750
Fuel
Diesel
Catalytic converter
Yes
Particle emission fi lter (PEF)
No
Yes
GEARBOXES
Manual
(5-speed)
Manual
(6-speed)
Electronic gear control
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
-
4C...:
5-door.
4R...:
5-door "Van".
4E...:
SW with bench rear seat.
.../S:
model fi tted with Stop & Start.
4H...:
SW with individual rear seats.
.../1S:
model fi tted with Stop & Start and very low rolling resistance tyres
(e.g.: MICHELIN Energy Saver).
Page 228 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
226
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4E... 4H...
RHE-8
RHH-A
DIESEL ENGINES
2.0 litre HDi PEF 150 hp
2 Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
226
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4E... 4H...
RHE-8
RHH-A
DIESEL ENGINES
2.0 litre HDi PEF 150 hp
2](/img/29/12631/w960_12631-227.png)
12
226
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4E... 4H...
RHE-8
RHH-A
DIESEL ENGINES
2.0 litre HDi PEF 150 hp
2.0 litre HDi PEF 163 hp
Cubic capacity (cc)
1 997
1 997
Bore x stroke (mm)
85 x 88
85 x 88
Max power: EU standard (kW)
110
120
Max power engine speed (rpm)
3 750
3 750
Max torque: EU standard (Nm)
340
340
Max torque engine speed (rpm)
2 000
2 000
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter (PEF)
Yes
Yes
GEARBOXES
Manual
(6-speed)
Automatic
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
5.25
-
4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.
Page 229 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
227
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightl Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
227
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightl](/img/29/12631/w960_12631-228.png)
12
227
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre HDi 92 hp
1.6 litre HDi PEF 92 hp
Gearboxes
Manual
Manual
Model codes:
4C... 4R...
9HJ-C
9HP-0
- Unladen weight
1 301
1 303 - 1 316
- Kerb weight
1 376
1 378 - 1 391
- Payload
509
512 - 514
- Gross vehicle weight (GVW)
1 810
1 815 - 1 830
- Gross train weight (GTW)
on a 12% gradient
2 610
2 915 - 3 130
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 100 - 1 300
- Braked trailer * (with load transfer
within the GTW limit)
800
1 300
- Unbraked trailer
680
685
- Recommended nose weight
65
60 - 55
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 230 of 356
![Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
228
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly l Peugeot 308 SW BL 2011 Owners Manual - RHD (UK, Australia) 12
228
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly l](/img/29/12631/w960_12631-229.png)
12
228
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre HDi
112 hp
1.6 litre e-HDi PEF 112 hp
Gearboxes
Manual
Manual
Electronic gear control
Model codes:
4C... 4R...
9HG-C
9HR-8/S
9HR-8/1S
9HR-8/PS
9HR-8/1PS
- Unladen weight
1 299
1 318
-
1 320
1 320
- Kerb weight
1 374
1 393
-
1 395
1 395
- Payload
511
542
-
540
540
- Gross vehicle weight (GVW)
1 810
1 860
-
1 860
1 860
- Gross train weight (GTW)
on a 12% gradient
2 610
3 160
-
3 160
2 260
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 300
-
1 300
400
- Braked trailer * (with load transfer
within the GTW limit)
800
1 500
-
1 500
600
- Unbraked trailer
680
695
-
695
400
- Recommended nose weight
65
60
-
60
60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
