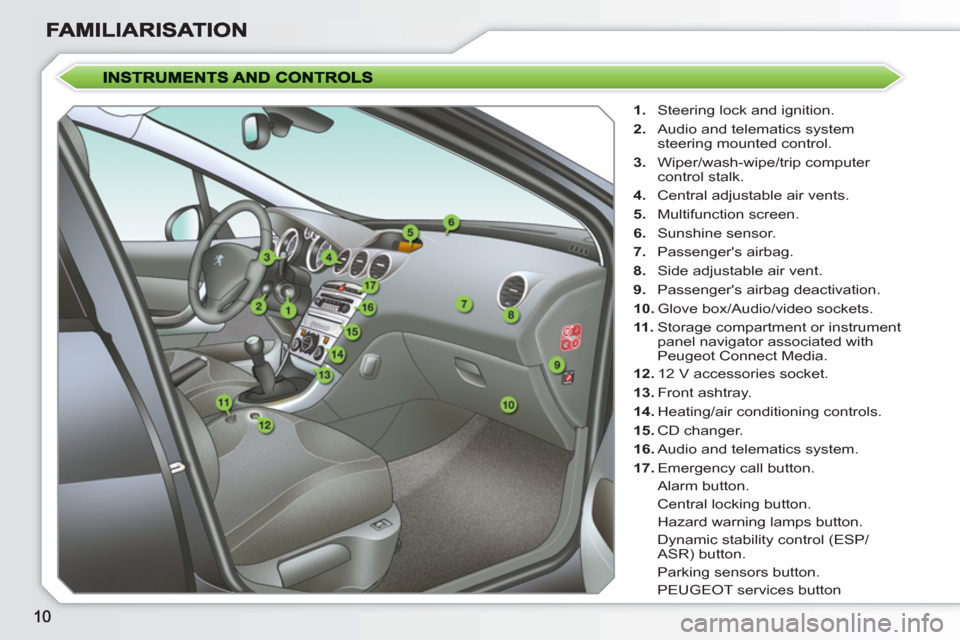

Peugeot 308 SW BL 2011 User Guide

1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Bonnet release.

11 .
Door mirror controls.
Electric window controls.

12.
Fusebox.

13.
Manual headlamp height
adjustment.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wiper/wash-wipe/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Passenger's airbag deactivation.

10.
Glove box/Audio/video sockets.

11 .
Storage compartment or instrument
panel navigator associated with
Peugeot Connect Media.

12.
12 V accessories socket.

13.
Front ashtray.

14.
Heating/air conditioning controls.

15.
CD changer.

16.
Audio and telematics system.

17.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESP/
ASR) button.
Parking sensors button.
PEUGEOT services button

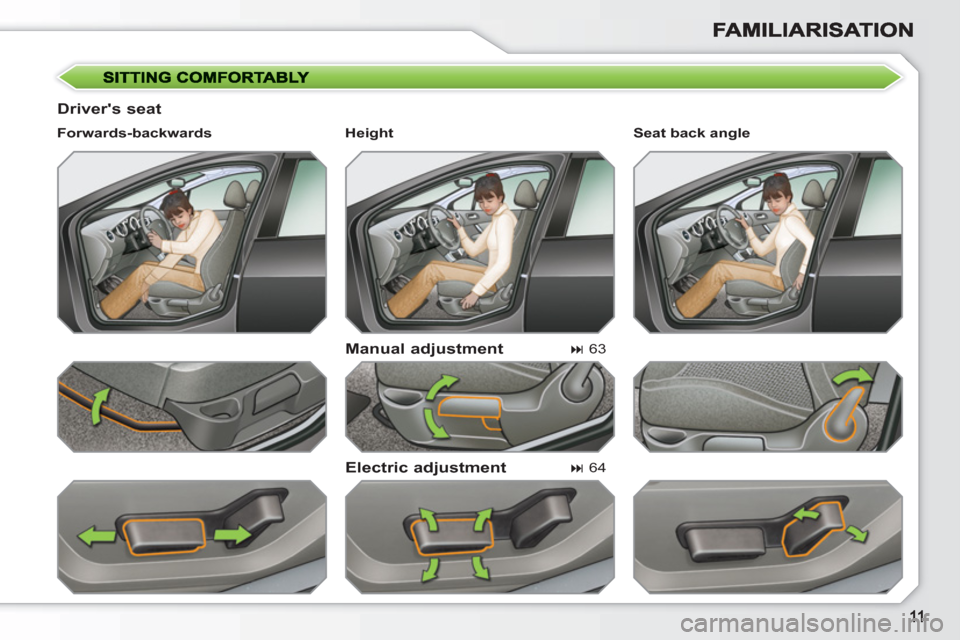

Driver's seat

Manual adjustment

Electric adjustment


Forwards-backwards



63




64
Seat back angle


Height

i
!

Steering wheel adjustment



1.
Unlocking the control.

2.
Adjustment for height and reach.

3.
Locking the control.

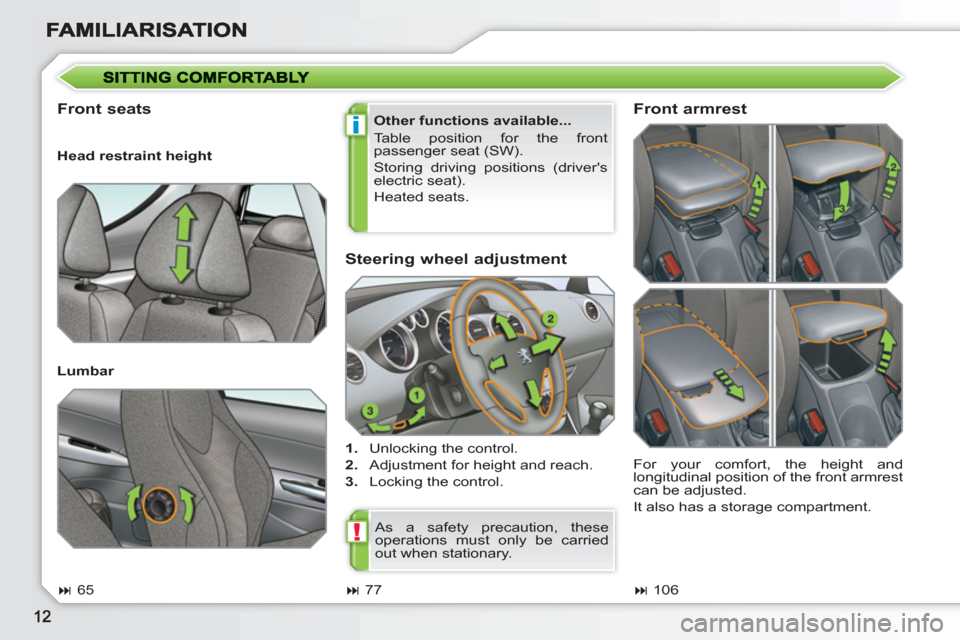

Front seats

Other functions available...
Table position for the front
passenger seat (SW).
Storing driving positions (driver's
electric seat).
Heated seats.

Head restraint height

Lumbar

Front armrest




65




106




77
For your comfort, the height and
longitudinal position of the front armrest
can be adjusted.
It also has a storage compartment.
As a safety precaution, these
operations must only be carried
out when stationary.

i

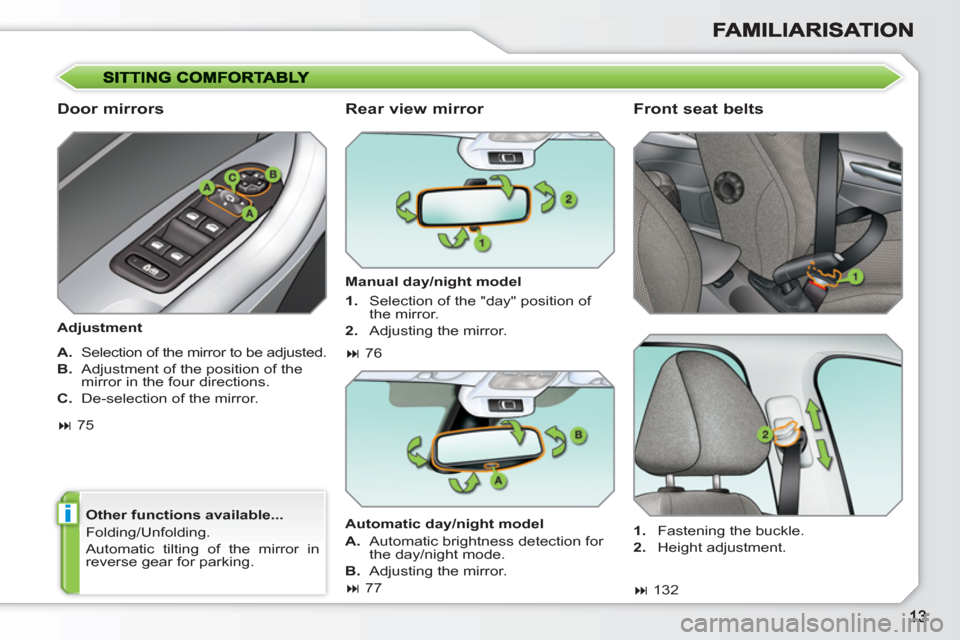

Door mirrors


Adjustment

Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.



Rear view mirror


Manual day/night model


Front seat belts



1.
Fastening the buckle.

2.
Height adjustment.
A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.

C.
De-selection of the mirror.


76



132



75

1.
Selection of the "day" position of
the mirror.

2.
Adjusting the mirror.

Automatic day/night model


A.
Automatic brightness detection for
the day/night mode.

B.
Adjusting the mirror.



77

Lighting


Ring A

Ring B Raise or lower the lighting stalk
passing the point of resistance; the
corresponding direction indicators will
fl ash for as long as the stalk remains in
this position.

Direction indicators


Switching on "AUTO"


)
Press the stalk down and release it.


Ring B: rear wiper



93





99

Lighting off.
Automatic illumination of headlamps.

Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers



98



Wipers


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.



100




128


"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any
speed, but it is particularly useful when
changing lane on high-speed roads.

–

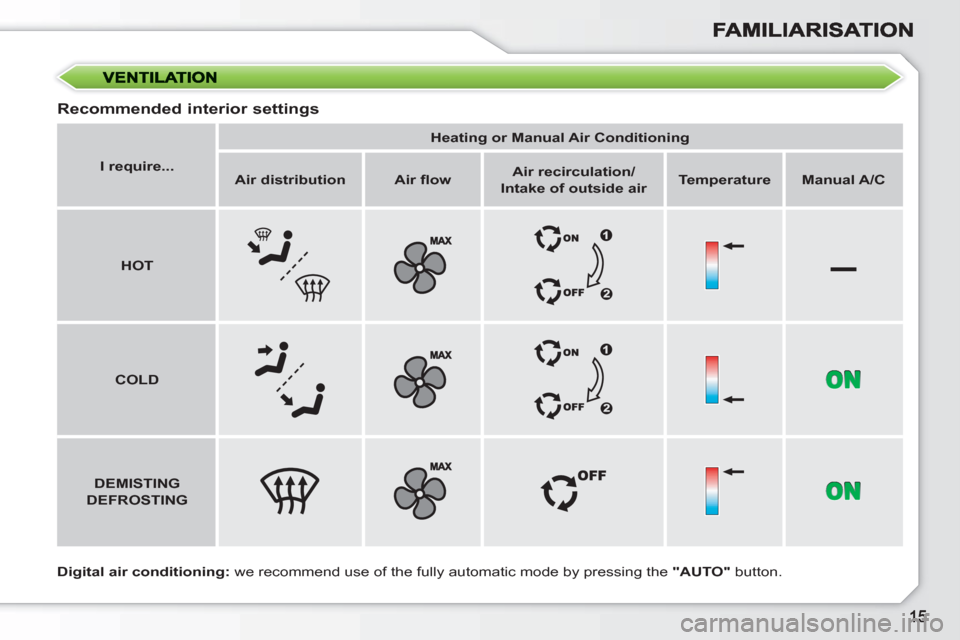

Recommended interior settings


Digital air conditioning:
we recommend use of the fully automatic mode by pressing the "AUTO"
button.

I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING


DEFROSTING

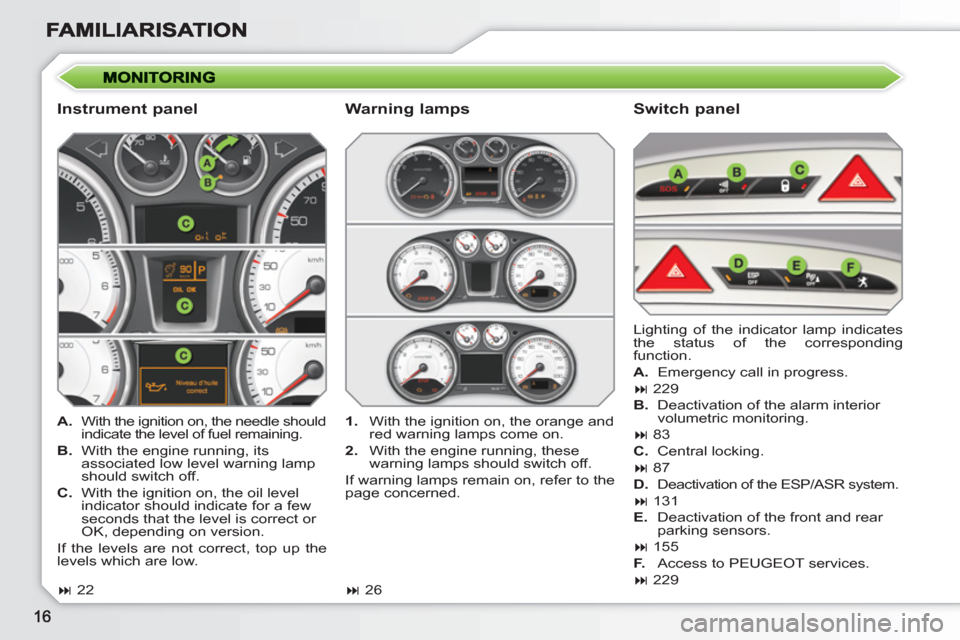

Instrument panel
Switch panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the engine running, its
associated low level warning lamp
should switch off.

C.
With the ignition on, the oil level
indicator should indicate for a few
seconds that the level is correct or
OK, depending on version.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding
function.


A.
Emergency call in progress.


229

B.
Deactivation of the alarm interior
volumetric monitoring.


83

C.
Central locking.


87

D.
Deactivation of the ESP/ASR system.


131

E.
Deactivation of the front and rear
parking sensors.


155

F.
Access to PEUGEOT services.


229



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should switch off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




22



26

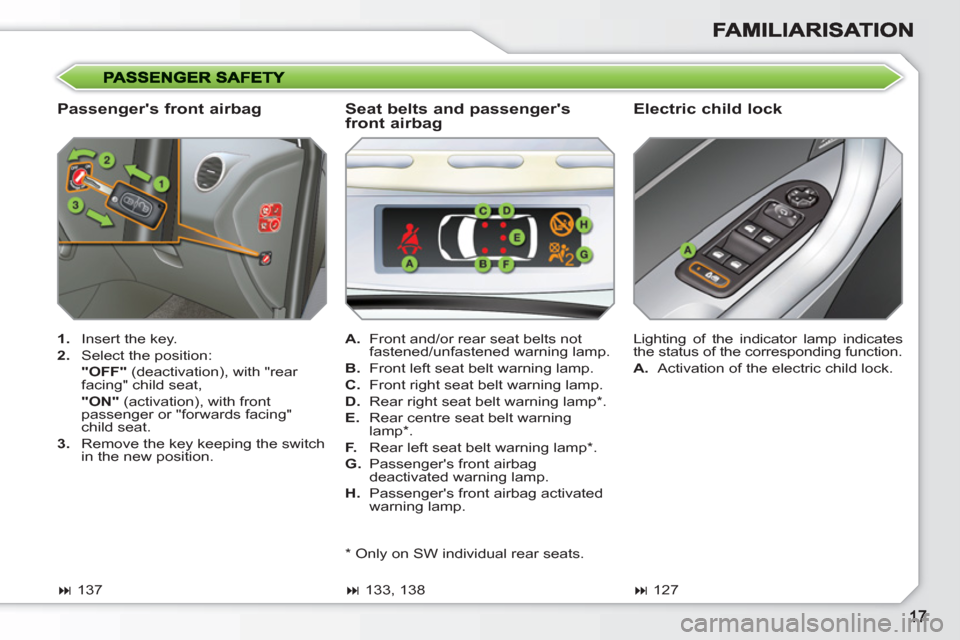

Passenger's front airbag
Electric child lock



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear
facing" child seat,
"ON"
(activation), with front
passenger or "forwards facing"
child seat.

3.
Remove the key keeping the switch
in the new position. Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Activation of the electric child lock.

A.
Front and/or rear seat belts not
fastened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp * .

E.
Rear centre seat belt warning
lamp * .

F.
Rear left seat belt warning lamp * .

G.
Passenger's front airbag
deactivated warning lamp.

H.
Passenger's front airbag activated
warning lamp.


Seat belts and passenger's
front airbag



133, 138




137




127

*
Only on SW individual rear seats.

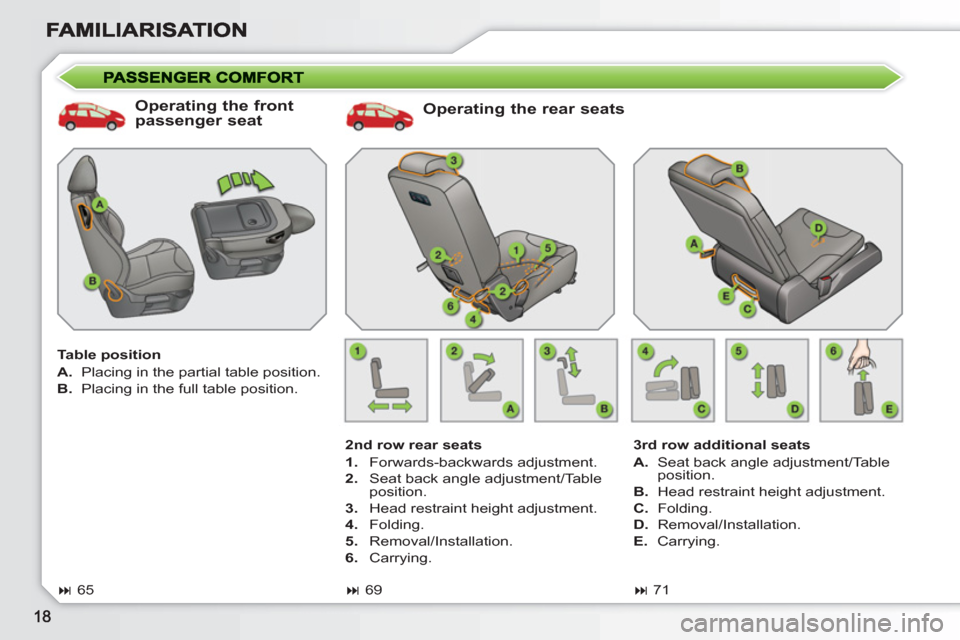

Operating the rear seats


2nd row rear seats


1.
Forwards-backwards adjustment.

2.
Seat back angle adjustment/Table
position.

3.
Head restraint height adjustment.

4.
Folding.

5.
Removal/Installation.

6.
Carrying.



69

3rd row additional seats


A.
Seat back angle adjustment/Table
position.

B.
Head restraint height adjustment.

C.
Folding.

D.
Removal/Installation.

E.
Carrying.



71




Operating the front
passenger seat

Table position


A.
Placing in the partial table position.

B.
Placing in the full table position.



65
