1
209
TECHNICAL DATA

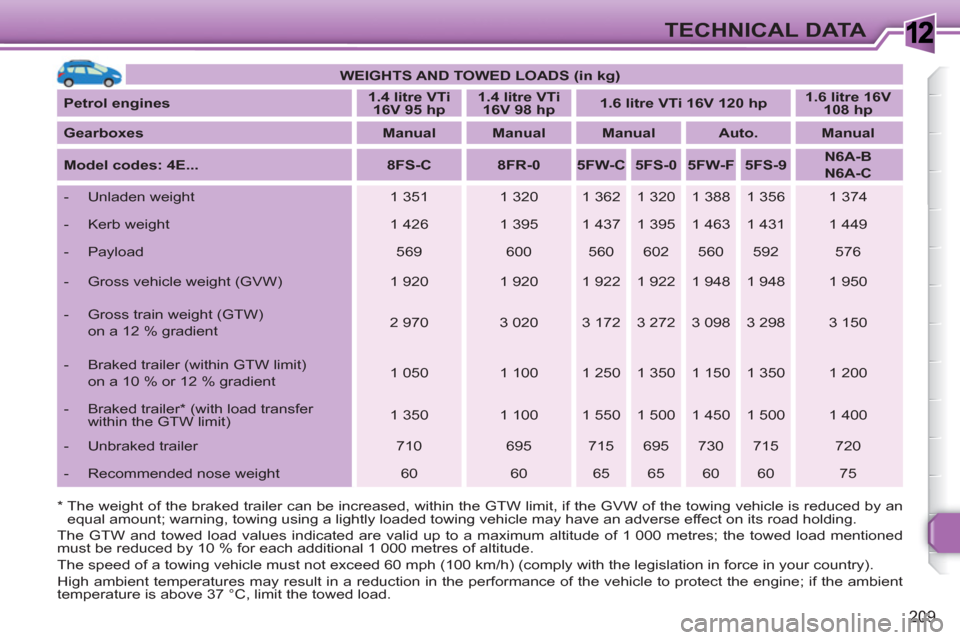

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre VTi
16V 95 hp
1.4 litre VTi
16V 98 hp
1.6 litre VTi 16V 120 hp
1.6 litre 16V
108 hp
Gearboxes
Manual
Manual
Manual
Auto.
Manual
Model codes: 4E...
8FS-C
8FR-0
5FW-C
5FS-0
5FW-F
5FS-9
N6A-B
N6A-C
- Unladen weight
1 351
1 320
1 362
1 320
1 388
1 356
1 374
- Kerb weight
1 426
1 395
1 437
1 395
1 463
1 431
1 449
- Payload
569
600
560
602
560
592
576
- Gross vehicle weight (GVW)
1 920
1 920
1 922
1 922
1 948
1 948
1 950
- Gross train weight (GTW)
on a 12 % gradient
2 970
3 020
3 172
3 272
3 098
3 298
3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 050
1 100
1 250
1 350
1 150
1 350
1 200
- Braked trailer * (with load transfer
within the GTW limit)
1 350
1 100
1 550
1 500
1 450
1 500
1 400
- Unbraked trailer
710
695
715
695
730
715
720
- Recommended nose weight
60
60
65
65
60
60
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 212 of 336
1TECHNICAL DATA

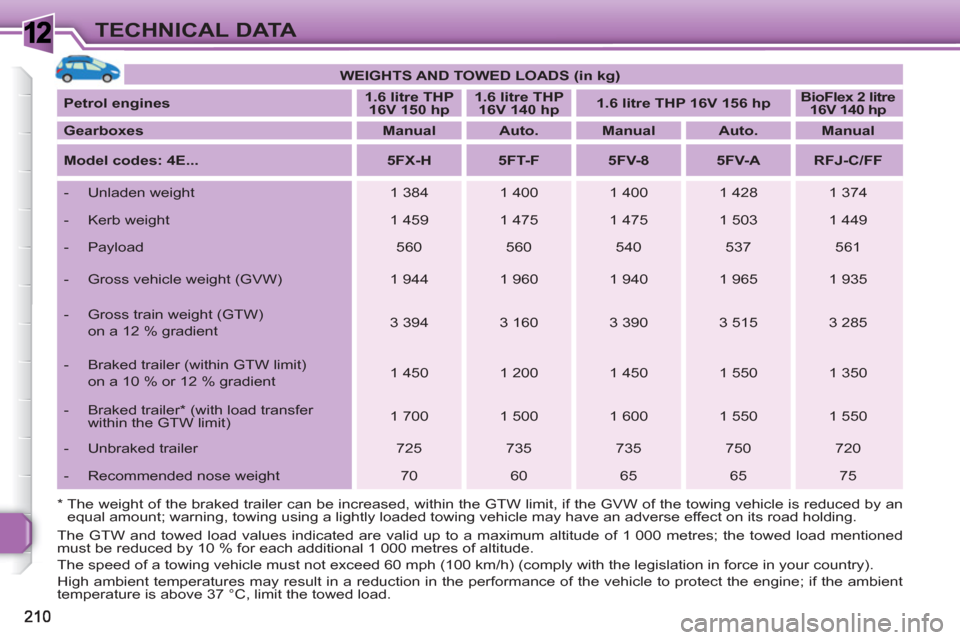

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP
16V 150 hp
1.6 litre THP
16V 140 hp
1.6 litre THP 16V 156 hp
BioFlex 2 litre
16V 140 hp
Gearboxes
Manual
Auto.
Manual
Auto.
Manual
Model codes: 4E...
5FX-H
5FT-F
5FV-8
5FV-A
RFJ-C/FF
- Unladen weight
1 384
1 400
1 400
1 428
1 374
- Kerb weight
1 459
1 475
1 475
1 503
1 449
- Payload
560
560
540
537
561
- Gross vehicle weight (GVW)
1 944
1 960
1 940
1 965
1 935
- Gross train weight (GTW)
on a 12 % gradient
3 394
3 160
3 390
3 515
3 285
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 450
1 200
1 450
1 550
1 350
- Braked trailer * (with load transfer
within the GTW limit)
1 700
1 500
1 600
1 550
1 550
- Unbraked trailer
725
735
735
750
720
- Recommended nose weight
70
60
65
65
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 213 of 336
1
211
TECHNICAL DATA

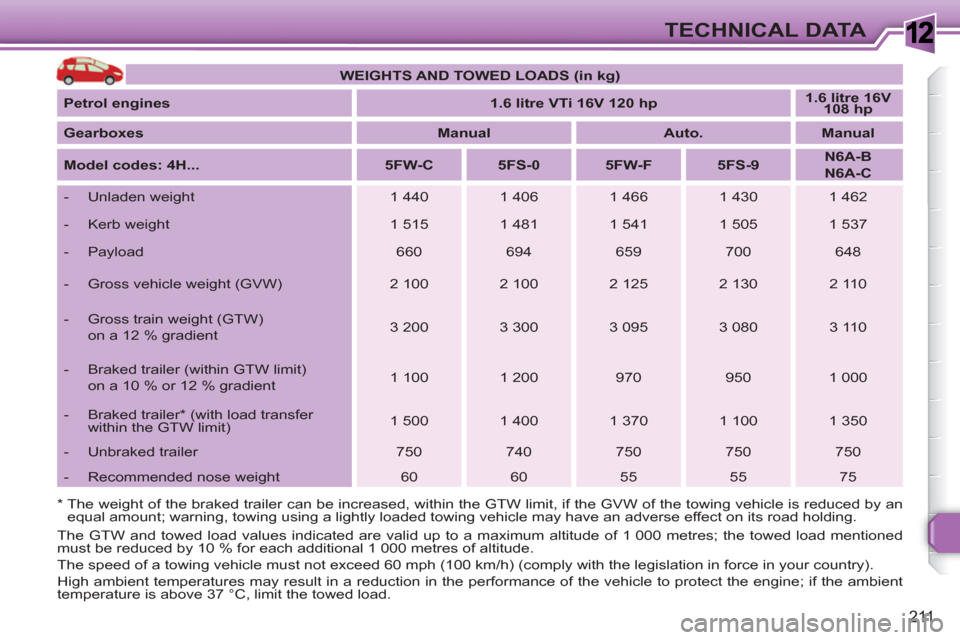

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V 120 hp
1.6 litre 16V
108 hp
Gearboxes
Manual
Auto.
Manual
Model codes: 4H...
5FW-C
5FS-0
5FW-F
5FS-9
N6A-B
N6A-C
- Unladen weight
1 440
1 406
1 466
1 430
1 462
- Kerb weight
1 515
1 481
1 541
1 505
1 537
- Payload
660
694
659
700
648
- Gross vehicle weight (GVW)
2 100
2 100
2 125
2 130
2 110
- Gross train weight (GTW)
on a 12 % gradient
3 200
3 300
3 095
3 080
3 110
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 100
1 200
970
950
1 000
- Braked trailer * (with load transfer
within the GTW limit)
1 500
1 400
1 370
1 100
1 350
- Unbraked trailer
750
740
750
750
750
- Recommended nose weight
60
60
55
55
75
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 214 of 336
1
212
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

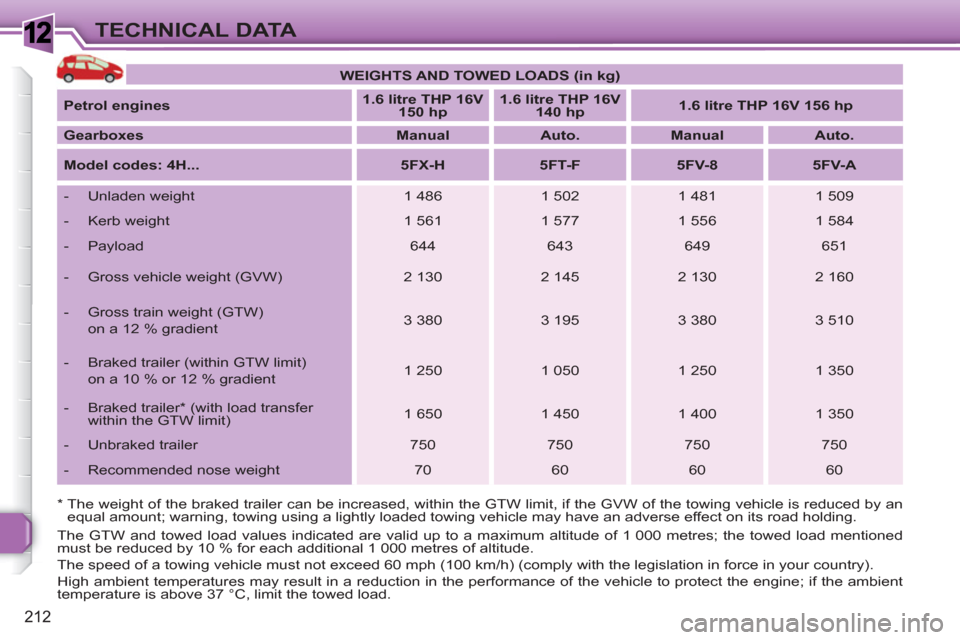

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6
litre
THP 16V
150 hp
1.6
litre
THP 16V
140 hp
1.6 litre THP 16V 156 hp
Gearboxes
Manual
Auto.
Manual
Auto.
Model codes: 4H...
5FX-H
5FT-F
5FV-8
5FV-A
- Unladen weight
1 486
1 502
1 481
1 509
- Kerb weight
1 561
1 577
1 556
1 584
- Payload
644
643
649
651
- Gross vehicle weight (GVW)
2 130
2 145
2 130
2 160
- Gross train weight (GTW)
on a 12 % gradient
3 380
3 195
3 380
3 510
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 250
1 050
1 250
1 350
- Braked trailer * (with load transfer
within the GTW limit)
1 650
1 450
1 400
1 350
- Unbraked trailer
750
750
750
750
- Recommended nose weight
70
60
60
60
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 215 of 336
1TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

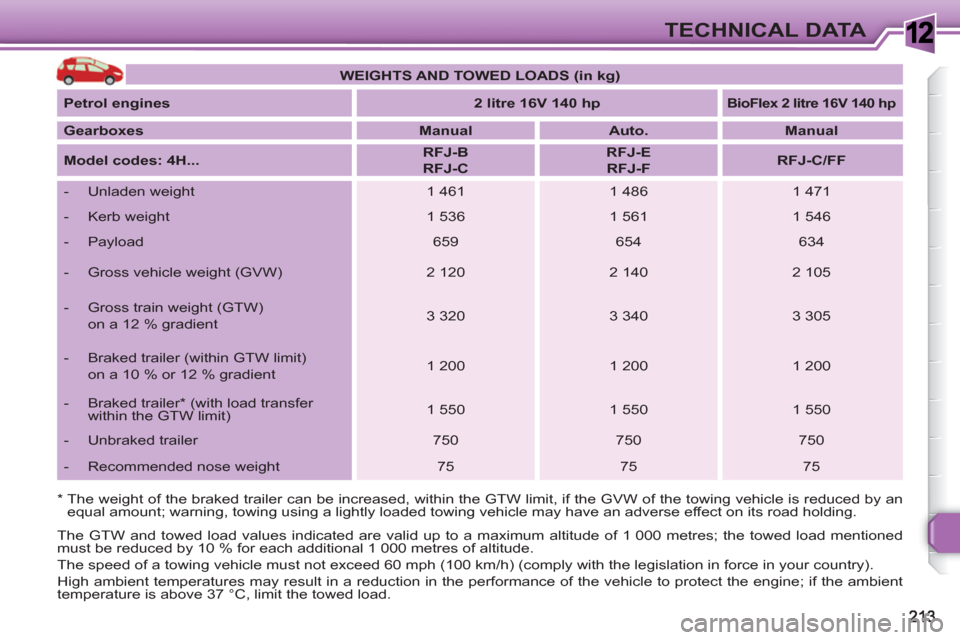

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
2 litre 16V 140 hp
BioFlex 2 litre 16V 140 hp
Gearboxes
Manual
Auto.
Manual
Model codes: 4H...
RFJ-B
RFJ-C
RFJ-E
RFJ-F
RFJ-C/FF
- Unladen weight
1 461
1 486
1 471
- Kerb weight
1 536
1 561
1 546
- Payload
659
654
634
- Gross vehicle weight (GVW)
2 120
2 140
2 105
- Gross train weight (GTW)
on a 12 % gradient
3 320
3 340
3 305
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 200
1 200
- Braked trailer * (with load transfer
within the GTW limit)
1 550
1 550
1 550
- Unbraked trailer
750
750
750
- Recommended nose weight
75
75
75
Page 216 of 336
1TECHNICAL DATA
4C...:
5-door.
4R...:
5-door "Van".
4E...:
SW with rear bench seat.
4H...:
SW with individual rear seats.

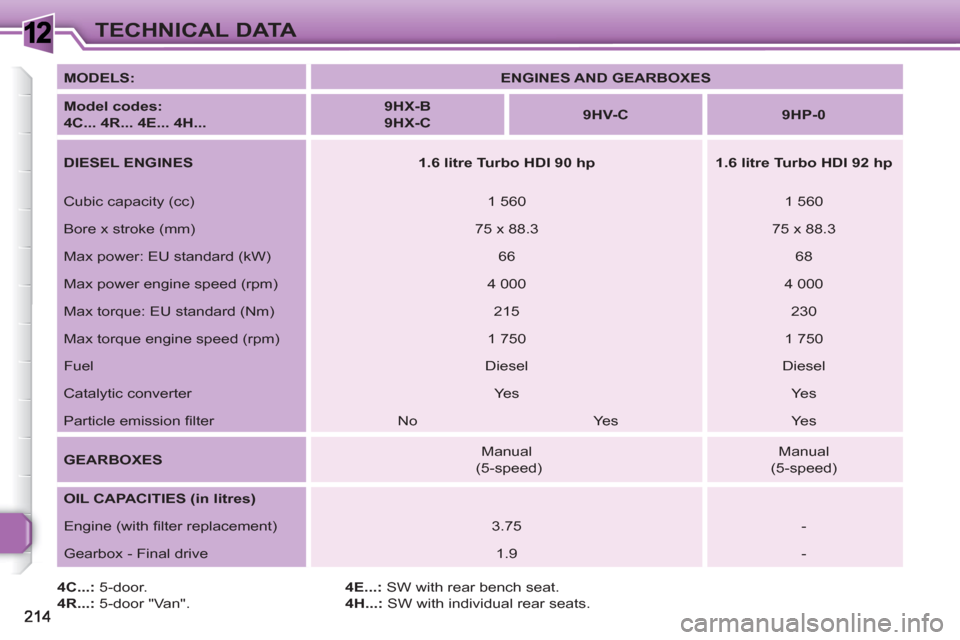

MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H...
9HX-B
9HX-C
9HV-C
9HP-0
DIESEL ENGINES
1.6 litre Turbo
HDI 90 hp
1.6 litre Turbo HDI 92 hp
Cubic capacity (cc)
1 560
1 560
Bore x stroke (mm)
75 x 88.3
75 x 88.3
Max power: EU standard (kW)
66
68
Max power engine speed (rpm)
4 000
4 000
Max torque: EU standard (Nm)
215
230
Max torque engine speed (rpm)
1 750
1 750
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter
No
Yes
Yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
-
Gearbox - Final drive
1.9
-
Page 217 of 336
1
215
TECHNICAL DATA

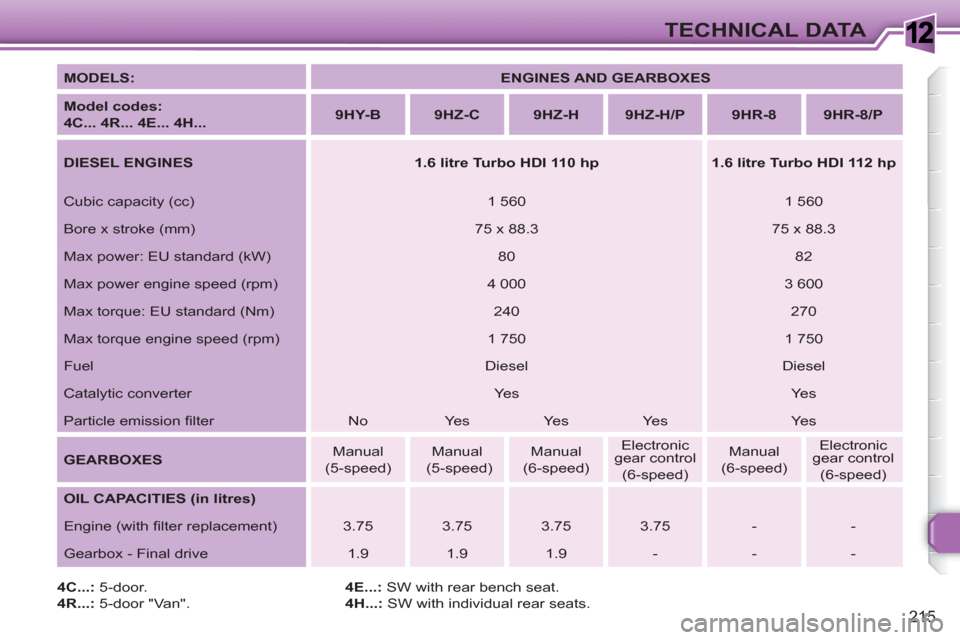

MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4R... 4E... 4H...
9HY-B
9HZ-C
9HZ-H
9HZ-H/P
9HR-8
9HR-8/P
DIESEL ENGINES
1.6 litre Turbo HDI 110 hp
1.6 litre Turbo HDI 112 hp
Cubic capacity (cc)
1 560
1 560
Bore x stroke (mm)
75 x 88.3
75 x 88.3
Max power: EU standard (kW)
80
82
Max power engine speed (rpm)
4 000
3 600
Max torque: EU standard (Nm)
240
270
Max torque engine speed (rpm)
1 750
1 750
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter
No
Yes
Yes
Yes
Yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)
Electronic
gear control
(6-speed)
Manual
(6-speed)
Electronic
gear control
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-
-
Gearbox - Final drive
1.9
1.9
1.9
-
-
-
4C...:
5-door.
4R...:
5-door "Van".
4E...:
SW with rear bench seat.
4H...:
SW with individual rear seats.

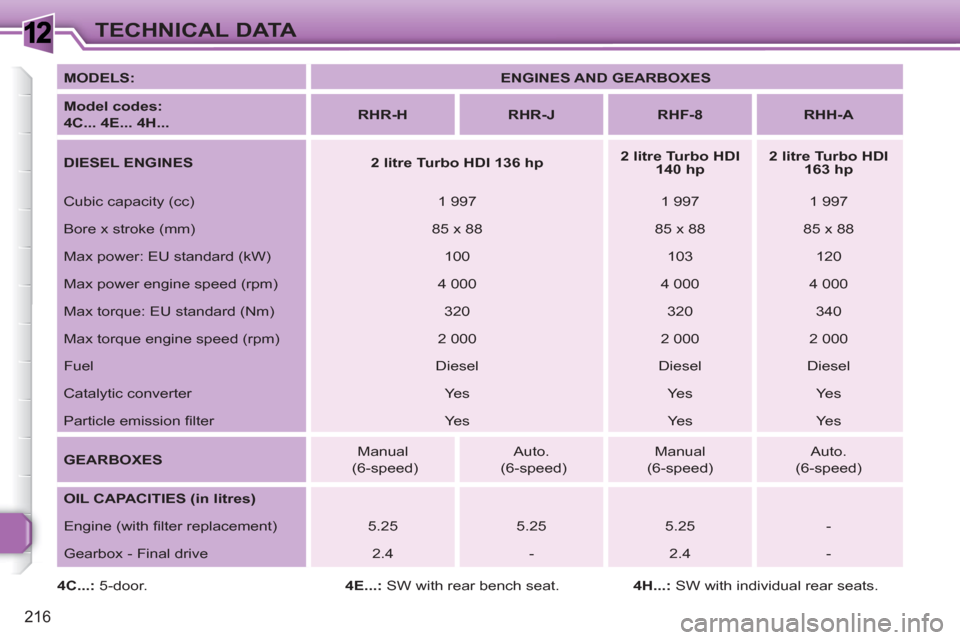

Page 218 of 336
1
216
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4E... 4H...
RHR-H
RHR-J
RHF-8
RHH-A
DIESEL ENGINES
2 litre Turbo H
DI 136 hp
2 litre Turbo HDI
140 hp
2 litre Turbo HDI
163 hp
Cubic capacity (cc)
1 997
1 997
1 997
Bore x stroke (mm)
85 x 88
85 x 88
85 x 88
Max power: EU standard (kW)
100
103
120
Max power engine speed (rpm)
4 000
4 000
4 000
Max torque: EU standard (Nm)
320
320
340
Max torque engine speed (rpm)
2 000
2 000
2 000
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Yes
Yes
Particle emission fi lter
Yes
Yes
Yes
GEARBOXES
Manual
(6-speed)
Auto.
(6-speed)
Manual
(6-speed)
Auto.
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
5.25
5.25
5.25
-
Gearbox - Final drive
2.4
-
2.4
-
4C...:
5-door.
4E...:
SW with rear bench seat.
4H...:
SW with individual rear seats.
Page 219 of 336
1
217
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

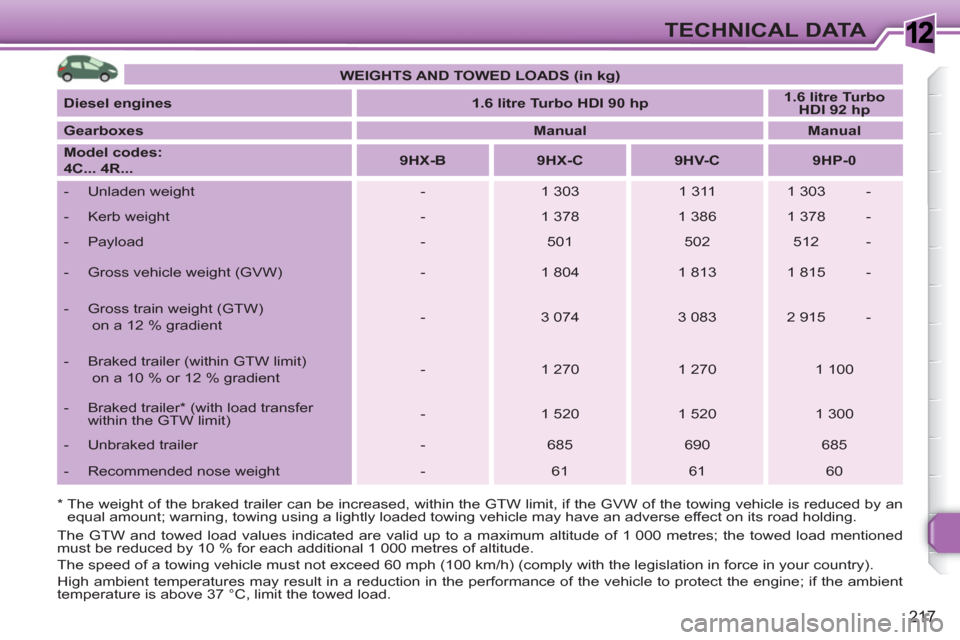

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 90 hp
1.6 litre Turbo
HDI 92 hp
Gearboxes
Manual
Manual
Model codes:
4C... 4R...
9HX-B
9HX-C
9HV-C
9HP-0
- Unladen weight
-
1 303
1 311
1 303 -
- Kerb weight
-
1 378
1 386
1 378 -
- Payload
-
501
502
512 -
- Gross vehicle weight (GVW)
-
1 804
1 813
1 815 -
- Gross train weight (GTW)
on a 12 % gradient
-
3 074
3 083
2 915 -
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
-
1 270
1 270
1 100
- Braked trailer * (with load transfer
within the GTW limit)
-
1 520
1 520
1 300
- Unbraked trailer
-
685
690
685
- Recommended nose weight
-
61
61
60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 220 of 336
1
218
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo
HDI 110 hp
Gearboxes
Manual
Electronic gear control
Model codes:
4C...
9HY-B
9HZ-C
9HZ-H
9HZ-H/P
- Unladen weight
1 331
1 322
1 337
1 334
- Kerb weight
1 406
1 397
1 412
1 409
- Payload
514
528
523
527
- Gross vehicle weight (GVW)
1 845
1 850
1 860
1 861
- Gross train weight (GTW)
on a 12 % gradient
3 115
3 120
3 130
3 131
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 270
1 270
1 270
1 270
- Braked trailer * (with load transfer
within the GTW limit)
1 520
1 520
1 520
1 520
- Unbraked trailer
700
695
705
700
- Recommended nose weight
65
61
61
61
