brake Peugeot 308 SW BL 2011 Owner's Manual

11
Direction indicators 128
Hazard warning lamps 128
Horn 128
Tyre under-infl ation detection 129
Emergency or assistance call 130
Braking assistance systems 130
Trajectory control systems 131
Front seat belts 132
Airbags 137„
„
„
„
„
„
„
„
„
SAFETY 128 Î 140
Parking brake 141
Manual gearbox 141
Gear effi ciency indicator 142
6-speed electronic
gear control gearbox 143
Automatic gearbox 147
Speed limiter 150
Cruise control 152
Parking sensors 154„
„
„
„
„
„
„
„
DRIVING 141 Î 155
Bonnet 157
Running out of fuel (Diesel) 158
Petrol engines 159
Diesel engines 160
Checking levels 161
Checks 162„
„
„
„
„
„
CHECKS
156 Î 163
Temporary puncture repair kit 164
Changing a wheel 172
Changing a bulb 179
Changing a fuse 186
Battery 192
Energy economy mode 194
Changing a wiper blade 194
Towing the vehicle 195
Towing a trailer 197
Fitting roof bars 198
Very cold climate screen 199
Accessories 199„
„
„
„
„
„
„
„
„
„
„
„
PRACTICAL
INFORMATION 164 Î 200
Petrol and Biofl ex engines 201
Petrol and Biofl ex weights 205
Diesel engines 214
Diesel weights 217
Dimensions 226
Identifi cation markings 227„
„
„
„
„
„
TECHNICAL
DATA 201 Î 228
AUDIO EQUIPMENT
and TELEMATICS 229 Î 317
VISUAL
SEARCH 318 Î 324
ALPHABETICAL
INDEX 325 Î 329

Emergency or assistance 229
Peugeot Connect Com 3D 233
Peugeot Connect Navigation 273
Peugeot Connect Sound 301„
„
„
„

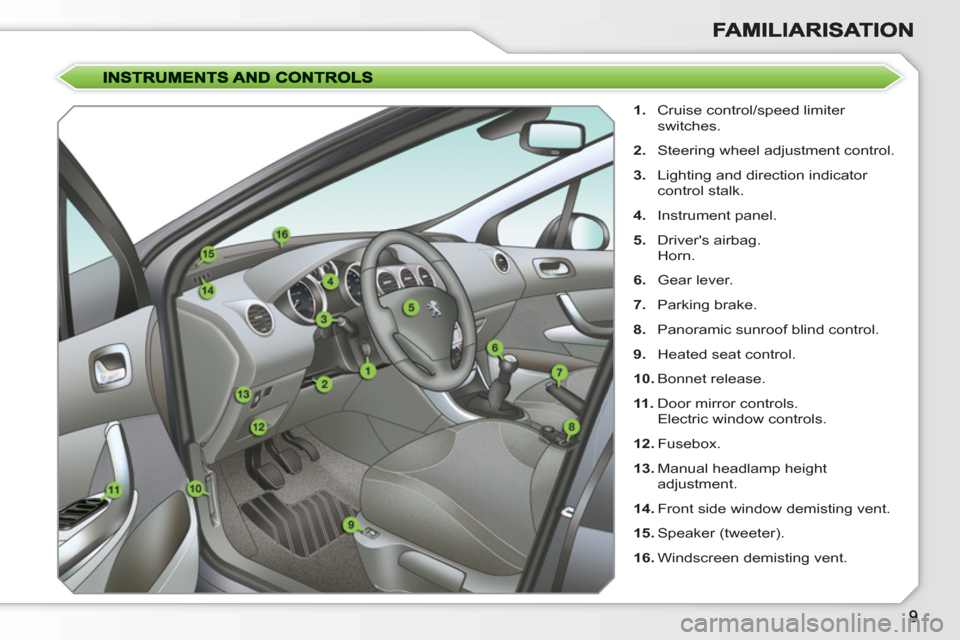

1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Bonnet release.

11 .
Door mirror controls.
Electric window controls.

12.
Fusebox.

13.
Manual headlamp height
adjustment.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.

3.
Steering wheel "-"
paddle.

4.
Steering wheel "+"
paddle.
The gear or the driving mode selected
appears on the instrument panel
screen.

N:
neutral.

R:
reverse gear.

1 2 3 4 5 6:
gears engaged.

AUTO:
automatic mode.

S:
Sport driving style.


Display on the instrument panel



)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear (position A
or M
)
or reverse (position R
) using the
gear lever 1
.

)
Release the parking brake.

)
Take your foot off the brake pedal
then accelerate.


Moving off




143



6-speed electronic gear control
gearbox

!
26
INSTRUMENTS and CONTROLS
The warning lamps may come on
continuously or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.










Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

Associated warnings
The switching on of certain warning
lamps may be accompanied by an au-
dible signal and a message on the mul-
tifunction screen.
Operation indicator lamps
If one of the following indicator lamps
comes on, this confi rms that the corre-
sponding system has come into opera-
tion.

Left-hand direction indicator.

Parking brake applied.

Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.


Diesel engine pre-heating.
Wait until this has gone out be-
fore operating the starter.

Front foglamps.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps

Rear foglamp.

!
29
INSTRUMENTS and CONTROLS
When the engine is running or the ve-
hicle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.

Central alert.
Lighting is associated with
the displaying of another
warning lamp:


- punctured wheel,

- braking,

- power steering,

- engine oil pressure,

- coolant temperature,
stop the vehicle as soon as it is safe to
do so.

Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
have a specifi c warning lamp.
To identify the problem, consult the
message on the multifunction screen.
Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:


- signifi cant drop in the brake fl uid
level,

- electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp),
stop the vehicle as soon as it is safe to
do so.
When the vehicle is moving, check that
the parking brake is fully released. Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
In the event of diffi culty, do not
hesitate to contact a PEUGEOT
dealer.









Warning lamps

Common warning lamps After checking:


- that the doors, boot, the rear
screen and bonnet are closed,

- the engine oil level,

- the screenwash fl uid level,

- the remote control battery,

- the pressure of the tyres,

- the end of saturation of the particle
emission
fi lter (Diesel),
for any other situations, contact a
PEUGEOT dealer.

Anti-lock braking system
(ABS).

If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.

!
30
INSTRUMENTS and CONTROLS


Engine autodiagnostics
system.

If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
If it fl ashes, it indicates the occurrence
of a fault in the emission control system.

Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle as
soon as it is safe to do so.
Low fuel level.
When this fi rst comes on, you
have approximately 6 litres
of
fuel remaining in the tank.
Refuel as soon as possible to avoid run-
ning out of fuel.
Until suffi cient fuel has been added,
this warning lamp comes on again each
time the ignition is switched on, along
with an audible signal and a message.
According to version, this audible signal
and this message are repeated, at in-
creasingly shorter intervals as the level
decreases towards "0"
.
Capacity of the tank: approximately
60 litres
.

Door open.
A door, the boot or the rear
screen is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).
Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication system. Stop the
vehicle as soon as it is safe to do so.

Specifi c warning lamps


Dynamic stability control
(ESP/ASR).

The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivat-
ed, if this warning lamp and the indicator
lamp on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system or in the hill start
assist system.



- if the speed is below 6 mph
(10 km/h), this warning lamp
comes on continuously.

- if the speed is higher than 6 mph
(10 km/h), this warning lamp comes
on continuously, accompanied by
an audible signal.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.


Foot on brake.
On the 6-speed electronic gear
system gearbox, with the gear
lever in position N
, press the
brake pedal to start the engine.
On the automatic gearbox, with the en-
gine running, press the brake pedal to
release the gear lever and disengage
position P
.

!
32
INSTRUMENTS and CONTROLS

Airbags.

If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.

Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:


- signifi cant drop in the brake fl uid
level,

- electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released.

Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.

Door open.
A door, the boot or the rear
screen is open:
Parking brake.

If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
Fuel level.
When this fi rst comes on, you
have approximately 6 litres
of
fuel remaining in the tank
Refuel as soon as possible to avoid run-
ning out of fuel.
Until suffi cient fuel has been added,
this warning lamp comes on again each
time the ignition is switched on, along
with an audible signal and a message.
According to version, this audible signal
and this message are repeated, at in-
creasingly shorter intervals as the level
decreases towards "0"
.
Capacity of the tank: approximately
60 litres
.

Screenwash fl uid level.

If this is displayed, following an
action on the wiper stalk, it indi-
cates that the screenwash fl uid
level is low.
Fill the screenwash/headlamp wash fl uid
reservoir when you next stop.


-
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,

- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.


Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.
Engine oil pressure.

If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle as soon as it is safe
to do so.

Engine oil level.

If this is displayed, it indicates
that the engine oil level is too
low. Stop the vehicle as soon
as it is safe to do so.

Coolant temperature.

If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the
vehicle as soon as it is safe to
do so.

Coolant level.

If this is displayed, it indicates
that the coolant level is too low.
Stop the vehicle as soon as it is
safe to do so.

!
i
i
i
129
SAFETY
TYRE UNDER-INFLATIONDETECTION
System which automatically and contin-
uously checks the pressure of the tyres
while driving. All repairs and changing of tyres on
a wheel fi tted with this system must
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
by your vehicle (example: fi tting
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" section) to
ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal,
to locate the wheel concerned.


)

Check the tyre pressures as soon
as possible.
This check must be carried out when the
tyres are cold.
Under-infated tyre
The STOP
warning lamp comes
on and/or this warning lamp
is displayed on the instrument
panel, accompanied by an au-
dible signal and a message on
the multifunction screen locat-
ing the wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Repair or change the damaged
wheel (punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.

Puncture
The tyre under-infl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly.
Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction screen, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
If your vehicle is equipped with a
spare wheel, this is not fi tted with
a sensor.

!
i
!
130
SAFETY
BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution
(EBFD),

- emergency braking assistance (EBA).


Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.
When braking in an emergency,
press very fi rmly without releasing
the pressure.
When replacing wheels (tyres and
rims), ensure that they conform to the manufacturer's recommendations.


Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning lamp comes on,
together with the STOP
and
ABS
warning lamps, accompa-
nied by an audible signal and a
message on the multifunction screen, it
indicates a malfunction of the electron-
ic brake force distribution which could
result in loss of control of the vehicle
when braking.

You must stop as soon as it is safe
to do so.











Emergency braking assistance

System which, in an emergency, enables
you to obtain the optimum braking
pressure more quickly, thus reducing the
stopping distance.

Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.

Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
In either case, contact a PEUGEOT
dealer. When braking in an emergency,
press fi rmly without releasing the
pressure.
EMERGENCY OR ASSISTANCECALL

This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.


Deactivation
If your vehicle is fi tted with the 1.6 litre THP
200 hp petrol engine, you can deactivate
this function; refer to the "Trajectory control
systems - § Deactivation" section.

!
SAFETY
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
repair and assembly procedures
used by PEUGEOT dealers.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.



Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground, ...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
freely and regain grip.

)
Press the "ESP OFF"
button, located
in the centre of the dashboard.
If this warning lamp comes on on
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.
On vehicles fi tted with the 1.6 litre THP
200 hp engine, this action also deactivates
emergency brake assistance and the auto-
matic operation of hazard warning lamps.

Reactivation
These systems are reactivated automati-
cally each time the ignition is switched
back on or from 30 mph (50 km/h) (except
in the case of the 1.6 litre THP 200 hp pet-
rol engine).


)
Press the "ESP OFF"
button again
to reactivate them manually.
On vehicles fi tted with the 1.6 THP
200 hp engine, this action also reacti-
vates emergency brake assistance and
the automatic operation of hazard warn-
ing lamps.
Operating fault

If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the multi-
function screen, this indicates a
malfunction of these systems.
Have the systems checked by a
PEUGEOT dealer.
TRAJECTORY CONTROLSYSTEMS

Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.

Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
This is indicated by fl ashing of
this warning lamp on the instru-
ment panel.

The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
