INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEARCONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Screen.


6.
Control button.


Recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

7.
Instrument panel lighting button.


Adjusts the brightness of the
lighting of the instruments and
controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter


(mph or km/h) or
Cruise control.


B.
Gear change indicator.


C.
6-speed electronic gear control
or automatic gearbox.


D.
Trip distance recorder.


(miles or km)

E.
Service indicator


(miles or km) then,
engine oil level indicator


then
distance recorder.


(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.


Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.

i
23
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEARCONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS

Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and
recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

8.
Instrument panel lighting button.


Adjusts the brightness of the
lighting of the instruments and
controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


service indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed
depending on the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear change indicator.


- 6-speed electronic gear control
or automatic gearbox.


- Navigation - Guidance/Trip
computer.

i
24
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR CONTROL ORAUTOMATIC GEARBOX PEUGEOT CONNECT MEDIA INSTRUMENT PANELS


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (km/h or mph).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km).

C.
Engine oil level indicator,


service indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed
depending on the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- 6-speed electronic gear control
or automatic gearbox.


- Navigation - Guidance/Trip
computer.


- Vehicle parameters.





Panel grouping together the vehicle
operation indication dials and warning
lamps.
Displays

5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and
recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

8.
Instrument panel lighting button.


Adjusts the brightness of the
lighting of the instruments and
controls.
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display.

36
INSTRUMENTS and CONTROLS






Service indicator

System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:


- the distance travelled,

- the time elapsed since the last
service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service
operations comes on. The distance re-
corder display line indicates the distance
remaining before the next service is due.

Example:
1 700 miles/2 800 km remain
before the next service is due.
For 5 seconds after the ignition is switched
on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off
; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due

Example:
400 miles/900 km remain be-
fore the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner remains
on
to indicate that a service must be car-
ried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.

i
i
37
INSTRUMENTS and CONTROLS
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve min-
utes for the zero reset to be reg-
istered.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the ".../000"
button
on the right of the instrument panel,

)
switch on the ignition; the
distance recorder display begins a
countdown,

)
when the instrument panel central
screen indicates "=0"
, release the
button; the spanner disappears
from the screen. The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit
.
Retrieving the service information
You can access the service information
at any time.
This information appears, depending
on version, when running through the
manual check procedure.


)
Briefl y press the ".../000"
button on
the right of the instrument panel.
The service information is displayed for
a few seconds on the instrument panel
central screen, then disappears.

38
INSTRUMENTS and CONTROLS












Distance recorders

The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Total distance recorder

Trip distance recorder


)
With the ignition on, press and hold
this button until zeros appear.














Manual Check

This function allows you to check the
status of the vehicle (reminder of the
warnings and of the "activated" or "de-
activated" status of the confi gurable
functions) and the service information.


)
With the engine running, to start
a manual check, briefl y press
the "CHECK/000"
button on the
instrument panel. If no faults have been detected,
"CHECK OK"
appears on the instru-
ment panel central screen.
If a "major" fault has been detected, only
the warning lamps concerned appear on
the instrument panel central screen. Have
it checked by a PEUGEOT dealer. If a "minor" fault has been detected, the
warning lamp concerned then "CHECK
OK"
appear on the instrument panel
central screen. Consult a PEUGEOT
dealer.
Measures a distance travelled since it
was reset to zero by the driver. Measures the total distance travelled by
the vehicle since its fi rst registration.

52
MULTIFUNCTION SCREENS

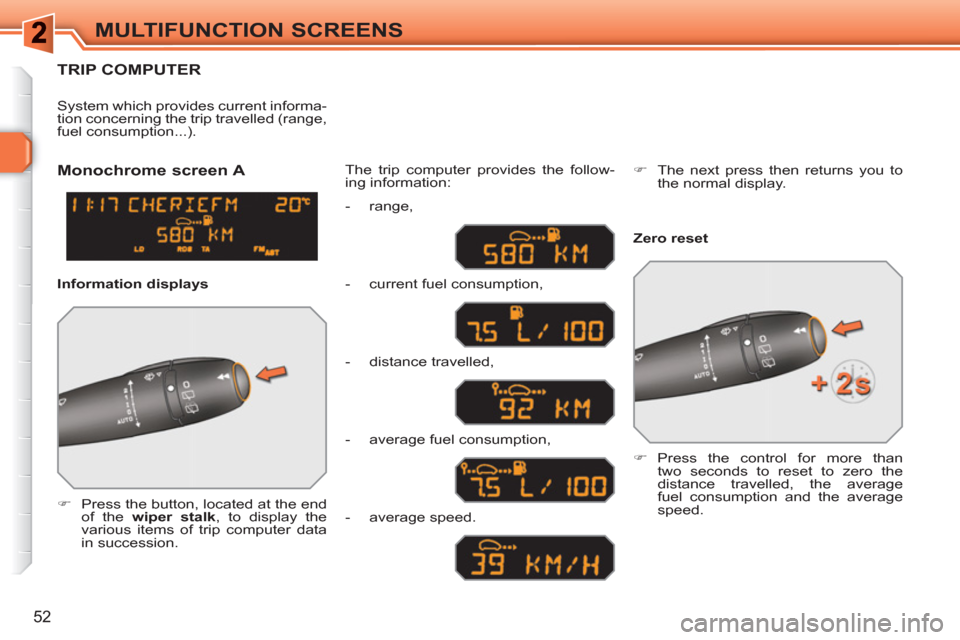

TRIP COMPUTER


)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession. The trip computer provides the follow-
ing information: System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).


)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.




Monochrome screen A


Zero reset

Information displays

- range,

- current fuel consumption,

- distance travelled,

- average fuel consumption,

- average speed.
)
The next press then returns you to
the normal display.

54
MULTIFUNCTION SCREENS

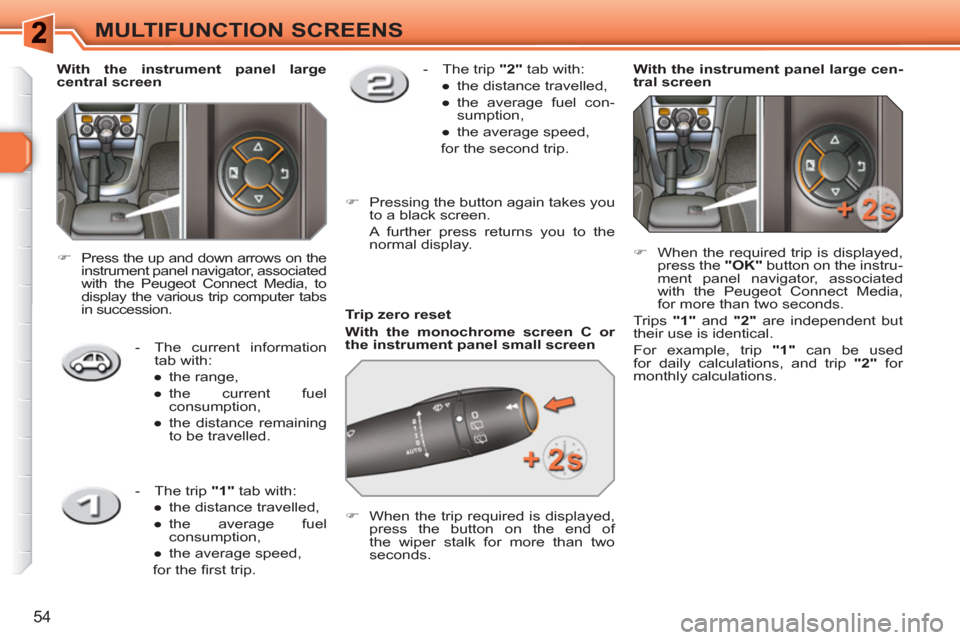

Trip zero reset

With the monochrome screen C or
the instrument panel small screen



)
When the trip required is displayed,
press the button on the end of
the wiper stalk for more than two
seconds.
With the instrument panel



large cen-
tral screen



)
When the required trip is displayed,
press the "OK"
button on the instru-
ment panel navigator, associated
with the Peugeot Connect Media,
for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used
for daily calculations, and trip "2"
for
monthly calculations.


- The trip "2"
tab with:


●
the distance travelled,

●
the average fuel con-
sumption,

●
the average speed,
for the second trip.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.

With the instrument panel

large
central screen



- The current information
tab with:


●
the range,

●
the current fuel
consumption,

●
the distance remaining
to be travelled.


)
Press the up and down arrows on the
instrument panel navigator, associated
with the Peugeot Connect Media, to
display the various trip computer tabs
in succession.


- The trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.

!
i
i
55
MULTIFUNCTION SCREENS

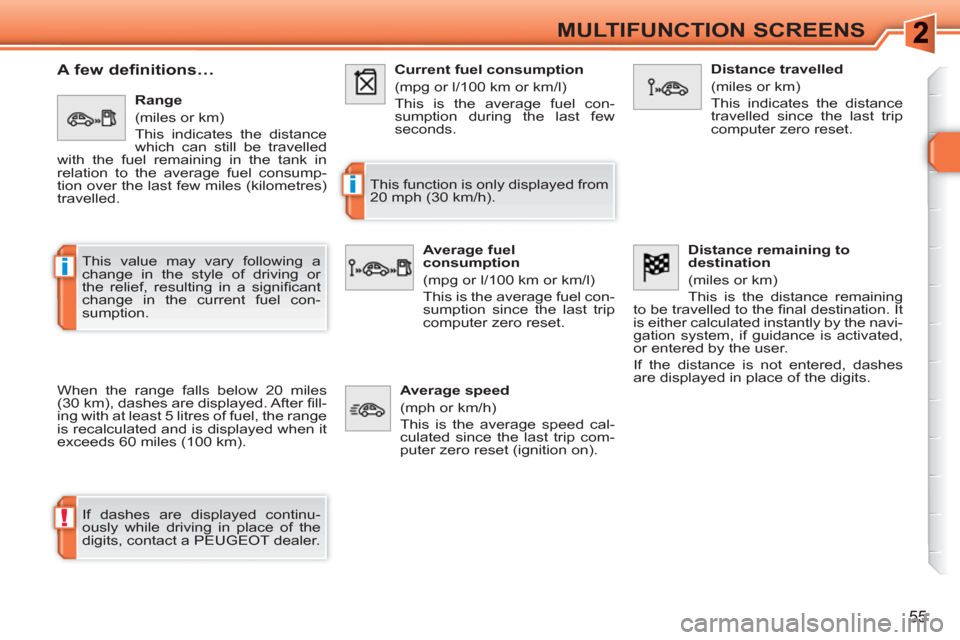

A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

264
10
MEDIA
1
2
3
1
2
3
3
3
3
4
3
3
3
3
12332
4
4
4
4
4
2
3
3
2
2
4
3
3
3
3
3
2
3
2
3
3
3
4
4
4
3
3
2
3
3
3
TRAFFIC
MAIN FUNCTION CHOICE A choice A1choice A2 CHOICE B...

SCREEN MENU MAP


"MEDIA" MENU


"TRAFFIC" MENU


SELECT PREFERRED LIST
Messages on route

Only warnings on route

All warning messages

All messages

Geo. Filter
Deactivate PIN

Within 2 miles (3 km)

Within 3 miles (5 km)

Within 6 miles (10 km)

Within 30 miles (50 km)

SELECT MEDIA

Audio CD/MP3-Disc/ DVD-Audio /DVD-Video

Jukebox (Folders & Files)

SD-Card

USB

External device (audio/AV)

VIDEO SETTINGS
Aspect ratio

Menu language

Display
Brightness
Contrast
Colour

AUX standard

Reset video settings


READ OUT SETTINGS

On confi rmation

Incoming messages


TMC STATION INFORMATION


JUKEBOX MANAGEMENT

Add fi les

Create folder

Modify content

Edit playlist

Play options

Folders & Files

Playlists
Memory capacity

SOUND SETTINGS


Refer to the " Sound settings

"
menu details of whichare shown on the next page.


EXT. DEVICE (AUX) MANAGEMENT

Off/Audio/Audio and Video (AV)
