2
CONTENTS
Instrument panels 25
Warning and indicator lamps 29
Indicators 39
Instrument panel buttons 43Ventilation 61
Heating 63
Manual air conditioning 63
Rear screen demist - defrost 65
Dual-zone digital air conditioning 66
Front seats 68
Rear seats 72
Seat modularity 78
Mirrors 80
Steering wheel adjustment 82
COMFORT 61 Î 82
Remote control key 83
Alarm 87
Electric windows 89
Doors 91
Boot 94
Panoramic sunroof 95
Fuel tank 96
Misfuel prevention (Diesel) 97
ACCESS 83 Î 98
Lighting controls 99
LED lamps 101
Daytime running lamps 101
Headlamp adjustment 103
Directional lighting 104
Wiper controls 105
Automatic rain sensitive wipers 107
Courtesy lamps 108
Interior mood lighting 109
Boot lamp 109
VISIBILITY 99 Î 109
Child seats 125
ISOFIX child seats 131
Child lock 136
CHILD
SAFETY 125 Î 136 FAMILIARISATION 4 Î 22
INSTRUMENTS and
CONTROLS 25 Î 44
Screens without audio equipment 45
Screens with audio equipment 47
Retractable colour screen (Peugeot
Connect Navigation (RT6)) 52
Retractable colour screen (Peugeot
Connect Media Navigation
(NG4 3D)) 54
Trip computer 57
MULTIFUNCTION
SCREENS 45 Î 60
Interior fi ttings 110
Front armrest 113
Boot fi ttings 116
FITTINGS 110 Î 124
7
5
4
3
26
ECO-DRIVING 23 Î 24
Page 8 of 382
6
FAMILIARISATION
ACCESS
Remote control key
A.
Unfolding / Folding the key
(press this button fi rst).
Normal locking
(press once; fi xed lighting of
the direction indicators).
Fuel tank
1.
Opening the fuel fi ller fl ap.
2.
Opening and hooking the fuel fi ller
cap. Unlocking the vehicle
(rapid fl ashing of the direction
indicators).
In the same way, the passenger
compartment lighting, such as the
courtesy lamps, the front door sill lamps
and the footwell lamps, comes on. or
Deadlocking the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
83
109
96
Capacity of the tank: approximately
60 litres.
103 When a sensor detects a low level of
light, remote switching on of the dipped
beam headlamps and sidelamps makes
your approach to the vehicle easier.
Page 33 of 382
1
31
INSTRUMENTS and CONTROLS
Service
temporarily,
accompanied
by a message. Minor faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message
displayed in the screen, such as:
- doors, boot or bonnet open,
- low engine oil level,
- low screenwash/headlamp wash reservoir
level,
- remote control battery fl at,
- low tyre pressures,
- saturation of the particle emission fi lter on
Diesel vehicles (see Checks - checking
levels / particle emissions fi lter).
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.
fi xed,
accompanied
by a message
and an audible
signal. Major faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message shown
in the screen and you must then contact
a
PEUGEOT dealer or a qualifi ed workshop.
Warning lamp
is on
Cause
Action / Observations
Engine
autodiagnosis
system
fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
fi xed. The emission control
system has a fault. The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or qualifi ed workshop without delay.
Page 82 of 382
3
80
COMFORT
The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

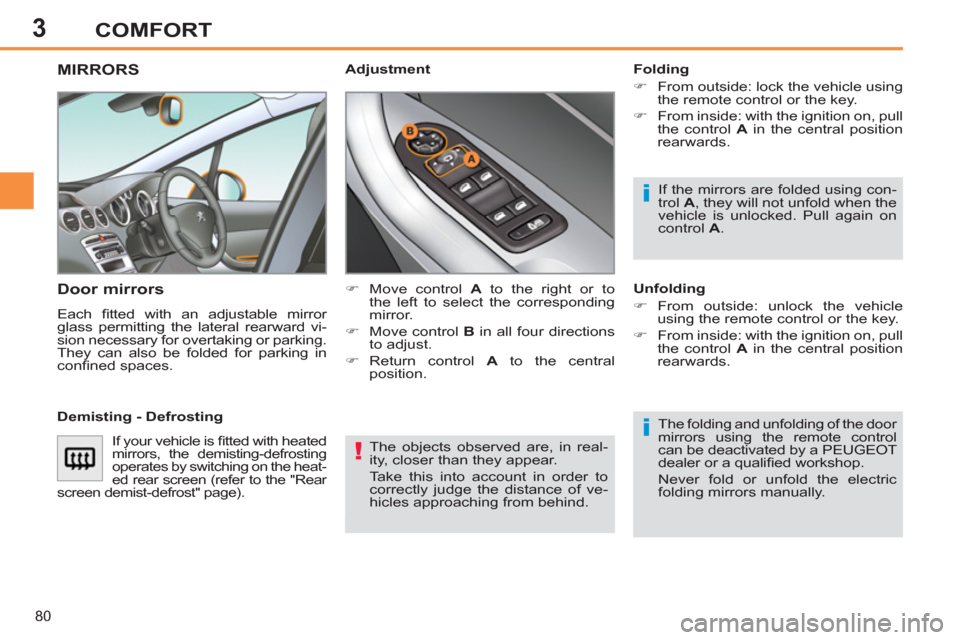

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
the control A
in the central position
rearwards.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer or a qualifi ed workshop.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Unfolding
)
From outside: unlock the vehicle
using the remote control or the key.
)
From inside: with the ignition on, pull
the control A
in the central position
rearwards. If the mirrors are folded using con-
trol A
, they will not unfold when the
vehicle is unlocked. Pull again on
control A
.
)
Move control A
to the right or to
the left to select the corresponding
mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central
position.
Demisting - Defrosting
If your vehicle is fi tted with heated
mirrors, the demisting-defrosting
operates by switching on the heat-
ed rear screen (refer to the "Rear
screen demist-defrost" page).
Page 85 of 382
4
83
ACCESS
REMOTE CONTROL KEY

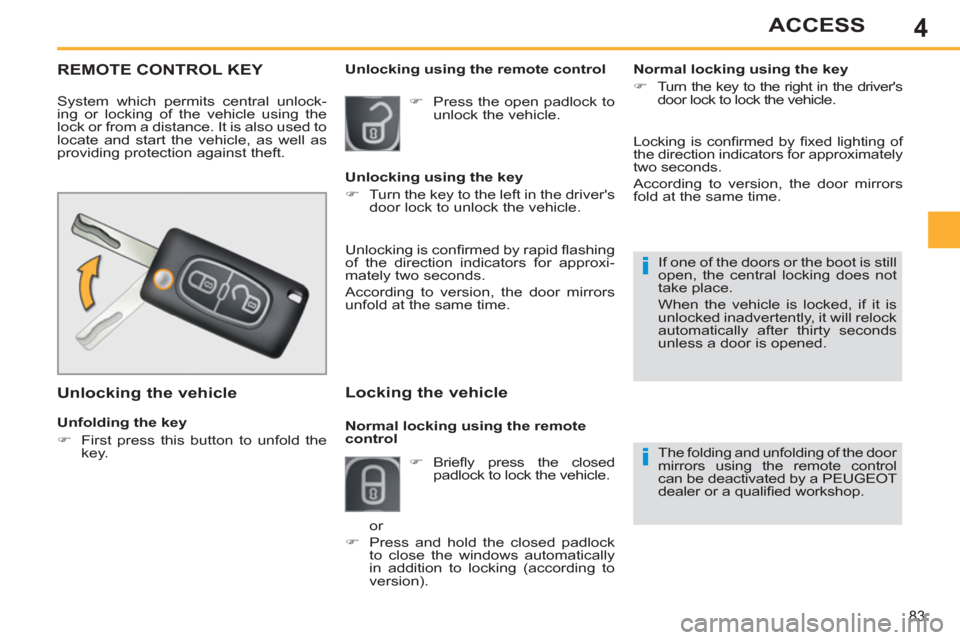

System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
)
First press this button to unfold the
key.
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking using the remote control
If one of the doors or the boot is still
open, the central locking does not
take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
Normal locking using the key
)
Turn the key to the right in the driver's
door lock to lock the vehicle.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer or a qualifi ed workshop.
Locking the vehicle
)
Briefl y press the closed
padlock to lock the vehicle.
or
)
Press and hold the closed padlock
to close the windows automatically
in addition to locking (according to
version).
Normal locking using the remote
control Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Page 86 of 382
4
84
ACCESS

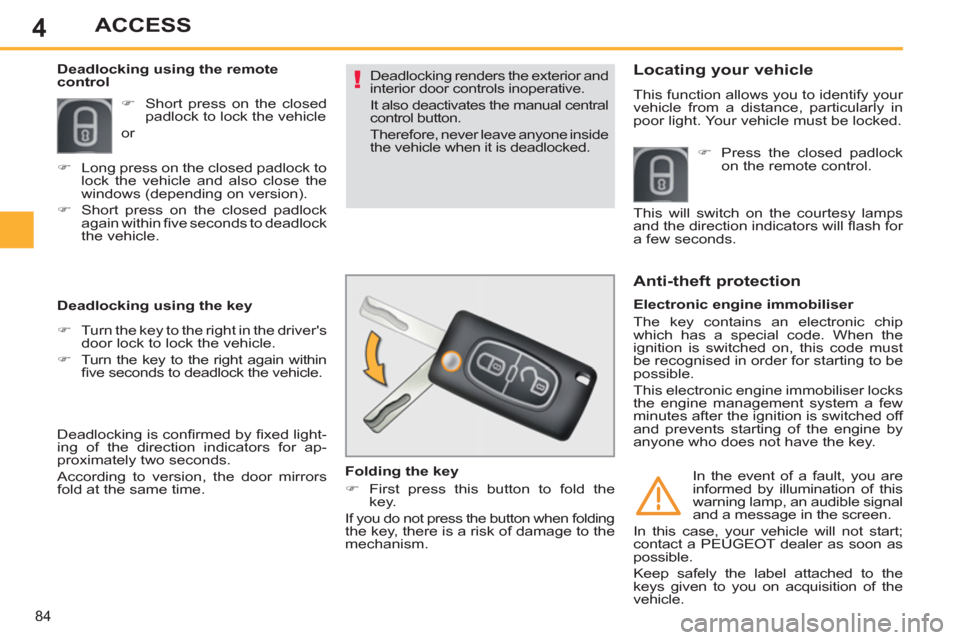

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote
control
Deadlocking using the key
)
Short press on the closed
padlock to lock the vehicle
or
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
)
Turn the key to the right in the driver's
door lock to lock the vehicle.
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Folding the key
)
First press this button to fold the
key.
If you do not press the button when folding
the key, there is a risk of damage to the
mechanism.
Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.
)
Long press on the closed padlock to
lock the vehicle and also close the
windows (depending on version).
)
Short press on the closed padlock
again within fi ve seconds to deadlock
the vehicle.
)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Page 87 of 382
4
85
ACCESS
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the
dashboard to position 3 (Starting)
.
)
When the engine starts, release the
key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to
position 1 (Stop)
.
)
Remove the key from the ignition
switch.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620 / 3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immediately
for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multi-
function screen.
Key left in the "Ignition on"
position
On opening the driver's door, an
alert message is displayed, accom-
panied by an audible signal, to re-
mind you that the key is still in the
ignition switch at position 1 (Stop)
.
If the key has been left in the igni-
tion switch at position 2 (Ignition
on)
, the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop)
, then
back to position 2 (Ignition on)
.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its location
observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Page 88 of 382
4
86
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's registration document, your per-
sonal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transpond-
er code required to order a new key.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the
ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact
causing airbag deployment.
As a safety precaution (with children on board), remove the key from the igni-
tion switch when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.
Page 89 of 382
4
87
ACCESS
ALARM
System which protects and provides a de-
terrent against theft and break-ins. It pro-
vides the following types of monitoring:
Locking the vehicle with full
alarm system
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Press the locking button on the
remote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perimeter
monitoring is activated after a delay of
5 seconds and the interior volumetric
monitoring after a delay of 45 seconds.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Deactivation
)
Press the unlocking button on the
remote control.
The alarm system is deactivated: the in-
dicator lamp in the button goes off.
If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after a
delay of 45 seconds at the same
time as the interior volumetric
monitoring.
Page 90 of 382
4
88
ACCESS
Triggering of the alarm
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Locking the vehicle without
activating the alarm
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a malfunction of the
system.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for thirty seconds.
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is
triggered.
)
Switch on the ignition; the alarm
stops. The indicator lamp in the
button goes off.
Malfunction
Automatic activation *
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Deactivation of the interior
volumetric monitoring
)
Switch off the ignition.
)
Within ten seconds, press the
button until the indicator lamp is on
continuously.
)
Get out of the vehicle.
)
Press the locking button on the
remote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric moni-
toring to avoid unwanted triggering of
the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle.
Reactivation of the interior
volumetric monitoring
)
Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.
)
Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp in the button again
fl ashes once per second.
*
According to country.
2 minutes after the last door or the boot
is closed, the system is activated auto-
matically.
)
To avoid triggering the alarm on entering
the vehicle, fi rst press the unlocking
button on the remote control.
