Page 4 of 382
2
CONTENTS
Instrument panels 25
Warning and indicator lamps 29
Indicators 39
Instrument panel buttons 43Ventilation 61
Heating 63
Manual air conditioning 63
Rear screen demist - defrost 65
Dual-zone digital air conditioning 66
Front seats 68
Rear seats 72
Seat modularity 78
Mirrors 80
Steering wheel adjustment 82
COMFORT 61 Î 82
Remote control key 83
Alarm 87
Electric windows 89
Doors 91
Boot 94
Panoramic sunroof 95
Fuel tank 96
Misfuel prevention (Diesel) 97
ACCESS 83 Î 98
Lighting controls 99
LED lamps 101
Daytime running lamps 101
Headlamp adjustment 103
Directional lighting 104
Wiper controls 105
Automatic rain sensitive wipers 107
Courtesy lamps 108
Interior mood lighting 109
Boot lamp 109
VISIBILITY 99 Î 109
Child seats 125
ISOFIX child seats 131
Child lock 136
CHILD
SAFETY 125 Î 136 FAMILIARISATION 4 Î 22
INSTRUMENTS and
CONTROLS 25 Î 44
Screens without audio equipment 45
Screens with audio equipment 47
Retractable colour screen (Peugeot
Connect Navigation (RT6)) 52
Retractable colour screen (Peugeot
Connect Media Navigation
(NG4 3D)) 54
Trip computer 57
MULTIFUNCTION
SCREENS 45 Î 60
Interior fi ttings 110
Front armrest 113
Boot fi ttings 116
FITTINGS 110 Î 124
7
5
4
3
26
ECO-DRIVING 23 Î 24
Page 12 of 382
10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Steering wheel adjustment control.
2.
Cruise control / speed limiter
switches.
3.
Lighting and direction indicators
control stalk.
4.
Central adjustable air vents.
5.
Multifunction screen.
6.
Sunshine sensor.
7.
Passenger's airbag.
8.
Glove box / Audio/video sockets /
Fusebox.
9.
Bonnet release lever.
10.
Storage compartment or control
panel navigator associated with
Peugeot Connect Media Naviagtion
(NG4 3D).
11 .
12 V accessory socket.
12.
Front ashtray.
13.
Heating / air conditioning controls.
14.
Open storage.
15.
Audio and telematics system.
16.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESP/
ASR) button.
Parking sensors button.
PEUGEOT services button.
Page 18 of 382
16
FAMILIARISATION
MONITORING
Instrument panel
Switch panel
A.
With the ignition on, the fuel gauge
needle should indicate the level of
fuel remaining.
B.
With the engine running, its
associated low level warning lamp
should go off.
C.
With the ignition on, the oil level
indicator should display that the
level is OK or correct, depending
on version, for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding function.
A.
Emergency call in progress.
243
B.
Deactivation of the alarm interior
protection.
87
C.
Central locking.
92
D.
Deactivation of the ESP/ASR
system.
140
E.
Deactivation of the front and rear
parking sensors.
168
F.
Access to PEUGEOT services.
243
1.
With the ignition on, the orange and
red warning lamps come on.
2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps
25
29, 33
Page 89 of 382
4
87
ACCESS
ALARM
System which protects and provides a de-
terrent against theft and break-ins. It pro-
vides the following types of monitoring:
Locking the vehicle with full
alarm system
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Press the locking button on the
remote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perimeter
monitoring is activated after a delay of
5 seconds and the interior volumetric
monitoring after a delay of 45 seconds.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Deactivation
)
Press the unlocking button on the
remote control.
The alarm system is deactivated: the in-
dicator lamp in the button goes off.
If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after a
delay of 45 seconds at the same
time as the interior volumetric
monitoring.
Page 90 of 382
4
88
ACCESS
Triggering of the alarm
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Locking the vehicle without
activating the alarm
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a malfunction of the
system.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for thirty seconds.
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is
triggered.
)
Switch on the ignition; the alarm
stops. The indicator lamp in the
button goes off.
Malfunction
Automatic activation *
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Deactivation of the interior
volumetric monitoring
)
Switch off the ignition.
)
Within ten seconds, press the
button until the indicator lamp is on
continuously.
)
Get out of the vehicle.
)
Press the locking button on the
remote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric moni-
toring to avoid unwanted triggering of
the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle.
Reactivation of the interior
volumetric monitoring
)
Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.
)
Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp in the button again
fl ashes once per second.
*
According to country.
2 minutes after the last door or the boot
is closed, the system is activated auto-
matically.
)
To avoid triggering the alarm on entering
the vehicle, fi rst press the unlocking
button on the remote control.
Page 204 of 382
11
202
PRACTICAL INFORMATION

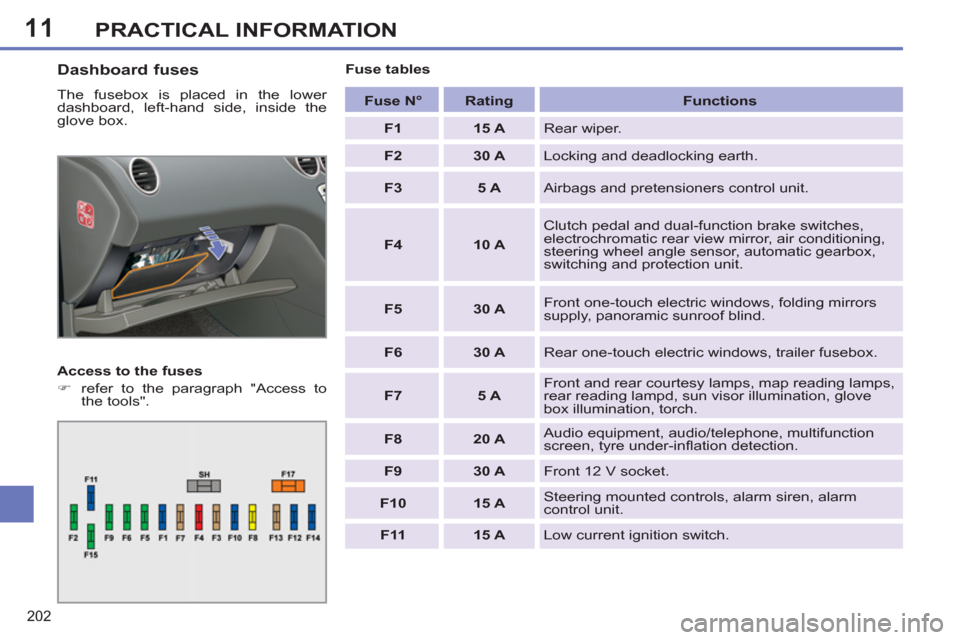

Dashboard fuses
The fusebox is placed in the lower
dashboard, left-hand side, inside the
glove box.
Access to the fuses
)
refer to the paragraph "Access to
the tools".
Fuse N°
Rating
Functions
F1
15 A
Rear wiper.
F2
30 A
Locking and deadlocking earth.
F3
5 A
Airbags and pretensioners control unit.
F4
10 A
Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.
F5
30 A
Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6
30 A
Rear one-touch electric windows, trailer fusebox.
F7
5 A
Front and rear courtesy lamps, map reading lamps,
rear reading lampd, sun visor illumination, glove
box illumination, torch.
F8
20 A
Audio equipment, audio/telephone, multifunction
screen, tyre under-infl ation detection.
F9
30 A
Front 12 V socket.
F10
15 A
Steering mounted controls, alarm siren, alarm
control unit.
F11
15 A
Low current ignition switch.
Fuse tables
Page 219 of 382
11
217
PRACTICAL INFORMATION
"Protection":
mats * , mud fl aps, seat covers compat-
ible with lateral airbags, vehicle covers,
door sill protectors, translucent bumper
protectors.
*
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.

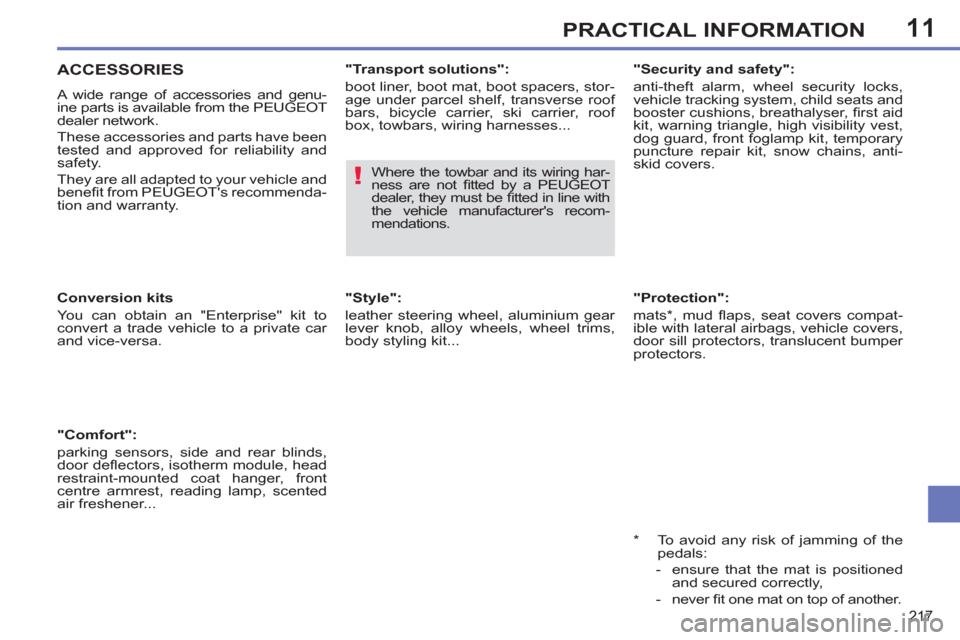

ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
"Comfort":
parking sensors, side and rear blinds,
door defl ectors, isotherm module, head
restraint-mounted coat hanger, front
centre armrest, reading lamp, scented
air freshener...
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Transport solutions":
boot liner, boot mat, boot spacers, stor-
age under parcel shelf, transverse roof
bars, bicycle carrier, ski carrier, roof
box, towbars, wiring harnesses...
"Style":
leather steering wheel, aluminium gear
lever knob, alloy wheels, wheel trims,
body styling kit...
"Security and safety":
anti-theft alarm, wheel security locks,
vehicle tracking system, child seats and
booster cushions, breathalyser, fi rst aid
kit, warning triangle, high visibility vest,
dog guard, front foglamp kit, temporary
puncture repair kit, snow chains, anti-
skid covers.
Where the towbar and its wiring har-
ness are not fi tted by a PEUGEOT
dealer, they must be fi tted in line with
the vehicle manufacturer's recom-
mendations.
Page 305 of 382
303

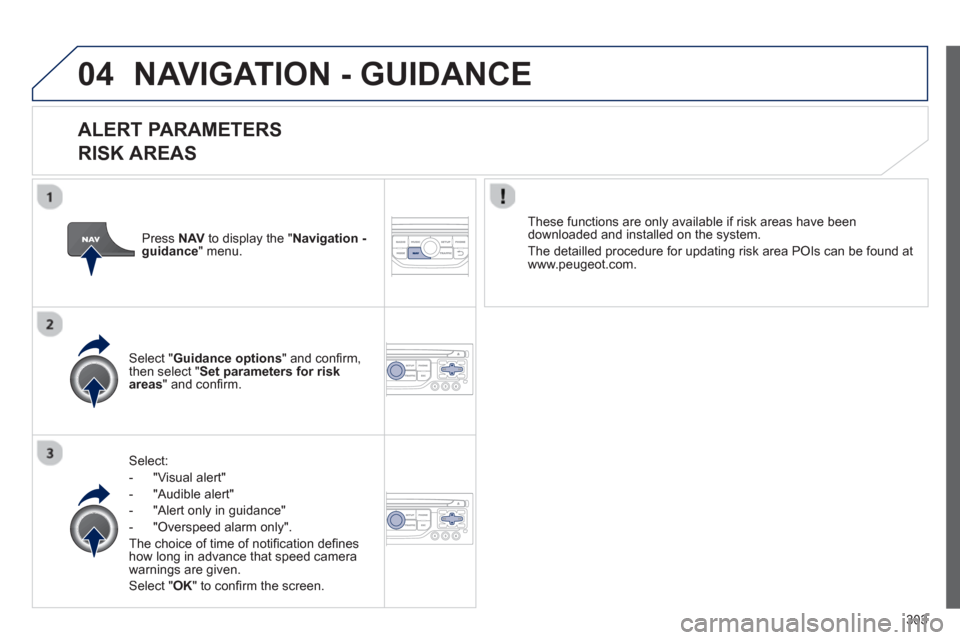

04NAVIGATION - GUIDANCE
ALERT PARAMETERS
RISK AREAS
Select:
- "Vi
sual alert"
- "A
udible alert"
-
"Alert only in guidance"
- "
Overspeed alarm only".
Th
e choice of time of notifi cation defi nes how long in advance that speed camera
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select "Set parameters for riskareas
" and confi rm.
These
functions are only available if risk areas have been
downloaded and installed on the system.
The detailled procedure for updatin
g risk area POIs can be found at
www.peugeot.com.
Press NAVto display the " Navigation - guidance" menu.
Page 367 of 382

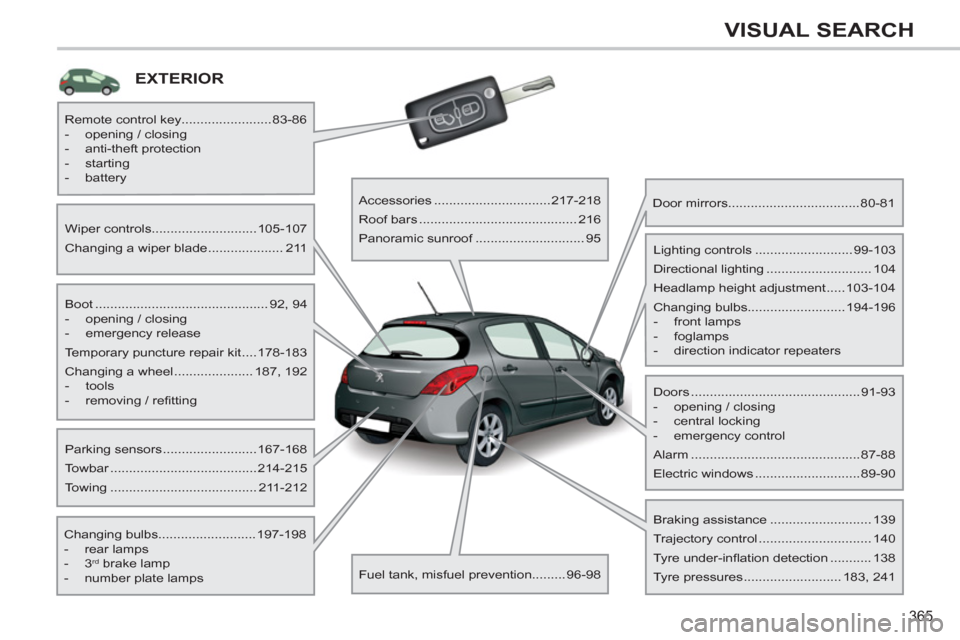

365
VISUAL SEARCH
EXTERIOR
Boot .............................................. 92, 94
- opening / closing
- emergency release
Temporary puncture repair kit ....178-183
Changing a wheel ..................... 187, 192
- tools
- removing / refi tting
Wiper controls............................105-107
Changing a wiper blade .................... 211
Changing bulbs..........................197-198
- rear lamps
- 3
rd brake lamp
- number plate lamps
Parking sensors .........................167-168
Towbar .......................................214-215
Towing ....................................... 211-212
Remote control key........................83-86
- opening / closing
- anti-theft protection
- starting
- battery
Accessories ...............................217-218
Roof bars .......................................... 216
Panoramic sunroof ............................. 95
Fuel tank, misfuel prevention.........96-98
Door mirrors ...................................80-81
Doors .............................................91-93
- opening / closing
- central locking
- emergency control
Alarm .............................................87-88
Electric windows ............................89-90
Lighting controls ..........................99-103
Directional lighting ............................ 104
Headlamp height adjustment .....103-104
Changing bulbs..........................194-196
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance ........................... 139
Trajectory control .............................. 140
Tyre under-infl ation detection ........... 138
Tyre pressures .......................... 183, 241
Page 368 of 382

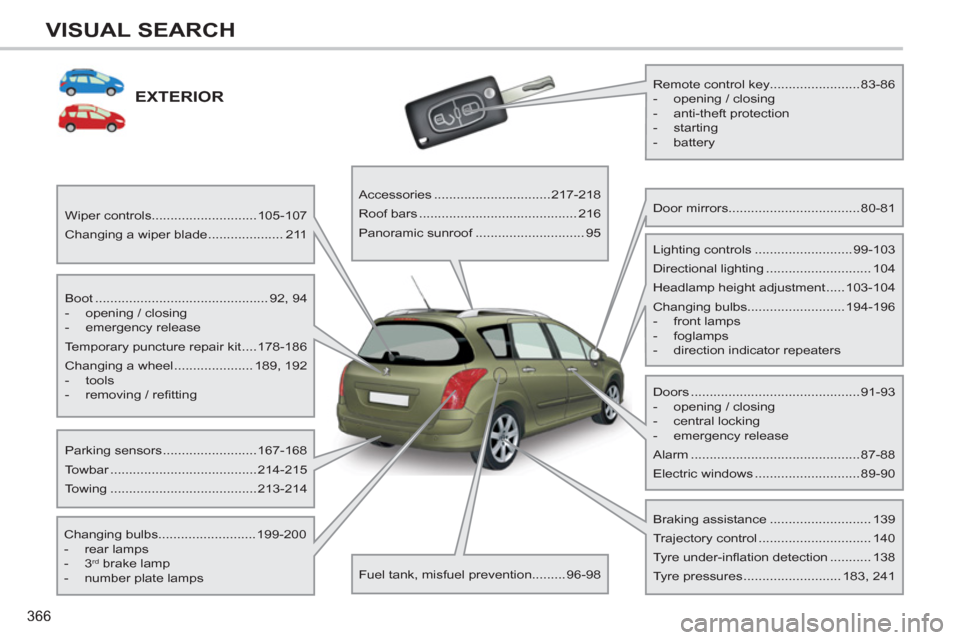

366
VISUAL SEARCH
EXTERIOR
Boot .............................................. 92, 94
- opening / closing
- emergency release
Temporary puncture repair kit ....178-186
Changing a wheel ..................... 189, 192
- tools
- removing / refi tting
Wiper controls............................105-107
Changing a wiper blade .................... 211
Changing bulbs..........................199-200
- rear lamps
- 3
rd brake lamp
- number plate lamps
Parking sensors .........................167-168
Towbar .......................................214-215
Towing .......................................213-214
Remote control key........................83-86
- opening / closing
- anti-theft protection
- starting
- battery
Accessories ...............................217-218
Roof bars .......................................... 216
Panoramic sunroof ............................. 95
Fuel tank, misfuel prevention.........96-98
Door mirrors ...................................80-81
Doors .............................................91-93
- opening / closing
- central locking
- emergency release
Alarm .............................................87-88
Electric windows ............................89-90
Lighting controls ..........................99-103
Directional lighting ............................ 104
Headlamp height adjustment .....103-104
Changing bulbs..........................194-196
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance ........................... 139
Trajectory control .............................. 140
Tyre under-infl ation detection ........... 138
Tyre pressures .......................... 183, 241
