Page 311 of 313
315

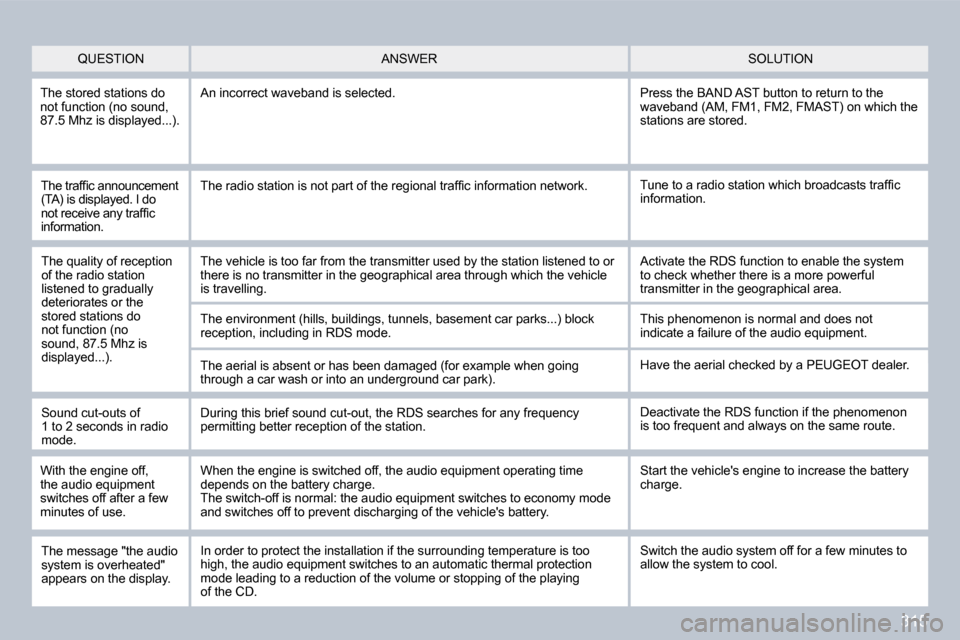

T h e t r a f fi c a n n o u n c e m e n t ( T A ) i s d i s p l a y e d . I d o n o t r e c e i v e a n y t r a f fi c information.
T u n e t o a r a d i o s t a t i o n w h i c h b r o a d c a s t s t r a f fi c information. T h e r a d i o s t a t i o n i s n o t p a r t o f t h e r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .
QUESTION SOLUTION ANSWER
The quality of reception of the radio station l i s t e n e d t o g r a d u a l l y deteriorates or the stored stations do not function (no s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
The vehicle is too far from the transmitter used b y the station listened to or t h e r e i s n o t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a t h r o u g h w h i c h t h e v e h i c l e i s t r a v e l l i n g .
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k r e c e p t i o n , i n c l u d i n g i n R D S m o d e .
T h e a e r i a l i s a b s e n t o r h a s b e e n d a m a g e d ( f o r e x a m p l e w h e n g o i n g t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
A c t i v a t e t h e R D S f u n c t i o n t o e n a b l e t h e s y s t e m to check whether there is a more powerful t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a .
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
D u r i n g t h i s b r i e f s o u n d c u t - o u t , t h e R D S s e a r c h e s f o r a n y f r e q u e n c y p e r m i t t i n g b e t t e r r e c e p t i o n o f t h e s t a t i o n . D e a c t i v a t e t h e R D S f u n c t i o n i f t h e p h e n o m e n o n is too frequent and always on the same route.
W i t h t h e e n g i n e o f f , the audio equipment switches off after a few minutes of use.
W h e n t h e e n g i n e i s s w i t c h e d o f f , t h e a u d i o e q u i p m e n t o p e r a t i n g t i m e d e p e n d s o n t h e b a t t e r y c h a r g e . The switch-off is normal: the audio equipment switches to economy mode a n d s w i t c h e s o f f t o p r e v e n t d i s c h a r g i n g o f t h e v e h i c l e ' s b a t t e r y .
S t a r t t h e v e h i c l e ' s e n g i n e t o i n c r e a s e t h e b a t t e r y c h a r g e .
The stored stations do not function (no sound, 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
An incorrect waveband is selected. P r e s s t h e B A N D A S T b u t t o n t o r e t u r n t o t h e w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.
T h e m e s s a g e " t h e a u d i o system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. I n o r d e r t o p r o t e c t t h e i n s t a l l a t i o n i f t h e s u r r o u n d i n g t e m p e r a t u r e i s t o o h i g h , t h e a u d i o e q u i p m e n t s w i t c h e s t o a n a u t o m a t i c t h e r m a l p r o t e c t i o n m o d e l e a d i n g t o a r e d u c t i o n o f t h e v o l u m e o r s t o p p i n g o f t h e p l a y i n g o f t h e C D .
Page 312 of 313

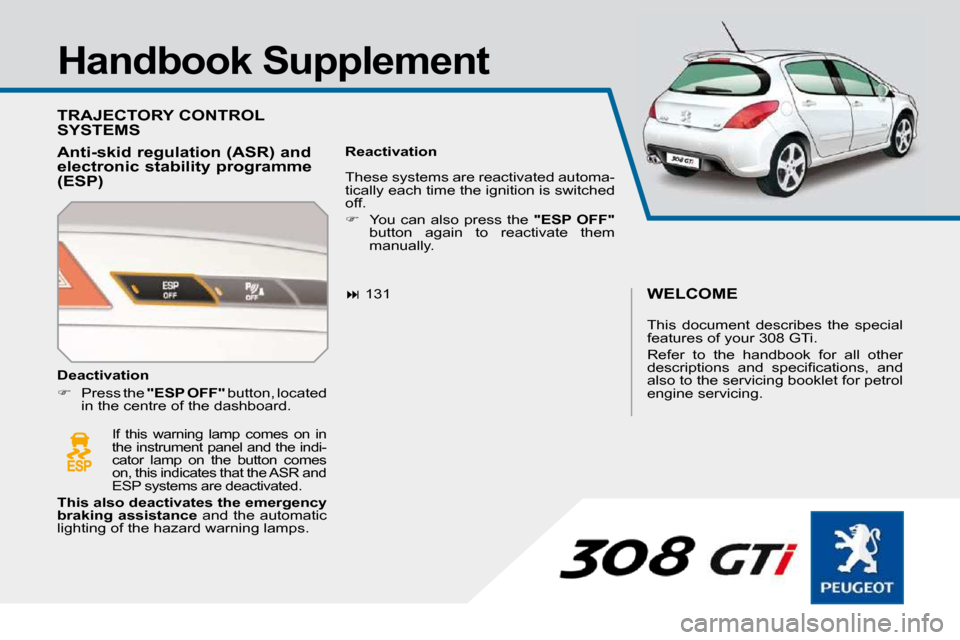

Handbook Supplement
TRAJECTORY CONTROL SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP) Reactivation
131
If this warning lamp comes on in
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.
This also deactivates the emergency
braking assistance and the automatic
lighting of the hazard warning lamps.
Deactivation
Press the "ESP OFF" button, located
in the centre of the dashboard. This document describes the special
features of your 308 GTi.
Refer to the handbook for all other
d e s c r i p t i o n s a n d s p e c i fi c a t i o n s , a n d
also to the servicing booklet for petrol
engine servicing.
WELCOME
These systems are reactivated automa-
tically each time the ignition is switched
off.
You can also press the "ESP OFF"
button again to reactivate them
manually.
Page 313 of 313
12
!

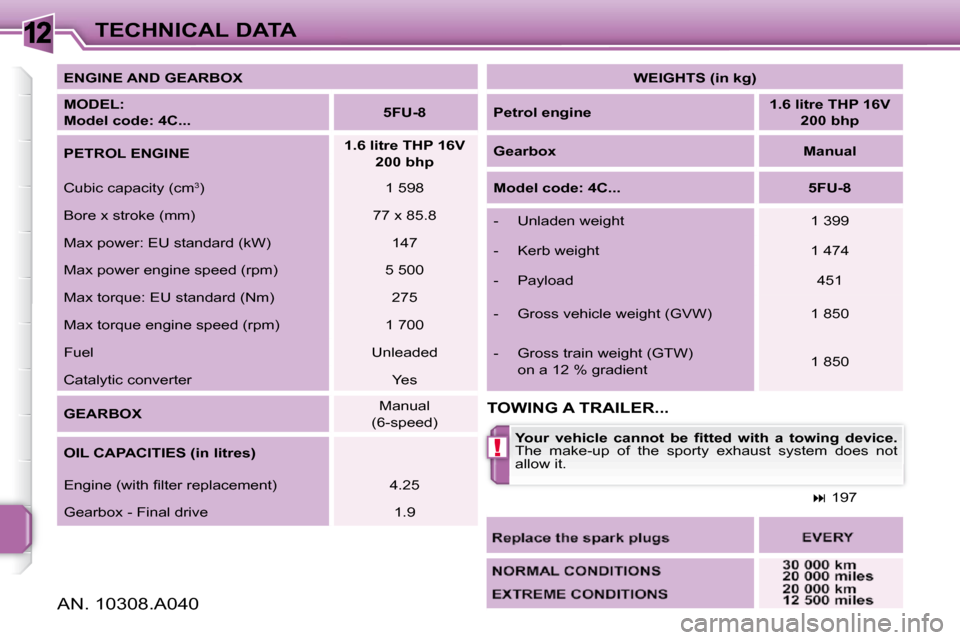

TECHNICAL DATA
ENGINE AND GEARBOX
MODEL:
Model code: 4C...
5FU-8
PETROL ENGINE
1.6 litre THP 16V
200 bhp
Cubic capacity (cm 3
) 1 598
Bore x stroke (mm) 77 x 85.8
Max power: EU standard (kW) 147
Max power engine speed (rpm) 5 500
Max torque: EU standard (Nm) 275
Max torque engine speed (rpm) 1 700
Fuel Unleaded
Catalytic converter Yes
GEARBOX Manual
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25
Gearbox - Final drive 1.9
WEIGHTS (in kg)
Petrol engine
1.6 litre THP 16V
200 bhp
Gearbox Manual
Model code: 4C... 5FU-8
- Unladen weight 1 399
- Kerb weight 1 474
- Payload 451
- Gross vehicle weight (GVW) 1 850
- Gross train weight (GTW)
on a 12 % gradient 1 850
TOWING A TRAILER...
AN. 10308.A040
197
Y o u r v e h i c l e c a n n o t b e fi t t e d w i t h a t o w i n g d e v i c e .
The make-up of the sporty exhaust system does not
allow it.
