Page 17 of 221
1
CRUISE
INSTRUMENTS and CONTROLS
INSTRUMENT PANEL INDICATOR LIGHTS
Indicator lights is on Cause Observations
Left-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. T u r n t h e s t a l k t o t h e p o s i t i o n r e q u i r e d .
Front fog
lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog
lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.
Page 23 of 221
1
INSTRUMENTS and CONTROLS
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
Dynamic
stability control
system (ASC) Fixed -
Dynamic stability
control system
(ASC) fault. Contact a PEUGEOT
dealer.
Four wheel
drive system Fixed - Four wheel drive
transmission
system fault. Contact a PEUGEOT
dealer.
Four wheel
drive system temperature Fixed - The temperature
of the four wheel
drive transmission
system is too
high. Stop the vehicle and
contact a PEUGEOT
dealer.
The vehicle switches to
front wheel drive (2WD)
mode automatically.
Automatic
headlamp
adjustment system Fixed - The automatic
headlamp
adjustment is
faulty. Contact a PEUGEOT
dealer.
O n l y o n v e h i c l e fi t t e d
with xenon bulbs.
Battery
charge Fixed
Battery charge
fault. Stop the vehicle and
contact a PEUGEOT
dealer.
Exterior
temperature Fixed - The exterior
temperature 3 °C
(37 °F) or below. Road icy.
Pay attention and
drive slowly. Caution: The road may
be icy even when this
screen is not displayed.
Page 97 of 221
4
VISIBILITY
MANUAL ADJUSTMENT OF THE
HEADLAMPS
To avoid dazzling other road users, the
height of the headlamps must be adjusted
in relation to the load in the vehicle.
5-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. 5 occupants (including the
d r i v e r ) .
3. 5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) +
maximum authorised load.
4. Driver + maximum authorised load.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driv-
er is then assured of having optimum
lighting and not causing a nuisance to
other road users.
In cases of malfunction ,
this message appears on
the multifunction display.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer.
7-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. Driver + 1 passenger in the
front + 2 passengers on the
third bench seat.
3. 7 occupants (including the driver
with or without maximum authorised
l o a d ) .
4. Driver + maximum authorised load.
Page 137 of 221
9
i
PRACTICAL INFORMATION

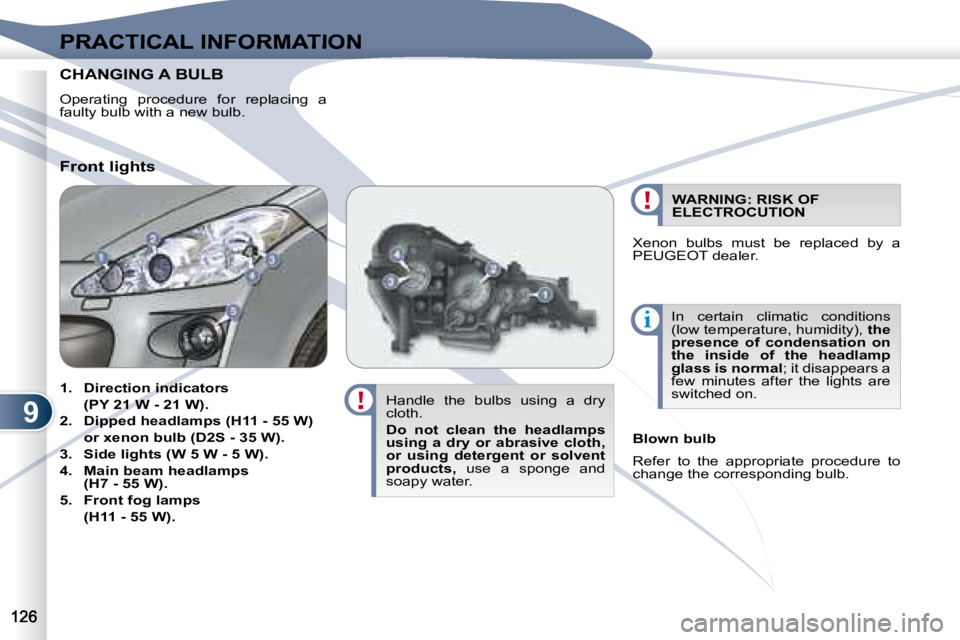

CHANGING CHANGING A BULB
Operating procedure for replacing a
faulty bulb with a new bulb. Handle the bulbs using a dry
cloth.
Do not clean the headlamps
using a dry or abrasive cloth,
or using detergent or solvent
products, use a sponge and
soapy water. In certain climatic conditions
(low temperature, humidity),
t
he
presence of condensation on
the inside of the headlamp
glass is normal ; it disappears a
few minutes after the lights are
switched on.
Front lights
Blown bulb
Refer to the appropriate procedure to
change the corresponding bulb.
1. Direction indicators
(PY 21 W - 21 W).
2. Dipped headlamps (H11 - 55 W)
or xenon bulb (D2S - 35 W).
3. Side lights (W 5 W - 5 W).
4. Main beam headlamps
(H7 - 55 W).
5. Front fog lamps
(H11 - 55 W). WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer.
Page 138 of 221
9i
PRACTICAL INFORMATION

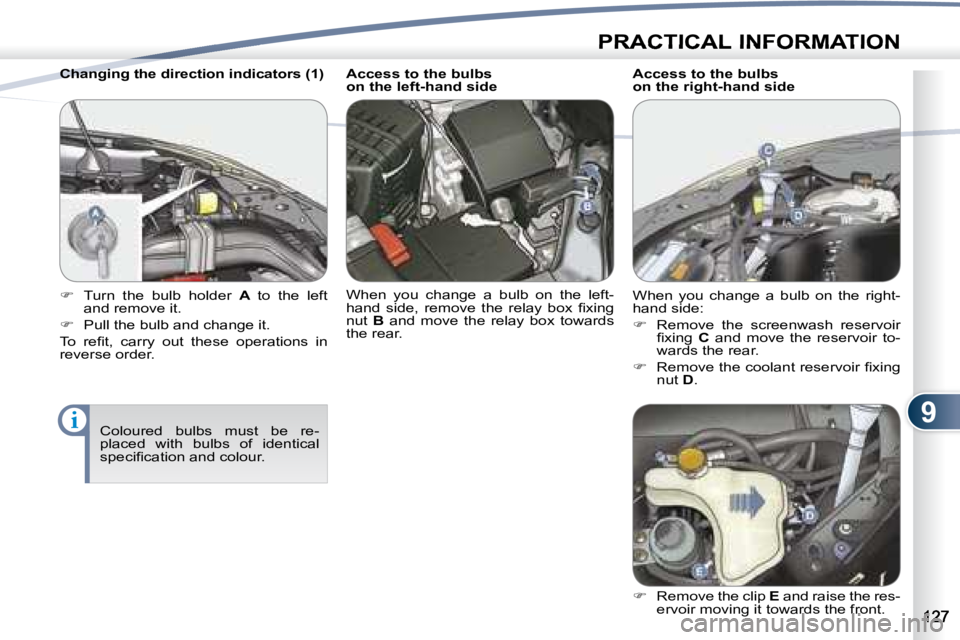

Changing the direction indicators (1) Coloured bulbs must be re-
placed with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r .
Turn the bulb holder A to the left
and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order. Access to the bulbs
on the left-hand side
When you change a bulb on the left-
h a n d s i d e , r e m o v e t h e r e l a y b o x fi x i n g
nut
B a n d m o v e t h e r e l a y b o x t o w a r d s
the rear. Access to the bulbs
on the right-hand side
When you change a bulb on the right-
hand side:
Remove the screenwash reservoir
fi x i n g C and move the reservoir to-
wards the rear.
R e m o v e t h e c o o l a n t r e s e r v o i r fi x i n g
nut D .
Remove the clip E and raise the res-
ervoir moving it towards the front.
Page 139 of 221
9
PRACTICAL INFORMATION

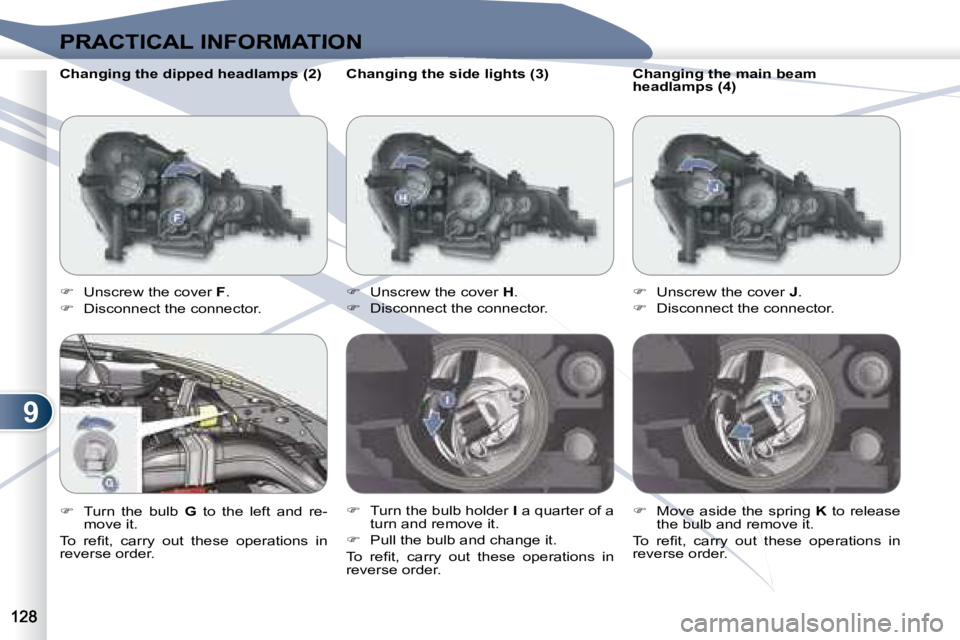

Changing the side lights (3)
Unscrew the cover H .
Disconnect the connector.
Turn the bulb holder I a quarter of a
turn and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Unscrew the cover F .
Disconnect the connector.
Turn the bulb G to the left and re-
move it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Changing the dipped headlamps (2)
Changing the main beam
headlamps (4)
Unscrew the cover J .
Disconnect the connector.
Move aside the spring K to release
the bulb and remove it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 140 of 221
9
PRACTICAL INFORMATION

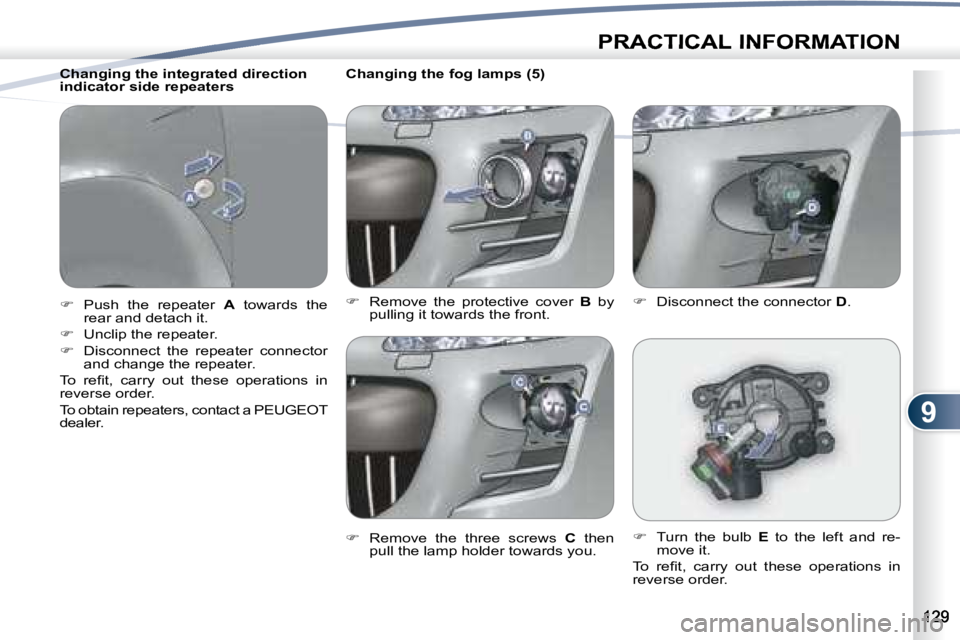

Changing the fog lamps (5)
Remove the protective cover B by
pulling it towards the front.
Remove the three screws C then
pull the lamp holder towards you.
Turn the bulb E to the left and re-
move it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Disconnect the connector D .
Changing the integrated direction
indicator side repeaters
Push the repeater A towards the
rear and detach it.
Unclip the repeater.
Disconnect the repeater connector
and change the repeater.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer.
Page 141 of 221
9
i
PRACTICAL INFORMATION

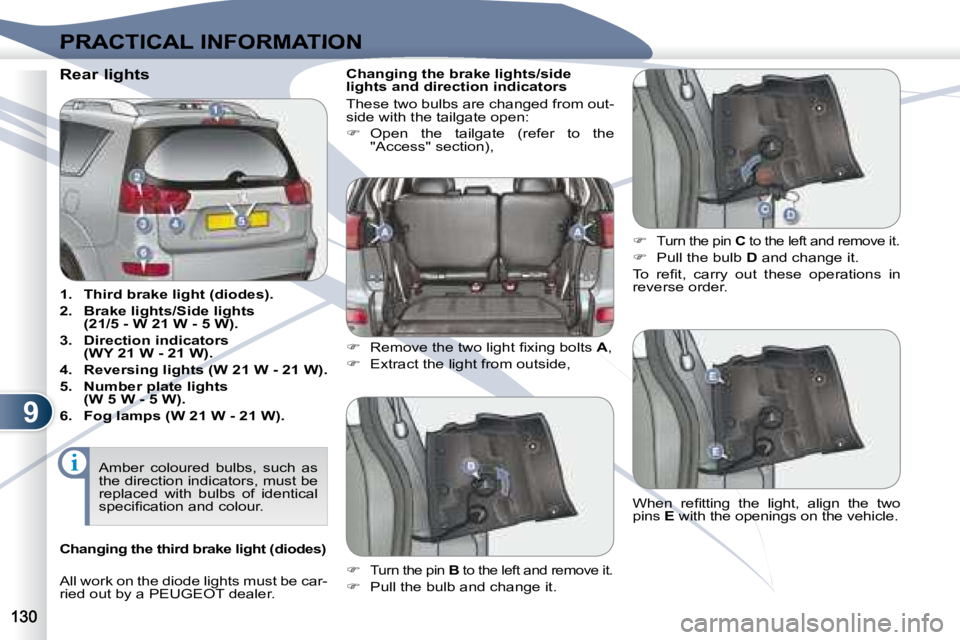

Rear lights
1. Third brake light (diodes).
2. Brake lights/Side lights
(21/5 - W 21 W - 5 W).
3. Direction indicators
(WY 21 W - 21 W).
4. Reversing lights (W 21 W - 21 W).
5. Number plate lights
(W 5 W - 5 W).
6. Fog lamps (W 21 W - 21 W). Changing the brake lights/side
lights and direction indicators
These two bulbs are changed from out-
side with the tailgate open:
Open the tailgate (refer to the
"Access" section),
R e m o v e t h e t w o l i g h t fi x i n g b o l t s A ,
E x t r a c t t h e l i g h t f r o m o u t s i d e ,
Turn the pin C to the left and remove it.
Pull the bulb D and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Turn the pin B to the left and remove it.
Pull the bulb and change it. W h e n r e fi t t i n g t h e l i g h t , a l i g n t h e t w o
pins
E with the openings on the vehicle.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r .
Changing the third brake light (diodes)
All work on the diode lights must be car-
ried out by a PEUGEOT dealer.
Page 142 of 221
9
PRACTICAL INFORMATION

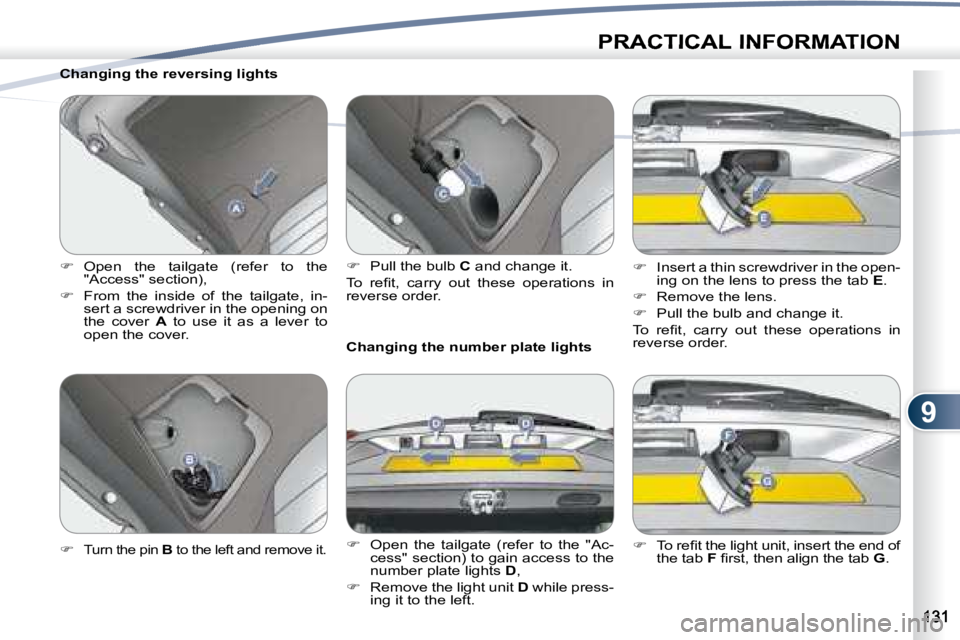

Changing the reversing lights
Open the tailgate (refer to the
"Access" section),
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A to use it as a lever to
open the cover. Changing the number plate lights
Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lights D ,
Remove the light unit D while press-
ing it to the left.
Turn the pin B to the left and remove it.
Pull the bulb C and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Insert a thin screwdriver in the open-
ing on the lens to press the tab E .
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
T o r e fi t t h e l i g h t u n i t , i n s e r t t h e e n d o f
the tab F fi r s t , t h e n a l i g n t h e t a b G .
Page 143 of 221
9

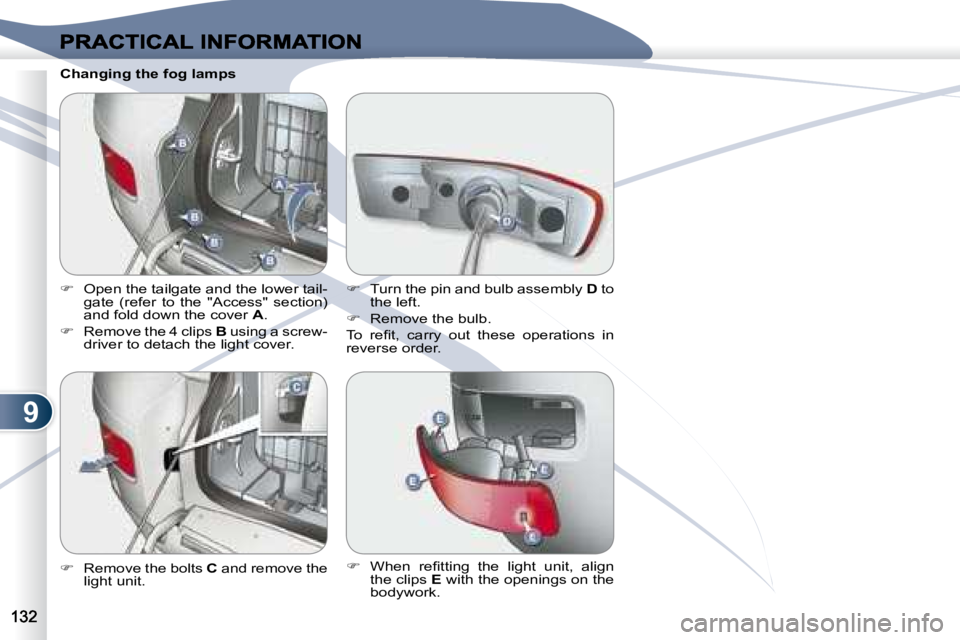

Changing the fog lamps
