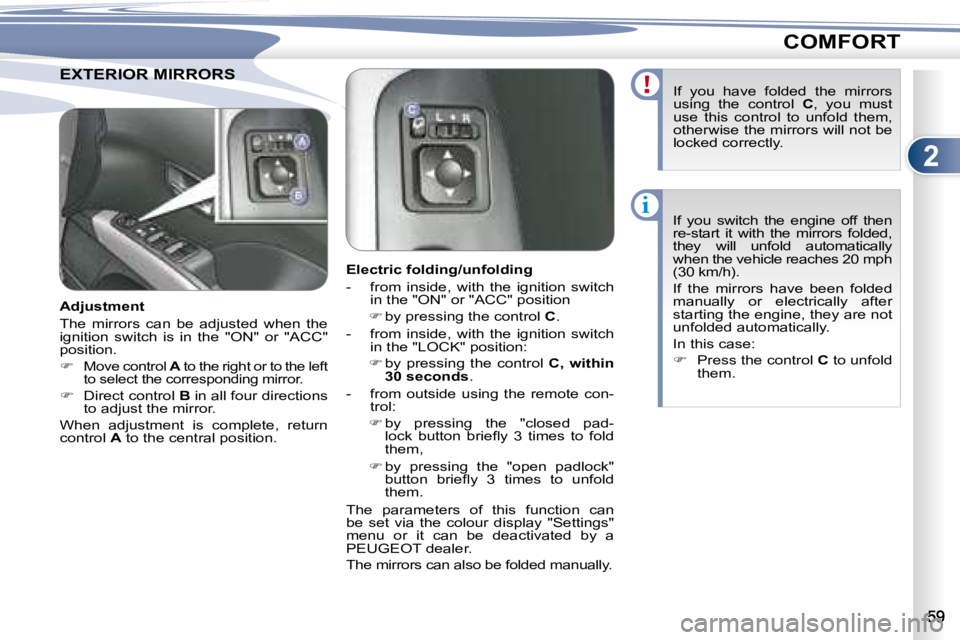

Page 62 of 221
2
i
COMFORT
EXTERIOR MIRRORS EXTERIOR MIRRORS
Electric folding/unfolding
- from inside, with the ignition switch i n t h e " O N " o r " A C C " p o s i t i o n
b y p r e s s i n g t h e c o n t r o l C .
- from inside, with the ignition switch i n t h e " L O C K " p o s i t i o n :
b y p r e s s i n g t h e c o n t r o l C , w i t h i n
30 seconds .
- from outside using the remote con- trol:
b y p r e s s i n g t h e " c l o s e d p a d -
l o c k b u t t o n b r i e fl y 3 t i m e s t o f o l d
them,
b y p r e s s i n g t h e " o p e n p a d l o c k "
b u t t o n b r i e fl y 3 t i m e s t o u n f o l d
t h e m .
T h e p a r a m e t e r s o f t h i s f u n c t i o n c a n
b e s e t v i a t h e c o l o u r d i s p l a y " S e t t i n g s "
m e n u o r i t c a n b e d e a c t i v a t e d b y a
P E U G E O T d e a l e r .
T h e m i r r o r s c a n a l s o b e f o l d e d m a n u a l l y .
Adjustment
T h e m i r r o r s c a n b e a d j u s t e d w h e n t h e
i g n i t i o n s w i t c h i s i n t h e " O N " o r " A C C "
p o s i t i o n .
Move control A to the right or to the left
t o s e l e c t t h e c o r r e s p o n d i n g m i r r o r .
Direct control B in all four directions
t o a d j u s t t h e m i r r o r .
W h e n a d j u s t m e n t i s c o m p l e t e , r e t u r n
control A t o t h e c e n t r a l p o s i t i o n . I f y o u s w i t c h t h e e n g i n e o f f t h e n
re-start it with the mirrors folded,
t h e y w i l l u n f o l d a u t o m a t i c a l l y
w h e n t h e v e h i c l e r e a c h e s 2 0 m p h
( 3 0 k m / h ) .
If the mirrors have been folded
m a n u a l l y o r e l e c t r i c a l l y a f t e r
s t a r t i n g t h e e n g i n e , t h e y a r e n o t
u n f o l d e d a u t o m a t i c a l l y .
In this case:
P r e s s t h e c o n t r o l C to unfold
t h e m .
I f y o u h a v e f o l d e d t h e m i r r o r s
using the control
C , y o u m u s t
use this control to unfold them,
otherwise the mirrors will not be
l o c k e d c o r r e c t l y .

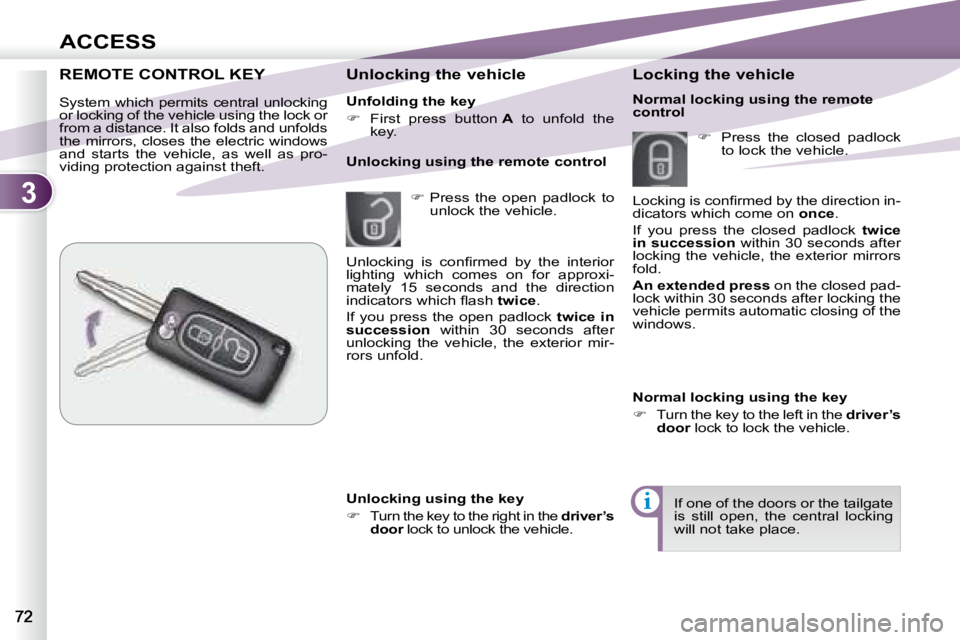

Page 75 of 221
3
i
ACCESS
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROL KEY REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock or
from a distance. It also folds and unfolds
the mirrors, closes the electric windows
and starts the vehicle, as well as pro-
viding protection against theft. Locking the vehicle
Normal locking using the remote
control
Unlocking using the key
Turn the key to the right in the driver’s
door lock to unlock the vehicle.
Press the closed padlock
to lock the vehicle.
If one of the doors or the tailgate
is still open, the central locking
will not take place.
U n l o c k i n g i s c o n fi r m e d b y t h e i n t e r i o r
lighting which comes on for approxi-
mately 15 seconds and the direction
i n d i c a t o r s w h i c h fl a s h
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the exterior mir-
rors unfold.
Normal locking using the key
Turn the key to the left in the driver’s
door lock to lock the vehicle.
L o c k i n g i s c o n fi r m e d b y t h e d i r e c t i o n i n -
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds after
locking the vehicle, the exterior mirrors
fold.
An extended press on the closed pad-
lock within 30 seconds after locking the
vehicle permits automatic closing of the
windows.

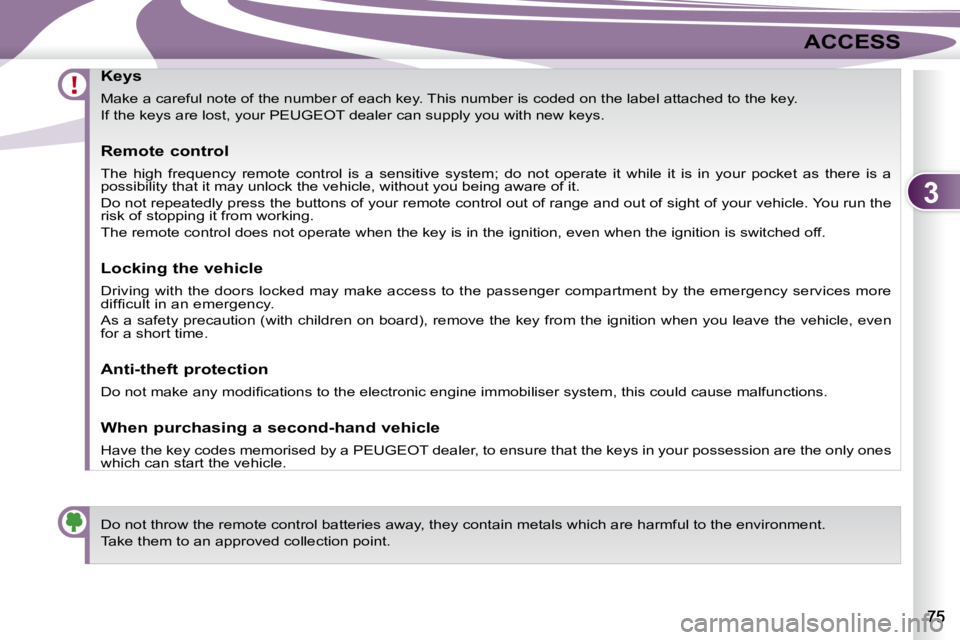

Page 78 of 221
3
ACCESS
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can supply you with new keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment by the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even
for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m , t h i s c o u l d c a u s e m a l f u n c t i o n s .
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.
Do not throw the remote control batteries away, they conta in metals which are harmful to the environment.
Take them to an approved collection point.
Page 80 of 221
3
ACCESS
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can supply you with new keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment by the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even
for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m , t h i s c o u l d c a u s e m a l f u n c t i o n s .
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.
Do not throw the remote control batteries away, they conta in metals which are harmful to the environment.
Take them to an approved collection point.

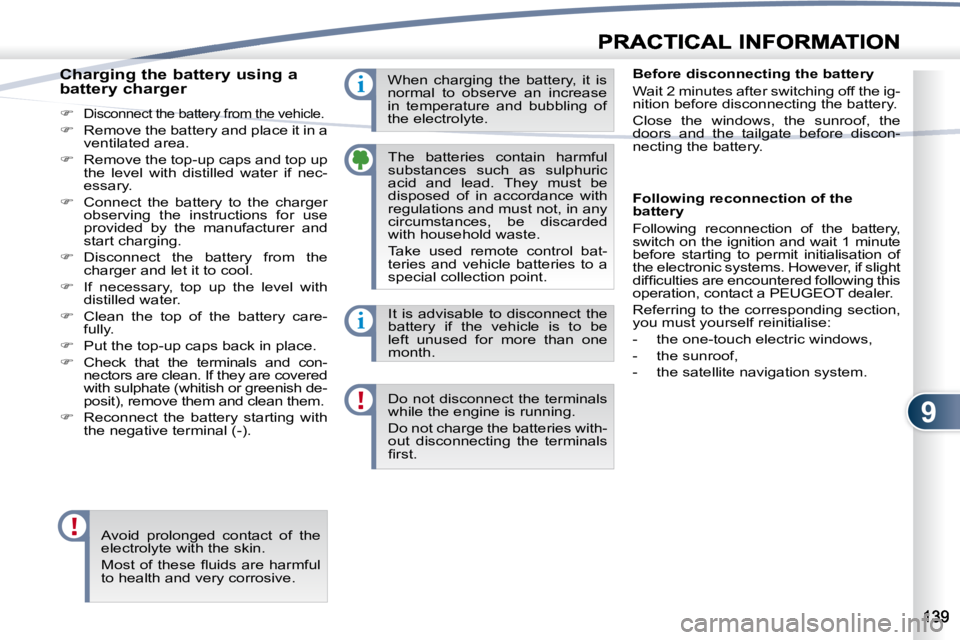

Page 150 of 221
9
i
i
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top up
the level with distilled water if nec-
essary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish de-
posit), remove them and clean them.
Reconnect the battery starting with
the negative terminal (-). It is advisable to disconnect the
battery if the vehicle is to be
left unused for more than one
month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t . Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w i n g t h i s
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before discon-
necting the battery.
