FAMILIARISATION
11

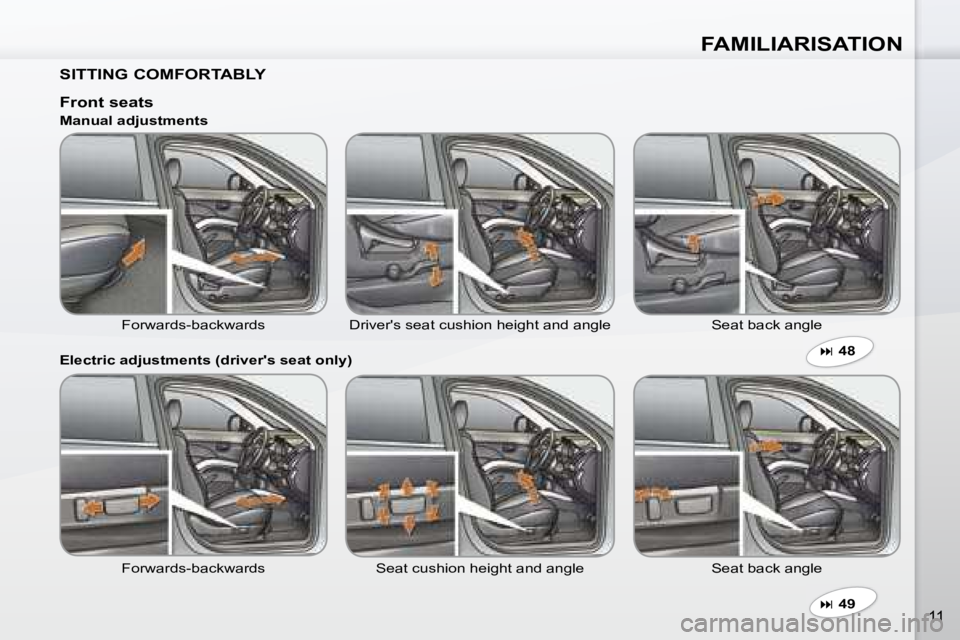

SITTING COMFORTABLY
49
Front seats
F o r w a r d s - b a c k w a r d s Driver's seat cushion height and angle Seat back angle
Manual adjustments
Electric adjustments (driver's seat only)
F o r w a r d s - b a c k w a r d s Seat cushion height and angle Seat back angle
48
Page 9 of 221
FAMILIARISATION
12
SITTING COMFORTABLY
1. Unlocking of the lever.
2. Locking of the lever.
3. A d j u s t m e n t o f t h e h e i g h t o f t h e
s t e e r i n g w h e e l .
Manual steering wheel height
adjustment
Exterior mirror adjustment
A. Selection of the mirror
B.
A d j u s t m e n t o f t h e p o s i t i o n o f t h e m i r r o r .
C. Folding/Unfolding.
60 Interior mirror adjustment
D. Control for selection of the "day/
n i g h t " p o s i t i o n o f t h e m i r r o r .
59
60 Front seat belt
1. Fastening.
2. H e i g h t a d j u s t m e n t .
102
Page 51 of 221
2
COMFORT

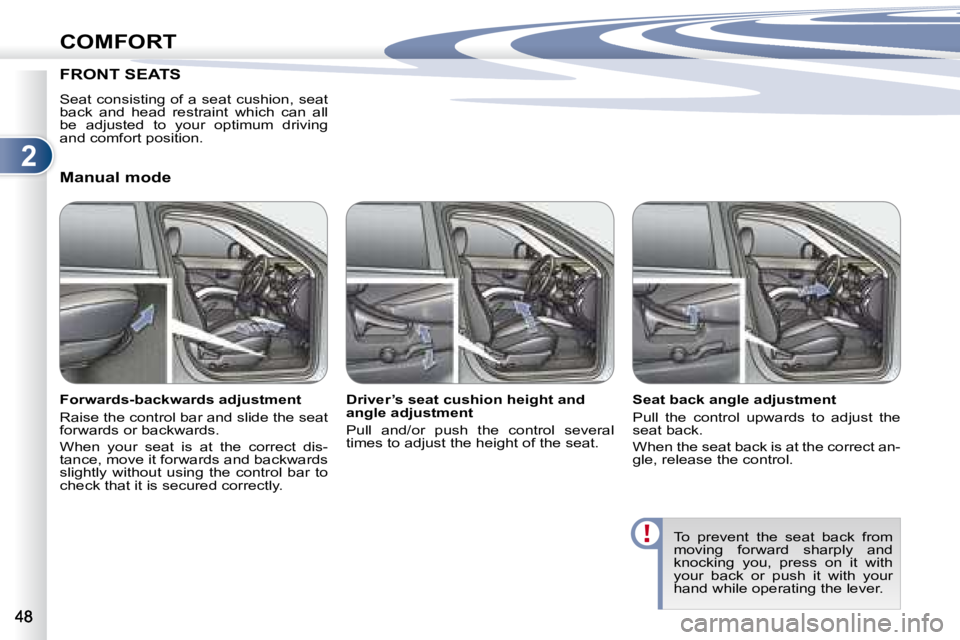

FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
b e a d j u s t e d t o y o u r o p t i m u m d r i v i n g
a n d c o m f o r t p o s i t i o n .
Manual mode
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Raise the control bar and slide the seat
f o r w a r d s o r b a c k w a r d s .
W h e n y o u r s e a t i s a t t h e c o r r e c t d i s -
tance, move it forwards and backwards
s l i g h t l y w i t h o u t u s i n g t h e c o n t r o l b a r t o
c h e c k t h a t i t i s s e c u r e d c o r r e c t l y . Driver’s seat cushion height and
angle adjustment
P u l l a n d / o r p u s h t h e c o n t r o l s e v e r a l
t i m e s t o a d j u s t t h e h e i g h t o f t h e s e a t .
Seat back angle adjustment
P u l l t h e c o n t r o l u p w a r d s t o a d j u s t t h e
s e a t b a c k .
When the seat back is at the correct an-
g l e , r e l e a s e t h e c o n t r o l .
T o p r e v e n t t h e s e a t b a c k f r o m
m o v i n g f o r w a r d s h a r p l y a n d
k n o c k i n g y o u , p r e s s o n i t w i t h
y o u r b a c k o r p u s h i t w i t h y o u r
h a n d w h i l e o p e r a t i n g t h e l e v e r .
Page 52 of 221
2
i
COMFORT

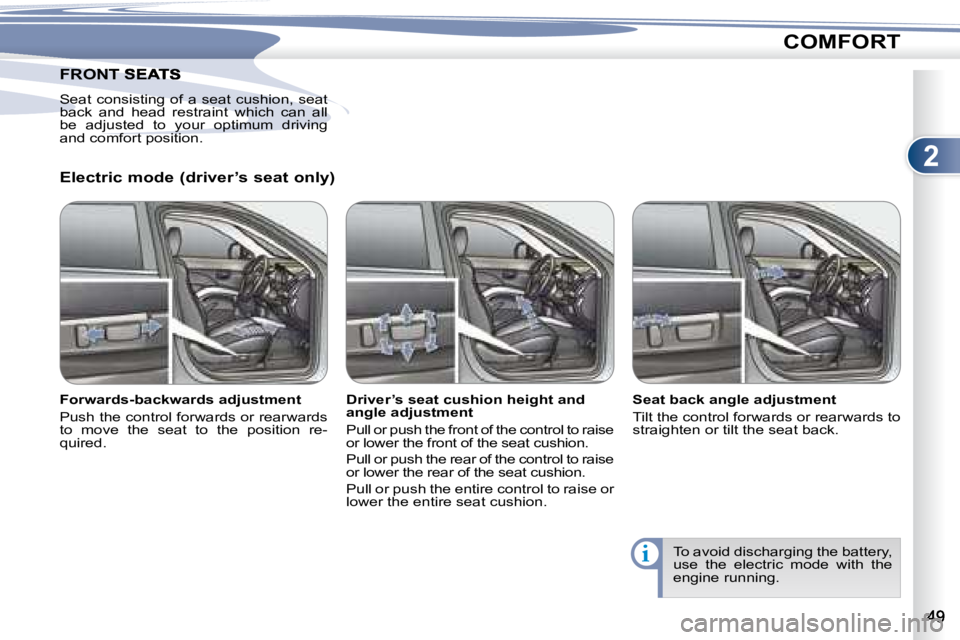

Electric mode (driver’s seat only)
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
P u s h t h e c o n t r o l f o r w a r d s o r r e a r w a r d s
t o m o v e t h e s e a t t o t h e p o s i t i o n r e -
q u i r e d . Driver’s seat cushion height and
angle adjustment
P u l l o r p u s h t h e f r o n t o f t h e c o n t r o l t o r a i s e
o r l o w e r t h e f r o n t o f t h e s e a t c u s h i o n .
P u l l o r p u s h t h e r e a r o f t h e c o n t r o l t o r a i s e
o r l o w e r t h e r e a r o f t h e s e a t c u s h i o n .
P u l l o r p u s h t h e e n t i r e c o n t r o l t o r a i s e o r
l o w e r t h e e n t i r e s e a t c u s h i o n . Seat back angle adjustment
Tilt the control forwards or rearwards to
s t r a i g h t e n o r t i l t t h e s e a t b a c k .
FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
b e a d j u s t e d t o y o u r o p t i m u m d r i v i n g
a n d c o m f o r t p o s i t i o n .
T o a v o i d d i s c h a r g i n g t h e b a t t e r y ,
use the electric mode with the
e n g i n e r u n n i n g .
Page 53 of 221
2
i
COMFORT

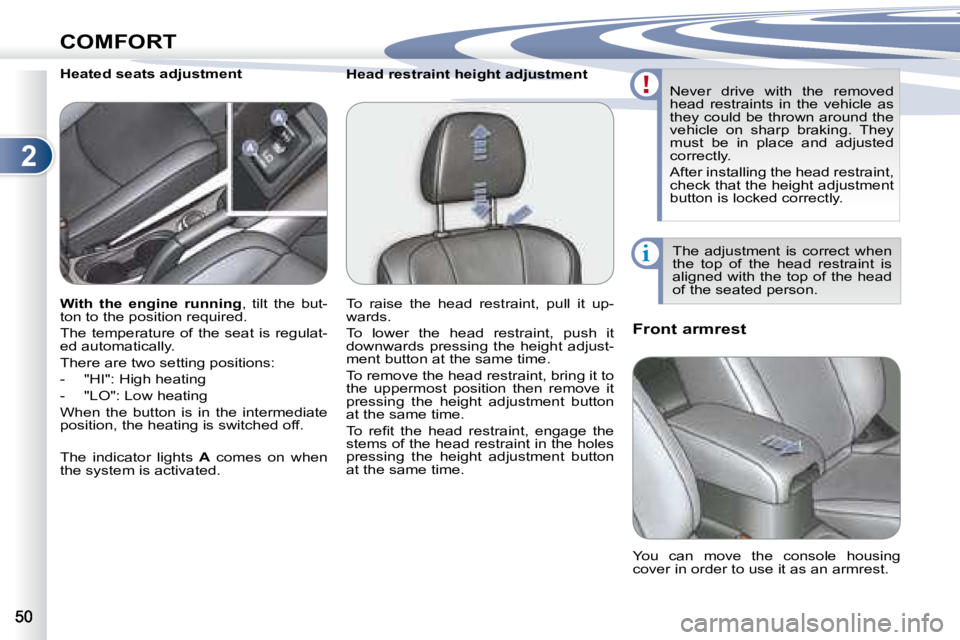

Head restraint height adjustment Front armrest
Heated seats adjustment
T h e a d j u s t m e n t i s c o r r e c t w h e n
t h e t o p o f t h e h e a d r e s t r a i n t i s
a l i g n e d w i t h t h e t o p o f t h e h e a d
o f t h e s e a t e d p e r s o n .
N e v e r d r i v e w i t h t h e r e m o v e d
head restraints in the vehicle as
t h e y c o u l d b e t h r o w n a r o u n d t h e
v e h i c l e o n s h a r p b r a k i n g . T h e y
m u s t b e i n p l a c e a n d a d j u s t e d
c o r r e c t l y .
After installing the head restraint,
c h e c k t h a t t h e h e i g h t a d j u s t m e n t
b u t t o n i s l o c k e d c o r r e c t l y .
You can move the console housing
c o v e r i n o r d e r t o u s e i t a s a n a r m r e s t .
With the engine running , tilt the but-
t o n t o t h e p o s i t i o n r e q u i r e d .
T h e t e m p e r a t u r e o f t h e s e a t i s r e g u l a t -
e d a u t o m a t i c a l l y .
T h e r e a r e t w o s e t t i n g p o s i t i o n s :
- " H I " : H i g h h e a t i n g
- "LO": Low heating
When the button is in the intermediate
p o s i t i o n , t h e h e a t i n g i s s w i t c h e d o f f .
The indicator lights A comes on when
t h e s y s t e m i s a c t i v a t e d . T o r a i s e t h e h e a d r e s t r a i n t , p u l l i t u p -
w a r d s .
T o l o w e r t h e h e a d r e s t r a i n t , p u s h i t
d o w n w a r d s p r e s s i n g t h e h e i g h t a d j u s t -
m e n t b u t t o n a t t h e s a m e t i m e .
To remove the head restraint, bring it to
t h e u p p e r m o s t p o s i t i o n t h e n r e m o v e i t
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
T o r e fi t t h e h e a d r e s t r a i n t , e n g a g e t h e
stems of the head restraint in the holes
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
Page 54 of 221
2
COMFORT

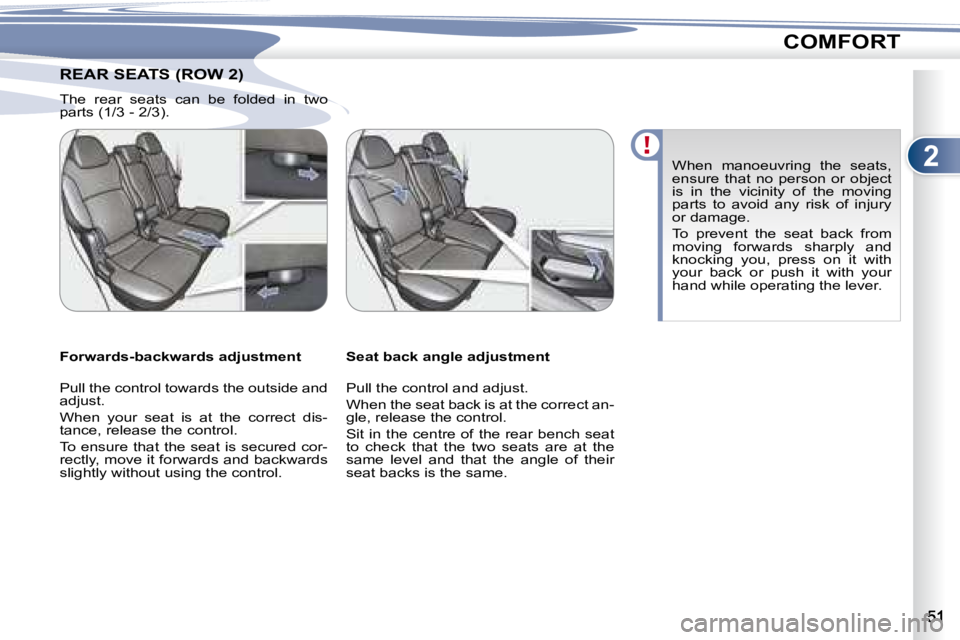

REAR SEATS (ROW 2) REAR SEATS (ROW 2)
The rear seats can be folded in two
p a r t s ( 1 / 3 - 2 / 3 ) . Seat back angle adjustment
P u l l t h e c o n t r o l a n d a d j u s t .
When the seat back is at the correct an-
g l e , r e l e a s e t h e c o n t r o l .
Sit in the centre of the rear bench seat
to check that the two seats are at the
same level and that the angle of their
s e a t b a c k s i s t h e s a m e .
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
P u l l t h e c o n t r o l t o w a r d s t h e o u t s i d e a n d
a d j u s t .
W h e n y o u r s e a t i s a t t h e c o r r e c t d i s -
t a n c e , r e l e a s e t h e c o n t r o l .
To ensure that the seat is secured cor-
r e c t l y , m o v e i t f o r w a r d s a n d b a c k w a r d s
s l i g h t l y w i t h o u t u s i n g t h e c o n t r o l . When manoeuvring the seats,
e n s u r e t h a t n o p e r s o n o r o b j e c t
i s i n t h e v i c i n i t y o f t h e m o v i n g
p a r t s t o a v o i d a n y r i s k o f i n j u r y
o r d a m a g e .
T o p r e v e n t t h e s e a t b a c k f r o m
m o v i n g f o r w a r d s s h a r p l y a n d
k n o c k i n g y o u , p r e s s o n i t w i t h
y o u r b a c k o r p u s h i t w i t h y o u r
h a n d w h i l e o p e r a t i n g t h e l e v e r .
Page 97 of 221
4
VISIBILITY
MANUAL ADJUSTMENT OF THE
HEADLAMPS
To avoid dazzling other road users, the
height of the headlamps must be adjusted
in relation to the load in the vehicle.
5-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. 5 occupants (including the
d r i v e r ) .
3. 5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) +
maximum authorised load.
4. Driver + maximum authorised load.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driv-
er is then assured of having optimum
lighting and not causing a nuisance to
other road users.
In cases of malfunction ,
this message appears on
the multifunction display.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer.
7-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. Driver + 1 passenger in the
front + 2 passengers on the
third bench seat.
3. 7 occupants (including the driver
with or without maximum authorised
l o a d ) .
4. Driver + maximum authorised load.
Page 112 of 221
6
SAFETY

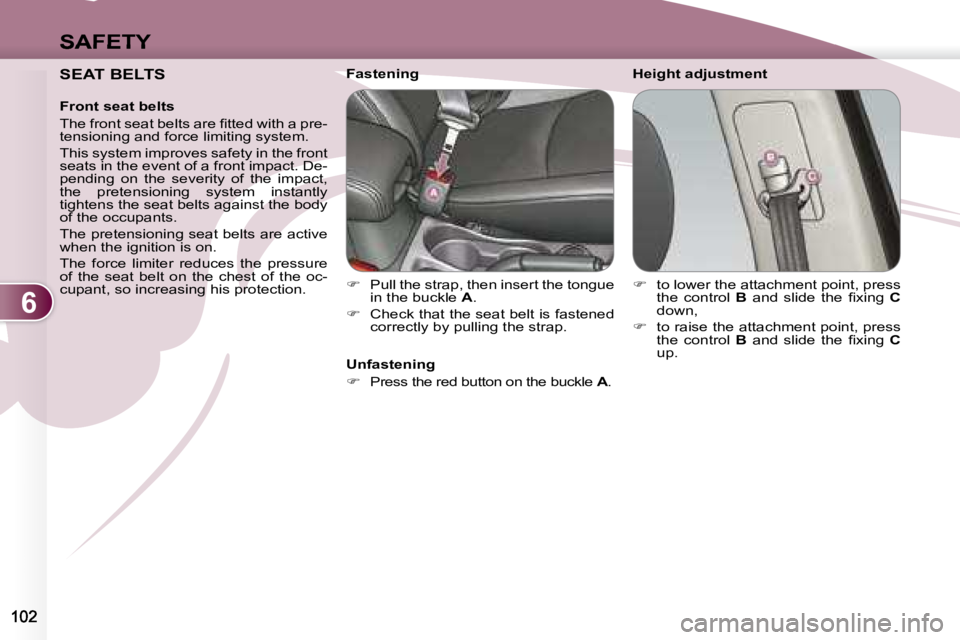

SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly
tightens the seat belts against the body
of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, so increasing his protection. Height adjustment
Fastening
Pull the strap, then insert the tongue
in the buckle A .
Check that the seat belt is fastened
correctly by pulling the strap.
to lower the attachment point, press
the control B a n d s l i d e t h e fi x i n g C
down,
to raise the attachment point, press
the control B a n d s l i d e t h e fi x i n g C
up.
Unfastening
Press the red button on the buckle A .
Page 145 of 221
9
PRACTICAL INFORMATION

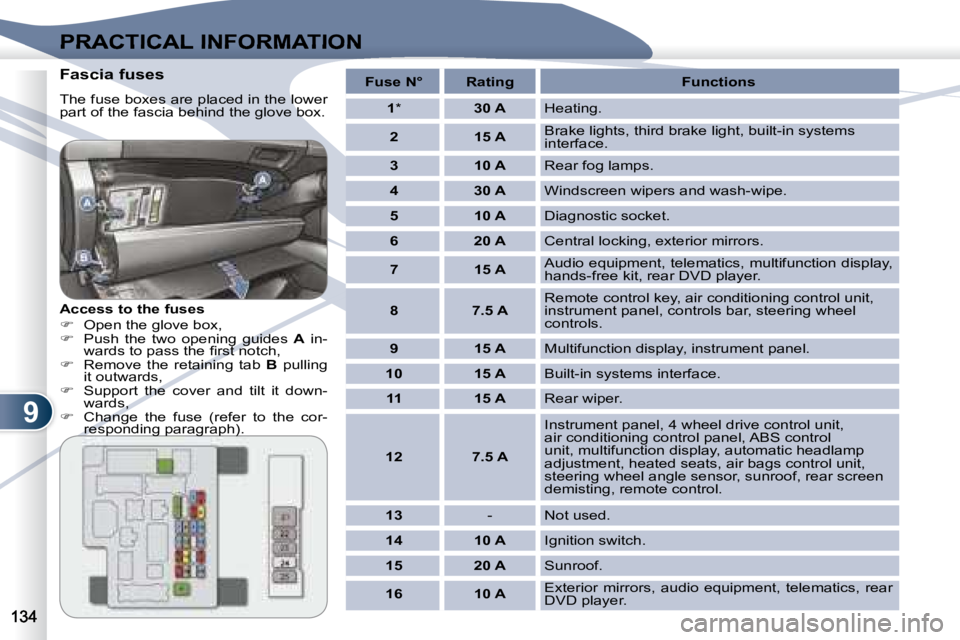

Fascia fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
p a r t o f t h e f a s c i a b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2
15 A Brake lights, third brake light, built-in systems
interface.
3 10 A Rear fog lamps.
4 30 A Windscreen wipers and wash-wipe.
5 10 A Diagnostic socket.
6 20 A C e n t r a l l o c k i n g , e x t e r i o r m i r r o r s .
7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.
9 15 A Multifunction display, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 -
Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A E x t e r i o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s , r e a r
DVD player.
