FAMILIARISATION
17
KEEPING YOUR PASSENGERS SAFE
Front passenger air bag Child lock
1. Insertion of the key.
2. Selection of the "OFF" position.
3. Removal of the key. This prevents opening of the door con-
cerned from the inside.
Lower or raise the control
A to lock or
unlock.
110
102 Isofix mounting
Two rings
A , l o c a t e d b e t w e e n t h e s e a t
back and seat cushion of the vehicle’s
s e a t , p e r m i t t h e s e c u r i n g o f a c h i l d s e a t .
A ring B permits securing of the upper
strap referred to as the TOP TETHER .
99
Page 105 of 230
5
CHILD SAFETY
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BEL CHILD SEAT USING A THREE POINT SEAT BELT
* The rules for transporting children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS
"Rearwards-facing"
PEUGEOT recommends that
children should travel in the rear
seats of your vehicle:
- "rearwards-facing" up to
the age of 2,
- "forwards-facing" over the
age of 2. When a "rearwards-facing" child
seat is installed on the
front
passenger seat , it is essential
that the passenger airbag is de-
activated. Otherwise, the child
would risk being seriously
injured or killed if the airbag
w e r e t o i n fl a t e . When a "forwards-facing" child seat is
installed on the
front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Forwards-facing"
Intermediate longitudinal position
For maximum safety, please follow
these precautions:
- in accordance with European regula-
tions, all children under the age of
12 or less than one and a half me-
tres tall must travel in approved
child seats suited to their weight ,
o n s e a t s fi t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
a n d i n t h e r e a r .
Page 106 of 230
5
CHILD SAFETY
CHILD SEATS RECOMMENDED BY PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Passenger air bag OFF
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for
the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X a n c h o r a g e s . The child is restrained by the seat belt.
Page 107 of 230
5
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELTS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in relation to the weight of th e child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" ca nnot be installed on the front passenger seat.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U: seat suitable for the installation of a child seat secure d using the seat belt and universally approved, "rear facing" an d/or
"forward facing".
X: seat not suitable for the installation of a child seat of the weight group indicated.
L-: only the child seats indicated can be installed on the se at concerned (according to country).
Seat
Weight of the child and indicative age
Less than 13 kg
(groups 0 (b) and 0+) Up to
≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat
(c) with passenger air
bag activated
X L2 L3, L4 L3, L4
Front passenger seat
(c) with passenger air
bag disarmed
L1 L2 L3, L4 L3, L4
R e a r s i d e s e a t s
(row 2)
U U U U
R e a r c e n t r e s e a t
(row 2)
L1 L2 L3, L4 L3, L4
R e a r s i d e s e a t s
(row 3)
L1 L2 L3, L4 L3, L4
Page 108 of 230
5
CHILD SAFETY
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident. For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the loca-
tion of the ISOFIX child seats.
"ISOFIX" MOUNTINGS
These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , u s e d t o fi x t h e u p p e r s t r a p ,
referred to as the TOP TETHER , in-
dicated by a label. This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to the ring B .
To attach this strap, remove the vehi-
c l e s e a t ' s h e a d r e s t r a i n t . T h e n fi x t h e
hook on the ring B and tighten the upper
strap.
Your vehicle has been approved in accord-
ance with the
new ISOFIX regulation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings:
Page 109 of 230
5
CHILD SAFETY
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s .
In this case, it must be attached to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .
ISOFIX RÖMER Duo Plus
(size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp er ring, referred to as the
T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE PEUGEOT AND APPROVED FOR YOUR VEHICLE
Page 110 of 230
5
CHILD SAFETY
SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS SUMMARY TABLE FOR THE LOCA
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the "Top Tether" uppe r strap.
IL-SU: s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a n I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s u p p o r t ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x m o u n t i n g s " s e c t i o n .
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
The head restraint of the vehicle's ISOFIX seat must be removed and stored.
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s ( E C E 1 6 ) , t h i s t a b l e i
n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n s e a t s
i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is
indicated on the child seat next to the ISOFIX logo .
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than
13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat infant car seat "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal ISOFIX child seats which can be installed on the rear seats X IL-SU IL-SU
IUF
IL-SU
Page 111 of 230
5
CHILD SAFETY

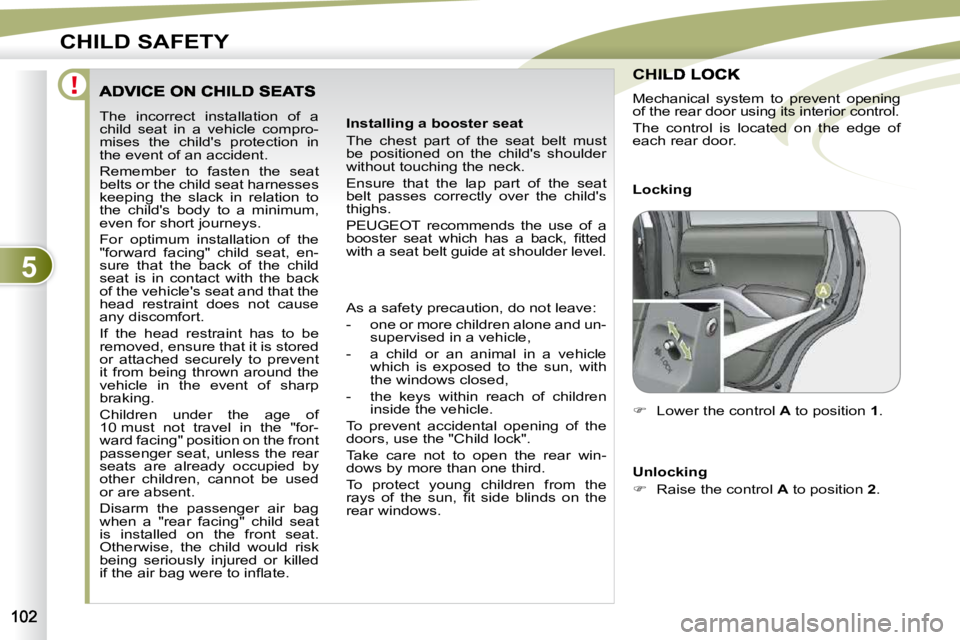

The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
R e m e m b e r t o f a s t e n t h e s e a t
belts or the child seat harnesses
keeping the slack in relation to
the child's body to a minimum,
even for short journeys.
For optimum installation of the
"forward facing" child seat, en-
sure that the back of the child
seat is in contact with the back
of the vehicle's seat and that the
head restraint does not cause
any discomfort.
If the head restraint has to be
removed, ensure that it is stored
or attached securely to prevent
it from being thrown around the
vehicle in the event of sharp
braking.
C h i l d r e n u n d e r t h e a g e o f
10 must not travel in the "for-
ward facing" position on the front
passenger seat, unless the rear
seats are already occupied by
other children, cannot be used
or are absent.
Disarm the passenger air bag
when a "rear facing" child seat
is installed on the front seat.
Otherwise, the child would risk
being seriously injured or killed
i f t h e a i r b a g w e r e t o i n fl a t e . Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
CHILD LOCK
Lower the control A to position 1 .
Locking
Unlocking
R a i s e t h e c o n t r o l A to position 2 .
M e c h a n i c a l s y s t e m t o p r e v e n t o p e n i n g
of the rear door using its interior control.
The control is located on the edge of
each rear door.
Page 117 of 230
6
SAFETY
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n
automatic locking device which
comes into operation in the event
of a collision, emergency braking
or if the vehicle rolls over. You can
release the device by pulling rapidly
on the strap and releasing it so that
it re-winds slightly. Recommendations for children

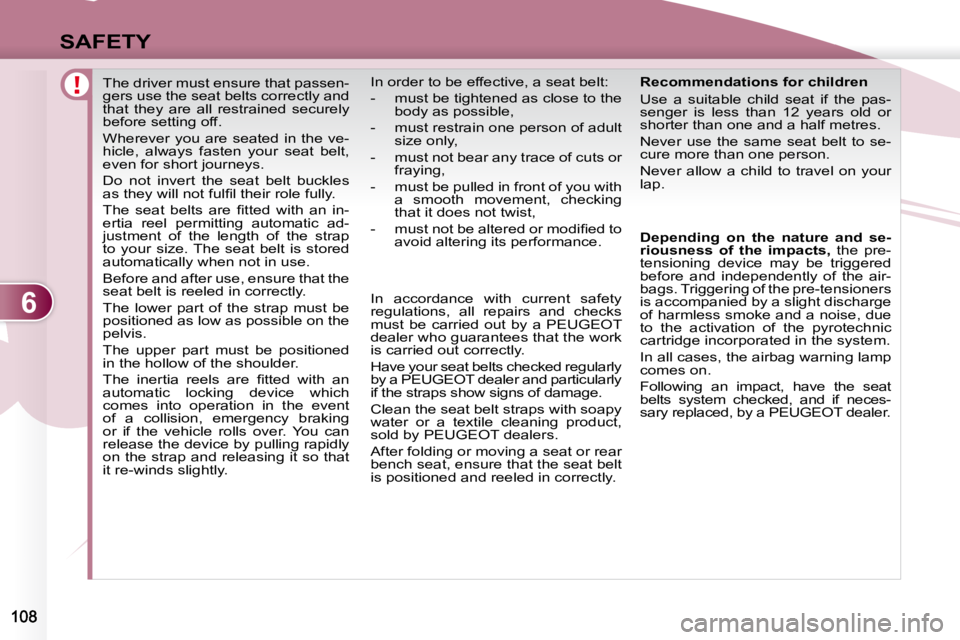

Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regularly
by a PEUGEOT dealer and particularly
if the straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Depending on the nature and se-
riousness of the impacts
, the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 119 of 230
6
SAFETY
If the air bag warning light and
the display come on continuous-
ly, do not install a "rear facing"
child seat on the front passenger
seat.
Consult a PEUGEOT dealer.

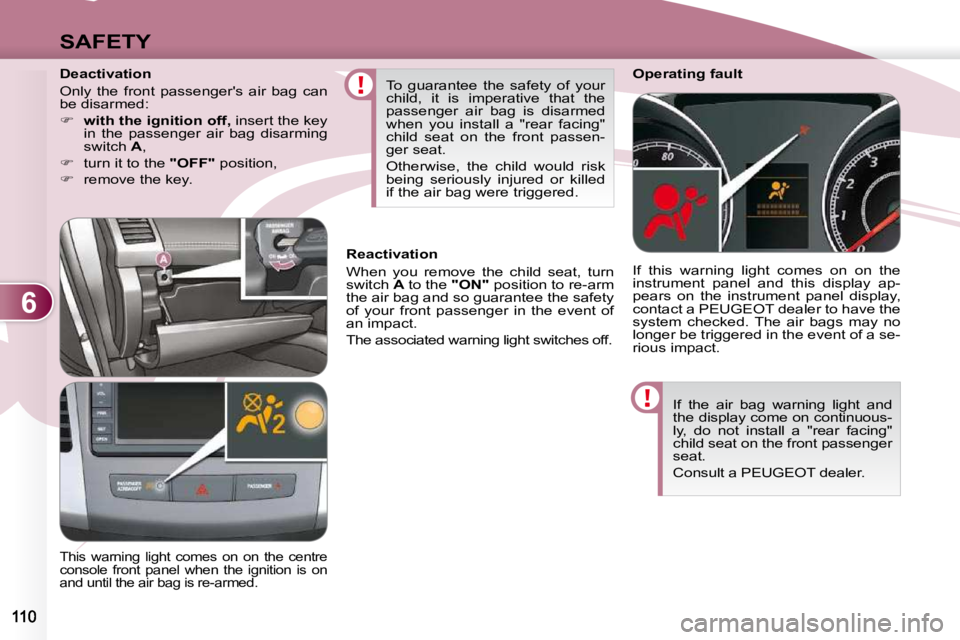

Operating fault
If this warning light comes on on the
instrument panel and this display ap-
pears on the instrument panel display,
contact a PEUGEOT dealer to have the
system checked. The air bags may no
longer be triggered in the event of a se-
rious impact.
To guarantee the safety of your
child, it is imperative that the
passenger air bag is disarmed
when you install a "rear facing"
child seat on the front passen-
ger seat.
Otherwise, the child would risk
being seriously injured or killed
if the air bag were triggered.
This warning light comes on on the centre
console front panel when the ignition is on
and until the air bag is re-armed.
Reactivation
When you remove the child seat, turn
switch
A to the "ON" position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.
The associated warning light switches off.
Deactivation
Only the front passenger's air bag can
be disarmed:
with the ignition off , insert the key
in the passenger air bag disarming
switch A ,
turn it to the "OFF" position,
remove the key.
