PRACTICAL INFORMATION

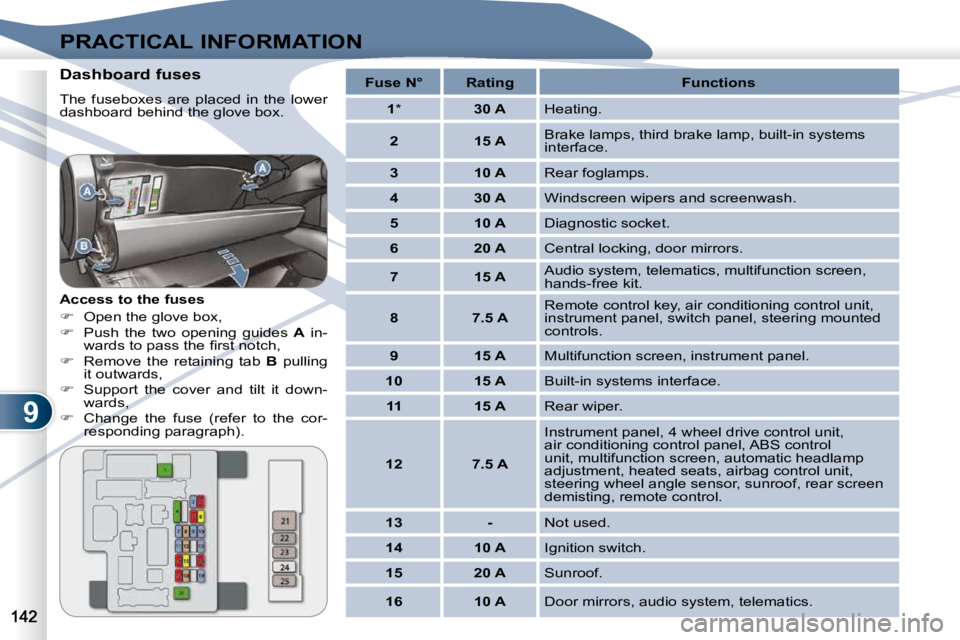

Dashboard fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
d a s h b o a r d b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2 15 A Brake lamps, third brake lamp, built-in systems
interface.
3 10 A Rear foglamps.
4 30 A Windscreen wipers and screenwash.
5 10 A Diagnostic socket.
6 20 A Central locking, door mirrors.
7 15 A Audio system, telematics, multifunction screen,
hands-free kit.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9 15 A Multifunction screen, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A Door mirrors, audio system, telematics.
