Page 87 of 215
5

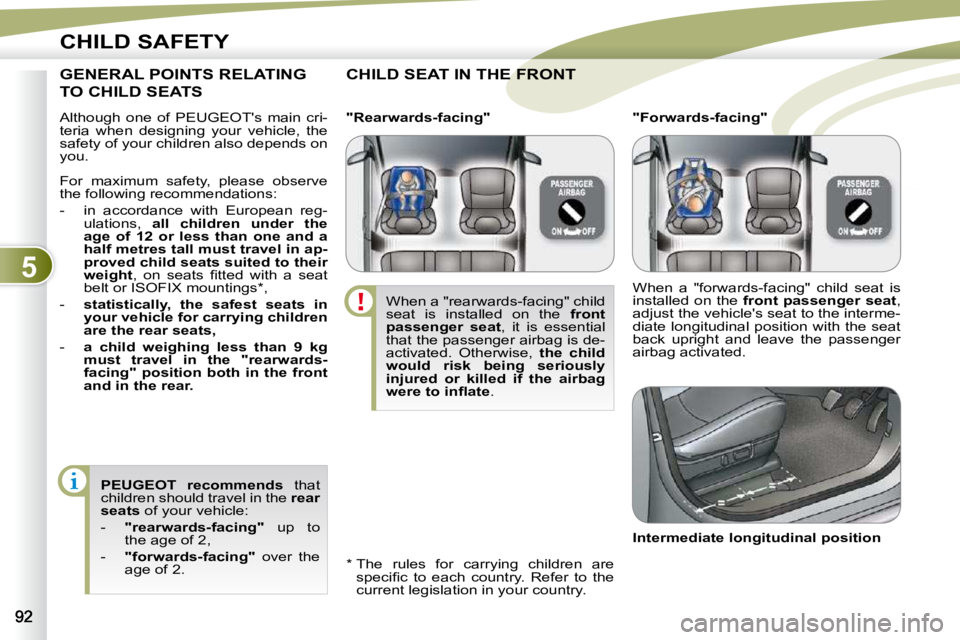

CHILD SAFETY
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
CHILD SEAT IN THE FRONT T IN THE FRONT
* The rules for carrying children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS
"Rearwards-facing"
PEUGEOT recommends that
children should travel in the rear
seats of your vehicle:
- "rearwards-facing" up to
the age of 2,
- "forwards-facing" over the
age of 2. When a "rearwards-facing" child
seat is installed on the
front
passenger seat , it is essential
that the passenger airbag is de-
activated. Otherwise, the child
would risk being seriously
injured or killed if the airbag
w e r e t o i n fl a t e . When a "forwards-facing" child seat is
installed on the
front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Forwards-facing"
Intermediate longitudinal position
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , o n s e a t s fi t t e d w i t h a s e a t
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
Page 90 of 215
5
CHILD SAFETY
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident. For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the table showing the locations
for ISOFIX child seats.

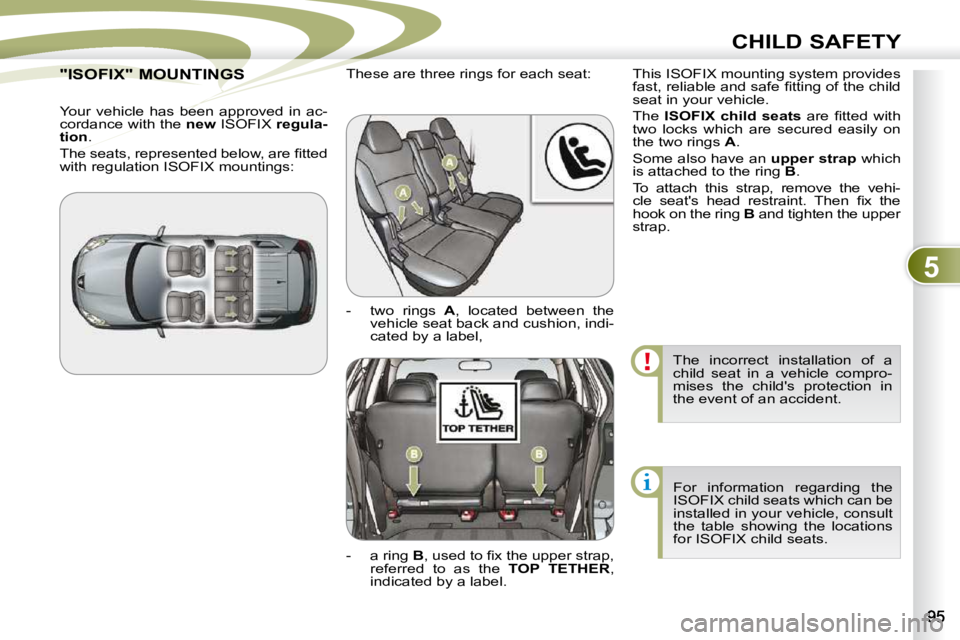

"ISOFIX" MOUNTINGS
These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , u s e d t o fi x t h e u p p e r s t r a p ,
referred to as the TOP TETHER ,
indicated by a label. This ISOFIX mounting system provides
f a s t , r e l i a b l e a n d s a f e fi t t i n g o f t h e c h i l d
seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to the ring B .
To attach this strap, remove the vehi-
c l e s e a t ' s h e a d r e s t r a i n t . T h e n fi x t h e
hook on the ring B and tighten the upper
strap.
Your vehicle has been approved in ac-
cordance with the
new ISOFIX regula-
tion .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings:
Page 91 of 215
5
CHILD SAFETY
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s .
In this case, it must be attached to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .

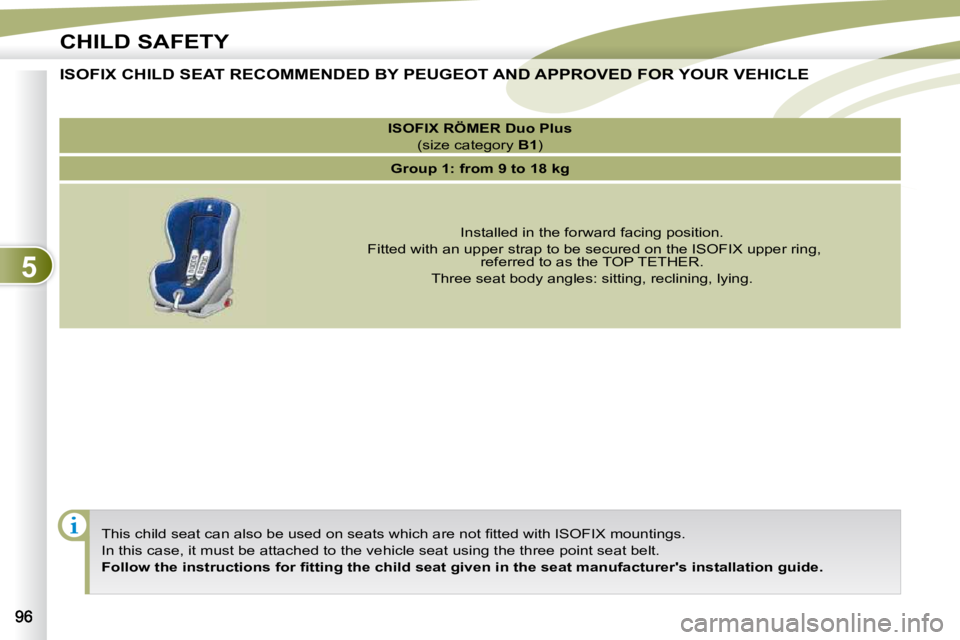

ISOFIX
RÖMER Duo Plus
(size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp er ring,
r e f e r r e d t o a s t h e T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE PEUGEOT AND APPROVED FOR YOUR VEHICLE
Page 92 of 215
5
CHILD SAFETY

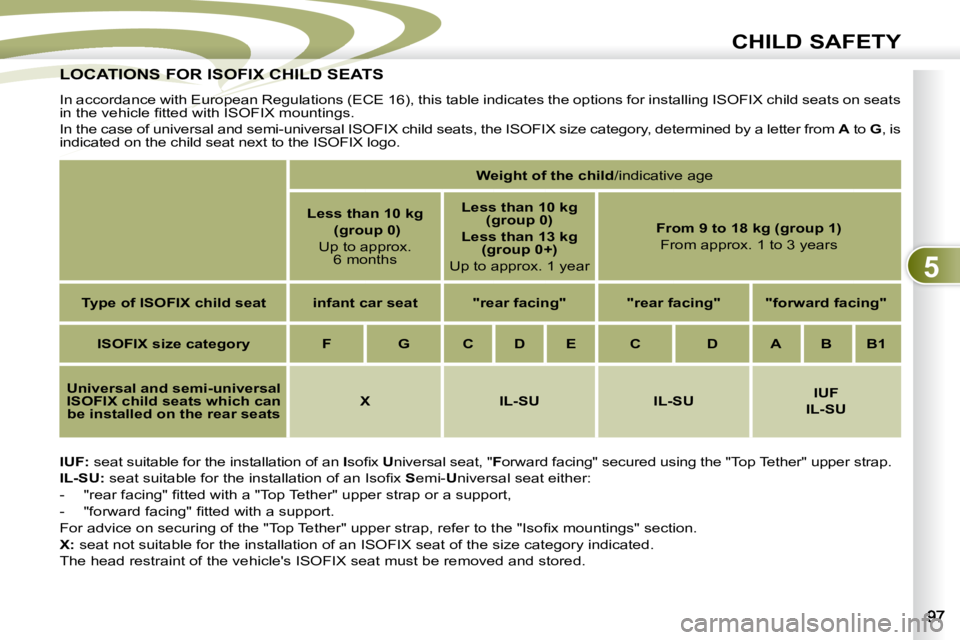

LOCATIONS FOR ISOFIX CHILD SEATS LOCATIONS FOR ISOFIX CHILD SEA
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the "Top Tether" uppe r strap.
IL-SU: s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a n I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s u p p o r t ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x m o u n t i n g s " s e c t i o n .
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
The head restraint of the vehicle's ISOFIX seat must be removed and stored.
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s ( E C E 1 6 ) , t h i s t a b l e i
n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n s e a t s
i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is
indicated on the child seat next to the ISOFIX logo .
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than
13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat infant car seat "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal ISOFIX child seats which can be installed on the rear seats X IL-SU IL-SU
IUF
IL-SU
Page 214 of 215
5
CHILD SAFETY

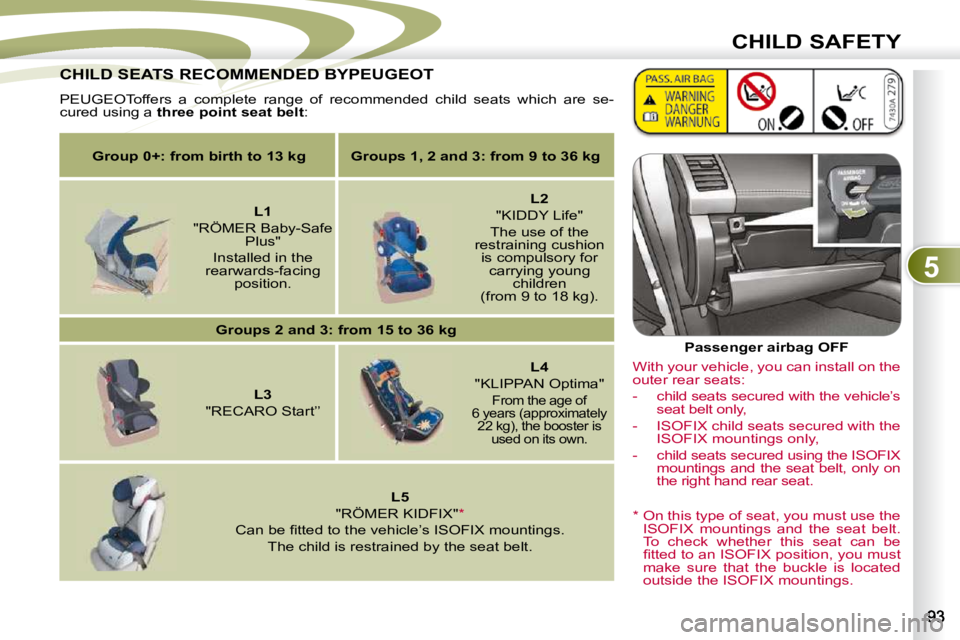

CHILD SEATS RECOMMENDED BYPEUGEOT CHILD SEATS RECOMMENDED BYPEUGEOT
PEUGEOToffers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Passenger airbag OFF
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start’’
L4
"KLIPPAN Optima"
From the age of
6 years (approximately 22 kg), the booster is used on its own.
L5
"RÖMER KIDFIX" *
C a n b e fi t t e d t o t h e v e h i c l e ’ s I S O F I X m o u n t i n g s . The child is restrained by the seat belt.
W i t h y o u r v e h i c l e , y o u c a n i n s t a l l o n t h e
outer rear seats:
- c h i l d s e a t s s e c u r e d w i t h t h e v e h i c l e ’ s
seat belt only,
- ISOFIX child seats secured with the ISOFIX mountings only,
- child seats secured using the ISOFIX mountings and the seat belt, only on
the right hand rear seat.
* On this type of seat, you must use the ISOFIX mountings and the seat belt.
To check whether this seat can be
fi t t e d t o a n I S O F I X p o s i t i o n , y o u m u s t
make sure that the buckle is located
outside the ISOFIX mountings.
Page 215 of 215
5
CHILD SAFETY

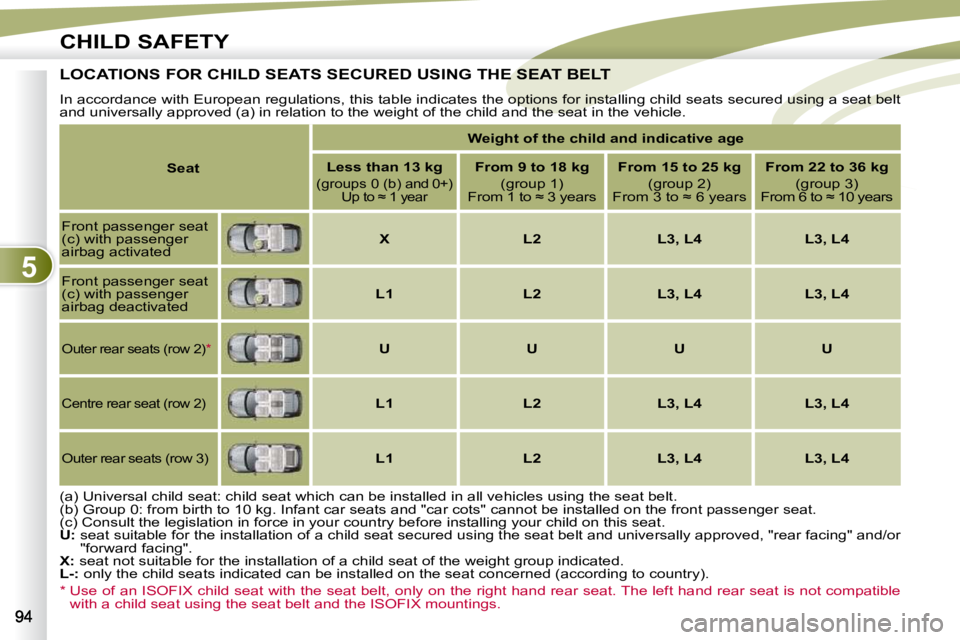

LOCATIONS FOR CHILD SEATS SECURED USING THE SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
a n d u n i v e r s a l l y a p p r o v e d ( a ) i n r e l a t i o n t o t h e w e i g h t o f t h e c h i l d a n d t h e s e a t i n t h e v e h i c l e .
( a ) U n i v e r s a l c h i l d s e a t : c h i l d s e a t w h i c h c a n b e i n s t a l l e d i n a l l v e h i c l e s u s i n g t h e s e a t b e l t .
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" ca nnot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before inst alling your child on this seat.
U: s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t s e c u r e d u s i n g t h e s e a t b e l t a n d u n i v e r s a l l y a p p r o v e d , " r e a r f a c i n g " a n d / o r
"forward facing".
X: seat not suitable for the installation of a child seat of the weight group indicated.
L-: only the child seats indicated can be installed on the se at concerned (according to country).
Seat
Weight of the child and indicative age
Less than 13 kg
(groups 0 (b) and 0+)
U p t o ≈ 1 y e a r
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From
22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat
(c) with passenger
a i r b a g a c t i v a t e d
X L2 L3, L4 L3, L4
Front passenger seat
(c) with passenger
a i r b a g d e a c t i v a t e d
L1 L2 L3, L4 L3, L4
Outer rear seats (row 2) *
U U U U
Centre rear seat (row 2)
L1 L2 L3, L4 L3, L4
Outer rear seats (row 3)
L1 L2 L3, L4 L3, L4
* Use of an ISOFIX child seat with the seat belt, on ly on the right hand rear seat. The left hand rear seat is n ot compatible
with a child seat using the seat belt and the ISOFIX mount ings.
