INSTRUMENTS and CONTROLS
INSTRUMENT PANELINSTRUMENT PANEL
3. Instrument panel screen:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Trip computer information.
- Cruise control setting.
- Dashboard lighting and parameter settings.
- Fuel level.
- Ambient temperature.
- Transmission mode.
Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2
1. Rev counter.
2. Speedometer.
Page 2 of 215
1
INSTRUMENTS and CONTROLS
INSTRUMENT PANEL WARNING LAMPS
Warning lamp is on Cause Actions/
Observations
Left-hand
direction
indicator Flashing
with
audible
warning T h i s fl a s h e s w h e n y o u
press the lighting stalk
down. I f t h i s i n d i c a t o r l a m p fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
audible
warning T h i s fl a s h e s w h e n y o u
push the lighting stalk up. I f t h i s i n d i c a t o r l a m p fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.
Sidelamps Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.
Front foglamps Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Rear foglamps Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/deactivate
the mode.
Page 5 of 215
1
INSTRUMENTS and CONTROLS
E a c h t i m e t h e e n g i n e i s s t a r t e d : a s e r i e s o f w a r n i n g l a m p s a n d / o r m e s s a g e s c o m e o n , a p p l y i n g a c h e c k i n g s e l f t e s t . T h e y g o
off after a few seconds. Engine running: the warning lamp o r the message becomes a warning if it remains on continuously
o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e s c r e e n . D o n o t i g n o r e t h e s e
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l a m p o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s
f r o m t h e s c r e e n a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e
by pressing the INFO button on the dashboard.
The symbol "!" is displayed.
To return to the previous screen (with the "!" s y m b o l ) , y o u m u s t p r e s s t h e INFO button several times.
INSTRUMENT PANELINSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can close the warning messages which show these symbols in ord
er to move on to the next screen.
T o d o t h i s , p r e s s t h e INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e s c r
e e n .
Message is on Cause Solution - action Observations
K e y i n
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
Lighting
l e f t
on Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF.
An intermittent audible
signal is heard.
Page 6 of 215
1
INSTRUMENTS and CONTROLS
Warning messages (ignition at "ON")
Message is on Cause Solution - action Observations
ABS Fixed Anti-lock braking system
(ABS) fault. Consult a PEUGEOT
dealer. The vehicle retains
conventional braking
without assistance but
you are advised to stop.
Braking
system Fixed
Associated warning
lamp.
T h e l e v e l o f b r a k e fl u i d i n
the reservoir is too low. S t o p a n d t o p u p , o t h e r w i s e
contact a PEUGEOT dealer. If the message remains
o n a f t e r t o p p i n g u p ,
contact a PEUGEOT
dealer.
Associated warning
lamp.
Braking system fault. Consult a PEUGEOT
dealer.
You must
stop.
Parking brake
on Fixed You have moved off with
the parking brake still
applied. Release the parking brake.
Coolant
temperature Flashing
High engine
temperature. If the message
fl a s h e s ,
wait for the engine to cool
b e f o r e t o p p i n g u p t h e l e v e l ,
if necessary.
You must
s t o p y o u r
vehicle
as soon as it
is
s a f e
to
do so
.
Flashing
If the message fl a s h e s
and t h e s e r v i c e w a r n i n g
light comes on , c o n t a c t
a PEUGEOT dealer
without delay.
Seat belt Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. There is an intermittent
audible signal above
5 mph (8 km/h).
Page 25 of 215
1
INSTRUMENTS and CONTROLS
1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. Summer Time:
Summer time On/Off.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
O n e a c h s c r e e n , y o u c a n r e t u r n
to the previous screen by
pressing button D "Return" .
O n c e t h i s m e n u h a s b e e n s e l e c t e d , y o u

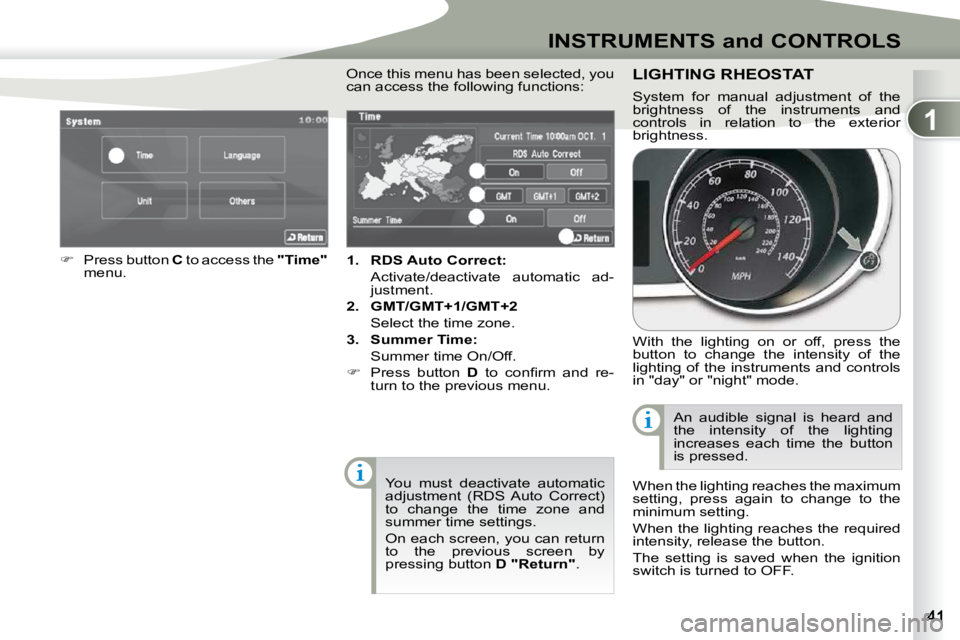

can access the following functions: LIGHTING RHEOSTAT
W i t h t h e l i g h t i n g o n o r o f f , p r e s s t h e
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
s e t t i n g , p r e s s a g a i n t o c h a n g e t o t h e
minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
i n t e n s i t y , r e l e a s e t h e b u t t o n .
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 27 of 215
1
INSTRUMENTS and CONTROLS
1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. Summer Time:
Summer time On/Off.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
O n e a c h s c r e e n , y o u c a n r e t u r n
to the previous screen by
pressing button D "Return" .
O n c e t h i s m e n u h a s b e e n s e l e c t e d , y o u
can access the following functions: LIGHTING RHEOSTAT
W i t h t h e l i g h t i n g o n o r o f f , p r e s s t h e
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
s e t t i n g , p r e s s a g a i n t o c h a n g e t o t h e
minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
i n t e n s i t y , r e l e a s e t h e b u t t o n .
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 28 of 215
1
INSTRUMENTS and CONTROLS
1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. Summer Time:
Summer time On/Off.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
O n e a c h s c r e e n , y o u c a n r e t u r n
to the previous screen by
pressing button D "Return" .
O n c e t h i s m e n u h a s b e e n s e l e c t e d , y o u
can access the following functions: LIGHTING RHEOSTAT
W i t h t h e l i g h t i n g o n o r o f f , p r e s s t h e
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
s e t t i n g , p r e s s a g a i n t o c h a n g e t o t h e
minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
i n t e n s i t y , r e l e a s e t h e b u t t o n .
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 36 of 215
2
COMFORT

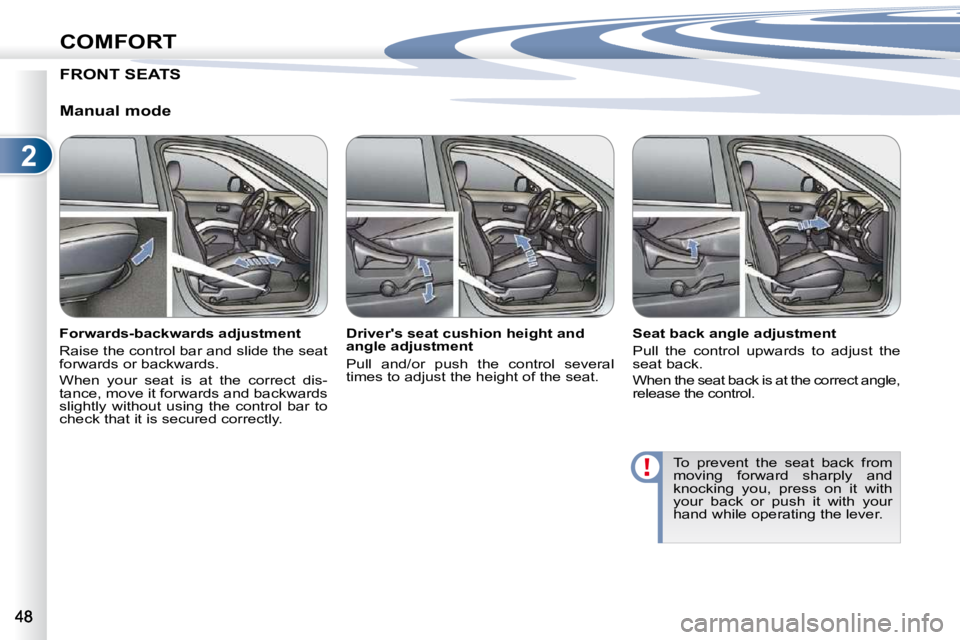

FRONT SEATS
Manual mode
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Raise the control bar and slide the seat
f o r w a r d s o r b a c k w a r d s .
When your seat is at the correct dis-
tance, move it forwards and backwards
slightly without using the control bar to
c h e c k t h a t i t i s s e c u r e d c o r r e c t l y . Seat back angle adjustment
P u l l t h e c o n t r o l u p w a r d s t o a d j u s t t h e
s e a t b a c k .
When the seat back is at the correct angle,
r e l e a s e t h e c o n t r o l .
T o p r e v e n t t h e s e a t b a c k f r o m
m o v i n g f o r w a r d s h a r p l y a n d
k n o c k i n g y o u , p r e s s o n i t w i t h
y o u r b a c k o r p u s h i t w i t h y o u r
h a n d w h i l e o p e r a t i n g t h e l e v e r .
Driver's seat cushion height and
angle adjustment
P u l l a n d / o r p u s h t h e c o n t r o l s e v e r a l
t i m e s t o a d j u s t t h e h e i g h t o f t h e s e a t .
Page 42 of 215
2
COMFORT

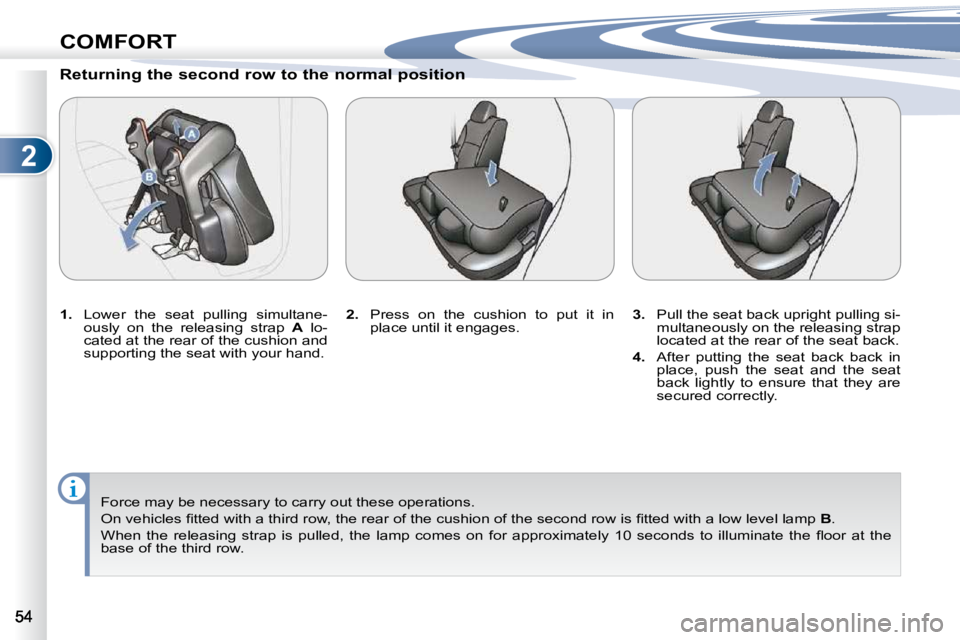

R e t u r n i n g t h e s e c o n d r o w t o t h e n o r m a l p o s i t i o n
1. L o w e r t h e s e a t p u l l i n g s i m u l t a n e -
o u s l y o n t h e r e l e a s i n g s t r a p A lo-
cated at the rear of the cushion and
s u p p o r t i n g t h e s e a t w i t h y o u r h a n d .
F o r c e m a y b e n e c e s s a r y t o c a r r y o u t t h e s e o p e r a t i o n s .
O n v e h i c l e s fi t t e d w i t h a t h i r d r o w , t h e r e a r o f t h e c u s h i o n o f t h e s e c o n d r o w i s fi t t e d w i t h a l o w l e v e l l a m p B .
W h e n t h e r e l e a s i n g s t r a p i s p u l l e d , t h e l a m p c o m e s o n f o r a p p r o x i m a t e l y 1 0 s e c o n d s t o i l l u m i n a t e t h e fl o o r a t t h e
b a s e o f t h e t h i r d r o w .
2. P r e s s o n t h e c u s h i o n t o p u t i t i n
p l a c e u n t i l i t e n g a g e s .
3. P u l l t h e s e a t b a c k u p r i g h t p u l l i n g s i -
m u l t a n e o u s l y o n t h e r e l e a s i n g s t r a p
l o c a t e d a t t h e r e a r o f t h e s e a t b a c k .
4. A f t e r p u t t i n g t h e s e a t b a c k b a c k i n
p l a c e , p u s h t h e s e a t a n d t h e s e a t
back lightly to ensure that they are
s e c u r e d c o r r e c t l y .
Page 59 of 215
3
ACCESS
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROLREMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft. Locking the vehicle
Unlocking using the key
Turn the key to the right in the driver's
door lock to unlock the vehicle.
Press the closed padlock to
lock the vehicle.
If one of the doors or the tailgate
is still open, the central locking
will not take place.
U n l o c k i n g i s c o n fi r m e d b y t h e i n t e r i o r
lighting which comes on for approxi-
mately 15 seconds and the direction
i n d i c a t o r s w h i c h fl a s h
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the door mirrors
unfold.
Normal locking using the key
Turn the key to the left in the driver's
door lock to lock the vehicle.
L o c k i n g i s c o n fi r m e d b y t h e d i r e c t i o n i n -
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds af-
ter locking the vehicle, the door mirrors
fold.
An extended press on the closed padlock
within 30 seconds after locking the vehicle
closes the windows automatically.
Normal locking using the remote
control
