Page 29 of 215
2
COMFORT

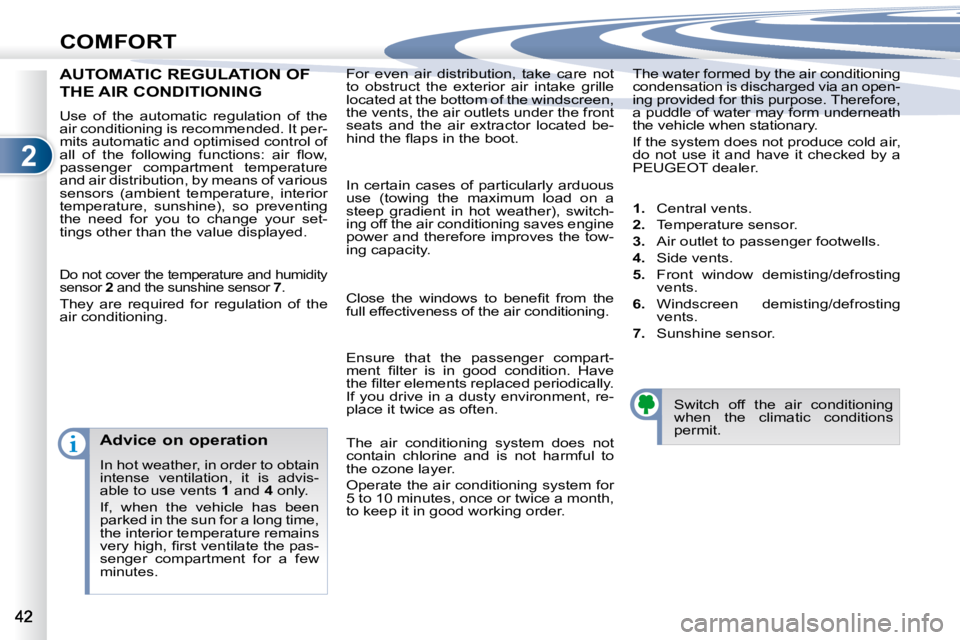

For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and have it checked by a
P E U G E O T d e a l e r . AUTOMATIC REGULATION OF TIC REGULATION OF
THE AIR CONDITIONING
D o n o t c o v e r t h e t e m p e r a t u r e a n d h u m i d i t y
sensor
2 and the sunshine sensor 7 .
They are required for regulation of the
a i r c o n d i t i o n i n g .
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1 and 4 o n l y .
If, when the vehicle has been
p a r k e d i n t h e s u n f o r a l o n g t i m e ,
t h e i n t e r i o r t e m p e r a t u r e r e m a i n s
v e r y h i g h , fi r s t v e n t i l a t e t h e p a s -
s e n g e r c o m p a r t m e n t f o r a f e w
m i n u t e s . Switch off the air conditioning
when the climatic conditions
p e r m i t .
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t p e r -
m i t s a u t o m a t i c a n d o p t i m i s e d c o n t r o l o f
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
p a s s e n g e r c o m p a r t m e n t t e m p e r a t u r e
and air distribution, by means of various
s e n s o r s ( a m b i e n t t e m p e r a t u r e , i n t e r i o r
t e m p e r a t u r e , s u n s h i n e ) , s o p r e v e n t i n g
the need for you to change your set-
t i n g s o t h e r t h a n t h e v a l u e d i s p l a y e d .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , s w i t c h -
ing off the air conditioning saves engine
p o w e r a n d t h e r e f o r e i m p r o v e s t h e t o w -
i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
p l a c e i t t w i c e a s o f t e n .
The air conditioning system does not
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 to 10 minutes, once or twice a month,
t o k e e p i t i n g o o d w o r k i n g o r d e r .
1. C e n t r a l v e n t s .
2. T e m p e r a t u r e s e n s o r .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. S i d e v e n t s .
5. Front window demisting/defrosting
v e n t s .
6. Windscreen demisting/defrosting
v e n t s .
7. S u n s h i n e s e n s o r .
Page 34 of 215
2
COMFORT
Personalisation of the Exterior
air intake/Interior air recirculation
function
This function is controlled automati-
c a l l y . H o w e v e r , y o u c a n d e a c t i v a t e i t s
automatic control if you wish to change
t h e a i r i n t a k e m o d e a t a n y t i m e . The settings are retained, even
a f t e r s w i t c h i n g o f f t h e i g n i t i o n .
Changing the status
Press the Air intake/Interior air recircu-
l a t i o n b u t t o n f o r a t l e a s t 1 0 s e c o n d s .
When the status changes from active to
i n a c t i v e , t h r e e b l e e p s a r e h e a r d a n d t h e
i n d i c a t o r l a m p fl a s h e s t h r e e t i m e s .
When the status changes from inactive
t o a c t i v e , t w o b l e e p s a r e h e a r d a n d t h e
i n d i c a t o r l a m p fl a s h e s t h r e e t i m e s .
Automatic control active
If the air distribution adjustment dial and
t h e a i r fl o w a d j u s t m e n t d i a l a r e p l a c e d
i n t h e " A U T O " p o s i t i o n , t h e A i r i n t a k e /
Interior air recirculation function is also
c o n t r o l l e d a u t o m a t i c a l l y .
Automatic control inactive
Even if the air distribution adjustment
d i a l a n d t h e a i r fl o w a d j u s t m e n t d i a l a r e
p l a c e d i n t h e " A U T O " p o s i t i o n , t h e A i r
intake/Interior air recirculation function
i s n o l o n g e r c o n t r o l l e d a u t o m a t i c a l l y . W i n d o w s a n d w i n d s c r e e n d e m i s t i n g / d e f r o s t i n g
Demisting/defrosting
1. Press button A to select "exterior air
i n t a k e " . T h e i n d i c a t o r l a m p i n t h i s
b u t t o n i s g o e s o f f .
2. Place the air distribution dial in the
"windscreen, side windows and
f o o t w e l l s " p o s i t i o n .
3. S e l e c t t h e a i r fl o w r e q u i r e d .
4. S e l e c t t h e t e m p e r a t u r e r e q u i r e d .
5. Press the "air conditioning on/off"
button B to activate the air condi-
t i o n i n g . T h e i n d i c a t o r l a m p i n t h i s
b u t t o n c o m e s o n . Rapid demisting/defrosting
1. Place the air distribution dial in the
" w i n d s c r e e n a n d s i d e w i n d o w s " p o -
s i t i o n .
2. S e l e c t m a x i m u m a i r fl o w .
3. S e l e c t m a x i m u m t e m p e r a t u r e .
Page 35 of 215
2
COMFORT

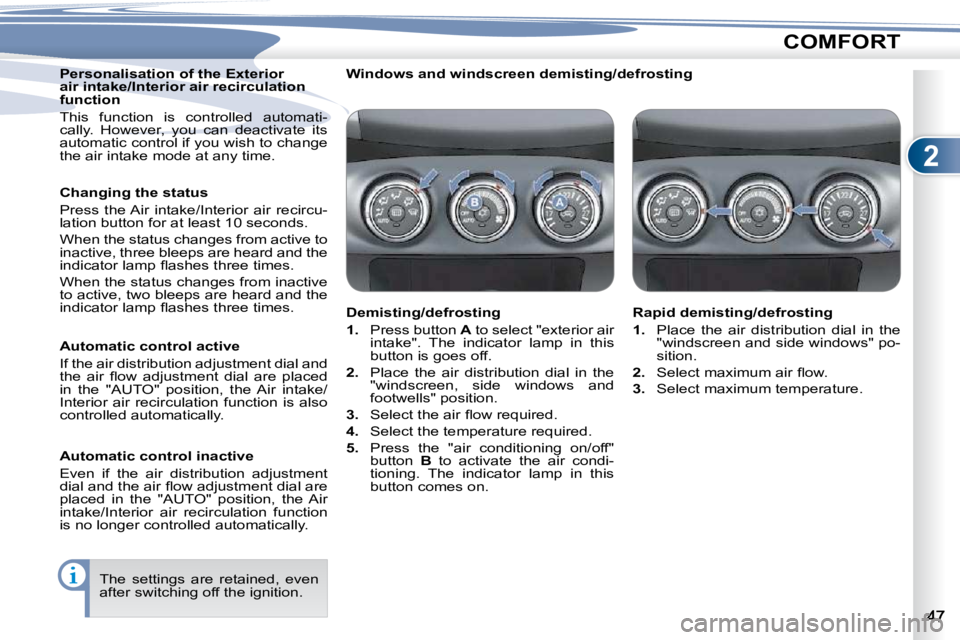

Personalisation of the Exterior
air intake/Interior air recirculation
function
This function is controlled automati-
c a l l y . H o w e v e r , y o u c a n d e a c t i v a t e i t s
automatic control if you wish to change
t h e a i r i n t a k e m o d e a t a n y t i m e . The settings are retained, even
a f t e r s w i t c h i n g o f f t h e i g n i t i o n .
Changing the status
Press the Air intake/Interior air recircu-
l a t i o n b u t t o n f o r a t l e a s t 1 0 s e c o n d s .
When the status changes from active to
i n a c t i v e , t h r e e b l e e p s a r e h e a r d a n d t h e
i n d i c a t o r l a m p fl a s h e s t h r e e t i m e s .
When the status changes from inactive
t o a c t i v e , t w o b l e e p s a r e h e a r d a n d t h e
i n d i c a t o r l a m p fl a s h e s t h r e e t i m e s .
Automatic control active
If the air distribution adjustment dial and
t h e a i r fl o w a d j u s t m e n t d i a l a r e p l a c e d
i n t h e " A U T O " p o s i t i o n , t h e A i r i n t a k e /
Interior air recirculation function is also
c o n t r o l l e d a u t o m a t i c a l l y .
Automatic control inactive
Even if the air distribution adjustment
d i a l a n d t h e a i r fl o w a d j u s t m e n t d i a l a r e
p l a c e d i n t h e " A U T O " p o s i t i o n , t h e A i r
intake/Interior air recirculation function
i s n o l o n g e r c o n t r o l l e d a u t o m a t i c a l l y . W i n d o w s a n d w i n d s c r e e n d e m i s t i n g / d e f r o s t i n g
Demisting/defrosting
1. Press button A to select "exterior air
i n t a k e " . T h e i n d i c a t o r l a m p i n t h i s
b u t t o n i s g o e s o f f .
2. Place the air distribution dial in the
"windscreen, side windows and
f o o t w e l l s " p o s i t i o n .
3. S e l e c t t h e a i r fl o w r e q u i r e d .
4. S e l e c t t h e t e m p e r a t u r e r e q u i r e d .
5. Press the "air conditioning on/off"
button B to activate the air condi-
t i o n i n g . T h e i n d i c a t o r l a m p i n t h i s
b u t t o n c o m e s o n . Rapid demisting/defrosting
1. Place the air distribution dial in the
" w i n d s c r e e n a n d s i d e w i n d o w s " p o -
s i t i o n .
2. S e l e c t m a x i m u m a i r fl o w .
3. S e l e c t m a x i m u m t e m p e r a t u r e .
Page 59 of 215
3
ACCESS
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROLREMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft. Locking the vehicle
Unlocking using the key
Turn the key to the right in the driver's
door lock to unlock the vehicle.
Press the closed padlock to
lock the vehicle.
If one of the doors or the tailgate
is still open, the central locking
will not take place.
U n l o c k i n g i s c o n fi r m e d b y t h e i n t e r i o r
lighting which comes on for approxi-
mately 15 seconds and the direction
i n d i c a t o r s w h i c h fl a s h
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the door mirrors
unfold.
Normal locking using the key
Turn the key to the left in the driver's
door lock to lock the vehicle.
L o c k i n g i s c o n fi r m e d b y t h e d i r e c t i o n i n -
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds af-
ter locking the vehicle, the door mirrors
fold.
An extended press on the closed padlock
within 30 seconds after locking the vehicle
closes the windows automatically.
Normal locking using the remote
control
Page 66 of 215
3
ACCESS

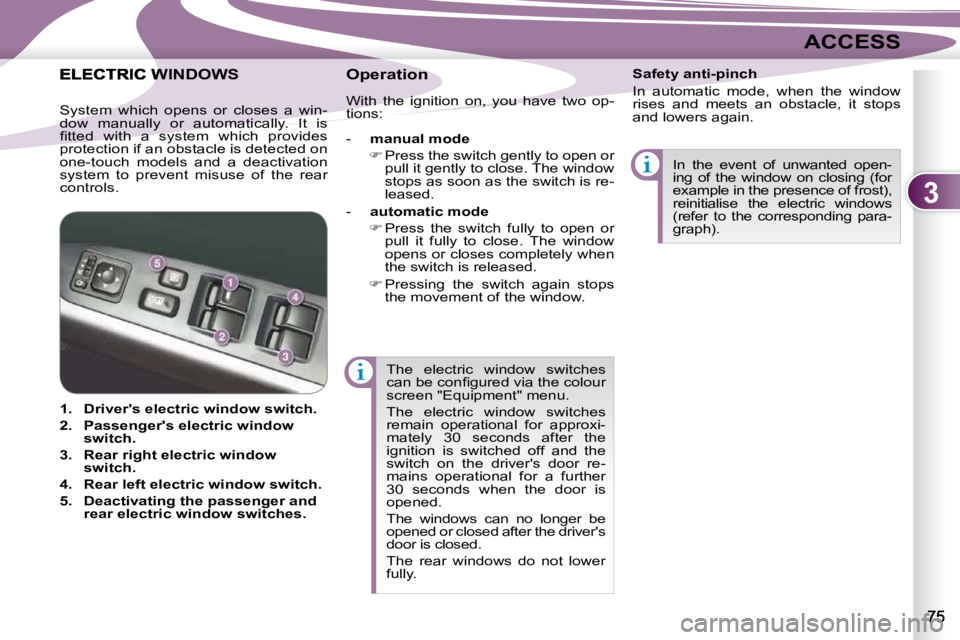

The electric window switches
c a n b e c o n fi g u r e d v i a t h e c o l o u r
screen "Equipment" menu.
The electric window switches
remain operational for approxi-
mately 30 seconds after the
ignition is switched off and the
switch on the driver's door re-
mains operational for a further
30 seconds when the door is
opened.
The windows can no longer be
opened or closed after the driver's
door is closed.
The rear windows do not lower
fully.
ELECTRIC WINDOWS
1. Driver's electric window switch.
2. Passenger's electric window
switch.
3. Rear right electric window
switch.
4. Rear left electric window switch.
5. Deactivating
the passenger and
rear electric window switches. In the event of unwanted open-
ing of the window on closing (for
example in the presence of frost),
reinitialise the electric windows
(refer to the corresponding para-
graph).
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
-
manual mode
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.
Pressing the switch again stops
the movement of the window.
System which opens or closes a win-
dow manually or automatically. It is
fi t t e d w i t h a s y s t e m w h i c h p r o v i d e s
protection if an obstacle is detected on
one-touch models and a deactivation
system to prevent misuse of the rear
controls.
Page 67 of 215
3
ACCESS

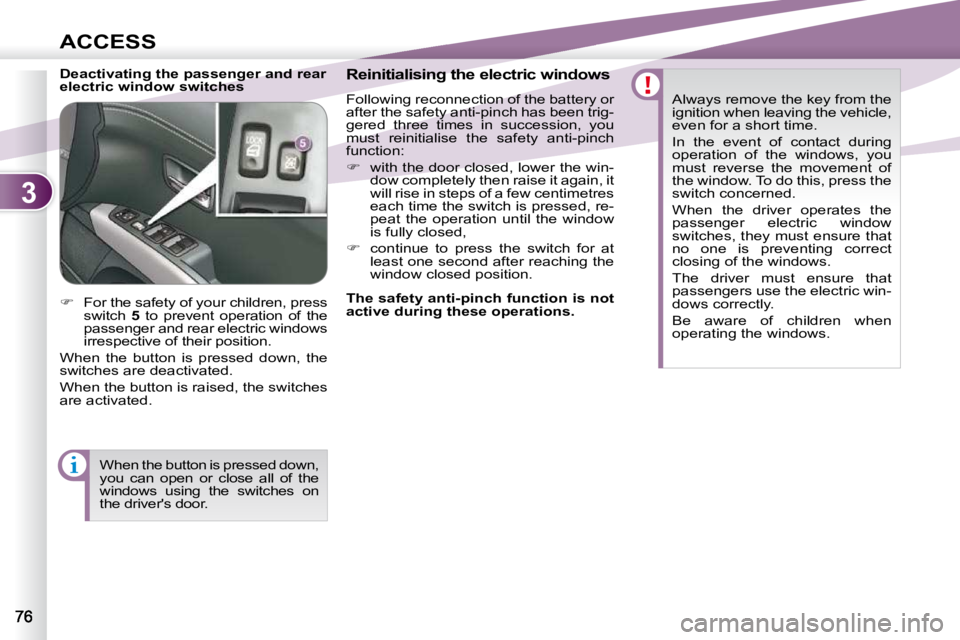

Deactivating the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:
with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the
passenger electric window
switches, they must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that
passengers use the electric win-
dows correctly.
Be aware of children when
operating the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver's door.
The safety
anti
-
pinch
function is not
active during these operations.
Page 93 of 215
5

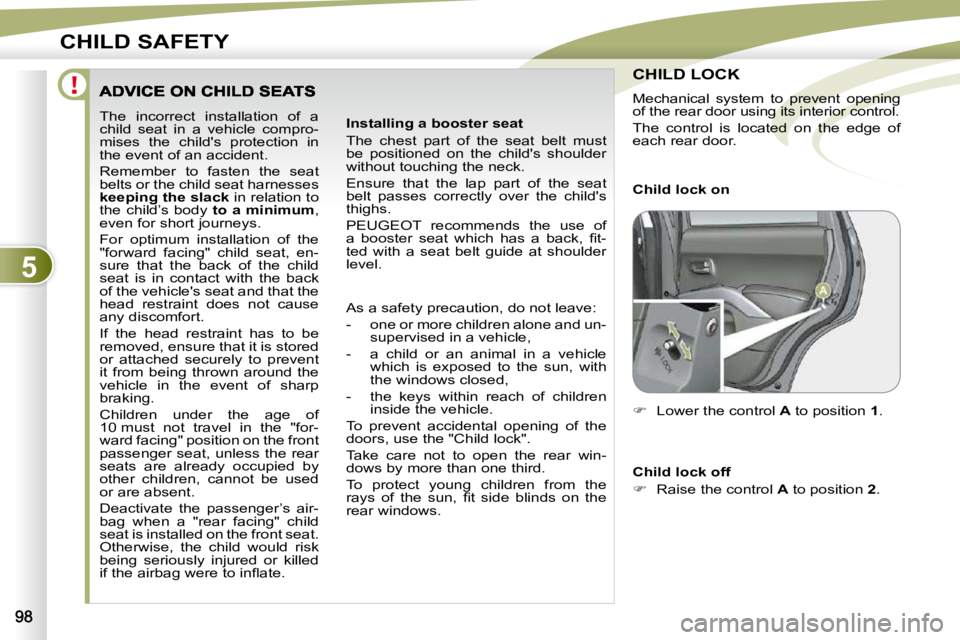

CHILD SAFETY
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
R e m e m b e r t o f a s t e n t h e s e a t
belts or the child seat harnesses
keeping the slack in relation to
the child’s body to a minimum ,
even for short journeys.
For optimum installation of the
"forward facing" child seat, en-
sure that the back of the child
seat is in contact with the back
of the vehicle's seat and that the
head restraint does not cause
any discomfort.
If the head restraint has to be
removed, ensure that it is stored
or attached securely to prevent
it from being thrown around the
vehicle in the event of sharp
braking.
C h i l d r e n u n d e r t h e a g e o f
10 must not travel in the "for-
ward facing" position on the front
passenger seat, unless the rear
seats are already occupied by
other children, cannot be used
or are absent.
Deactivate the passenger’s air-
bag when a "rear facing" child
seat is installed on the front seat.
Otherwise, the child would risk
being seriously injured or killed
i f t h e a i r b a g w e r e t o i n fl a t e . Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
CHILD LOCK CHILD LOCK
Lower the control A to position 1 .
Child lock on
Child lock off
R a i s e t h e c o n t r o l A to position 2 .
M e c h a n i c a l s y s t e m t o p r e v e n t o p e n i n g
of the rear door using its interior control.
The control is located on the edge of
each rear door.
Page 102 of 215
6
SAFETY

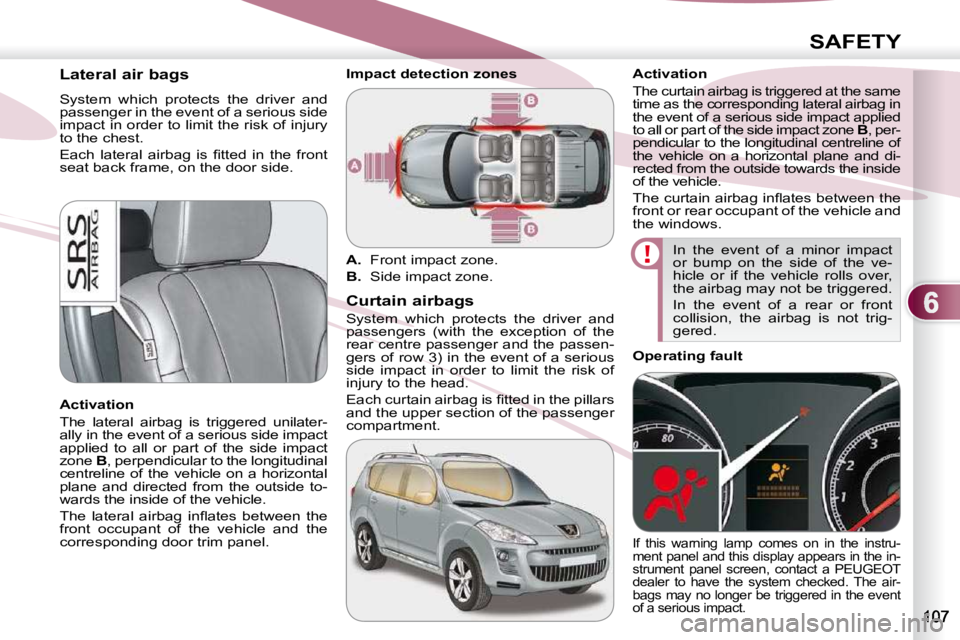

Lateral air bags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
E a c h l a t e r a l a i r b a g i s fi t t e d i n t h e f r o n t
seat back frame, on the door side.
Activation
The lateral airbag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim panel. Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
g e r s o f r o w 3 ) i n t h e e v e n t o f a s e r i o u s
side impact in order to limit the risk of
injury to the head.
E a c h c u r t a i n a i r b a g i s fi t t e d i n t h e p i l l a r s
and the upper section of the passenger
compartment. Activation
The curtain airbag is triggered at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone
B , per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the ve-
hicle or if the vehicle rolls over,
the airbag may not be triggered.
In the event of a rear or front
collision, the airbag is not trig-
gered.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Operating fault
If this warning lamp comes on in the instru-
ment panel and this display appears in the in-
strument panel screen, contact a PEUGEOT
dealer to have the system checked. The air-
bags may no longer be triggered in the event
of a serious impact.
Page 139 of 215
9
PRACTICAL INFORMATION

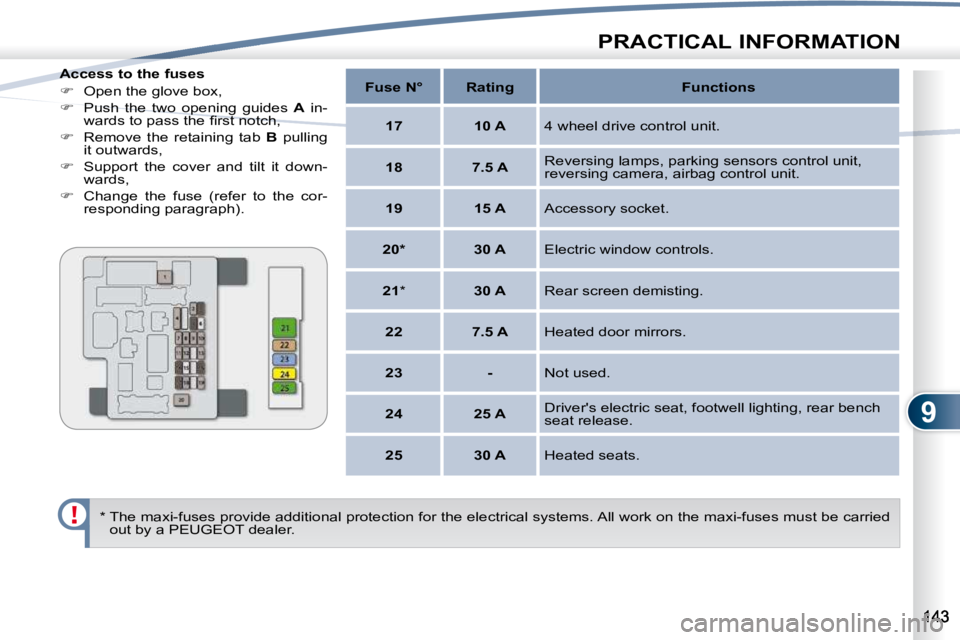

Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating Functions
17 10 A 4 wheel drive control unit.
18 7.5 A Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.
19 15 A Accessory socket.
20* 30 A Electric window controls.
21 * 30 A Rear screen demisting.
22 7.5 A Heated door mirrors.
23 - Not used.
24 25 A Driver's electric seat, footwell lighting, rear bench
seat release.
25 30 A Heated seats.
Page 143 of 215
9
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

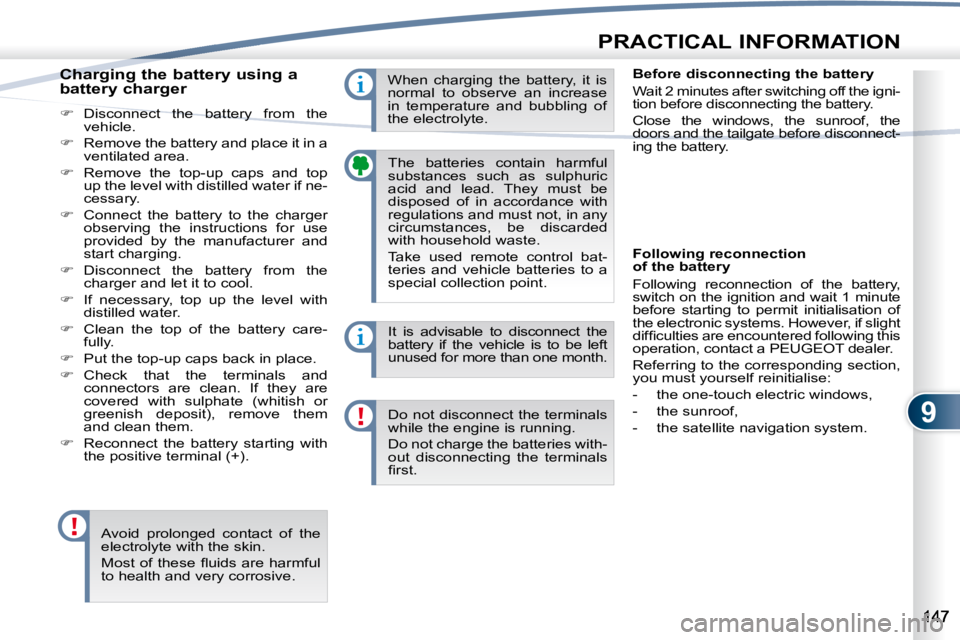

Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top
up the level with distilled water if ne-
cessary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them
and clean them.
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before disconnect-
ing the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w i n g t h i s
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
