Page 5 of 236
7
89
1011
CONTENTS
3
Parking brake 112
Manual gearbox 112
CVT gearbox 113
DCS gearbox 115
Four wheel drive system 119
Cruise control 121
Audible rear parking sensors 123
Reversing camera 124
DRIVING 112 Î 124
Bonnet 126
Running out of fuel 126
Petrol engine 127
Diesel engine 128
Checking levels 129
Checks 130
CHECKS 125 Î 131
Changing a wheel 132
Changing a bulb 137
Changing a fuse 144
Battery 149
Changing a wiper blade 151
Towing 152
Towing a trailer 154
Fitting roof bars 155
Accessories 156
PRACTICAL
INFORMATION 132 Î 156
Engines 157
Weights 158
Dimensions 159
Identifi cation markings 160
TECHNICAL
DATA 157 Î 161
Audio CD system 162
CD changer 173
Error messages 175
Audio-Telematic System 176
Navigation 178
DVD mode 206
Hands-free telephone 214
AUDIO EQUIPMENT and
TELEMATICS 162 Î 221
VISUAL
SEARCH 222 Î 228
ALPHABETICAL
INDEX 229 Î 232

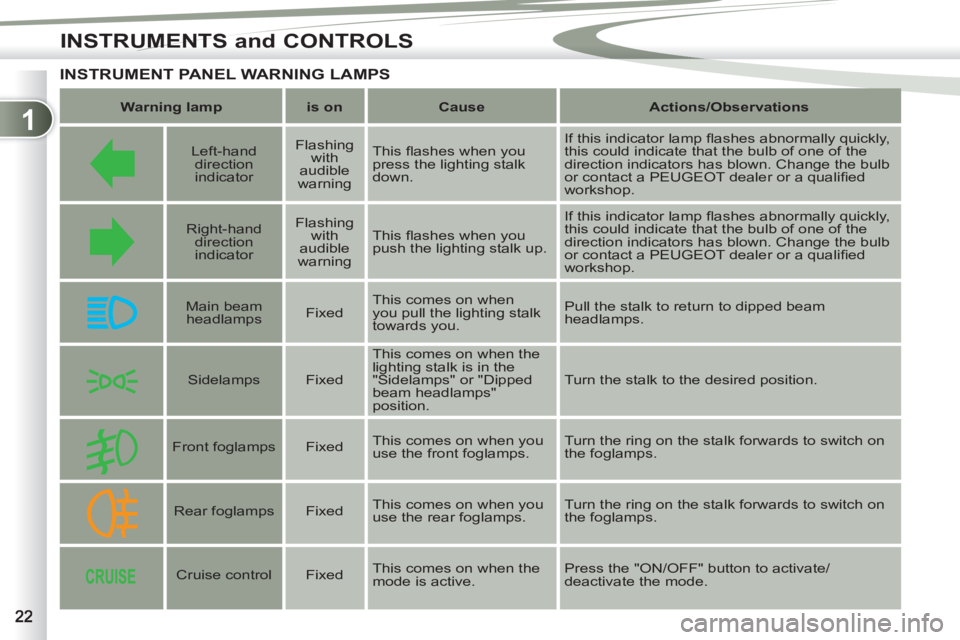

Page 24 of 236
1
INSTRUMENTS and CONTROLS
INSTRUMENT PANEL WARNING LAMPS
Warning lamp
is on
Cause
Actions/
Observations
Left-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
press the lighting stalk
down. If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer or a qualifi ed
workshop.
Right-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
push the lighting stalk up. If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer or a qualifi ed
workshop.
Main beam
headlamps
Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.
Sidelamps
Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.
Front foglamps
Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Rear foglamps
Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Cruise control
Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.

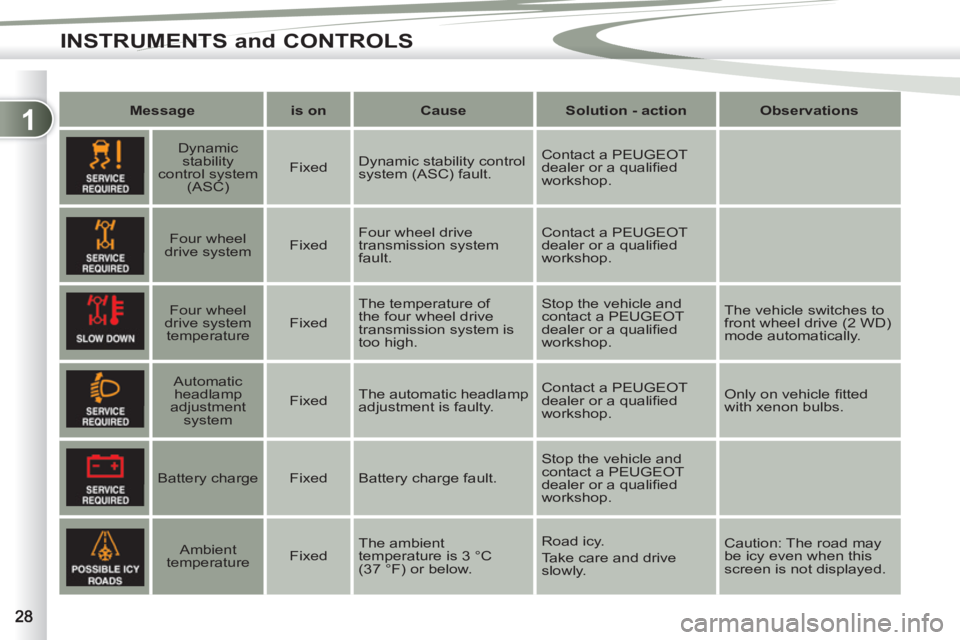

Page 30 of 236
1
INSTRUMENTS and CONTROLS
Message
is on
Cause
Solution - action
Observations
Dynamic
stability
control system
(ASC)
Fixed Dynamic stability control
system (ASC) fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
Four wheel
drive system
Fixed Four wheel drive
transmission system
fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
Four wheel
drive system
temperature
Fixed The temperature of
the four wheel drive
transmission system is
too high. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop. The vehicle switches to
front wheel drive (2 WD)
mode automatically.
Automatic
headlamp
adjustment
system
Fixed The automatic headlamp
adjustment is faulty. Contact a PEUGEOT
dealer or a qualifi ed
workshop. Only on vehicle fi tted
with xenon bulbs.
Battery charge
Fixed Battery charge fault. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop.
Ambient
temperature
Fixed The ambient
temperature is 3 °C
(37 °F) or below. Road icy.
Take care and drive
slowly. Caution: The road may
be icy even when this
screen is not displayed.

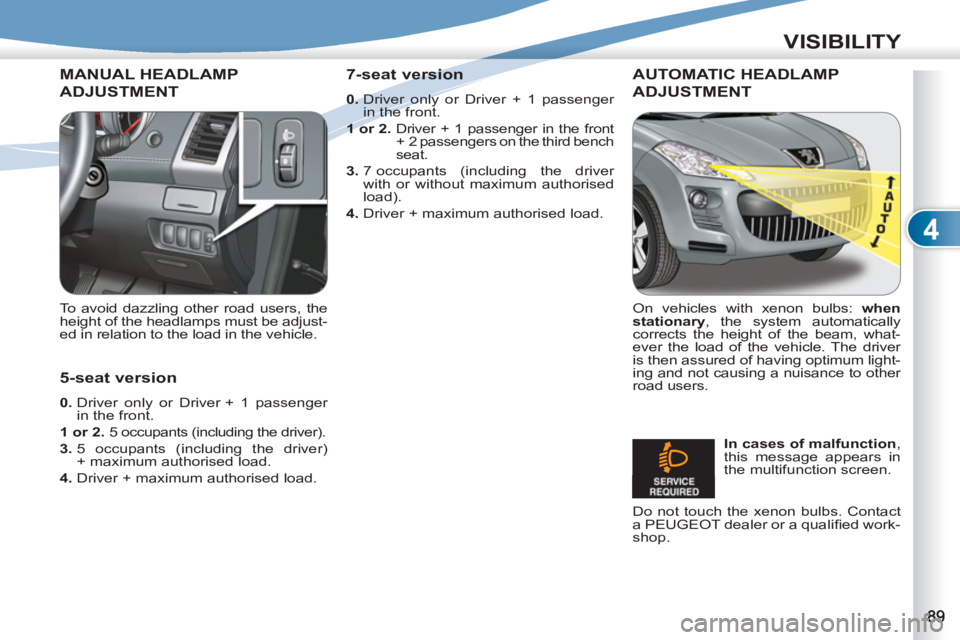

Page 91 of 236
4
VISIBILITY
MANUAL HEADLAMP
ADJUSTMENT
To avoid dazzling other road users, the
height of the headlamps must be adjust-
ed in relation to the load in the vehicle.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary
, the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driver
is then assured of having optimum light-
ing and not causing a nuisance to other
road users.
In cases of malfunction
,
this message appears in
the multifunction screen.
7-seat version
0.
Driver only or Driver + 1 passenger
in the front.
1 or 2.
Driver + 1 passenger in the front
+ 2 passengers on the third bench
seat.
3.
7 occupants (including the driver
with or without maximum authorised
load).
4.
Driver + maximum authorised load.
5-seat version
0.
Driver only or Driver + 1 passenger
in the front.
1 or 2.
5 occupants (including the driver).
3.
5 occupants (including the driver)
+ maximum authorised load.
4.
Driver + maximum authorised load.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer or a qualifi ed work-
shop.

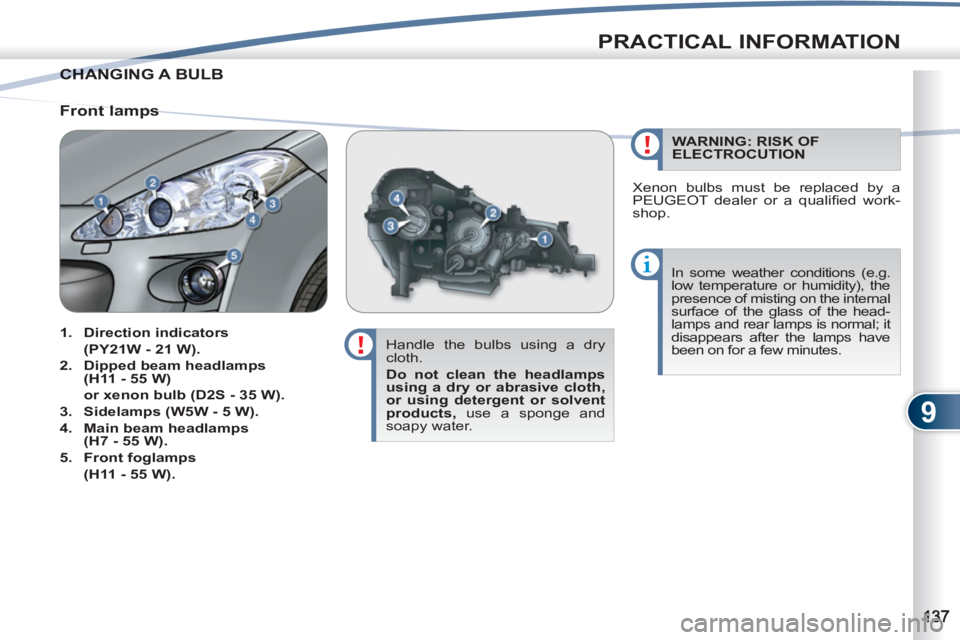

Page 139 of 236
9
PRACTICAL INFORMATION
CHANGING A BULB CHANG
Handle the bulbs using a dry
cloth.
Do not clean the headlamps
using a dry or abrasive cloth,
or using detergent or solvent
products,
use a sponge and
soapy water. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal; it
disappears after the lamps have
been on for a few minutes.
Front lamps
1.
Direction indicators
(PY21W - 21 W).
2.
Dipped beam headlamps
(H11 - 55 W)
or xenon bulb (D2S - 35 W).
3.
Sidelamps (W5W - 5 W).
4.
Main beam headlamps
(H7 - 55 W).
5.
Front foglamps
(H11 - 55 W).
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer or a qualifi ed work-
shop.

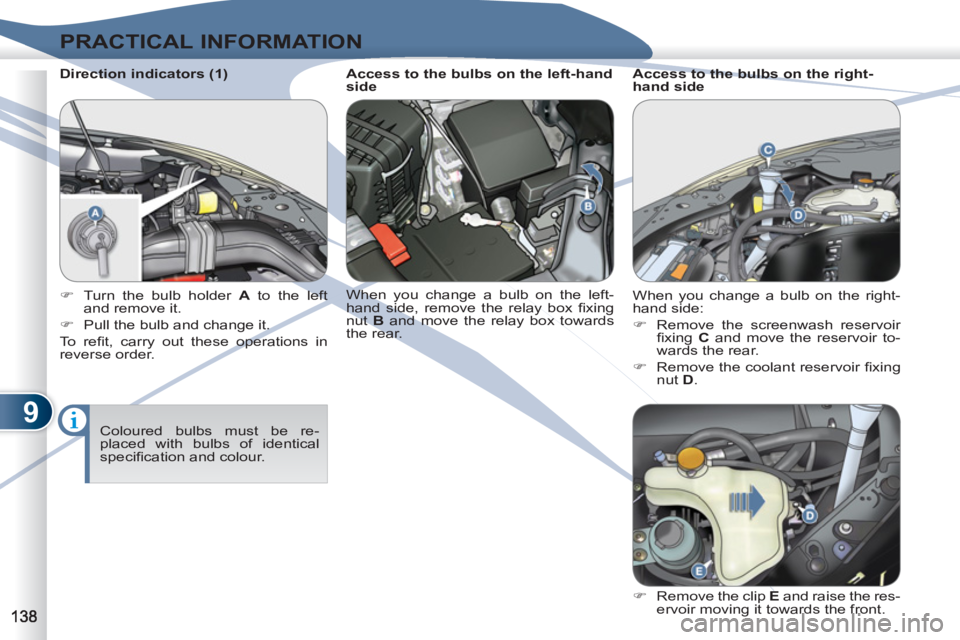

Page 140 of 236
9
PRACTICAL INFORMATION
Direction indicators (1)
Coloured bulbs must be re-
placed with bulbs of identical
specifi cation and colour.
)
Turn the bulb holder A
to the left
and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Access to the bulbs on the left-hand
side
When you change a bulb on the left-
hand side, remove the relay box fi xing
nut B
and move the relay box towards
the rear.
Access to the bulbs on the right-
hand side
When you change a bulb on the right-
hand side:
)
Remove the screenwash reservoir
fi xing C
and move the reservoir to-
wards the rear.
)
Remove the coolant reservoir fi xing
nut D
.
)
Remove the clip E
and raise the res-
ervoir moving it towards the front.

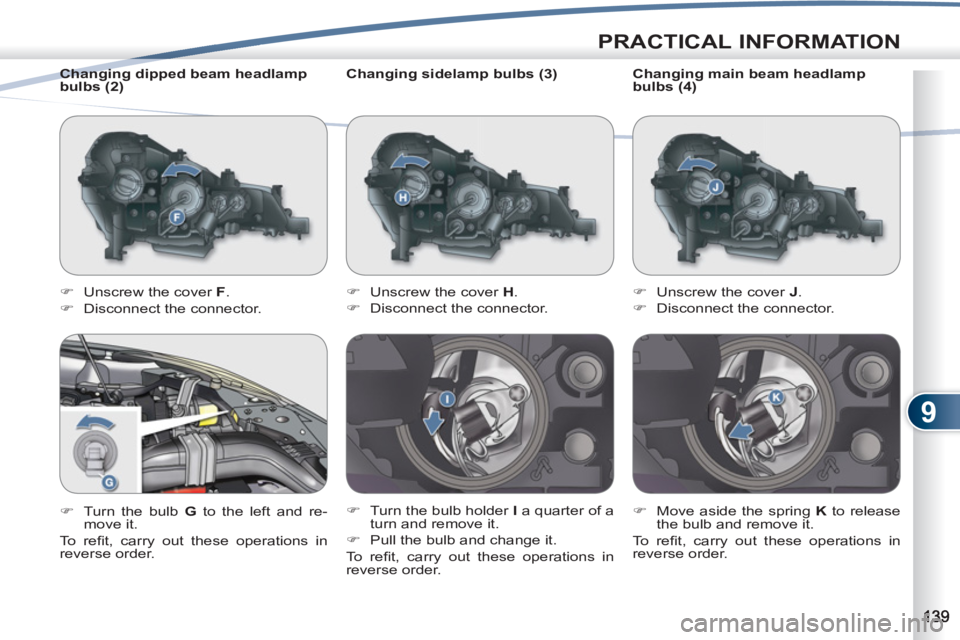

Page 141 of 236
9
PRACTICAL INFORMATION
Changing sidelamp bulbs (3)
)
Unscrew the cover H
.
)
Disconnect the connector.
)
Turn the bulb holder I
a quarter of a
turn and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
)
Unscrew the cover F
.
)
Disconnect the connector.
)
Turn the bulb G
to the left and re-
move it.
To r efi t, carry out these operations in
reverse order.
Changing dipped beam headlamp
bulbs (2)
Changing main beam headlamp
bulbs (4)
)
Unscrew the cover J
.
)
Disconnect the connector.
)
Move aside the spring K
to release
the bulb and remove it.
To r efi t, carry out these operations in
reverse order.

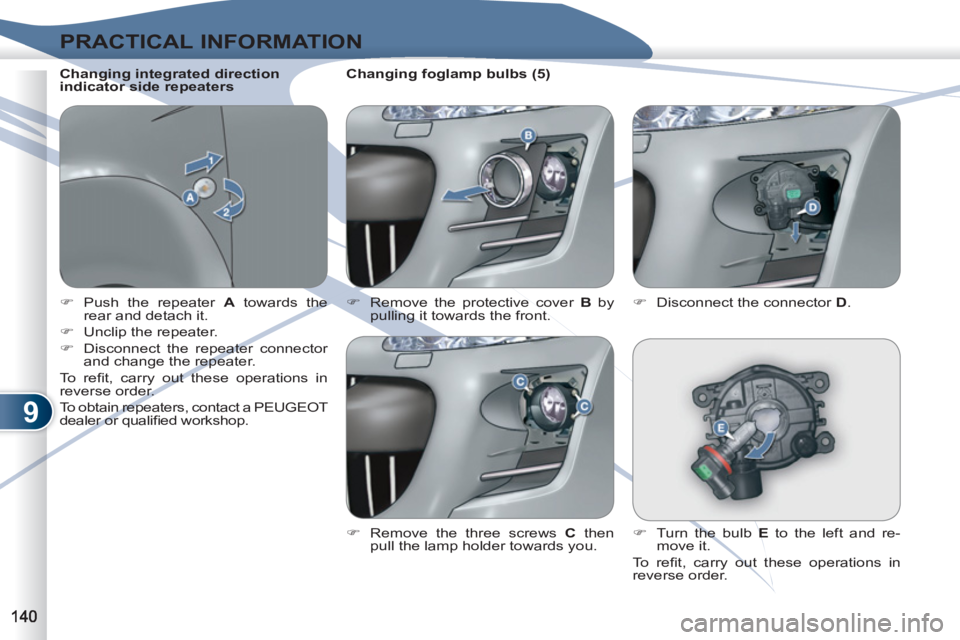

Page 142 of 236
9
PRACTICAL INFORMATION
)
Push the repeater A
towards the
rear and detach it.
)
Unclip the repeater.
)
Disconnect the repeater connector
and change the repeater.
To r efi t, carry out these operations in
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer or qualifi ed workshop.
Changing integrated direction
indicator side repeaters
)
Remove the protective cover B
by
pulling it towards the front.
Changing foglamp bulbs (5)
)
Remove the three screws C
then
pull the lamp holder towards you.
)
Disconnect the connector D
.
)
Turn the bulb E
to the left and re-
move it.
To r efi t, carry out these operations in
reverse order.

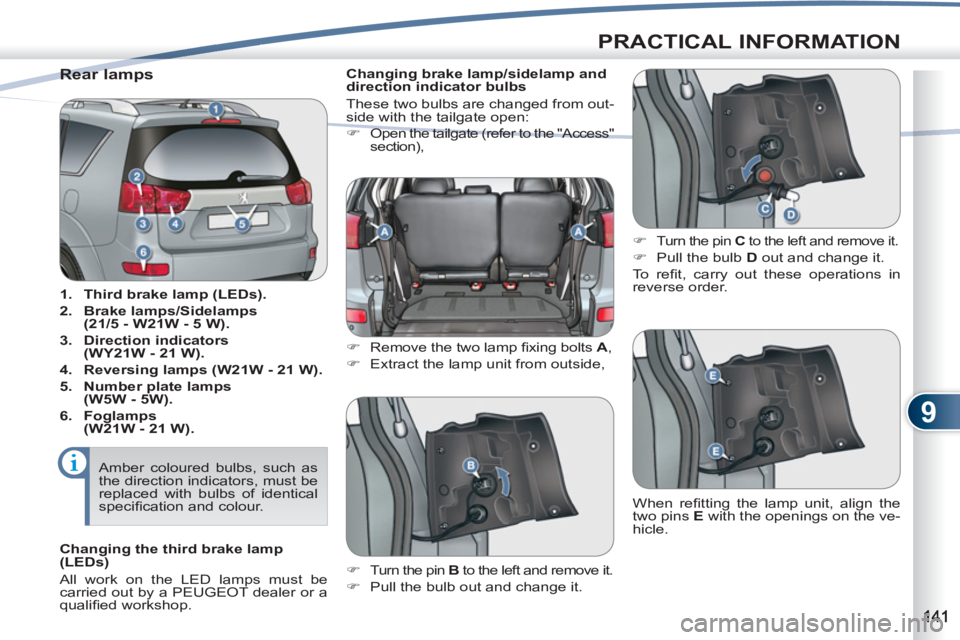

Page 143 of 236
9
PRACTICAL INFORMATION
Rear lamps
1.
Third brake lamp (LEDs).
2.
Brake lamps/Sidelamps
(21/5 - W21W - 5 W).
3.
Direction indicators
(WY21W - 21 W).
4.
Reversing lamps (W21W - 21 W).
5.
Number plate lamps
(W5W - 5W).
6.
Foglamps
(W21W - 21 W).
Changing brake lamp/sidelamp and
direction indicator bulbs
These two bulbs are changed from out-
side with the tailgate open:
)
Open the tailgate (refer to the "Access"
section),
)
Remove the two lamp fi xing bolts A
,
)
Extract the lamp unit from outside,
)
Turn the pin C
to the left and remove it.
)
Pull the bulb D
out and change it.
To r efi t, carry out these operations in
reverse order.
)
Turn the pin B
to the left and remove it.
)
Pull the bulb out and change it. When refi tting the lamp unit, align the
two pins E
with the openings on the ve-
hicle. Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
Changing the third brake lamp
(LEDs)
All work on the LED lamps must be
carried out by a PEUGEOT dealer or a
qualifi ed workshop.

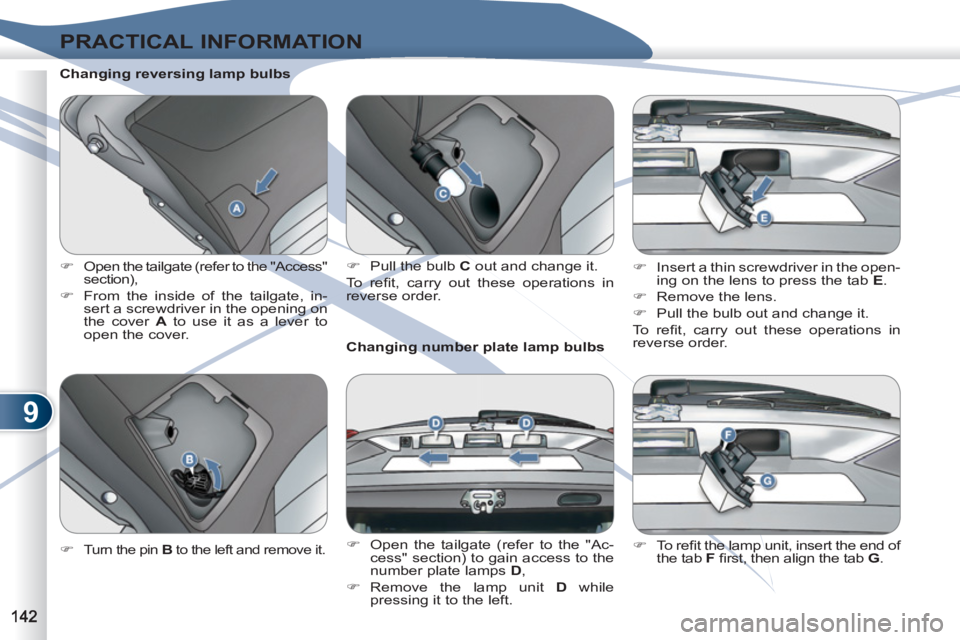

Page 144 of 236
9
PRACTICAL INFORMATION
Changing reversing lamp bulbs
)
Open the tailgate (refer to the "Access"
section),
)
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A
to use it as a lever to
open the cover.
Changing number plate lamp bulbs
)
Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lamps D
,
)
Remove the lamp unit D
while
pressing it to the left.
)
Turn the pin B
to the left and remove it.
)
Pull the bulb C
out and change it.
To r efi t, carry out these operations in
reverse order.
)
Insert a thin screwdriver in the open-
ing on the lens to press the tab E
.
)
Remove the lens.
)
Pull the bulb out and change it.
To r efi t, carry out these operations in
reverse order.
)
To r efi t the lamp unit, insert the end of
the tab F
fi rst, then align the tab G
.
