key battery PEUGEOT 4007 2011 Owners Manual

3
ACCESS

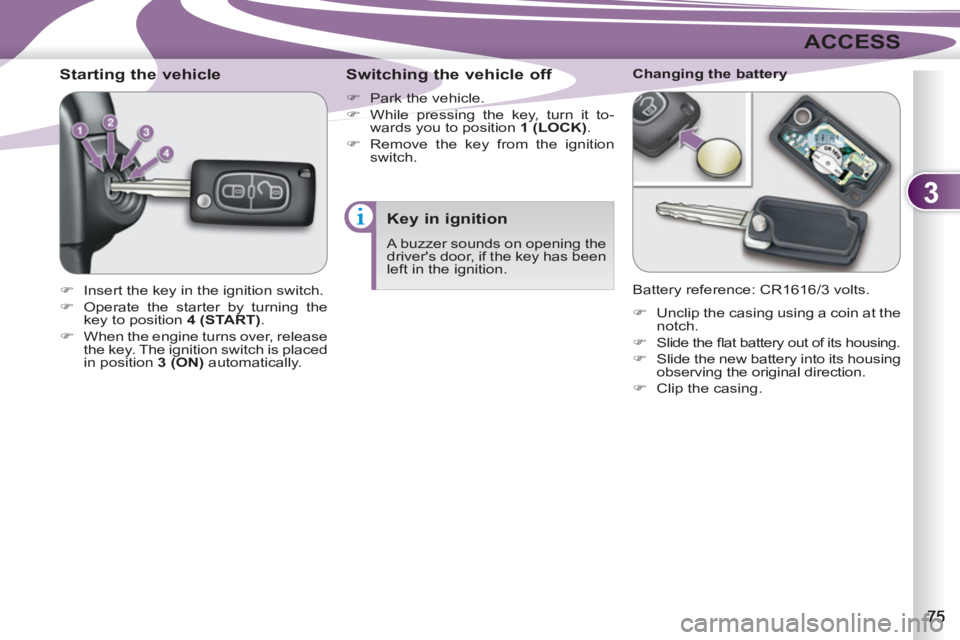

Starting the vehicle



)
Insert the key in the ignition switch.

)
Operate the starter by turning the
key to position 4 (START)
.

)
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON)
automatically.



Switching the vehicle off



)
Park the vehicle.

)
While pressing the key, turn it to-
wards you to position 1 (LOCK)
.

)
Remove the key from the ignition
switch.


Changing the battery
Battery reference: CR1616/3 volts.


)
Unclip the casing using a coin at the
notch.

)
Slide the fl at battery out of its housing.

)
Slide the new battery into its housing
observing the original direction.

)
Clip the casing.









Key in ignition

A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.

3
ACCESS

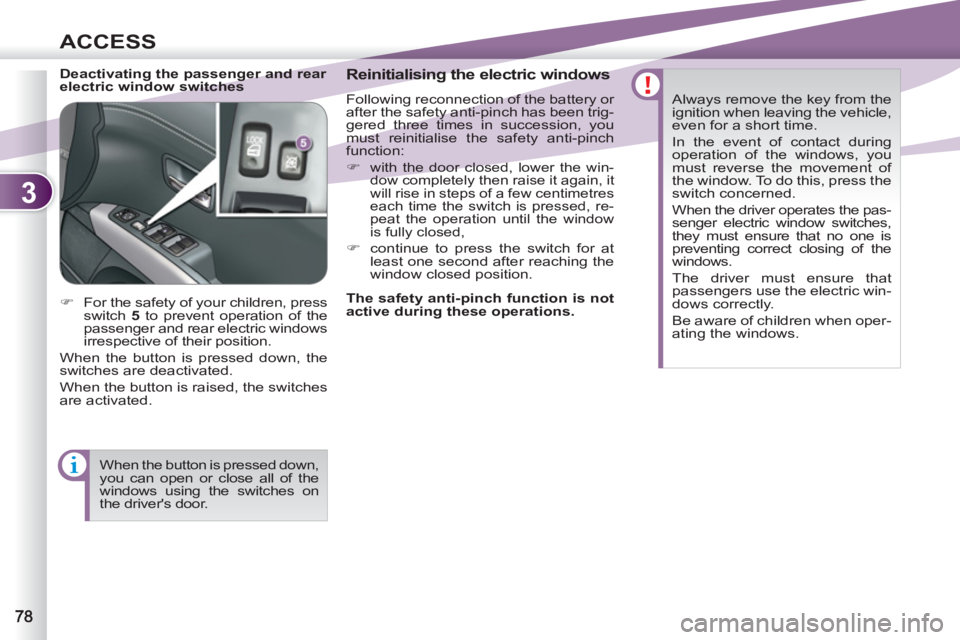

Deactivating the passenger and rear
electric window switches
Reinitialising the electric windows

Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:


)

with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,

)
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.

)
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver's door.

The safety

anti

-

pinch

function is not
active during these operations.

VISUAL SEARCH

EXTERIOR FRONT

Sunroof ........................................ 82-83
Windscreen wipers ...................... 90-91
Rain sensor .......................................90
Opening the bonnet .........................126
Engine ..................................... 127-128
Towing .............................................152
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................160
Brake pads ......................................131
Alloy wheels ....................................132 Remote control key, starting,
battery....................................... 73-76
Central locking ...................................79
Door mirrors ......................................61
Opening/closing the doors ........... 79-80
Filler cap, fi lling the fuel tank .............84
Fuel gauge ........................................84
Lighting, direction indicators,
foglamps, headlamps ............... 86-89
Changing bulbs ....................... 137-140

ALPHABETICAL INDEX
E
EBFD ............................................ 103
Eco-driving ..................................... 19
Economical driving ........................ 19
Electronic brake force distribution
(EBFD) ...................................... 103
Electronic engine immobiliser ...... 74, 76
Emergency boot release................. 81
Emergency warning lamps ........... 102
Engine, Diesel .................. 29, 85, 128
Engine, petrol ......................... 85, 127
Engine compartment ............ 127, 128
Engines......................................... 157
Environment ............................. 19, 76
Error messages
(audio equipment) ..................... 175Fuel filler cap .................................. 84
Fuel filler flap .................................. 84
Fuel gauge...................................... 84
Fuel tank ......................................... 84Inflating tyres .................................. 19
Instrument panel ............................. 21
Instrument panel screen ................. 31
Interior fittings ........................... 64, 69
ISOFIX child seats ...................98-100
ISOFIX mountings ...................98-100
K
Keeping children safe ...76, 94, 97-101
Key in ignition warning.................... 75
Key with remote control .................. 76
Filling with fuel .......................... 84, 85
Fitting a wheel .............................. 135
Fittings, boot ................................... 70
Fittings, front ................................... 64
Fittings, rear.................................... 69
Fitting the mat ................................. 63
Flashing indicators........ 102, 137, 141
Foglamps ........................................ 87
Foglamps, rear ............................. 141
Folding/unfolding
the door mirrors ........................... 61
Folding the rear seats ..................... 55
Four-wheel drive system .............. 119
Front foglamps........................ 87, 137
Front seats.................................50-52
Fuel..................................... 19, 84, 85
Fuel consumption ........................... 19
F
G.P.S. ............................178-180, 184
Gearbox, DCS .............................. 115
Gearbox, manual .......................... 130
Gear lever ....................................... 19
Grab handles .................................. 69
Guidance .......................178-180, 184
G
H
Hazard warning lamps .................. 102
Headlamp adjustment..................... 89
Headlamp wash .............................. 90
Head restraints ............................... 52
Heated seats .................................. 52
Heating ............................... 19, 44, 46
Height adjustment,
steering wheel ............................. 63
Horn .............................................. 102
L
Labels, identification ..................... 160
Lamps, front.................................. 137
Lamps, rear .................................. 141
Level, battery ................................ 130
Level, brake fluid .......................... 129
Level, headlamp wash .................. 129
Level, power steering fluid ............ 129
Levels and checks .................127-130
Lighting bulbs
(replacement) .................... 137, 141
Lighting control stalk ....................... 86
Lighting dimmer .............................. 43
J
Jack .............................................. 132
I
Identification plates ....................... 160
Indicator lamps, status.................... 22
Indicators, direction ...................... 102
