149
6
Safety

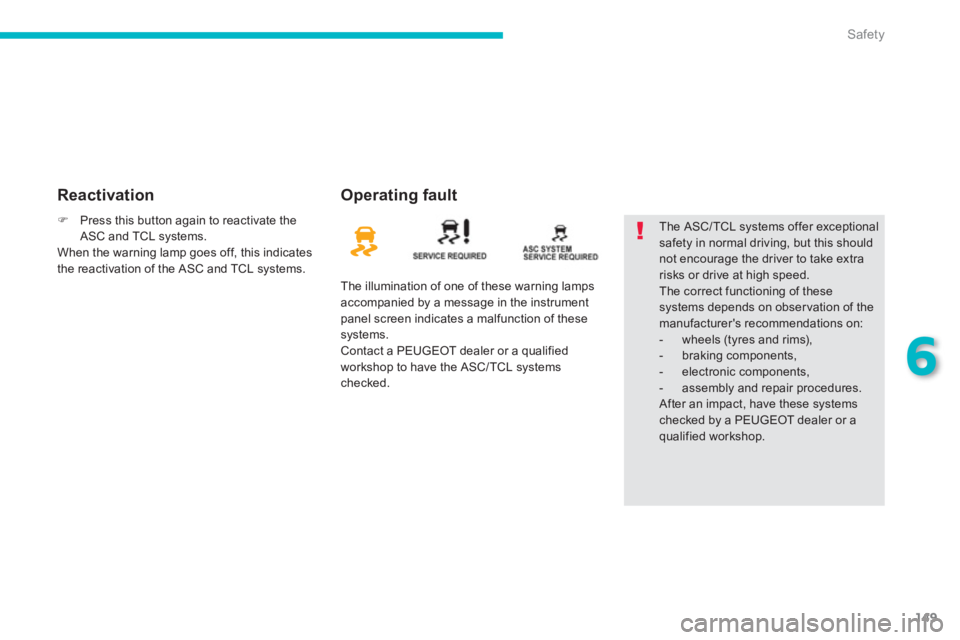

Reactivation Operating fault
The illumination of one of these warning lamps accompanied by a message in the instrument panel screen indicates a malfunction of these
systems.
Contact a PEUGEOT dealer or a qualifiedworkshop to have the ASC/ TCL systemschecked.
The ASC/TCL systems offer exceptional safety in normal driving, but this should not encourage the driver to take extra risks or drive at high speed.
The correct functioning of these systems depends on obser vation of themanufacturer's recommendations on:


- wheels (tyres and rims),

- braking components,

- electronic components,

- assembly and repair procedures.
After an impact, have these systems checked by a PEUGEOT dealer or a qualified workshop.

)Press this button again to reactivate theASC and TCL systems.
When the warning lamp goes off, this indicates
the reactivation of the ASC and TCL systems.

150
Safety

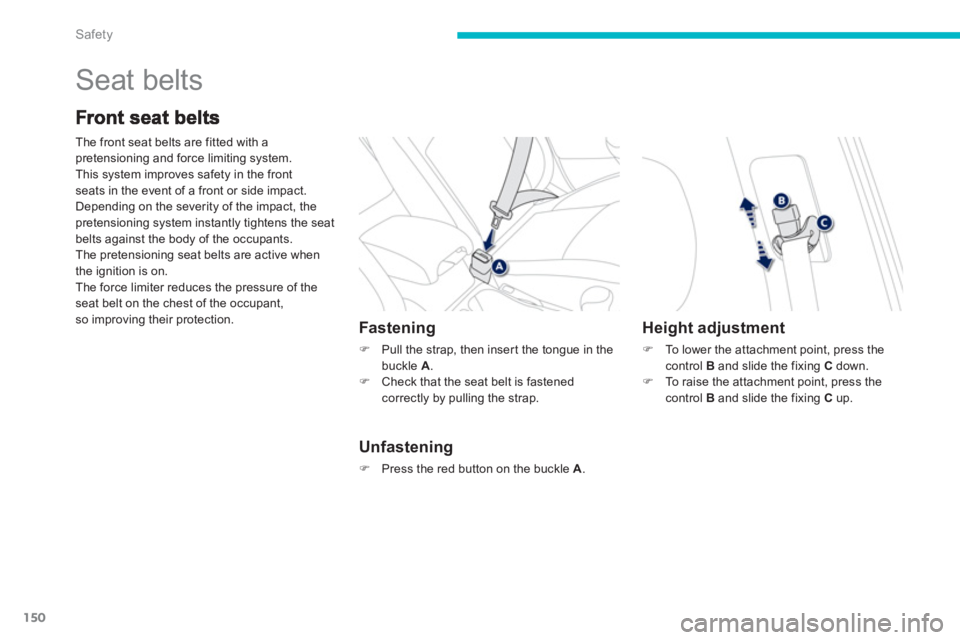

Seat belts
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the frontseats in the event of a front or side impact.
Depending on the severity of the impact, thepretensioning system instantly tightens the seat
belts a
gainst the body of the occupants.The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of the occupant, so improving their protection.Fastening
) Pull the strap, then inser t the tongue in the buckle A.)
Check that the seat belt is fastened correctly by pulling the strap.


Unfastening
)
Press the red button on the buckle A.


Height adjustment
)To lower the attachment point, press thecontrol B
and slide the fixing Cdown.)To raise the attachment point, press thecontrol B
and slide the fixing Cup.

151
6
Safety
If the driver does not fasten their seat beltwithin one minute after switching on theignition, the warning lamp flashes accompanied by an intermittent audible signal and a display
on the instrument panel screen. The warning lamp, the audible signal and the
display stop after approximately 90 secondsand return until the driver fastens their seatbelt.
If the seat belt is unfastened while the vehicleis moving
, you are aler ted by the samewarnings.
When the ignition is switched
on, t
his warning lamp comes onaccompanied by an audible signal for a few seconds if the driver has not
fastened their seat belt.

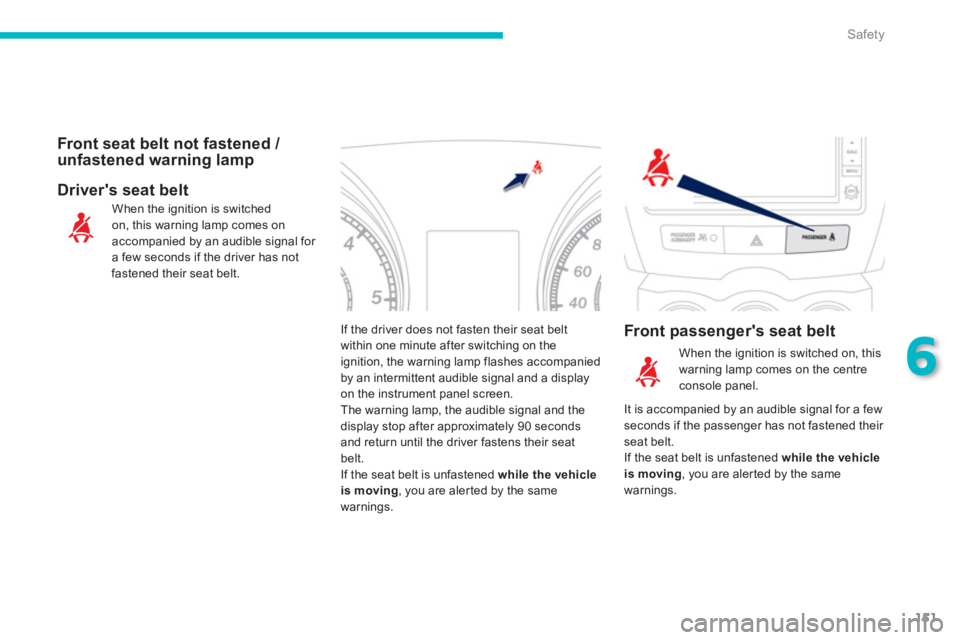

Front seat belt not fastened /
unfastened warning lamp

Front passenger's seat belt
Driver's seat belt
When the ignition is switched on, this
warning lamp comes on the centre console panel.
It is accompanied b
y an audible signal for a few seconds if the passenger has not fastened their seat belt.
If the seat belt is unfastened while the vehicle is moving
, you are aler ted by the same
warnings.

152
Safety

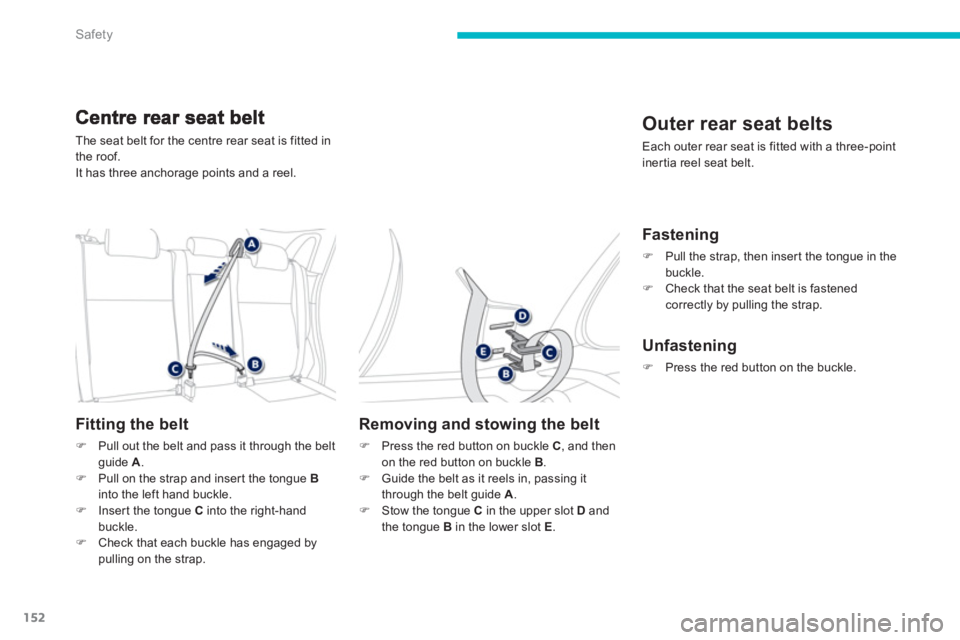

The seat belt for the centre rear seat is fitted in
the roof.
It has three anchora
ge points and a reel.
Fitting the belt
)Pull out the belt and pass it through the beltguide A . )Pull on the strap and inser t the tongue Binto the left hand buckle. )Inser t the tongue C
into the right-hand buckle.)Check that each buckle has engaged bypulling on the strap.


Removing and stowing the belt
)
Press the red button on buckle C
, and then on the red button on buckle B.)
Guide the belt as it reels in, passing it
through the belt guide A.) Stow the tongue Cin the upper slot D
and
the tongue Bin the lower slot E.
Outer rear seat belts
Each outer rear seat is fitted with a three-point
in
ertia reel seat belt.

Fastening
)Pull the strap, then inser t the tongue in thebuckle.)Check that the seat belt is fastenedcorrectly by pulling the strap.



Unfastening
)Press the red button on the buckle.

153
6
Safety

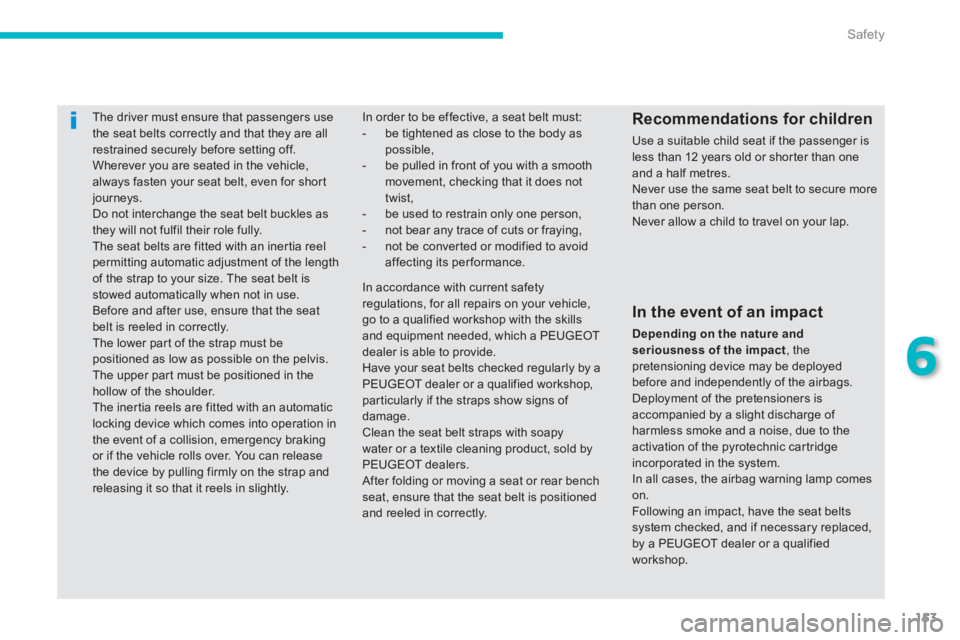

The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off.
Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys. Do not interchange the seat belt buckles asthey will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the length of the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower par t of the strap must bepositioned as low as possible on the pelvis.
The upper par t must be positioned in the hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can releasethe device by pulling firmly on the strap and releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger isless than 12 years old or shor ter than one
and a half metres. Never use the same seat belt to secure morethan one person. Never allow a child to travel on your lap.

In order to be effective, a seat belt must:


- be tightened as close to the body as possible,


- be pulled in front of you with a smooth movement, checking that it does nottwist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modified to avoid affecting its per formance.
In the event of an impact
Depending on the nature and seriousness of the impact
, thepretensioning device may be deployedbefore and independently of the airbags.Deployment of the pretensioners isaccompanied by a slight discharge of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.In all cases, the airbag warning lamp comes on.Following an impact, have the seat belts system checked, and if necessary replaced,by a PEUGEOT dealer or a qualified workshop.

In accordance with current safety regulations, for all repairs on your vehicle, go to a qualified workshop with the skills and equipment needed, which a PEUGEOT dealer is able to provide. Have your seat belts checked regularly by aPEUGEOT dealer or a qualified workshop,particularly if the straps show signs of damage.Clean the seat belt straps with soapy water or a textile cleaning product, sold byPEUGEOT dealers.
After folding or moving a seat or rear bench seat, ensure that the seat belt is positioned and reeled in correctly.

154
Safety

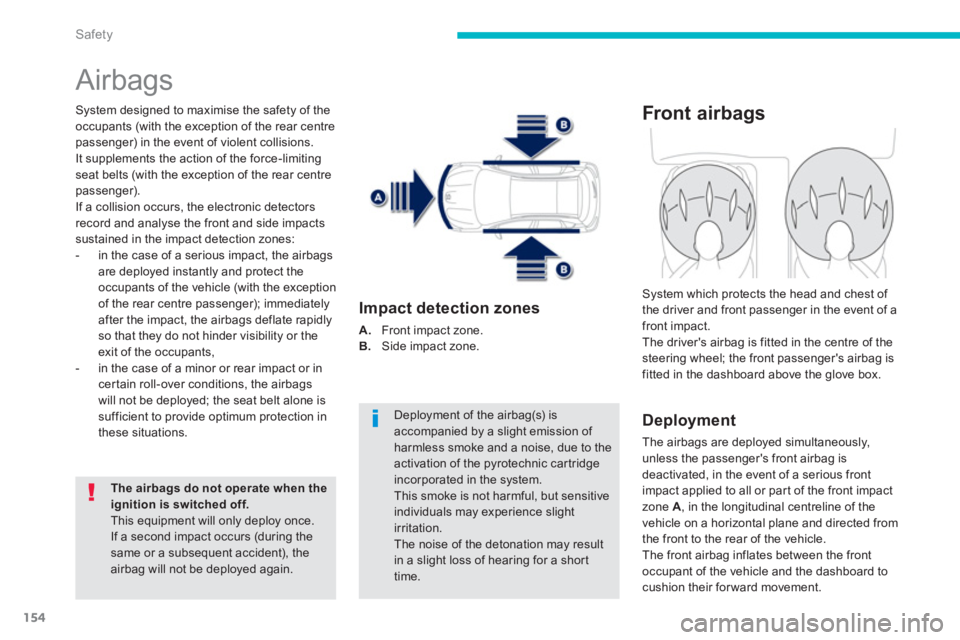

Airbags
System designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
It supplements the action of the force-limiting seat belts (with the exception of the rear centrepassenger).
If a collision occurs, the electronic detectors record and analyse the front and side impacts sustained in the impact detection zones:
- in the case of a serious impact, the airbagsare deployed instantly and protect the
occupants of the vehicle (with the exception
of the rear centre passenger); immediately after the impact, the airbags deflate rapidlyso that they do not hinder visibility or the
exit of the occupants,
- in the case of a minor or rear impact or incer tain roll-over conditions, the airbags
will not be deployed; the seat belt alone is
sufficient to provide optimum protection in
th
ese situations.
The airbags do not operate when the ignition is switched off. This equipment will only deploy once.
If a second impact occurs (during thesame or a subsequent accident), theairbag will not be deployed again.
Deployment of the airbag(s) is accompanied by a slight emission of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.This smoke is not harmful, but sensitiveindividuals may experience slight irritation.
The noise of the detonation may result in a slight loss of hearing for a shorttime.

Impact detection zones
A.
Front impact zone. B.
Side impact zone.
Front airbags


Deployment

The airbags are deployed simultaneously,
unless the passenger's front airbag is
deactivated, in the event of a serious front
impact applied to all or par t of the front impact
zone A , in the longitudinal centreline of the
vehicle on a horizontal plane and directed from
the front to the rear of the vehicle.
The front airbag inflates between the front
occupant of the vehicle and the dashboard to
cushion their forward movement.
System which protects the head and chest of
the driver and front passenger in the event of a
front impact.
The driver's airba
g is fitted in the centre of the steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.

155
6
Safety

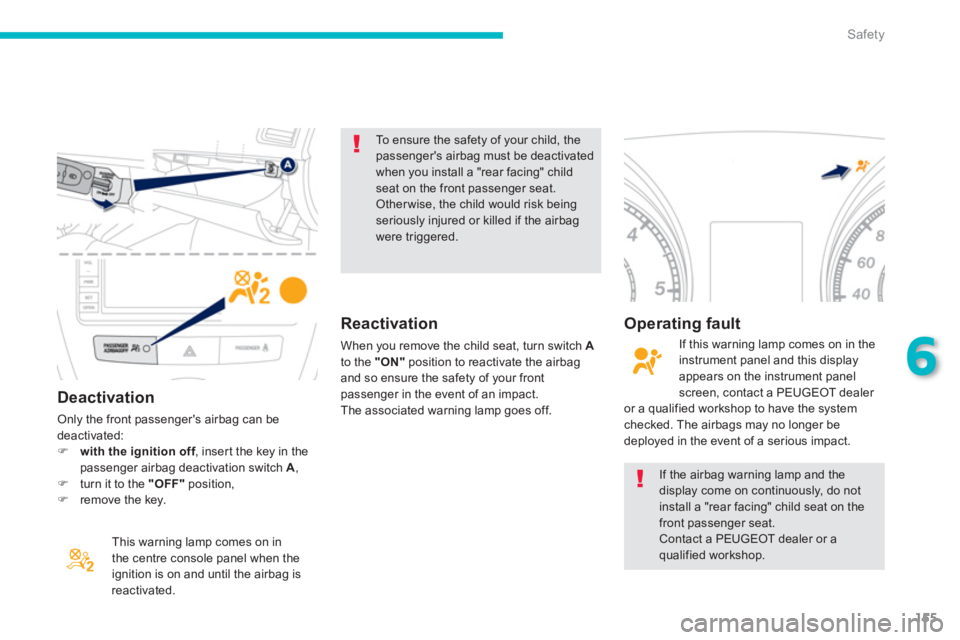

Deactivation

Only the front passenger's airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch A
, )turn it to the "OFF"position, )remove the key.
This warning lamp comes on in
the centre console panel when the
ignition is on and until the airbag is
r
eactivated.
To ensure the safety of your child, thepassenger's airbag must be deactivated when you install a "rear facing" childseat on the front passenger seat. Other wise, the child would risk beingseriously injured or killed if the airbag were triggered.
If the airbag warning lamp and the display come on continuously, do not install a "rear facing" child seat on the front passenger seat. Contact a PEUGEOT dealer or a qualified workshop.

Reactivation
When you remove the child seat, turn switch Ato the "ON"position to reactivate the airbag and so ensure the safety of your front passenger in the event of an impact.
The associated warning lamp goes off.

Operating fault
If this warning lamp comes on in the
instrument panel and this displayappears on the instrument panel
screen, contact a PEUGEOT dealer or a qualified workshop to have the systemchecked. The airbags may no longer be
deployed in the event of a serious impact.

156
Safety

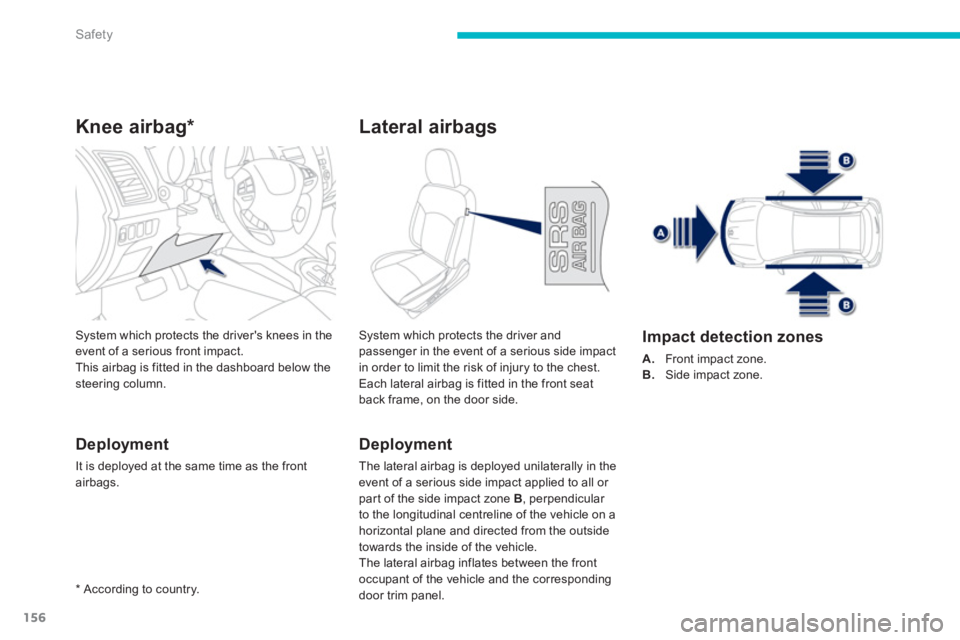

Knee airbag *
Deployment
It is deployed at the same time as the front airbags.
System which protects the driver's knees in theevent of a serious front impact.
This airbag is fitted in the dashboard below the steering column.
System which protects the driver and
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest.
Each lateral airbag is fitted in the front seat back frame, on the door side.


Deployment
The lateral airbag is deployed unilaterally in theevent of a serious side impact applied to all or par t of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
t
owards the inside of the vehicle.
The lateral airbag inflates between the front
occupant of the vehicle and the corresponding door trim panel.


Impact detection zones
A.Front impact zone.
B.Side impact zone.
*
According to country.
Lateral airbags

157
6
Safety
In the event of a minor impact or bumpon the side of the vehicle or if thevehicle rolls over, the airbag may not bedeployed.In the event of a rear or front collision,the airbag is not deployed.

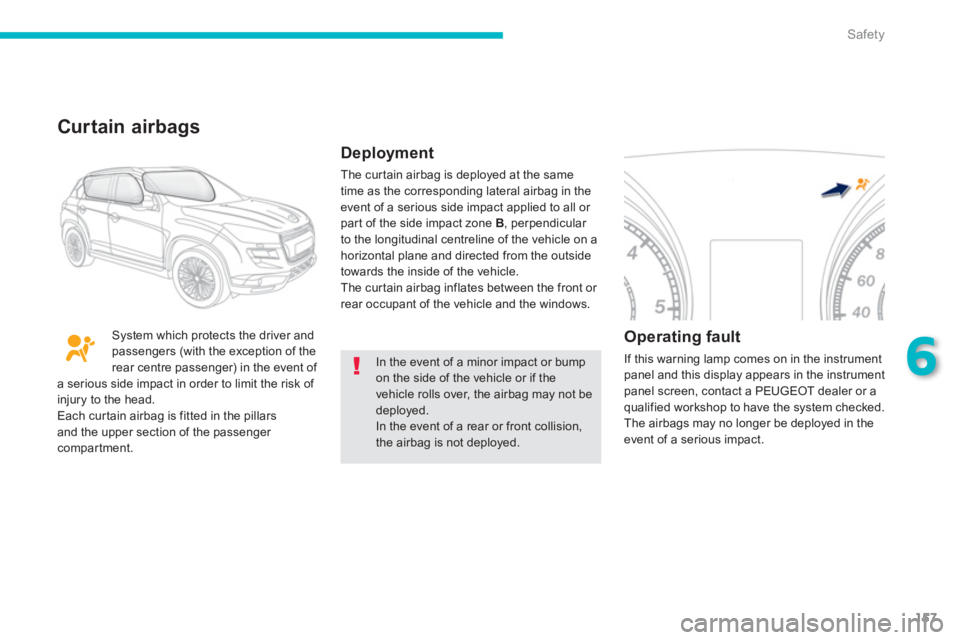

System which protects the driver and passengers (with the exception of therear centre passenger) in the event of
a serious side impact in order to limit the risk of
in
jury to the head.
Each curtain airbag is fitted in the pillars
and the upper section of the passenger compartment.
Curtain airbags
Deployment
The cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
par t of the side impact zone B , perpendicular
to the longitudinal centreline of the vehicle on ahorizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or rear occupant of the vehicle and the windows.

Operating fault

If this warning lamp comes on in the instrument
panel and this display appears in the instrument
panel screen, contact a PEUGEOT dealer or a
qualified workshop to have the system checked. The airbags may no longer be deployed in the event of a serious impact.

158
Safety

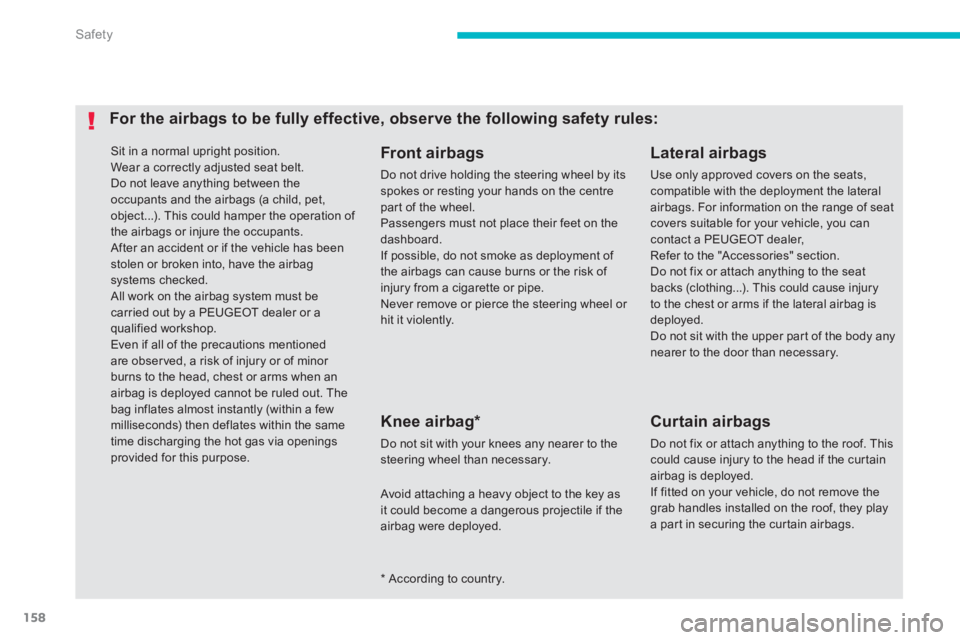

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between theoccupants and the airbags (a child, pet,object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a PEUGEOT dealer or a qualified workshop.
Even if all of the precautions mentioned are obser ved, a risk of injury or of minor burns to the head, chest or arms when an airbag is deployed cannot be ruled out. Thebag inflates almost instantly (within a few milliseconds) then deflates within the same
time discharging the hot gas via openings provided for this purpose.
Knee airbag
*
Do not sit with your knees any nearer to the steering wheel than necessary.


Front airbags

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
Passengers must not place their feet on thedashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
For the airbags to be fully effective, observe the following safety rules:
Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateral airbags. For information on the range of seatcovers suitable for your vehicle, you can contact a PEUGEOT dealer, Refer to the "Accessories" section.Do not fix or attach anything to the seat backs (clothing...). This could cause injuryto the chest or arms if the lateral airbag isdeployed.Do not sit with the upper par t of the body anynearer to the door than necessary.


*

According to country.



Curtain airbags

Do not fix or attach anything to the roof. Thiscould cause injury to the head if the cur tainairbag is deployed.
If fitted on your vehicle, do not remove the grab handles installed on the roof, they playa par t in securing the cur tain airbags.



Avoid attaching a heavy object to the key asit could become a dangerous projectile if theairbag were deployed.
