23

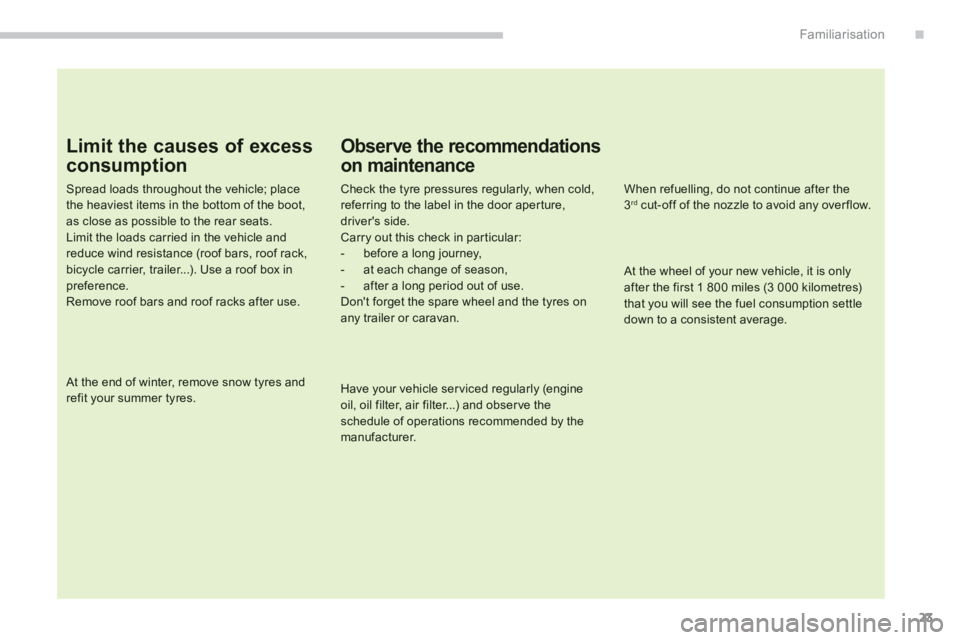

Familiarisation
Limit the causes of excess
consumption
Spread loads throughout the vehicle; placethe heaviest items in the bottom of the boot,as close as possible to the rear seats.Limit the loads carried in the vehicle and reduce wind resistance (roof bars, roof rack, bicycle carrier, trailer...). Use a roof box inpreference.Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold, referring to the label in the door aper ture, driver's side.
Carry out this check in par ticular:- before a long journey,- at each change of season,- after a long period out of use. Don't forget the spare wheel and the tyres onany trailer or caravan.
Have your vehicle ser viced regularly (engine oil, oil filter, air filter...) and obser ve the schedule of operations recommended by themanufacturer.


When refuelling, do not continue after the3 rd
cut-off of the nozzle to avoid any over flow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.

1
39
Instruments and controls
Screen 1Screen 2CauseSolution - ActionObservations
Fault with the CVT gearbox. Contact a PEUGEOT dealer or
a qualified workshop.
The temperature of the four wheel
drive transmission system is toohigh. Stop the vehicle and contact
a PEUGEOT dealer or a qualified workshop. The vehicle chan
ges automatically
to two wheel drive (2WD).
Th
e fuel level is low. Refuel as soon as possible.
The low level o
f the particleemissions filter additive reservoir has been reached.
Have the reser voir topped up as
soon as possible by a PEUGEOT
dealer or a qualified workshop.
Only for the 1.6 litre HDi engine.
+Star t of saturation of the par ticle
emissions filter. As soon as the driving conditions
allow, regenerate the filter by driving at
a speed of at least 25 mph (40 km/h)
for around 20 minutes (with the 1.6 litre HDi engine the minimum speed is
36 mph (60 km/h)). If the messa
ge remains on, contact a PEUGEOT or a qualified
workshop.
The par ticle emissions filter is fault
y. Stop as soon as it is safe to do so. Contact a PEUGEOT dealer or
a qualified workshop as soon as
possible.

40
Instruments and controls
Screen 1Screen 2CauseSolution - ActionObservations
Engine oil level not correct (below minimum level or above maximum level). Stop the vehicle as soon as it is safe
to do so.
Check the level with the dipstick and
top-up if the level low.
I
f the level is above the maximum
mark, do not restar t the engine andcontact a PEUGEOT dealer or aqualified workshop. Never drive with an incorrect oil
level.
Presence of water in the Diesel fuel filter. Risk of damage to the injection system on Diesel engines. Contact a PEUGEOT dealer or
a qualified workshop as soon as possible.
The ambient temperature is at or
below 3 °C
(37 °F). There may be black ice on the road.
Take care and drive gently.
The clutch pedal is not depressed
while star tin
g the engine. Depress the clutch pedal to star t theengine. For vehicles fitted with a manual gearbox.
The gear lever is not in position P
or position N
when starting the engine. Place the gear lever at position P tostart the engine. For vehicles fitted with a CVT gearbox.
The brake
pedal is not pressed
while star ting the engine. Press the brake pedal to star t theengine.

207
8
Checks
checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.














Diesel engines
1.
Screenwash and headlamp wash fluidreservoir.2.Coolant reservoir.3.Brake fluid reservoir.4.
Battery.
5. Fusebox.
6.Air filter.
7. Engine oil dipstick.8.Engine oil filler cap.9.
Priming pump * . 1.6HDi 110
1.8 HDi 150
*

According to engine.

9
217
Technical data
PETROL ENGINES1.6 litre 1152.0 litre 150
Model codes:BU...
NKZ7NKZ7/SNKZ0NKZ0/S
AFYRAFZ7AFYVAFZMAFYTAFZHAFYWAFZP
Transmission mode2WD2WD4WD2WD4WD
Cubic capacity (cc) 1 590
1 998

Bore x stroke (mm) 75 x 90 86 x 86

Max power: EU standard
(kW) 86113

Max power engine speed
(rpm)
6 000
6 000
Max torque: EU standard
(Nm)154
199

Max torque en
gine speed (rpm)
4 000

4 200

Fuel Unleaded Unleaded

Catalytic converter
Yes
Yes

GEARBOXE
S Manual(5-speed)
Manual
(5-speed)
CVT(6-speed)

OIL CAPACITY
(in litres)
Engine (with filter replacement)
4.2

4.3
.../S
: model fitted with the Stop & Start (AS&G) function.















Engines and gearboxes

.
321 Alphabetical index
ABS and EBFD systems ...............................146Accessories..................................................202Accessory socket, 12V ...................98, 100,101Access to bulbs.............................................181Active stability control (ASC)........................148Adjusting headlamps....................................137Adjusting head restraints ................................81Adjusting seat belt height..............................150Adjustingthe steering wheel........................................87Airbag, knee..........................................156,158Airbags, curtain.....................................157,158Airbags, front.........................................154,158Airbags, lateral...................................... 156, 158Air conditioning...............................................22Air conditioning, automatic .......................89, 92Air conditioning, manual...........................89,90Air filter..........................................................r214Air flow............................................................22Air intake.........................................................92Air vents..........................................................88Alarm ...............................................................73Anti-lock braking
system (ABS)..............................................146Anti-theft........................................................110Apple® player®.........................................266-268Armrest, front....................................82,98,101Armrest, rear...................................................r84ASC...............................................................148Ashtray, por table.....................................98,100Audible warning............................................145Audio-CD system .................................. 283-320Audio-telematics ..................................223-282Audio-video...................................................236Audio streaming (Bluetooth).........269,307,308Audio system functions .........................224, 285Automatic illumination of headlamps....132,134Automatic operation of hazard warninglamps..........................................................145
Automatic rain sensitive
windscreen wipers ......................................140Automatic switchingoff of lighting...............................................134Auxiliary sockets..................102, 264,304,305
Capacity, fuel tank ........................................208CD changer...................................................r301CD MP3 .................................................240, 299Central locking..........................................62,65Changing a bulb.....................................180-185Changing a fuse....................................186 -191Changing a wheel..................................174-179
A
C
Changing a wiper blade................................195Changing the remote control battery..............68Changing the time.....................................54, 58Checking levels......................................211-213Checking the engine oil level ........................211Checks ..................................................205-216Child lock.......................................................169Child seats ............................................159-168Cigarette lighter.............................................r100Closing the boot ........................................62, 71Closing the doors ................................62,65, 70Colour screen.................................56, 224, 225Connectors, audio................102,264,304, 305Controls for air conditioning ......................90, 92Coolant ............................................................46Coolant level.................................................212Copying a CD................................................241Courtesy lamp, front.....................................142Cour tesy lamp, rear......................................r143Cruise control................................................124Cup holder.......................................................r98CVT gearbox.........................................113,215
Battery ...................................................192,214
Battery, charging...........................................19 4Battery, remote control.............................68,69Bluetooth (telephone).............269-282, 309-319Bonnet...........................................................205Bonnet stay...................................................205Boot.................................................................71Boot lamp......................................................144Bottle holder....................................................r98Brake discs....................................................216Brake lamps .................................................. 184Brake pads....................................................216Brakes...........................................................216Braking assistance system...........................146Bulbs (changing, type) ..........................180, 184
B
Daytime running lamps.........................134, 182Deactivating ASC..........................................148Deactivating the passenger airbag...............155Deactivation of the passenger and rear window control switches ................77Deadlocking..............................................63, 65Defrosting..................................................96, 97Demisting ..................................................96, 97Dials................................................................24Diesel additive level......................................213Dimensions...................................................221
D

.
323
Alphabetical index
Key in ignition warning..................................106Keyless Entry and Star ting...............64-67, 107Key with remote control ....................60, 62,110
Labels, identification.....................................222Lamps, front..................................................180Lamps, rear...................................................r184Lamps, warning and indicator...................r25-42LED daytime running lamps..........................182Level, brake fluid...........................................212Level, headlamp wash..................................213Levels and checks.................................205-216Lighting, guide-me home .............................. 135Lighting, interior.....................................r142-144Lighting bulbs (replacement).................180-185Lighting control stalk.....................................131Lighting dimmer..............................................r59Lighting on reminder.....................................r133Loading............................................................22Long objects, transpor ting..............................84
Low fuel level................................................208Luggage retaining strap ................................ 104
Main beam .................................... 136, 180,182Maintenance....................................................22Map (colour screen)......................................227Map reading lamps .......................................142Markings, identification.................................222Mat..................................................................99Match telephone ...................................269, 312
Navigation.............................................226-235Number plate lamps ..............................184, 185
Oil filter..........................................................r214Oil level..........................................................211Opening the bonnet......................................205Opening the boot................................60, 64,71Opening the doors ..............................60,64, 70Opening the fuel filler flap .............................208Operation indicator lamps.........................25-42
Radio .....................................................236,291Range..............................................................46RCA sockets .................................................304Rear foglamp.................................13 3, 184,185Rear screen (demisting)..................................97Recharging the battery.................................194Recirculation / exterior air intake..............91, 9 4Regeneration of the particleemissions filter............................................r215Remote control..........................................60-69Removing a wheel........................................176Removing the mat...........................................99Repair kit, puncture.......................................170Replacing bulbs.....................................180-185Replacing fuses.....................................186-191Replacing the air filter...................................r214Replacing the oil filter...................................r214Replacing the passenger compartment filter......................................r214Replacing wiper blades .................................195Rev counter.....................................................r24Reversing camera.........................................130Roof bars.......................................................201Roof blind ........................................................78Routine checks ......................................214-216Running out of fuel (Diesel)..........................210
L
M
N
O
R
Menus (audio)...............................................225Mirror, rear view..............................................87Mirrors, door....................................................r85Motorway function (direction indicators) ....... 145Mountings for ISOFIX seats.................164,167MP3 CD.................................................240, 299Music server..........................................r240-251
Player, CD MP3.....................................240, 299Port, USB.............................102,264, 304, 305Priming the fuel system ................................210Protecting children........................ 155, 159 -169Puncture........................................................170
Panoramic glass sunroof................................f78Parcel shelf, rear...........................................r105Parking brake........................................110, 216Parking sensors, front...................................129Parking sensors, rear............................r127, 128Particle emission filter..........r205,212,213, 215Passenger compartment filter......................r214
P

328

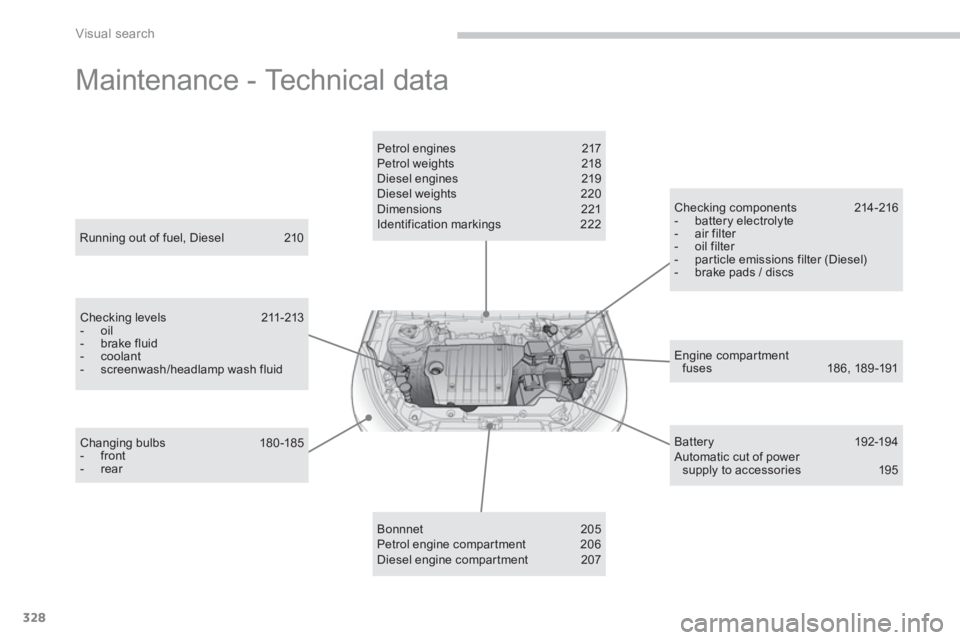

Visual search
Maintenance - Technical data
Engine compartmentfuses 18 6, 189 -191


Running out of fuel, Diesel 210
Checking levels 211-213 - oil - brake fluid - coolant - screenwash/headlamp wash fluid

Changing bulbs 180 -185 - front - rear




Petrol engines 217
Petrol weights 218
Diesel engines 219
Diesel weights 220
Dimensions 221
Identification markings 222


Bonnnet 205
Petrol engine compartment 206
Diesel engine compar tment 207
Battery 192-19 4
Automatic cut of powersupply to accessories 195
Checking components 214 -216 - battery electrolyte - air filter - oil filter - particle emissions filter (Diesel) - brake pads / discs
