17-02-2003

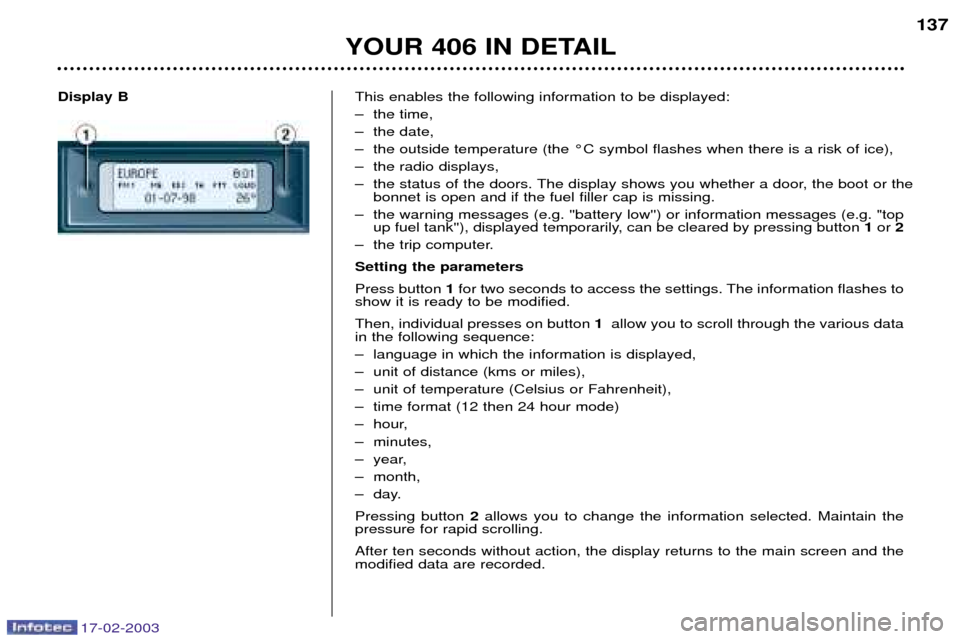

Display BThis enables the following information to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (the ¡C symbol flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The display shows you whether a door, the boot or thebonnet is open and if the fuel filler cap is missing.
Ð the warning messages (e.g. ''battery low'') or information messages (e.g. "top up fuel tank''), displayed temporarily, can be cleared by pressing button 1or 2
Ð the trip computer. Setting the parameters Press button 1for two seconds to access the settings. The information flashes to
show it is ready to be modified.Then, individual presses on button 1 allow you to scroll through the various data
in the following sequence:
Ð language in which the information is displayed,
Ð unit of distance (kms or miles),
Ð unit of temperature (Celsius or Fahrenheit),
Ð time format (12 then 24 hour mode)
Ð hour,
Ð minutes,
Ð year,
Ð month,
Ð day. Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling.After ten seconds without action, the display returns to the main screen and the modified data are recorded.
YOUR 406 IN DETAIL 137
17-02-2003

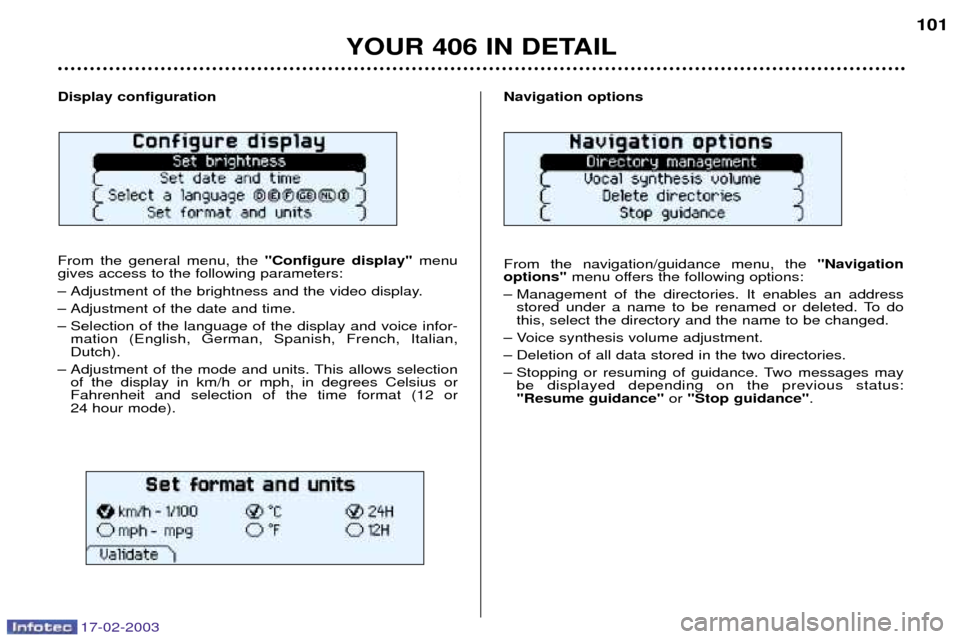

Navigation options From the navigation/guidance menu, the "Navigation
options" menu offers the following options:
Ð Management of the directories. It enables an address stored under a name to be renamed or deleted. To do this, select the directory and the name to be changed.
Ð Voice synthesis volume adjustment.
Ð Deletion of all data stored in the two directories.
Ð Stopping or resuming of guidance. Two messages may be displayed depending on the previous status: "Resume guidance" or "Stop guidance" .
YOUR 406 IN DETAIL 101
Display configuration From the general menu, the "Configure display"menu
gives access to the following parameters:
Ð Adjustment of the brightness and the video display.
Ð Adjustment of the date and time.
Ð Selection of the language of the display and voice infor- mation (English, German, Spanish, French, Italian, Dutch).
Ð Adjustment of the mode and units. This allows selection of the display in km/h or mph, in degrees Celsius orFahrenheit and selection of the time format (12 or
24 hour mode).
