change wheel Peugeot 406 C 2003 Owner's Manual

24-03-2003

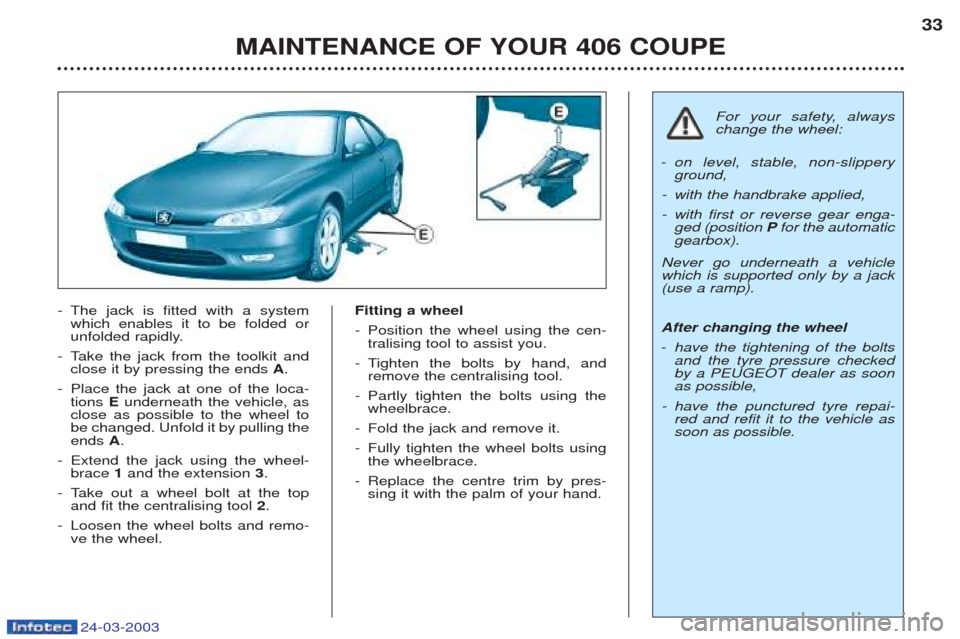

-The jack is fitted with a system which enables it to be folded or
unfolded rapidly.
-T ake the jack from the toolkit and
close it by pressing the ends A.
- Place the jack at one of the loca-tions Eunderneath the vehicle, as
close as possible to the wheel tobe changed. Unfold it by pulling theends A.
- Extend the jack using the wheel-brace 1and the extension 3.
-T ake out a wheel bolt at the top
and fit the centralising tool 2.
- Loosen the wheel bolts and remo-ve the wheel. Fitting a wheel -
Position the wheel using the cen- tralising tool to assist you.
-T ighten the bolts by hand, and
remove the centralising tool.
- Partly tighten the bolts using thewheelbrace.
- Fold the jack and remove it.
- Fully tighten the wheel bolts usingthe wheelbrace.
- Replace the centre trim by pres-sing it with the palm of your hand.
MAINTENANCE OF YOUR 406 COUPE 33
For your safety, always change the wheel:
- on level, stable, non-slipperyground,
- with the handbrake applied,
- with first or reverse gear enga-ged (position Pfor the automatic
gearbox).
Never go underneath a vehiclewhich is supported only by a jack(use a ramp). After changing the wheel - have the tightening of the bolts and the tyre pressure checkedby a PEUGEOT dealer as soonas possible,
- have the punctured tyre repai-red and refit it to the vehicle assoon as possible.

24-03-2003
MAINTENANCE OF YOUR 406 COUPE47
406 COUPE ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products. A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee. Ð Security :Alarms, window engraving, wheel anti-theft devices, first aid kit, warning triangle, etc.
Ð Protection :Carpets, door sill protector, boot tray mat, styling strips, seat covers compatible with side air bags, protective film for bumpers.
Ð Communication :Telephone, hands-free kits, satellite navigation, audio equipment, CD changer, speakers.
Ð Customisation :Alloy wheels, spoiler, sports exhaust, leather gear lever knob, leather steering wheel.
Ð Comfort :Storage facilities, luggage net, telephone console, armrest.
Ð Leisure pursuits : Tow bar, boot rack, snow chains.
Ð Children :Booster seats and child seats.
Ð Maintenance products :Windscreen wash fluid, internal and external cleaning and maintenance products.
