MAINTENANCE OF YOUR 406 COUPE
26
2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
01-07-2002

MAINTENANCE OF YOUR 406 COUPE27
2.2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
01-07-2002

MAINTENANCE OF YOUR 406 COUPE
28
3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
01-07-2002

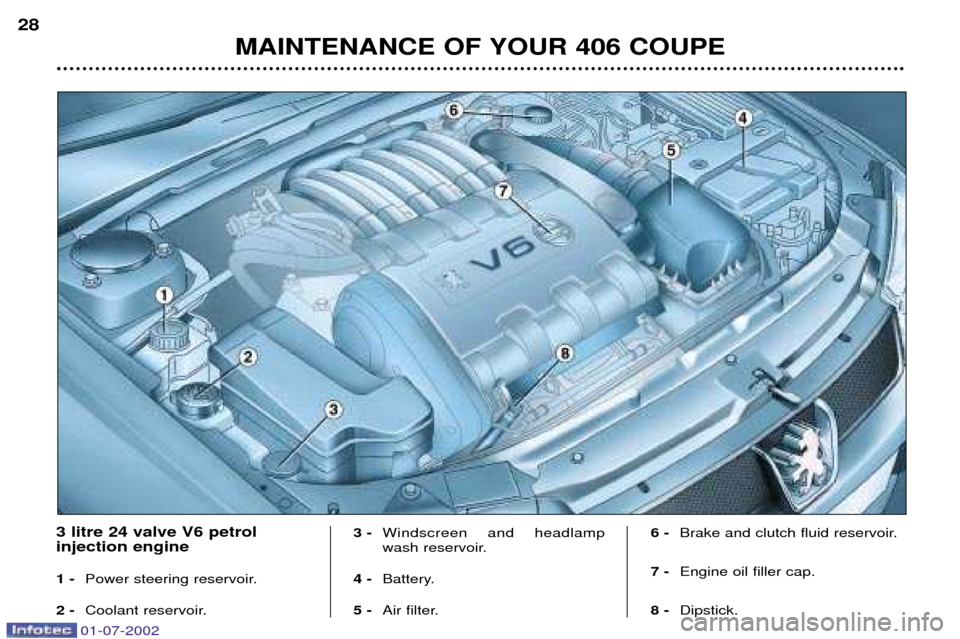

3 litre 24 valve V6 petrol injection engine 1 - Power steering reservoir.
2 - Coolant reservoir.

MAINTENANCE OF YOUR 406 COUPE29
2.2 litre 16V turbo diesel HDI engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
01-07-2002

Power steering reservoir Open the reservoir with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4.5 litres or 9 litres withheadlamp wash). Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential. If you drive in
very dusty conditions, change ittwice as often. Brake pads Brake pad wear depends on the style of driving, in particular forvehicles that are used in town, forshort journeys. It may be necessaryto check the thickness of the padseven between services. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system
checked by a PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Automatic autoadaptive gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer according to themanufacturer's servicing schedule.
MAINTENANCE OF YOUR 406 COUPE
31
Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best perfor- mance from components
as important as the power stee-ring and the braking system,PEUGEOT selects and offersquite specific products.
01-07-2002

Power steering reservoir Open the reservoir with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4.5 litres or 9 litres withheadlamp wash). Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential. If you drive in
very dusty conditions, change ittwice as often. Brake pads Brake pad wear depends on the style of driving, in particular forvehicles that are used in town, forshort journeys. It may be necessaryto check the thickness of the padseven between services. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system
checked by a PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Automatic autoadaptive gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer according to themanufacturer's servicing schedule.
MAINTENANCE OF YOUR 406 COUPE
31
Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best perfor- mance from components
as important as the power stee-ring and the braking system,PEUGEOT selects and offersquite specific products.
01-07-2002

MAINTENANCE OF YOUR 406 COUPE35
CHANGING A BULB
1 - Dipped beam headlamps
2 - Main beam headlamps
Two bulbs
(H7-55W).
- Remove the red plastic cover.
- Press the tab and remove the protective cover corresponding to the faulty bulb.
- Disconnect the connector.
- Press the end of the securing clip to remove it. Change the bulb.
- When fitting, ensure that the direction notches are positioned correctly and that the securing clip is corrrectly fixed.
- Reconnect the connector.
- Replace the protective cover.
3 - Side lights (W 5 W)
Turn the socket using the lever and remove it. Change the bulb.
4 - Direction indicators (PY 21 W)
Turn the bulb holder a quarter turn and remove it. Change the bulb. Notes: only handle H7 bulbs using a dry cloth.
To replace the left-hand bulbs, remove the battery protective cover. Direction indicator repeater (W 5 W)
- Pull the rear section of the transpa-
rent cover and release the assem-
bly.
- Turn the connector a quarter turn and remove it.
- Change the bulb.
Amber bulbs must bereplaced by bulbs of iden-tical specification and
colour.
In certain climatic conditions (lowtemperatures, humidity), the pre-
sence of condensation on theinside of the headlamp glass isnormal ; it disappears a few
minutes after the lights switch on.
01-07-2002

MAINTENANCE OF YOUR 406 COUPE
40
Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. Some electrical accessories or the way in which they are fitted canhave damaging effects on theoperation of your vehicle; theelectronic control circuits, theaudio circuit and the battery charging circuit. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying malfunctions resulting fromthe installation of accessories notsupplied and not recommendedby PEUGEOT and not installed inaccordance with its instructions, inparticular where the equipment inquestion consumes more than 10 milliamperes.
Fuse N¡ Rating Functions
1* 10 A
Reversing lights - Double injection relay - Engine oil
temperature - Oil level - Air conditioning compressor.
2* 15 AFuel pump - Canister solenoid valve.
3* 10 A Control unit.
4* 10 A Engine control unit and automatic gearbox.
5 10 A Particulate Emission Filter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash.
8* 20 A Direct petrol injection engine control unit - Clutch pedal.
9* 15 A Left-hand dipped beam.
10* 15 A Right-hand dipped beam.
