YOUR 406 AT A GLANCE
13
Do not use cruise control on slippery roads or inheavy traffic.
CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed program-
med by the driver, regardless of the road characteristics and without thedriver having to touch the accelerator or brake pedals. In order for it to be memorised, the vehicle speed must be greater than 25 mph (40 km/h). Operation Place switch 1 in the ON position.
A speed can now be memorised.  Place switch 1 in the OFF position to de-activate the system.
Memorising a speed As soon as you reach the chosen speed, press button 2 or 3This memo-
rises the speed, which will be maintained automatically. Note: It is possible to accelerate momentarily without disarming the crui-
se control. Cancelling the memorised speed If you wish to cancel the memorised speed:
 Press button 4 or the brake or clutch pedal.
Recalling the memorised speedAfter cancelling, press button 4. Your vehicle will return to the
last memorised speed. Changing a memorised speed
To memorise a speed higher than the previous one:
 press button 3;
 release it when you have rea-ched the required speed.
To memorise a speed lower thanthe previous one:  press button 2;
 release it when you have rea-ched the required speed.
Cancelling the cruise control  place switch 1in the OFF
position or switch off the igni-tion.
150

YOUR 406 AT A GLANCE
10
N° Symbol Function1
Te mperatureadjustment
2Demisting the rearscreen
3Air intake control
4Setting the air distribution
5Air flow adjustment
6Air conditioning control
HEATING/AIR CONDITIONING
58
60

N° Symbol Function1
Temperatureadjustment
2Automatic visibility programme
3Automatic comfort programme
4Demisting the rear screen
5Setting the air distribution
6Air conditioning control
7Air flowadjustment
8Air flow control
YOUR 406 AT A GLANCE
11
AUTOMATIC AIR CONDITIONING
62

PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.

SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The air bags and the pretensioning seat beltsmust be replaced every 10 years.
The brake fluid must be replaced every 36/40,000 miles (60 000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).
Replacement of the timing belt: consult your Peugeot dealer.
MAINTENANCE OF YOUR 406
19

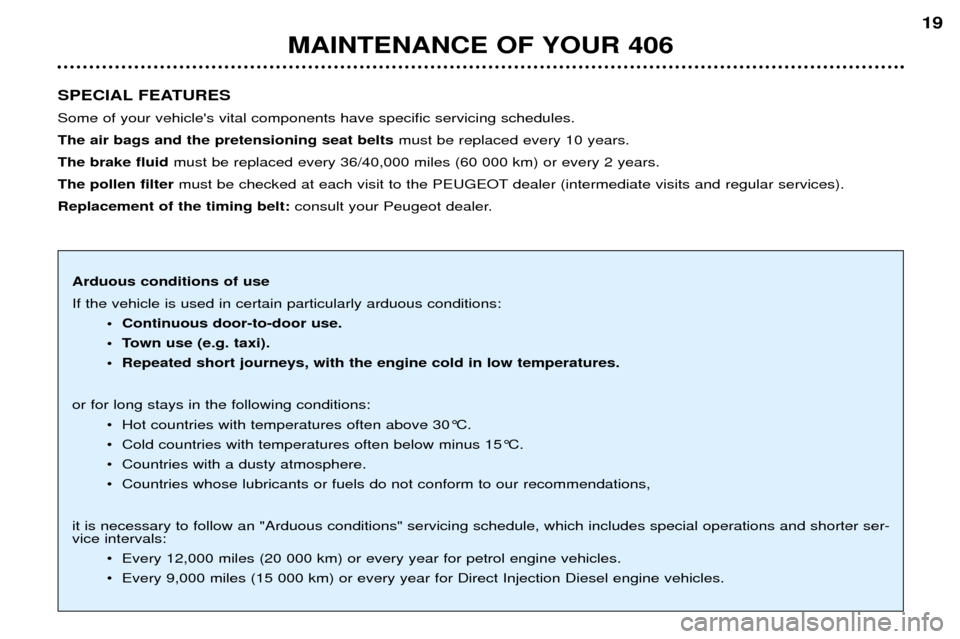

Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:

SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to the man-ufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows youthe distance remaining (in round fig-ures) before the next service. Example:4,800 miles remain before
the next service is due. When the ignition comes on and for 5 secondsthe display indicates: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the display shows the total or tripdistances. The distance remaining before thenext service is less than 1,000 miles. Example:
900 miles remain before
the next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the symbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances. The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 miles. The service should be
carried out very shortly. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operation
and the symbol remains lit. The dis-play shows the total or trip distances.
YOUR 406 IN DETAIL
135

Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the serviceyourself, the reset procedure is asfollows: – Switch off the ignition.
– Press and hold button 1.
– Switch on the ignition.
The display begins a 10 second countdown. – Keep button 1pressed for
10 seconds.
The display shows [= 0] and the ser-
vice symbol disappears.
YOUR 406 IN DETAIL
136

80,000 (120 000) 100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000)
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000)
SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
The servicing cycle consists of alternating 2 types of service A and C, intermediate visits, and a few additional operations depending on your vehicle; these correspond to key stages in the life of your 406. Level B service is designed for less recent vehicles.When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
MAINTENANCE OF YOUR 406
20
Automatic gearbox oil level every 40,000 miles (60 000 km). Replacement of brake fluidevery 2 years or 40,000 miles (60 000 km).
These fixed operations are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil may also be used.
Warning: do not use Fuel Economy oil in the 2.2 litre 16V petrol engine. Intermediate top-up visit
THE MAINTENANCE CYCLE FOR YOUR 406 PETROL
Petrol engine (except 24V V6 injection): service every 20,000 miles (30 000 km) or 2 years
1st service at 6,000
miles (10 000 km) or 6 months*.
This is necessary in
order to benefit from the warranty.
* Whichever comes first.

MAINTENANCE OF YOUR 406
21
80,000 (120 000) 100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000)
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000)
Automatic gearbox oil level every 40,000 miles (60 000 km). Replacement of brake fluidevery 2 years or 40,000 miles (60 000 km).
These fixed operations are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil may also be used. Intermediate top-up visit
THE MAINTENANCE CYCLE FOR YOUR 406 PETROL
24V V6 petrol injection engine: service every 20,000 miles (30 000 km) or 2 years
1st service at 6,000 miles
(10 000 km) or 6 months*. This is necessary
in order to benefit
from the warranty.
+ replacement of air filter
+ replacement of fuel filter
+ replacement of air filter
+ replacement of fuel filter
* Whichever comes first.

MAINTENANCE OF YOUR 406
22
Automatic gearbox oil every 2 years or 36,000 miles (60 000 km). Replacement of brake fluidevery 2 years or 36,000 miles (60 000 km).
These fixed operations are carried out with synthetic basedoil; Fuel Economy oil or
synthetic oil may also be used.
Warning: only use 5W 40 oil for 2.2 litre HDI engines. Intermediate top-up visit
MILES (KM) 12,000 (20 000) 24,000 (40 000) 36,000 (60 000) 48,000 (80 000)
60,000 (100 000) 72,000 (120 000) 84,000 (140 000) 96,000 (160 000) 108,000 (180 000)
THE MAINTENANCE CYCLE FOR YOUR 406 TURBO DIESEL HDI
Service every 12,000 miles (20 000 km) or 2 years
1st service at 6,000 miles
(10 000 km) or 6 months*. This is necessary
in order to benefit
from the warranty.
+ maintenance of particulate
emission filter
(except 2 litre HDI 90 bhp)
+ maintenance of particulate emission
filter (except 2 litre HDI 90 bhp)
* Whichever comes first.
